2-20 — MANUAL TRANSMISSION ASM AND CASE (#147066) — 54 parça

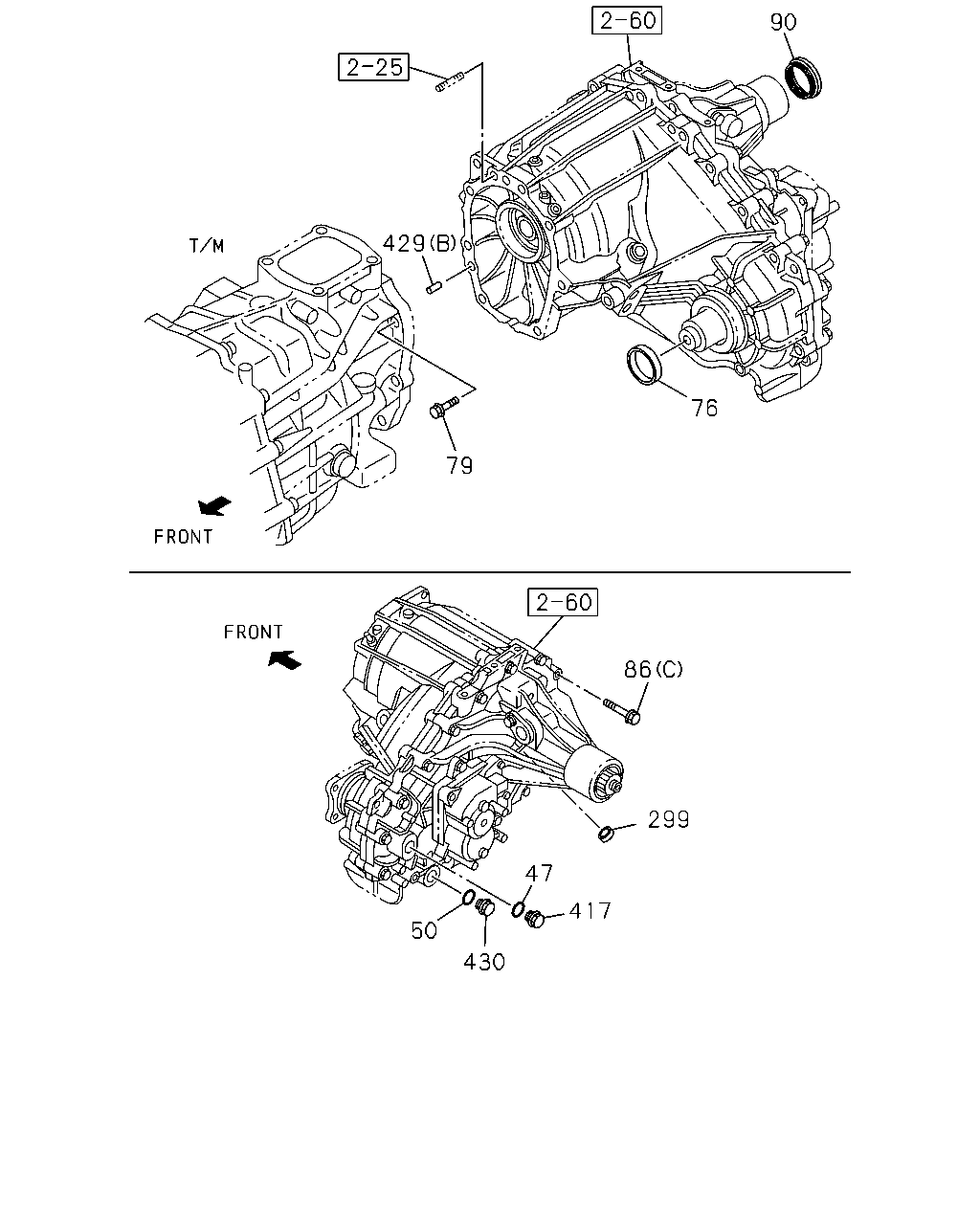

429 79 76 47 417 430 50 299 86 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS 4X4(UCS***) 04.105 ID=17	8-97115-712-0	01	1	1408-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1408-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(UCS***) ID=17	8-97115-712-0	01	1	1408-	●
76	04.510 SEAL; OIL,TRANSFER CASE 4X4(UCS***) NOK	8-97238-999-0	01	1	1408-	●
79	04.510 BOLT; TRANSFER CASE 4X4(UCS***) 00.685 M10X45 FLANGE	0-28051-045-0	07	1	1408-	●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1408-		●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1408-		●
86	04.317 BOLT; RR COVER 4X4(UCS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1408-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	1408-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(UCS***) NOK	8-97046-705-3	01	1	1408-	●
299	04.317 PLUG; SHIFTER ROD 4X4(UCS***) 00.034 OD=15.6	8-94173-641-0	02	1	1408-	●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1408-		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(UCS***)	8-97365-373-0	01	1	1408-	●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1408-		●
429	04.105 PIN; STRAIGHT 4X4(UCS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	1408-	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1408-		●
430	04.105 PLUG; OIL DRAIN 4X4(UCS***)	8-97365-374-0	01	1	1408-	●

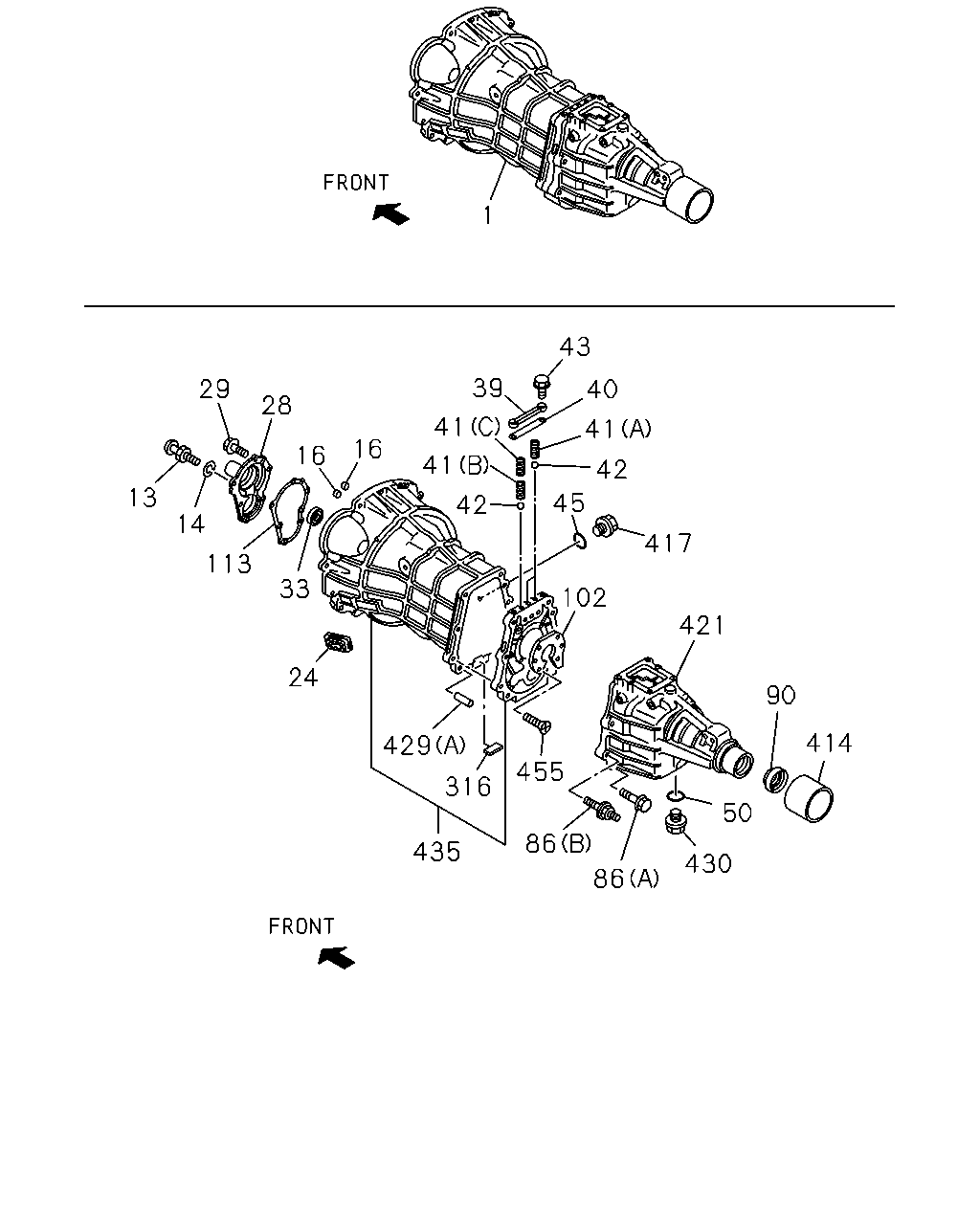

1 43 40 39 41 42 45 41 41 417 102 421 90 414 50 430 86 86 455 435 316 429 24 33 113 14 13 29 28 16 16 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.003 TRANSMISSION ASM; MANUAL	8-98172-464-0	01	1	1408-		●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1408-		●
14	04.302 WASHER; LK,SUPPORT 03.634 ID=12.2	0-91510-512-0	01	1	1408-		●
16	04.105 PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	1408-		●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	1408-		●
28	04.356 COVER; FRT,TRANS CASE	8-97104-676-0	01	1	1408-		●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1408-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	1408-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-3	01	1	1408-		●
39	04.311 PLATE; DETENT SPR	8-98035-571-0	01	1	1408-		●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	1408-		●
41	04.311 SPRING; DETENT BALL (A) L=26.8	8-94320-193-0	02	1	1408-		●
41	04.311 SPRING; DETENT BALL (B) L=27.6	8-97214-402-0	01	1	1408-		●
41	04.311 SPRING; DETENT BALL (C) L=26.6	8-97214-403-0	01	1	1408-		●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	1408-		●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-97365-376-0	02	1	1408-		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1408-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1408-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(UCS***) ID=17	8-97115-712-0	01	1	1408-	●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1408-		●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1408-		●
86	04.317 BOLT; RR COVER 4X4(UCS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1408-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	1408-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(UCS***) NOK	8-97046-705-3	01	1	1408-	●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	1408-		●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	1408-		●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1408-		●
414	04.317 COVER; DUST,RR COVER	8-98027-802-0	01	1	1408-		●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1408-		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(UCS***)	8-97365-373-0	01	1	1408-	●
421	04.317 COVER; RR,TRANS	8-98191-921-0	01	1	1408-		●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1408-		●
429	04.105 PIN; STRAIGHT 4X4(UCS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	1408-	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1408-		●
430	04.105 PLUG; OIL DRAIN 4X4(UCS***)	8-97365-374-0	01	1	1408-	●
435	04.103 CASE; TRANS	8-98047-230-0	01	1	1408-		●
455	04.008 SCREW; BRG RET M8X22	8-98035-654-0	04	1	1408-		●
