◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51520 - UCR/UCS(MIDDLE EAST) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#147061) — 12 parça

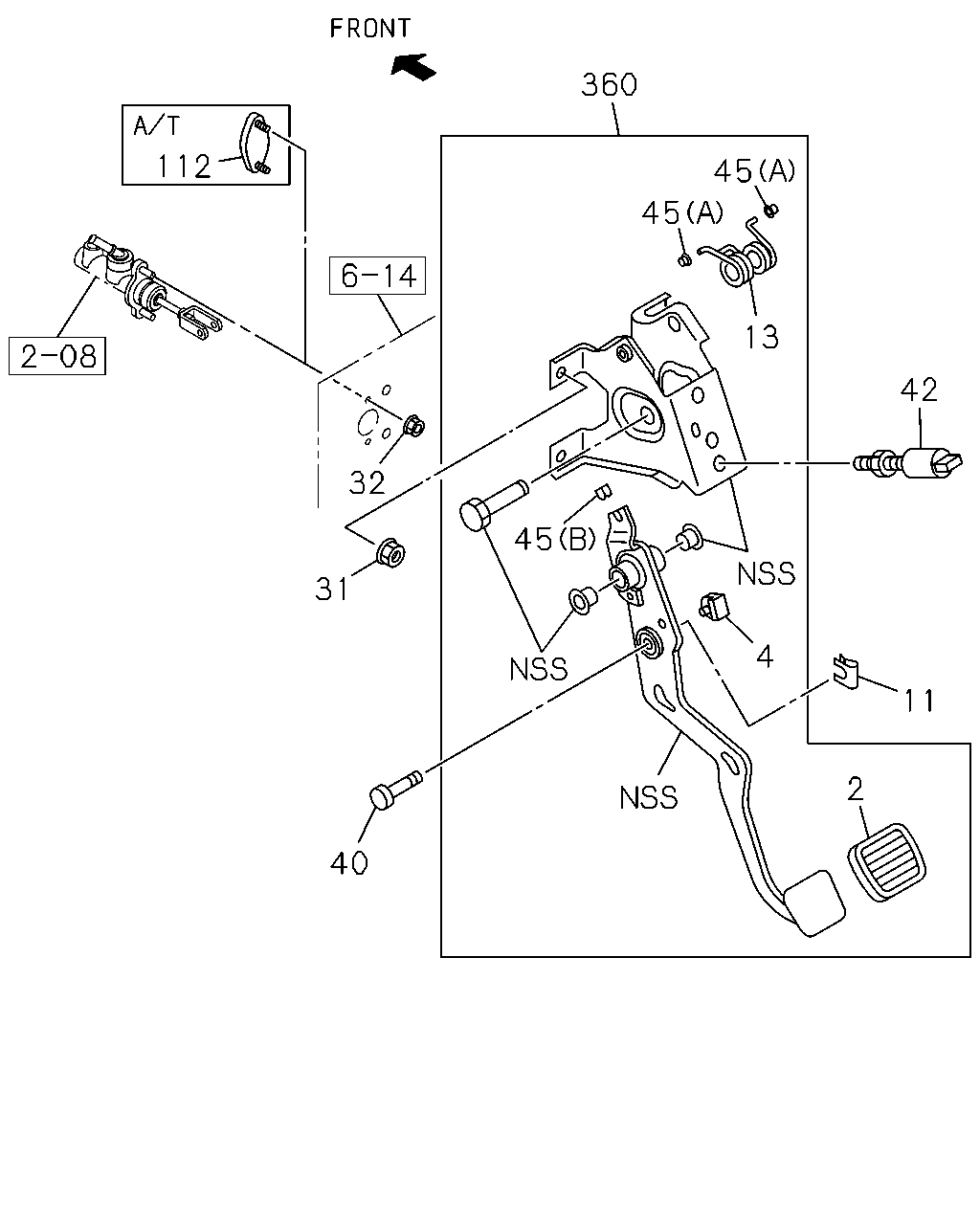

çizim 439160
360 45 45 13 42 4 11 2 45 31 40 32 112
BalonParca AdiParca NoAdetTipApplied Date A B
2 04.630 COVER; CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ) 		8-97318-799-0 01 1 1408- ●
4 00.829 STOPPER; CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ) 		8-97947-783-0 01 1 1408- ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
M/T MUA 5 SPEED 5H(MWQ) 		8-98007-161-0 01 1 1408- ●
13 00.844 SPRING; ASSIST,CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ) 		8-97942-312-0 01 1 1408- ●
31 01.153 NUT; MTG BRKT TO BODY
M/T MUA 5 SPEED 5H(MWQ) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1408- ●
32 00.777 NUT; BRKT TO CLU M/CYL
01.062 M8 FLANGE 		0-91180-108-0 02 1 1408- ● ●
40 00.833 PIN; JOINT,CLU DAMPER
M/T MUA 5 SPEED 5H(MWQ) OD=7.9 L=27.5 		8-97312-338-0 01 1 1408- ●
42 04.054 SWITCH; CLU
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98154-210-0 01 1 1408- ●
45 00.831 BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-97942-313-0 02 1 1408- ●
45 00.831 BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ) (B) 		8-97942-314-0 01 1 1408- ●
112 00.785 PLUG; METAL,M/CYL
A/T 5 SPEED-AISIN(MA1) 		8-97945-168-0 01 1 1408- ● ●
360 00.830 PEDAL ASM; CLUTCH
M/T MUA 5 SPEED 5H(MWQ) 		8-97947-853-0 01 1 1408- ●
