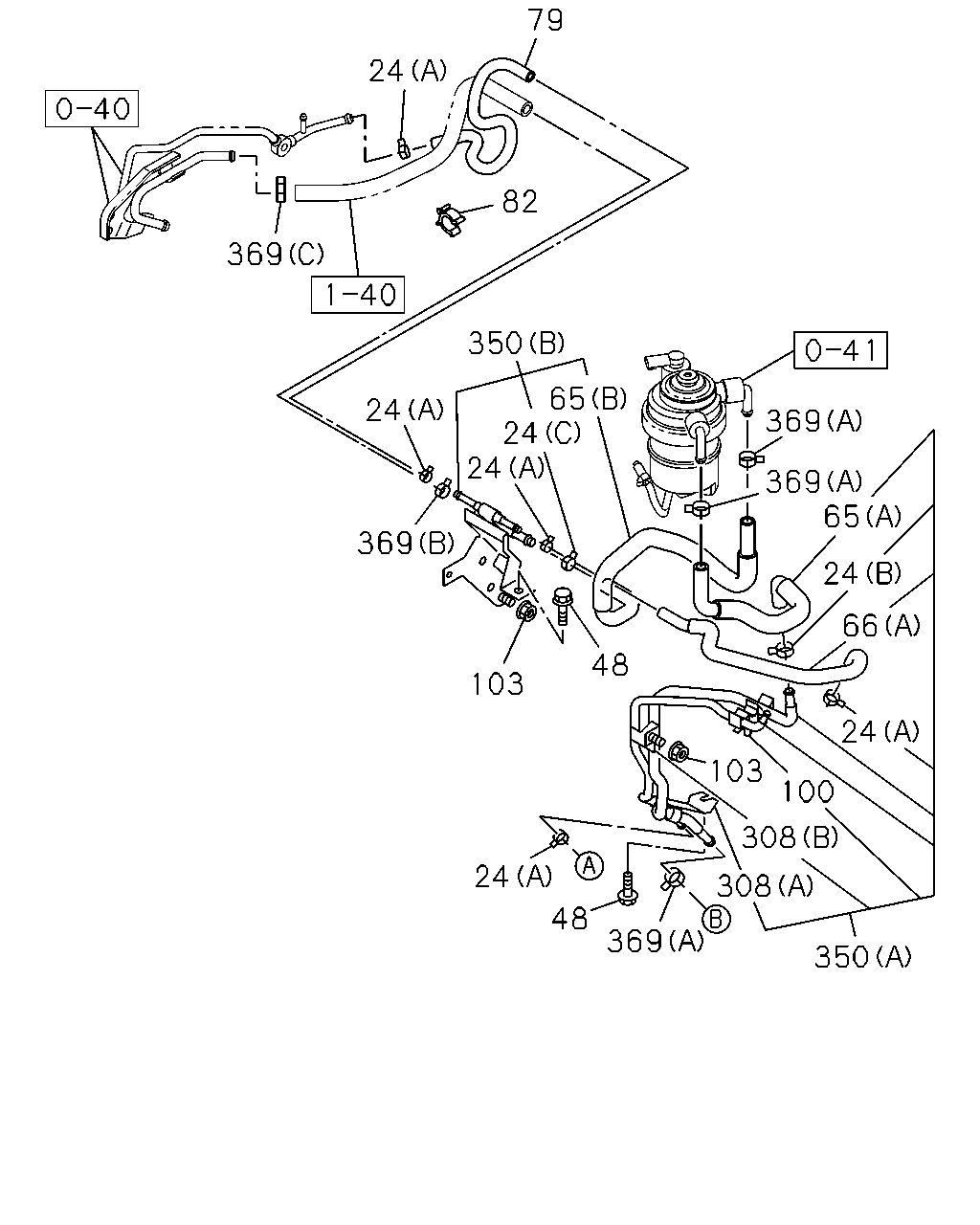

1-41 — FUEL PIPING; CHASSIS (#147058) — 84 parça

350 308 369 48 24 308 103 100 24 66 24 65 369 369 65 24 24 369 103 48 350 24 82 24 79 369

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	01	1	1408-1510	●
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	01	1	1408-1510	●
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	01	1	1511-	●	●
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	01	1	1511-	●	●
24	03.162 CLIP; FUEL HOSE 01.762 (C) ID=16	8-98030-682-0	01	1	1408-1510	●
24	03.162 CLIP; FUEL HOSE 01.762 (C) ID=16	8-98030-682-0	01	1	1511-	●	●
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	06	1	1408-1510	●
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	06	1	1511-	●	●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	01	1	1408-1510	●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	01	1	1511-	●	●
24	03.162 CLIP; FUEL HOSE (D)	8-98233-886-0	02	1	1408-1510	●
24	03.162 CLIP; FUEL HOSE (D)	8-98233-886-0	02	1	1511-	●	●
48	03.162 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1408-1510	●
48	03.162 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1511-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (B)	8-98100-729-4	01	1	1408-1510	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (B)	8-98100-729-4	01	1	1511-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-98100-731-2	01	1	1408-1510	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-98100-731-2	01	1	1511-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A)	8-98100-720-2	01	1	1408-1510	●
66	03.163 HOSE; FUEL,RETURN PIPE (A)	8-98100-720-2	01	1	1511-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98248-703-0	01	1	1408-1510	●
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98248-703-0	01	1	1511-	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98222-040-0	01	1	1408-1510	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98222-040-0	01	1	1511-	●	●
82	03.163 CLIP; FUEL HOSE 06.672 ID=17	8-94382-792-1	01	1	1408-1510	●
82	03.163 CLIP; FUEL HOSE 06.672 ID=17	8-94382-792-1	01	1	1511-	●	●
100	03.162 CLIP; FUEL PIPE	8-98113-581-0	01	1	1408-1510	●
100	03.162 CLIP; FUEL PIPE	8-98113-581-0	01	1	1408-1510	●
100	03.162 CLIP; FUEL PIPE	8-98113-581-0	01	1	1511-	●	●
100	03.162 CLIP; FUEL PIPE	8-98113-581-0	01	1	1511-	●	●
103	03.130 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	1408-1510	●
103	03.130 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	1511-	●	●
308	03.162 BRACKET; FUEL PIPE (B)	8-98233-889-0	01	1	1408-1510	●
308	03.162 BRACKET; FUEL PIPE (B)	8-98233-889-0	01	1	1511-	●	●
308	03.162 BRACKET; FUEL PIPE (A)	8-98233-890-0	01	1	1408-1510	●
308	03.162 BRACKET; FUEL PIPE (A)	8-98233-890-0	01	1	1511-	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(UCB***) (C)	8-98248-732-0	01	1	1408-1510	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(UCB***) (C)	8-98248-732-0	01	1	1511-	●	●
350	03.163 PIPE; FUEL,DEL & RET (B)	8-98113-293-6	01	1	1408-1510	●
350	03.163 PIPE; FUEL,DEL & RET (B)	8-98113-293-6	01	1	1511-	●	●
350	03.163 PIPE; FUEL,DEL & RET (A)	8-98248-691-0	01	1	1408-1510	●
350	03.163 PIPE; FUEL,DEL & RET (A)	8-98248-691-0	01	1	1511-	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(UCS***) (C)	8-98248-733-0	01	1	1408-1510	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(UCS***) (C)	8-98248-733-0	01	1	1511-	●	●
369	03.162 CLAMP; HOSE,FUEL 01.762 (C) ID=16	8-98030-682-0	01	1	1408-1510	●
369	03.162 CLAMP; HOSE,FUEL 01.762 (C) ID=16	8-98030-682-0	01	1	1511-	●	●
369	03.162 CLAMP; HOSE,FUEL 03.145 (A) ID=17.2	8-98052-395-0	08	1	1408-1510	●
369	03.162 CLAMP; HOSE,FUEL 03.145 (A) ID=17.2	8-98052-395-0	08	1	1511-	●	●
369	03.162 CLAMP; HOSE,FUEL (B) ID=15.2	8-98186-048-0	01	1	1408-1510	●
369	03.162 CLAMP; HOSE,FUEL (B) ID=15.2	8-98186-048-0	01	1	1511-	●	●

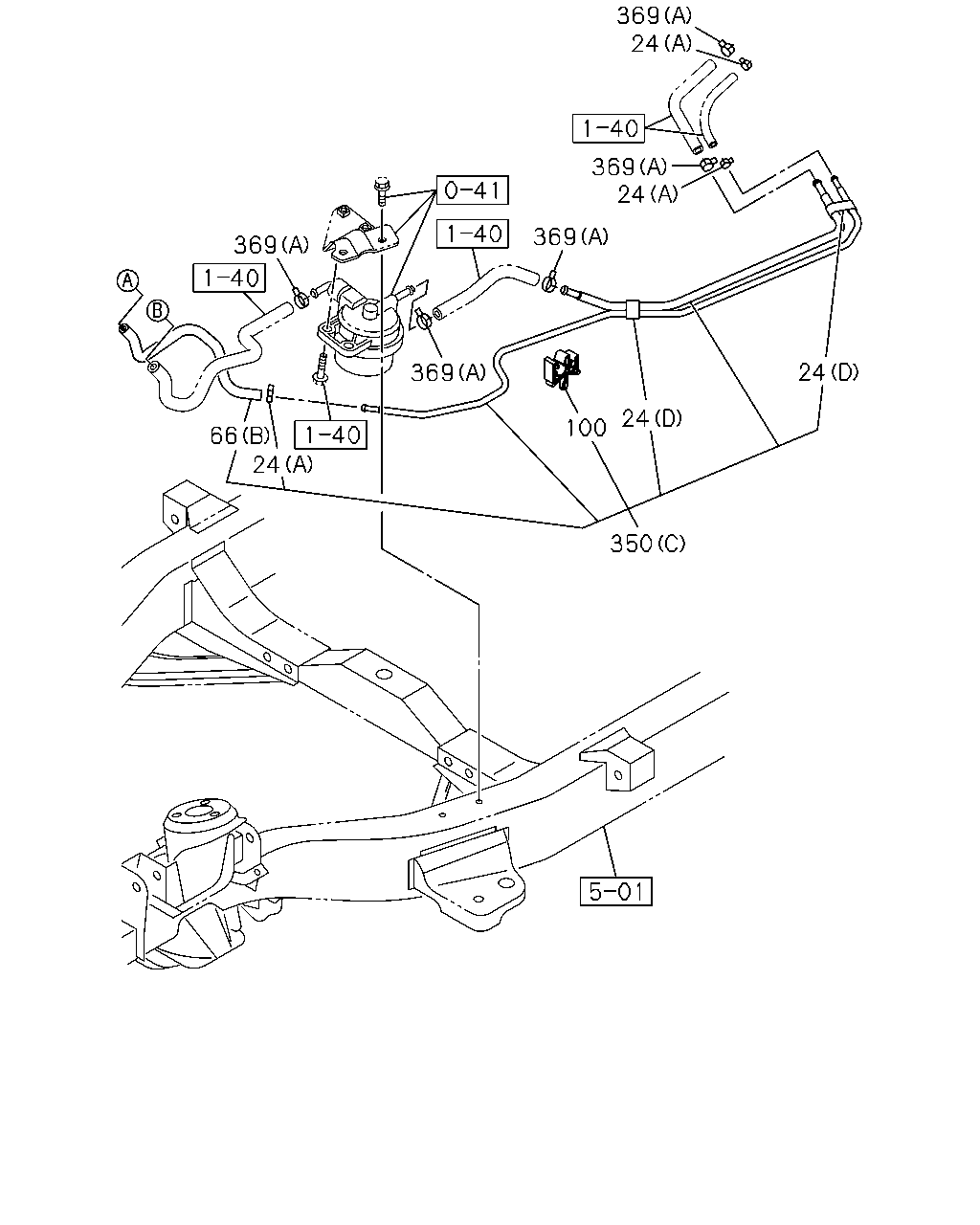

350 24 24 100 369 66 369 24 369 24 369 24 369

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	01	1	1408-1510	●
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	01	1	1408-1510	●
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	01	1	1511-	●	●
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	01	1	1511-	●	●
24	03.162 CLIP; FUEL HOSE 01.762 (C) ID=16	8-98030-682-0	01	1	1408-1510	●
24	03.162 CLIP; FUEL HOSE 01.762 (C) ID=16	8-98030-682-0	01	1	1511-	●	●
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	06	1	1408-1510	●
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	06	1	1511-	●	●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	01	1	1408-1510	●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	01	1	1511-	●	●
24	03.162 CLIP; FUEL HOSE (D)	8-98233-886-0	02	1	1408-1510	●
24	03.162 CLIP; FUEL HOSE (D)	8-98233-886-0	02	1	1511-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A)	8-98100-720-2	01	1	1408-1510	●
66	03.163 HOSE; FUEL,RETURN PIPE (A)	8-98100-720-2	01	1	1511-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98248-703-0	01	1	1408-1510	●
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98248-703-0	01	1	1511-	●	●
100	03.162 CLIP; FUEL PIPE	8-98113-581-0	01	1	1408-1510	●
100	03.162 CLIP; FUEL PIPE	8-98113-581-0	01	1	1408-1510	●
100	03.162 CLIP; FUEL PIPE	8-98113-581-0	01	1	1511-	●	●
100	03.162 CLIP; FUEL PIPE	8-98113-581-0	01	1	1511-	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(UCB***) (C)	8-98248-732-0	01	1	1408-1510	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(UCB***) (C)	8-98248-732-0	01	1	1511-	●	●
350	03.163 PIPE; FUEL,DEL & RET (B)	8-98113-293-6	01	1	1408-1510	●
350	03.163 PIPE; FUEL,DEL & RET (B)	8-98113-293-6	01	1	1511-	●	●
350	03.163 PIPE; FUEL,DEL & RET (A)	8-98248-691-0	01	1	1408-1510	●
350	03.163 PIPE; FUEL,DEL & RET (A)	8-98248-691-0	01	1	1511-	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(UCS***) (C)	8-98248-733-0	01	1	1408-1510	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(UCS***) (C)	8-98248-733-0	01	1	1511-	●	●
369	03.162 CLAMP; HOSE,FUEL 01.762 (C) ID=16	8-98030-682-0	01	1	1408-1510	●
369	03.162 CLAMP; HOSE,FUEL 01.762 (C) ID=16	8-98030-682-0	01	1	1511-	●	●
369	03.162 CLAMP; HOSE,FUEL 03.145 (A) ID=17.2	8-98052-395-0	08	1	1408-1510	●
369	03.162 CLAMP; HOSE,FUEL 03.145 (A) ID=17.2	8-98052-395-0	08	1	1511-	●	●
369	03.162 CLAMP; HOSE,FUEL (B) ID=15.2	8-98186-048-0	01	1	1408-1510	●
369	03.162 CLAMP; HOSE,FUEL (B) ID=15.2	8-98186-048-0	01	1	1511-	●	●
