1-40 — FUEL TANK (#147057) — 77 parça

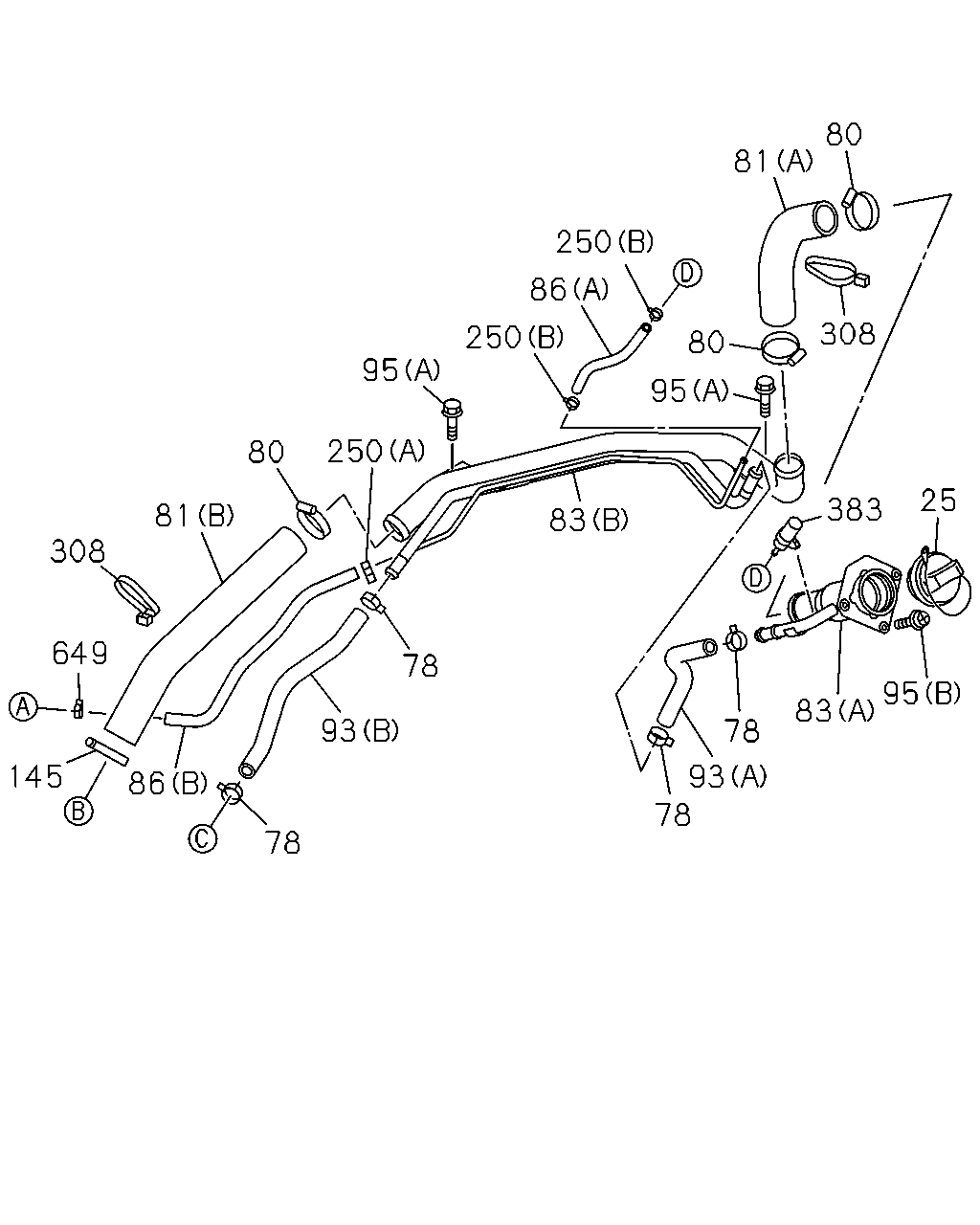

95 383 83 78 93 78 95 80 308 80 81 250 86 250 95 250 80 81 308 649 145 78 86 93 78 83 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	03.028 CAP; FILLER,FUEL TANK	8-98088-024-0	01	1	1408-1510	●
25	03.028 CAP; FILLER,FUEL TANK	8-98088-024-0	01	1	1511-1511	●	●
25	03.028 CAP; FILLER,FUEL TANK	8-98327-664-0	01	1	1511-	●
78	03.003 CLIP; BREATHER HOSE 08.846 ID=20.8	8-97944-127-0	04	1	1408-1510	●
78	03.003 CLIP; BREATHER HOSE 08.846 ID=20.8	8-97944-127-0	04	1	1511-	●	●
80	03.008 CLIP; FILLER HOSE	8-98232-268-0	03	1	1408-1510	●
80	03.008 CLIP; FILLER HOSE	8-98232-268-0	03	1	1511-	●	●
81	03.003 HOSE; FUEL FILLER (A)	8-98230-137-0	01	1	1408-1510	●
81	03.003 HOSE; FUEL FILLER (A)	8-98230-137-0	01	1	1511-	●	●
81	03.003 HOSE; FUEL FILLER (B)	8-98230-139-0	01	1	1408-1510	●
81	03.003 HOSE; FUEL FILLER (B)	8-98230-139-0	01	1	1511-	●	●
83	03.003 NECK; FUEL FILLER (A)	8-98230-128-0	01	1	1408-1510	●
83	03.003 NECK; FUEL FILLER (A)	8-98230-128-0	01	1	1511-	●	●
83	03.003 NECK; FUEL FILLER (B)	8-98230-133-0	01	1	1408-1510	●
83	03.003 NECK; FUEL FILLER (B)	8-98230-133-0	01	1	1511-	●	●
86	03.163 HOSE; EVAP (A)	8-98230-134-0	01	1	1408-1510	●
86	03.163 HOSE; EVAP (A)	8-98230-134-0	01	1	1511-	●	●
86	03.163 HOSE; EVAP (B)	8-98230-135-0	01	1	1408-1510	●
86	03.163 HOSE; EVAP (B)	8-98230-135-0	01	1	1511-	●	●
93	03.003 HOSE; BREATHER,FUEL TANK (A)	8-98230-136-0	01	1	1408-1510	●
93	03.003 HOSE; BREATHER,FUEL TANK (A)	8-98230-136-0	01	1	1511-	●	●
93	03.003 HOSE; BREATHER,FUEL TANK (B)	8-98230-138-0	01	1	1408-1510	●
93	03.003 HOSE; BREATHER,FUEL TANK (B)	8-98230-138-0	01	1	1511-	●	●
95	03.028 SCREW; FILLER NECK 02.277 (A) BOLT M8X20 FLANGE	0-28660-820-0	02	1	1408-1510	●
95	03.028 SCREW; FILLER NECK 02.277 (A) BOLT M8X20 FLANGE	0-28660-820-0	02	1	1511-	●	●
95	03.028 SCREW; FILLER NECK (B)	8-98139-595-0	03	1	1408-1510	●
95	03.028 SCREW; FILLER NECK (B)	8-98139-595-0	03	1	1511-	●	●
145	03.162 CLIP; HOSE,FILLER NECK ID=30-45	8-97947-244-0	01	1	1408-1510	●
145	03.162 CLIP; HOSE,FILLER NECK ID=30-45	8-97947-244-0	01	1	1511-	●	●
250	03.162 CLIP; BAND,EVAP HOSE 03.330 (A) ID=11.5	8-98051-892-0	01	1	1408-1510	●
250	03.162 CLIP; BAND,EVAP HOSE 03.330 (A) ID=11.5	8-98051-892-0	01	1	1511-	●	●
250	03.162 CLIP; BAND,EVAP HOSE (B)	8-98232-266-0	02	1	1408-1510	●
250	03.162 CLIP; BAND,EVAP HOSE (B)	8-98232-266-0	02	1	1511-	●	●
308	03.163 CLIP; HOSE	8-98234-324-0	02	1	1408-1510	●
308	03.163 CLIP; HOSE	8-98234-324-0	02	1	1511-	●	●
383	03.162 VALVE; 2 WAY	8-98230-130-0	01	1	1408-1510	●
383	03.162 VALVE; 2 WAY	8-98230-130-0	01	1	1511-	●	●
649	03.003 CLAMP; FUEL PIPE 03.330 ID=11.5	8-98051-892-0	01	1	1408-1510	●
649	03.003 CLAMP; FUEL PIPE 03.330 ID=11.5	8-98051-892-0	01	1	1511-	●	●

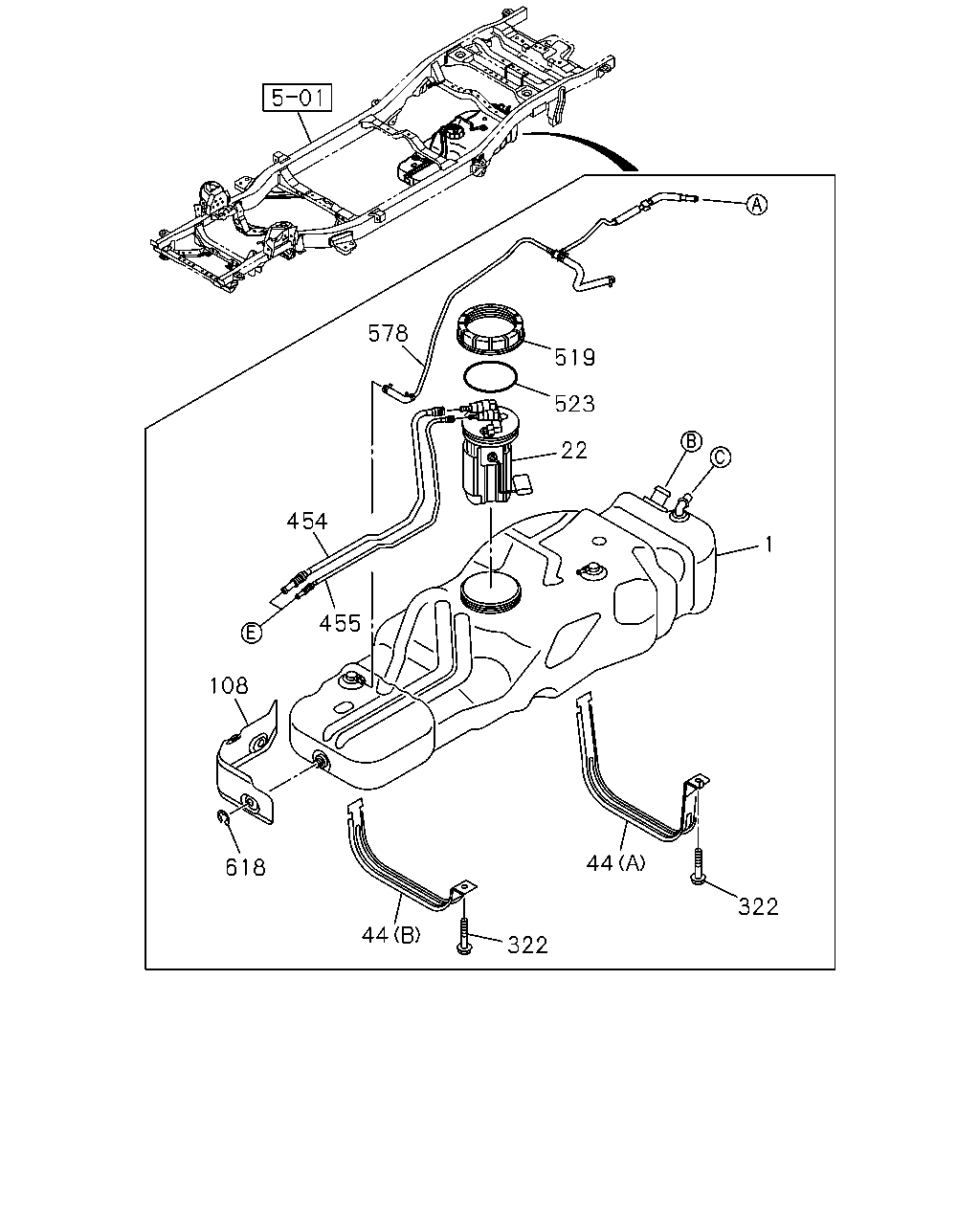

322 322 44 44 618 108 455 454 22 523 519 578 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.001 TANK; FUEL	8-98212-990-1	01	1	1408-1510	●
1	03.001 TANK; FUEL	8-98212-990-1	01	1	1511-	●	●
22	03.107 UNIT; FUEL TANK	8-98212-993-0	01	1	1408-1510	●
22	03.107 UNIT; FUEL TANK	8-98212-993-0	01	1	1511-	●	●
44	03.023 BAND; FUEL TANK (A)	8-98204-957-0	01	1	1408-1510	●
44	03.023 BAND; FUEL TANK (A)	8-98204-957-0	01	1	1511-	●	●
44	03.023 BAND; FUEL TANK (B)	8-98204-958-0	01	1	1408-1510	●
44	03.023 BAND; FUEL TANK (B)	8-98204-958-0	01	1	1511-	●	●
108	03.015 PROTECTOR; FUEL TANK	8-98212-997-0	01	1	1408-1510	●
108	03.015 PROTECTOR; FUEL TANK	8-98212-997-0	01	1	1511-	●	●
322	03.895 BOLT; BRKT FIX 03.023 M10X50 FLANGE	8-97301-165-0	02	1	1408-1510	●
322	03.895 BOLT; BRKT FIX 03.023 M10X50 FLANGE	8-97301-165-0	02	1	1511-	●	●
454	03.163 PIPE; FUEL,DELIVERY	8-98212-991-0	01	1	1408-1510	●
454	03.163 PIPE; FUEL,DELIVERY	8-98212-991-0	01	1	1511-	●	●
455	03.163 PIPE; FUEL,RETURN	8-98212-992-0	01	1	1408-1510	●
455	03.163 PIPE; FUEL,RETURN	8-98212-992-0	01	1	1511-	●	●
519	03.107 RETAINER; FUEL PUMP	8-98212-995-0	01	1	1408-1510	●
519	03.107 RETAINER; FUEL PUMP	8-98212-995-0	01	1	1511-	●	●
523	03.008 SEAL; FUEL SENSOR	8-98212-994-0	01	1	1408-1510	●
523	03.008 SEAL; FUEL SENSOR	8-98212-994-0	01	1	1511-	●	●
578	03.001 TUBE; FUEL,EVAPO	8-98228-330-0	01	1	1408-1510	●
578	03.001 TUBE; FUEL,EVAPO	8-98228-330-0	01	1	1511-	●	●
618	03.107 RETAINER; FUEL TANK	8-98212-998-0	03	1	1408-1510	●
618	03.107 RETAINER; FUEL TANK	8-98212-998-0	03	1	1511-	●	●

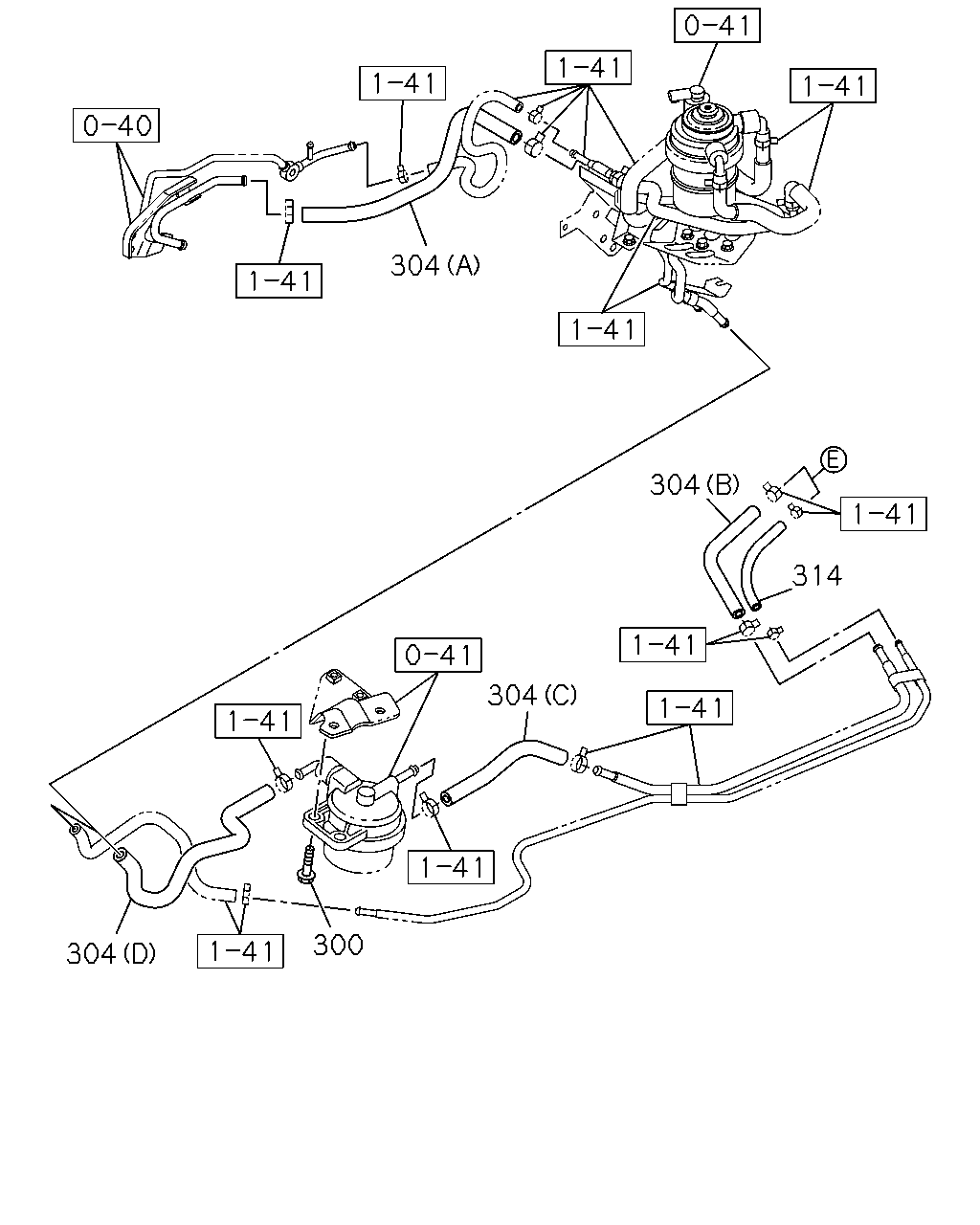

304 314 304 300 304 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
300	03.162 BOLT; BRKT TO BODY 03.403 M8X30 FLANGE	0-28650-830-0	02	1	1408-1510	●
300	03.162 BOLT; BRKT TO BODY 03.403 M8X30 FLANGE	0-28650-830-0	02	1	1511-	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X2(UCB***) (C)	8-98196-949-0	01	1	1408-1510	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X2(UCB***) (C)	8-98196-949-0	01	1	1511-	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (B)	8-98164-019-0	01	1	1408-1510	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (B)	8-98164-019-0	01	1	1511-	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (A)	8-98222-043-0	01	1	1408-1510	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (A)	8-98222-043-0	01	1	1511-	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (D)	8-98248-704-0	01	1	1408-1510	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (D)	8-98248-704-0	01	1	1511-	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(UCS***) (C)	8-97351-313-0	01	1	1408-1510	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(UCS***) (C)	8-97351-313-0	01	1	1511-	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN	8-98258-246-0	01	1	1408-1510	●
314	03.163 HOSE; RUBBER,FUEL RETURN	8-98258-246-0	01	1	1511-	●	●
