◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51520 - UCR/UCS(MIDDLE EAST) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#147055) — 26 parça

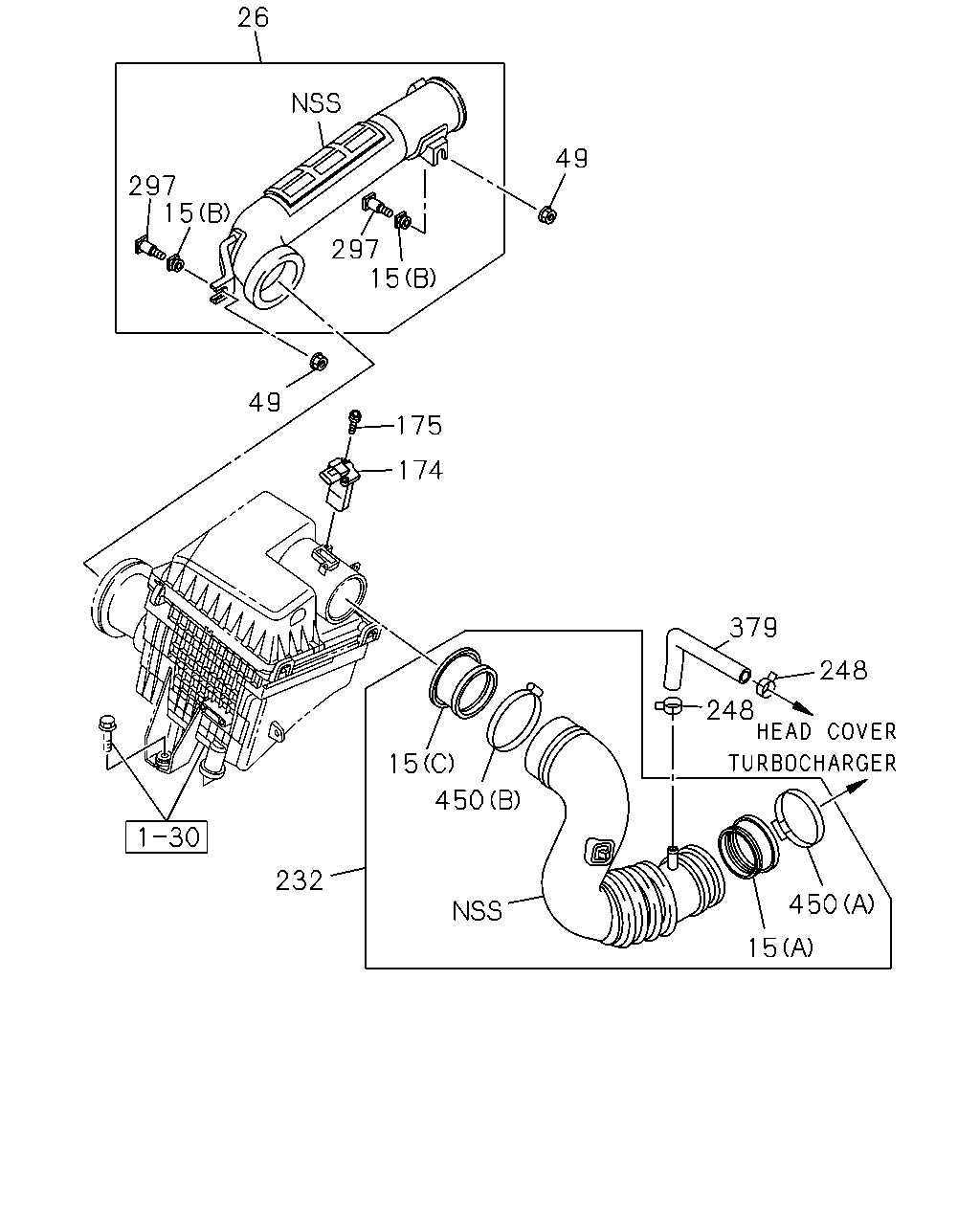

çizim 439062
26 297 297 15 15 49 49 175 174 15 450 232 379 248 248 450 15
BalonParca AdiParca NoAdetTipApplied Date A B
15 03.417 INSULATOR
(A) 		8-98137-140-0 01 1 1408-1510 ●
15 03.417 INSULATOR
(A) 		8-98137-140-0 01 1 1511- ● ●
15 03.417 INSULATOR
(B) 		8-98203-901-0 02 1 1408-1510 ●
15 03.417 INSULATOR
(B) 		8-98203-901-0 02 1 1511- ● ●
15 03.417 INSULATOR
(C) 		8-98214-036-0 01 1 1408-1510 ●
15 03.417 INSULATOR
(C) 		8-98214-036-0 01 1 1511- ● ●
26 03.417 DUCT; AIR INT 8-98104-472-1 01 1 1408-1510 ●
26 03.417 DUCT; AIR INT 8-98104-472-1 01 1 1511- ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE 		0-91180-106-0 02 1 1408-1510 ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE 		0-91180-106-0 02 1 1511- ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1408-1510 ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1511- ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 SCREW M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1408-1510 ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 SCREW M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1511- ● ●
232 03.417 HOSE; CONN 8-98212-086-0 01 1 1408-1510 ●
232 03.417 HOSE; CONN 8-98212-086-0 01 1 1511- ● ●
248 03.417 CLIP; RUBBER HOSE
03.265 ID=20.4 		8-94121-113-0 02 1 1408-1510 ●
248 03.417 CLIP; RUBBER HOSE
03.265 ID=20.4 		8-94121-113-0 02 1 1511- ● ●
297 03.417 BOLT; DUCT 8-98203-900-0 02 1 1408-1510 ●
297 03.417 BOLT; DUCT 8-98203-900-0 02 1 1511- ● ●
379 03.675 HOSE; RUBBER 8-98065-694-1 01 1 1408-1510 ●
379 03.675 HOSE; RUBBER 8-98065-694-1 01 1 1511- ● ●
450 03.417 CLAMP; HOSE
(B) 		8-98136-623-0 01 1 1408-1510 ●
450 03.417 CLAMP; HOSE
(B) 		8-98136-623-0 01 1 1511- ● ●
450 03.417 CLAMP; HOSE
(A) 		8-98136-624-0 01 1 1408-1510 ●
450 03.417 CLAMP; HOSE
(A) 		8-98136-624-0 01 1 1511- ● ●
