Isuzu WW
▶
SUV
▶
UCR
▶
51520 - UCR/UCS(MIDDLE EAST)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶

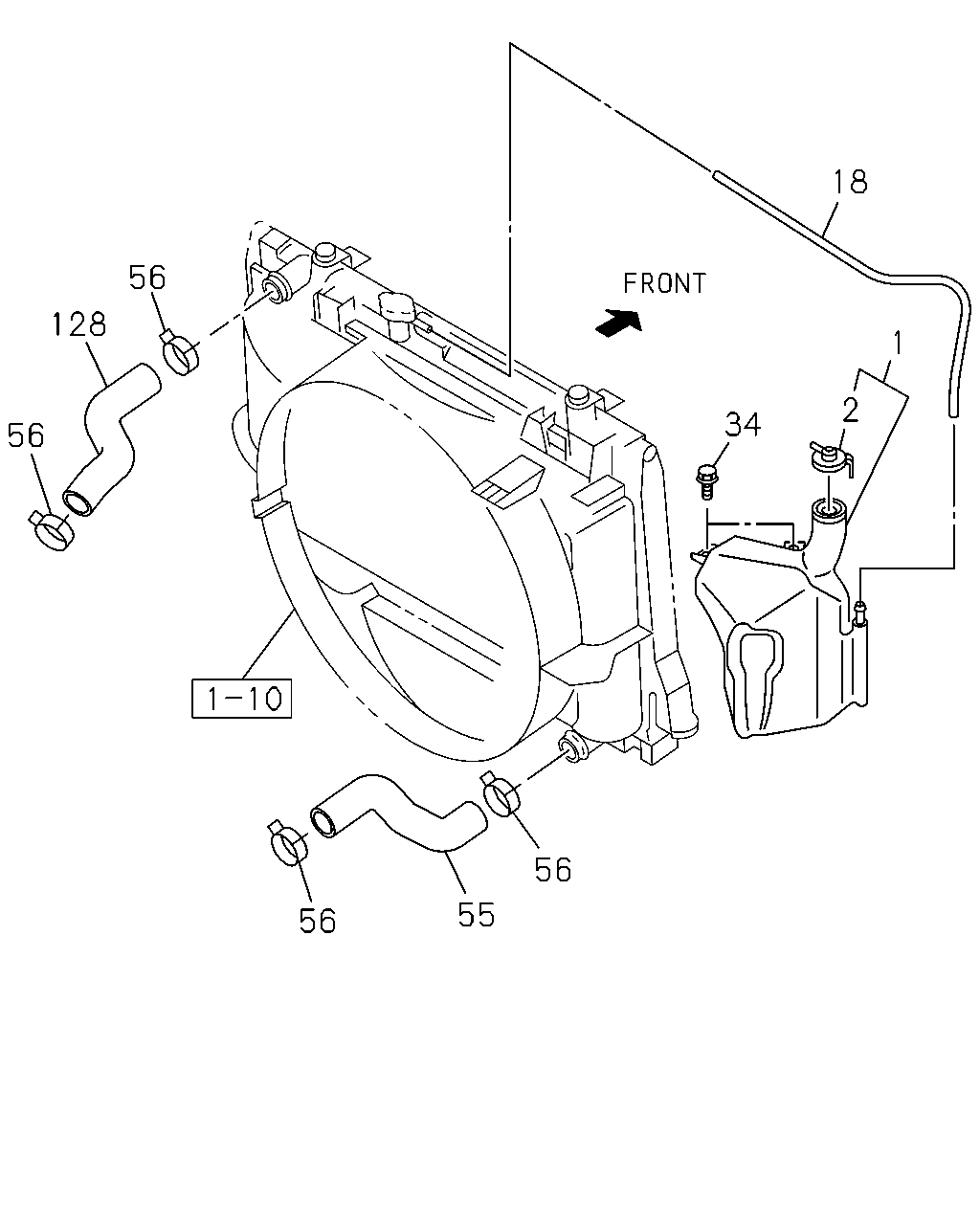

1-11 — RADIATOR HOSE AND SUB TANK
(#147053) — 16 parça
Tümü
A - 4JK1-TCX ENG
B - 4JJ1-TCX ENG
34
2
1
18
56
128
56
56
55
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
01.219 TANK; SURGE,RAD
8-98095-701-2
01
1
1408-1510
●
1
01.219 TANK; SURGE,RAD
8-98095-701-2
01
1
1511-
●
●
2
01.203 CAP; SURGE TANK
8-98189-898-0
01
1
1408-1510
●
2
01.203 CAP; SURGE TANK
8-98189-898-0
01
1
1511-
●
●
18
01.240 HOSE; RAD TO SURGE TANK
ID=7 OD=12 L=580
8-98102-344-2
01
1
1408-1510
●
18
01.240 HOSE; RAD TO SURGE TANK
ID=7 OD=12 L=580
8-98102-344-2
01
1
1511-
●
●
34
01.203 BOLT; RESERVE TANK
09.744 M6X20 W/WASHER
8-98056-282-0
02
1
1408-1510
●
34
01.203 BOLT; RESERVE TANK
09.744 M6X20 W/WASHER
8-98056-282-0
02
1
1511-
●
●
55
01.173 HOSE; WATER,RAD OUTLET
8-98222-236-0
01
1
1408-1510
●
55
01.173 HOSE; WATER,RAD OUTLET
8-98222-236-0
01
1
1511-
●
●
56
01.166 CLIP; WATER HOSE,RAD
ID=40.5
8-97313-472-0
02
1
1408-1510
●
56
01.166 CLIP; WATER HOSE,RAD
ID=40.5
8-97313-472-0
02
1
1408-1510
●
56
01.166 CLIP; WATER HOSE,RAD
ID=40.5
8-97313-472-0
02
1
1511-
●
●
56
01.166 CLIP; WATER HOSE,RAD
ID=40.5
8-97313-472-0
02
1
1511-
●
●
128
01.159 HOSE; WATER,RAD INL
8-98090-629-2
01
1
1408-1510
●
128
01.159 HOSE; WATER,RAD INL
8-98090-629-2
01
1
1511-
●
●
