◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51520 - UCR/UCS(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-66 - GENERATOR ▶
0-66 — GENERATOR (#147050) — 14 parça

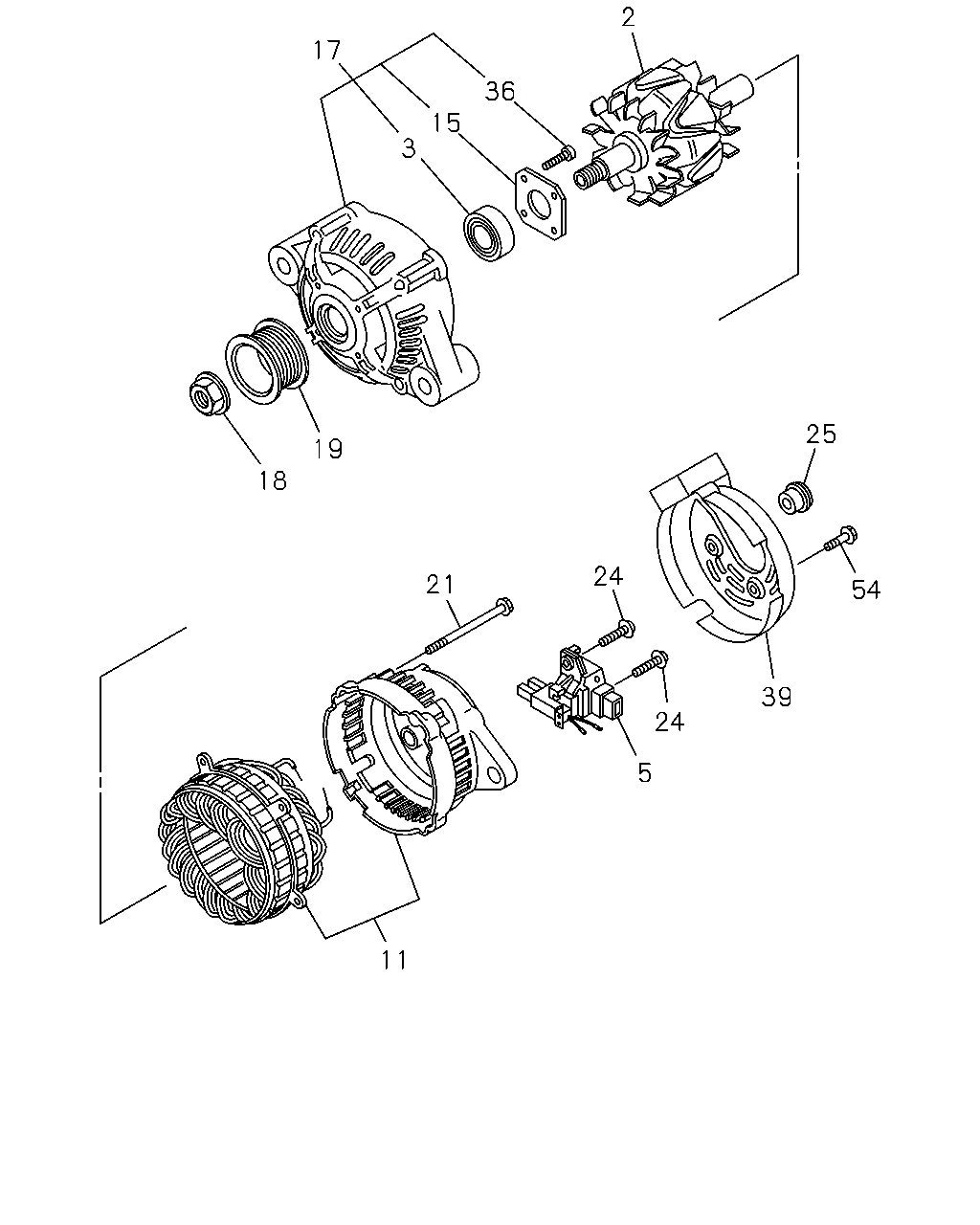

çizim 439055
54 25 39 24 5 24 21 11 2 36 15 3 17 19 18
BalonParca AdiParca NoAdetTipApplied Date
2 02.279 ROTOR; GEN
ASM PART: A = 8-98225-157-0, 98225157 		8-98231-360-0 01 1 -
3 02.306 BEARING; ROTOR,GEN
ASM PART: A = 8-98225-157-0, 98225157 		8-98231-355-0 01 1 -
5 02.291 HOLDER; BRUSH,GEN
ASM PART: A = 8-98225-157-0, 98225157 		8-97378-926-0 01 1 -
11 02.305 COVER; RR,GEN
ASM PART: A = 8-98225-157-0, 98225157 		8-98231-362-0 01 1 -
15 02.279 RETAINER; ROTOR,GEN
02.307 ASM PART: A = 8-98225-157-0, 98225157 		8-94406-982-0 01 1 -
17 02.305 COVER ASM; FRT,GEN
ASM PART: A = 8-98225-157-0, 98225157 		8-98231-353-0 01 1 -
18 02.274 NUT; PULLEY,GEN
02.280 ASM PART: A = 8-98225-157-0, 98225157 		8-94123-043-0 01 1 -
19 02.274 PULLEY; GEN
ASM PART: A = 8-98225-157-0, 98225157 		8-98231-352-0 01 1 -
21 02.316 BOLT; THROUGH,GEN
ASM PART: A = 8-98225-157-0, 98225157 		8-98231-358-0 04 1 -
24 02.307 SCREW; RECTIFIER,GEN
ASM PART: A = 8-98225-157-0, 98225157 		8-97032-313-0 03 1 -
25 02.313 BUSHING; INSULATION TERMINAL
ASM PART: A = 8-98225-157-0, 98225157 		8-98231-365-0 01 1 -
36 02.277 SCREW; FRT COVER
ASM PART: A = 8-98225-157-0, 98225157 		8-97142-562-0 04 1 -
39 02.297 COVER; END,RR COVER,GEN
ASM PART: A = 8-98225-157-0, 98225157 		8-98231-363-0 01 1 -
54 02.291 BOLT; RECTIFIER,GEN
ASM PART: A = 8-98225-157-0, 98225157 		8-98231-359-0 03 1 -
