0-60 — ENGINE ELECTRICAL CONTROL PARTS (#147047) — 86 parça

2 26 21 26 26 16 24 24 7 1 4 129 327 766 782

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

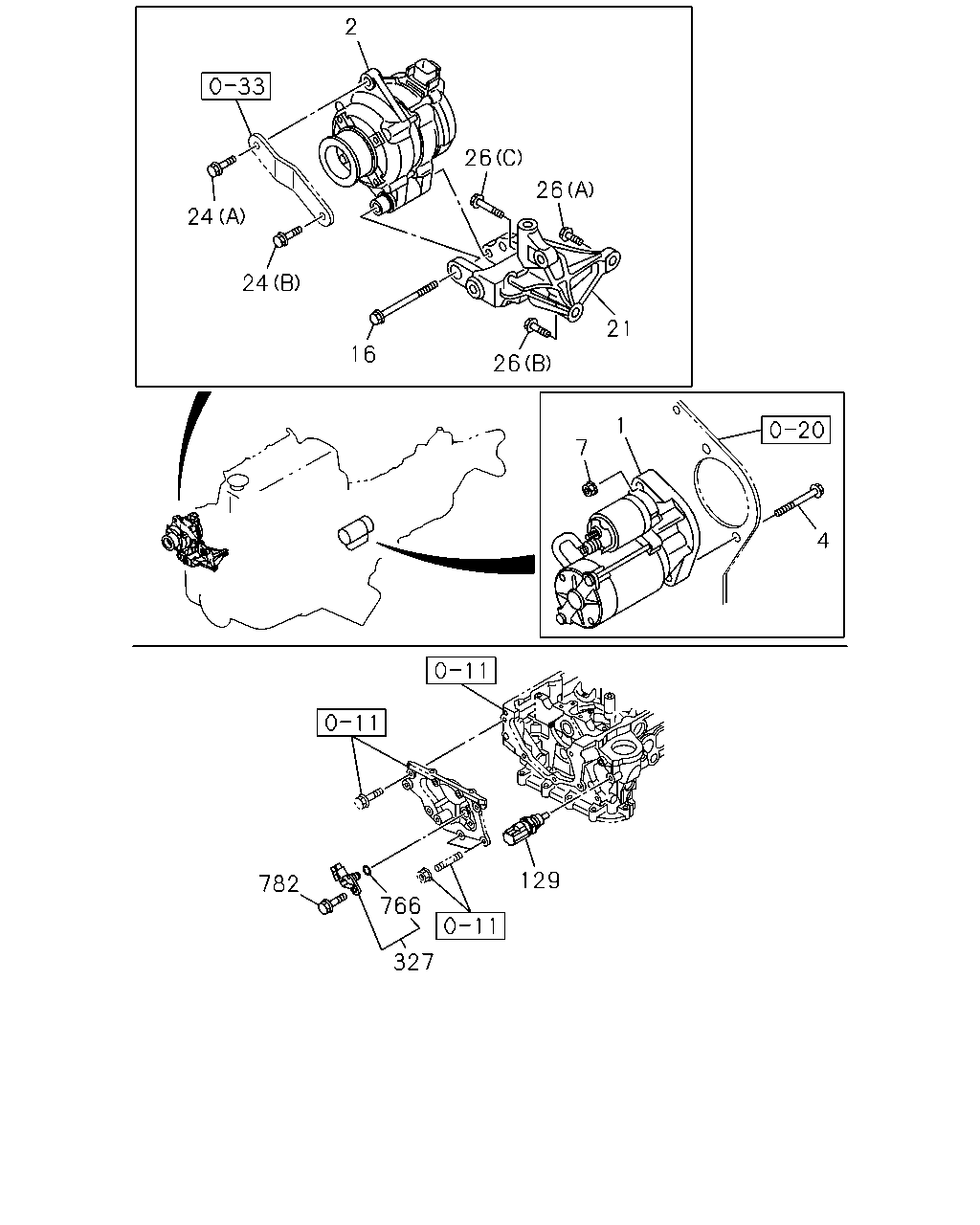

1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW	8-98028-199-0	01	1	1408-1510	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW	8-98028-199-0	01	1	1511-	●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 120A	8-98225-157-0	01	1	1408-1510	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 120A	8-98225-157-0	01	1	1511-	●	●
4	02.042 BOLT; STARTER M12X60	8-97161-846-1	02	1	1408-1510	●
4	02.042 BOLT; STARTER M12X60	8-97161-846-1	02	1	1511-	●	●
7	02.042 NUT; STARTER M12 FLANGE	0-91180-112-0	02	1	1408-1510	●
7	02.042 NUT; STARTER M12 FLANGE	0-91180-112-0	02	1	1511-	●	●
16	02.277 BOLT; GEN M10X95 FLANGE	8-98236-407-0	01	1	1408-1510	●
16	02.277 BOLT; GEN M10X95 FLANGE	8-98236-407-0	01	1	1511-	●	●
21	02.277 BRACKET; GEN	8-98275-351-0	01	1	1408-1510	●
21	02.277 BRACKET; GEN	8-98275-351-0	01	1	1511-	●	●
24	02.277 BOLT; GEN BRKT 03.275 (A) M8X25 FLANGE	0-28050-825-0	01	1	1408-1510	●
24	02.277 BOLT; GEN BRKT 03.275 (A) M8X25 FLANGE	0-28050-825-0	01	1	1511-	●	●
24	02.277 BOLT; GEN BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1408-1510	●
24	02.277 BOLT; GEN BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
26	02.277 BOLT; GEN BRKT 09.171 (A) M10X25 FLANGE	0-28051-025-0	01	1	1408-1510	●
26	02.277 BOLT; GEN BRKT 09.171 (A) M10X25 FLANGE	0-28051-025-0	01	1	1511-	●	●
26	02.277 BOLT; GEN BRKT 04.510 (B) M10X35 FLANGE	0-28051-035-0	01	1	1408-1510	●
26	02.277 BOLT; GEN BRKT 04.510 (B) M10X35 FLANGE	0-28051-035-0	01	1	1511-	●	●
26	02.277 BOLT; GEN BRKT 00.685 (C) M10X45 FLANGE	0-28051-045-0	01	1	1408-1510	●
26	02.277 BOLT; GEN BRKT 00.685 (C) M10X45 FLANGE	0-28051-045-0	01	1	1511-	●	●
129	01.150 SENSOR; GLOW PLUG,THERMO MITSUBISHI	8-98023-883-0	01	1	1408-1412	●
129	01.150 SENSOR; GLOW PLUG,THERMO NISHIDA	8-98260-257-0	01	1	1501-1510	●
129	01.150 SENSOR; GLOW PLUG,THERMO NISHIDA	8-98260-257-0	01	1	1511-	●	●
327	02.361 SENSOR; CAMSHAFT POSITION 00.724	8-98019-024-0	01	1	1408-1510	●
327	02.361 SENSOR; CAMSHAFT POSITION 00.724	8-98019-024-0	01	1	1511-	●	●
766	02.363 GASKET; SENSOR 00.724 ID=14.2 OD=18.8	8-97369-404-0	01	1	1408-1510	●
766	02.363 GASKET; SENSOR 00.724 ID=14.2 OD=18.8	8-97369-404-0	01	1	1511-	●	●
782	02.510 BOLT; SENSOR 09.242 M6X16 FLANGE	0-28050-616-0	01	1	1408-1510	●
782	02.510 BOLT; SENSOR 09.242 M6X16 FLANGE	0-28050-616-0	01	1	1511-	●	●

153 393 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

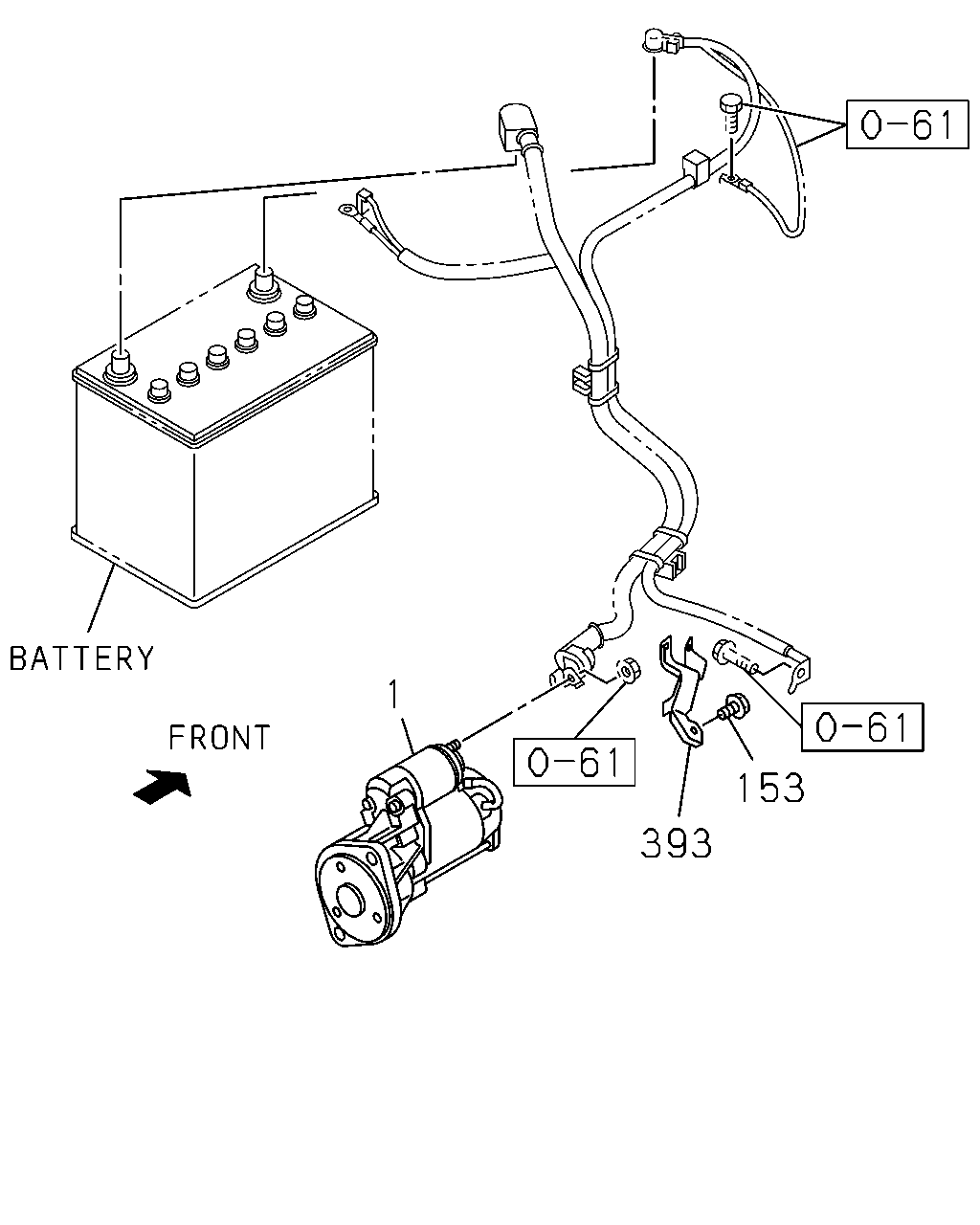

1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW	8-98028-199-0	01	1	1408-1510	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW	8-98028-199-0	01	1	1511-	●	●
153	02.510 BOLT; BRKT FIX 03.604 M6X10 FLANGE	8-98043-527-0	01	1	1408-1510	●
153	02.510 BOLT; BRKT FIX 03.604 M6X10 FLANGE	8-98043-527-0	01	1	1511-	●	●
393	02.343 BRACKET; HARNESS TO BODY	8-98102-992-4	01	1	1408-1510	●
393	02.343 BRACKET; HARNESS TO BODY	8-98102-992-4	01	1	1511-	●	●

748 613 748 867 819 897

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

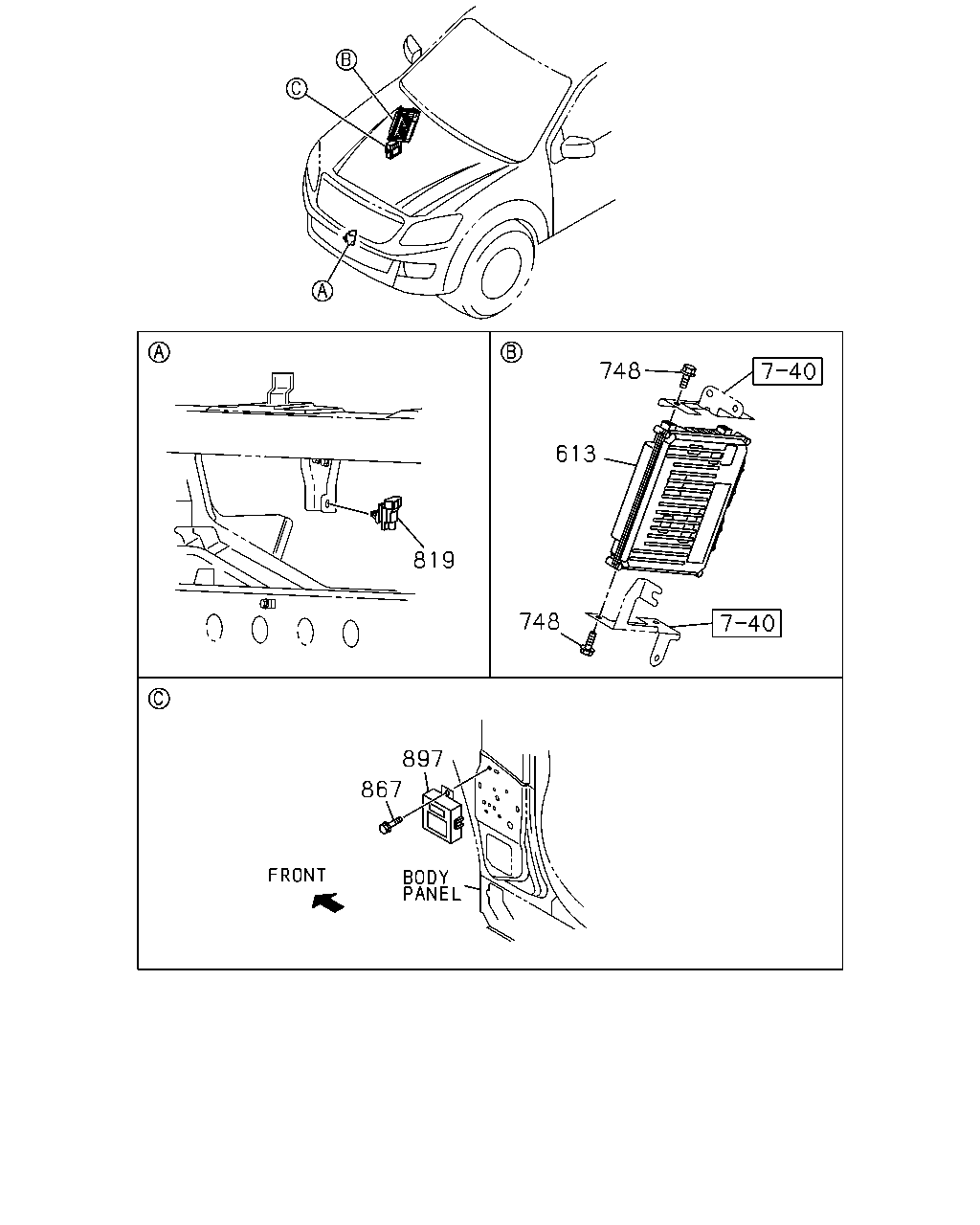

613	03.670 CONTROL UNIT; ENG 4X2(UCB***) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC>	8-98222-963-5	01	1	1503-1510	●
613	03.670 CONTROL UNIT; ENG A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO CRUISE CONT<K30>	8-98304-384-1	01	1	1511-		●
613	03.670 CONTROL UNIT; ENG 4X2(UCB***) A/T 5 SPEED-AISIN(MA1) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>	8-98222-964-5	01	1	1503-1510	●
613	03.670 CONTROL UNIT; ENG A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> EXC. AUTO CRUISE CONT<K30>	8-98304-386-1	01	1	1511-		●
613	03.670 CONTROL UNIT; ENG 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) AUTO CRUISE CONT<K30> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC>	8-98222-971-5	01	1	1503-1510	●
613	03.670 CONTROL UNIT; ENG A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98304-385-1	01	1	1511-		●
613	03.670 CONTROL UNIT; ENG 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>	8-98222-972-5	01	1	1503-1510	●
613	03.670 CONTROL UNIT; ENG A/T 5 SPEED-AISIN(MA1) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, AUTO CRUISE CONT<K30>	8-98304-387-1	01	1	1511-		●
613	03.670 CONTROL UNIT; ENG A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO CRUISE CONT<K30>	8-98260-265-2	01	1	1408-1502	●
613	03.670 CONTROL UNIT; ENG 4X2(UCB***) A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO CRUISE CONT<K30> IMMOBILIZER SYSTEM<7KC>	8-98260-265-2	01	1	1503-1510	●
613	03.670 CONTROL UNIT; ENG 4X4(UCS***) A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO CRUISE CONT<K30>	8-98260-265-2	01	1	1503-1510	●
613	03.670 CONTROL UNIT; ENG A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO CRUISE CONT<K30>	8-98260-265-2	01	1	1511-	●
613	03.670 CONTROL UNIT; ENG A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> EXC. AUTO CRUISE CONT<K30>	8-98260-266-2	01	1	1408-1502	●
613	03.670 CONTROL UNIT; ENG 4X2(UCB***) A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>	8-98260-266-2	01	1	1503-1510	●
613	03.670 CONTROL UNIT; ENG 4X4(UCS***) A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> EXC. AUTO CRUISE CONT<K30>	8-98260-266-2	01	1	1503-1510	●
613	03.670 CONTROL UNIT; ENG A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> EXC. AUTO CRUISE CONT<K30>	8-98260-266-2	01	1	1511-	●
613	03.670 CONTROL UNIT; ENG A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98222-961-5	01	1	1408-1502	●
613	03.670 CONTROL UNIT; ENG 4X2(UCB***) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98222-961-5	01	1	1503-1510	●
613	03.670 CONTROL UNIT; ENG 4X4(UCS***) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98222-961-5	01	1	1503-1510	●
613	03.670 CONTROL UNIT; ENG A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98222-961-5	01	1	1511-	●
613	03.670 CONTROL UNIT; ENG A/T 5 SPEED-AISIN(MA1) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, AUTO CRUISE CONT<K30>	8-98222-962-5	01	1	1408-1502	●
613	03.670 CONTROL UNIT; ENG 4X2(UCB***) A/T 5 SPEED-AISIN(MA1) IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, AUTO CRUISE CONT<K30>	8-98222-962-5	01	1	1503-1510	●
613	03.670 CONTROL UNIT; ENG 4X4(UCS***) A/T 5 SPEED-AISIN(MA1) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, AUTO CRUISE CONT<K30>	8-98222-962-5	01	1	1503-1510	●
613	03.670 CONTROL UNIT; ENG A/T 5 SPEED-AISIN(MA1) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, AUTO CRUISE CONT<K30>	8-98222-962-5	01	1	1511-	●
613	03.670 CONTROL UNIT; ENG 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO CRUISE CONT<K30>	8-98260-269-2	01	1	1408-1502	●
613	03.670 CONTROL UNIT; ENG 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO CRUISE CONT<K30> IMMOBILIZER SYSTEM<7KC>	8-98260-269-2	01	1	1503-1510	●
613	03.670 CONTROL UNIT; ENG 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO CRUISE CONT<K30>	8-98260-269-2	01	1	1511-	●
613	03.670 CONTROL UNIT; ENG 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) PASSIVE ENTRY AND START SYSTEM<AP3> EXC. AUTO CRUISE CONT<K30>	8-98260-270-2	01	1	1408-1502	●
613	03.670 CONTROL UNIT; ENG 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) PASSIVE ENTRY AND START SYSTEM<AP3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>	8-98260-270-2	01	1	1503-1510	●
613	03.670 CONTROL UNIT; ENG 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) PASSIVE ENTRY AND START SYSTEM<AP3> EXC. AUTO CRUISE CONT<K30>	8-98260-270-2	01	1	1511-	●
613	03.670 CONTROL UNIT; ENG 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) AUTO CRUISE CONT<K30> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98222-969-5	01	1	1408-1502	●
613	03.670 CONTROL UNIT; ENG 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) AUTO CRUISE CONT<K30> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98222-969-5	01	1	1503-1510	●
613	03.670 CONTROL UNIT; ENG 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) AUTO CRUISE CONT<K30> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98222-969-5	01	1	1511-	●
613	03.670 CONTROL UNIT; ENG 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, AUTO CRUISE CONT<K30>	8-98222-970-5	01	1	1408-1502	●
613	03.670 CONTROL UNIT; ENG 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, AUTO CRUISE CONT<K30>	8-98222-970-5	01	1	1503-1510	●
613	03.670 CONTROL UNIT; ENG 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, AUTO CRUISE CONT<K30>	8-98222-970-5	01	1	1511-	●
748	02.500 BOLT; CONT UNIT 02.343 M6X16 FLANGE	0-28650-616-0	04	1	1408-1510	●
748	02.500 BOLT; CONT UNIT 02.343 M6X16 FLANGE	0-28650-616-0	04	1	1511-	●	●
819	01.150 SENSOR; MASS AIR FLOW (MAF) ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA>	8-98008-687-0	01	1	1408-	●
867	02.559 BOLT 02.343 M6X16 FLANGE	0-28650-616-0	01	1	1408-1510	●
867	02.559 BOLT 02.343 M6X16 FLANGE	0-28650-616-0	01	1	1511-	●	●
897	02.510 DRM	8-98221-054-4	01	1	1408-1510	●
897	02.510 DRM	8-98221-054-4	01	1	1511-	●	●

796 420 420

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

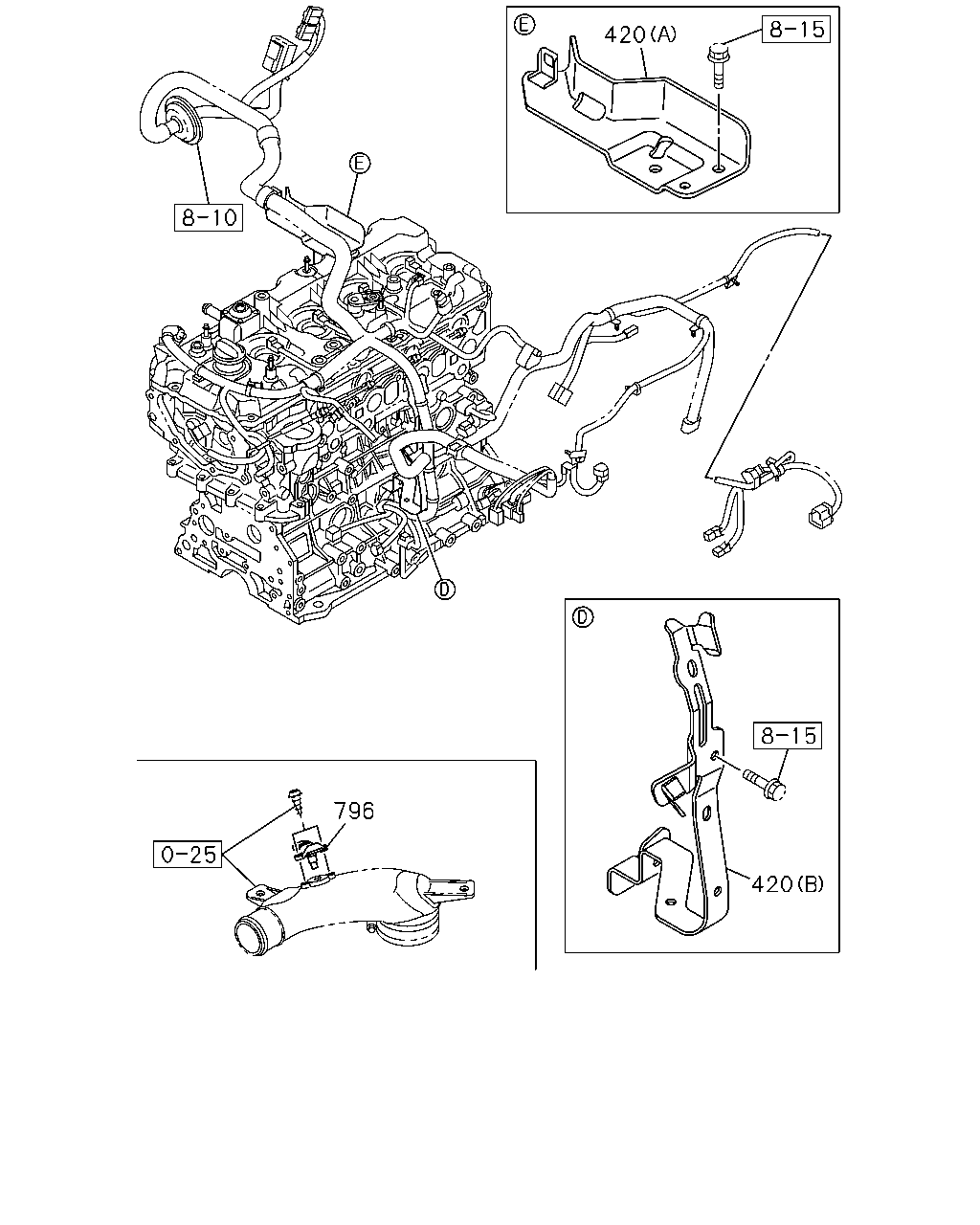

420	02.183 BRACKET; HARNESS (B)	8-98226-846-1	01	1	1408-1510	●
420	02.183 BRACKET; HARNESS (B)	8-98226-846-1	01	1	1511-	●	●
420	02.183 BRACKET; HARNESS (A)	8-98228-383-0	01	1	1408-1510	●
420	02.183 BRACKET; HARNESS (A)	8-98228-383-0	01	1	1511-	●	●
796	01.150 SENSOR; MAP	8-98009-418-0	01	1	1408-1510	●
796	01.150 SENSOR; MAP	8-98009-418-0	01	1	1511-	●	●
