0-52 — OIL AND VACUUM PIPING; ENGINE (#147045) — 72 parça

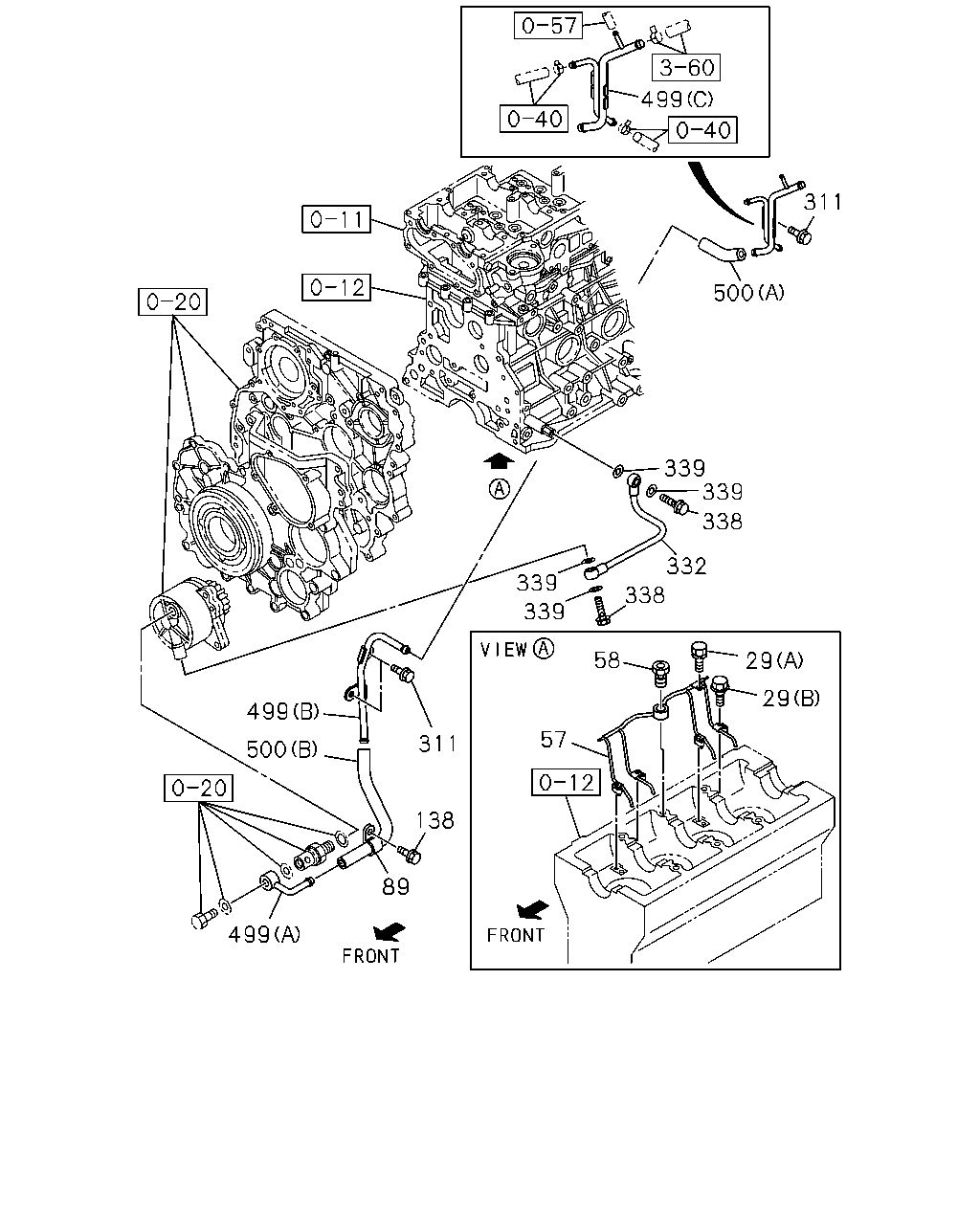

çizim 439040
500 311 339 339 338 332 338 339 339 29 29 58 57 311 138 89 499 500 499 499
BalonParca AdiParca NoAdetTipApplied Date A B
29 01.531 BOLT; OIL PIPE,OIL JET
03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 1408-1510 ●
29 01.531 BOLT; OIL PIPE,OIL JET
03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 1511- ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 FLANGE 		8-97380-673-1 04 1 1408-1510 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 FLANGE 		8-97380-673-1 04 1 1511- ● ●
57 01.519 PIPE; OIL,OIL JET 8-97312-132-3 01 1 1408-1510 ●
57 01.519 PIPE; OIL,OIL JET 8-97312-132-3 01 1 1511- ● ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97379-464-0 01 1 1408-1510 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97379-464-0 01 1 1511- ● ●
89 04.681 CLIP; VAC HOSE
ID=16 L=20 		0-95235-536-0 01 1 1408-1510 ●
89 04.681 CLIP; VAC HOSE
ID=16 L=20 		0-95235-536-0 01 1 1511- ● ●
138 01.531 BOLT; CLIP FIX
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1408-1510 ●
138 01.531 BOLT; CLIP FIX
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1511- ● ●
311 01.531 BOLT; PIPE FIX
02.343 M8X16 FLANGE 		0-28050-816-0 03 1 1408-1510 ●
311 01.531 BOLT; PIPE FIX
02.343 M8X16 FLANGE 		0-28050-816-0 03 1 1511- ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-98233-768-0 01 1 1408-1510 ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-98233-768-0 01 1 1511- ● ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		8-97910-296-1 02 1 1408-1510 ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		8-97910-296-1 02 1 1511- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 04 1 1408-1510 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 04 1 1511- ● ●
499 04.681 PIPE; VACUUM
(A) 		8-98011-527-1 01 1 1408-1510 ●
499 04.681 PIPE; VACUUM
(A) 		8-98011-527-1 01 1 1511- ● ●
499 04.681 PIPE; VACUUM
(C) 		8-98132-058-2 01 1 1408-1510 ●
499 04.681 PIPE; VACUUM
(C) 		8-98132-058-2 01 1 1511- ● ●
499 04.681 PIPE; VACUUM
(B) 		8-98258-938-0 01 1 1408-1510 ●
499 04.681 PIPE; VACUUM
(B) 		8-98258-938-0 01 1 1511- ● ●
500 04.681 HOSE; VACUUM
(A) 		0-08508-090-0 01 1 1408-1510 ●
500 04.681 HOSE; VACUUM
(A) 		0-08508-090-0 01 1 1511- ● ●
500 04.681 HOSE; VACUUM
(B) 		8-98228-437-0 01 1 1408-1510 ●
500 04.681 HOSE; VACUUM
(B) 		8-98228-437-0 01 1 1511- ● ●

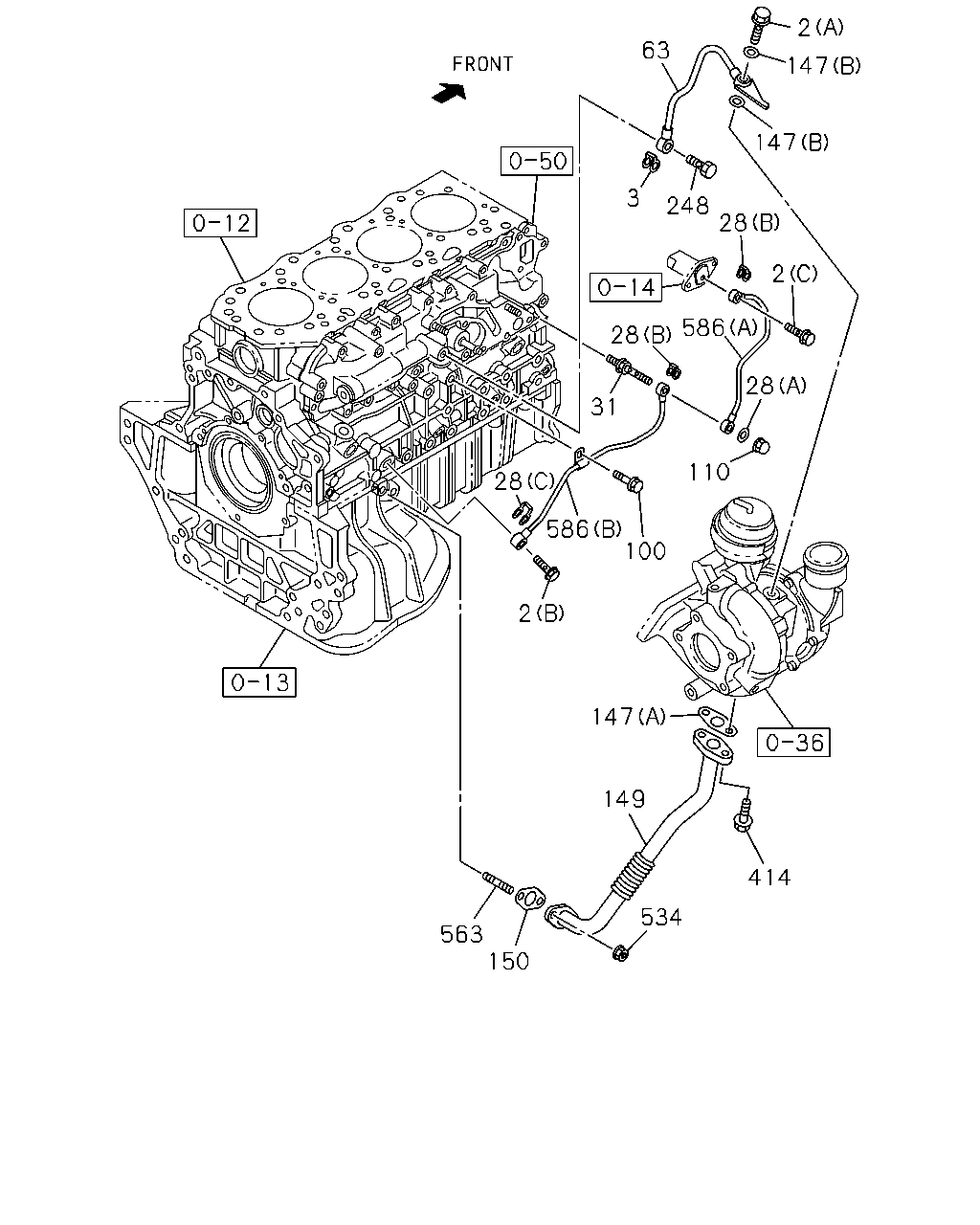

çizim 439042
2 147 147 248 28 2 63 3 28 586 28 110 31 28 586 100 2 147 149 414 534 150 563
BalonParca AdiParca NoAdetTipApplied Date A B
2 01.531 BOLT; EYE,OIL PIPE
03.162 (B) M14X27 FLANGE 		1-09675-086-0 01 1 1408-1510 ●
2 01.531 BOLT; EYE,OIL PIPE
03.162 (B) M14X27 FLANGE 		1-09675-086-0 01 1 1511- ● ●
2 01.531 BOLT; EYE,OIL PIPE
(C) M8X23 FLANGE 		8-98108-689-0 01 1 1408-1510 ●
2 01.531 BOLT; EYE,OIL PIPE
(C) M8X23 FLANGE 		8-98108-689-0 01 1 1511- ● ●
2 01.531 BOLT; EYE,OIL PIPE
(A) M10X25 FLANGE 		8-98151-063-1 01 1 1408-1510 ●
2 01.531 BOLT; EYE,OIL PIPE
(A) M10X25 FLANGE 		8-98151-063-1 01 1 1511- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 		8-98136-142-0 01 1 1408-1510 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 		8-98136-142-0 01 1 1511- ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (B) ID=8.3 OD=15.0 		8-98065-992-0 02 1 1408-1510 ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (B) ID=8.3 OD=15.0 		8-98065-992-0 02 1 1511- ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=20.0 		8-98113-762-0 01 1 1408-1510 ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=20.0 		8-98113-762-0 01 1 1511- ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 01 1 1408-1510 ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 01 1 1511- ● ●
31 01.540 NIPPLE; OIL PIPE 8-98186-104-0 01 1 1408-1510 ●
31 01.540 NIPPLE; OIL PIPE 8-98186-104-0 01 1 1511- ● ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98132-014-1 01 1 1408-1510 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98132-014-1 01 1 1511- ● ●
100 01.531 BOLT; CLIP
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1408-1510 ●
100 01.531 BOLT; CLIP
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1511- ● ●
110 01.531 NUT; CAP OIL PIPE
M8 CAP NUT FLANGE 		8-98251-964-0 01 1 1408-1510 ●
110 01.531 NUT; CAP OIL PIPE
M8 CAP NUT FLANGE 		8-98251-964-0 01 1 1511- ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-98132-017-0 01 1 1408-1510 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-98132-017-0 01 1 1511- ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1408-1510 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1511- ● ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-98156-381-0 01 1 1408-1510 ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-98156-381-0 01 1 1511- ● ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98132-018-1 01 1 1408-1510 ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98132-018-1 01 1 1511- ● ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
01.531 M10X24 		8-97944-505-1 01 1 1408-1510 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
01.531 M10X24 		8-97944-505-1 01 1 1511- ● ●
414 01.531 BOLT; OIL PIPE
09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1408-1510 ●
414 01.531 BOLT; OIL PIPE
09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1511- ● ●
534 01.531 NUT; OIL PIPE
01.540 M8 FLANGE 		0-91180-208-0 02 1 1408-1510 ●
534 01.531 NUT; OIL PIPE
01.540 M8 FLANGE 		0-91180-208-0 02 1 1511- ● ●
563 01.531 STUD; OIL PIPE
02.510 M8X20 L=32 		0-41010-820-0 02 1 1408-1510 ●
563 01.531 STUD; OIL PIPE
02.510 M8X20 L=32 		0-41010-820-0 02 1 1511- ● ●
586 01.519 PIPE; OIL,TENSIONER
(B) 		8-98228-274-0 01 1 1408-1510 ●
586 01.519 PIPE; OIL,TENSIONER
(B) 		8-98228-274-0 01 1 1511- ● ●
586 01.519 PIPE; OIL,TENSIONER
(A) 		8-98251-165-0 01 1 1408-1510 ●
586 01.519 PIPE; OIL,TENSIONER
(A) 		8-98251-165-0 01 1 1511- ● ●
