Isuzu WW
▶
SUV
▶
UCR
▶
51520 - UCR/UCS(MIDDLE EAST)
▶
0 - Engine, Emission, Engine Electrical
▶
0-33 - FAN AND FAN BELT
▶

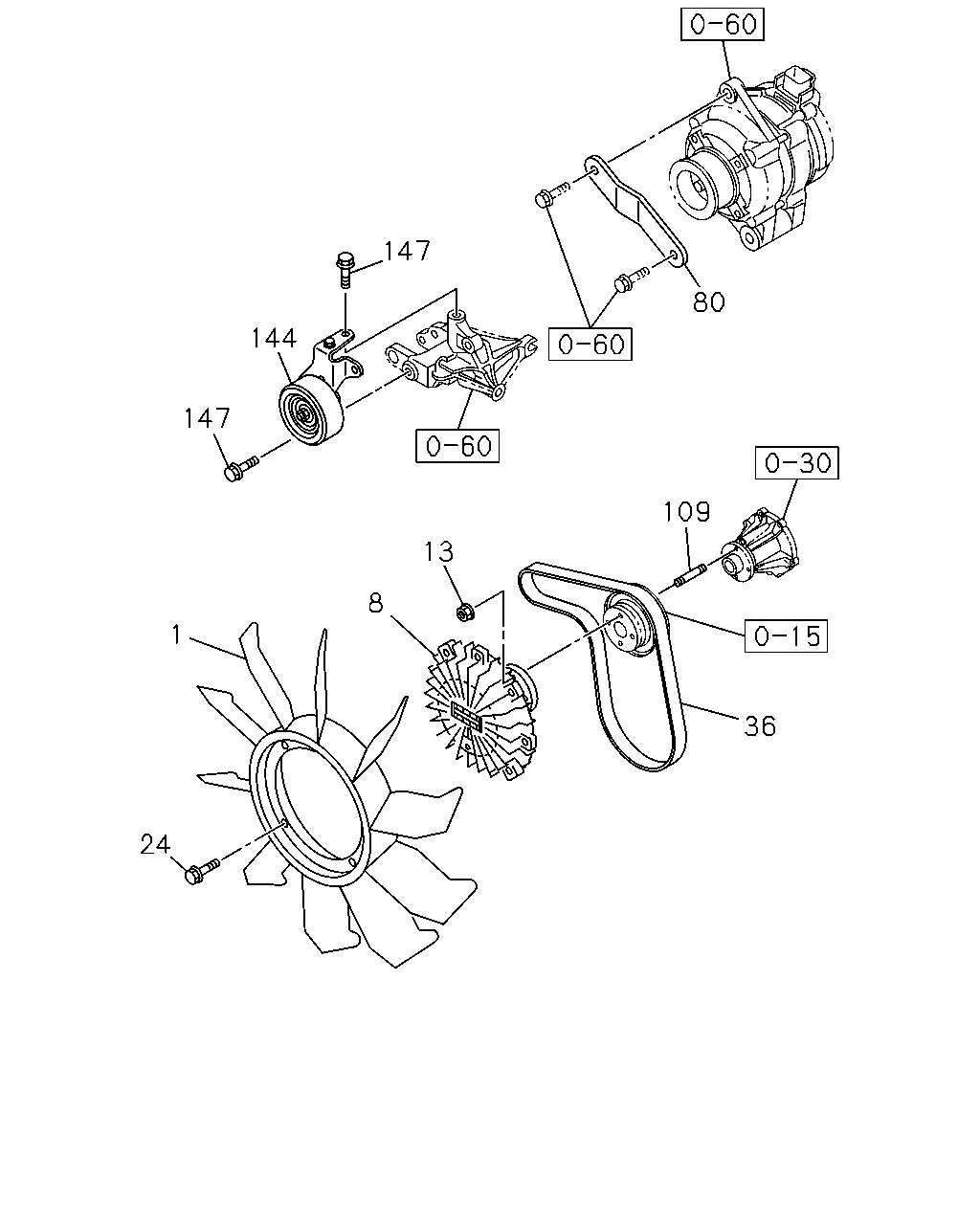

0-33 — FAN AND FAN BELT
(#147039) — 18 parça
Tümü
A - 4JK1-TCX ENG
B - 4JJ1-TCX ENG
109
13
8
1
24
147
144
147
80
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
01.064 FAN; COOLING
8-98162-703-0
01
1
1408-1510
●
1
01.064 FAN; COOLING
8-98162-703-0
01
1
1511-
●
●
8
01.064 CLUTCH; COOLING FAN
8-98119-213-1
01
1
1408-1510
●
8
01.064 CLUTCH; COOLING FAN
8-98119-213-1
01
1
1511-
●
●
13
01.062 NUT; COOLING FAN
16.320 M6 FLANGE
8-98049-362-0
04
1
1408-1510
●
13
01.062 NUT; COOLING FAN
16.320 M6 FLANGE
8-98049-362-0
04
1
1511-
●
●
24
01.062 BOLT; FAN
00.685 M6X25 FLANGE
0-28650-625-0
04
1
1408-1510
●
24
01.062 BOLT; FAN
00.685 M6X25 FLANGE
0-28650-625-0
04
1
1511-
●
●
36
01.066 BELT; COOLING FAN
L=1086
8-98020-247-0
01
1
1408-1510
●
36
01.066 BELT; COOLING FAN
L=1086
8-98020-247-0
01
1
1511-
●
●
80
02.317 PLATE; ADJ
8-98228-448-0
01
1
1408-1510
●
80
02.317 PLATE; ADJ
8-98228-448-0
01
1
1511-
●
●
109
01.062 STUD; FAN CLU
M6X20 L=31
8-98256-636-0
04
1
1408-1510
●
109
01.062 STUD; FAN CLU
M6X20 L=31
8-98256-636-0
04
1
1511-
●
●
144
01.060 TENSIONER; DRIVE BELT
8-98276-119-0
01
1
1408-1510
●
144
01.060 TENSIONER; DRIVE BELT
8-98276-119-0
01
1
1511-
●
●
147
01.060 BOLT; BELT TENSIONER
02.343 M10X20 FLANGE
0-28651-020-0
03
1
1408-1510
●
147
01.060 BOLT; BELT TENSIONER
02.343 M10X20 FLANGE
0-28651-020-0
03
1
1511-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
