9-01 — TOOLS (#14703) — 142 parça

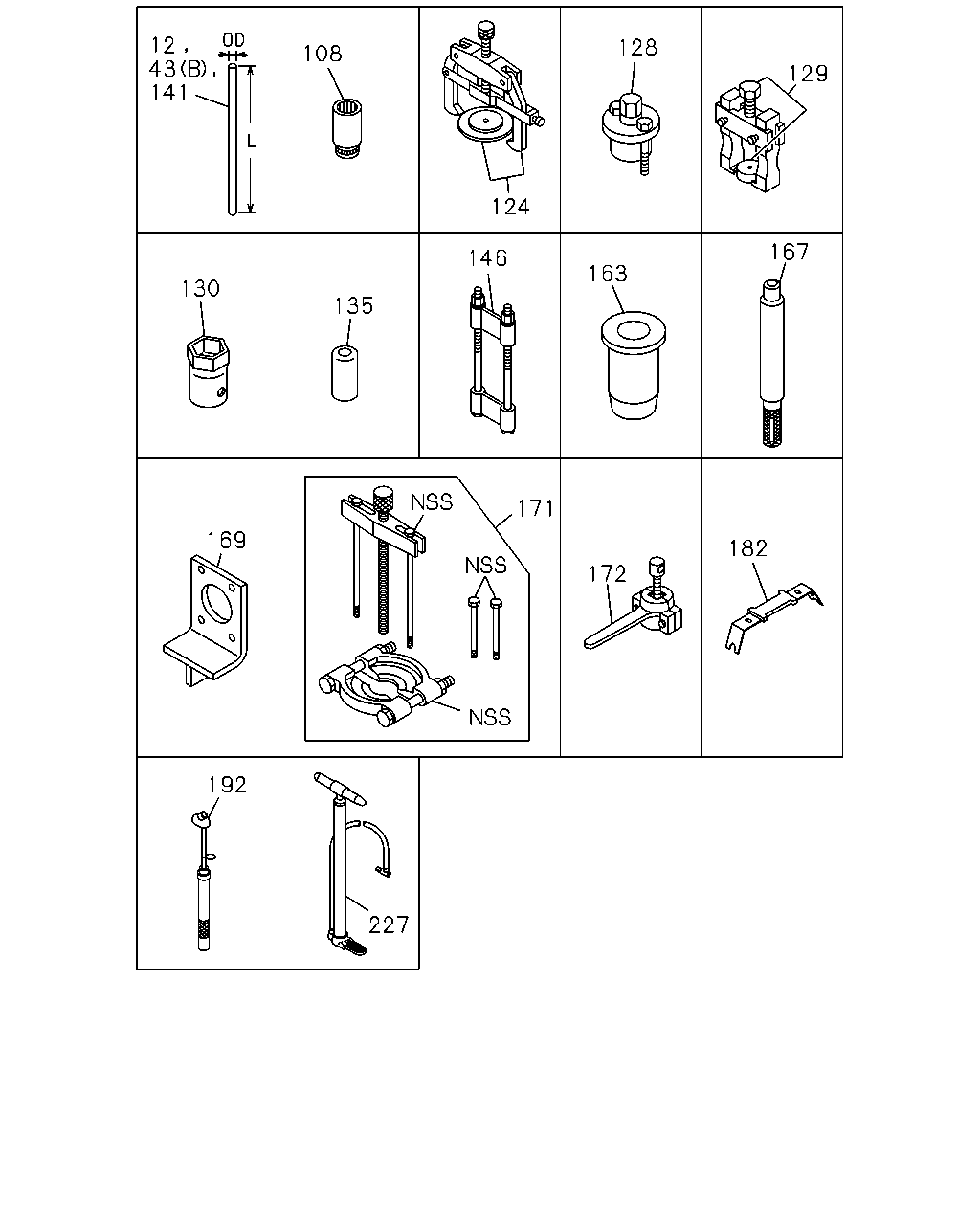

çizim 141640
182 172 171 227 192 169 130 135 146 163 167 129 128 124 108 12 141 43
BalonParca AdiParca NoAdetTipApplied Date A B
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 0710-1005 ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 1006-1501 ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1502- ● ●
43 BAR; EXTENSION,SOCKET WRENCH
(B) OD=25 L=480 		1-85116-011-0 01 1 1007-1501 ● ●
43 BAR; EXTENSION,SOCKET WRENCH
(B) OD=25 L=480 		8-98257-407-0 01 1 1502- ● ●
43 BAR; EXTENSION,SOCKET WRENCH
(A) 		1-85000-501-0 01 1 0710-1005 ●
43 BAR; EXTENSION,SOCKET WRENCH
(A) 		1-85000-501-0 01 1 1006- ● ●
108 WRENCH; SOCKET 9-85113-132-0 01 1 0710-1005 ●
108 WRENCH; SOCKET 9-85113-132-0 01 1 1006- ● ●
124 PULLER ASM; BRG DIFF 9-85210-131-0 01 1 0710-1005 ●
124 PULLER ASM; BRG DIFF 9-85210-131-0 01 1 1006- ● ●
128 PULLER ASM; STRG WHEEL 1-85210-078-0 01 1 0710-1005 ●
128 PULLER ASM; STRG WHEEL 1-85210-078-0 01 1 1006- ● ●
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 0710-1005 ●
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 1006- ● ●
130 WRENCH; BOX
B=63 		9-85111-368-0 01 1 0710-1005 ●
130 WRENCH; BOX
B=63 		9-85111-368-0 01 1 1006- ● ●
135 COVER; ENG MTG,FRT 9-85595-016-0 02 1 0710-1005 ●
135 COVER; ENG MTG,FRT 9-85595-016-0 02 1 1006- ● ●
141 HANDLE; WRENCH
OD=25 L=480 		1-85116-011-0 01 1 0710-1005 ●
141 HANDLE; WRENCH
OD=25 L=480 		1-85116-011-0 01 1 1006-1006 ● ●
141 HANDLE; WRENCH
OD=16 L=200 		9-85111-934-0 01 1 0710-1005 ●
141 HANDLE; WRENCH
OD=16 L=200 		9-85111-934-0 01 1 1006- ● ●
146 REPLACER KIT; LEAF SPR 9-85231-556-0 01 1 0710-1005 ●
146 REPLACER KIT; LEAF SPR 9-85231-556-0 01 1 1006- ● ●
163 TOOL; SETTING
MJX12P M/T SMOOTHER-G(Y4S) L=195 		1-85221-162-1 01 1 1006- ●
167 ALIGNER; CLU PILOT
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) L=300 OD=52.5 		1-85253-025-0 01 1 0710- ●
169 BRACKET; SPLINE YOKE 1-85221-317-0 01 1 0710-1005 ●
169 BRACKET; SPLINE YOKE 1-85221-317-0 01 1 1006- ● ●
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 0710-1005 ●
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 1006- ● ●
172 PULLER ASM; BRG DIFF PILOT 9-85210-182-0 01 1 0710-1005 ●
172 PULLER ASM; BRG DIFF PILOT 9-85210-182-0 01 1 1006- ● ●
182 REMOVER ASM 1-85239-008-0 01 1 0710-1005 ●
182 REMOVER ASM 1-85239-008-0 01 1 1006- ● ●
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 0710-1005 ●
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 1006- ● ●
227 PUMP ASM; TIRE 9-85521-132-0 01 1 0710-1005 ●
227 PUMP ASM; TIRE 9-85521-132-0 01 1 1006- ● ●

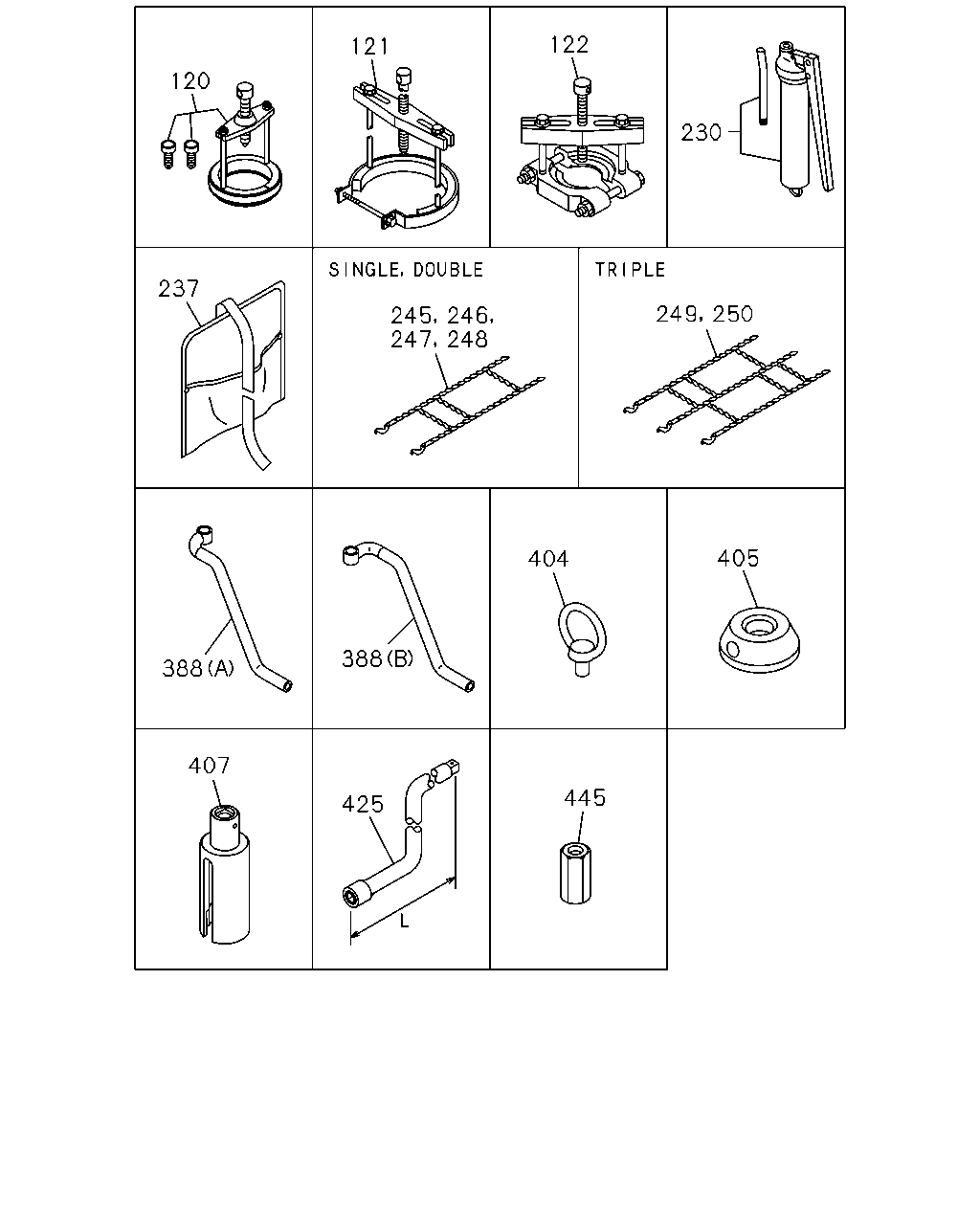

çizim 141647
122 121 120 230 237 405 404 388 388 407 445 425 249 250 245 246 247 248
BalonParca AdiParca NoAdetTipApplied Date A B
120 PULLER ASM; MAIN REAR BRG
MJX12P M/T SMOOTHER-G(Y4S) L=285 		9-85210-184-0 01 1 0710- ●
121 PULLER ASM; COUNTER REAR
MJX12P M/T SMOOTHER-G(Y4S) 		1-85210-069-0 01 1 0710- ●
122 PULLER ASM; COUNTER FRT
MJX12P M/T SMOOTHER-G(Y4S) 		9-85210-195-0 01 1 0710- ●
230 PUMP; GREASE 1-85556-007-4 01 1 0710-1005 ●
230 PUMP; GREASE 1-85556-007-5 01 1 1006- ● ●
237 BAG; TOOL 8-97130-902-0 01 1 0710-1005 ●
237 BAG; TOOL 8-97130-902-1 01 1 1006- ● ●
245 CHAIN; TIRE,SINGLE
9.00-20 SINGLE TYPE 		9-85591-254-0 AR 1 0710-1005 ●
245 CHAIN; TIRE,SINGLE
9.00-20 SINGLE TYPE 		9-85591-254-0 AR 1 1006- ● ●
246 CHAIN; TIRE,1000-20,SINGLE
10.00-20 SINGLE TYPE 		9-85591-239-0 AR 1 0710-1005 ●
246 CHAIN; TIRE,1000-20,SINGLE
10.00-20 SINGLE TYPE 		9-85591-239-0 AR 1 1006- ● ●
246 CHAIN; TIRE,1000-20,SINGLE
11.00-20 SINGLE TYPE 		9-85591-259-0 AR 1 0710-1005 ●
246 CHAIN; TIRE,1000-20,SINGLE
11.00-20 SINGLE TYPE 		9-85591-259-0 AR 1 1006- ● ●
247 CHAIN; TIRE,750-20,DOUBLE
9.00-20 DOUBLE TYPE 		9-85591-255-0 AR 1 0710-1005 ●
247 CHAIN; TIRE,750-20,DOUBLE
9.00-20 DOUBLE TYPE 		9-85591-255-0 AR 1 1006- ● ●
248 CHAIN; TIRE,1000-20,DOUBLE
10.00-20 DOUBLE TYPE 		9-85591-240-0 AR 1 0710-1005 ●
248 CHAIN; TIRE,1000-20,DOUBLE
10.00-20 DOUBLE TYPE 		9-85591-240-0 AR 1 1006- ● ●
248 CHAIN; TIRE,1000-20,DOUBLE
11.00-20 DOUBLE TYPE 		9-85591-260-0 AR 1 0710-1005 ●
248 CHAIN; TIRE,1000-20,DOUBLE
11.00-20 DOUBLE TYPE 		9-85591-260-0 AR 1 1006- ● ●
249 CHAIN; TIRE,TRIPLE
9.00-20 TRIPLE TYPE 		9-85591-256-0 AR 1 0710-1005 ●
249 CHAIN; TIRE,TRIPLE
9.00-20 TRIPLE TYPE 		9-85591-256-0 AR 1 1006- ● ●
250 CHAIN; TIRE,1000-20,TRIPLE
10.00-20 TRIPLE TYPE 		9-85591-241-0 AR 1 0710-1005 ●
250 CHAIN; TIRE,1000-20,TRIPLE
10.00-20 TRIPLE TYPE 		9-85591-241-0 AR 1 1006- ● ●
250 CHAIN; TIRE,1000-20,TRIPLE
11.00-20 TRIPLE TYPE 		9-85591-261-0 AR 1 0710-1005 ●
250 CHAIN; TIRE,1000-20,TRIPLE
11.00-20 TRIPLE TYPE 		9-85591-261-0 AR 1 1006- ● ●
388 WRENCH; U-BOLT
(A) 		9-85111-954-0 01 1 0710-1005 ●
388 WRENCH; U-BOLT
(A) 		9-85111-954-0 01 1 1006- ● ●
388 WRENCH; U-BOLT
(B) 		9-85111-955-0 01 1 0710-1005 ●
388 WRENCH; U-BOLT
(B) 		9-85111-955-0 01 1 1006- ● ●
404 TOOL; SETTING,MAIN COUNTER
MJX12P M/T SMOOTHER-G(Y4S) 		1-85221-262-0 02 1 0710- ●
405 GUIDE; COUNTER
MJX12P M/T SMOOTHER-G(Y4S) 		1-85221-264-0 01 1 0710- ●
407 SOCKET; SW
MJX12P M/T SMOOTHER-G(Y4S) 		1-85221-267-1 01 1 0710- ●
425 EXTENSION; T/M
MJX12P M/T SMOOTHER-G(Y4S) L=500 		8-98300-004-0 01 1 1602- ●
425 EXTENSION; T/M
MJX12P M/T SMOOTHER-G(Y4S) L=500 		1-85221-320-0 01 1 0710-1005 ●
425 EXTENSION; T/M
MJX12P M/T SMOOTHER-G(Y4S) L=550 		1-85221-321-0 01 1 0710-1601 ●
425 EXTENSION; T/M
MJX12P M/T SMOOTHER-G(Y4S) L=550 		8-98300-006-0 01 1 1602- ●
445 PULLER ATTACHMENT
MJX12P M/T SMOOTHER-G(Y4S) BRAKE SYSTEM RETARDER<RE2> 		1-85221-334-0 01 1 0710- ●

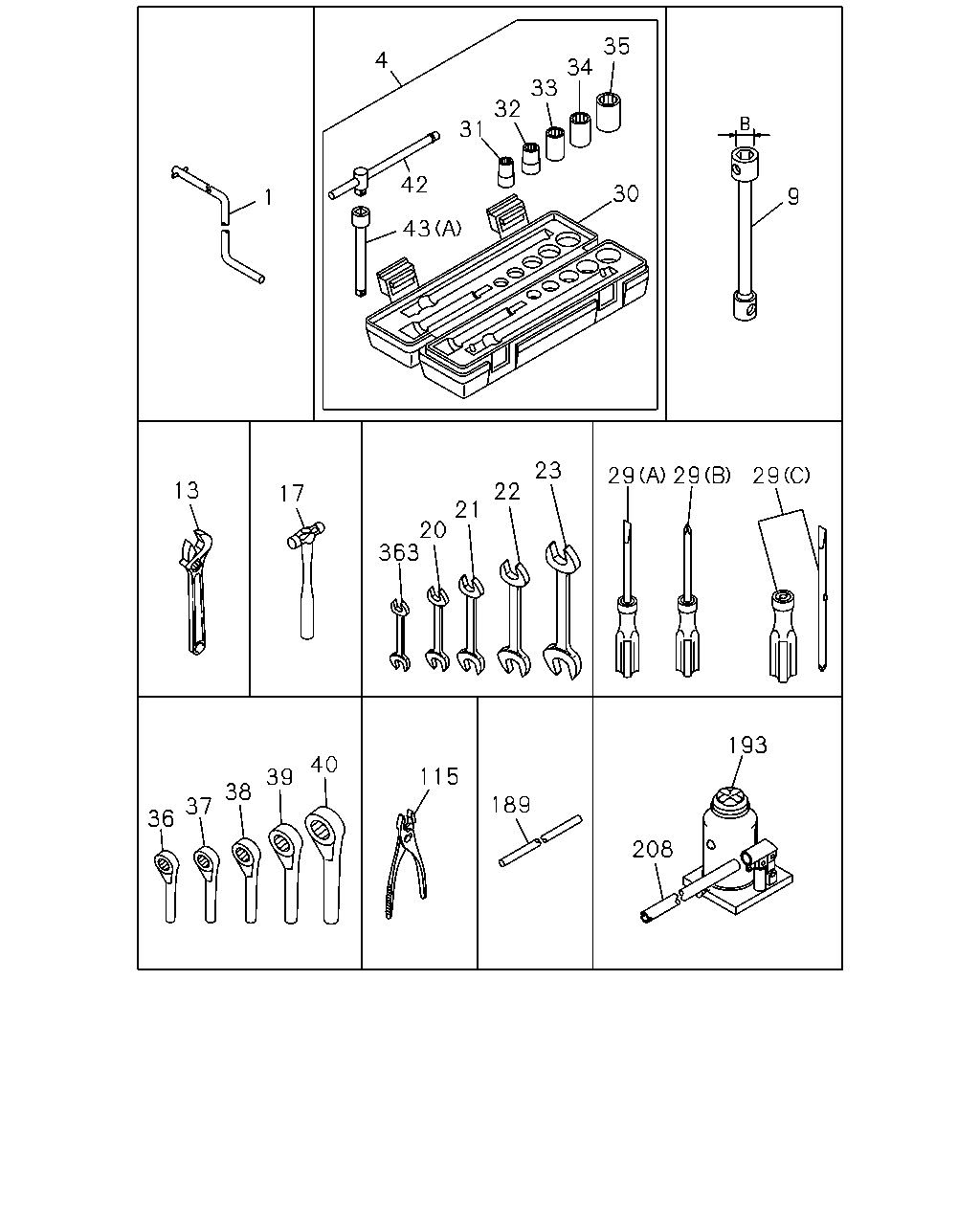

çizim 141648
1 42 43 31 32 33 34 35 4 9 30 29 29 29 23 22 21 20 363 17 13 189 115 193 208 40 39 38 37 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		9-23110-018-0 01 1 0710-1005 ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		9-23110-018-0 01 1 1006- ● ●
4 WRENCH KIT; SOCKET 1-85000-491-0 01 1 0710-1005 ●
4 WRENCH KIT; SOCKET 1-85000-491-0 01 1 1006- ● ●
9 WRENCH; WHEEL PIN
B=33X30 L=450 		1-85111-033-1 01 1 0710-1005 ●
9 WRENCH; WHEEL PIN
B=33X30 L=450 		1-85111-033-1 01 1 1006- ● ●
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 0710-0907 ●
13 WRENCH; MONKEY
L=247 		1-85117-006-0 01 1 0908-1005 ●
13 WRENCH; MONKEY
L=247 		1-85117-006-0 01 1 1006-1407 ● ●
13 WRENCH; MONKEY
L=255 		8-98270-303-0 01 1 1408- ● ●
17 HAMMER 9-85121-406-0 01 1 0710-1005 ●
17 HAMMER 9-85121-406-0 01 1 1006- ● ●
20 WRENCH; 10X12
10X12 		0-95902-510-0 01 1 0710-1005 ●
20 WRENCH; 10X12
10X12 		0-95902-510-0 01 1 1006- ● ●
21 WRENCH; 14X17
14X17 		0-95902-514-0 01 1 0710-1005 ●
21 WRENCH; 14X17
14X17 		0-95902-514-0 01 1 1006- ● ●
22 WRENCH; 19X22
19X22 		0-95902-519-0 01 1 0710-1005 ●
22 WRENCH; 19X22
19X22 		0-95902-519-0 01 1 1006- ● ●
23 WRENCH; 24X27
24X27 		0-95902-524-0 01 1 0710-1005 ●
23 WRENCH; 24X27
24X27 		0-95902-524-0 01 1 1006- ● ●
29 DRIVER; SCREW
(A) <-> L=285 		1-85151-004-0 01 1 0710-1005 ●
29 DRIVER; SCREW
(A) <-> L=285 		1-85151-004-0 01 1 1006- ● ●
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 0710-1005 ●
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 1006- ● ●
29 DRIVER; SCREW
(B) <+> L=275 		9-09595-023-0 01 1 0710-1005 ●
29 DRIVER; SCREW
(B) <+> L=275 		9-09595-023-0 01 1 1006- ● ●
30 BOX; SOCKET WRENCH 1-85000-492-0 01 1 0710-1005 ●
30 BOX; SOCKET WRENCH 1-85000-492-0 01 1 1006- ● ●
31 WRENCH; 12 1-85000-495-0 01 1 0710-1005 ●
31 WRENCH; 12 1-85000-495-0 01 1 1006- ● ●
32 WRENCH; 14 1-85000-496-0 01 1 0710-1005 ●
32 WRENCH; 14 1-85000-496-0 01 1 1006- ● ●
33 WRENCH; 17 1-85000-497-0 01 1 0710-1005 ●
33 WRENCH; 17 1-85000-497-0 01 1 1006- ● ●
34 WRENCH; 19 1-85000-498-0 01 1 0710-1005 ●
34 WRENCH; 19 1-85000-498-0 01 1 1006- ● ●
35 WRENCH; 22 1-85000-499-0 01 1 0710-1005 ●
35 WRENCH; 22 1-85000-499-0 01 1 1006- ● ●
36 WRENCH; 24 9-85111-377-0 01 1 0710-1005 ●
36 WRENCH; 24 9-85111-377-0 01 1 1006- ● ●
37 WRENCH; 27 9-85111-375-0 01 1 0710-1005 ●
37 WRENCH; 27 9-85111-375-0 01 1 1006- ● ●
38 WRENCH; 32 9-85111-358-0 01 1 0710-1005 ●
38 WRENCH; 32 9-85111-358-0 01 1 1006- ● ●
39 WRENCH; 36 9-85111-374-0 01 1 0710-1005 ●
39 WRENCH; 36 9-85111-374-0 01 1 1006- ● ●
40 WRENCH; 41 9-85111-356-0 01 1 0710-1005 ●
40 WRENCH; 41 9-85111-356-0 01 1 1006- ● ●
42 HANDLE; SLIDING 1-85000-500-0 01 1 0710-1005 ●
42 HANDLE; SLIDING 1-85000-500-0 01 1 1006- ● ●
43 BAR; EXTENSION,SOCKET WRENCH
(B) OD=25 L=480 		1-85116-011-0 01 1 1007-1501 ● ●
43 BAR; EXTENSION,SOCKET WRENCH
(B) OD=25 L=480 		8-98257-407-0 01 1 1502- ● ●
43 BAR; EXTENSION,SOCKET WRENCH
(A) 		1-85000-501-0 01 1 0710-1005 ●
43 BAR; EXTENSION,SOCKET WRENCH
(A) 		1-85000-501-0 01 1 1006- ● ●
115 PLIER 5-85171-002-0 01 1 0710-1005 ●
115 PLIER 5-85171-002-0 01 1 1006-1410 ● ●
115 PLIER 8-98282-845-0 01 1 1411- ● ●
189 TUBE; AIR BREATHER
L=460 		9-85291-414-0 01 1 0710-1005 ●
189 TUBE; AIR BREATHER
L=460 		9-85291-414-0 01 1 1006- ● ●
193 JACK ASM
15TON 		1-85510-019-2 01 1 0710-1005 ●
193 JACK ASM
15TON 		1-85510-019-2 01 1 1006- ● ●
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0710-1005 ●
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 1006-1107 ● ●
208 HANDLE; JACK
L=600 		8-98181-437-0 01 1 1108- ● ●
363 WRENCH; OPEN END 8X10
8X10 		0-95902-508-0 01 1 0710-1005 ●
363 WRENCH; OPEN END 8X10
8X10 		0-95902-508-0 01 1 1006- ● ●
