0-05 — ENGINE GASKET KIT (#147025) — 18 parça

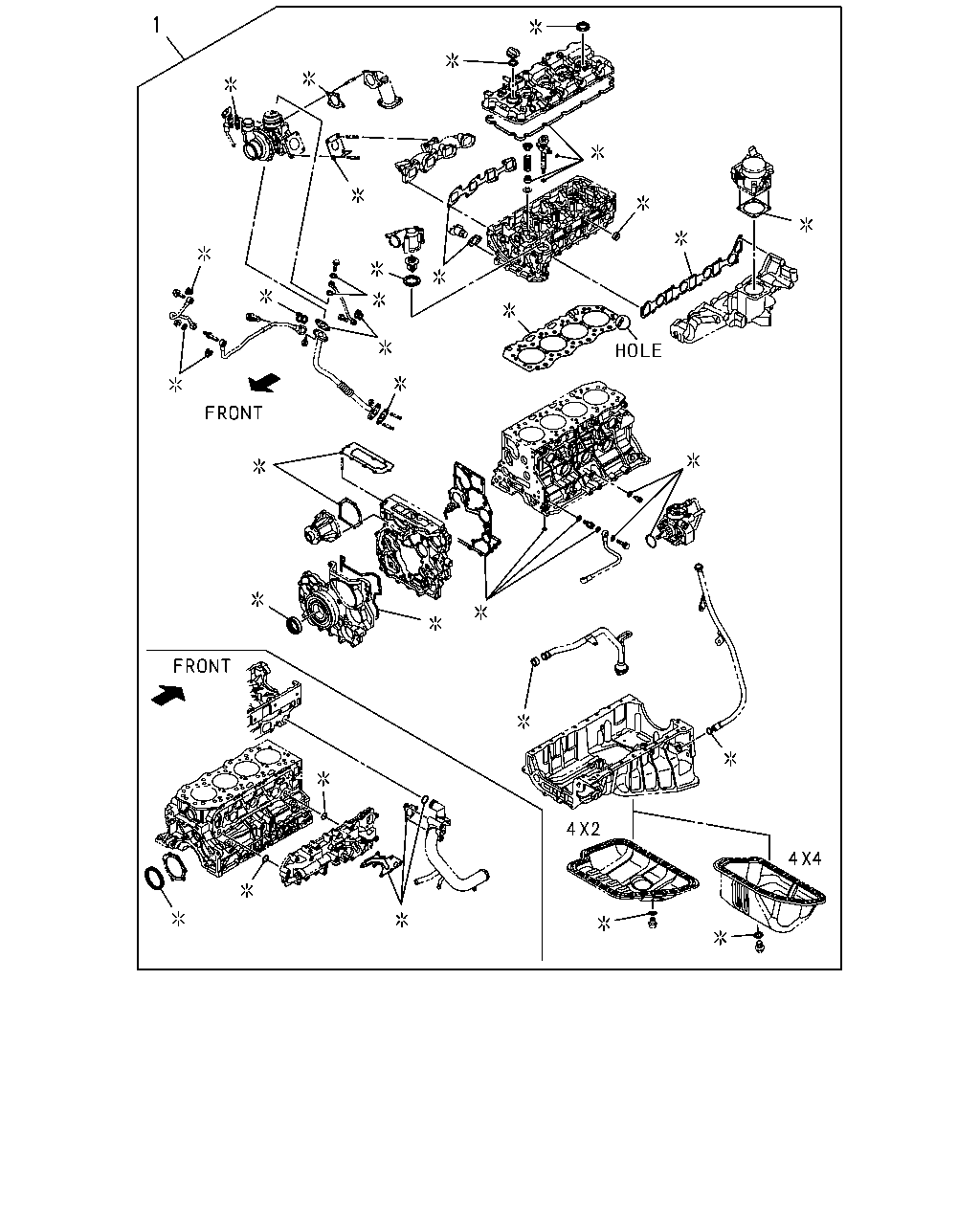

çizim 439229
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.010 GASKET SET; ENG OVERHAUL
T=1.11 1-HOLE 		5-87817-267-0 01 1 1408-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.14 1-HOLE 		5-87817-452-0 01 1 1410-1510 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.14 1-HOLE 		5-87817-452-0 01 1 1511- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.16 2-HOLE 		5-87817-268-0 01 1 1408-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.19 2-HOLE 		5-87817-453-0 01 1 1410-1510 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.19 2-HOLE 		5-87817-453-0 01 1 1511- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.21 3-HOLE 		5-87817-269-0 01 1 1408-1409 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.24 3-HOLE 		5-87817-454-0 01 1 1410-1510 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.24 3-HOLE 		5-87817-454-0 01 1 1511- ● ●

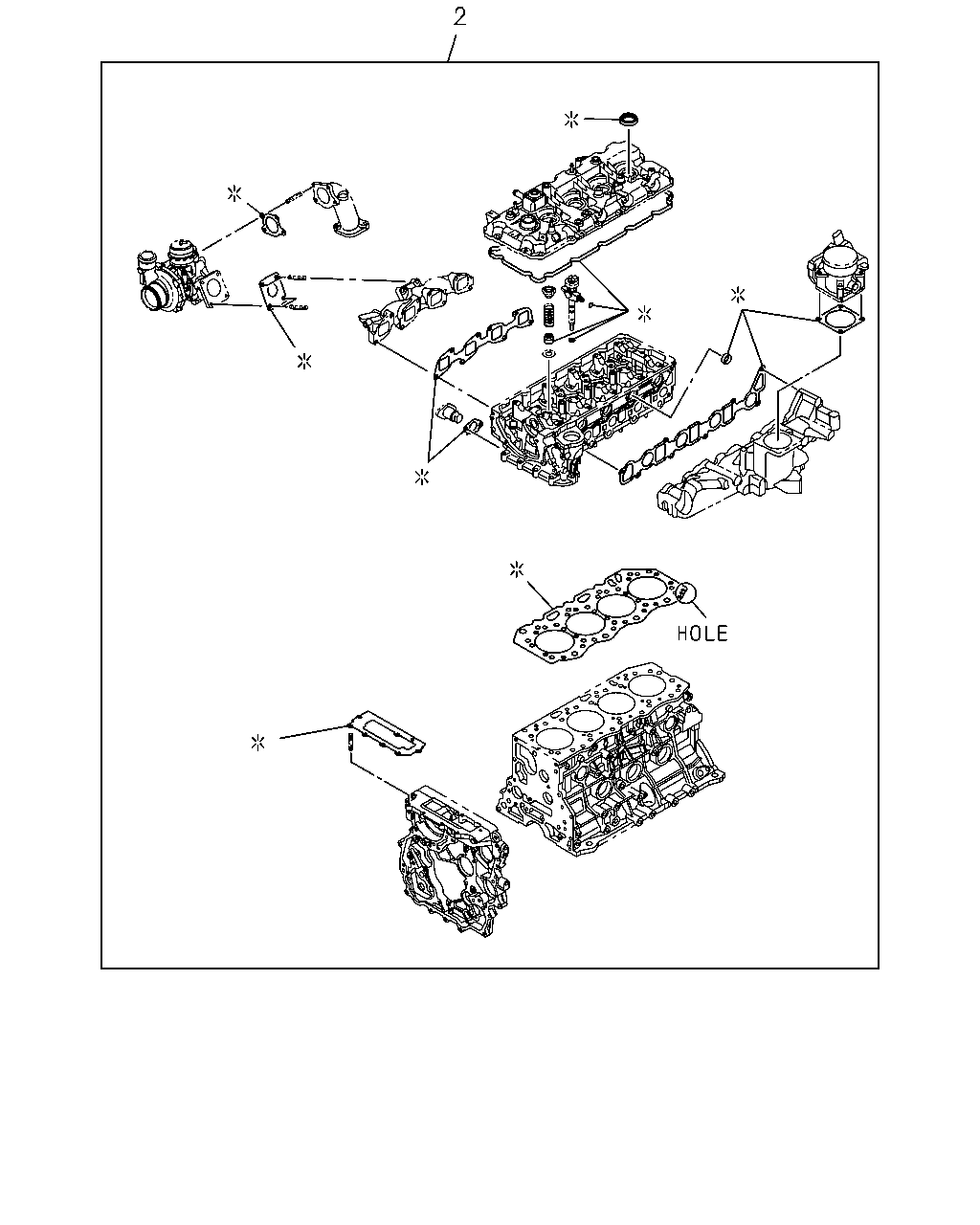

çizim 439321
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.11 1-HOLE 		5-87817-264-0 01 1 1408-1409 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.14 1-HOLE 		5-87817-449-0 01 1 1410-1510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.14 1-HOLE 		5-87817-449-0 01 1 1511- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.16 2-HOLE 		5-87817-265-0 01 1 1408-1409 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.19 2-HOLE 		5-87817-450-0 01 1 1410-1510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.19 2-HOLE 		5-87817-450-0 01 1 1511- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.21 3-HOLE 		5-87817-266-0 01 1 1408-1409 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.24 3-HOLE 		5-87817-451-0 01 1 1410-1510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.24 3-HOLE 		5-87817-451-0 01 1 1511- ● ●
