8-90 — RADIO AND TV (#14702) — 55 parça

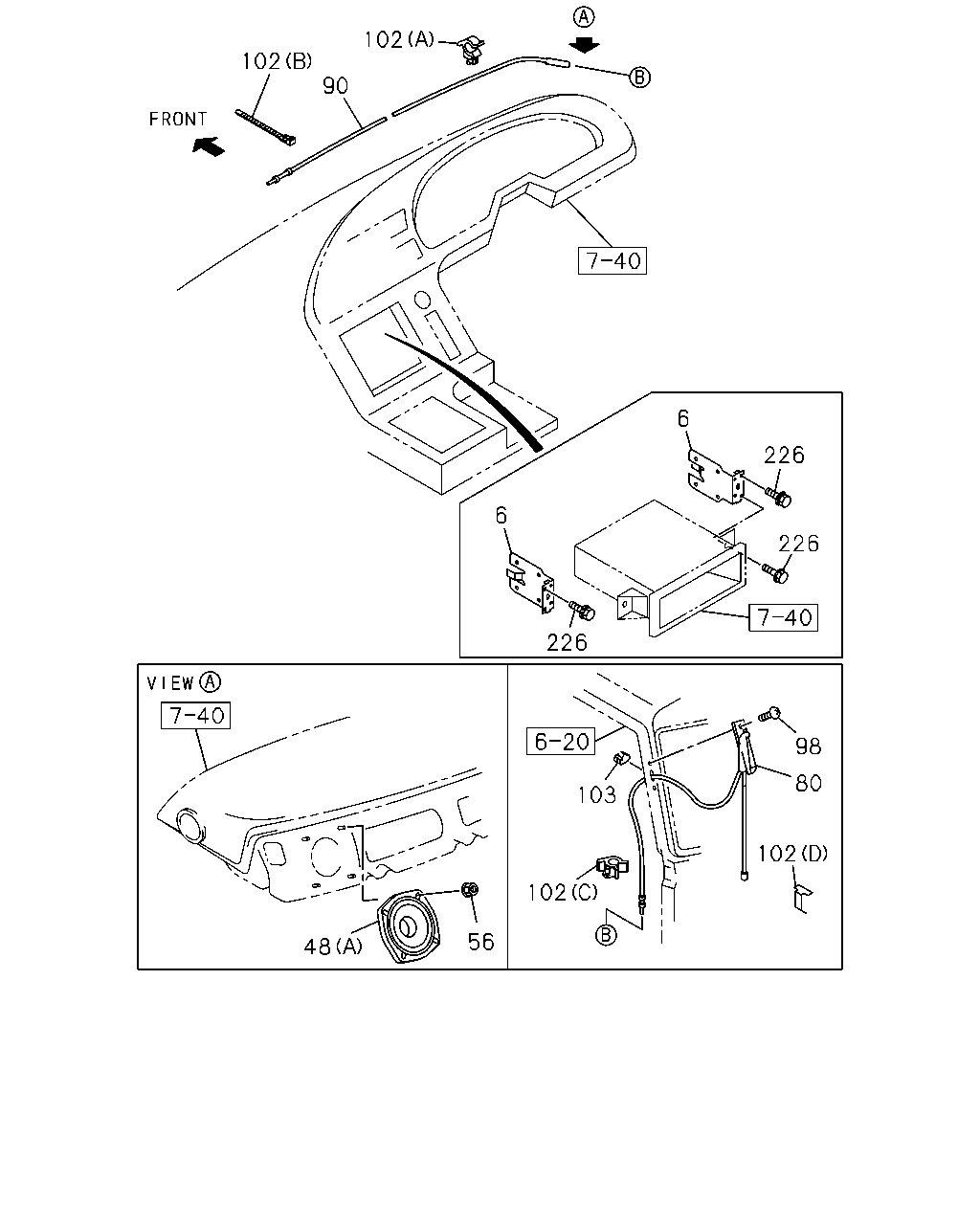

102 102 90 226 6 6 226 226 98 80 102 102 103 56 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	BRACKET; RADIO TO PANEL	1-65671-822-1	02	1	0710-1005	●
6	BRACKET; RADIO TO PANEL	1-65671-822-1	02	1	1006-	●	●
48	SPEAKER; AUDIO (A)	1-84114-073-0	02	1	0710-0905	●
48	SPEAKER; AUDIO (A)	8-98140-326-0	02	1	0906-1005	●
48	SPEAKER; AUDIO (A)	8-98140-326-1	02	1	1006-	●	●
48	SPEAKER; AUDIO (B)	1-84114-075-0	02	1	0710-1005	●
48	SPEAKER; AUDIO (B)	1-84114-075-1	02	1	1006-	●	●
56	NUT; SPEAKER,RADIO OR STEREO M5 FLANGE	1-09984-170-0	04	1	0710-1005	●
56	NUT; SPEAKER,RADIO OR STEREO M5 FLANGE	1-09984-170-0	04	1	1006-	●	●
80	ANTENNA	1-84115-055-2	01	1	0710-1005	●
80	ANTENNA	1-84115-055-2	01	1	1006-1203	●	●
80	ANTENNA	8-98210-874-1	01	1	1204-	●	●
90	CABLE; ANTENNA,FEEDER	1-84113-011-2	01	1	0710-1005	●
90	CABLE; ANTENNA,FEEDER	1-84113-011-2	01	1	1006-	●	●
98	SCREW; TAP,ANTENNA M5X11	1-09981-536-1	02	1	0710-1005	●
98	SCREW; TAP,ANTENNA M5X11	1-09981-536-1	02	1	1006-	●	●
102	CLIP; CABLE (D) L=20 SET=10 PIECE	1-09987-246-2	01	1	1410-	●	●
102	CLIP; CABLE (A) ID=4.8	1-73907-618-0	05	1	0710-1005	●
102	CLIP; CABLE (A) ID=4.8	1-73907-618-0	05	1	1006-	●	●
102	CLIP; CABLE (B) L=140	5-09707-031-1	01	1	0710-1005	●
102	CLIP; CABLE (B) L=140	5-09707-031-1	01	1	1006-	●	●
102	CLIP; CABLE (C) ID=4.8	8-94128-483-0	03	1	0710-1005	●
102	CLIP; CABLE (C) ID=4.8	8-94128-483-0	03	1	1006-	●	●
103	GROMMET; ANTENNA HOLE,FRT	8-97027-381-0	01	1	0710-1005	●
103	GROMMET; ANTENNA HOLE,FRT	8-97027-381-0	01	1	1006-	●	●
226	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0710-1005	●
226	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	1006-	●	●

49 48 52 68 215 62 63 49 48 52 215

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	SPEAKER; AUDIO (A)	1-84114-073-0	02	1	0710-0905	●
48	SPEAKER; AUDIO (A)	8-98140-326-0	02	1	0906-1005	●
48	SPEAKER; AUDIO (A)	8-98140-326-1	02	1	1006-	●	●
48	SPEAKER; AUDIO (B)	1-84114-075-0	02	1	0710-1005	●
48	SPEAKER; AUDIO (B)	1-84114-075-1	02	1	1006-	●	●
49	SCREW; SPEAKER M5X16 W/LK&PL WASHER	8-94279-400-0	08	1	0710-1005	●
49	SCREW; SPEAKER M5X16 W/LK&PL WASHER	8-94279-400-0	08	1	1006-	●	●
52	GROMMET; SCREW,SPEAKER HIGH ROOF<S2F> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	1006-		●
52	GROMMET; SCREW,SPEAKER D=8.6X7.7 L=7.5	8-94279-078-0	08	1	0710-1005	●
52	GROMMET; SCREW,SPEAKER D=8.6X7.7 L=7.5	8-94279-078-0	08	1	1006-1202	●
52	GROMMET; SCREW,SPEAKER LOW ROOF<6XQ> D=8.6X7.7 L=7.5	8-94279-078-0	08	1	1006-1202		●
52	GROMMET; SCREW,SPEAKER LOW ROOF<6XQ> D=8.6X7.7 L=7.5	8-94279-078-0	08	1	1203-	●	●
62	BOX; RR SPEAKER HIGH ROOF<S2F>	1-73347-748-4	01	1	1006-		●
62	BOX; RR SPEAKER HIGH ROOF<S2F>	1-73347-749-4	01	1	1006-		●
63	SCREW; RR SPEAKER BOX HIGH ROOF<S2F> M6X16 W/LK&PL WASHER	8-94279-402-0	04	1	1006-		●
68	BRACKET; RR SPEAKER	1-73347-786-2	01	1	0710-1005	●
68	BRACKET; RR SPEAKER	1-73347-786-2	01	1	1006-1202	●
68	BRACKET; RR SPEAKER LOW ROOF<6XQ>	1-73347-786-2	01	1	1006-1202		●
68	BRACKET; RR SPEAKER LOW ROOF<6XQ>	1-73347-786-2	01	1	1203-	●	●
68	BRACKET; RR SPEAKER	1-73347-785-2	01	1	0710-1005	●
68	BRACKET; RR SPEAKER	1-73347-785-2	01	1	1006-1202	●
68	BRACKET; RR SPEAKER LOW ROOF<6XQ>	1-73347-785-2	01	1	1006-1202		●
68	BRACKET; RR SPEAKER LOW ROOF<6XQ>	1-73347-785-2	01	1	1203-	●	●
215	SCREW; BRKT,SPEAKER HIGH ROOF<S2F> M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	1006-		●
215	SCREW; BRKT,SPEAKER M5X16 W/PL WASHER TAPPING	8-94279-123-0	08	1	0710-1005	●
215	SCREW; BRKT,SPEAKER M5X16 W/PL WASHER TAPPING	8-94279-123-0	08	1	1006-1202	●
215	SCREW; BRKT,SPEAKER LOW ROOF<6XQ> M5X16 W/PL WASHER TAPPING	8-94279-123-0	08	1	1006-1202		●
215	SCREW; BRKT,SPEAKER LOW ROOF<6XQ> M5X16 W/PL WASHER TAPPING	8-94279-123-0	08	1	1203-	●	●
