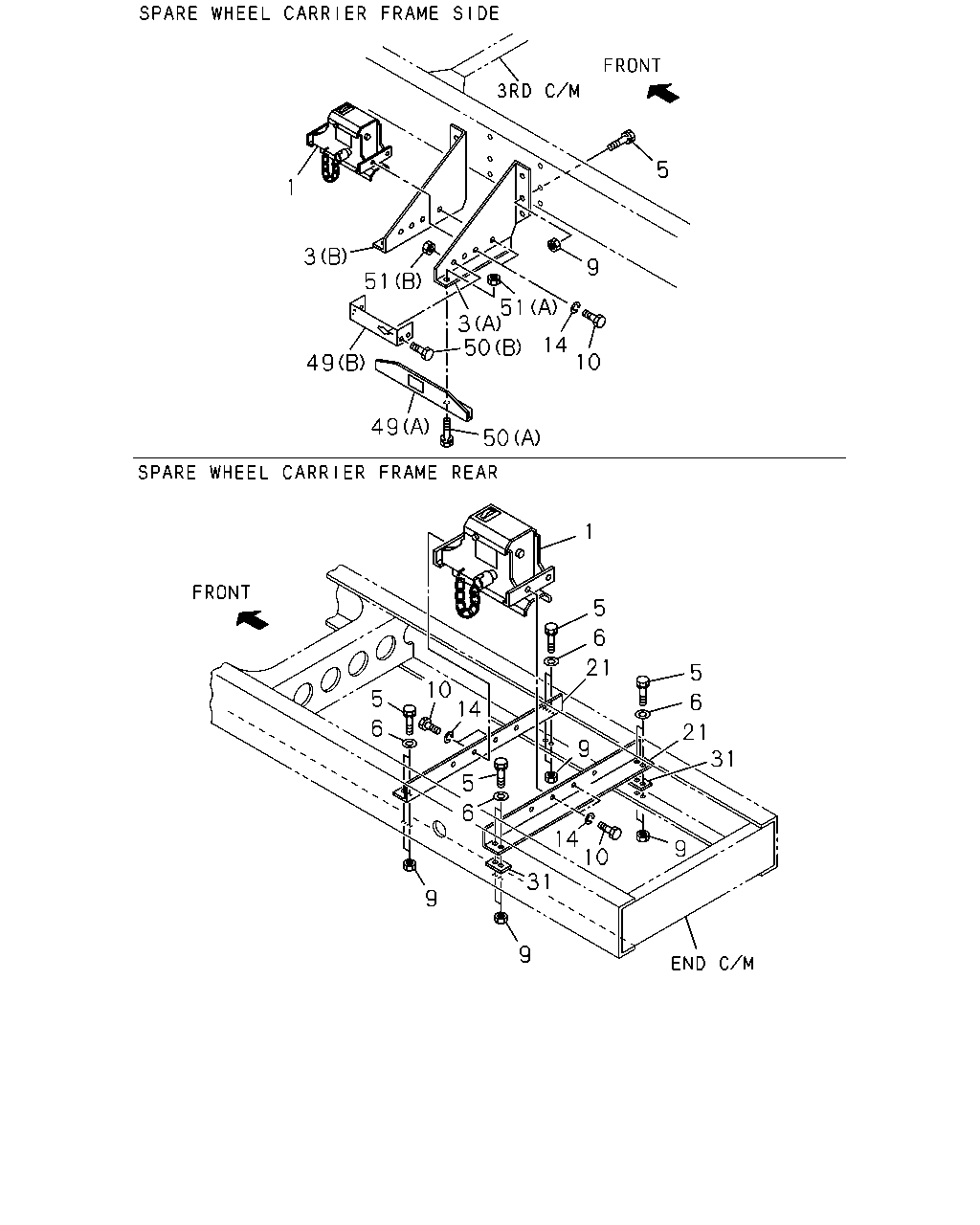

5-30 — SPARE TIRE CARRIER AND COVER
(#1470) — 18 parça
1
3
49
51
49
50
50
3
51
10
14
9
5
1
5
6
21
5
6
21
31
9
9
14
10
31
9
9
6
5
14
10
5
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANGER ASM; TIRE FT
1-53630-146-1
01
1
9203-
3
BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A)
1-53631-087-3
01
1
9203-
3
BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B)
1-53631-088-3
01
1
9203-
5
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 W/LK WASHER
0-50041-035-0
08
1
9203-
5
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 W/LK WASHER
0-50041-235-0
06
1
9203-
6
WASHER; PL,BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> ID=10.5
9-09164-510-0
08
1
9203-
9
NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10
9-09110-410-0
08
1
9203-
9
NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12
9-99110-412-0
06
1
9203-
10
BOLT; TIRE HANGER
M16X30
0-20801-630-0
04
1
9203-
14
WASHER; LK,TIRE HANGER
ID=16.2
9-09150-516-0
04
1
9203-
21
BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>
1-53631-209-2
02
1
9203-
31
SPACER; HANGER BRKT
SPARE WHEEL CARRIER FRAME REAR<P10>
1-53168-227-0
02
1
9203-
49
STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> (A)
1-53631-182-0
01
1
9203-9302
49
STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> (B)
1-53631-278-1
01
1
9303-
50
BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) M12X30 W/LK WASHER
0-50041-230-0
02
1
9203-9302
50
BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M8X20 FLANGE
0-28080-820-0
04
1
9303-
51
NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) M12
9-99110-412-0
02
1
9203-9302
51
NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M8
9-09110-408-0
04
1
9303-
