◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-74 - EVAPORATOR ▶
8-74 — EVAPORATOR (#14699) — 28 parça

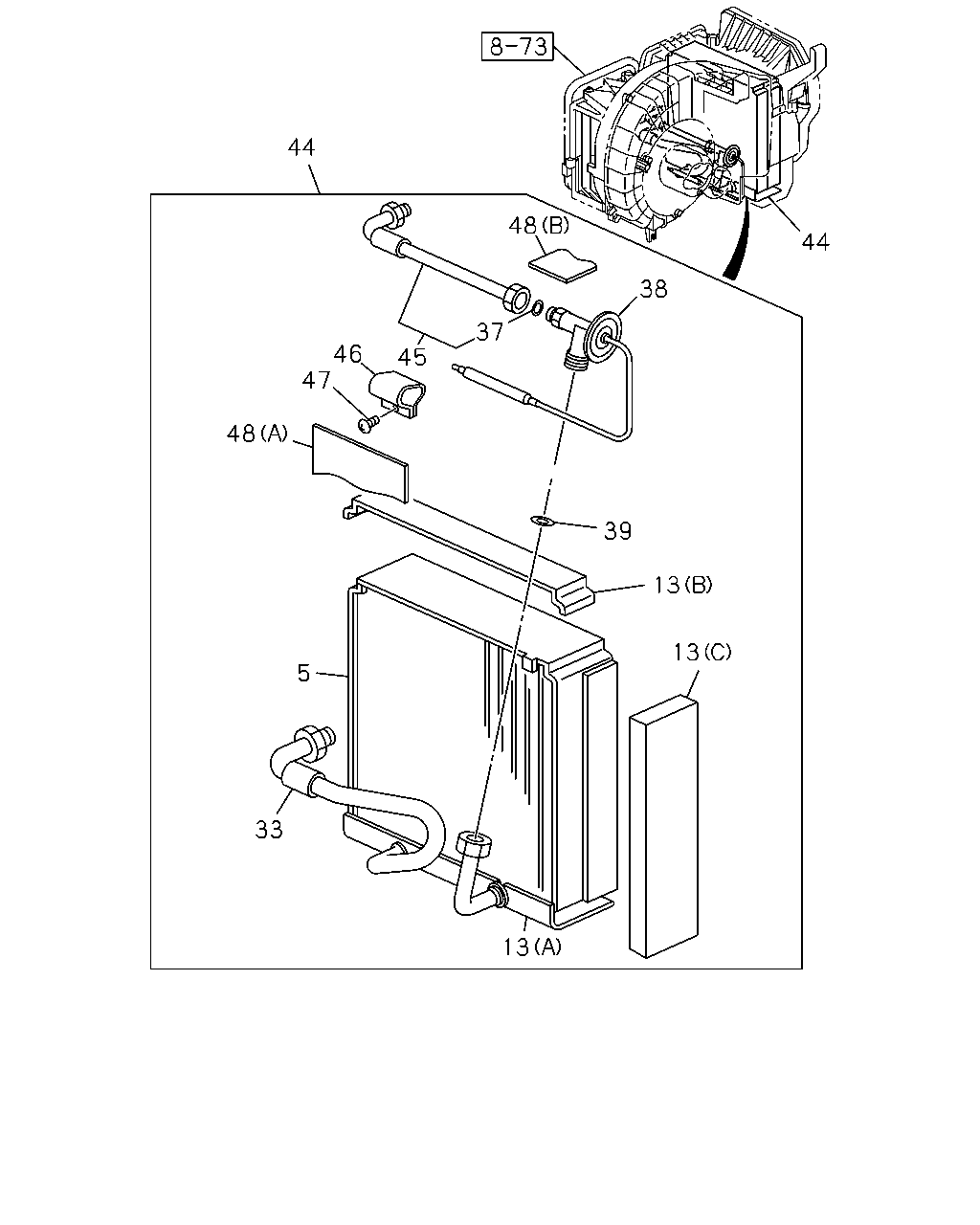

çizim 141634
44 48 44 38 37 46 47 45 48 39 13 13 5 33 13
BalonParca AdiParca NoAdetTipApplied Date A B
5 EVAPORATOR 1-83562-097-0 01 1 0710-1005 ●
5 EVAPORATOR 1-83562-097-0 01 1 1006- ● ●
13 SEAL; EVAP
(C) 		1-83579-938-0 01 1 0710-1005 ●
13 SEAL; EVAP
(C) 		1-83579-938-0 01 1 1006- ● ●
13 SEAL; EVAP
(A) 		1-83579-959-0 01 1 0710-1005 ●
13 SEAL; EVAP
(A) 		1-83579-959-0 01 1 1006- ● ●
13 SEAL; EVAP
(B) 		1-83579-960-0 01 1 0710-1005 ●
13 SEAL; EVAP
(B) 		1-83579-960-0 01 1 1006- ● ●
33 LINING; EVAP 1-83579-653-0 01 1 0710-1005 ●
33 LINING; EVAP 1-83579-653-0 01 1 1006- ● ●
37 GASKET; EVAP
ID=6.07 		8-94461-902-0 01 1 0710-1005 ●
37 GASKET; EVAP
ID=6.07 		8-94461-902-0 01 1 1006- ● ●
38 VALVE; EXPANSION 1-83569-189-0 01 1 0710-1005 ●
38 VALVE; EXPANSION 1-83569-189-0 01 1 1006- ● ●
39 GASKET; EVAP 8-94481-717-0 01 1 0710-1005 ●
39 GASKET; EVAP 8-94481-717-0 01 1 1006- ● ●
44 EVAPORATOR ASM; A/C 1-83562-099-0 01 1 0710-1005 ●
44 EVAPORATOR ASM; A/C 1-83562-099-0 01 1 1006- ● ●
45 PIPE; EXPANSION VLV 1-83567-682-0 01 1 0710-1005 ●
45 PIPE; EXPANSION VLV 1-83567-682-0 01 1 1006- ● ●
46 CLIP; EXPANSION VLV 1-83574-214-0 01 1 0710-1005 ●
46 CLIP; EXPANSION VLV 1-83574-214-0 01 1 1006- ● ●
47 SCREW; EVAP 8-97130-601-0 01 1 0710-1005 ●
47 SCREW; EVAP 8-97130-601-0 01 1 1006- ● ●
48 INSULATOR; EVAP
(A) 		1-83579-784-0 01 1 0710-1005 ●
48 INSULATOR; EVAP
(A) 		1-83579-784-0 01 1 1006- ● ●
48 INSULATOR; EVAP
(B) 		1-83579-969-0 01 1 0710-1005 ●
48 INSULATOR; EVAP
(B) 		1-83579-969-0 01 1 1006- ● ●
