◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-73 - BLOWER UNIT ▶

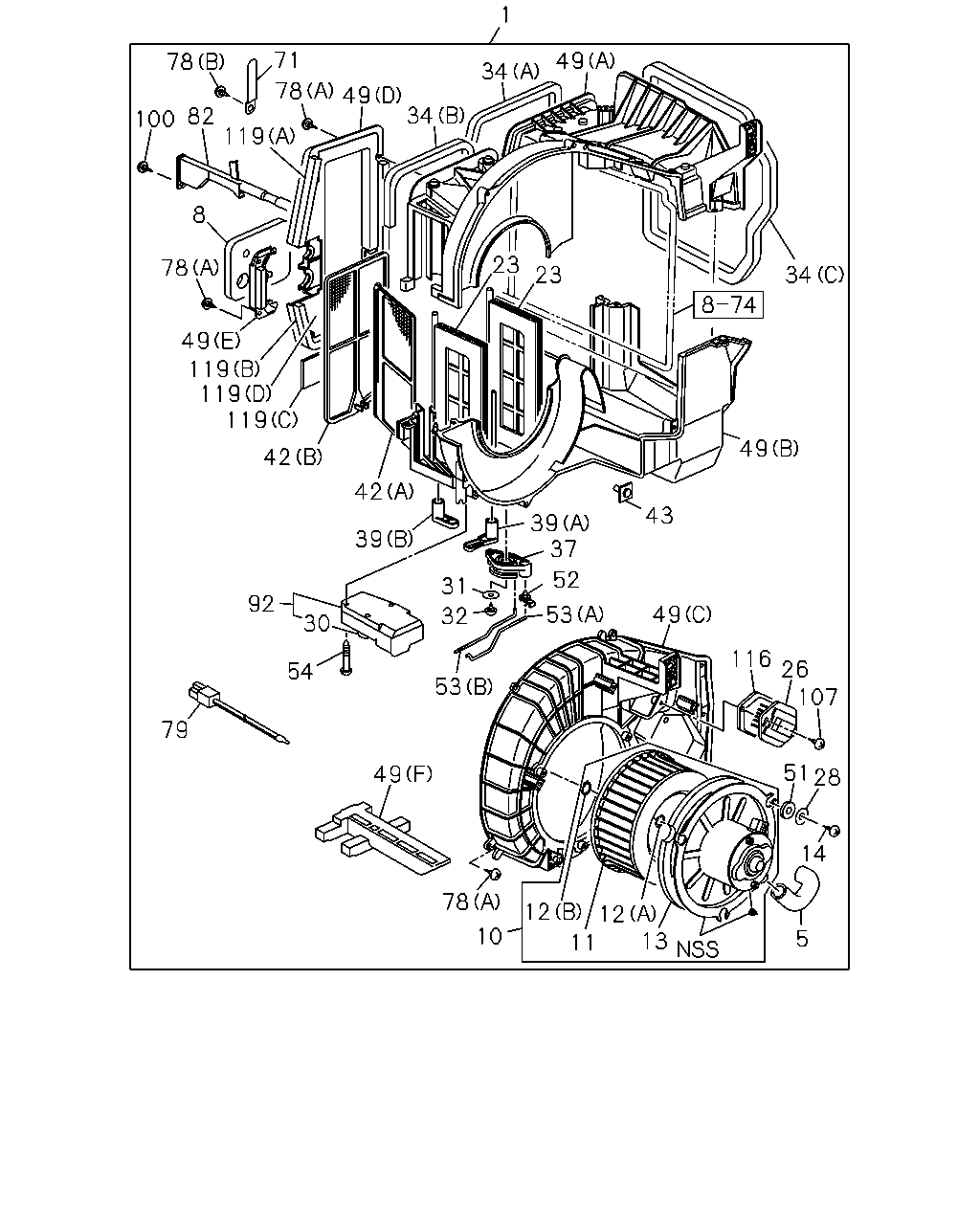

8-73 — BLOWER UNIT (#14698) — 96 parça
çizim 141645
1 71 49 78 34 78 49 34 82 100 119 8 23 78 23 34 49 119 119 119 49 42 42 43 39 37 39 52 31 92 49 53 32 30 116 26 107 54 53 79 51 28 49 14 78 12 12 13 10 5 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOWER ASM 1-83561-154-5 01 1 0710-1005 ●
1 BLOWER ASM 1-83561-154-5 01 1 1006- ● ●
5 HOSE; AIR 1-83563-140-0 01 1 0710-1005 ●
5 HOSE; AIR 1-83563-140-0 01 1 1006- ● ●
8 SEAL; BLOWER UNIT 1-83539-261-1 01 1 0710-1005 ●
8 SEAL; BLOWER UNIT 1-83539-261-1 01 1 1006- ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 0710-1005 ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 1006- ● ●
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 0710-1005 ●
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 1006- ● ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 0710-1005 ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 1006- ● ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 0710-1005 ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 1006- ● ●
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 0710-1005 ●
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 1006- ● ●
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 0710-1005 ●
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 1006- ● ●
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 0710-1005 ●
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 1006- ● ●
26 TRANSISTOR; BLOWER UNIT 1-83579-654-0 01 1 0710-1005 ●
26 TRANSISTOR; BLOWER UNIT 1-83579-654-0 01 1 1006- ● ●
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 0710-1005 ●
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 1006- ● ●
30 LEVER; ACTUATOR 1-83564-345-1 01 1 0710-1005 ●
30 LEVER; ACTUATOR 1-83564-345-1 01 1 1006- ● ●
31 WASHER; LEVER 1-83579-095-0 01 1 0710-1005 ●
31 WASHER; LEVER 1-83579-095-0 01 1 1006- ● ●
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 0710-1005 ●
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 1006- ● ●
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 0710-1005 ●
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 1006- ● ●
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 0710-1005 ●
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 1006- ● ●
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 0710-1005 ●
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 1006- ● ●
37 LEVER; MODE LEVER 1-83564-344-0 01 1 0710-1005 ●
37 LEVER; MODE LEVER 1-83564-344-0 01 1 1006- ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 0710-1005 ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 1006- ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 0710-1005 ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 1006- ● ●
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-3 01 1 0710-1005 ●
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-3 01 1 1006- ● ●
42 FILTER; BLOWER UNIT
(A) 		1-83579-993-0 02 1 0710-1005 ●
42 FILTER; BLOWER UNIT
(A) 		1-83579-993-0 02 1 1006- ● ●
43 BOLT; CASE 1-83579-657-2 04 1 0710-1005 ●
43 BOLT; CASE 1-83579-657-2 04 1 1006- ● ●
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 0710-1005 ●
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 1006- ● ●
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 0710-1005 ●
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 1006- ● ●
49 CASE; BLOWER UNIT
(F) 		1-83564-340-1 01 1 0710-1005 ●
49 CASE; BLOWER UNIT
(F) 		1-83564-340-1 01 1 1006- ● ●
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 0710-1005 ●
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 1006- ● ●
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 0710-1005 ●
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 1006- ● ●
49 CASE; BLOWER UNIT
(B) 		1-83564-406-1 01 1 0710-1005 ●
49 CASE; BLOWER UNIT
(B) 		1-83564-406-1 01 1 1006- ● ●
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 0710-1005 ●
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 1006- ● ●
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 0710-1005 ●
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 1006- ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 0710-1005 ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 1006- ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 0710-1005 ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 1006- ● ●
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 0710-1005 ●
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 1006- ● ●
71 CLIP; HARNESS 1-83574-080-0 01 1 0710-1005 ●
71 CLIP; HARNESS 1-83574-080-0 01 1 1006- ● ●
78 SCREW; CASE TO CASE
(B) M5X10 TAPPING W/PL WASHER 		0-74300-510-0 01 1 0710-1005 ●
78 SCREW; CASE TO CASE
(B) M5X10 TAPPING W/PL WASHER 		0-74300-510-0 01 1 1006- ● ●
78 SCREW; CASE TO CASE
(A) M4X16 		8-94324-850-0 17 1 0710-1005 ●
78 SCREW; CASE TO CASE
(A) M4X16 		8-94324-850-0 17 1 1006- ● ●
79 SENSOR; BLOWER UNIT 1-83544-037-0 01 1 0710-1005 ●
79 SENSOR; BLOWER UNIT 1-83544-037-0 01 1 1006- ● ●
82 BRACKET; BLOWER UNIT 1-83571-871-1 01 1 0710-1005 ●
82 BRACKET; BLOWER UNIT 1-83571-871-1 01 1 1006- ● ●
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 0710-1005 ●
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 1006- ● ●
100 SCREW; BRKT
M4X16 		8-94324-850-0 01 1 0710-1005 ●
100 SCREW; BRKT
M4X16 		8-94324-850-0 01 1 1006- ● ●
107 SCREW; TRANSISTOR
M4X16 		8-94324-850-0 02 1 0710-1005 ●
107 SCREW; TRANSISTOR
M4X16 		8-94324-850-0 02 1 1006- ● ●
116 SEAL; TRANSISTOR 1-83579-656-0 01 1 0710-1005 ●
116 SEAL; TRANSISTOR 1-83579-656-0 01 1 1006- ● ●
119 LINING; CASE
(D) 		1-83578-032-0 01 1 0710-1005 ●
119 LINING; CASE
(D) 		1-83578-032-0 01 1 1006- ● ●
119 LINING; CASE
(A) 		1-83579-670-1 01 1 0710-1005 ●
119 LINING; CASE
(A) 		1-83579-670-1 01 1 1006- ● ●
119 LINING; CASE
(B) 		1-83579-671-1 01 1 0710-1005 ●
119 LINING; CASE
(B) 		1-83579-671-1 01 1 1006- ● ●
119 LINING; CASE
(C) 		1-83579-961-0 01 1 0710-1005 ●
119 LINING; CASE
(C) 		1-83579-961-0 01 1 1006- ● ●
