8-60 — HEATER UNIT; FRONT (#14696) — 105 parça

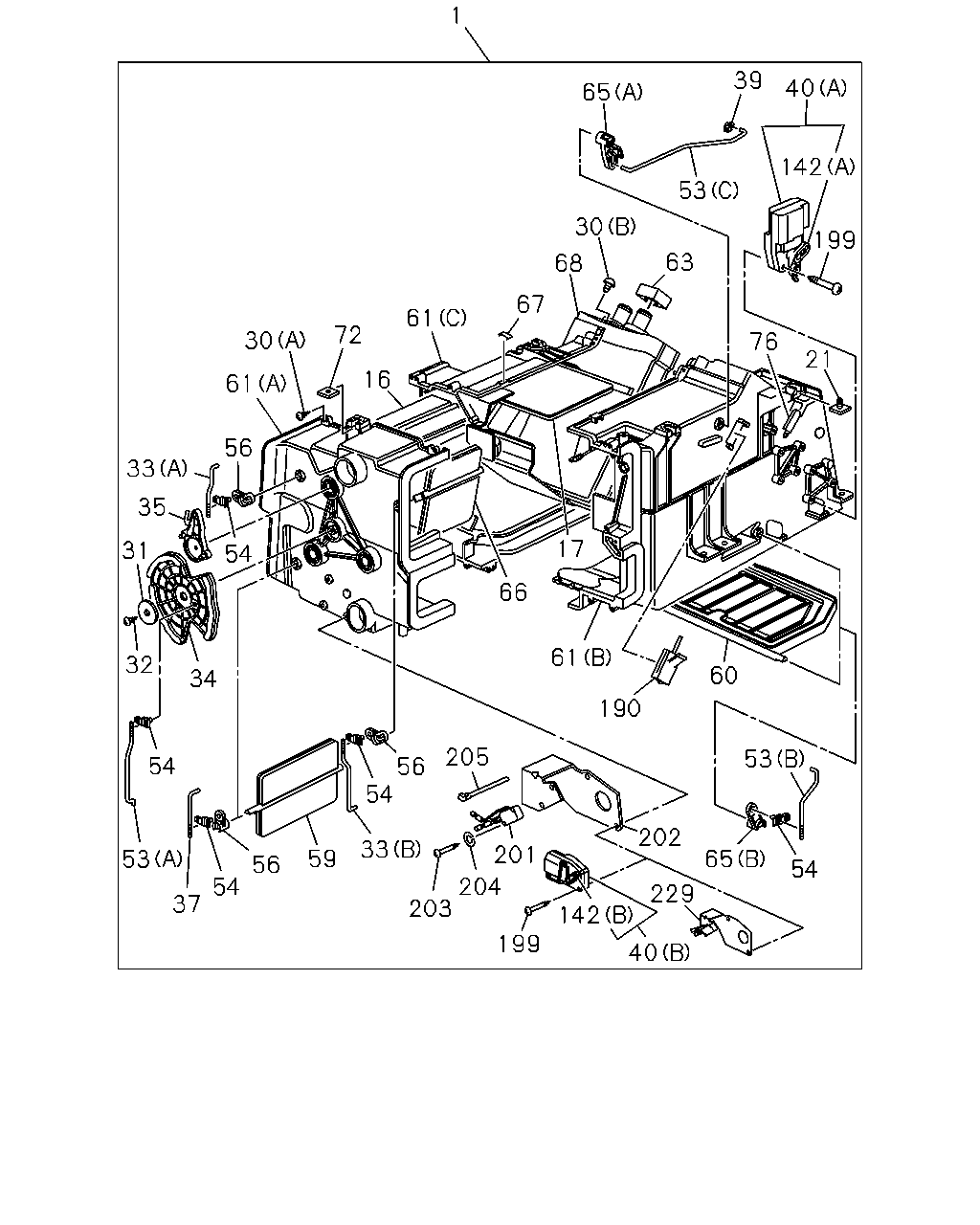

çizim 141644
1 65 39 40 142 199 53 63 76 21 30 68 67 61 16 72 30 61 56 33 35 54 31 32 34 54 53 37 54 56 59 33 203 199 204 142 201 40 229 54 65 202 205 56 54 190 60 53 61 66 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83511-182-1 01 1 0710-1005 ●
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83511-182-1 01 1 1006-1409 ●
1 HEATER UNIT 1-83511-182-1 01 1 1006-1409 ●
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		8-98238-480-0 01 1 1410- ●
1 HEATER UNIT 8-98238-480-0 01 1 1410- ●
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83511-184-1 01 1 0710-1409 ●
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-98238-482-0 01 1 1410- ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 0710-1005 ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 1006- ● ●
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 0710-1005 ●
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 1006- ● ●
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 0710-1005 ●
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 1006- ● ●
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 0710-1005 ●
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 1006- ● ●
30 SCREW; HTR UNIT
(B) M5X20 		9-09829-324-1 01 1 0710-1005 ●
30 SCREW; HTR UNIT
(B) M5X20 		9-09829-324-1 01 1 1006-1409 ● ●
30 SCREW; HTR UNIT
(B) M5X16 		8-94248-820-0 01 1 1410- ● ●
31 WASHER; HTR UNIT 8-94129-950-0 01 1 0710-1005 ●
31 WASHER; HTR UNIT 8-94129-950-0 01 1 1006- ● ●
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 0710-1005 ●
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 1006-1409 ● ●
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1410- ● ●
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 0710-1005 ●
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 1006- ● ●
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 0710-1005 ●
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 1006- ● ●
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 0710-1005 ●
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 1006- ● ●
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 0710-1005 ●
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 1006- ● ●
37 ROD; LEVER 1-83579-620-1 01 1 0710-1005 ●
37 ROD; LEVER 1-83579-620-1 01 1 1006- ● ●
39 CLIP; HTR UNIT 1-83574-136-0 01 1 0710-1005 ●
39 CLIP; HTR UNIT 1-83574-136-0 01 1 1006- ● ●
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 0710-1005 ●
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 1006- ● ●
40 ACTUATOR; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83579-676-2 01 1 0710-1005 ●
40 ACTUATOR; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83579-676-2 01 1 1006- ●
40 ACTUATOR; HTR UNIT
(B) 		1-83579-676-2 01 1 1006- ●
40 ACTUATOR; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83579-649-2 01 1 0710- ●
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 0710-1005 ●
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 1006- ● ●
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 0710-1005 ●
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 1006- ● ●
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 0710-1005 ●
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 1006- ● ●
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 0710-1005 ●
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 1006- ● ●
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 0710-1005 ●
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 1006- ● ●
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 0710-1005 ●
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 1006- ● ●
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 0710-1005 ●
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 1006- ● ●
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 0710-1005 ●
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 1006- ● ●
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83564-323-5 01 1 0710-1005 ●
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83564-323-5 01 1 1006- ●
61 CASE; HTR UNIT
(B) 		1-83564-323-5 01 1 1006- ●
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83564-347-3 01 1 0710-1005 ●
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83564-347-3 01 1 1006- ●
61 CASE; HTR UNIT
(A) 		1-83564-347-3 01 1 1006- ●
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83564-401-0 01 1 0710- ●
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83564-402-0 01 1 0710- ●
63 LINING; HTR UNIT 1-83579-557-0 02 1 0710-1005 ●
63 LINING; HTR UNIT 1-83579-557-0 02 1 1006- ● ●
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 0710-1005 ●
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 1006- ● ●
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 0710-1005 ●
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 1006- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-680-0 01 1 0710-1005 ●
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-680-0 01 1 1006- ● ●
67 CLIP; HTR UNIT 1-83574-148-0 01 1 0710-1005 ●
67 CLIP; HTR UNIT 1-83574-148-0 01 1 1006- ● ●
68 CORE; HTR UNIT 1-83562-078-1 01 1 0710-1005 ●
68 CORE; HTR UNIT 1-83562-078-1 01 1 1006-1409 ● ●
68 CORE; HTR UNIT 8-98238-475-0 01 1 1410- ● ●
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 0710-1005 ●
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 1006- ● ●
76 BRACKET; HTR UNIT 1-83571-874-0 01 1 0710-1005 ●
76 BRACKET; HTR UNIT 1-83571-874-0 01 1 1006- ● ●
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 0710-1005 ●
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 1006- ● ●
142 LEVER; ACTUATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83564-409-0 01 1 0710-1005 ●
142 LEVER; ACTUATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83564-409-0 01 1 1006- ●
142 LEVER; ACTUATOR
(B) 		1-83564-409-0 01 1 1006- ●
142 LEVER; ACTUATOR
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83564-345-1 01 1 0710- ●
190 SENSOR; HEATER UNIT 1-83579-658-1 01 1 0710-1005 ●
190 SENSOR; HEATER UNIT 1-83579-658-1 01 1 1006- ● ●
199 SCREW; ACTUATOR 8-94348-809-0 04 1 0710-1005 ●
199 SCREW; ACTUATOR 8-94348-809-0 04 1 1006- ● ●
201 SWITCH; MICRO,HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83579-679-1 01 1 1410- ●
201 SWITCH; MICRO,HEATER UNIT 1-83579-679-1 01 1 1410- ●
202 BRACKET; MICRO SWITCH
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83571-907-1 01 1 1410- ●
202 BRACKET; MICRO SWITCH 1-83571-907-1 01 1 1410- ●
203 SCREW; MICRO SWITCH
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		5-83569-141-0 02 1 1410- ●
203 SCREW; MICRO SWITCH 5-83569-141-0 02 1 1410- ●
204 WASHER; LK,MICRO SWITCH
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) ID=3.1 		9-09150-503-0 02 1 1410- ●
204 WASHER; LK,MICRO SWITCH
ID=3.1 		9-09150-503-0 02 1 1410- ●
205 CLIP; HARNESS
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) L=92 		1-83574-159-0 01 1 1410- ●
205 CLIP; HARNESS
L=92 		1-83574-159-0 01 1 1410- ●
229 SWITCH ASM; MICRO,HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83579-688-2 01 1 0710-1005 ●
229 SWITCH ASM; MICRO,HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83579-688-2 01 1 1006-1409 ●
229 SWITCH ASM; MICRO,HEATER UNIT 1-83579-688-2 01 1 1006-1409 ●
