◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-45 - HEATER PIPING ▶
8-45 — HEATER PIPING (#14693) — 32 parça

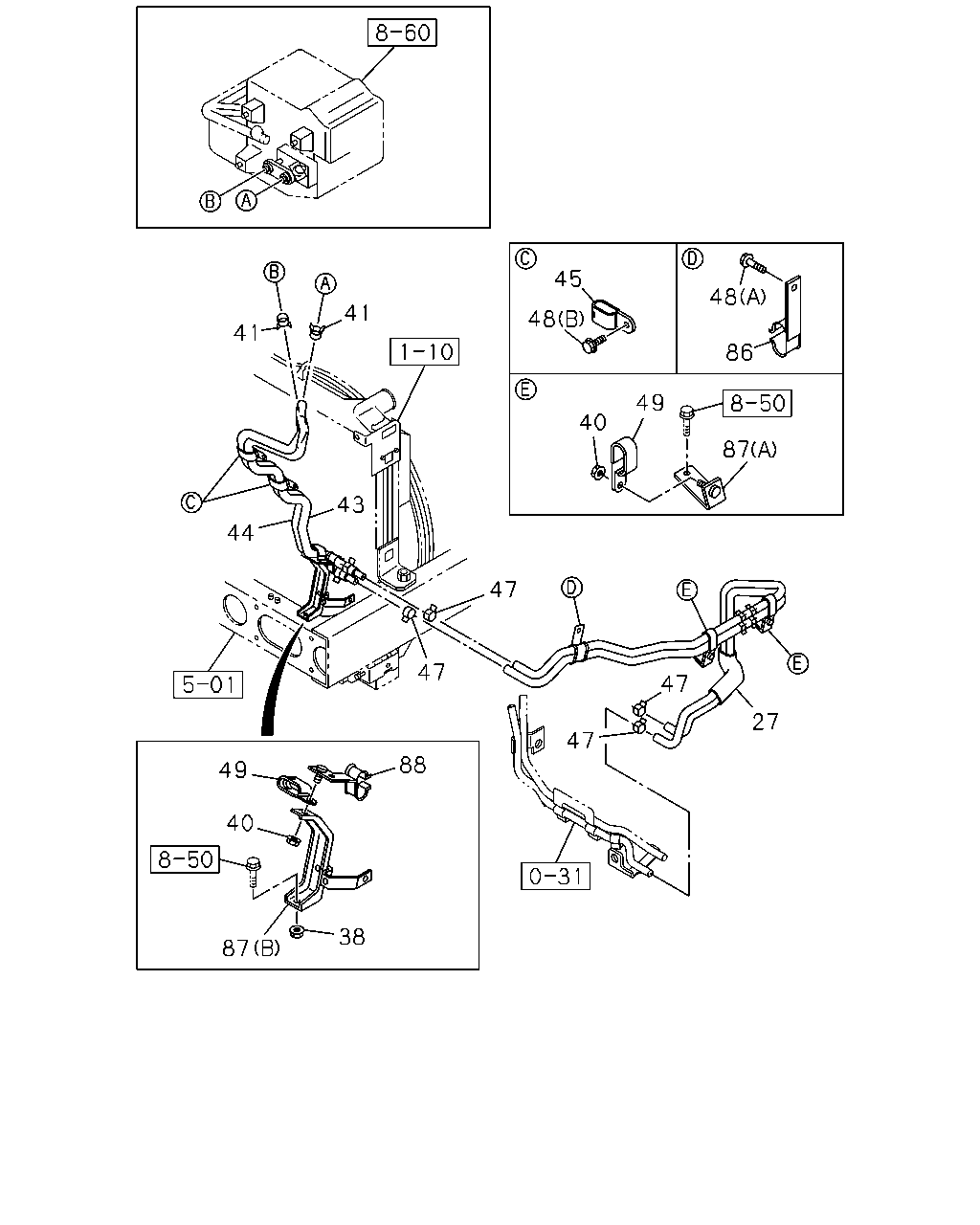

çizim 141630
45 48 41 48 41 86 49 40 43 44 47 47 47 27 47 88 49 40 38 87
BalonParca AdiParca NoAdetTipApplied Date A B
27 HOSE; WATER,HTR UNIT TO WATER PIPE 1-83565-839-0 01 1 0710-1005 ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE 1-83565-839-1 01 1 1006- ● ●
38 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-1005 ●
38 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1006- ● ●
40 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0710-1005 ●
40 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1006- ● ●
41 CLAMP; WATER HOSE,HTR
ID=22 		8-97359-141-0 02 1 0710-1005 ●
41 CLAMP; WATER HOSE,HTR
ID=22 		8-97359-141-0 02 1 1006- ● ●
43 HOSE; WATER,OUTLET,HTR 1-83565-828-1 01 1 0710-1005 ●
43 HOSE; WATER,OUTLET,HTR 1-83565-828-1 01 1 1006- ● ●
44 HOSE; WATER,HTR,INL 1-83565-826-1 01 1 0710-1005 ●
44 HOSE; WATER,HTR,INL 1-83565-826-1 01 1 1006- ● ●
45 CLIP; WATER PIPE 1-09701-238-0 02 1 0710-1005 ●
45 CLIP; WATER PIPE 1-09701-238-0 02 1 1006- ● ●
47 CLAMP; WATER HOSE,HTR
ID=22 		8-97359-141-0 04 1 0710-1005 ●
47 CLAMP; WATER HOSE,HTR
ID=22 		8-97359-141-0 04 1 1006- ● ●
48 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-1005 ●
48 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1006- ● ●
48 BOLT; CLIP FIX
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0710-1005 ●
48 BOLT; CLIP FIX
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1006- ● ●
48 BOLT; CLIP FIX
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0710-1005 ●
48 BOLT; CLIP FIX
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1006- ● ●
49 CLIP; WATER HOSE,HTR
ID=24X2 L=25 		1-09700-710-0 03 1 0710-1005 ●
49 CLIP; WATER HOSE,HTR
ID=24X2 L=25 		1-09700-710-0 03 1 1006- ● ●
86 CLIP; HTR HOSE 1-83573-076-0 01 1 0710-1005 ●
86 CLIP; HTR HOSE 1-83573-076-0 01 1 1006- ● ●
87 BRACKET; HTR HOSE CLIP
(A) 		1-83573-251-1 02 1 0710-1005 ●
87 BRACKET; HTR HOSE CLIP
(A) 		1-83573-251-1 02 1 1006- ● ●
87 BRACKET; HTR HOSE CLIP
(B) 		8-98066-735-0 01 1 0710-1005 ●
87 BRACKET; HTR HOSE CLIP
(B) 		8-98066-735-0 01 1 1006- ● ●
88 STAY; WATER HOSE 1-83573-291-1 01 1 0710-1005 ●
88 STAY; WATER HOSE 1-83573-291-1 01 1 1006- ● ●
