◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#14692) — 180 parça

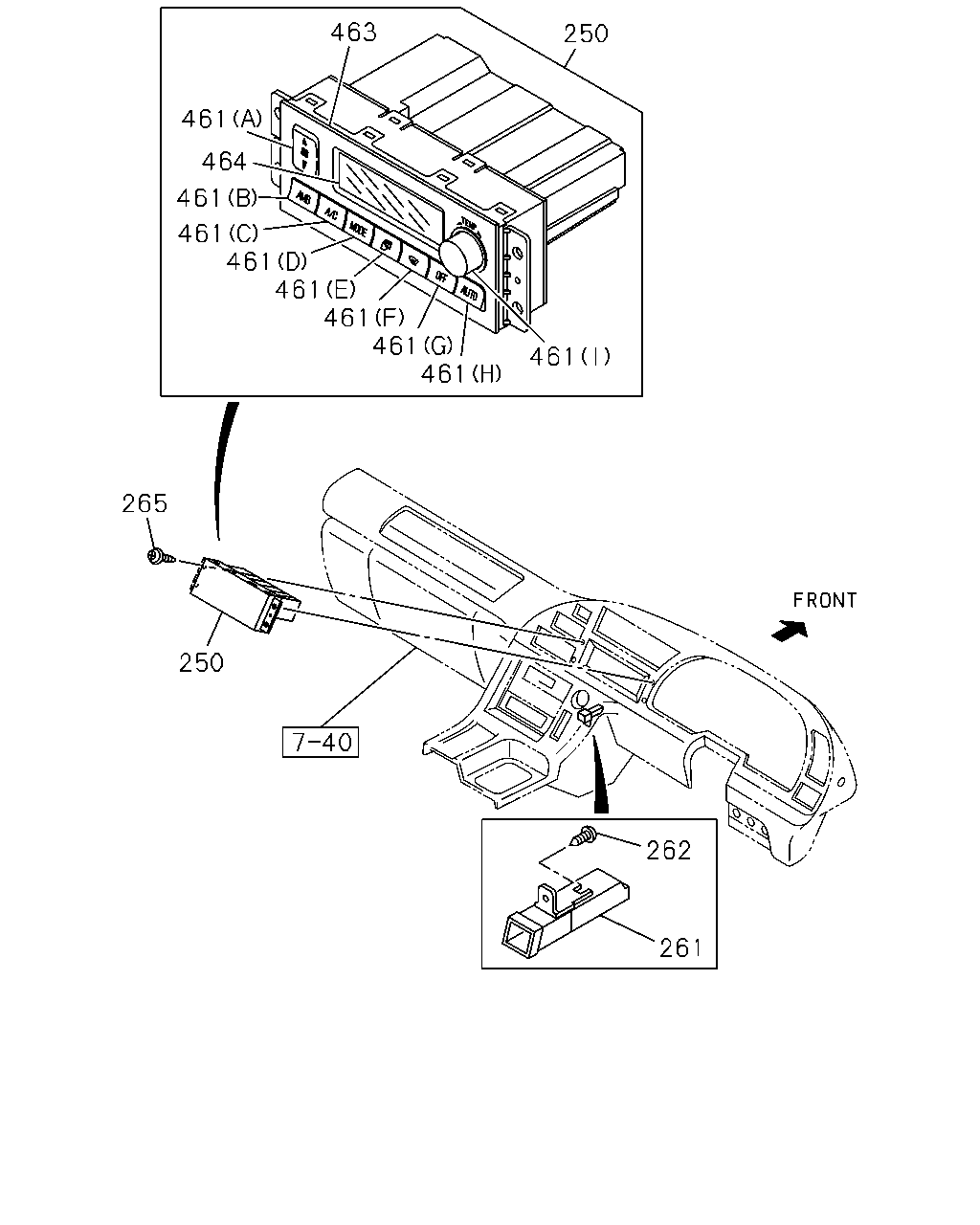

çizim 141618
463 250 461 464 461 461 461 461 461 461 461 461 265 250 262 261
BalonParca AdiParca NoAdetTipApplied Date A B
250 CONTROL ASM; A/C 1-83543-038-0 01 1 0710-1005 ●
250 CONTROL ASM; A/C 1-83543-038-1 01 1 1006- ● ●
261 SENSOR; IN CAR 1-83544-023-1 01 1 0710-1005 ●
261 SENSOR; IN CAR 1-83544-023-1 01 1 1006- ● ●
262 SCREW; IN CAR SENSOR
M5X14 		8-94279-325-0 01 1 0710-1005 ●
262 SCREW; IN CAR SENSOR
M5X14 		8-94279-325-0 01 1 1006- ● ●
265 SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 01 1 0710-1005 ●
265 SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 01 1 1006- ● ●
461 KNOB; CONTROL ASM,A/C
(A) FAN 		1-83549-018-0 01 1 0710-1005 ●
461 KNOB; CONTROL ASM,A/C
(A) FAN 		1-83549-018-0 01 1 1006- ● ●
461 KNOB; CONTROL ASM,A/C
(B) AMB 		1-83549-019-0 01 1 0710-1005 ●
461 KNOB; CONTROL ASM,A/C
(B) AMB 		1-83549-019-0 01 1 1006- ● ●
461 KNOB; CONTROL ASM,A/C
(C) A/C 		1-83549-020-0 01 1 0710-1005 ●
461 KNOB; CONTROL ASM,A/C
(C) A/C 		1-83549-020-0 01 1 1006- ● ●
461 KNOB; CONTROL ASM,A/C
(D) MODE 		1-83549-021-0 01 1 0710-1005 ●
461 KNOB; CONTROL ASM,A/C
(D) MODE 		1-83549-021-0 01 1 1006- ● ●
461 KNOB; CONTROL ASM,A/C
(E) REC 		1-83549-022-0 01 1 0710-1005 ●
461 KNOB; CONTROL ASM,A/C
(E) REC 		1-83549-022-0 01 1 1006- ● ●
461 KNOB; CONTROL ASM,A/C
(F) DEF 		1-83549-023-0 01 1 0710-1005 ●
461 KNOB; CONTROL ASM,A/C
(F) DEF 		1-83549-023-0 01 1 1006- ● ●
461 KNOB; CONTROL ASM,A/C
(G) OFF 		1-83549-024-0 01 1 0710-1005 ●
461 KNOB; CONTROL ASM,A/C
(G) OFF 		1-83549-024-0 01 1 1006- ● ●
461 KNOB; CONTROL ASM,A/C
(H) AUTO 		1-83549-025-0 01 1 0710-1005 ●
461 KNOB; CONTROL ASM,A/C
(H) AUTO 		1-83549-025-0 01 1 1006- ● ●
461 KNOB; CONTROL ASM,A/C
(I) TEMP 		1-83549-026-0 01 1 0710-1005 ●
461 KNOB; CONTROL ASM,A/C
(I) TEMP 		1-83549-026-0 01 1 1006- ● ●
463 BEZEL; CONTROL PANEL 1-83549-027-0 01 1 0710-1005 ●
463 BEZEL; CONTROL PANEL 1-83549-027-0 01 1 1006- ● ●
464 PLATE; CONTROL PANEL 1-83549-028-0 01 1 0710-1005 ●
464 PLATE; CONTROL PANEL 1-83549-028-0 01 1 1006- ● ●

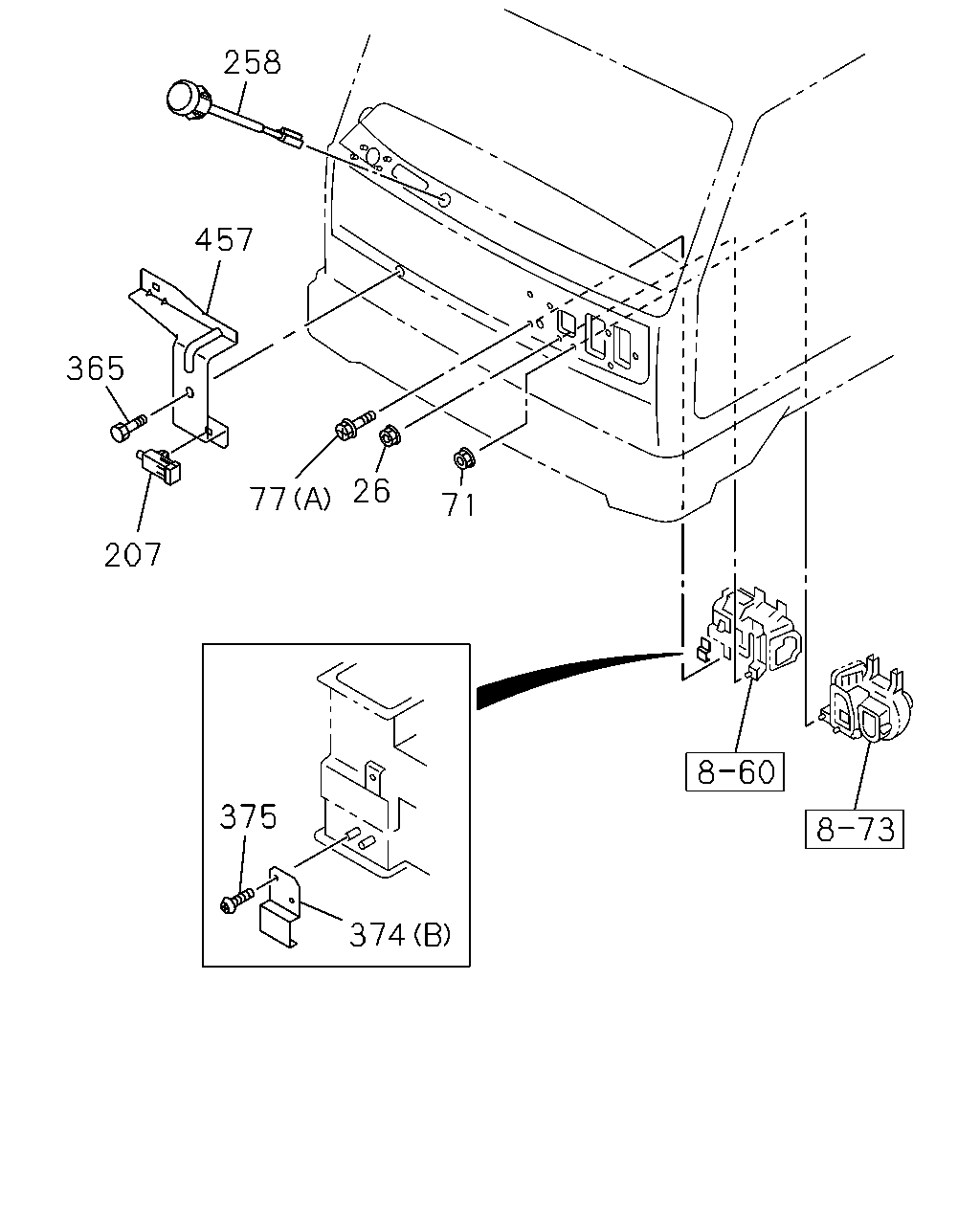

çizim 141624
258 457 365 26 77 71 207 375 374
BalonParca AdiParca NoAdetTipApplied Date A B
26 NUT; HTR
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0710-1005 ●
26 NUT; HTR
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1006- ● ●
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0710-1005 ●
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 1006- ● ●
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 0710-1005 ●
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 1006- ● ●
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-1005 ●
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1006- ● ●
207 SENSOR; AMBIENT 8-97177-549-0 01 1 0710-1005 ●
207 SENSOR; AMBIENT 8-97177-549-0 01 1 1006-1204 ● ●
207 SENSOR; AMBIENT 8-98214-375-0 01 1 1205- ● ●
258 SENSOR; SUN 8-94472-043-2 01 1 0710-1005 ●
258 SENSOR; SUN 8-94472-043-2 01 1 1006- ● ●
365 BOLT; SENSOR
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0710-1005 ●
365 BOLT; SENSOR
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 1006- ● ●
374 HOLDER; DUCT
(B) 		1-76398-012-1 01 1 0710-1005 ●
374 HOLDER; DUCT
(B) 		1-76398-012-1 01 1 1006- ● ●
374 HOLDER; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-76377-189-3 01 1 0710-1005 ●
374 HOLDER; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-76377-189-3 01 1 1006- ●
374 HOLDER; DUCT
CENTER SEAT DELETE(SP9) (A) 		1-76377-189-3 01 1 1006- ●
375 SCREW; HOLDER
M5X14 		8-94279-325-0 02 1 0710-1005 ●
375 SCREW; HOLDER
M5X14 		8-94279-325-0 02 1 1006- ● ●
457 BRACKET; SENSOR 1-71907-603-1 01 1 0710-1005 ●
457 BRACKET; SENSOR 1-71907-603-1 01 1 1006- ● ●

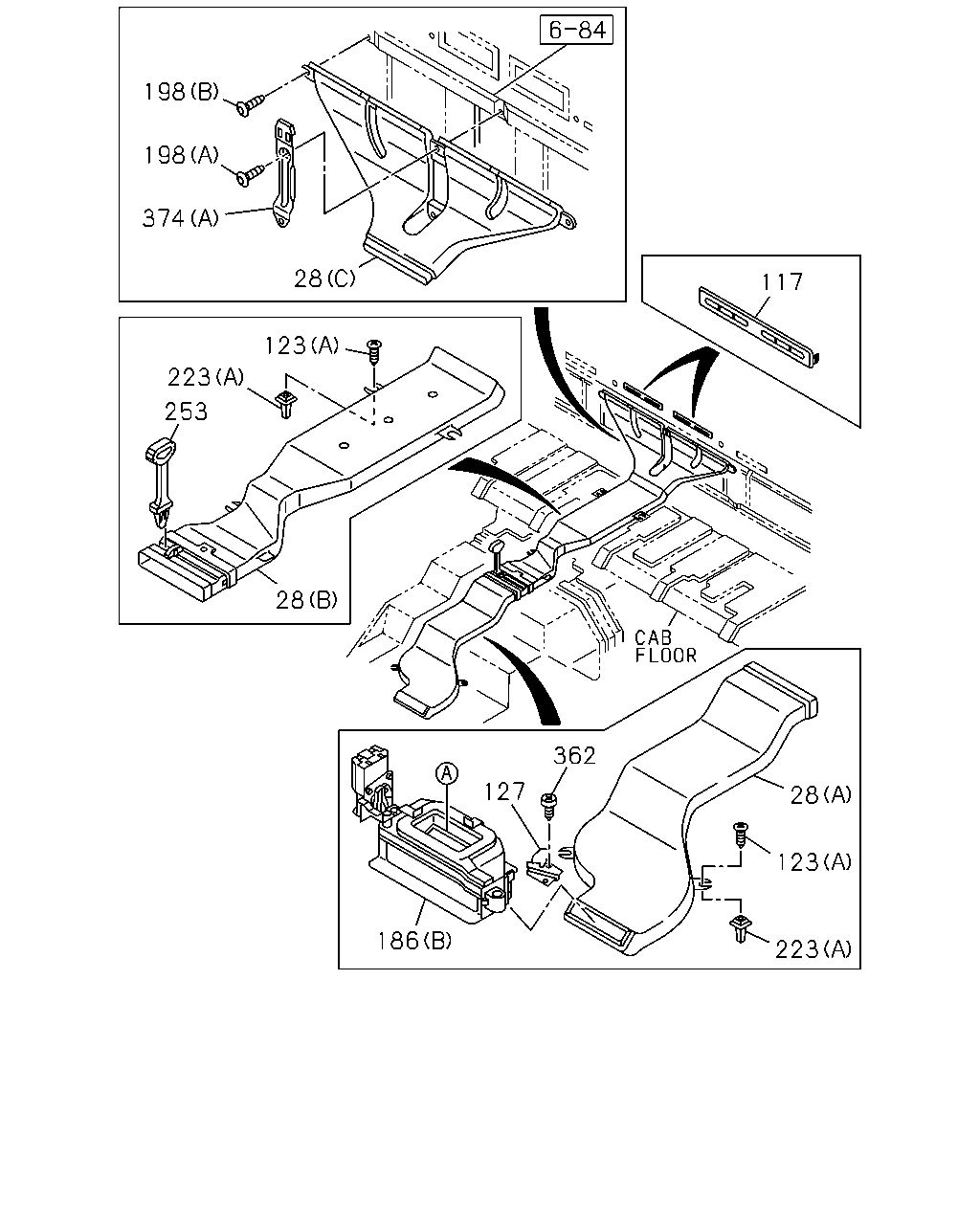

çizim 141633
198 198 374 8 117 123 223 253 28 362 127 28 123 186 223
BalonParca AdiParca NoAdetTipApplied Date A B
8 DUCT; HTR AIR,DRIVER FOOT 1-76377-208-0 01 1 0710-1005 ●
8 DUCT; HTR AIR,DRIVER FOOT 1-76377-208-0 01 1 1006- ● ●
28 DUCT; AIR,VENTILATOR
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-76377-180-2 01 1 0710-1005 ●
28 DUCT; AIR,VENTILATOR
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-76377-180-2 01 1 1006- ●
28 DUCT; AIR,VENTILATOR
CENTER SEAT DELETE(SP9) (B) 		1-76377-180-2 01 1 1006- ●
28 DUCT; AIR,VENTILATOR
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-76377-186-1 01 1 0710-1005 ●
28 DUCT; AIR,VENTILATOR
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-76377-186-1 01 1 1006- ●
28 DUCT; AIR,VENTILATOR
CENTER SEAT DELETE(SP9) (C) 		1-76377-186-1 01 1 1006- ●
28 DUCT; AIR,VENTILATOR
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-76377-203-0 01 1 0710-1005 ●
28 DUCT; AIR,VENTILATOR
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-76377-203-0 01 1 1006- ●
28 DUCT; AIR,VENTILATOR
CENTER SEAT DELETE(SP9) (A) 		1-76377-203-0 01 1 1006- ●
117 GRILLE; VENTILATOR
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-76377-188-5 01 1 0710-1005 ●
117 GRILLE; VENTILATOR
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-76377-188-5 01 1 1006- ●
117 GRILLE; VENTILATOR
CENTER SEAT DELETE(SP9) 		1-76377-188-5 01 1 1006- ●
117 GRILLE; VENTILATOR
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-76377-187-5 01 1 0710-1005 ●
117 GRILLE; VENTILATOR
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-76377-187-5 01 1 1006- ●
117 GRILLE; VENTILATOR
CENTER SEAT DELETE(SP9) 		1-76377-187-5 01 1 1006- ●
123 SCREW; DUCT
(B) M5X14 		8-94279-325-0 12 1 0710-1005 ●
123 SCREW; DUCT
(B) M5X14 		8-94279-325-0 12 1 1006- ● ●
123 SCREW; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 0710-1005 ●
123 SCREW; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 1006- ●
123 SCREW; DUCT
CENTER SEAT DELETE(SP9) (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 1006- ●
127 BRACKET; VENT DUCT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-76397-019-0 01 1 0710-1005 ●
127 BRACKET; VENT DUCT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-76397-019-0 01 1 1006- ●
127 BRACKET; VENT DUCT 1-76397-019-0 01 1 1006- ●
186 DUCT; VENTILATOR
(A) 		1-76377-243-1 01 1 0710-1005 ●
186 DUCT; VENTILATOR
(A) 		1-76377-243-1 01 1 1006- ● ●
186 DUCT; VENTILATOR
(A) 		1-76377-173-6 01 1 0710-0710 ●
186 DUCT; VENTILATOR
(A) 		1-76377-246-0 01 1 0711-1005 ●
186 DUCT; VENTILATOR
(A) 		1-76377-246-0 01 1 1006- ● ●
186 DUCT; VENTILATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83542-107-3 01 1 0710-1005 ●
186 DUCT; VENTILATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83542-107-3 01 1 1006- ●
186 DUCT; VENTILATOR
(B) 		1-83542-107-3 01 1 1006- ●
198 CLIP; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) D6X23 BLACK 		1-09987-114-0 02 1 0710-1005 ●
198 CLIP; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) D6X23 BLACK 		1-09987-114-0 02 1 1006-1204 ●
198 CLIP; DUCT
CENTER SEAT DELETE(SP9) (A) D6X23 BLACK 		1-09987-114-0 02 1 1006-1204 ●
198 CLIP; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) D6X23 LIGHT GRAY 		1-73318-629-0 02 1 1205- ●
198 CLIP; DUCT
CENTER SEAT DELETE(SP9) (A) D6X23 LIGHT GRAY 		1-73318-629-0 02 1 1205- ●
198 CLIP; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) OD=6 L=17 DARK GRAY 		1-73996-128-1 02 1 0710-1005 ●
198 CLIP; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) OD=6 L=17 DARK GRAY 		1-73996-128-1 02 1 1006-1204 ●
198 CLIP; DUCT
CENTER SEAT DELETE(SP9) (B) OD=6 L=17 DARK GRAY 		1-73996-128-1 02 1 1006-1204 ●
198 CLIP; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) OD=6 L=17 DARK GRAY 		1-73996-364-0 02 1 1205- ●
198 CLIP; DUCT
CENTER SEAT DELETE(SP9) (B) OD=6 L=17 DARK GRAY 		1-73996-364-0 02 1 1205- ●
223 GROMMET; SCREW
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 05 1 0710-1005 ●
223 GROMMET; SCREW
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 05 1 1006- ● ●
223 GROMMET; SCREW
(B) D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0710-1005 ●
223 GROMMET; SCREW
(B) D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 1006- ● ●
253 KNOB; CONT LEVER
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-76377-185-1 01 1 0710-1005 ●
253 KNOB; CONT LEVER
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-76377-185-1 01 1 1006- ●
253 KNOB; CONT LEVER
CENTER SEAT DELETE(SP9) 		1-76377-185-1 01 1 1006- ●
362 SCREW; DUCT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X14 		8-94279-325-0 02 1 0710-1005 ●
362 SCREW; DUCT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X14 		8-94279-325-0 02 1 1006- ●
362 SCREW; DUCT
M5X14 		8-94279-325-0 02 1 1006- ●
374 HOLDER; DUCT
(B) 		1-76398-012-1 01 1 0710-1005 ●
374 HOLDER; DUCT
(B) 		1-76398-012-1 01 1 1006- ● ●
374 HOLDER; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-76377-189-3 01 1 0710-1005 ●
374 HOLDER; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-76377-189-3 01 1 1006- ●
374 HOLDER; DUCT
CENTER SEAT DELETE(SP9) (A) 		1-76377-189-3 01 1 1006- ●

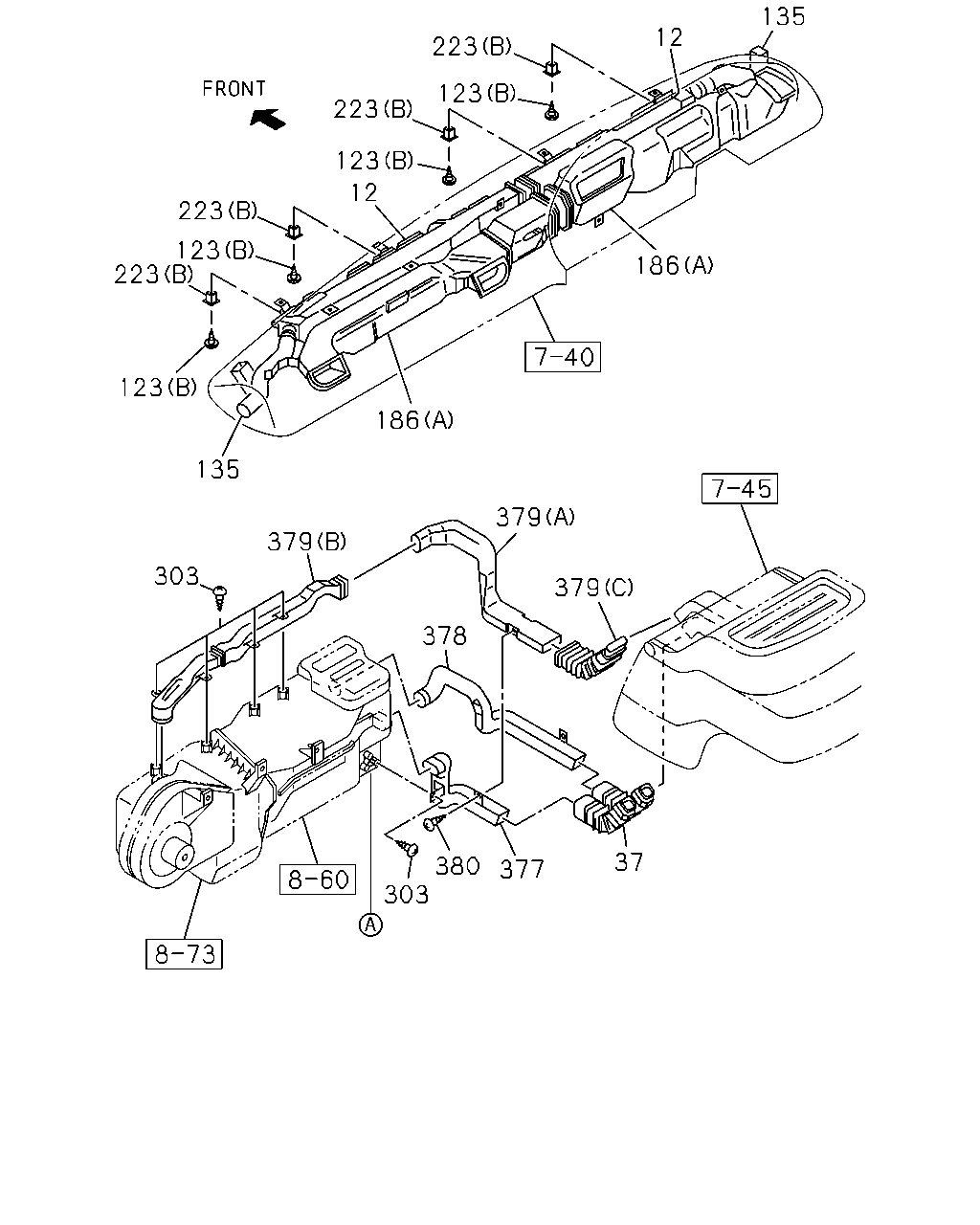

çizim 141636
135 12 223 123 223 123 12 223 123 223 186 123 186 135 379 379 303 379 378 37 380 303 377
BalonParca AdiParca NoAdetTipApplied Date A B
12 NOZZLE; DEFROSTER 1-76377-153-5 01 1 0710-1005 ●
12 NOZZLE; DEFROSTER 1-76377-153-5 01 1 1006- ● ●
12 NOZZLE; DEFROSTER 1-76377-172-7 01 1 0710-1005 ●
12 NOZZLE; DEFROSTER 1-76377-172-7 01 1 1006- ● ●
37 HOSE; AIR,HTR
COOL & HOT BOX<TMU> 		1-76377-193-3 01 1 0710-1005 ●
37 HOSE; AIR,HTR
COOL & HOT BOX<TMU> 		1-76377-193-3 01 1 1006- ● ●
123 SCREW; DUCT
(B) M5X14 		8-94279-325-0 12 1 0710-1005 ●
123 SCREW; DUCT
(B) M5X14 		8-94279-325-0 12 1 1006- ● ●
123 SCREW; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 0710-1005 ●
123 SCREW; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 1006- ●
123 SCREW; DUCT
CENTER SEAT DELETE(SP9) (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 1006- ●
135 HOSE; DEFROSTER 1-76378-253-4 01 1 0710-1005 ●
135 HOSE; DEFROSTER 1-76378-253-4 01 1 1006- ● ●
135 HOSE; DEFROSTER 1-76378-252-7 01 1 0710-1005 ●
135 HOSE; DEFROSTER 1-76378-252-7 01 1 1006- ● ●
186 DUCT; VENTILATOR
(A) 		1-76377-243-1 01 1 0710-1005 ●
186 DUCT; VENTILATOR
(A) 		1-76377-243-1 01 1 1006- ● ●
186 DUCT; VENTILATOR
(A) 		1-76377-173-6 01 1 0710-0710 ●
186 DUCT; VENTILATOR
(A) 		1-76377-246-0 01 1 0711-1005 ●
186 DUCT; VENTILATOR
(A) 		1-76377-246-0 01 1 1006- ● ●
186 DUCT; VENTILATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83542-107-3 01 1 0710-1005 ●
186 DUCT; VENTILATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83542-107-3 01 1 1006- ●
186 DUCT; VENTILATOR
(B) 		1-83542-107-3 01 1 1006- ●
223 GROMMET; SCREW
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 05 1 0710-1005 ●
223 GROMMET; SCREW
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 05 1 1006- ● ●
223 GROMMET; SCREW
(B) D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0710-1005 ●
223 GROMMET; SCREW
(B) D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 1006- ● ●
303 SCREW; HOSE
COOL & HOT BOX<TMU> M5X14 		8-94279-325-0 05 1 0710-1005 ●
303 SCREW; HOSE
COOL & HOT BOX<TMU> M5X14 		8-94279-325-0 05 1 1006- ● ●
377 HOSE; BOX,INLET,COOL
COOL & HOT BOX<TMU> 		1-76377-159-5 01 1 0710-1005 ●
377 HOSE; BOX,INLET,COOL
COOL & HOT BOX<TMU> 		1-76377-159-5 01 1 1006- ● ●
378 HOSE; BOX,INLET,HOT
COOL & HOT BOX<TMU> 		1-76377-161-6 01 1 0710-1005 ●
378 HOSE; BOX,INLET,HOT
COOL & HOT BOX<TMU> 		1-76377-161-6 01 1 1006- ● ●
379 HOSE; BOX,OUTLET
COOL & HOT BOX<TMU> (A) 		1-76377-163-5 01 1 0710-1005 ●
379 HOSE; BOX,OUTLET
COOL & HOT BOX<TMU> (A) 		1-76377-163-5 01 1 1006- ● ●
379 HOSE; BOX,OUTLET
COOL & HOT BOX<TMU> (B) 		1-76377-164-3 01 1 0710-1005 ●
379 HOSE; BOX,OUTLET
COOL & HOT BOX<TMU> (B) 		1-76377-164-3 01 1 1006- ● ●
379 HOSE; BOX,OUTLET
COOL & HOT BOX<TMU> (C) 		1-76377-192-4 01 1 0710-1005 ●
379 HOSE; BOX,OUTLET
COOL & HOT BOX<TMU> (C) 		1-76377-192-4 01 1 1006- ● ●
380 FASTENER; HOSE
COOL & HOT BOX<TMU> D4.6X14.7 BLACK 		1-09983-104-0 03 1 0710-1005 ●
380 FASTENER; HOSE
COOL & HOT BOX<TMU> D4.6X14.7 BLACK 		1-09983-104-0 03 1 1006- ● ●

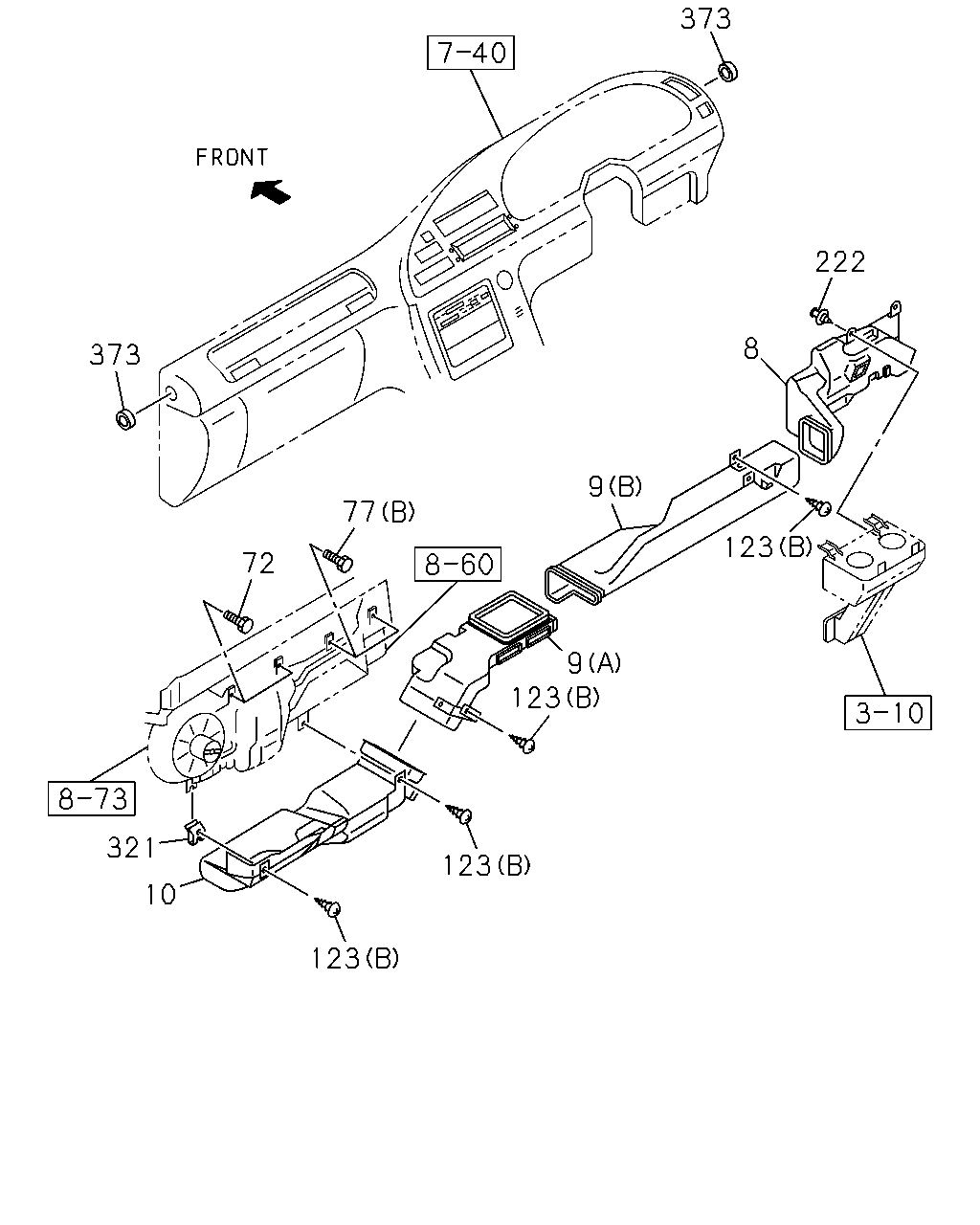

çizim 141637
373 222 8 373 9 77 123 72 9 123 321 123 10 123
BalonParca AdiParca NoAdetTipApplied Date A B
8 DUCT; HTR AIR,DRIVER FOOT 1-76377-208-0 01 1 0710-1005 ●
8 DUCT; HTR AIR,DRIVER FOOT 1-76377-208-0 01 1 1006- ● ●
9 DUCT; HTR AIR,FOOT CENTER
(B) 		1-76377-210-1 01 1 0710-1005 ●
9 DUCT; HTR AIR,FOOT CENTER
(B) 		1-76377-210-1 01 1 1006- ● ●
9 DUCT; HTR AIR,FOOT CENTER
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-76377-226-2 01 1 0710- ●
9 DUCT; HTR AIR,FOOT CENTER
EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-76377-227-2 01 1 0710-1005 ●
9 DUCT; HTR AIR,FOOT CENTER
EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-76377-227-2 01 1 1006- ●
9 DUCT; HTR AIR,FOOT CENTER
(A) 		1-76377-227-2 01 1 1006- ●
10 DUCT; HTR AIR,ASSIST FOOT 1-76377-204-2 01 1 0710-1005 ●
10 DUCT; HTR AIR,ASSIST FOOT 1-76377-204-2 01 1 1006- ● ●
72 BOLT; BLOWER UNIT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-1005 ●
72 BOLT; BLOWER UNIT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1006- ● ●
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 0710-1005 ●
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 1006- ● ●
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-1005 ●
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1006- ● ●
123 SCREW; DUCT
(B) M5X14 		8-94279-325-0 12 1 0710-1005 ●
123 SCREW; DUCT
(B) M5X14 		8-94279-325-0 12 1 1006- ● ●
123 SCREW; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 0710-1005 ●
123 SCREW; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 1006- ●
123 SCREW; DUCT
CENTER SEAT DELETE(SP9) (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 1006- ●
222 FASTENER; DUCT
D6X12.5 		8-94146-425-0 02 1 0710-1005 ●
222 FASTENER; DUCT
D6X12.5 		8-94146-425-0 02 1 1006- ● ●
321 NUT; DUCT FIX
M5 		1-09984-196-0 01 1 0710-1005 ●
321 NUT; DUCT FIX
M5 		1-09984-196-0 01 1 1006- ● ●
373 RUBBER; JOINT 1-76378-291-0 02 1 0710-1005 ●
373 RUBBER; JOINT 1-76378-291-0 02 1 1006- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
