◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#14689) — 183 parça

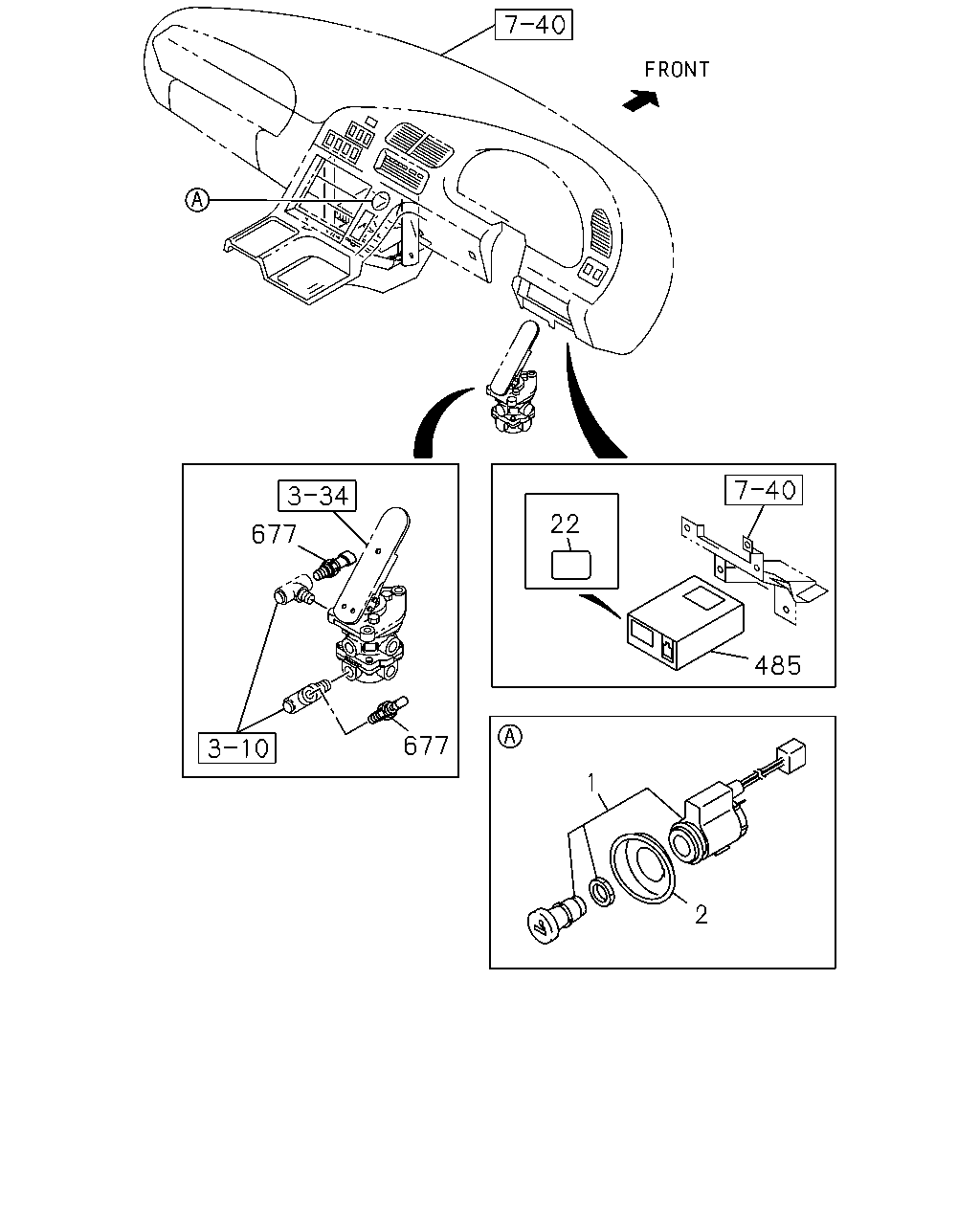

çizim 141586
22 677 485 677 1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0710-1005 ●
1 LIGHTER; CIGAR 8-97320-325-0 01 1 1006- ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0710-1005 ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 1006- ● ●
22 SEAL; TAPE 8-98083-174-0 01 1 0710-1005 ●
22 SEAL; TAPE 8-98083-174-0 01 1 1006- ●
22 SEAL; TAPE
SPEED LIMITER 100KM(NMU) 		8-98083-174-0 01 1 1006- ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 0710-1005 ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 1006-1008 ● ●
485 CONTROL UNIT; SPEED SENSOR 8-98140-862-0 01 1 1009-1109 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 1110- ● ●
677 SENSOR; AIR METER
THREAD R1/4 		1-80220-023-1 02 1 0710-1005 ●
677 SENSOR; AIR METER
THREAD R1/4 		1-80220-023-1 02 1 1006- ● ●
çizim 141599
380 509 305 305 657
BalonParca AdiParca NoAdetTipApplied Date A B
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0710-0809 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0811-0907 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0908-1005 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 1006- ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0710-0907 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0710-0907 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0908-1005 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0908-1005 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0908-1005 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 1006- ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 1006- ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 1006- ● ●
380 SEAL
(B) 450X350 		1-76770-008-0 01 1 0710-1005 ●
380 SEAL
(B) 450X350 		1-76770-008-0 01 1 1006- ● ●
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 01 1 0710-1005 ●
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 01 1 1006- ● ●
509 CONTROL UNIT; CAB SUS 1-80150-042-1 01 1 0710-1005 ●
509 CONTROL UNIT; CAB SUS 1-80150-042-1 01 1 1006- ● ●
657 CONTROL UNIT; MIMAMORI 1-80190-186-0 01 1 0710-0710 ●
657 CONTROL UNIT; MIMAMORI 8-98105-893-1 01 1 0711-1005 ●
657 CONTROL UNIT; MIMAMORI 8-98105-893-1 01 1 1006- ● ●

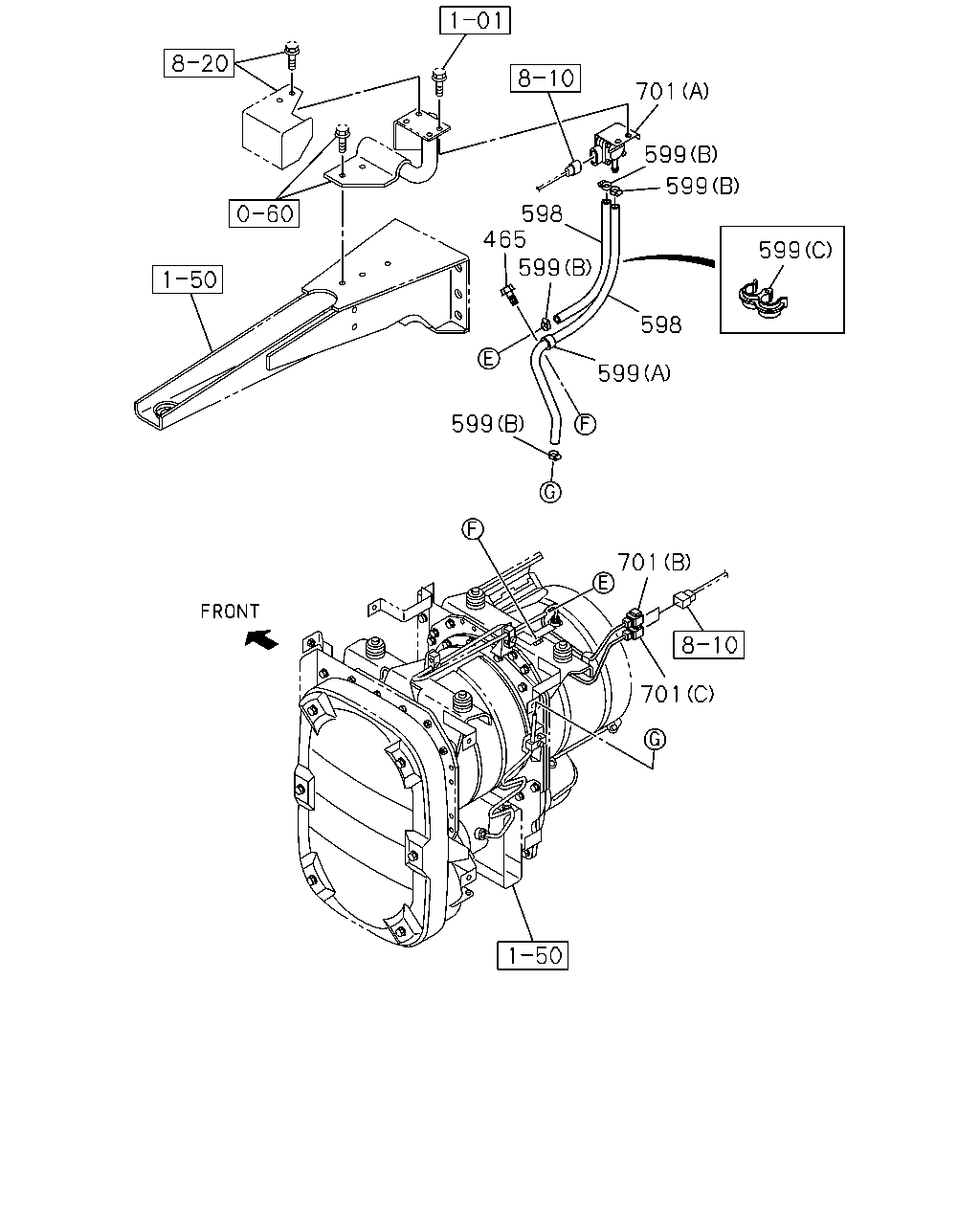

çizim 141604
701 599 599 598 465 599 599 598 599 599 701 701
BalonParca AdiParca NoAdetTipApplied Date A B
465 BOLT; CLIP
M8X20 FLANGE 		0-28050-820-0 01 1 0710-1005 ●
465 BOLT; CLIP
M8X20 FLANGE 		0-28050-820-0 01 1 1006-1107 ● ●
465 BOLT; CLIP
CATALYSIS CONTROL WITH DPD<8JM> M8X20 FLANGE 		0-28050-820-0 01 1 1108- ●
465 BOLT; CLIP
M8X20 FLANGE 		0-28050-820-0 01 1 1108- ●
598 HOSE; RUBBER,SENSOR
L=460 SERVICED BY L=3000 		0-01558-300-0 01 1 0710-1005 ●
598 HOSE; RUBBER,SENSOR
L=460 SERVICED BY L=3000 		0-01558-300-0 01 1 1006-1107 ● ●
598 HOSE; RUBBER,SENSOR
CATALYSIS CONTROL WITH DPD<8JM> L=460 SERVICED BY L=3000 		0-01558-300-0 01 1 1108- ●
598 HOSE; RUBBER,SENSOR
L=460 SERVICED BY L=3000 		0-01558-300-0 01 1 1108- ●
598 HOSE; RUBBER,SENSOR
L=240 SERVICED BY L=3000 		0-01558-300-0 01 1 0710-1005 ●
598 HOSE; RUBBER,SENSOR
L=240 SERVICED BY L=3000 		0-01558-300-0 01 1 1006-1107 ● ●
598 HOSE; RUBBER,SENSOR
CATALYSIS CONTROL WITH DPD<8JM> L=240 SERVICED BY L=3000 		0-01558-300-0 01 1 1108- ●
598 HOSE; RUBBER,SENSOR
L=240 SERVICED BY L=3000 		0-01558-300-0 01 1 1108- ●
599 CLIP; HOSE
(A) 		8-97173-119-0 01 1 0710-1005 ●
599 CLIP; HOSE
(A) 		8-97173-119-0 01 1 1006-1107 ● ●
599 CLIP; HOSE
CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97173-119-0 01 1 1108- ●
599 CLIP; HOSE
(A) 		8-97173-119-0 01 1 1108- ●
599 CLIP; HOSE
(C) ID=19 L=24 		1-09701-259-0 01 1 0710-1005 ●
599 CLIP; HOSE
(C) ID=19 L=24 		1-09701-259-0 01 1 1006-1107 ● ●
599 CLIP; HOSE
CATALYSIS CONTROL WITH DPD<8JM> (C) ID=19 L=24 		1-09701-259-0 01 1 1108- ●
599 CLIP; HOSE
(C) ID=19 L=24 		1-09701-259-0 01 1 1108- ●
599 CLIP; HOSE
(B) ID=8-16.5 		8-94426-596-0 04 1 0710-0802 ●
599 CLIP; HOSE
(B) ID=13 		8-97329-627-0 04 1 0803-1005 ●
599 CLIP; HOSE
(B) ID=13 		8-97329-627-0 04 1 1006-1107 ● ●
599 CLIP; HOSE
CATALYSIS CONTROL WITH DPD<8JM> (B) ID=13 		8-97329-627-0 04 1 1108- ●
599 CLIP; HOSE
(B) ID=13 		8-97329-627-0 04 1 1108- ●
701 SENSOR; DPD
(A) 		8-97359-985-2 01 1 0710-1005 ●
701 SENSOR; DPD
(A) 		8-97359-985-2 01 1 1006-1107 ● ●
701 SENSOR; DPD
CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97359-985-2 01 1 1108- ●
701 SENSOR; DPD
(A) 		8-97359-985-2 01 1 1108- ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 0710-1005 ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 1006-1107 ● ●
701 SENSOR; DPD
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97359-987-5 01 1 1108- ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 1108- ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 0710-1005 ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 1006-1107 ● ●
701 SENSOR; DPD
CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-97359-989-5 01 1 1108- ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 1108- ●

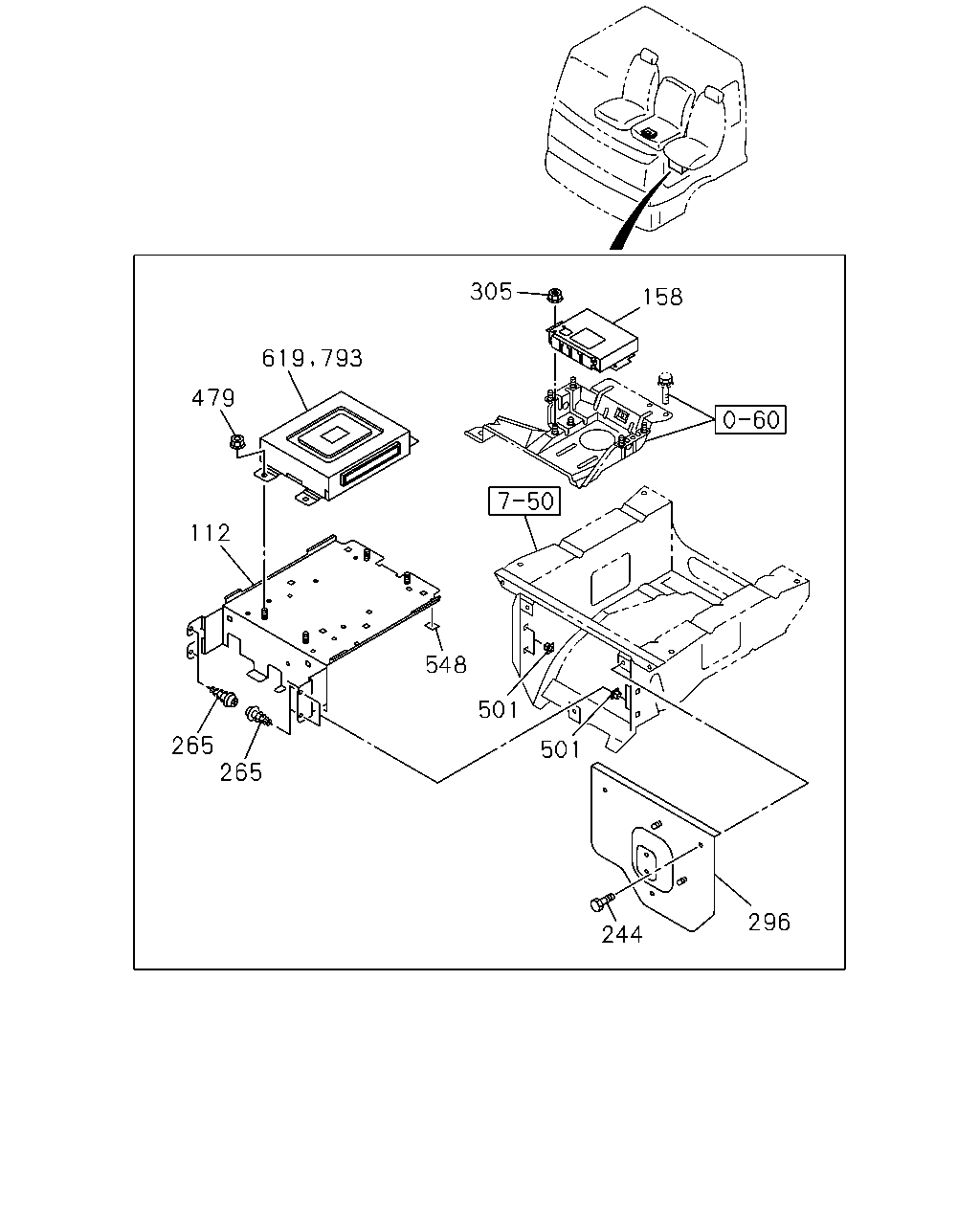

çizim 141606
305 158 479 112 548 501 265 265 501 296 244 619 793
BalonParca AdiParca NoAdetTipApplied Date A B
112 BRACKET; CONT UNIT
SMOOTHER-G(C1W) 		8-97589-714-2 01 1 0710- ●
158 CONTROLLER; ABS
TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N) 		1-80119-251-0 01 1 1006-1201 ●
158 CONTROLLER; ABS
TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N) 		8-98196-719-0 01 1 1202- ●
158 CONTROLLER; ABS 1-80119-231-2 01 1 0710-1005 ●
158 CONTROLLER; ABS
TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		1-80119-231-2 01 1 1006-1008 ●
158 CONTROLLER; ABS
TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X) 		1-80119-231-2 01 1 1006-1008 ●
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148M RIB ALL WEATHER(5P5), TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		1-80119-231-2 01 1 1009-1201 ●
158 CONTROLLER; ABS
TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X) 		1-80119-231-2 01 1 1009-1201 ●
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148M RIB ALL WEATHER(5P5), TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		8-98196-714-0 01 1 1202- ●
158 CONTROLLER; ABS
TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X) 		8-98196-714-0 01 1 1202- ●
244 BOLT; COVER
M6X16 		0-52000-616-0 03 1 0710-1005 ●
244 BOLT; COVER
M6X16 		0-52000-616-0 03 1 1006- ● ●
265 SCREW; BRKT,CONT UNIT
SMOOTHER-G(C1W) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0710- ●
296 COVER; CONT UNIT 8-97388-687-0 01 1 0710-1005 ●
296 COVER; CONT UNIT 8-97388-687-0 01 1 1006- ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0710-0809 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0811-0907 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0908-1005 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 1006- ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0710-0907 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0710-0907 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0908-1005 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0908-1005 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0908-1005 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 1006- ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 1006- ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 1006- ● ●
479 NUT; CONTROLLER
SMOOTHER-G(C1W) M6 FLANGE 		0-91180-106-0 04 1 0710- ●
501 GROMMET; SCREW
SMOOTHER-G(C1W) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0710- ●
548 SEAL; NOISE
SMOOTHER-G(C1W) 30X30 		1-74998-128-1 03 1 0710-0909 ●
548 SEAL; NOISE
SMOOTHER-G(C1W) 30X30 		8-98142-344-0 03 1 0910-1305 ●
548 SEAL; NOISE
SMOOTHER-G(C1W) 30X30 		8-98142-344-0 01 1 1306- ●
619 CONTROL UNIT; T/M
MJX12P M/T SMOOTHER-G(Y4S) 		8-98079-023-0 01 1 0710-0804 ●
619 CONTROL UNIT; T/M
MJX12P M/T SMOOTHER-G(Y4S) 		8-98109-795-0 01 1 0805-1002 ●
619 CONTROL UNIT; T/M
MJX12P M/T SMOOTHER-G(Y4S) 		8-98155-983-0 01 1 1003-1501 ●
619 CONTROL UNIT; T/M
MJX12P M/T SMOOTHER-G(Y4S) 		8-98290-346-0 01 1 1502- ●
793 CONTROL UNIT; EDS
6WG1 TC-N(71L) 		8-98191-876-0 01 1 1108-1205 ●
793 CONTROL UNIT; EDS
6WG1 TC-N(71L) 		8-98218-618-0 01 1 1206-1211 ●
793 CONTROL UNIT; EDS
6WG1 TC-N(71L) 		8-98229-312-0 01 1 1212-1507 ●
793 CONTROL UNIT; EDS
6WG1 TC-N(71L) 		8-98324-375-0 01 1 1508- ●

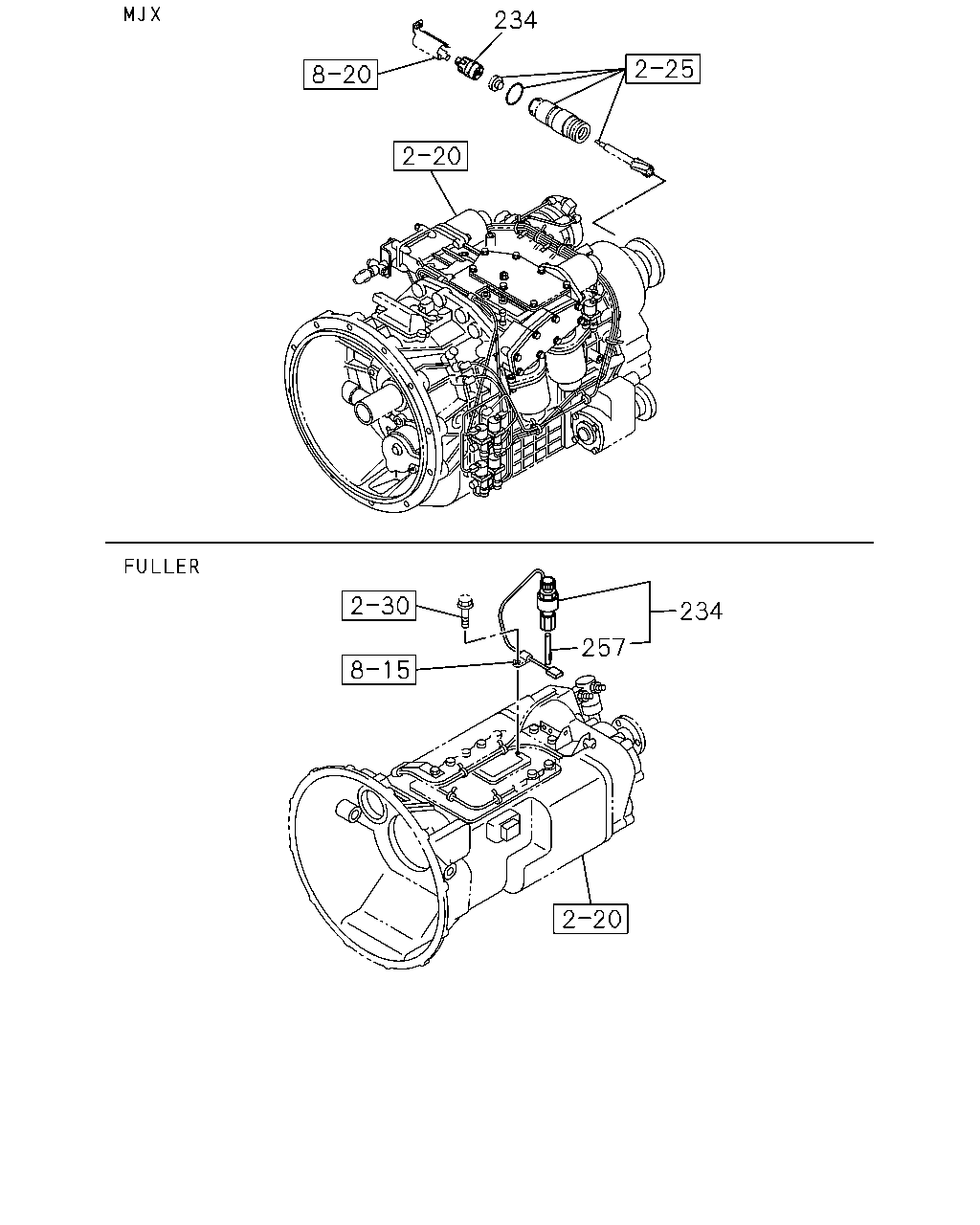

çizim 141607
234 234 257
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
FULLER M/T<X9B> 25 PULSE 		1-83127-414-1 01 1 0710-1005 ●
234 SENSOR; VEHICLE SPD
FULLER M/T<X9B> 25 PULSE 		1-83127-414-1 01 1 1006- ●
234 SENSOR; VEHICLE SPD
25 PULSE 		1-83127-414-1 01 1 1006- ●
234 SENSOR; VEHICLE SPD
EXC. FULLER M/T<X9B> 25 PULSE 		1-80240-029-0 01 1 0710-1301 ●
234 SENSOR; VEHICLE SPD
EXC. FULLER M/T<X9B> 25 PULSE 		8-98234-167-0 01 1 1302- ●
257 KEY; SPEED SENSOR
FULLER M/T<X9B> 		1-83129-073-0 01 1 0710-1005 ●
257 KEY; SPEED SENSOR
FULLER M/T<X9B> 		1-83129-073-0 01 1 1006- ●
257 KEY; SPEED SENSOR 1-83129-073-0 01 1 1006- ●

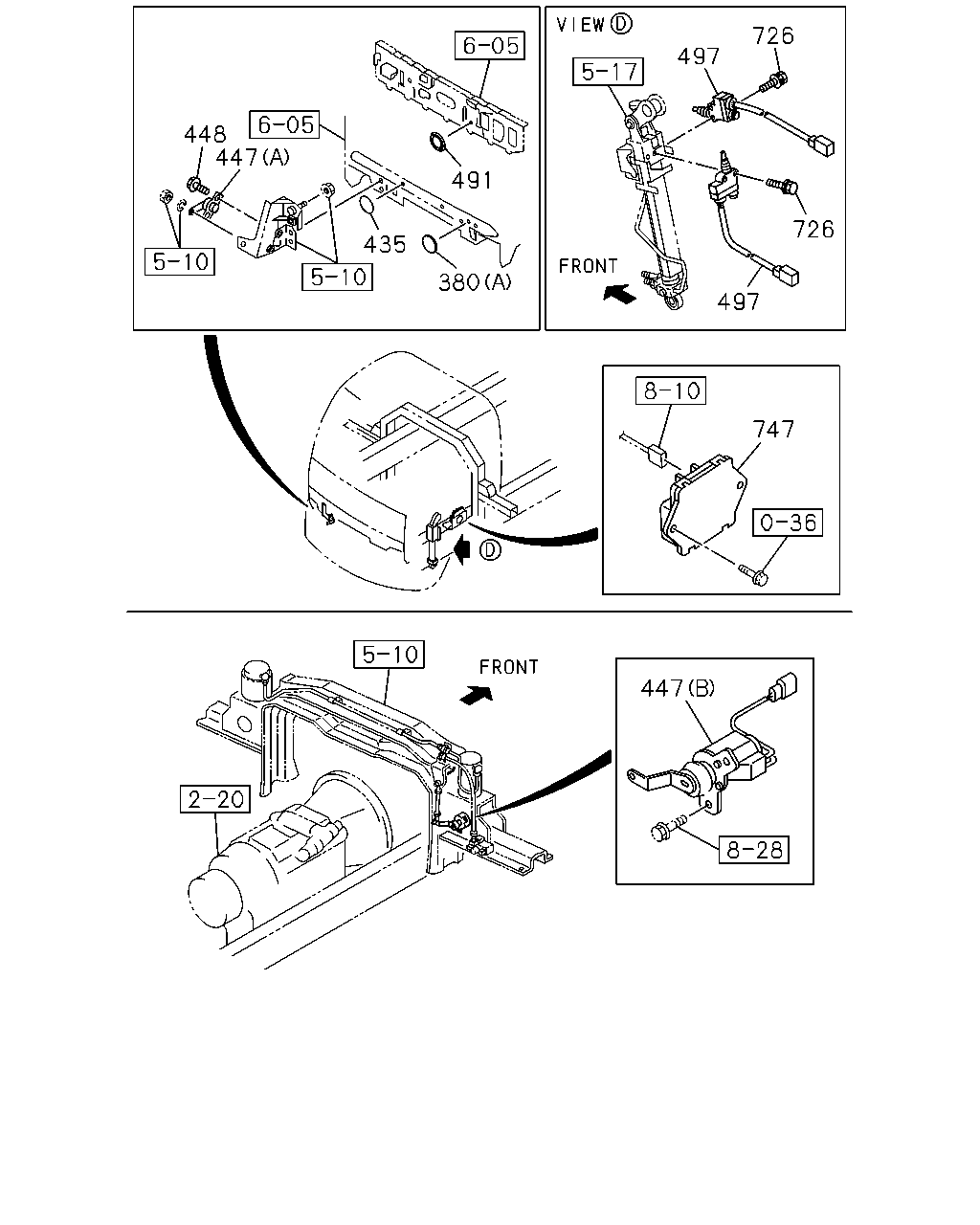

çizim 141611
726 497 448 447 491 726 435 380 497 747 447
BalonParca AdiParca NoAdetTipApplied Date A B
380 SEAL
(B) 450X350 		1-76770-008-0 01 1 0710-1005 ●
380 SEAL
(B) 450X350 		1-76770-008-0 01 1 1006- ● ●
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 01 1 0710-1005 ●
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 01 1 1006- ● ●
435 GROMMET
OD=25 BLACK 		1-76798-019-0 03 1 0710-1005 ●
435 GROMMET
OD=25 BLACK 		1-76798-019-0 03 1 1006- ● ●
447 SENSOR; HEIGHT
(A) 		1-80250-010-1 01 1 0710-1005 ●
447 SENSOR; HEIGHT
(A) 		1-80250-010-1 01 1 1006- ● ●
447 SENSOR; HEIGHT
(B) 		1-80250-011-1 01 1 0710-1005 ●
447 SENSOR; HEIGHT
(B) 		1-80250-011-1 01 1 1006- ● ●
448 BOLT; SENSOR
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-1005 ●
448 BOLT; SENSOR
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1006- ● ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0710-1005 ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 1006- ● ●
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 0710-1005 ●
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 1006- ● ●
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 0710-1005 ●
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 1006- ● ●
747 CONTROL UNIT; TURBOCHARGER
6WG1 TC-N(71L) 		8-98118-472-0 01 1 1108- ●

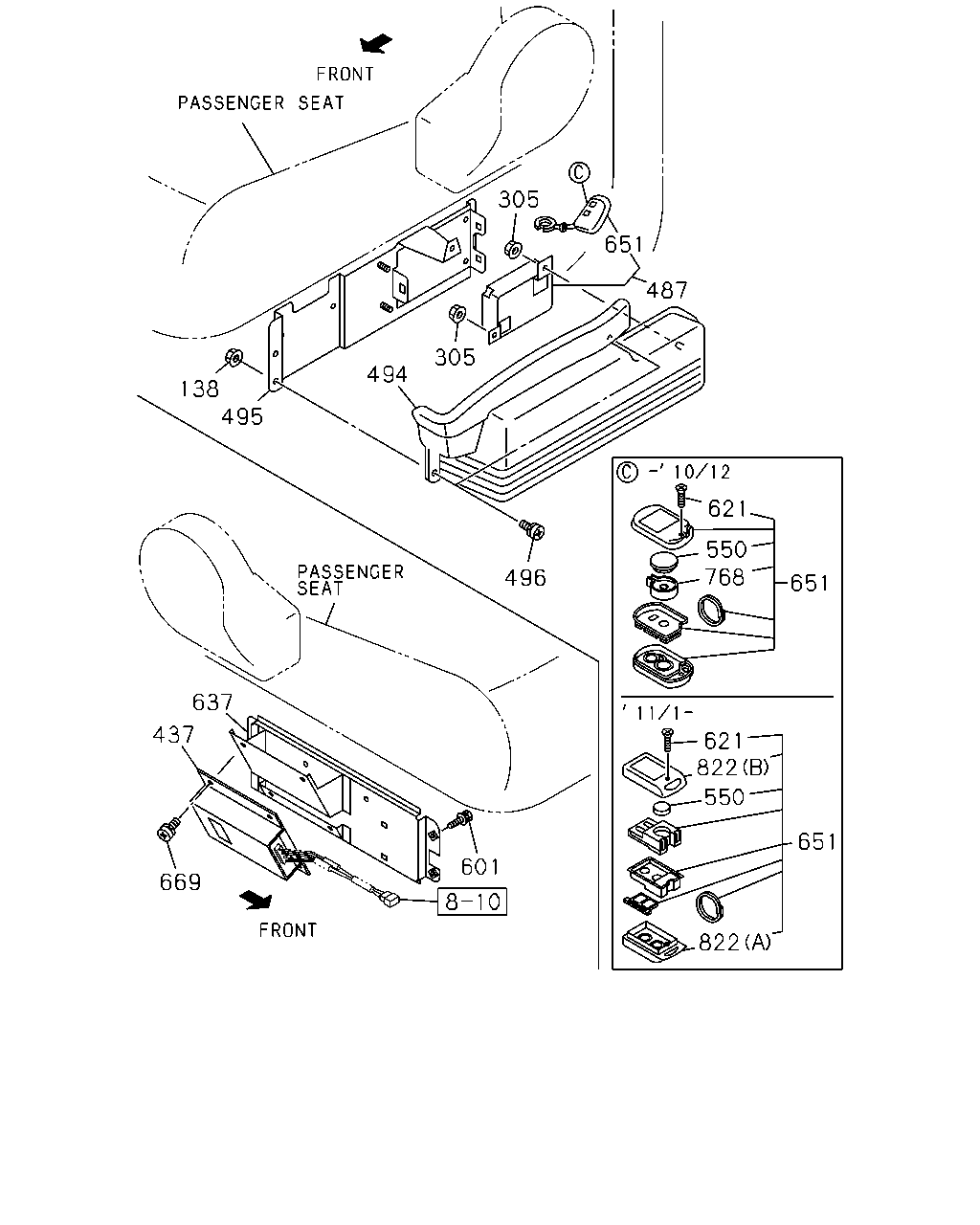

çizim 141622
305 651 487 305 494 495 138 496 637 437 669 601 621 550 768 651 621 822 550 651 822
BalonParca AdiParca NoAdetTipApplied Date A B
138 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 0710-1005 ●
138 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 1006- ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0710-0809 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0811-0907 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0908-1005 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 1006- ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0710-0907 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0710-0907 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0908-1005 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0908-1005 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0908-1005 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 1006- ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 1006- ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 1006- ● ●
437 CONVERTER; DC
METRO DENSO 		8-98046-423-0 01 1 0710-1005 ●
437 CONVERTER; DC
METRO DENSO 		8-98046-423-0 01 1 1006- ● ●
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE 8-98050-457-1 01 1 0710-1005 ●
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE 8-98050-457-1 01 1 1006-1012 ● ●
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE 8-98181-808-0 01 1 1101-1205 ● ●
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE 8-98218-230-0 01 1 1206- ● ●
494 COVER; ELEC BOX 8-97589-725-0 01 1 0710-1005 ●
494 COVER; ELEC BOX 8-97589-725-0 01 1 1006- ● ●
495 BRACKET; ELEC BOX 1-75558-488-5 01 1 0710-1005 ●
495 BRACKET; ELEC BOX 1-75558-488-5 01 1 1006- ● ●
496 SCREW; COVER
M6X12 W/LK&PL WASHER 		0-36230-612-0 03 1 0710-1005 ●
496 SCREW; COVER
M6X12 W/LK&PL WASHER 		0-36230-612-0 03 1 1006- ● ●
550 BATTERY; TRANSMITTER 8-98078-061-0 01 1 0710-1005 ●
550 BATTERY; TRANSMITTER 8-98078-061-0 01 1 1006- ● ●
601 BOLT; DC-DC CONVERTER
M6X12 W/LK&PL WASHER 		0-36230-612-0 02 1 0710-1005 ●
601 BOLT; DC-DC CONVERTER
M6X12 W/LK&PL WASHER 		0-36230-612-0 02 1 1006- ● ●
621 SCREW
M2X5 		8-98078-067-0 01 1 0710-1005 ●
621 SCREW
M2X5 		8-98078-067-0 01 1 1006-1205 ● ●
621 SCREW
M2X5 		8-98218-239-0 01 1 1206- ● ●
637 BRACKET; DC-DC CONVERTER 1-75557-483-1 01 1 0710-1005 ●
637 BRACKET; DC-DC CONVERTER 1-75557-483-1 01 1 1006- ● ●
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE 8-98048-459-1 01 1 0710-1005 ●
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE 8-98048-459-1 01 1 1006-1012 ● ●
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE 8-98180-751-0 01 1 1101-1205 ● ●
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE 8-98218-236-0 01 1 1206- ● ●
669 SCREW; DC-DC CONVERTER
M6X12 W/PL WASHER 		1-09981-380-0 04 1 0710-1005 ●
669 SCREW; DC-DC CONVERTER
M6X12 W/PL WASHER 		1-09981-380-0 04 1 1006- ● ●
768 HOLDER; BATTERY 8-98078-063-0 01 1 0710-1005 ●
768 HOLDER; BATTERY 8-98078-063-0 01 1 1006-1012 ● ●
822 COVER; TRANSMITTER
(A) 		8-98218-240-0 01 1 1206- ● ●
822 COVER; TRANSMITTER
(B) 		8-98218-243-0 01 1 1206- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
