8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#14688) — 87 parça

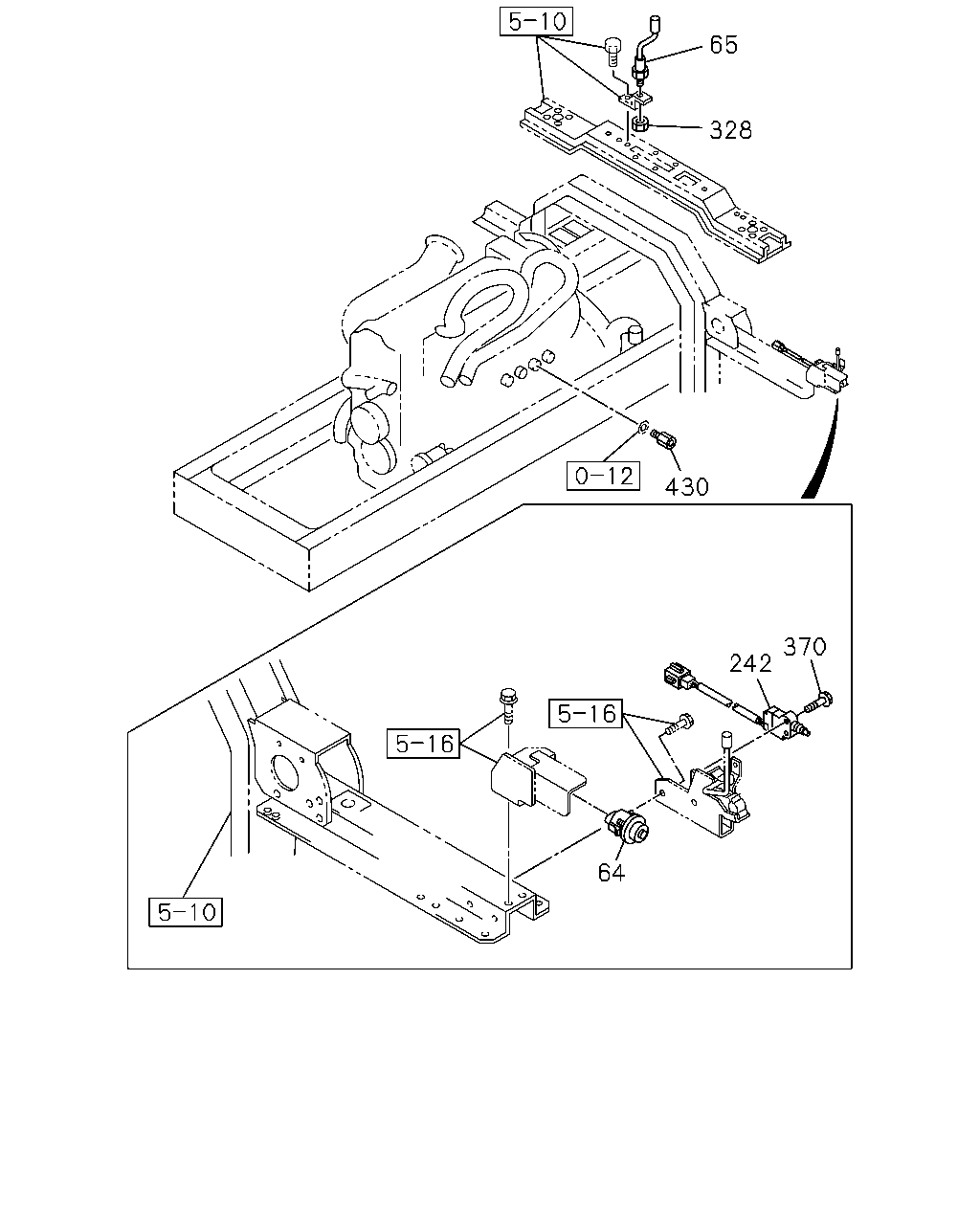

çizim 141582
65 328 430 370 242 64
BalonParca AdiParca NoAdetTipApplied Date A B
64 SWITCH; CAB TILT MAIN 1-82380-173-2 01 1 0710-1005 ●
64 SWITCH; CAB TILT MAIN 1-82380-173-2 01 1 1006- ● ●
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 0710-1005 ●
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 1006- ● ●
242 SWITCH
STAMP NO 		1-82380-172-1 01 1 0710-1005 ●
242 SWITCH
STAMP NO 		1-82380-172-1 01 1 1006- ● ●
328 NUT; SW
M16 		0-91110-516-0 01 1 0710-1005 ●
328 NUT; SW
M16 		0-91110-516-0 01 1 1006- ● ●
370 BOLT; SW
M6X30 FLANGE 		0-28650-630-0 02 1 0710-1005 ●
370 BOLT; SW
M6X30 FLANGE 		0-28650-630-0 02 1 1006- ● ●
430 ADAPTER; SW
M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0710-1005 ●
430 ADAPTER; SW
M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 1006- ● ●

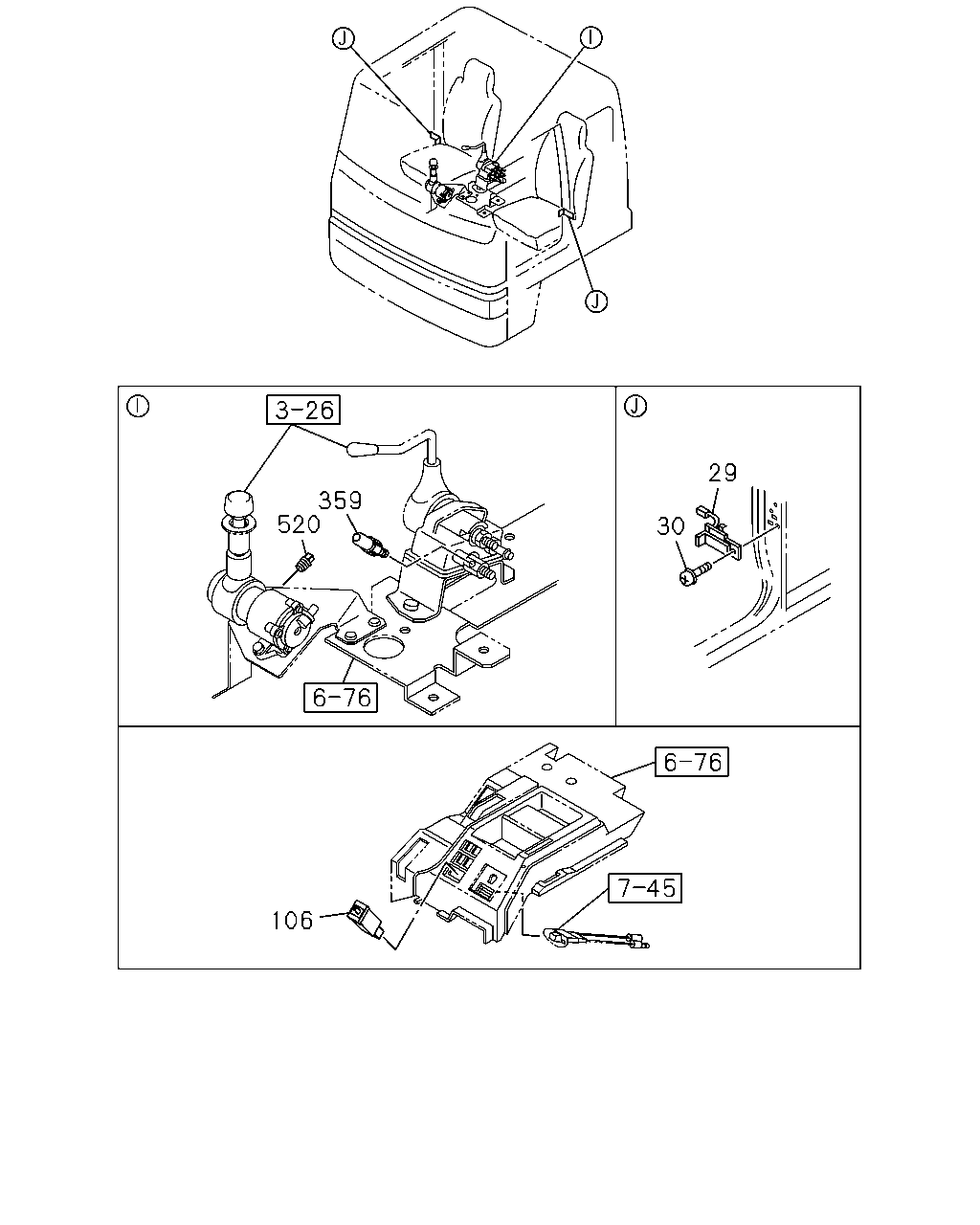

çizim 141592
29 359 520 30 106
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR 8-97855-032-3 02 1 0710-1005 ●
29 SWITCH; DOOR 8-97855-032-3 02 1 1006- ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 02 1 0710-1005 ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 02 1 1006- ● ●
106 SWITCH; REMOTE CONT MIRROR 1-82350-223-0 02 1 0710-1005 ●
106 SWITCH; REMOTE CONT MIRROR 1-82350-223-0 02 1 1006- ● ●
359 SWITCH; TRAILER BRAKE
STAMP 0.3 		8-98010-857-0 01 1 1006- ●
359 SWITCH; TRAILER BRAKE
GREEN 		1-82410-176-1 01 1 0710- ●
520 PLUG; CONNECTOR
PT1/4 		9-99204-513-0 01 1 1006- ●
çizim 141594
666 666 667 666 236 482 666 667 397
BalonParca AdiParca NoAdetTipApplied Date A B
236 BRACKET; AXLE HARNESS,RR 1-47476-200-0 01 1 0710-1005 ●
236 BRACKET; AXLE HARNESS,RR 1-47476-200-0 01 1 1006- ● ●
397 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 0710-1005 ●
397 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 1006- ● ●
482 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0710-1005 ●
482 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1006- ● ●
666 CLIP; AXLE HARNESS
(A) L=350 		1-09707-183-0 02 1 0710-1005 ●
666 CLIP; AXLE HARNESS
(A) L=350 		1-09707-183-0 02 1 1006- ● ●
666 CLIP; AXLE HARNESS
(B) ID=11X2 L=20 		1-09700-871-0 02 1 0710-1005 ●
666 CLIP; AXLE HARNESS
(B) ID=11X2 L=20 		1-09700-871-0 02 1 1006- ● ●
667 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710-1005 ●
667 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1006- ● ●

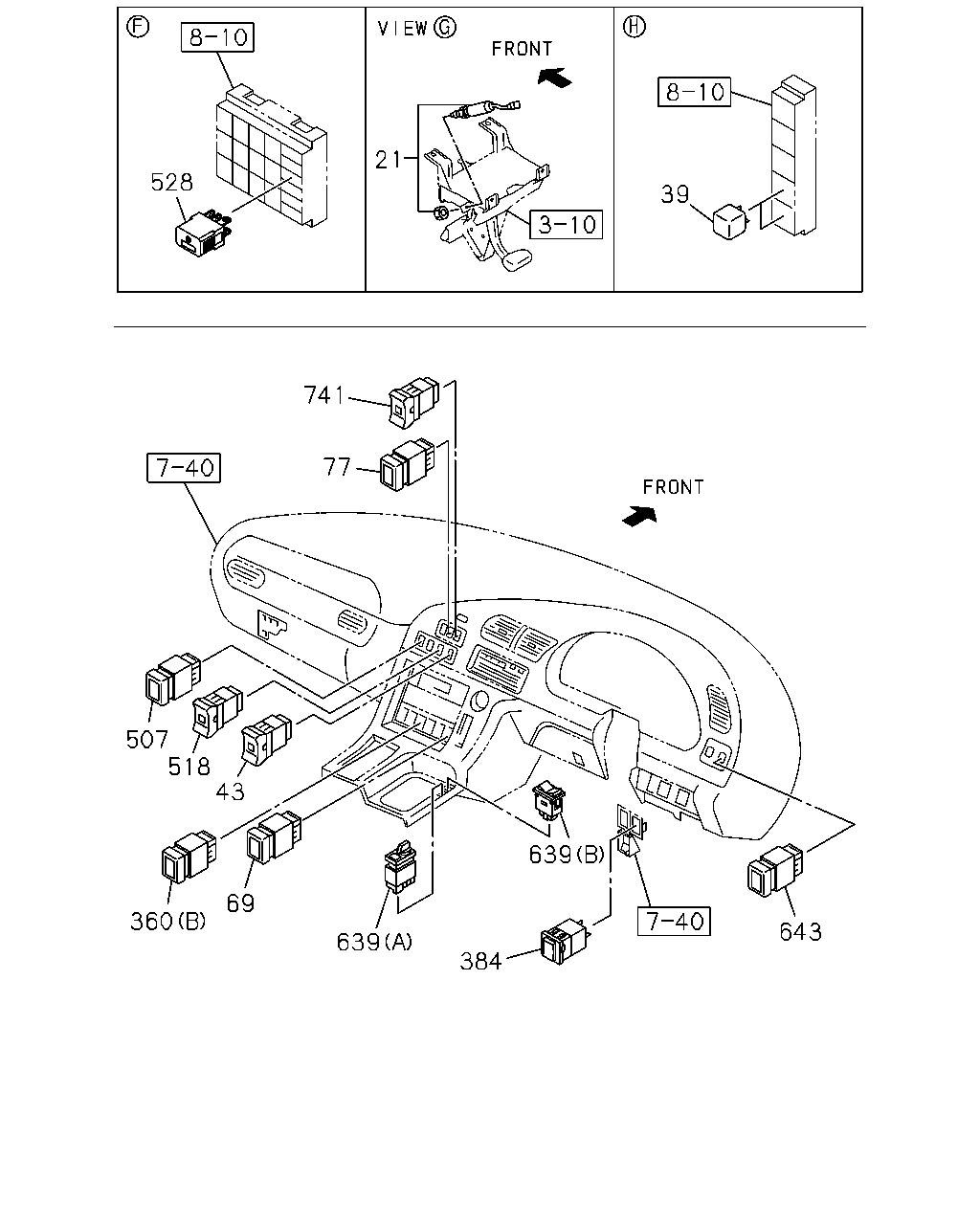

çizim 141601
21 528 39 741 77 507 518 43 639 69 360 643 639 384
BalonParca AdiParca NoAdetTipApplied Date A B
21 SWITCH; CLU
EXC. SMOOTHER-G(C1W) 		1-82380-114-3 01 1 0710-1005 ●
21 SWITCH; CLU
EXC. SMOOTHER-G(C1W) 		1-82380-114-3 01 1 1006- ●
21 SWITCH; CLU 1-82380-114-3 01 1 1006- ●
39 RELAY; DOOR LK
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0710-1005 ●
39 RELAY; DOOR LK
24V 12.5A PANASONIC 		8-97262-933-0 02 1 1006- ● ●
43 SWITCH; HORN 1-82350-332-0 01 1 0710- ●
69 SWITCH; AUTO CRUISE 8-97610-834-0 01 1 0710-1005 ●
69 SWITCH; AUTO CRUISE 8-97610-834-0 01 1 1006- ● ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		1-82340-413-0 01 1 0710- ●
360 SWITCH ASM; DIFF LK
(B) 		1-82340-660-1 01 1 0710-1005 ●
360 SWITCH ASM; DIFF LK
(B) 		1-82340-660-1 01 1 1006- ● ●
360 SWITCH ASM; DIFF LK
(A) 		1-82340-677-0 01 1 0710-1005 ●
360 SWITCH ASM; DIFF LK
(A) 		1-82340-677-0 01 1 1006- ● ●
384 SWITCH; IDLING CONT,ELEC 1-82350-213-1 01 1 0710-1005 ●
384 SWITCH; IDLING CONT,ELEC 1-82350-213-1 01 1 1006- ● ●
507 SWITCH; MIRROR HEATER 1-82340-423-0 01 1 0710-1005 ●
507 SWITCH; MIRROR HEATER 1-82340-423-0 01 1 1006- ● ●
518 SWITCH; RADIO TUNE
RADIO SEEK SW<NBN> 		1-82350-231-0 01 1 1006- ●
528 RELAY; BUZZER
24V 10A PANASONIC 		8-97173-035-1 01 1 0710-1005 ●
528 RELAY; BUZZER
24V 10A PANASONIC 		8-97173-035-1 01 1 1006- ● ●
639 SWITCH; EMERGENCY
MJX M/T<Y9N> (A) 		1-82330-068-0 01 1 0710- ●
639 SWITCH; EMERGENCY
MJX M/T<Y9N> (B) 		1-82350-363-0 01 1 0710- ●
643 SWITCH; SKIP SHIFT
MJX M/T<Y9N> 		8-97381-251-0 01 1 0710- ●
741 SWITCH; TRAILER 8-98147-983-0 01 1 0908-1005 ●
741 SWITCH; TRAILER 8-98147-983-0 01 1 1006- ● ●

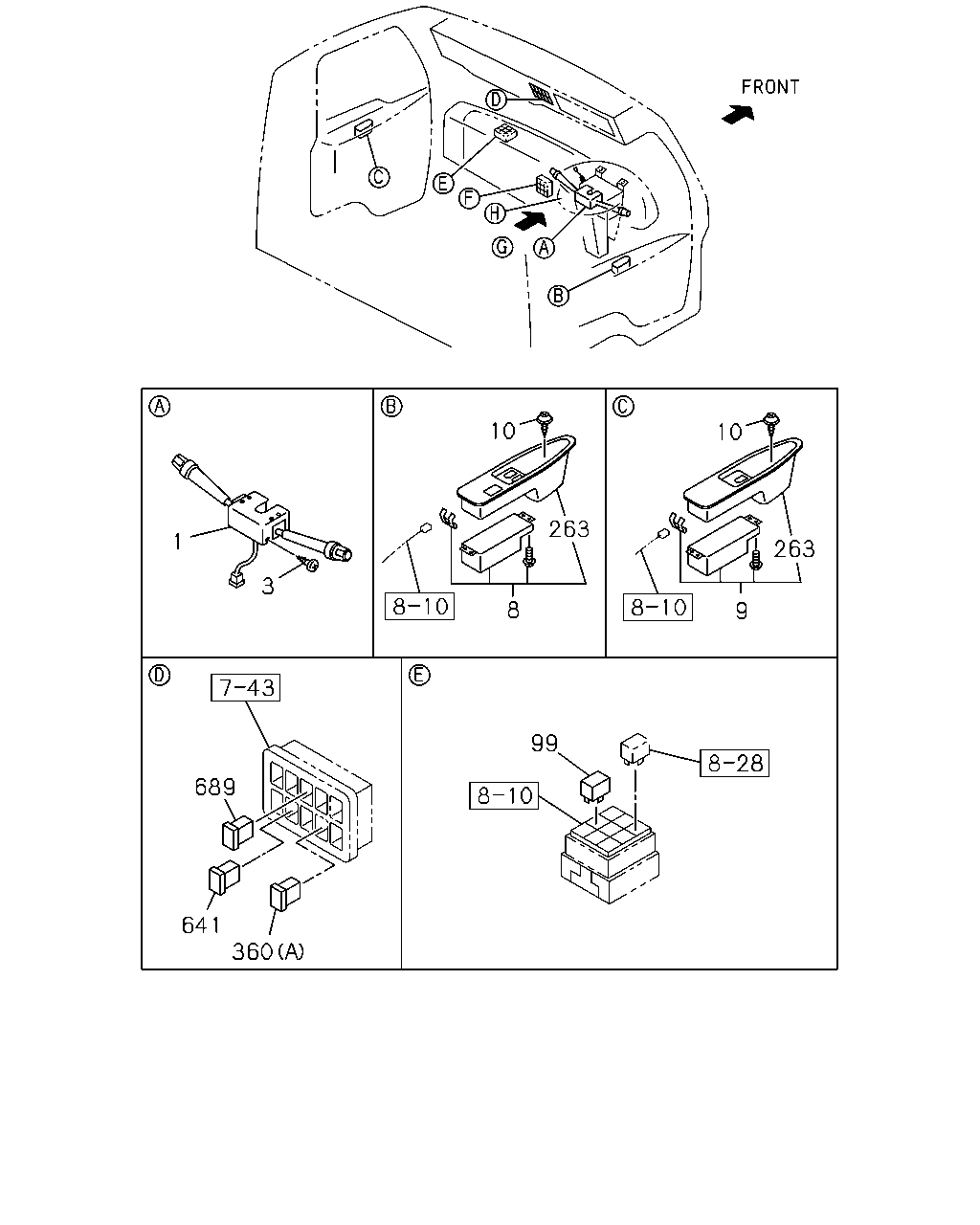

çizim 141614
10 10 263 1 263 3 8 9 99 689 641 360
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
BRAKE SYSTEM RETARDER<RE2> EXC. SMOOTHER-G(C1W) 		1-82360-580-2 01 1 0710- ●
1 SWITCH; COMB
SMOOTHER-G(C1W) BRAKE SYSTEM RETARDER<RE2> 		1-82360-694-2 01 1 0710- ●
1 SWITCH; COMB
SMOOTHER-G(C1W) EXC. BRAKE SYSTEM RETARDER<RE2> 		1-82360-695-2 01 1 0710- ●
1 SWITCH; COMB
EXC. SMOOTHER-G(C1W),BRAKE SYSTEM RETARDER<RE2> 		1-82360-579-2 01 1 0710-1005 ●
1 SWITCH; COMB
EXC. SMOOTHER-G(C1W),BRAKE SYSTEM RETARDER<RE2> 		1-82360-579-2 01 1 1006- ●
1 SWITCH; COMB 1-82360-579-2 01 1 1006- ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 0710-1005 ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 1006- ● ●
8 SWITCH; POWER WINDOW
DRIVER 		1-82380-166-2 01 1 0710-1005 ●
8 SWITCH; POWER WINDOW
DRIVER 		1-82380-166-2 01 1 1006- ● ●
9 SWITCH; POWER WINDOW
PASSENGER 		1-82380-167-1 01 1 0710-1005 ●
9 SWITCH; POWER WINDOW
PASSENGER 		1-82380-167-1 01 1 1006- ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0710-1005 ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 1006- ● ●
99 RELAY; FOG LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710-1005 ●
99 RELAY; FOG LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1006- ● ●
263 COVER; SW
DRIVER 		1-82385-005-2 01 1 0710-1005 ●
263 COVER; SW
DRIVER 		1-82385-005-2 01 1 1006- ● ●
263 COVER; SW
PASSENGER 		1-82385-006-3 01 1 0710-1005 ●
263 COVER; SW
PASSENGER 		1-82385-006-3 01 1 1006- ● ●
360 SWITCH ASM; DIFF LK
(B) 		1-82340-660-1 01 1 0710-1005 ●
360 SWITCH ASM; DIFF LK
(B) 		1-82340-660-1 01 1 1006- ● ●
360 SWITCH ASM; DIFF LK
(A) 		1-82340-677-0 01 1 0710-1005 ●
360 SWITCH ASM; DIFF LK
(A) 		1-82340-677-0 01 1 1006- ● ●
641 SWITCH; MAP
MJX M/T<Y9N> 		8-97615-637-0 01 1 0710- ●
689 SWITCH; DPD 1-82340-693-0 01 1 0710-1005 ●
689 SWITCH; DPD 1-82340-693-0 01 1 1006-1107 ● ●
689 SWITCH; DPD
CATALYSIS CONTROL WITH DPD<8JM> 		1-82340-693-0 01 1 1108- ●
689 SWITCH; DPD 1-82340-693-0 01 1 1108- ●
