◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#14685) — 1367 parça
çizim 141579
53 53 53 53 53 53 53 53 59 59 211
BalonParca AdiParca NoAdetTipApplied Date A B
53 BRACKET; HARNESS
6WG1 TC-N(71L) (K) 		8-98124-778-0 01 1 1108- ●
53 BRACKET; HARNESS
6WG1 TC-N(71L) (L) 		8-97625-412-0 02 1 1108- ●
53 BRACKET; HARNESS
6WG1 TC-N(71L) (M) 		8-97625-794-0 01 1 1108- ●
53 BRACKET; HARNESS
6WG1 TC-N(71L) (N) 		8-97630-437-0 01 1 1108- ●
53 BRACKET; HARNESS
6WG1 TC-N(71L) (O) 		8-98123-473-1 01 1 1108-1111 ●
53 BRACKET; HARNESS
(R) 		8-98194-068-0 01 1 1112- ● ●
53 BRACKET; HARNESS
6WG1 TC-N(71L) (P) 		8-98123-474-0 01 1 1108- ●
53 BRACKET; HARNESS
6WG1 TC-N(71L) (Q) 		8-98123-475-0 01 1 1108- ●
53 BRACKET; HARNESS
(C) L=130 		1-47478-959-0 02 1 0710-1005 ●
53 BRACKET; HARNESS
(C) L=130 		1-47478-959-0 02 1 1006- ● ●
53 BRACKET; HARNESS
(D) 		1-47479-537-0 10 1 0710-1005 ●
53 BRACKET; HARNESS
(D) 		1-47479-537-0 10 1 1006- ● ●
53 BRACKET; HARNESS
(E) 		1-82698-495-2 01 1 0710-1005 ●
53 BRACKET; HARNESS
(E) 		1-82698-495-2 01 1 1006- ● ●
53 BRACKET; HARNESS
(A) 		8-97610-339-1 01 1 0710-1005 ●
53 BRACKET; HARNESS
(A) 		8-97610-339-1 01 1 1006- ● ●
53 BRACKET; HARNESS
(B) 		8-97610-340-1 01 1 0710-1005 ●
53 BRACKET; HARNESS
(B) 		8-97610-340-1 01 1 1006-1107 ● ●
53 BRACKET; HARNESS
6WG1 TC-C(72L) (B) 		8-97610-340-1 01 1 1108- ●
53 BRACKET; HARNESS
(B) 		8-97610-340-1 01 1 1108- ●
53 BRACKET; HARNESS
(I) 		8-97616-268-1 01 1 0710-1005 ●
53 BRACKET; HARNESS
(I) 		8-97616-268-1 01 1 1006-1107 ● ●
53 BRACKET; HARNESS
CATALYSIS CONTROL WITH DPD<8JM> (I) 		8-97616-268-1 01 1 1108- ●
53 BRACKET; HARNESS
(I) 		8-97616-268-1 01 1 1108- ●
53 BRACKET; HARNESS
(J) 		8-97622-857-0 01 1 0710-1005 ●
53 BRACKET; HARNESS
(J) 		8-97622-857-0 01 1 1006- ● ●
53 BRACKET; HARNESS
(F) 		8-98032-696-0 01 1 0710-1005 ●
53 BRACKET; HARNESS
(F) 		8-98032-696-0 01 1 1006- ● ●
53 BRACKET; HARNESS
(G) 		8-98050-989-0 01 1 0710-1005 ●
53 BRACKET; HARNESS
(G) 		8-98050-989-0 01 1 1006- ● ●
53 BRACKET; HARNESS
(H) 		8-98052-592-0 01 1 0710-1005 ●
53 BRACKET; HARNESS
(H) 		8-98052-592-0 01 1 1006- ● ●
59 BRACKET; FRAME HARNESS
(A) 		1-82698-531-0 01 1 0710-1005 ●
59 BRACKET; FRAME HARNESS
(A) 		1-82698-531-0 01 1 1006- ● ●
59 BRACKET; FRAME HARNESS
SMOOTHER-G(C1W) (B) 		8-98061-135-1 01 1 0710- ●
211 BRACKET; AXLE HARNESS 8-97621-353-1 01 1 0710-1005 ●
211 BRACKET; AXLE HARNESS 8-97621-353-1 01 1 1006- ● ●
211 BRACKET; AXLE HARNESS 8-97621-352-1 01 1 0710-1005 ●
211 BRACKET; AXLE HARNESS 8-97621-352-1 01 1 1006- ● ●

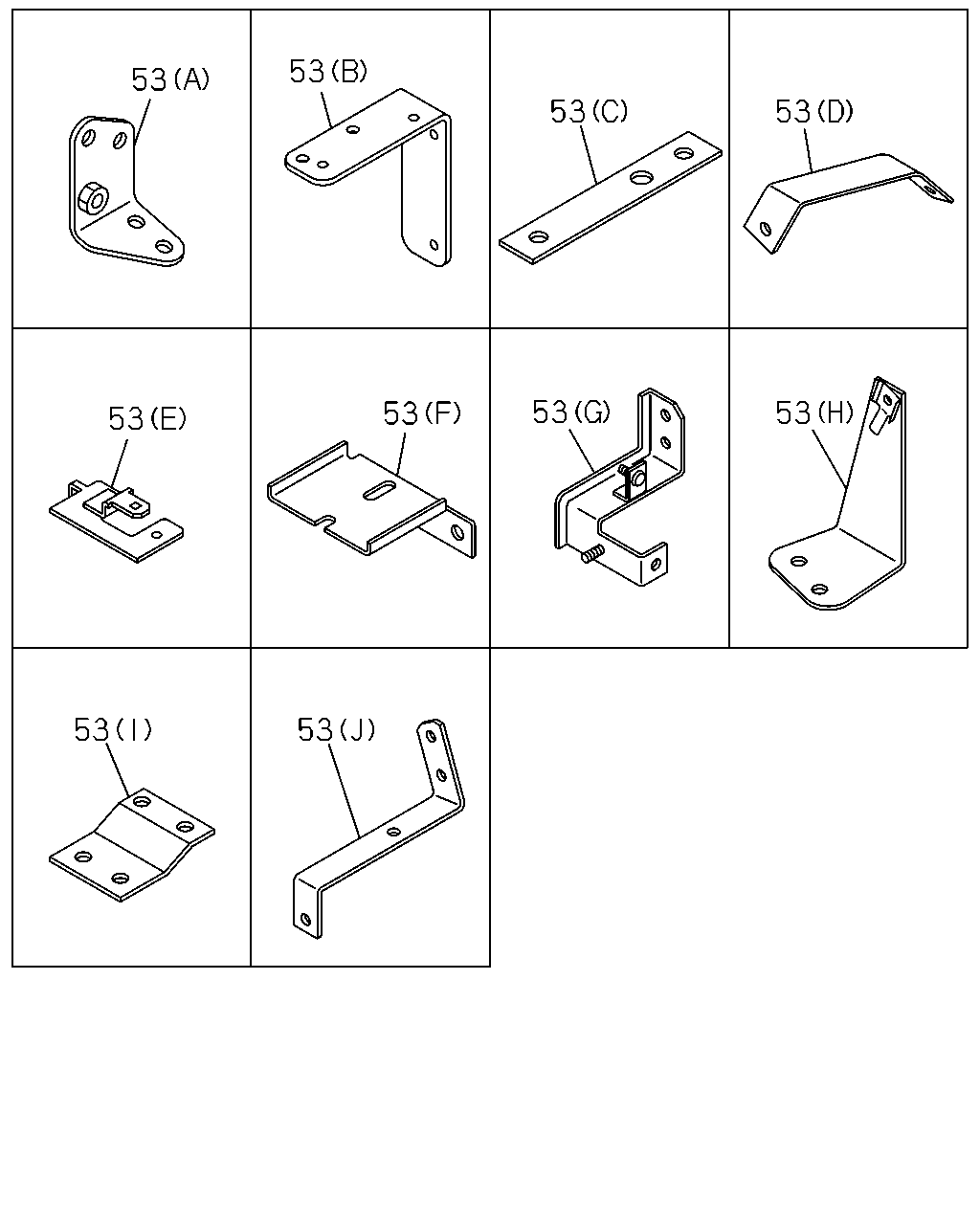

çizim 141581
53 53 53 53 53 53 53 53 53 53
BalonParca AdiParca NoAdetTipApplied Date A B
53 BRACKET; HARNESS
6WG1 TC-N(71L) (K) 		8-98124-778-0 01 1 1108- ●
53 BRACKET; HARNESS
6WG1 TC-N(71L) (L) 		8-97625-412-0 02 1 1108- ●
53 BRACKET; HARNESS
6WG1 TC-N(71L) (M) 		8-97625-794-0 01 1 1108- ●
53 BRACKET; HARNESS
6WG1 TC-N(71L) (N) 		8-97630-437-0 01 1 1108- ●
53 BRACKET; HARNESS
6WG1 TC-N(71L) (O) 		8-98123-473-1 01 1 1108-1111 ●
53 BRACKET; HARNESS
(R) 		8-98194-068-0 01 1 1112- ● ●
53 BRACKET; HARNESS
6WG1 TC-N(71L) (P) 		8-98123-474-0 01 1 1108- ●
53 BRACKET; HARNESS
6WG1 TC-N(71L) (Q) 		8-98123-475-0 01 1 1108- ●
53 BRACKET; HARNESS
(C) L=130 		1-47478-959-0 02 1 0710-1005 ●
53 BRACKET; HARNESS
(C) L=130 		1-47478-959-0 02 1 1006- ● ●
53 BRACKET; HARNESS
(D) 		1-47479-537-0 10 1 0710-1005 ●
53 BRACKET; HARNESS
(D) 		1-47479-537-0 10 1 1006- ● ●
53 BRACKET; HARNESS
(E) 		1-82698-495-2 01 1 0710-1005 ●
53 BRACKET; HARNESS
(E) 		1-82698-495-2 01 1 1006- ● ●
53 BRACKET; HARNESS
(A) 		8-97610-339-1 01 1 0710-1005 ●
53 BRACKET; HARNESS
(A) 		8-97610-339-1 01 1 1006- ● ●
53 BRACKET; HARNESS
(B) 		8-97610-340-1 01 1 0710-1005 ●
53 BRACKET; HARNESS
(B) 		8-97610-340-1 01 1 1006-1107 ● ●
53 BRACKET; HARNESS
6WG1 TC-C(72L) (B) 		8-97610-340-1 01 1 1108- ●
53 BRACKET; HARNESS
(B) 		8-97610-340-1 01 1 1108- ●
53 BRACKET; HARNESS
(I) 		8-97616-268-1 01 1 0710-1005 ●
53 BRACKET; HARNESS
(I) 		8-97616-268-1 01 1 1006-1107 ● ●
53 BRACKET; HARNESS
CATALYSIS CONTROL WITH DPD<8JM> (I) 		8-97616-268-1 01 1 1108- ●
53 BRACKET; HARNESS
(I) 		8-97616-268-1 01 1 1108- ●
53 BRACKET; HARNESS
(J) 		8-97622-857-0 01 1 0710-1005 ●
53 BRACKET; HARNESS
(J) 		8-97622-857-0 01 1 1006- ● ●
53 BRACKET; HARNESS
(F) 		8-98032-696-0 01 1 0710-1005 ●
53 BRACKET; HARNESS
(F) 		8-98032-696-0 01 1 1006- ● ●
53 BRACKET; HARNESS
(G) 		8-98050-989-0 01 1 0710-1005 ●
53 BRACKET; HARNESS
(G) 		8-98050-989-0 01 1 1006- ● ●
53 BRACKET; HARNESS
(H) 		8-98052-592-0 01 1 0710-1005 ●
53 BRACKET; HARNESS
(H) 		8-98052-592-0 01 1 1006- ● ●

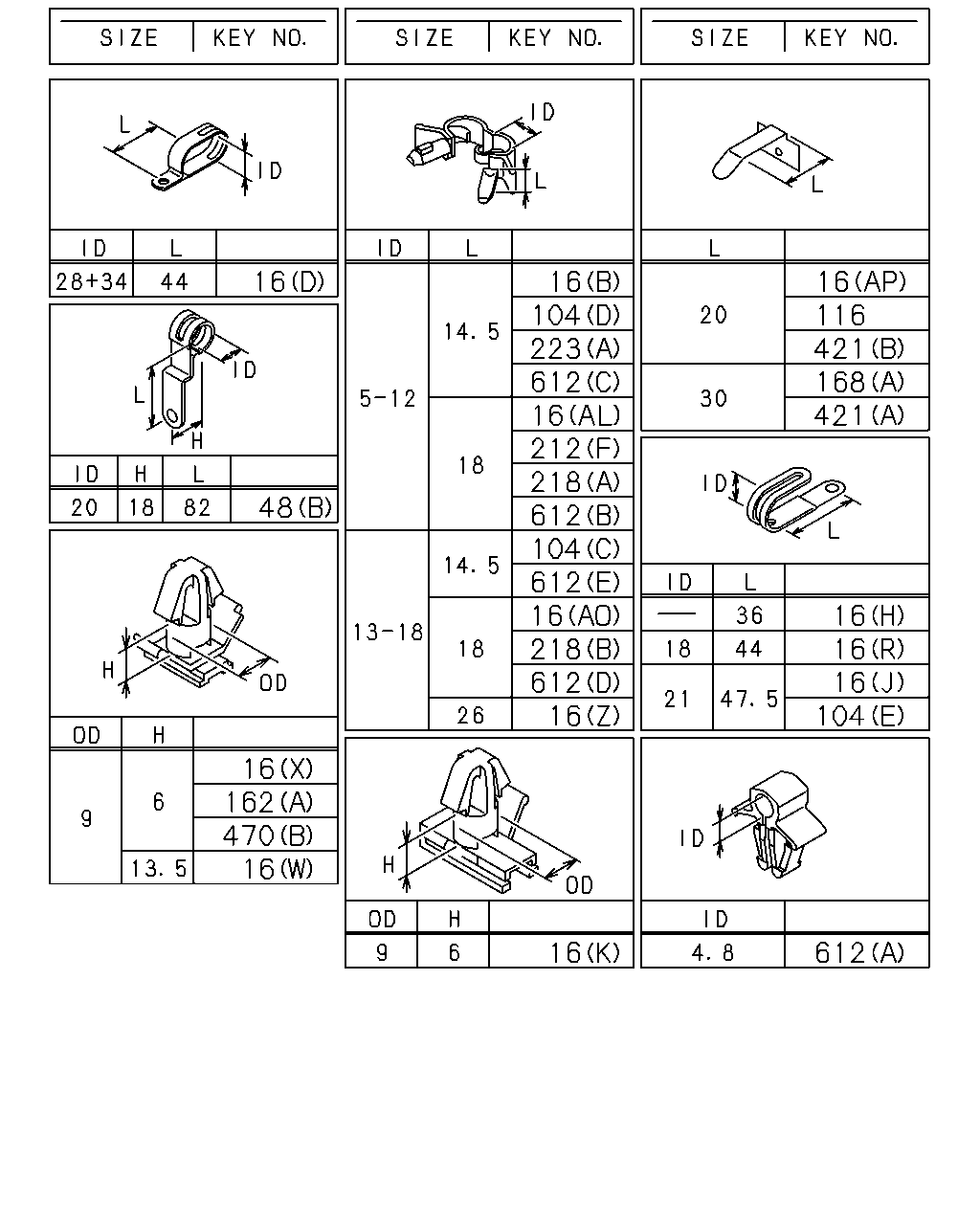

çizim 141587
16 104 223 612 16 212 218 612 104 612 16 218 612 16 16 16 116 421 168 421 48 16 16 16 104 16 162 470 16 16 612
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 1410- ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (U) ID=20 L=50 		9-09917-430-0 03 1 1410- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (U) ID=20 L=50 		9-09917-430-0 03 1 1410- ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 1410- ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 1410- ●
16 CLIP; HARNESS
(AW) ID=9 L=20 		0-95234-835-0 02 1 1106-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AW) ID=9 L=20 		0-95234-835-0 02 1 1108- ●
16 CLIP; HARNESS
(AW) ID=9 L=20 		0-95234-835-0 02 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AD) ID=28 L=58 		1-09700-400-0 02 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AE) ID=11 L=41 		1-09700-403-0 11 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AQ) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AR) ID=17 L=20 		8-97619-251-0 01 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (Y) ID=14 L=44 		9-09917-427-0 02 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (F) ID=22 L=52 		9-09917-431-0 03 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (T) ID=11 L=20 		0-95235-035-0 02 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AI) SYNTHETIC RUBBER ID=35 H=45 L=33 		1-09700-947-0 01 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AT) ID=9 H=80 L=23 		1-09701-061-0 02 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AU) ID=18 L=28 		1-09701-067-0 03 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AV) ID=28 L=40 		1-09701-261-0 01 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (X) OD=9 H=6 		1-09709-178-0 01 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (C) L=250 		5-09707-030-1 10 1 1108-1205 ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (C) L=250 		8-98216-430-0 10 1 1206- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (J) ID=21 L=47.5 		8-94178-108-0 03 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (R) ID=18 L=44 		8-97367-985-1 02 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AH) L=251 		8-97619-917-0 01 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AS) ID=10 L=16.5 		8-98082-034-0 02 1 1108- ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 01 1 1005-1005 ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 01 1 1005-1005 ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 01 1 1006- ● ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 01 1 1006- ● ●
16 CLIP; HARNESS
HIGH ROOF<S2F> (AP) L=20 SET=10 PIECE 		1-09987-246-2 04 1 1006- ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 03 1 0909-1005 ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 01 1 1006-1104 ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (K) OD=9 H=6 		8-97368-793-0 01 1 1105- ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 06 1 0909-1005 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 1006-1104 ● ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 05 1 1105- ● ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 07 1 0807-1005 ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 02 1 1006-1104 ● ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 1105-1409 ● ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 1105-1409 ● ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 1105-1409 ● ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (U) ID=20 L=50 		9-09917-430-0 01 1 1410- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (U) ID=20 L=50 		9-09917-430-0 01 1 1410- ●
16 CLIP; HARNESS
FULLER M/T<X9B> (AC) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 0710-1005 ●
16 CLIP; HARNESS
FULLER M/T<X9B> (AC) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1006- ●
16 CLIP; HARNESS
(AC) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1006- ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 03 1 0710-0712 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 0801-0908 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 0801-0908 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 0801-0908 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 0909-1005 ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 01 1 1006- ● ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 08 1 0710-0806 ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 01 1 0807-1005 ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 07 1 1006-1104 ● ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 02 1 1105- ● ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 02 1 1105- ● ●
16 CLIP; HARNESS
(AG) ID=15 L=28 		1-09701-216-0 02 1 0710-1005 ●
16 CLIP; HARNESS
(AG) ID=15 L=28 		1-09701-216-0 02 1 1006-1104 ● ●
16 CLIP; HARNESS
(AG) ID=15 L=28 		1-09701-216-0 01 1 1105- ● ●
16 CLIP; HARNESS
(AG) ID=15 L=28 		1-09701-216-0 01 1 1105- ● ●
16 CLIP; HARNESS
(Z) ID=13-18 L=26 		1-09709-293-0 04 1 0710-1005 ●
16 CLIP; HARNESS
(Z) ID=13-18 L=26 		1-09709-293-0 04 1 1006- ● ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 04 1 0710-1005 ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 03 1 1006- ● ●
16 CLIP; HARNESS
(AM) ID=11 L=16 		0-95235-025-0 02 1 0710-1005 ●
16 CLIP; HARNESS
(AM) ID=11 L=16 		0-95235-025-0 02 1 1006- ● ●
16 CLIP; HARNESS
(T) ID=11 L=20 		0-95235-035-0 05 1 0710-1005 ●
16 CLIP; HARNESS
(T) ID=11 L=20 		0-95235-035-0 05 1 1006-1105 ● ●
16 CLIP; HARNESS
(T) ID=11 L=20 		0-95235-035-0 03 1 1106-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (T) ID=11 L=20 		0-95235-035-0 03 1 1108- ●
16 CLIP; HARNESS
(T) ID=11 L=20 		0-95235-035-0 03 1 1108- ●
16 CLIP; HARNESS
(AC) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 0710-1005 ●
16 CLIP; HARNESS
(AC) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1006-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AC) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1108- ●
16 CLIP; HARNESS
(AC) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1108- ●
16 CLIP; HARNESS
(M) ID=19 L=20 		0-95235-836-0 03 1 0710-1005 ●
16 CLIP; HARNESS
(M) ID=19 L=20 		0-95235-836-0 03 1 1006-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (M) ID=19 L=20 		0-95235-836-0 03 1 1108- ●
16 CLIP; HARNESS
(M) ID=19 L=20 		0-95235-836-0 03 1 1108- ●
16 CLIP; HARNESS
(AD) ID=28 L=58 		1-09700-400-0 03 1 0710-0712 ●
16 CLIP; HARNESS
(AD) ID=28 L=58 		1-09700-400-0 04 1 0710-1005 ●
16 CLIP; HARNESS
(AD) ID=28 L=58 		1-09700-400-0 04 1 1006- ● ●
16 CLIP; HARNESS
(P) ID=33 L=63 		1-09700-807-0 01 1 0710-0712 ●
16 CLIP; HARNESS
(P) ID=33 L=63 		1-09700-807-0 03 1 0801-1005 ●
16 CLIP; HARNESS
(P) ID=33 L=63 		1-09700-807-0 03 1 1006- ● ●

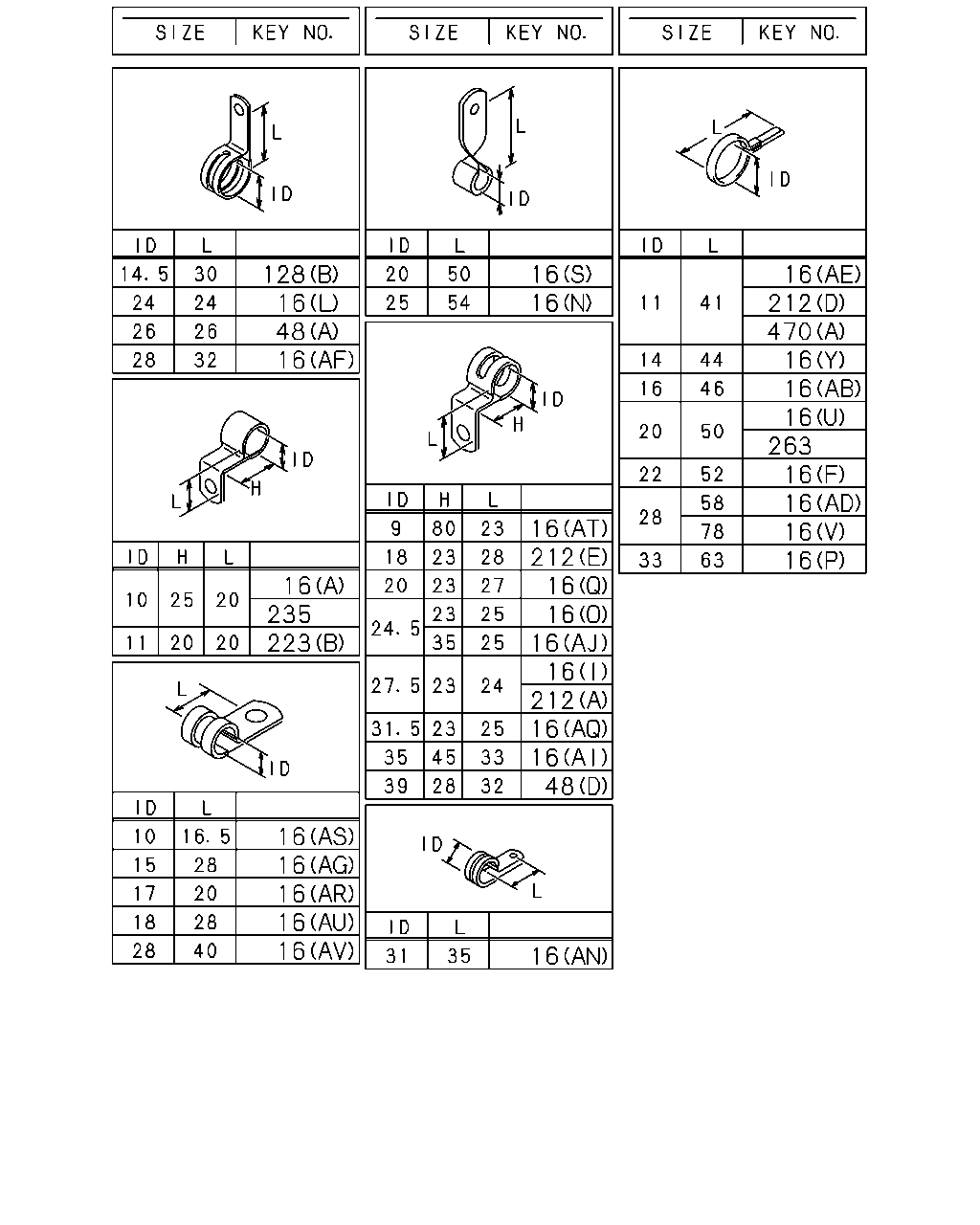

16 CLIP; HARNESS
(V) ID=28 L=78 		1-09700-858-0 01 1 0710-1005 ●
16 CLIP; HARNESS
(V) ID=28 L=78 		1-09700-858-0 01 1 1006- ● ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-1005 ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-1005 ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1006-1107 ● ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1006-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1108- ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1108- ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1108- ●
16 CLIP; HARNESS

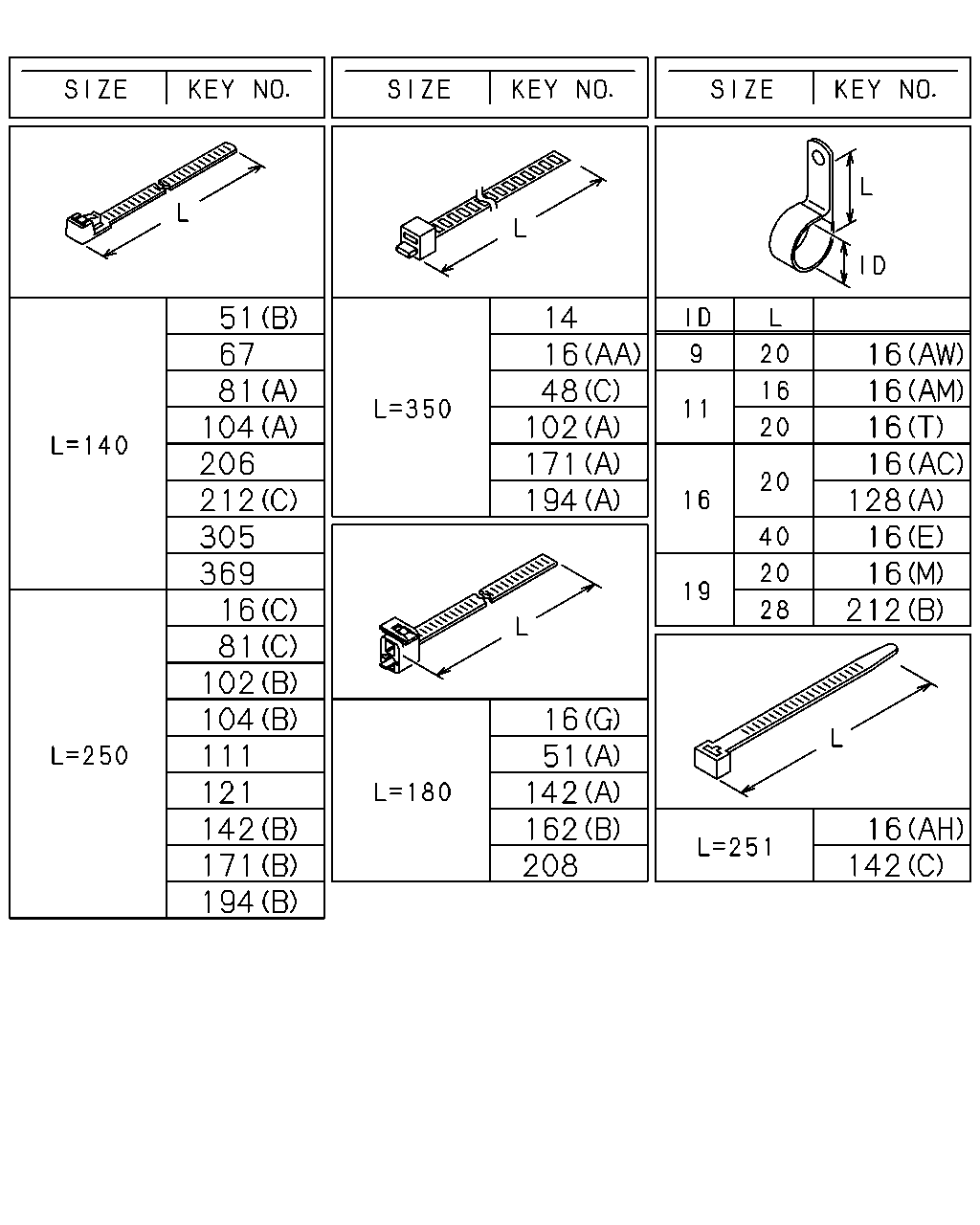

(G) L=180 		1-09707-162-1 06 1 0710-0908 ●
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 05 1 0909- ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 01 1 0710-1004 ●
16 CLIP; HARNESS
(AK) W/SPONGE RUBBER 		1-09709-150-0 01 1 1005-1005 ●
16 CLIP; HARNESS
(AK) W/SPONGE RUBBER 		1-09709-150-0 01 1 1006- ● ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 03 1 0710-1005 ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 04 1 1006- ● ●
16 CLIP; HARNESS
(AK) W/SPONGE RUBBER 		1-09709-150-0 01 1 0710-0710 ●
16 CLIP; HARNESS
(X) OD=9 H=6 		1-09709-178-0 05 1 0710-1005 ●
16 CLIP; HARNESS
(X) OD=9 H=6 		1-09709-178-0 05 1 1006-1409 ● ●
16 CLIP; HARNESS
(X) OD=9 H=6 		1-09709-178-0 02 1 1410- ● ●
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 0710-0710 ●
16 CLIP; HARNESS
(AL) ID=5-12 L=18 		1-09709-287-0 01 1 0710-1005 ●
16 CLIP; HARNESS
(AL) ID=5-12 L=18 		1-09709-287-0 01 1 1006- ● ●
16 CLIP; HARNESS
(AL) ID=5-12 L=18 		1-09709-287-0 03 1 0710-1004 ●
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 03 1 1005-1005 ●
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 03 1 1005-1005 ●
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 03 1 1006- ● ●
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 03 1 1006- ● ●
16 CLIP; HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 06 1 0710-1005 ●
16 CLIP; HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 06 1 1006-1009 ● ●
16 CLIP; HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 05 1 1010- ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0710-1005 ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (C) L=250 		5-09707-030-1 01 1 0710-1005 ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 1006- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (C) L=250 		5-09707-030-1 01 1 1006- ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 09 1 0710-1005 ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 09 1 1006-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (C) L=250 		5-09707-030-1 09 1 1108-1205 ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 09 1 1108-1205 ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (C) L=250 		8-98216-430-0 09 1 1206- ●
16 CLIP; HARNESS
(C) L=250 		8-98216-430-0 09 1 1206- ●
16 CLIP; HARNESS
(J) ID=21 L=47.5 		8-94178-108-0 05 1 0710-1005 ●
16 CLIP; HARNESS
(J) ID=21 L=47.5 		8-94178-108-0 05 1 1006-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (J) ID=21 L=47.5 		8-94178-108-0 05 1 1108- ●
16 CLIP; HARNESS
(J) ID=21 L=47.5 		8-94178-108-0 05 1 1108- ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (H) L=36 		8-94224-891-1 01 1 0710-1005 ●
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 01 1 0710-1005 ●
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 01 1 1006- ● ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (H) L=36 		8-94224-891-1 01 1 1006- ●
16 CLIP; HARNESS
(R) ID=18 L=44 		8-94225-185-0 05 1 0710-0801 ●
16 CLIP; HARNESS
(R) ID=18 L=44 		8-97367-985-1 05 1 0802-1005 ●
16 CLIP; HARNESS
(R) ID=18 L=44 		8-97367-985-1 05 1 1006-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (R) ID=18 L=44 		8-97367-985-1 05 1 1108- ●
16 CLIP; HARNESS
(R) ID=18 L=44 		8-97367-985-1 05 1 1108- ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 04 1 0710-0908 ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 01 1 0909-1005 ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 03 1 1006- ● ●
16 CLIP; HARNESS
(AH) L=251 		8-97619-917-0 03 1 0710-1005 ●
16 CLIP; HARNESS
(AH) L=251 		8-97619-917-0 03 1 1006-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AH) L=251 		8-97619-917-0 03 1 1108- ●
16 CLIP; HARNESS
(AH) L=251 		8-97619-917-0 03 1 1108- ●
16 CLIP; HARNESS
(Y) ID=14 L=44 		9-09917-427-0 01 1 0710-0712 ●
16 CLIP; HARNESS
(Y) ID=14 L=44 		9-09917-427-0 03 1 0801-0806 ●
16 CLIP; HARNESS
(Y) ID=14 L=44 		9-09917-427-0 04 1 0807-1005 ●
16 CLIP; HARNESS
(Y) ID=14 L=44 		9-09917-427-0 04 1 1006-1104 ● ●
16 CLIP; HARNESS
(Y) ID=14 L=44 		9-09917-427-0 01 1 1105- ● ●
16 CLIP; HARNESS
(AB) ID=16 L=46 		9-09917-428-0 02 1 0710-0712 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 0710-0712 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 0710-0712 ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 01 1 0801-0806 ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 01 1 0801-0806 ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 02 1 0807-1005 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 06 1 1006-1104 ● ●
16 CLIP; HARNESS
(Y) ID=14 L=44 		9-09917-427-0 03 1 1105- ● ●
16 CLIP; HARNESS
(F) ID=22 L=52 		9-09917-431-0 01 1 0710-1005 ●
16 CLIP; HARNESS
(F) ID=22 L=52 		9-09917-431-0 01 1 1006- ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (E) ID=16 L=40 		0-95235-576-0 01 1 0710-1005 ●
16 CLIP; HARNESS
FULLER M/T<X9B> (E) ID=16 L=40 		0-95235-576-0 01 1 1006- ●
16 CLIP; HARNESS
(E) ID=16 L=40 		0-95235-576-0 01 1 1006- ●
16 CLIP; HARNESS
FULLER M/T<X9B> (C) L=250 		5-09707-030-1 02 1 0710-1005 ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 0710-1005 ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 1006-1107 ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (C) L=250 		5-09707-030-1 02 1 1006-1107 ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 1006-1107 ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 1108- ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (C) L=250 		5-09707-030-1 02 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (C) L=250 		5-09707-030-1 02 1 1108- ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 1108- ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (N) ID=25 L=54 		1-09700-392-1 01 1 0710-1005 ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (N) ID=25 L=54 		1-09700-392-1 01 1 1006- ● ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (O) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0710-1005 ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (O) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1006- ● ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AF) ID=28 L=32 		1-09701-107-1 02 1 0710-1002 ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AF) ID=28 L=32 		1-09701-107-1 01 1 1003-1005 ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AF) ID=28 L=32 		1-09701-107-1 01 1 1006- ● ●
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (S) ID=20 L=50 		1-09700-679-1 01 1 0710-1005 ●
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (S) ID=20 L=50 		1-09700-679-1 01 1 1006- ● ●
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (Q) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710-1005 ●
16 CLIP; HARNESS
(Q) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710-1005 ●
16 CLIP; HARNESS
(Q) ID=20 H=23 L=27 		1-09700-861-0 01 1 1006- ● ●
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (Q) ID=20 H=23 L=27 		1-09700-861-0 01 1 1006- ● ●
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (L) ID=24 L=24 		1-09701-001-1 01 1 0710-1005 ●
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (L) ID=24 L=24 		1-09701-001-1 01 1 1006- ● ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 01 1 0710-0712 ●
16 CLIP; HARNESS
FULLER M/T<X9B> (X) OD=9 H=6 		1-09709-178-0 03 1 0710-1005 ●
16 CLIP; HARNESS
FULLER M/T<X9B> (X) OD=9 H=6 		1-09709-178-0 03 1 1006- ●
16 CLIP; HARNESS
(X) OD=9 H=6 		1-09709-178-0 03 1 1006- ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (G) L=180 		1-09707-162-1 01 1 0710-0908 ●
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 01 1 0909-1005 ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (G) L=180 		1-09707-162-1 01 1 0909-1005 ●
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 01 1 1006- ● ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (G) L=180 		1-09707-162-1 01 1 1006- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (A) ID=10 H=25 L=20 		1-09700-519-0 01 1 0710- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (D) ID=28+34 L=44 		1-09701-311-0 01 1 0710- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (X) OD=9 H=6 		1-09709-178-0 07 1 0710- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) BRAKE SYSTEM RETARDER<RE2> (AI) NYLON TUBE ID=35 H=45 L=33 		8-97615-568-0 03 1 0710- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) EXC. BRAKE SYSTEM RETARDER<RE2> (AJ) ID=24.5 H=35 L=25 		1-09700-990-0 03 1 0710-0712 ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) EXC. BRAKE SYSTEM RETARDER<RE2> (O) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0801- ●
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (AN) ID=31 L=35 		1-09700-329-1 01 1 0710-1005 ●
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (AN) ID=31 L=35 		1-09700-329-1 01 1 1006- ●
16 CLIP; HARNESS
(AN) ID=31 L=35 		1-09700-329-1 01 1 1006- ●
48 CLIP; FRAME HARNESS
SMOOTHER-G(C1W) (D) ID=39 H=28 L=32 		1-09701-263-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0710-1005 ●
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 1006- ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 10 1 0710-1005 ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 10 1 1006- ● ●
48 CLIP; FRAME HARNESS
EXC. SMOOTHER-G(C1W) (A) ID=26 L=26 		1-09701-236-0 01 1 0710-1005 ●
48 CLIP; FRAME HARNESS
EXC. SMOOTHER-G(C1W) (A) ID=26 L=26 		1-09701-236-0 01 1 1006- ●
48 CLIP; FRAME HARNESS
(A) ID=26 L=26 		1-09701-236-0 01 1 1006- ●
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 02 1 1006- ●
104 CLIP; HEADLAMP HARNESS
(C) ID=13-18 L=14.5 		1-09709-290-0 06 1 0710-1005 ●
104 CLIP; HEADLAMP HARNESS
(C) ID=13-18 L=14.5 		1-09709-290-0 06 1 1006- ● ●
104 CLIP; HEADLAMP HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 04 1 0710- ●
104 CLIP; HEADLAMP HARNESS
(B) L=250 		5-09707-030-1 02 1 0710- ●
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 06 1 0710- ●
104 CLIP; HEADLAMP HARNESS
(E) ID=21 L=47.5 		8-94178-108-0 02 1 0710-0710 ●
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 08 1 1410- ●
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 07 1 1006-1409 ●
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410- ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 0710-1005 ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1006-1409 ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 07 1 1410- ●
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 07 1 1410- ●
162 CLIP; SW HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1006-1009 ●
162 CLIP; SW HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1010- ● ●
162 CLIP; SW HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0710-0710 ●
162 CLIP; SW HARNESS
(B) L=180 		1-09707-162-1 01 1 0711-1005 ●
162 CLIP; SW HARNESS
(B) L=180 		1-09707-162-1 01 1 1006-1409 ● ●
168 CLIP; DASH HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 06 1 0710-1005 ●
168 CLIP; DASH HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 06 1 1006- ● ●
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) L=30 SET=10 PIECE 		1-09987-265-0 01 1 0710- ●
212 CLIP; HORN HARNESS
(C) L=140 		5-09707-031-1 01 1 0710-1005 ●
212 CLIP; HORN HARNESS
(C) L=140 		5-09707-031-1 01 1 1006- ● ●
212 CLIP; HORN HARNESS
(B) ID=19 L=28 		0-95235-856-0 01 1 0710-1005 ●
212 CLIP; HORN HARNESS
(B) ID=19 L=28 		0-95235-856-0 01 1 1006- ● ●
212 CLIP; HORN HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 0710-1005 ●
212 CLIP; HORN HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 1006- ● ●
212 CLIP; HORN HARNESS
(F) ID=5-12 L=18 		1-09709-287-0 01 1 0710- ●
212 CLIP; HORN HARNESS
SMOOTHER-G(C1W) (A) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0710- ●
212 CLIP; HORN HARNESS
EXC. SMOOTHER-G(C1W) (E) ID=18 H=23 L=28 		1-09700-860-0 03 1 0710-1005 ●
212 CLIP; HORN HARNESS
EXC. SMOOTHER-G(C1W) (E) ID=18 H=23 L=28 		1-09700-860-0 03 1 1006- ●
212 CLIP; HORN HARNESS
(E) ID=18 H=23 L=28 		1-09700-860-0 03 1 1006- ●
218 CLIP; BAND,RR COMB
(A) ID=5-12 L=18 		1-09709-287-0 03 1 0710-1004 ●
218 CLIP; BAND,RR COMB
(A) ID=5-12 L=18 		1-09709-287-0 01 1 1005-1005 ●
218 CLIP; BAND,RR COMB
(A) ID=5-12 L=18 		1-09709-287-0 01 1 1006- ● ●
218 CLIP; BAND,RR COMB
(B) ID=13-18 L=18 		1-09709-291-0 01 1 0710-1004 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-1005 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1006- ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 03 1 0710-1005 ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 03 1 1006- ● ●
421 CLIP; FLOOR HARNESS
SMOOTHER-G(C1W) (A) L=30 SET=10 PIECE 		1-09987-265-0 05 1 0710- ●
421 CLIP; FLOOR HARNESS
EXC. SMOOTHER-G(C1W) (B) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0710-1005 ●
421 CLIP; FLOOR HARNESS
EXC. SMOOTHER-G(C1W) (B) L=20 SET=10 PIECE 		1-09987-246-2 05 1 1006- ●
421 CLIP; FLOOR HARNESS
(B) L=20 SET=10 PIECE 		1-09987-246-2 05 1 1006- ●
470 CLIP; HARNESS,LICENSE LAMP
(A) ID=11 L=41 		1-09700-403-0 01 1 0710-1005 ●
470 CLIP; HARNESS,LICENSE LAMP
(A) ID=11 L=41 		1-09700-403-0 01 1 1006- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 0710-1005 ●
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 1006- ● ●
612 CLIP; HARNESS DPD
(D) ID=13-18 L=18 		1-09709-291-0 01 1 0712-1005 ●
612 CLIP; HARNESS DPD
(D) ID=13-18 L=18 		1-09709-291-0 01 1 1006-1107 ● ●
612 CLIP; HARNESS DPD
CATALYSIS CONTROL WITH DPD<8JM> (D) ID=13-18 L=18 		1-09709-291-0 01 1 1108- ●
612 CLIP; HARNESS DPD
(D) ID=13-18 L=18 		1-09709-291-0 01 1 1108- ●
612 CLIP; HARNESS DPD
(A) ID=4.8 		1-09701-218-0 03 1 0710-1005 ●
612 CLIP; HARNESS DPD
(A) ID=4.8 		1-09701-218-0 03 1 1006-1107 ● ●
612 CLIP; HARNESS DPD
CATALYSIS CONTROL WITH DPD<8JM> (A) ID=4.8 		1-09701-218-0 03 1 1108- ●
612 CLIP; HARNESS DPD
(A) ID=4.8 		1-09701-218-0 03 1 1108- ●
612 CLIP; HARNESS DPD
(B) ID=5-12 L=18 		1-09709-287-0 02 1 0710-0711 ●
612 CLIP; HARNESS DPD
(E) ID=13-18 L=14.5 		1-09709-290-0 01 1 0712-1005 ●
612 CLIP; HARNESS DPD
(E) ID=13-18 L=14.5 		1-09709-290-0 01 1 1006-1107 ● ●
612 CLIP; HARNESS DPD
CATALYSIS CONTROL WITH DPD<8JM> (E) ID=13-18 L=14.5 		1-09709-290-0 01 1 1108- ●
612 CLIP; HARNESS DPD
(E) ID=13-18 L=14.5 		1-09709-290-0 01 1 1108- ●
612 CLIP; HARNESS DPD
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-1005 ●
612 CLIP; HARNESS DPD
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 1006-1107 ● ●
612 CLIP; HARNESS DPD
CATALYSIS CONTROL WITH DPD<8JM> (C) ID=5-12 L=14.5 		1-09987-221-0 01 1 1108- ●
612 CLIP; HARNESS DPD
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 1108- ●
çizim 141589
292 224 1 1 1 1 1 1 292 530 178 178 178 178
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
6WG1 TC-N(71L) (E) ID=29 OD=39 L=40 		1-09337-013-0 02 1 1108- ●
1 SLEEVE; RUBBER
6WG1 TC-N(71L) (F) ID=38.1 L=25 		1-09337-052-0 01 1 1108- ●
1 SLEEVE; RUBBER
6WG1 TC-N(71L) (A) ID=18 OD=22 L=25 		8-94412-773-0 02 1 1108- ●
1 SLEEVE; RUBBER
(D) ID=17 OD=21 L=40 		1-09337-012-0 01 1 0710-1005 ●
1 SLEEVE; RUBBER
(D) ID=17 OD=21 L=40 		1-09337-012-0 01 1 1006-1107 ● ●
1 SLEEVE; RUBBER
6WG1 TC-C(72L) (D) ID=17 OD=21 L=40 		1-09337-012-0 01 1 1108- ●
1 SLEEVE; RUBBER
(D) ID=17 OD=21 L=40 		1-09337-012-0 01 1 1108- ●
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0710-1005 ●
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 1006- ● ●
1 SLEEVE; RUBBER
(C) ID=38.1 L=50 		5-09360-835-0 01 1 0710-1005 ●
1 SLEEVE; RUBBER
(C) ID=38.1 L=50 		5-09360-835-0 01 1 1006- ● ●
1 SLEEVE; RUBBER
(A) ID=18 OD=22 L=25 		8-94412-773-0 01 1 0710-1005 ●
1 SLEEVE; RUBBER
(A) ID=18 OD=22 L=25 		8-94412-773-0 01 1 1006-1107 ● ●
1 SLEEVE; RUBBER
6WG1 TC-C(72L) (A) ID=18 OD=22 L=25 		8-94412-773-0 01 1 1108- ●
1 SLEEVE; RUBBER
(A) ID=18 OD=22 L=25 		8-94412-773-0 01 1 1108- ●
178 GROMMET; HARNESS
(D) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0710-1005 ●
178 GROMMET; HARNESS
(D) ID=28 OD=35 T=25 		1-09332-011-1 02 1 1006- ● ●
178 GROMMET; HARNESS
(B) W/SLIT ID=24 OD=30 T=22 		1-09332-104-0 01 1 0710-1005 ●
178 GROMMET; HARNESS
(B) W/SLIT ID=24 OD=30 T=22 		1-09332-104-0 01 1 1006- ● ●
178 GROMMET; HARNESS
(B) W0/SLIT ID=24 OD=30 T=22 		1-09332-126-0 02 1 0710-1005 ●
178 GROMMET; HARNESS
(B) WO/SLIT ID=24 OD=30 T=22 		1-09332-126-0 02 1 1006- ● ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0710-1005 ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1006- ● ●
178 GROMMET; HARNESS
EXC. SMOOTHER-G(C1W) (A) 		1-82698-551-0 01 1 0710-1005 ●
178 GROMMET; HARNESS
EXC. SMOOTHER-G(C1W) (A) 		1-82698-551-0 01 1 1006- ●
178 GROMMET; HARNESS
(A) 		1-82698-551-0 01 1 1006- ●
224 SLEEVE; RUBBER,HARNESS
ID=6 L=30 		5-09360-352-0 01 1 0710-0904 ●
292 CAP; RUBBER
(B) 		1-82691-239-0 02 1 0710-1005 ●
292 CAP; RUBBER
(B) 		1-82691-239-0 02 1 1006-1107 ● ●
292 CAP; RUBBER
6WG1 TC-C(72L) (B) 		1-82691-239-0 02 1 1108-1409 ●
292 CAP; RUBBER
(B) 		1-82691-239-0 02 1 1108-1409 ●
292 CAP; RUBBER
(A) 		1-82690-667-0 01 1 0710-1005 ●
292 CAP; RUBBER
(A) 		1-82690-667-0 01 1 1006- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 0710-1005 ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1006- ● ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 01 1 0710-1005 ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 01 1 1006-1202 ●
530 SEAL; HARNESS
LOW ROOF<6XQ> 100X40 		1-72498-022-1 01 1 1006-1202 ●
530 SEAL; HARNESS
LOW ROOF<6XQ> 100X40 		1-72498-022-1 01 1 1203- ● ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 02 1 0710-1005 ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 02 1 1006- ● ●
çizim 141602
119 524 219 294 469 515 294 515 423 82 340
BalonParca AdiParca NoAdetTipApplied Date A B
82 WASHER; PL BRKT,HARNESS
ID=10.5 OD=22 		0-91614-610-0 02 1 0710-1005 ●
82 WASHER; PL BRKT,HARNESS
ID=10.5 OD=22 		0-91614-610-0 02 1 1006- ● ●
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 0710-1005 ●
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 1006- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 07 1 0908-1005 ●
219 NUT
M8 FLANGE 		0-91180-108-0 07 1 1006-1107 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1108- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 04 1 0710-0810 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0710-0810 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0710-0810 ●
219 NUT
TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE 		0-91180-108-0 01 1 0710-0810 ●
219 NUT
TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE 		0-91180-108-0 01 1 0710-0810 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0811-0907 ●
219 NUT
FULLER M/T<X9B> M8 FLANGE 		0-91180-108-0 01 1 0811-0907 ●
219 NUT
EXC. SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 0811-0907 ●
219 NUT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91180-108-0 01 1 0811-0907 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0811-0907 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0908-1005 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0908-1005 ●
219 NUT
TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE 		0-91180-108-0 01 1 0908-1005 ●
219 NUT
TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE 		0-91180-108-0 01 1 0908-1005 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1006- ● ●
219 NUT
FULLER M/T<X9B> M8 FLANGE 		0-91180-108-0 01 1 1006- ●
219 NUT
EXC. SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 1006- ●
219 NUT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91180-108-0 01 1 1006- ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1006- ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1006- ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1006- ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0710-1005 ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1006-1107 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 1108- ● ●
219 NUT
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 03 1 0710-0810 ●
219 NUT
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 03 1 0710-0810 ●
219 NUT
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 03 1 0811-0907 ●
219 NUT
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 03 1 0811-0907 ●
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 0811-0907 ●
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 0908-1005 ●
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 1006-1107 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 07 1 1108- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 06 1 0710-0907 ●
219 NUT
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 06 1 0908- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0712 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0712 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0801-0907 ●
294 NUT
FULLER M/T<X9B> (A) M8 FLANGE 		0-91180-108-0 01 1 0801-0907 ●
294 NUT
FULLER M/T<X9B> (A) M8 FLANGE 		0-91180-108-0 01 1 0908-1005 ●
294 NUT
FULLER M/T<X9B> (A) M8 FLANGE 		0-91180-108-0 01 1 1006- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1006- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 07 1 0710-0907 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 08 1 0908-1005 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 08 1 1006- ● ●
294 NUT
SMOOTHER-G(C1W) (B) M10 FLANGE 		0-91180-210-0 01 1 0710- ●
340 NUT; HARNESS CAB TO FRAME
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 05 1 0710-1005 ●
340 NUT; HARNESS CAB TO FRAME
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 05 1 1006- ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 0710-1005 ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 1006- ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 04 1 0710-1005 ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 04 1 1006- ● ●
469 NUT; PROTECTOR
M8 FLANGE 		0-91180-108-0 02 1 0710-1005 ●
469 NUT; PROTECTOR
M8 FLANGE 		0-91180-108-0 02 1 1006- ● ●
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 04 1 0710-1005 ●
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 04 1 1006- ● ●
515 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0710-1005 ●
515 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1006- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0710-1005 ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 1006- ● ●

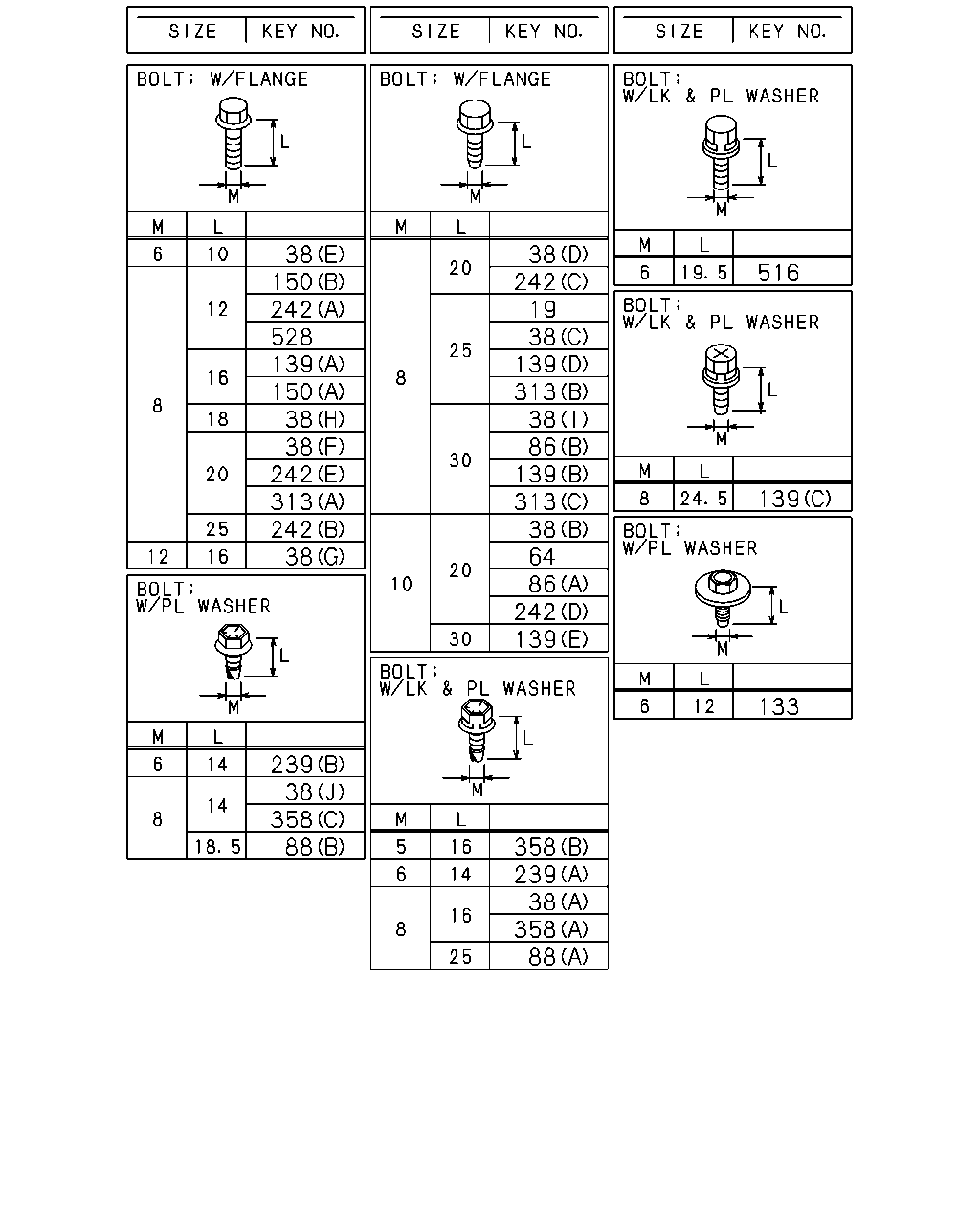

çizim 141803
38 150 242 528 139 150 38 38 242 313 242 38 38 242 19 38 139 313 38 86 139 313 38 64 86 242 139 516 139 133 239 38 358 88 358 239 38 358 88
BalonParca AdiParca NoAdetTipApplied Date A B
19 BOLT; PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 0710-1005 ●
19 BOLT; PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 1006- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 05 1 0710-1005 ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 05 1 1006- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 0710-1005 ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 1006- ● ●
38 BOLT; CLIP,HARNESS
(E) M6X10 FLANGE 		0-28050-610-0 01 1 0710-0802 ●
38 BOLT; CLIP,HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (E) M6X10 FLANGE 		0-28050-610-0 01 1 0803-1005 ●
38 BOLT; CLIP,HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (E) M6X10 FLANGE 		0-28050-610-0 01 1 1006- ● ●
38 BOLT; CLIP,HARNESS
(F) M8X20 FLANGE 		0-28050-820-0 05 1 0710-1005 ●
38 BOLT; CLIP,HARNESS
(F) M8X20 FLANGE 		0-28050-820-0 05 1 1006- ● ●
38 BOLT; CLIP,HARNESS
(H) M8X18 FLANGE 		0-28080-818-0 01 1 0710-1005 ●
38 BOLT; CLIP,HARNESS
(H) M8X18 FLANGE 		0-28080-818-0 01 1 1006- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28650-825-0 01 1 0710-1005 ●
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28650-825-0 01 1 0710-1005 ●
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28650-825-0 01 1 1006- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28650-825-0 01 1 1006- ● ●
38 BOLT; CLIP,HARNESS
(B) M10X20 FLANGE 		0-28751-020-0 01 1 0710-1005 ●
38 BOLT; CLIP,HARNESS
(B) M10X20 FLANGE 		0-28751-020-0 01 1 1006- ● ●
38 BOLT; CLIP,HARNESS
(G) M12X16 FLANGE 		1-09044-079-0 01 1 0710-1005 ●
38 BOLT; CLIP,HARNESS
(G) M12X16 FLANGE 		1-09044-079-0 01 1 1006-1105 ● ●
38 BOLT; CLIP,HARNESS
(G) M12X16 FLANGE 		0-28051-216-0 01 1 1106- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0710-1005 ●
38 BOLT; CLIP,HARNESS
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 1006-1201 ● ●
38 BOLT; CLIP,HARNESS
(J) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202- ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> (D) M8X20 FLANGE 		0-28650-820-0 01 1 0710-1005 ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> (D) M8X20 FLANGE 		0-28650-820-0 01 1 1006- ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1006- ●
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) (C) M8X25 FLANGE 		0-28650-825-0 02 1 0710- ●
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) (C) M8X25 FLANGE 		0-28650-825-0 03 1 0710- ●
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) (I) M8X30 FLANGE 		0-28650-830-0 02 1 0710- ●
64 SCREW; CLIP
SMOOTHER-G(C1W) M10X20 FLANGE 		0-28751-020-0 02 1 0710- ●
86 BOLT; CLIP BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0712 ●
86 BOLT; CLIP BRKT
FULLER M/T<X9B> (B) M8X30 FLANGE 		0-28650-830-0 01 1 0801-1005 ●
86 BOLT; CLIP BRKT
FULLER M/T<X9B> (B) M8X30 FLANGE 		0-28650-830-0 01 1 1006- ●
86 BOLT; CLIP BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1006- ●
86 BOLT; CLIP BRKT
SMOOTHER-G(C1W) (A) M10X20 FLANGE 		0-28751-020-0 01 1 0710- ●
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0710-1005 ●
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 1006-1007 ● ●
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008- ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0710-1005 ●
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 1006- ● ●
139 BOLT; BRKT
6WG1 TC-N(71L) (A) M8X16 FLANGE 		0-28050-816-0 03 1 1108-1111 ●
139 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1112- ● ●
139 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0710-1005 ●
139 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1006-1107 ● ●
139 BOLT; BRKT
6WG1 TC-C(72L) (A) M8X16 FLANGE 		0-28050-816-0 02 1 1108-1111 ●
139 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1108-1111 ●
139 BOLT; BRKT
(E) M10X30 FLANGE 		0-28151-030-0 01 1 1112- ● ●
139 BOLT; BRKT
(D) M8X25 FLANGE 		0-28650-825-0 01 1 0710-1005 ●
139 BOLT; BRKT
(D) M8X25 FLANGE 		0-28650-825-0 01 1 1006- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0710-1005 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1006- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 05 1 0710-1005 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 05 1 1006- ● ●
139 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0710-0904 ●
139 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-1005 ●
139 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1006- ● ●
150 BOLT; CLIP
6WG1 TC-N(71L) (B) M8X12 FLANGE 		0-28050-812-0 05 1 1108- ●
150 BOLT; CLIP
6WG1 TC-N(71L) (A) M8X16 FLANGE 		0-28050-816-0 07 1 1108- ●
150 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 13 1 0710-1005 ●
150 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 13 1 1006-1107 ● ●
150 BOLT; CLIP
6WG1 TC-C(72L) (A) M8X16 FLANGE 		0-28050-816-0 13 1 1108- ●
150 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 13 1 1108- ●
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0710-1005 ●
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1006-1007 ● ●
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008- ● ●
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0710-1005 ●
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1006- ● ●
242 BOLT; BRKT,HARNESS
(E) M8X20 FLANGE 		0-28050-820-0 04 1 0710-1005 ●
242 BOLT; BRKT,HARNESS
(E) M8X20 FLANGE 		0-28050-820-0 04 1 1006- ● ●
242 BOLT; BRKT,HARNESS
(B) M8X25 FLANGE 		0-28050-825-0 02 1 0710-1005 ●
242 BOLT; BRKT,HARNESS
(B) M8X25 FLANGE 		0-28050-825-0 02 1 1006-1107 ● ●
242 BOLT; BRKT,HARNESS
CATALYSIS CONTROL WITH DPD<8JM> (B) M8X25 FLANGE 		0-28050-825-0 02 1 1108- ●
242 BOLT; BRKT,HARNESS
(B) M8X25 FLANGE 		0-28050-825-0 02 1 1108- ●
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 04 1 0710-1005 ●
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 04 1 1006- ● ●
242 BOLT; BRKT,HARNESS
(D) M10X20 FLANGE 		0-28651-020-0 02 1 0710-1005 ●
242 BOLT; BRKT,HARNESS
(D) M10X20 FLANGE 		0-28651-020-0 02 1 1006- ● ●
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 02 1 0710-1005 ●
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 02 1 1006-1107 ● ●
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 02 1 1108- ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 05 1 0710-1005 ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 05 1 1006- ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1006- ● ●
313 BOLT; BRKT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M8X25 FLANGE 		0-28650-825-0 01 1 1006- ●
313 BOLT; BRKT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M8X25 FLANGE 		0-28650-825-0 01 1 0710-1005 ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0710-1005 ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0710-1005 ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1006- ● ●
358 BOLT; EARTH
(B) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0710-1005 ●
358 BOLT; EARTH
(B) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1006- ● ●
358 BOLT; EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0710-1005 ●
358 BOLT; EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 1006-1201 ● ●
358 BOLT; EARTH
(C) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202- ● ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-1005 ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1006- ● ●
528 BOLT; CONNECTOR
SMOOTHER-G(C1W) M8X12 FLANGE 		0-28050-812-0 01 1 0710- ●
çizim 141804
16 16 16 212 470 16 16 16 263 16 16 16 16 16 212 16 16 16 16 212 16 16 48 16 128 16 48 16 16 235 223 16 16 16 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 1410- ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (U) ID=20 L=50 		9-09917-430-0 03 1 1410- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (U) ID=20 L=50 		9-09917-430-0 03 1 1410- ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 1410- ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 1410- ●
16 CLIP; HARNESS
(AW) ID=9 L=20 		0-95234-835-0 02 1 1106-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AW) ID=9 L=20 		0-95234-835-0 02 1 1108- ●
16 CLIP; HARNESS
(AW) ID=9 L=20 		0-95234-835-0 02 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AD) ID=28 L=58 		1-09700-400-0 02 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AE) ID=11 L=41 		1-09700-403-0 11 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AQ) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AR) ID=17 L=20 		8-97619-251-0 01 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (Y) ID=14 L=44 		9-09917-427-0 02 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (F) ID=22 L=52 		9-09917-431-0 03 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (T) ID=11 L=20 		0-95235-035-0 02 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AI) SYNTHETIC RUBBER ID=35 H=45 L=33 		1-09700-947-0 01 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AT) ID=9 H=80 L=23 		1-09701-061-0 02 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AU) ID=18 L=28 		1-09701-067-0 03 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AV) ID=28 L=40 		1-09701-261-0 01 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (X) OD=9 H=6 		1-09709-178-0 01 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (C) L=250 		5-09707-030-1 10 1 1108-1205 ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (C) L=250 		8-98216-430-0 10 1 1206- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (J) ID=21 L=47.5 		8-94178-108-0 03 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (R) ID=18 L=44 		8-97367-985-1 02 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AH) L=251 		8-97619-917-0 01 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AS) ID=10 L=16.5 		8-98082-034-0 02 1 1108- ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 01 1 1005-1005 ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 01 1 1005-1005 ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 01 1 1006- ● ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 01 1 1006- ● ●
16 CLIP; HARNESS
HIGH ROOF<S2F> (AP) L=20 SET=10 PIECE 		1-09987-246-2 04 1 1006- ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 03 1 0909-1005 ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 01 1 1006-1104 ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (K) OD=9 H=6 		8-97368-793-0 01 1 1105- ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 06 1 0909-1005 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 1006-1104 ● ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 05 1 1105- ● ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 07 1 0807-1005 ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 02 1 1006-1104 ● ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 1105-1409 ● ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 1105-1409 ● ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 1105-1409 ● ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (U) ID=20 L=50 		9-09917-430-0 01 1 1410- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (U) ID=20 L=50 		9-09917-430-0 01 1 1410- ●
16 CLIP; HARNESS
FULLER M/T<X9B> (AC) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 0710-1005 ●
16 CLIP; HARNESS
FULLER M/T<X9B> (AC) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1006- ●
16 CLIP; HARNESS
(AC) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1006- ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 03 1 0710-0712 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 0801-0908 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 0801-0908 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 0801-0908 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 0909-1005 ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 01 1 1006- ● ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 08 1 0710-0806 ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 01 1 0807-1005 ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 07 1 1006-1104 ● ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 02 1 1105- ● ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 02 1 1105- ● ●
16 CLIP; HARNESS
(AG) ID=15 L=28 		1-09701-216-0 02 1 0710-1005 ●
16 CLIP; HARNESS
(AG) ID=15 L=28 		1-09701-216-0 02 1 1006-1104 ● ●
16 CLIP; HARNESS
(AG) ID=15 L=28 		1-09701-216-0 01 1 1105- ● ●
16 CLIP; HARNESS
(AG) ID=15 L=28 		1-09701-216-0 01 1 1105- ● ●
16 CLIP; HARNESS
(Z) ID=13-18 L=26 		1-09709-293-0 04 1 0710-1005 ●
16 CLIP; HARNESS
(Z) ID=13-18 L=26 		1-09709-293-0 04 1 1006- ● ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 04 1 0710-1005 ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 03 1 1006- ● ●
16 CLIP; HARNESS
(AM) ID=11 L=16 		0-95235-025-0 02 1 0710-1005 ●
16 CLIP; HARNESS
(AM) ID=11 L=16 		0-95235-025-0 02 1 1006- ● ●
16 CLIP; HARNESS
(T) ID=11 L=20 		0-95235-035-0 05 1 0710-1005 ●
16 CLIP; HARNESS
(T) ID=11 L=20 		0-95235-035-0 05 1 1006-1105 ● ●
16 CLIP; HARNESS
(T) ID=11 L=20 		0-95235-035-0 03 1 1106-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (T) ID=11 L=20 		0-95235-035-0 03 1 1108- ●
16 CLIP; HARNESS
(T) ID=11 L=20 		0-95235-035-0 03 1 1108- ●
16 CLIP; HARNESS
(AC) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 0710-1005 ●
16 CLIP; HARNESS
(AC) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1006-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AC) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1108- ●
16 CLIP; HARNESS
(AC) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1108- ●
16 CLIP; HARNESS
(M) ID=19 L=20 		0-95235-836-0 03 1 0710-1005 ●
16 CLIP; HARNESS
(M) ID=19 L=20 		0-95235-836-0 03 1 1006-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (M) ID=19 L=20 		0-95235-836-0 03 1 1108- ●
16 CLIP; HARNESS
(M) ID=19 L=20 		0-95235-836-0 03 1 1108- ●
16 CLIP; HARNESS
(AD) ID=28 L=58 		1-09700-400-0 03 1 0710-0712 ●
16 CLIP; HARNESS
(AD) ID=28 L=58 		1-09700-400-0 04 1 0710-1005 ●
16 CLIP; HARNESS
(AD) ID=28 L=58 		1-09700-400-0 04 1 1006- ● ●
16 CLIP; HARNESS
(P) ID=33 L=63 		1-09700-807-0 01 1 0710-0712 ●
16 CLIP; HARNESS
(P) ID=33 L=63 		1-09700-807-0 03 1 0801-1005 ●
16 CLIP; HARNESS
(P) ID=33 L=63 		1-09700-807-0 03 1 1006- ● ●
16 CLIP; HARNESS
(V) ID=28 L=78 		1-09700-858-0 01 1 0710-1005 ●
16 CLIP; HARNESS
(V) ID=28 L=78 		1-09700-858-0 01 1 1006- ● ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-1005 ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-1005 ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1006-1107 ● ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1006-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1108- ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1108- ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1108- ●
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 06 1 0710-0908 ●
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 05 1 0909- ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 01 1 0710-1004 ●
16 CLIP; HARNESS
(AK) W/SPONGE RUBBER 		1-09709-150-0 01 1 1005-1005 ●
16 CLIP; HARNESS
(AK) W/SPONGE RUBBER 		1-09709-150-0 01 1 1006- ● ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 03 1 0710-1005 ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 04 1 1006- ● ●
16 CLIP; HARNESS
(AK) W/SPONGE RUBBER 		1-09709-150-0 01 1 0710-0710 ●
16 CLIP; HARNESS
(X) OD=9 H=6 		1-09709-178-0 05 1 0710-1005 ●
16 CLIP; HARNESS
(X) OD=9 H=6 		1-09709-178-0 05 1 1006-1409 ● ●
16 CLIP; HARNESS
(X) OD=9 H=6 		1-09709-178-0 02 1 1410- ● ●
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 0710-0710 ●
16 CLIP; HARNESS
(AL) ID=5-12 L=18 		1-09709-287-0 01 1 0710-1005 ●
16 CLIP; HARNESS
(AL) ID=5-12 L=18 		1-09709-287-0 01 1 1006- ● ●
16 CLIP; HARNESS
(AL) ID=5-12 L=18 		1-09709-287-0 03 1 0710-1004 ●
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 03 1 1005-1005 ●
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 03 1 1005-1005 ●
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 03 1 1006- ● ●
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 03 1 1006- ● ●
16 CLIP; HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 06 1 0710-1005 ●
16 CLIP; HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 06 1 1006-1009 ● ●
16 CLIP; HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 05 1 1010- ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0710-1005 ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (C) L=250 		5-09707-030-1 01 1 0710-1005 ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 1006- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (C) L=250 		5-09707-030-1 01 1 1006- ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 09 1 0710-1005 ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 09 1 1006-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (C) L=250 		5-09707-030-1 09 1 1108-1205 ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 09 1 1108-1205 ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (C) L=250 		8-98216-430-0 09 1 1206- ●
16 CLIP; HARNESS
(C) L=250 		8-98216-430-0 09 1 1206- ●
16 CLIP; HARNESS
(J) ID=21 L=47.5 		8-94178-108-0 05 1 0710-1005 ●
16 CLIP; HARNESS
(J) ID=21 L=47.5 		8-94178-108-0 05 1 1006-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (J) ID=21 L=47.5 		8-94178-108-0 05 1 1108- ●
16 CLIP; HARNESS
(J) ID=21 L=47.5 		8-94178-108-0 05 1 1108- ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (H) L=36 		8-94224-891-1 01 1 0710-1005 ●
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 01 1 0710-1005 ●
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 01 1 1006- ● ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (H) L=36 		8-94224-891-1 01 1 1006- ●
16 CLIP; HARNESS
(R) ID=18 L=44 		8-94225-185-0 05 1 0710-0801 ●
16 CLIP; HARNESS
(R) ID=18 L=44 		8-97367-985-1 05 1 0802-1005 ●
16 CLIP; HARNESS
(R) ID=18 L=44 		8-97367-985-1 05 1 1006-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (R) ID=18 L=44 		8-97367-985-1 05 1 1108- ●
16 CLIP; HARNESS
(R) ID=18 L=44 		8-97367-985-1 05 1 1108- ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 04 1 0710-0908 ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 01 1 0909-1005 ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 03 1 1006- ● ●
16 CLIP; HARNESS
(AH) L=251 		8-97619-917-0 03 1 0710-1005 ●
16 CLIP; HARNESS
(AH) L=251 		8-97619-917-0 03 1 1006-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AH) L=251 		8-97619-917-0 03 1 1108- ●
16 CLIP; HARNESS
(AH) L=251 		8-97619-917-0 03 1 1108- ●
16 CLIP; HARNESS
(Y) ID=14 L=44 		9-09917-427-0 01 1 0710-0712 ●
16 CLIP; HARNESS
(Y) ID=14 L=44 		9-09917-427-0 03 1 0801-0806 ●
16 CLIP; HARNESS
(Y) ID=14 L=44 		9-09917-427-0 04 1 0807-1005 ●
16 CLIP; HARNESS
(Y) ID=14 L=44 		9-09917-427-0 04 1 1006-1104 ● ●
16 CLIP; HARNESS
(Y) ID=14 L=44 		9-09917-427-0 01 1 1105- ● ●
16 CLIP; HARNESS
(AB) ID=16 L=46 		9-09917-428-0 02 1 0710-0712 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 0710-0712 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 0710-0712 ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 01 1 0801-0806 ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 01 1 0801-0806 ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 02 1 0807-1005 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 06 1 1006-1104 ● ●
16 CLIP; HARNESS
(Y) ID=14 L=44 		9-09917-427-0 03 1 1105- ● ●
16 CLIP; HARNESS
(F) ID=22 L=52 		9-09917-431-0 01 1 0710-1005 ●
16 CLIP; HARNESS
(F) ID=22 L=52 		9-09917-431-0 01 1 1006- ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (E) ID=16 L=40 		0-95235-576-0 01 1 0710-1005 ●
16 CLIP; HARNESS
FULLER M/T<X9B> (E) ID=16 L=40 		0-95235-576-0 01 1 1006- ●
16 CLIP; HARNESS
(E) ID=16 L=40 		0-95235-576-0 01 1 1006- ●
16 CLIP; HARNESS
FULLER M/T<X9B> (C) L=250 		5-09707-030-1 02 1 0710-1005 ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 0710-1005 ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 1006-1107 ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (C) L=250 		5-09707-030-1 02 1 1006-1107 ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 1006-1107 ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 1108- ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (C) L=250 		5-09707-030-1 02 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (C) L=250 		5-09707-030-1 02 1 1108- ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 1108- ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (N) ID=25 L=54 		1-09700-392-1 01 1 0710-1005 ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (N) ID=25 L=54 		1-09700-392-1 01 1 1006- ● ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (O) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0710-1005 ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (O) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1006- ● ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AF) ID=28 L=32 		1-09701-107-1 02 1 0710-1002 ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AF) ID=28 L=32 		1-09701-107-1 01 1 1003-1005 ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AF) ID=28 L=32 		1-09701-107-1 01 1 1006- ● ●
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (S) ID=20 L=50 		1-09700-679-1 01 1 0710-1005 ●
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (S) ID=20 L=50 		1-09700-679-1 01 1 1006- ● ●
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (Q) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710-1005 ●
16 CLIP; HARNESS
(Q) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710-1005 ●
16 CLIP; HARNESS
(Q) ID=20 H=23 L=27 		1-09700-861-0 01 1 1006- ● ●
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (Q) ID=20 H=23 L=27 		1-09700-861-0 01 1 1006- ● ●
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (L) ID=24 L=24 		1-09701-001-1 01 1 0710-1005 ●
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (L) ID=24 L=24 		1-09701-001-1 01 1 1006- ● ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 01 1 0710-0712 ●
16 CLIP; HARNESS
FULLER M/T<X9B> (X) OD=9 H=6 		1-09709-178-0 03 1 0710-1005 ●
16 CLIP; HARNESS
FULLER M/T<X9B> (X) OD=9 H=6 		1-09709-178-0 03 1 1006- ●
16 CLIP; HARNESS
(X) OD=9 H=6 		1-09709-178-0 03 1 1006- ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (G) L=180 		1-09707-162-1 01 1 0710-0908 ●
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 01 1 0909-1005 ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (G) L=180 		1-09707-162-1 01 1 0909-1005 ●
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 01 1 1006- ● ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (G) L=180 		1-09707-162-1 01 1 1006- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (A) ID=10 H=25 L=20 		1-09700-519-0 01 1 0710- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (D) ID=28+34 L=44 		1-09701-311-0 01 1 0710- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (X) OD=9 H=6 		1-09709-178-0 07 1 0710- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) BRAKE SYSTEM RETARDER<RE2> (AI) NYLON TUBE ID=35 H=45 L=33 		8-97615-568-0 03 1 0710- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) EXC. BRAKE SYSTEM RETARDER<RE2> (AJ) ID=24.5 H=35 L=25 		1-09700-990-0 03 1 0710-0712 ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) EXC. BRAKE SYSTEM RETARDER<RE2> (O) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0801- ●
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (AN) ID=31 L=35 		1-09700-329-1 01 1 0710-1005 ●
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (AN) ID=31 L=35 		1-09700-329-1 01 1 1006- ●
16 CLIP; HARNESS
(AN) ID=31 L=35 		1-09700-329-1 01 1 1006- ●
48 CLIP; FRAME HARNESS
SMOOTHER-G(C1W) (D) ID=39 H=28 L=32 		1-09701-263-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0710-1005 ●
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 1006- ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 10 1 0710-1005 ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 10 1 1006- ● ●
48 CLIP; FRAME HARNESS
EXC. SMOOTHER-G(C1W) (A) ID=26 L=26 		1-09701-236-0 01 1 0710-1005 ●
48 CLIP; FRAME HARNESS
EXC. SMOOTHER-G(C1W) (A) ID=26 L=26 		1-09701-236-0 01 1 1006- ●
48 CLIP; FRAME HARNESS
(A) ID=26 L=26 		1-09701-236-0 01 1 1006- ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0710-1005 ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 1006- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0710-1005 ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 1006- ● ●
212 CLIP; HORN HARNESS
(C) L=140 		5-09707-031-1 01 1 0710-1005 ●
212 CLIP; HORN HARNESS
(C) L=140 		5-09707-031-1 01 1 1006- ● ●
212 CLIP; HORN HARNESS
(B) ID=19 L=28 		0-95235-856-0 01 1 0710-1005 ●
212 CLIP; HORN HARNESS
(B) ID=19 L=28 		0-95235-856-0 01 1 1006- ● ●
212 CLIP; HORN HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 0710-1005 ●
212 CLIP; HORN HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 1006- ● ●
212 CLIP; HORN HARNESS
(F) ID=5-12 L=18 		1-09709-287-0 01 1 0710- ●
212 CLIP; HORN HARNESS
SMOOTHER-G(C1W) (A) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0710- ●
212 CLIP; HORN HARNESS
EXC. SMOOTHER-G(C1W) (E) ID=18 H=23 L=28 		1-09700-860-0 03 1 0710-1005 ●
212 CLIP; HORN HARNESS
EXC. SMOOTHER-G(C1W) (E) ID=18 H=23 L=28 		1-09700-860-0 03 1 1006- ●
212 CLIP; HORN HARNESS
(E) ID=18 H=23 L=28 		1-09700-860-0 03 1 1006- ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-1005 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1006- ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 03 1 0710-1005 ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 03 1 1006- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
EXC. MJX M/T<Y9N> ID=10 H=25 L=20 		1-09700-519-0 01 1 0710-1005 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
EXC. MJX M/T<Y9N> ID=10 H=25 L=20 		1-09700-519-0 01 1 1006- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=10 H=25 L=20 		1-09700-519-0 01 1 1006- ●
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 02 1 0710-1005 ●
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 02 1 1006- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(A) ID=11 L=41 		1-09700-403-0 01 1 0710-1005 ●
470 CLIP; HARNESS,LICENSE LAMP
(A) ID=11 L=41 		1-09700-403-0 01 1 1006- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 0710-1005 ●
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 1006- ● ●
çizim 141805
51 67 81 104 206 212 305 369 16 81 102 104 111 121 142 171 194 14 16 48 102 171 194 16 16 16 16 128 16 16 212 16 51 142 162 208 16 142
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
L=350 		1-09707-183-0 02 1 0710-1005 ●
14 CLIP; BAND,HARNESS
L=350 		1-09707-183-0 02 1 1006- ● ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 1410- ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (U) ID=20 L=50 		9-09917-430-0 03 1 1410- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (U) ID=20 L=50 		9-09917-430-0 03 1 1410- ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 1410- ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 1410- ●
16 CLIP; HARNESS
(AW) ID=9 L=20 		0-95234-835-0 02 1 1106-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AW) ID=9 L=20 		0-95234-835-0 02 1 1108- ●
16 CLIP; HARNESS
(AW) ID=9 L=20 		0-95234-835-0 02 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AD) ID=28 L=58 		1-09700-400-0 02 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AE) ID=11 L=41 		1-09700-403-0 11 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AQ) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AR) ID=17 L=20 		8-97619-251-0 01 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (Y) ID=14 L=44 		9-09917-427-0 02 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (F) ID=22 L=52 		9-09917-431-0 03 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (T) ID=11 L=20 		0-95235-035-0 02 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AI) SYNTHETIC RUBBER ID=35 H=45 L=33 		1-09700-947-0 01 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AT) ID=9 H=80 L=23 		1-09701-061-0 02 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AU) ID=18 L=28 		1-09701-067-0 03 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AV) ID=28 L=40 		1-09701-261-0 01 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (X) OD=9 H=6 		1-09709-178-0 01 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (C) L=250 		5-09707-030-1 10 1 1108-1205 ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (C) L=250 		8-98216-430-0 10 1 1206- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (J) ID=21 L=47.5 		8-94178-108-0 03 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (R) ID=18 L=44 		8-97367-985-1 02 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AH) L=251 		8-97619-917-0 01 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AS) ID=10 L=16.5 		8-98082-034-0 02 1 1108- ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 01 1 1005-1005 ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 01 1 1005-1005 ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 01 1 1006- ● ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 01 1 1006- ● ●
16 CLIP; HARNESS
HIGH ROOF<S2F> (AP) L=20 SET=10 PIECE 		1-09987-246-2 04 1 1006- ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 03 1 0909-1005 ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 01 1 1006-1104 ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (K) OD=9 H=6 		8-97368-793-0 01 1 1105- ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 06 1 0909-1005 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 1006-1104 ● ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 05 1 1105- ● ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 07 1 0807-1005 ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 02 1 1006-1104 ● ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 1105-1409 ● ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 1105-1409 ● ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 1105-1409 ● ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (U) ID=20 L=50 		9-09917-430-0 01 1 1410- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (U) ID=20 L=50 		9-09917-430-0 01 1 1410- ●
16 CLIP; HARNESS
FULLER M/T<X9B> (AC) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 0710-1005 ●
16 CLIP; HARNESS
FULLER M/T<X9B> (AC) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1006- ●
16 CLIP; HARNESS
(AC) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1006- ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 03 1 0710-0712 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 0801-0908 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 0801-0908 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 0801-0908 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 0909-1005 ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 01 1 1006- ● ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 08 1 0710-0806 ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 01 1 0807-1005 ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 07 1 1006-1104 ● ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 02 1 1105- ● ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 02 1 1105- ● ●
16 CLIP; HARNESS
(AG) ID=15 L=28 		1-09701-216-0 02 1 0710-1005 ●
16 CLIP; HARNESS
(AG) ID=15 L=28 		1-09701-216-0 02 1 1006-1104 ● ●
16 CLIP; HARNESS
(AG) ID=15 L=28 		1-09701-216-0 01 1 1105- ● ●
16 CLIP; HARNESS
(AG) ID=15 L=28 		1-09701-216-0 01 1 1105- ● ●
16 CLIP; HARNESS
(Z) ID=13-18 L=26 		1-09709-293-0 04 1 0710-1005 ●
16 CLIP; HARNESS
(Z) ID=13-18 L=26 		1-09709-293-0 04 1 1006- ● ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 04 1 0710-1005 ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 03 1 1006- ● ●
16 CLIP; HARNESS
(AM) ID=11 L=16 		0-95235-025-0 02 1 0710-1005 ●
16 CLIP; HARNESS
(AM) ID=11 L=16 		0-95235-025-0 02 1 1006- ● ●
16 CLIP; HARNESS
(T) ID=11 L=20 		0-95235-035-0 05 1 0710-1005 ●
16 CLIP; HARNESS
(T) ID=11 L=20 		0-95235-035-0 05 1 1006-1105 ● ●
16 CLIP; HARNESS
(T) ID=11 L=20 		0-95235-035-0 03 1 1106-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (T) ID=11 L=20 		0-95235-035-0 03 1 1108- ●
16 CLIP; HARNESS
(T) ID=11 L=20 		0-95235-035-0 03 1 1108- ●
16 CLIP; HARNESS
(AC) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 0710-1005 ●
16 CLIP; HARNESS
(AC) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1006-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AC) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1108- ●
16 CLIP; HARNESS
(AC) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1108- ●
16 CLIP; HARNESS
(M) ID=19 L=20 		0-95235-836-0 03 1 0710-1005 ●
16 CLIP; HARNESS
(M) ID=19 L=20 		0-95235-836-0 03 1 1006-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (M) ID=19 L=20 		0-95235-836-0 03 1 1108- ●
16 CLIP; HARNESS
(M) ID=19 L=20 		0-95235-836-0 03 1 1108- ●
16 CLIP; HARNESS
(AD) ID=28 L=58 		1-09700-400-0 03 1 0710-0712 ●
16 CLIP; HARNESS
(AD) ID=28 L=58 		1-09700-400-0 04 1 0710-1005 ●
16 CLIP; HARNESS
(AD) ID=28 L=58 		1-09700-400-0 04 1 1006- ● ●
16 CLIP; HARNESS
(P) ID=33 L=63 		1-09700-807-0 01 1 0710-0712 ●
16 CLIP; HARNESS
(P) ID=33 L=63 		1-09700-807-0 03 1 0801-1005 ●
16 CLIP; HARNESS
(P) ID=33 L=63 		1-09700-807-0 03 1 1006- ● ●
16 CLIP; HARNESS
(V) ID=28 L=78 		1-09700-858-0 01 1 0710-1005 ●
16 CLIP; HARNESS
(V) ID=28 L=78 		1-09700-858-0 01 1 1006- ● ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-1005 ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-1005 ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1006-1107 ● ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1006-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1108- ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1108- ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1108- ●
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 06 1 0710-0908 ●
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 05 1 0909- ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 01 1 0710-1004 ●
16 CLIP; HARNESS
(AK) W/SPONGE RUBBER 		1-09709-150-0 01 1 1005-1005 ●
16 CLIP; HARNESS
(AK) W/SPONGE RUBBER 		1-09709-150-0 01 1 1006- ● ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 03 1 0710-1005 ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 04 1 1006- ● ●
16 CLIP; HARNESS
(AK) W/SPONGE RUBBER 		1-09709-150-0 01 1 0710-0710 ●
16 CLIP; HARNESS
(X) OD=9 H=6 		1-09709-178-0 05 1 0710-1005 ●
16 CLIP; HARNESS
(X) OD=9 H=6 		1-09709-178-0 05 1 1006-1409 ● ●
16 CLIP; HARNESS
(X) OD=9 H=6 		1-09709-178-0 02 1 1410- ● ●
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 0710-0710 ●
16 CLIP; HARNESS
(AL) ID=5-12 L=18 		1-09709-287-0 01 1 0710-1005 ●
16 CLIP; HARNESS
(AL) ID=5-12 L=18 		1-09709-287-0 01 1 1006- ● ●
16 CLIP; HARNESS
(AL) ID=5-12 L=18 		1-09709-287-0 03 1 0710-1004 ●
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 03 1 1005-1005 ●
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 03 1 1005-1005 ●
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 03 1 1006- ● ●
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 03 1 1006- ● ●
16 CLIP; HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 06 1 0710-1005 ●
16 CLIP; HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 06 1 1006-1009 ● ●
16 CLIP; HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 05 1 1010- ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0710-1005 ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (C) L=250 		5-09707-030-1 01 1 0710-1005 ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 1006- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (C) L=250 		5-09707-030-1 01 1 1006- ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 09 1 0710-1005 ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 09 1 1006-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (C) L=250 		5-09707-030-1 09 1 1108-1205 ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 09 1 1108-1205 ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (C) L=250 		8-98216-430-0 09 1 1206- ●
16 CLIP; HARNESS
(C) L=250 		8-98216-430-0 09 1 1206- ●
16 CLIP; HARNESS
(J) ID=21 L=47.5 		8-94178-108-0 05 1 0710-1005 ●
16 CLIP; HARNESS
(J) ID=21 L=47.5 		8-94178-108-0 05 1 1006-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (J) ID=21 L=47.5 		8-94178-108-0 05 1 1108- ●
16 CLIP; HARNESS
(J) ID=21 L=47.5 		8-94178-108-0 05 1 1108- ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (H) L=36 		8-94224-891-1 01 1 0710-1005 ●
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 01 1 0710-1005 ●
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 01 1 1006- ● ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (H) L=36 		8-94224-891-1 01 1 1006- ●
16 CLIP; HARNESS
(R) ID=18 L=44 		8-94225-185-0 05 1 0710-0801 ●
16 CLIP; HARNESS
(R) ID=18 L=44 		8-97367-985-1 05 1 0802-1005 ●
16 CLIP; HARNESS
(R) ID=18 L=44 		8-97367-985-1 05 1 1006-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (R) ID=18 L=44 		8-97367-985-1 05 1 1108- ●
16 CLIP; HARNESS
(R) ID=18 L=44 		8-97367-985-1 05 1 1108- ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 04 1 0710-0908 ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 01 1 0909-1005 ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 03 1 1006- ● ●
16 CLIP; HARNESS
(AH) L=251 		8-97619-917-0 03 1 0710-1005 ●
16 CLIP; HARNESS
(AH) L=251 		8-97619-917-0 03 1 1006-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AH) L=251 		8-97619-917-0 03 1 1108- ●
16 CLIP; HARNESS
(AH) L=251 		8-97619-917-0 03 1 1108- ●
16 CLIP; HARNESS
(Y) ID=14 L=44 		9-09917-427-0 01 1 0710-0712 ●
16 CLIP; HARNESS
(Y) ID=14 L=44 		9-09917-427-0 03 1 0801-0806 ●
16 CLIP; HARNESS
(Y) ID=14 L=44 		9-09917-427-0 04 1 0807-1005 ●
16 CLIP; HARNESS
(Y) ID=14 L=44 		9-09917-427-0 04 1 1006-1104 ● ●
16 CLIP; HARNESS
(Y) ID=14 L=44 		9-09917-427-0 01 1 1105- ● ●
16 CLIP; HARNESS
(AB) ID=16 L=46 		9-09917-428-0 02 1 0710-0712 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 0710-0712 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 0710-0712 ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 01 1 0801-0806 ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 01 1 0801-0806 ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 02 1 0807-1005 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 06 1 1006-1104 ● ●
16 CLIP; HARNESS
(Y) ID=14 L=44 		9-09917-427-0 03 1 1105- ● ●
16 CLIP; HARNESS
(F) ID=22 L=52 		9-09917-431-0 01 1 0710-1005 ●
16 CLIP; HARNESS
(F) ID=22 L=52 		9-09917-431-0 01 1 1006- ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (E) ID=16 L=40 		0-95235-576-0 01 1 0710-1005 ●
16 CLIP; HARNESS
FULLER M/T<X9B> (E) ID=16 L=40 		0-95235-576-0 01 1 1006- ●
16 CLIP; HARNESS
(E) ID=16 L=40 		0-95235-576-0 01 1 1006- ●
16 CLIP; HARNESS
FULLER M/T<X9B> (C) L=250 		5-09707-030-1 02 1 0710-1005 ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 0710-1005 ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 1006-1107 ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (C) L=250 		5-09707-030-1 02 1 1006-1107 ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 1006-1107 ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 1108- ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (C) L=250 		5-09707-030-1 02 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (C) L=250 		5-09707-030-1 02 1 1108- ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 1108- ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (N) ID=25 L=54 		1-09700-392-1 01 1 0710-1005 ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (N) ID=25 L=54 		1-09700-392-1 01 1 1006- ● ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (O) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0710-1005 ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (O) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1006- ● ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AF) ID=28 L=32 		1-09701-107-1 02 1 0710-1002 ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AF) ID=28 L=32 		1-09701-107-1 01 1 1003-1005 ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AF) ID=28 L=32 		1-09701-107-1 01 1 1006- ● ●
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (S) ID=20 L=50 		1-09700-679-1 01 1 0710-1005 ●
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (S) ID=20 L=50 		1-09700-679-1 01 1 1006- ● ●
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (Q) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710-1005 ●
16 CLIP; HARNESS
(Q) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710-1005 ●
16 CLIP; HARNESS
(Q) ID=20 H=23 L=27 		1-09700-861-0 01 1 1006- ● ●
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (Q) ID=20 H=23 L=27 		1-09700-861-0 01 1 1006- ● ●
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (L) ID=24 L=24 		1-09701-001-1 01 1 0710-1005 ●
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (L) ID=24 L=24 		1-09701-001-1 01 1 1006- ● ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 01 1 0710-0712 ●
16 CLIP; HARNESS
FULLER M/T<X9B> (X) OD=9 H=6 		1-09709-178-0 03 1 0710-1005 ●
16 CLIP; HARNESS
FULLER M/T<X9B> (X) OD=9 H=6 		1-09709-178-0 03 1 1006- ●
16 CLIP; HARNESS
(X) OD=9 H=6 		1-09709-178-0 03 1 1006- ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (G) L=180 		1-09707-162-1 01 1 0710-0908 ●
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 01 1 0909-1005 ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (G) L=180 		1-09707-162-1 01 1 0909-1005 ●
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 01 1 1006- ● ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (G) L=180 		1-09707-162-1 01 1 1006- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (A) ID=10 H=25 L=20 		1-09700-519-0 01 1 0710- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (D) ID=28+34 L=44 		1-09701-311-0 01 1 0710- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (X) OD=9 H=6 		1-09709-178-0 07 1 0710- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) BRAKE SYSTEM RETARDER<RE2> (AI) NYLON TUBE ID=35 H=45 L=33 		8-97615-568-0 03 1 0710- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) EXC. BRAKE SYSTEM RETARDER<RE2> (AJ) ID=24.5 H=35 L=25 		1-09700-990-0 03 1 0710-0712 ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) EXC. BRAKE SYSTEM RETARDER<RE2> (O) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0801- ●
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (AN) ID=31 L=35 		1-09700-329-1 01 1 0710-1005 ●
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (AN) ID=31 L=35 		1-09700-329-1 01 1 1006- ●
16 CLIP; HARNESS
(AN) ID=31 L=35 		1-09700-329-1 01 1 1006- ●
48 CLIP; FRAME HARNESS
SMOOTHER-G(C1W) (D) ID=39 H=28 L=32 		1-09701-263-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0710-1005 ●
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 1006- ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 10 1 0710-1005 ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 10 1 1006- ● ●
48 CLIP; FRAME HARNESS
EXC. SMOOTHER-G(C1W) (A) ID=26 L=26 		1-09701-236-0 01 1 0710-1005 ●
48 CLIP; FRAME HARNESS
EXC. SMOOTHER-G(C1W) (A) ID=26 L=26 		1-09701-236-0 01 1 1006- ●
48 CLIP; FRAME HARNESS
(A) ID=26 L=26 		1-09701-236-0 01 1 1006- ●
51 CLIP; COOLER CMPR
(A) L=180 		1-09707-162-1 01 1 0710-1005 ●
51 CLIP; COOLER CMPR
(A) L=180 		1-09707-162-1 01 1 1006- ● ●
51 CLIP; COOLER CMPR
(B) L=140 		5-09707-031-1 01 1 0710-1005 ●
51 CLIP; COOLER CMPR
(B) L=140 		5-09707-031-1 01 1 1006- ● ●
67 CLIP; BAND,HARNESS,CLU SW
MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) L=140 		5-09707-031-1 01 1 0710- ●
81 CLIP; HARNESS
FRONT SPOILER<VP1> (A) L=140 		5-09707-031-1 04 1 1009- ●
81 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 1006-1008 ●
81 CLIP; HARNESS
EXC. FRONT SPOILER<VP1> (C) L=250 		5-09707-030-1 02 1 1009- ●
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 06 1 1006-1007 ●
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 08 1 1008-1008 ●
81 CLIP; HARNESS
EXC. FRONT SPOILER<VP1> (A) L=140 		5-09707-031-1 08 1 1009- ●
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0710-1005 ●
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 1006-1007 ● ●
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 1008- ●
81 CLIP; HARNESS
(B) ID=7-10 		8-94472-578-0 02 1 0710-1005 ●
81 CLIP; HARNESS
(B) ID=7-10 		8-94472-578-0 02 1 1006-1007 ● ●
81 CLIP; HARNESS
(B) ID=7-10 		8-94472-578-0 02 1 1008- ●
102 CLIP; BAND
SMOOTHER-G(C1W) (A) L=350 		1-09707-183-0 01 1 0710- ●
102 CLIP; BAND
SMOOTHER-G(C1W) (B) L=250 		5-09707-030-1 01 1 0710- ●
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 02 1 1006- ●
104 CLIP; HEADLAMP HARNESS
(C) ID=13-18 L=14.5 		1-09709-290-0 06 1 0710-1005 ●
104 CLIP; HEADLAMP HARNESS
(C) ID=13-18 L=14.5 		1-09709-290-0 06 1 1006- ● ●
104 CLIP; HEADLAMP HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 04 1 0710- ●
104 CLIP; HEADLAMP HARNESS
(B) L=250 		5-09707-030-1 02 1 0710- ●
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 06 1 0710- ●
104 CLIP; HEADLAMP HARNESS
(E) ID=21 L=47.5 		8-94178-108-0 02 1 0710-0710 ●
111 CLIP; STOP LAMP SW HARNESS
L=250 		5-09707-030-1 01 1 0710-1005 ●
111 CLIP; STOP LAMP SW HARNESS
L=250 		5-09707-030-1 01 1 1006- ● ●
121 CLIP; FACIA HARNESS
L=250 		5-09707-030-1 02 1 0710-1005 ●
121 CLIP; FACIA HARNESS
L=250 		5-09707-030-1 02 1 1006- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0710-1005 ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 1006- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0710-1005 ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 1006- ● ●
142 CLIP; HARNESS,ENG
6WG1 TC-N(71L) (B) L=250 		5-09707-030-1 03 1 1108-1205 ●
142 CLIP; HARNESS,ENG
6WG1 TC-N(71L) (B) L=250 		8-98216-430-0 03 1 1206- ●
142 CLIP; HARNESS,ENG
6WG1 TC-N(71L) (C) L=251 		8-97619-917-0 01 1 1108- ●
142 CLIP; HARNESS,ENG
(A) L=180 		1-09707-162-1 01 1 0710-1005 ●
142 CLIP; HARNESS,ENG
(A) L=180 		1-09707-162-1 01 1 1006-1207 ● ●
142 CLIP; HARNESS,ENG
(A) L=180 		8-98216-427-0 01 1 1208- ● ●
142 CLIP; HARNESS,ENG
(B) L=250 		5-09707-030-1 01 1 0710-1005 ●
142 CLIP; HARNESS,ENG
(B) L=250 		5-09707-030-1 01 1 1006-1107 ● ●
142 CLIP; HARNESS,ENG
6WG1 TC-C(72L) (B) L=250 		5-09707-030-1 01 1 1108-1205 ●
142 CLIP; HARNESS,ENG
(B) L=250 		5-09707-030-1 01 1 1108-1205 ●
142 CLIP; HARNESS,ENG
6WG1 TC-C(72L) (B) L=250 		8-98216-430-0 01 1 1206- ●
142 CLIP; HARNESS,ENG
(B) L=250 		8-98216-430-0 01 1 1206- ●
162 CLIP; SW HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1006-1009 ●
162 CLIP; SW HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1010- ● ●
162 CLIP; SW HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0710-0710 ●
162 CLIP; SW HARNESS
(B) L=180 		1-09707-162-1 01 1 0711-1005 ●
162 CLIP; SW HARNESS
(B) L=180 		1-09707-162-1 01 1 1006-1409 ● ●
171 CLIP; STARTER HARNESS
6WG1 TC-N(71L) (B) L=250 		5-09707-030-1 05 1 1108- ●
171 CLIP; STARTER HARNESS
(A) L=350 		1-09707-183-0 02 1 0710-1005 ●
171 CLIP; STARTER HARNESS
(A) L=350 		1-09707-183-0 02 1 1006- ● ●
171 CLIP; STARTER HARNESS
(B) L=250 		5-09707-030-1 04 1 0710-1005 ●
171 CLIP; STARTER HARNESS
(B) L=250 		5-09707-030-1 04 1 1006- ● ●
194 CLIP; BAND
(A) L=350 		1-09707-183-0 05 1 1006-1202 ●
194 CLIP; BAND
(A) L=350 		1-09707-183-0 06 1 1203- ●
194 CLIP; BAND
(A) L=350 		1-09707-183-0 03 1 0710-1005 ●
194 CLIP; BAND
(A) L=350 		1-09707-183-0 03 1 1006-1409 ● ●
194 CLIP; BAND
(A) L=350 		1-09707-183-0 04 1 1410- ● ●
194 CLIP; BAND
SMOOTHER-G(C1W) (A) L=350 		1-09707-183-0 01 1 0710-1202 ●
194 CLIP; BAND
SMOOTHER-G(C1W) (A) L=350 		1-09707-183-0 01 1 1203- ●
194 CLIP; BAND
(A) L=350 		1-09707-183-0 01 1 1203- ●
194 CLIP; BAND
SMOOTHER-G(C1W) (B) L=250 		5-09707-030-1 06 1 0710- ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 03 1 0710-1005 ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 03 1 1006- ● ●
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> L=180 		1-09707-162-1 01 1 0710- ●
212 CLIP; HORN HARNESS
(C) L=140 		5-09707-031-1 01 1 0710-1005 ●
212 CLIP; HORN HARNESS
(C) L=140 		5-09707-031-1 01 1 1006- ● ●
212 CLIP; HORN HARNESS
(B) ID=19 L=28 		0-95235-856-0 01 1 0710-1005 ●
212 CLIP; HORN HARNESS
(B) ID=19 L=28 		0-95235-856-0 01 1 1006- ● ●
212 CLIP; HORN HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 0710-1005 ●
212 CLIP; HORN HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 1006- ● ●
212 CLIP; HORN HARNESS
(F) ID=5-12 L=18 		1-09709-287-0 01 1 0710- ●
212 CLIP; HORN HARNESS
SMOOTHER-G(C1W) (A) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0710- ●
212 CLIP; HORN HARNESS
EXC. SMOOTHER-G(C1W) (E) ID=18 H=23 L=28 		1-09700-860-0 03 1 0710-1005 ●
212 CLIP; HORN HARNESS
EXC. SMOOTHER-G(C1W) (E) ID=18 H=23 L=28 		1-09700-860-0 03 1 1006- ●
212 CLIP; HORN HARNESS
(E) ID=18 H=23 L=28 		1-09700-860-0 03 1 1006- ●
305 CLIP; ENG HARNESS
L=140 		5-09707-031-1 01 1 0710-1005 ●
305 CLIP; ENG HARNESS
L=140 		5-09707-031-1 01 1 1006- ● ●
369 CLIP; BAND EDS HARNESS
L=140 		5-09707-031-1 01 1 0710-1005 ●
369 CLIP; BAND EDS HARNESS
L=140 		5-09707-031-1 01 1 1006-1409 ● ●
369 CLIP; BAND EDS HARNESS
L=140 		5-09707-031-1 02 1 1410- ● ●
çizim 141807
148 373 81 589 16 168 462
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 1410- ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (U) ID=20 L=50 		9-09917-430-0 03 1 1410- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (U) ID=20 L=50 		9-09917-430-0 03 1 1410- ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 1410- ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 1410- ●
16 CLIP; HARNESS
(AW) ID=9 L=20 		0-95234-835-0 02 1 1106-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AW) ID=9 L=20 		0-95234-835-0 02 1 1108- ●
16 CLIP; HARNESS
(AW) ID=9 L=20 		0-95234-835-0 02 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AD) ID=28 L=58 		1-09700-400-0 02 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AE) ID=11 L=41 		1-09700-403-0 11 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AQ) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AR) ID=17 L=20 		8-97619-251-0 01 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (Y) ID=14 L=44 		9-09917-427-0 02 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (F) ID=22 L=52 		9-09917-431-0 03 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (T) ID=11 L=20 		0-95235-035-0 02 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AI) SYNTHETIC RUBBER ID=35 H=45 L=33 		1-09700-947-0 01 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AT) ID=9 H=80 L=23 		1-09701-061-0 02 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AU) ID=18 L=28 		1-09701-067-0 03 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AV) ID=28 L=40 		1-09701-261-0 01 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (X) OD=9 H=6 		1-09709-178-0 01 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (C) L=250 		5-09707-030-1 10 1 1108-1205 ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (C) L=250 		8-98216-430-0 10 1 1206- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (J) ID=21 L=47.5 		8-94178-108-0 03 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (R) ID=18 L=44 		8-97367-985-1 02 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AH) L=251 		8-97619-917-0 01 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (AS) ID=10 L=16.5 		8-98082-034-0 02 1 1108- ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 01 1 1005-1005 ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 01 1 1005-1005 ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 01 1 1006- ● ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 01 1 1006- ● ●
16 CLIP; HARNESS
HIGH ROOF<S2F> (AP) L=20 SET=10 PIECE 		1-09987-246-2 04 1 1006- ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 03 1 0909-1005 ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 01 1 1006-1104 ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (K) OD=9 H=6 		8-97368-793-0 01 1 1105- ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 06 1 0909-1005 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 1006-1104 ● ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 05 1 1105- ● ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 07 1 0807-1005 ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 02 1 1006-1104 ● ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 1105-1409 ● ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 1105-1409 ● ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 1105-1409 ● ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (U) ID=20 L=50 		9-09917-430-0 01 1 1410- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (U) ID=20 L=50 		9-09917-430-0 01 1 1410- ●
16 CLIP; HARNESS
FULLER M/T<X9B> (AC) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 0710-1005 ●
16 CLIP; HARNESS
FULLER M/T<X9B> (AC) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1006- ●
16 CLIP; HARNESS
(AC) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1006- ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 03 1 0710-0712 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 0801-0908 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 0801-0908 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 0801-0908 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 0909-1005 ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 01 1 1006- ● ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 08 1 0710-0806 ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 01 1 0807-1005 ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 07 1 1006-1104 ● ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 02 1 1105- ● ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 02 1 1105- ● ●
16 CLIP; HARNESS
(AG) ID=15 L=28 		1-09701-216-0 02 1 0710-1005 ●
16 CLIP; HARNESS
(AG) ID=15 L=28 		1-09701-216-0 02 1 1006-1104 ● ●
16 CLIP; HARNESS
(AG) ID=15 L=28 		1-09701-216-0 01 1 1105- ● ●
16 CLIP; HARNESS
(AG) ID=15 L=28 		1-09701-216-0 01 1 1105- ● ●
16 CLIP; HARNESS
(Z) ID=13-18 L=26 		1-09709-293-0 04 1 0710-1005 ●
16 CLIP; HARNESS
(Z) ID=13-18 L=26 		1-09709-293-0 04 1 1006- ● ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 04 1 0710-1005 ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 03 1 1006- ● ●
16 CLIP; HARNESS
(AM) ID=11 L=16 		0-95235-025-0 02 1 0710-1005 ●
16 CLIP; HARNESS
(AM) ID=11 L=16 		0-95235-025-0 02 1 1006- ● ●
16 CLIP; HARNESS
(T) ID=11 L=20 		0-95235-035-0 05 1 0710-1005 ●
16 CLIP; HARNESS
(T) ID=11 L=20 		0-95235-035-0 05 1 1006-1105 ● ●
16 CLIP; HARNESS
(T) ID=11 L=20 		0-95235-035-0 03 1 1106-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (T) ID=11 L=20 		0-95235-035-0 03 1 1108- ●
16 CLIP; HARNESS
(T) ID=11 L=20 		0-95235-035-0 03 1 1108- ●
16 CLIP; HARNESS
(AC) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 0710-1005 ●
16 CLIP; HARNESS
(AC) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1006-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AC) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1108- ●
16 CLIP; HARNESS
(AC) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1108- ●
16 CLIP; HARNESS
(M) ID=19 L=20 		0-95235-836-0 03 1 0710-1005 ●
16 CLIP; HARNESS
(M) ID=19 L=20 		0-95235-836-0 03 1 1006-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (M) ID=19 L=20 		0-95235-836-0 03 1 1108- ●
16 CLIP; HARNESS
(M) ID=19 L=20 		0-95235-836-0 03 1 1108- ●
16 CLIP; HARNESS
(AD) ID=28 L=58 		1-09700-400-0 03 1 0710-0712 ●
16 CLIP; HARNESS
(AD) ID=28 L=58 		1-09700-400-0 04 1 0710-1005 ●
16 CLIP; HARNESS
(AD) ID=28 L=58 		1-09700-400-0 04 1 1006- ● ●
16 CLIP; HARNESS
(P) ID=33 L=63 		1-09700-807-0 01 1 0710-0712 ●
16 CLIP; HARNESS
(P) ID=33 L=63 		1-09700-807-0 03 1 0801-1005 ●
16 CLIP; HARNESS
(P) ID=33 L=63 		1-09700-807-0 03 1 1006- ● ●
16 CLIP; HARNESS
(V) ID=28 L=78 		1-09700-858-0 01 1 0710-1005 ●
16 CLIP; HARNESS
(V) ID=28 L=78 		1-09700-858-0 01 1 1006- ● ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-1005 ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-1005 ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1006-1107 ● ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1006-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1108- ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1108- ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1108- ●
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 06 1 0710-0908 ●
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 05 1 0909- ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 01 1 0710-1004 ●
16 CLIP; HARNESS
(AK) W/SPONGE RUBBER 		1-09709-150-0 01 1 1005-1005 ●
16 CLIP; HARNESS
(AK) W/SPONGE RUBBER 		1-09709-150-0 01 1 1006- ● ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 03 1 0710-1005 ●
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 04 1 1006- ● ●
16 CLIP; HARNESS
(AK) W/SPONGE RUBBER 		1-09709-150-0 01 1 0710-0710 ●
16 CLIP; HARNESS
(X) OD=9 H=6 		1-09709-178-0 05 1 0710-1005 ●
16 CLIP; HARNESS
(X) OD=9 H=6 		1-09709-178-0 05 1 1006-1409 ● ●
16 CLIP; HARNESS
(X) OD=9 H=6 		1-09709-178-0 02 1 1410- ● ●
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 0710-0710 ●
16 CLIP; HARNESS
(AL) ID=5-12 L=18 		1-09709-287-0 01 1 0710-1005 ●
16 CLIP; HARNESS
(AL) ID=5-12 L=18 		1-09709-287-0 01 1 1006- ● ●
16 CLIP; HARNESS
(AL) ID=5-12 L=18 		1-09709-287-0 03 1 0710-1004 ●
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 03 1 1005-1005 ●
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 03 1 1005-1005 ●
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 03 1 1006- ● ●
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 03 1 1006- ● ●
16 CLIP; HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 06 1 0710-1005 ●
16 CLIP; HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 06 1 1006-1009 ● ●
16 CLIP; HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 05 1 1010- ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0710-1005 ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (C) L=250 		5-09707-030-1 01 1 0710-1005 ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 1006- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (C) L=250 		5-09707-030-1 01 1 1006- ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 09 1 0710-1005 ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 09 1 1006-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (C) L=250 		5-09707-030-1 09 1 1108-1205 ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 09 1 1108-1205 ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (C) L=250 		8-98216-430-0 09 1 1206- ●
16 CLIP; HARNESS
(C) L=250 		8-98216-430-0 09 1 1206- ●
16 CLIP; HARNESS
(J) ID=21 L=47.5 		8-94178-108-0 05 1 0710-1005 ●
16 CLIP; HARNESS
(J) ID=21 L=47.5 		8-94178-108-0 05 1 1006-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (J) ID=21 L=47.5 		8-94178-108-0 05 1 1108- ●
16 CLIP; HARNESS
(J) ID=21 L=47.5 		8-94178-108-0 05 1 1108- ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (H) L=36 		8-94224-891-1 01 1 0710-1005 ●
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 01 1 0710-1005 ●
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 01 1 1006- ● ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (H) L=36 		8-94224-891-1 01 1 1006- ●
16 CLIP; HARNESS
(R) ID=18 L=44 		8-94225-185-0 05 1 0710-0801 ●
16 CLIP; HARNESS
(R) ID=18 L=44 		8-97367-985-1 05 1 0802-1005 ●
16 CLIP; HARNESS
(R) ID=18 L=44 		8-97367-985-1 05 1 1006-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (R) ID=18 L=44 		8-97367-985-1 05 1 1108- ●
16 CLIP; HARNESS
(R) ID=18 L=44 		8-97367-985-1 05 1 1108- ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 04 1 0710-0908 ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 01 1 0909-1005 ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 03 1 1006- ● ●
16 CLIP; HARNESS
(AH) L=251 		8-97619-917-0 03 1 0710-1005 ●
16 CLIP; HARNESS
(AH) L=251 		8-97619-917-0 03 1 1006-1107 ● ●
16 CLIP; HARNESS
6WG1 TC-C(72L) (AH) L=251 		8-97619-917-0 03 1 1108- ●
16 CLIP; HARNESS
(AH) L=251 		8-97619-917-0 03 1 1108- ●
16 CLIP; HARNESS
(Y) ID=14 L=44 		9-09917-427-0 01 1 0710-0712 ●
16 CLIP; HARNESS
(Y) ID=14 L=44 		9-09917-427-0 03 1 0801-0806 ●
16 CLIP; HARNESS
(Y) ID=14 L=44 		9-09917-427-0 04 1 0807-1005 ●
16 CLIP; HARNESS
(Y) ID=14 L=44 		9-09917-427-0 04 1 1006-1104 ● ●
16 CLIP; HARNESS
(Y) ID=14 L=44 		9-09917-427-0 01 1 1105- ● ●
16 CLIP; HARNESS
(AB) ID=16 L=46 		9-09917-428-0 02 1 0710-0712 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 0710-0712 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 03 1 0710-0712 ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 01 1 0801-0806 ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 01 1 0801-0806 ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 02 1 0807-1005 ●
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 06 1 1006-1104 ● ●
16 CLIP; HARNESS
(Y) ID=14 L=44 		9-09917-427-0 03 1 1105- ● ●
16 CLIP; HARNESS
(F) ID=22 L=52 		9-09917-431-0 01 1 0710-1005 ●
16 CLIP; HARNESS
(F) ID=22 L=52 		9-09917-431-0 01 1 1006- ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (E) ID=16 L=40 		0-95235-576-0 01 1 0710-1005 ●
16 CLIP; HARNESS
FULLER M/T<X9B> (E) ID=16 L=40 		0-95235-576-0 01 1 1006- ●
16 CLIP; HARNESS
(E) ID=16 L=40 		0-95235-576-0 01 1 1006- ●
16 CLIP; HARNESS
FULLER M/T<X9B> (C) L=250 		5-09707-030-1 02 1 0710-1005 ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 0710-1005 ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 1006-1107 ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (C) L=250 		5-09707-030-1 02 1 1006-1107 ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 1006-1107 ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 1108- ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (C) L=250 		5-09707-030-1 02 1 1108- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (C) L=250 		5-09707-030-1 02 1 1108- ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 1108- ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (N) ID=25 L=54 		1-09700-392-1 01 1 0710-1005 ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (N) ID=25 L=54 		1-09700-392-1 01 1 1006- ● ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (O) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0710-1005 ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (O) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1006- ● ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AF) ID=28 L=32 		1-09701-107-1 02 1 0710-1002 ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AF) ID=28 L=32 		1-09701-107-1 01 1 1003-1005 ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AF) ID=28 L=32 		1-09701-107-1 01 1 1006- ● ●
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (S) ID=20 L=50 		1-09700-679-1 01 1 0710-1005 ●
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (S) ID=20 L=50 		1-09700-679-1 01 1 1006- ● ●
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (Q) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710-1005 ●
16 CLIP; HARNESS
(Q) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710-1005 ●
16 CLIP; HARNESS
(Q) ID=20 H=23 L=27 		1-09700-861-0 01 1 1006- ● ●
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (Q) ID=20 H=23 L=27 		1-09700-861-0 01 1 1006- ● ●
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (L) ID=24 L=24 		1-09701-001-1 01 1 0710-1005 ●
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (L) ID=24 L=24 		1-09701-001-1 01 1 1006- ● ●
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 01 1 0710-0712 ●
16 CLIP; HARNESS
FULLER M/T<X9B> (X) OD=9 H=6 		1-09709-178-0 03 1 0710-1005 ●
16 CLIP; HARNESS
FULLER M/T<X9B> (X) OD=9 H=6 		1-09709-178-0 03 1 1006- ●
16 CLIP; HARNESS
(X) OD=9 H=6 		1-09709-178-0 03 1 1006- ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (G) L=180 		1-09707-162-1 01 1 0710-0908 ●
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 01 1 0909-1005 ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (G) L=180 		1-09707-162-1 01 1 0909-1005 ●
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 01 1 1006- ● ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (G) L=180 		1-09707-162-1 01 1 1006- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (A) ID=10 H=25 L=20 		1-09700-519-0 01 1 0710- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (D) ID=28+34 L=44 		1-09701-311-0 01 1 0710- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (X) OD=9 H=6 		1-09709-178-0 07 1 0710- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) BRAKE SYSTEM RETARDER<RE2> (AI) NYLON TUBE ID=35 H=45 L=33 		8-97615-568-0 03 1 0710- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) EXC. BRAKE SYSTEM RETARDER<RE2> (AJ) ID=24.5 H=35 L=25 		1-09700-990-0 03 1 0710-0712 ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) EXC. BRAKE SYSTEM RETARDER<RE2> (O) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0801- ●
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (AN) ID=31 L=35 		1-09700-329-1 01 1 0710-1005 ●
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (AN) ID=31 L=35 		1-09700-329-1 01 1 1006- ●
16 CLIP; HARNESS
(AN) ID=31 L=35 		1-09700-329-1 01 1 1006- ●
81 CLIP; HARNESS
FRONT SPOILER<VP1> (A) L=140 		5-09707-031-1 04 1 1009- ●
81 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 1006-1008 ●
81 CLIP; HARNESS
EXC. FRONT SPOILER<VP1> (C) L=250 		5-09707-030-1 02 1 1009- ●
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 06 1 1006-1007 ●
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 08 1 1008-1008 ●
81 CLIP; HARNESS
EXC. FRONT SPOILER<VP1> (A) L=140 		5-09707-031-1 08 1 1009- ●
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0710-1005 ●
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 1006-1007 ● ●
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 1008- ●
81 CLIP; HARNESS
(B) ID=7-10 		8-94472-578-0 02 1 0710-1005 ●
81 CLIP; HARNESS
(B) ID=7-10 		8-94472-578-0 02 1 1006-1007 ● ●
81 CLIP; HARNESS
(B) ID=7-10 		8-94472-578-0 02 1 1008- ●
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 03 1 0710-1005 ●
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 03 1 1006- ● ●
168 CLIP; DASH HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 06 1 0710-1005 ●
168 CLIP; DASH HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 06 1 1006- ● ●
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) L=30 SET=10 PIECE 		1-09987-265-0 01 1 0710- ●
373 CLIP; BAND,GEN HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) L=175 		1-09707-176-1 01 1 1407- ● ●
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) ID=20 		1-09709-068-0 02 1 0710- ●
589 CLIP; GLOW PLUG
6WG1 TC-C(72L) GENERATOR NIKKO 24V-90A 2.5KW(SD2) L=175 		1-09707-176-1 01 1 1407- ●
çizim 141840
312 312 312 312 312 312 312 312 334 312 312 312 334 335 342 375 600
BalonParca AdiParca NoAdetTipApplied Date A B
312 BRACKET; CLIP HARNESS
6WG1 TC-N(71L) (K) L=82 B=20 		1-47478-420-0 01 1 1108-1404 ●
312 BRACKET; CLIP HARNESS
6WG1 TC-N(71L) (K) L=82 B=20 		8-98259-390-0 01 1 1405- ●
312 BRACKET; CLIP HARNESS
(G) 		1-82698-556-0 01 1 0710-1005 ●
312 BRACKET; CLIP HARNESS
(G) 		1-82698-556-0 01 1 1006- ● ●
312 BRACKET; CLIP HARNESS
(D) 		8-98035-927-1 01 1 0710-1005 ●
312 BRACKET; CLIP HARNESS
(D) 		8-98035-927-1 01 1 1006- ● ●
312 BRACKET; CLIP HARNESS
(E) 		8-98052-591-0 01 1 0710-1005 ●
312 BRACKET; CLIP HARNESS
(E) 		8-98052-591-0 01 1 1006- ● ●
312 BRACKET; CLIP HARNESS
(F) L=195.5 		1-82698-502-0 01 1 0710-1005 ●
312 BRACKET; CLIP HARNESS
(F) L=195.5 		1-82698-502-0 01 1 1006-1107 ● ●
312 BRACKET; CLIP HARNESS
(F) L=195.5 		1-82698-502-0 01 1 1108- ● ●
312 BRACKET; CLIP HARNESS
(H) 		1-82699-199-0 01 1 0710-1005 ●
312 BRACKET; CLIP HARNESS
(H) 		1-82699-199-0 01 1 1006- ● ●
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (I) 		1-82698-443-0 01 1 0710- ●
312 BRACKET; CLIP HARNESS
FULLER M/T<X9B> (C) L=120 H=35 		1-82698-088-0 01 1 0710-1005 ●
312 BRACKET; CLIP HARNESS
FULLER M/T<X9B> (C) L=120 H=35 		1-82698-088-0 01 1 1006- ●
312 BRACKET; CLIP HARNESS
(C) L=120 H=35 		1-82698-088-0 01 1 1006- ●
312 BRACKET; CLIP HARNESS
SMOOTHER-G(C1W) (A) 		1-82698-570-0 01 1 0710- ●
312 BRACKET; CLIP HARNESS
SMOOTHER-G(C1W) (B) 		1-82698-586-0 01 1 0710- ●
312 BRACKET; CLIP HARNESS
SMOOTHER-G(C1W) (J) 		1-82699-182-0 01 1 0710-0712 ●
334 BRACKET
(A) 		1-53457-153-2 01 1 0710-1005 ●
334 BRACKET
(A) 		1-53457-153-2 01 1 1006- ● ●
334 BRACKET
SMOOTHER-G(C1W) (B) 		1-82698-650-0 01 1 0710- ●
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 0710-1005 ●
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 1006- ● ●
342 BRACKET; HARNESS CAB MTG 1-82699-625-0 01 1 0710-1005 ●
342 BRACKET; HARNESS CAB MTG 1-82699-625-0 01 1 1006- ● ●
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0710-1005 ●
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 1006- ● ●
600 PROTECTOR; HEAT 8-98084-026-0 01 1 0710-1005 ●
600 PROTECTOR; HEAT 8-98084-026-0 01 1 1006- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
