8-05 — INTERIOR LAMP (#14683) — 57 parça

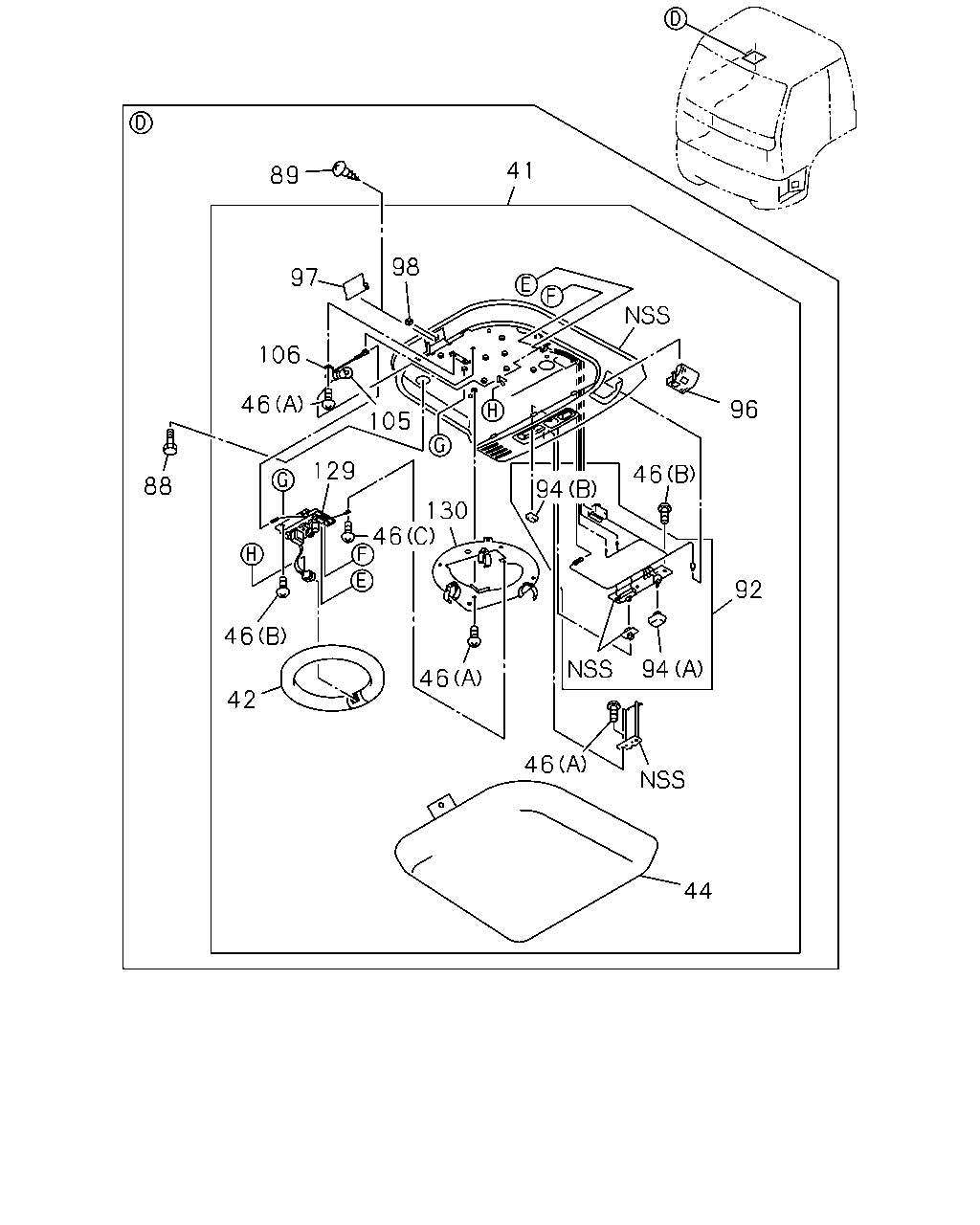

çizim 141610
41 89 98 97 106 46 96 105 129 46 88 94 130 46 92 46 94 46 42 46 44
BalonParca AdiParca NoAdetTipApplied Date A B
41 LAMP ASM; FLUORESCENT 1-86830-315-2 01 1 0710-1005 ●
41 LAMP ASM; FLUORESCENT 1-86830-315-2 01 1 1006- ● ●
42 LAMP; FLUORESCENT 1-86830-094-1 01 1 0710-1005 ●
42 LAMP; FLUORESCENT 1-86830-094-1 01 1 1006- ● ●
44 LENS; FLUORESCENT LAMP 1-86830-092-0 01 1 0710-1005 ●
44 LENS; FLUORESCENT LAMP 1-86830-092-0 01 1 1006- ● ●
46 SCREW; FLUORESCENT LAMP
(A) M5X10 TAPPING 		1-86830-095-0 08 1 0710-1005 ●
46 SCREW; FLUORESCENT LAMP
(A) M5X10 TAPPING 		1-86830-095-0 08 1 1006- ● ●
46 SCREW; FLUORESCENT LAMP
(B) M4X12 		1-86830-202-0 07 1 0710-1005 ●
46 SCREW; FLUORESCENT LAMP
(B) M4X12 		1-86830-202-0 07 1 1006- ● ●
46 SCREW; FLUORESCENT LAMP
(C) M3X6 TAPPING 		1-86830-336-0 01 1 0710-1005 ●
46 SCREW; FLUORESCENT LAMP
(C) M3X6 TAPPING 		1-86830-336-0 01 1 1006- ● ●
88 BOLT; LAMP
M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 0710-1005 ●
88 BOLT; LAMP
M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 1006- ● ●
89 SCREW; LENS,FLUORESCENT LAMP
M5X10 TAPPING 		0-71240-510-0 01 1 0710-1005 ●
89 SCREW; LENS,FLUORESCENT LAMP
M5X10 TAPPING 		0-71240-510-0 01 1 1006- ● ●
92 SWITCH ASM; FLUORESCENT 1-86830-306-0 01 1 1006- ● ●
92 SWITCH ASM; FLUORESCENT 1-86830-341-0 01 1 0710-1005 ●
94 KNOB; ROOM LAMP SW
(A) 		1-86830-312-0 01 1 0710-1005 ●
94 KNOB; ROOM LAMP SW
(A) 		1-86830-312-0 01 1 1006- ● ●
94 KNOB; ROOM LAMP SW
(B) 		1-86830-313-0 01 1 0710-1005 ●
94 KNOB; ROOM LAMP SW
(B) 		1-86830-313-0 01 1 1006- ● ●
96 CAP; SPOT LAMP 1-86830-385-0 01 1 1006- ● ●
96 CAP; SPOT LAMP 1-86830-337-0 01 1 0710-1005 ●
97 CAP; LENS FIX 1-86830-311-0 01 1 0710-1005 ●
97 CAP; LENS FIX 1-86830-311-0 01 1 1006- ● ●
98 GROMMET; SCREW,LENS FIX 1-86830-102-0 01 1 0710-1005 ●
98 GROMMET; SCREW,LENS FIX 1-86830-102-0 01 1 1006- ● ●
105 BULB; FLUORESCENT LAMP
28V 20W 		1-86830-200-0 01 1 0710-1005 ●
105 BULB; FLUORESCENT LAMP
28V 20W 		1-86830-200-0 01 1 1006- ● ●
106 SOCKET; BULB 1-86830-201-0 01 1 0710-1005 ●
106 SOCKET; BULB 1-86830-201-0 01 1 1006- ● ●
129 INVERTER ASM; FLUORESCENT LAMP 1-86830-338-0 01 1 0710-1005 ●
129 INVERTER ASM; FLUORESCENT LAMP 1-86830-338-0 01 1 1006- ● ●
130 PLATE ASM; FLUORESCENT LAMP 1-86830-339-0 01 1 0710-1005 ●
130 PLATE ASM; FLUORESCENT LAMP 1-86830-339-0 01 1 1006- ● ●
çizim 141781
33 24 33 85 25 11 27 35 34 35
BalonParca AdiParca NoAdetTipApplied Date A B
11 LAMP ASM; ASH TRAY 1-76458-076-1 01 1 0710-1005 ●
11 LAMP ASM; ASH TRAY 1-76458-076-1 01 1 1006- ● ●
24 LAMP; STEP 1-82140-052-1 01 1 0710-1005 ●
24 LAMP; STEP 1-82140-052-1 01 1 1006- ● ●
25 BULB; STEP LAMP
24V 5W 		1-82194-042-0 01 1 0710-1005 ●
25 BULB; STEP LAMP
24V 5W 		1-82194-042-0 01 1 1006- ● ●
27 LENS; STEP LAMP 1-82145-019-0 01 1 0710-1005 ●
27 LENS; STEP LAMP 1-82145-019-0 01 1 1006- ● ●
33 GROMMET; SCREW,LAMP
M4 		5-09470-002-0 02 1 0710-1005 ●
33 GROMMET; SCREW,LAMP
M4 		5-09470-002-0 02 1 1006- ● ●
34 COVER; STEP LAMP
BODY COLOR TOLL GREEN(543) 		8-98213-903-0 02 1 1203- ●
34 COVER; STEP LAMP 8-98086-130-0 02 1 0710-1005 ●
34 COVER; STEP LAMP 8-98086-130-0 02 1 1006-1202 ● ●
34 COVER; STEP LAMP
BODY COLOR ARC WHITE(729) 		8-98086-130-0 02 1 1203- ●
34 COVER; STEP LAMP 8-98086-130-0 02 1 1203- ●
35 SCREW; STEP LAMP
(B) M4X20 TAPPING W/PL WASHER 		0-74360-420-0 04 1 0710-1005 ●
35 SCREW; STEP LAMP
(B) M4X20 TAPPING W/PL WASHER 		0-74360-420-0 04 1 1006- ● ●
35 SCREW; STEP LAMP
(A) M4X20 		1-82149-006-0 02 1 0710-1005 ●
35 SCREW; STEP LAMP
(A) M4X20 		1-82149-006-0 02 1 1006- ● ●
85 BULB; ASH TRAY
24V 1.4W 		1-76457-041-0 01 1 0710-1005 ●
85 BULB; ASH TRAY
24V 1.4W 		1-76457-041-0 01 1 1006- ● ●
