8-03 — LAMP; REAR AND REAR SIDE (#14682) — 80 parça

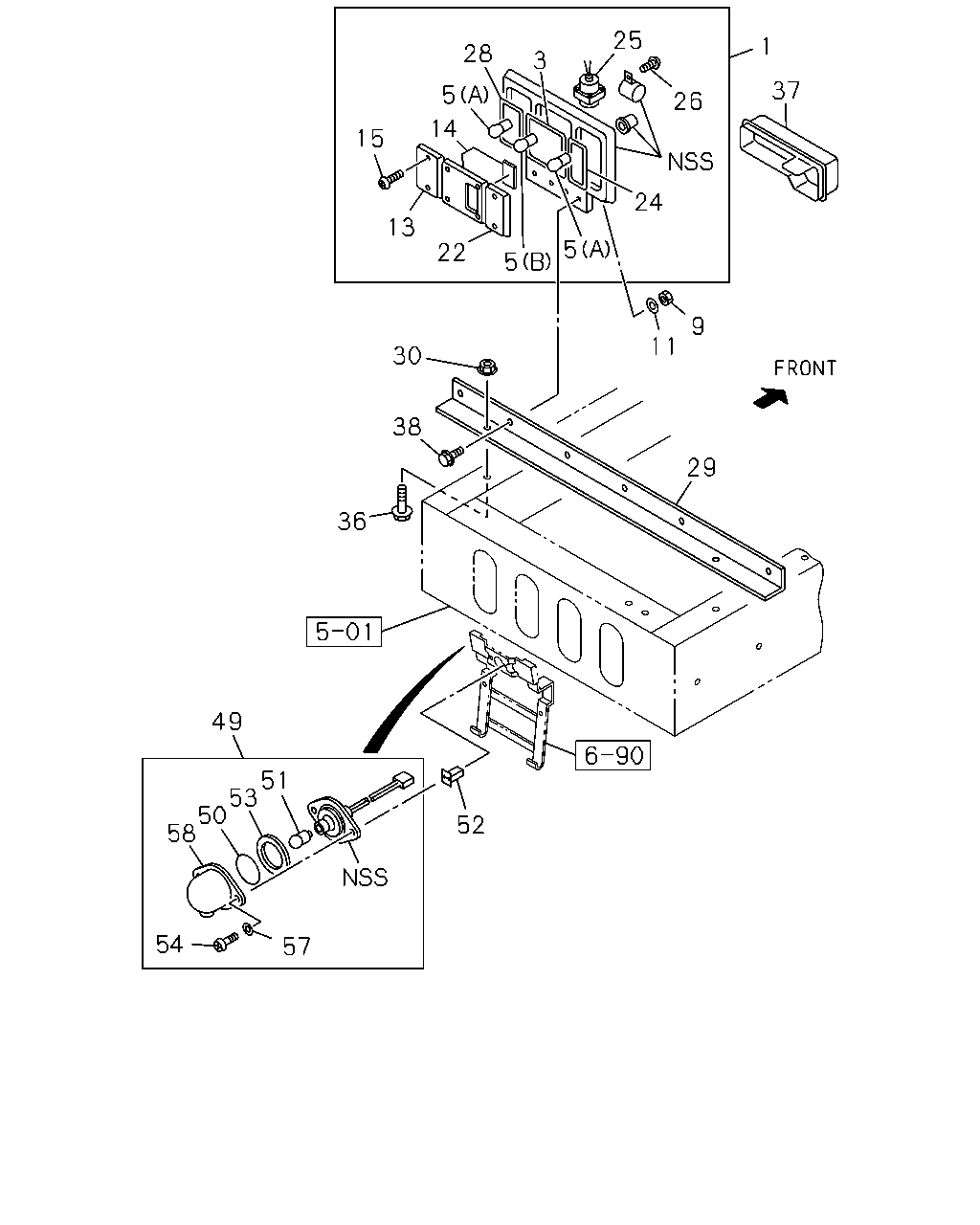

çizim 141790
25 1 28 3 37 5 26 14 15 24 13 5 22 5 9 11 30 38 29 36 49 51 53 50 58 52 54 57
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; RR COMB 8-97213-369-0 01 1 0710-0712 ●
1 LAMP ASM; RR COMB 1-82230-208-0 01 1 0801-1005 ●
1 LAMP ASM; RR COMB 1-82230-208-0 01 1 1006- ● ●
1 LAMP ASM; RR COMB 8-97213-370-0 01 1 0710-0712 ●
1 LAMP ASM; RR COMB 1-82230-209-0 01 1 0801-1005 ●
1 LAMP ASM; RR COMB 1-82230-209-0 01 1 1006- ● ●
3 GASKET; RR COMB LAMP 8-94257-505-0 01 1 0710-1005 ●
3 GASKET; RR COMB LAMP 8-94257-505-0 01 1 0710-1005 ●
3 GASKET; RR COMB LAMP 8-94257-505-0 01 1 1006- ● ●
3 GASKET; RR COMB LAMP 8-94257-505-0 01 1 1006- ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 0710-1005 ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 0710-1005 ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 1006- ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 1006- ● ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 01 1 0710-1005 ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 01 1 0710-1005 ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 01 1 1006- ● ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 01 1 1006- ● ●
9 NUT; LAMP,RR COMB
M6 		0-91110-506-0 04 1 0710-1005 ●
9 NUT; LAMP,RR COMB
M6 		0-91110-506-0 04 1 1006- ● ●
11 WASHER; PL,LAMP,RR COMB
ID=6.4 OD=18 		0-91610-706-0 04 1 0710-1005 ●
11 WASHER; PL,LAMP,RR COMB
ID=6.4 OD=18 		0-91610-706-0 04 1 1006- ● ●
13 LENS; TURN SIGNAL 8-94174-639-0 01 1 0710-1005 ●
13 LENS; TURN SIGNAL 8-94174-639-0 01 1 1006- ● ●
13 LENS; TURN SIGNAL 8-94174-638-0 01 1 0710-1005 ●
13 LENS; TURN SIGNAL 8-94174-638-0 01 1 1006- ● ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 0710-1005 ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 1006- ● ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 0710-1005 ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 1006- ● ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0710-1005 ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0710-1005 ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 1006- ● ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 1006- ● ●
22 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 01 1 0710-1005 ●
22 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 01 1 0710-1005 ●
22 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 01 1 1006- ● ●
22 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 01 1 1006- ● ●
24 GASKET; BACK,LAMP 8-94257-506-0 01 1 0710-1005 ●
24 GASKET; BACK,LAMP 8-94257-506-0 01 1 0710-1005 ●
24 GASKET; BACK,LAMP 8-94257-506-0 01 1 1006- ● ●
24 GASKET; BACK,LAMP 8-94257-506-0 01 1 1006- ● ●
25 HORN ASM; BACK 8-94257-518-0 01 1 0710-1005 ●
25 HORN ASM; BACK 8-94257-518-0 01 1 1006- ● ●
26 SCREW; BACK HORN
M4X14 TAPPING 		9-07076-414-0 01 1 0710-1005 ●
26 SCREW; BACK HORN
M4X14 TAPPING 		9-07076-414-0 01 1 1006- ● ●
26 SCREW; BACK HORN
M4X12 TAPPING 		9-07076-412-0 02 1 0710-1005 ●
26 SCREW; BACK HORN
M4X12 TAPPING 		9-07076-412-0 02 1 1006- ● ●
28 GASKET; TURN,LAMP 8-94257-507-0 01 1 0710-1005 ●
28 GASKET; TURN,LAMP 8-94257-507-0 01 1 0710-1005 ●
28 GASKET; TURN,LAMP 8-94257-507-0 01 1 1006- ● ●
28 GASKET; TURN,LAMP 8-94257-507-0 01 1 1006- ● ●
29 BRACKET; LAMP,RR COMB 8-98091-824-0 01 1 0710-1005 ●
29 BRACKET; LAMP,RR COMB 8-98091-824-0 01 1 1006- ● ●
30 NUT; BRKT,RR COMB
M10 FLANGE 		0-91180-210-0 02 1 0710-1005 ●
30 NUT; BRKT,RR COMB
M10 FLANGE 		0-91180-210-0 02 1 1006- ● ●
36 BOLT; BRKT,RR COMB
M10X40 FLANGE 		0-28651-040-0 02 1 0710-1005 ●
36 BOLT; BRKT,RR COMB
M10X40 FLANGE 		0-28651-040-0 02 1 1006- ● ●
37 COVER; RR COMB LAMP 1-82239-008-0 01 1 0710-1005 ●
37 COVER; RR COMB LAMP 1-82239-008-0 01 1 1006- ● ●
37 COVER; RR COMB LAMP 1-82239-007-0 01 1 0710-1005 ●
37 COVER; RR COMB LAMP 1-82239-007-0 01 1 1006- ● ●
38 BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER 		0-50640-630-0 04 1 0710-1005 ●
38 BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER 		0-50640-630-0 04 1 1006- ● ●
49 LAMP; LICENSE PLATE
24V 10W 		1-82120-024-1 01 1 0710-1005 ●
49 LAMP; LICENSE PLATE
24V 10W 		1-82120-024-1 01 1 1006- ● ●
50 LENS; LICENSE PLATE LAMP 1-82235-006-0 01 1 0710-1005 ●
50 LENS; LICENSE PLATE LAMP 1-82235-006-0 01 1 1006- ● ●
51 BULB; LICENSE PLATE LAMP
24V 10W 		1-82194-037-0 01 1 0710-1005 ●
51 BULB; LICENSE PLATE LAMP
24V 10W 		1-82194-037-0 01 1 1006- ● ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 0710-1005 ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 1006- ● ●
53 GASKET; LICENSE LAMP 1-82126-005-0 01 1 0710-1005 ●
53 GASKET; LICENSE LAMP 1-82126-005-0 01 1 1006- ● ●
54 SCREW; LICENSE PLATE LAMP
M5X20 		1-82129-007-0 02 1 0710-1005 ●
54 SCREW; LICENSE PLATE LAMP
M5X20 		1-82129-007-0 02 1 1006- ● ●
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-008-0 02 1 0710-1005 ●
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-008-0 02 1 1006- ● ●
58 COVER; LICENSE PLATE LAMP 1-82129-005-0 01 1 0710-1005 ●
58 COVER; LICENSE PLATE LAMP 1-82129-005-0 01 1 1006- ● ●
