◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-70 - SEPARATER AND BED ▶
7-70 — SEPARATER AND BED (#14680) — 258 parça

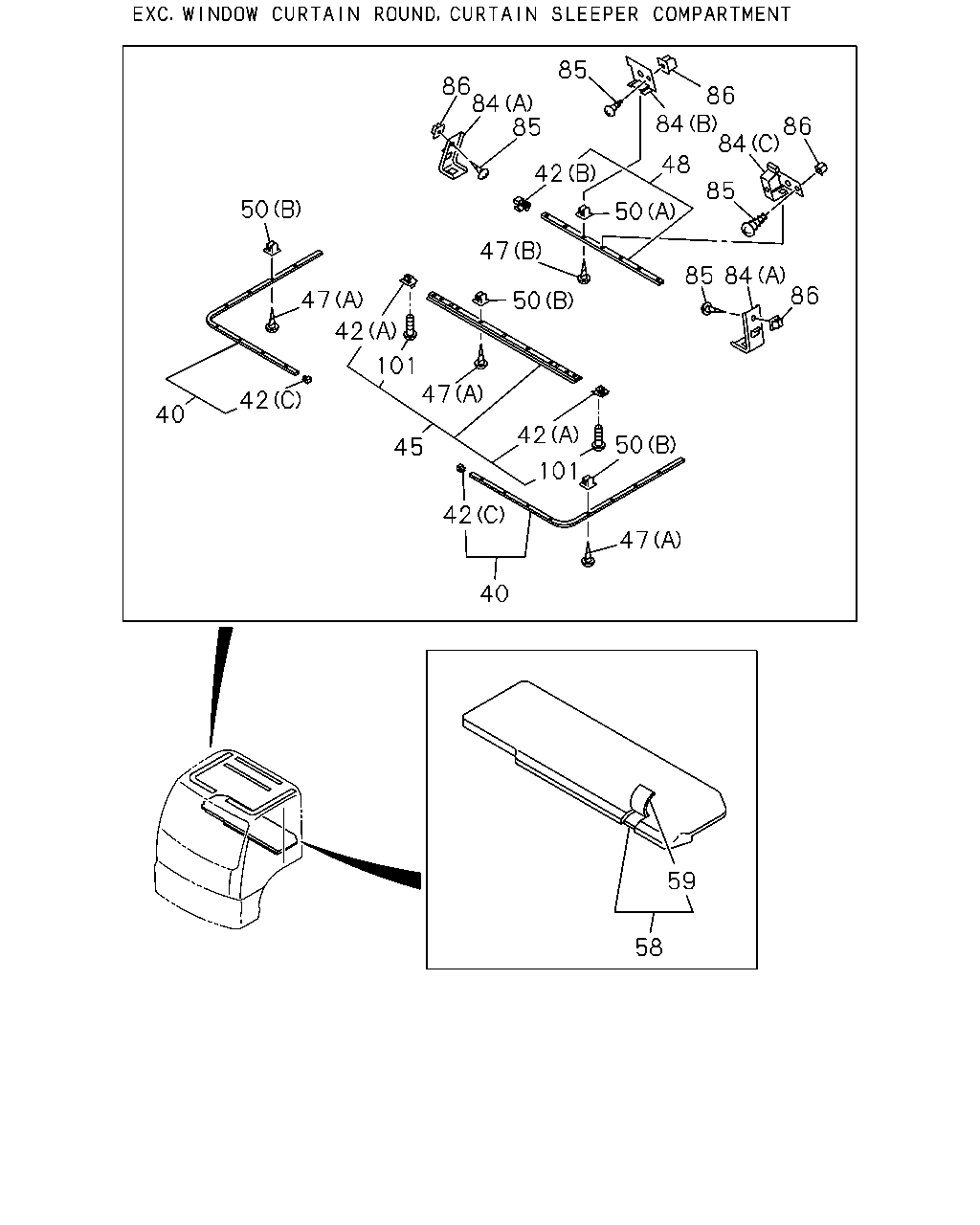

çizim 141782
85 86 84 85 86 84 86 84 48 42 85 50 50 47 85 84 86 47 50 42 101 47 42 40 42 50 45 101 42 47 40 59 58
BalonParca AdiParca NoAdetTipApplied Date A B
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-538-1 01 1 0710-1005 ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-538-1 01 1 1006- ● ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-537-1 01 1 0710-1005 ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-537-1 01 1 1006- ● ●
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-536-1 01 1 0710-1005 ●
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-536-1 01 1 1006- ● ●
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-535-1 01 1 0710-1005 ●
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-535-1 01 1 1006- ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (A) 		1-73907-657-0 02 1 1006- ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 04 1 0710-1005 ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 04 1 1006- ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 0710-1005 ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 1006- ● ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 02 1 0710-1005 ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 02 1 1006- ● ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 01 1 0710-1005 ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 01 1 1006- ● ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> 		1-73907-592-2 01 1 1006- ●
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-591-2 01 1 1006- ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-546-3 01 1 0710-1005 ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-546-3 01 1 1006-1202 ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> 		1-73907-546-3 01 1 1006-1202 ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> 		1-73907-546-3 01 1 1203- ● ●
45 RAIL; CURTAIN,FRT
EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-545-2 01 1 0710-1005 ●
45 RAIL; CURTAIN,FRT
EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-545-2 01 1 1006-1202 ●
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-545-2 01 1 1006-1202 ●
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-545-2 01 1 1203- ● ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 0710-1005 ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 1006- ● ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 0710-1005 ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 1006- ● ●
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> 		1-73996-386-1 01 1 0710-1005 ●
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> 		1-73996-386-1 01 1 1006- ● ●
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73996-385-1 01 1 0710-1005 ●
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73996-385-1 01 1 1006- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 0710-1005 ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 1006- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 0710-1005 ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 1006- ● ●
58 BED; MAT 1-75127-018-2 01 1 0710-1005 ●
58 BED; MAT 1-75127-018-3 01 1 1006- ● ●
59 COVER ASM; TRIM,BED MAT 1-75127-132-1 01 1 0710-1005 ●
59 COVER ASM; TRIM,BED MAT 1-75127-132-2 01 1 1006- ● ●
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73907-661-0 01 1 1006- ●
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (B) 		1-73998-987-4 06 1 1006- ●
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 0710-1005 ●
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 1006- ● ●
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 0710-1005 ●
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 1006-1202 ●
84 BRACKET; CURTAIN RAIL
LOW ROOF<6XQ> (B) 		1-73998-987-4 07 1 1006-1202 ●
84 BRACKET; CURTAIN RAIL
LOW ROOF<6XQ> (B) 		1-73998-987-4 07 1 1203- ● ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 0710-1005 ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 1006- ● ●
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 0710-1005 ●
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 1006- ● ●
101 SCREW; STOPPER
HIGH ROOF<S2F> 		1-73907-400-0 02 1 1006- ●

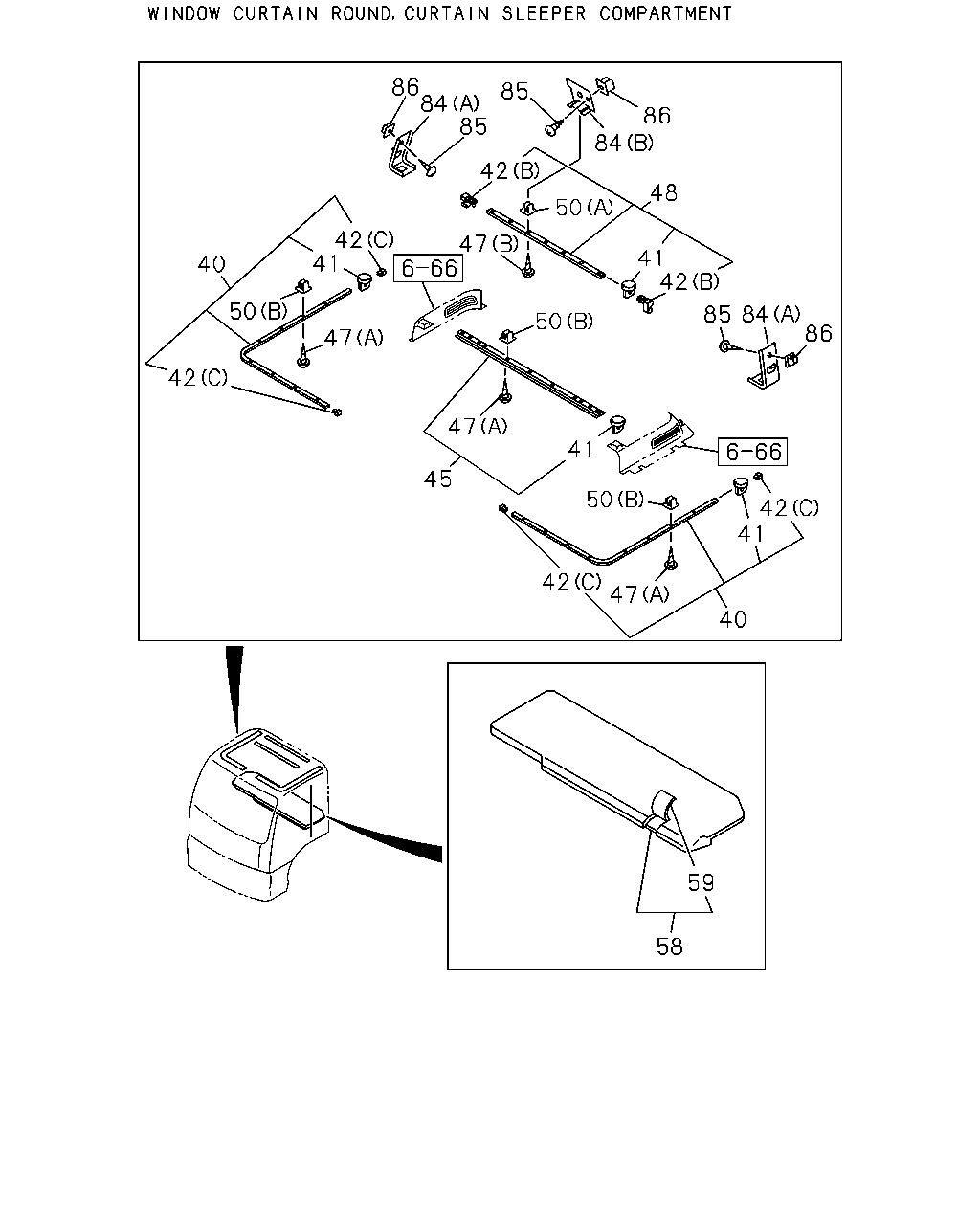

çizim 141783
86 84 85 85 86 84 42 48 50 42 41 47 41 42 40 50 47 85 84 86 50 42 47 41 45 50 42 41 42 47 40 59 58
BalonParca AdiParca NoAdetTipApplied Date A B
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-538-1 01 1 0710-1005 ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-538-1 01 1 1006- ● ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-537-1 01 1 0710-1005 ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-537-1 01 1 1006- ● ●
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-536-1 01 1 0710-1005 ●
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-536-1 01 1 1006- ● ●
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-535-1 01 1 0710-1005 ●
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-535-1 01 1 1006- ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE 		1-73996-398-0 42 1 0710-1005 ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE 		1-73996-398-0 42 1 1006- ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE 		1-73996-398-0 14 1 0710-1005 ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE 		1-73996-398-0 14 1 1006- ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (A) 		1-73907-657-0 02 1 1006- ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 04 1 0710-1005 ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 04 1 1006- ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 0710-1005 ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 1006- ● ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 02 1 0710-1005 ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 02 1 1006- ● ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 01 1 0710-1005 ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 01 1 1006- ● ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> 		1-73907-592-2 01 1 1006- ●
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-591-2 01 1 1006- ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-546-3 01 1 0710-1005 ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-546-3 01 1 1006-1202 ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> 		1-73907-546-3 01 1 1006-1202 ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> 		1-73907-546-3 01 1 1203- ● ●
45 RAIL; CURTAIN,FRT
EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-545-2 01 1 0710-1005 ●
45 RAIL; CURTAIN,FRT
EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-545-2 01 1 1006-1202 ●
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-545-2 01 1 1006-1202 ●
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-545-2 01 1 1203- ● ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 0710-1005 ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 1006- ● ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 0710-1005 ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 1006- ● ●
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> 		1-73996-386-1 01 1 0710-1005 ●
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> 		1-73996-386-1 01 1 1006- ● ●
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73996-385-1 01 1 0710-1005 ●
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73996-385-1 01 1 1006- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 0710-1005 ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 1006- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 0710-1005 ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 1006- ● ●
58 BED; MAT 1-75127-018-2 01 1 0710-1005 ●
58 BED; MAT 1-75127-018-3 01 1 1006- ● ●
59 COVER ASM; TRIM,BED MAT 1-75127-132-1 01 1 0710-1005 ●
59 COVER ASM; TRIM,BED MAT 1-75127-132-2 01 1 1006- ● ●
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73907-661-0 01 1 1006- ●
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (B) 		1-73998-987-4 06 1 1006- ●
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 0710-1005 ●
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 1006- ● ●
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 0710-1005 ●
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 1006-1202 ●
84 BRACKET; CURTAIN RAIL
LOW ROOF<6XQ> (B) 		1-73998-987-4 07 1 1006-1202 ●
84 BRACKET; CURTAIN RAIL
LOW ROOF<6XQ> (B) 		1-73998-987-4 07 1 1203- ● ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 0710-1005 ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 1006- ● ●
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 0710-1005 ●
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 1006- ● ●

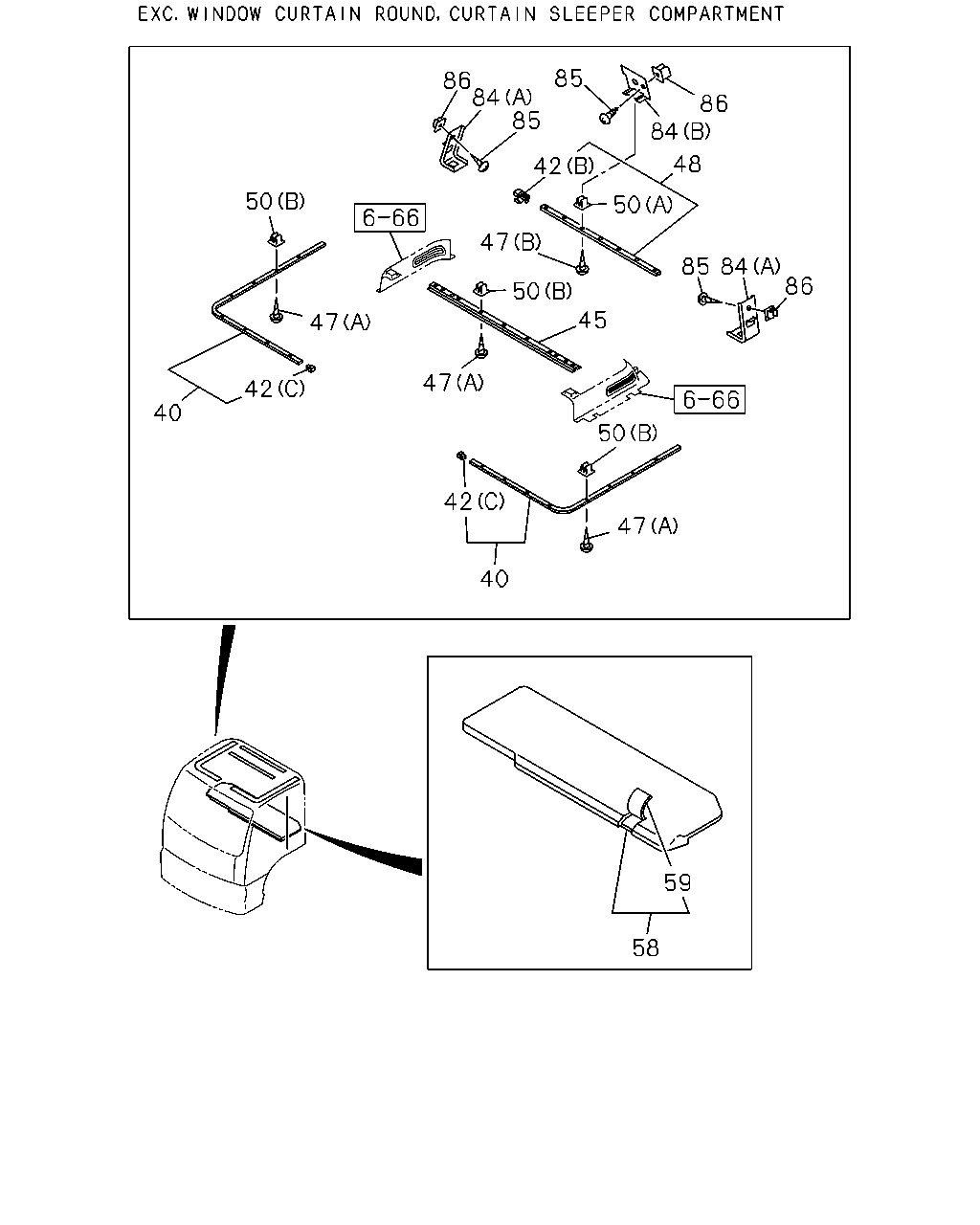

çizim 141785
85 86 84 85 86 84 48 42 50 50 47 85 84 86 50 45 47 47 42 40 50 42 47 40 59 58
BalonParca AdiParca NoAdetTipApplied Date A B
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-538-1 01 1 0710-1005 ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-538-1 01 1 1006- ● ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-537-1 01 1 0710-1005 ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-537-1 01 1 1006- ● ●
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-536-1 01 1 0710-1005 ●
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-536-1 01 1 1006- ● ●
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-535-1 01 1 0710-1005 ●
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-535-1 01 1 1006- ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (A) 		1-73907-657-0 02 1 1006- ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 04 1 0710-1005 ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 04 1 1006- ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 0710-1005 ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 1006- ● ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 02 1 0710-1005 ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 02 1 1006- ● ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 01 1 0710-1005 ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 01 1 1006- ● ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> 		1-73907-592-2 01 1 1006- ●
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-591-2 01 1 1006- ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-546-3 01 1 0710-1005 ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-546-3 01 1 1006-1202 ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> 		1-73907-546-3 01 1 1006-1202 ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> 		1-73907-546-3 01 1 1203- ● ●
45 RAIL; CURTAIN,FRT
EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-545-2 01 1 0710-1005 ●
45 RAIL; CURTAIN,FRT
EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-545-2 01 1 1006-1202 ●
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-545-2 01 1 1006-1202 ●
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-545-2 01 1 1203- ● ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 0710-1005 ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 1006- ● ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 0710-1005 ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 1006- ● ●
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> 		1-73996-386-1 01 1 0710-1005 ●
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> 		1-73996-386-1 01 1 1006- ● ●
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73996-385-1 01 1 0710-1005 ●
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73996-385-1 01 1 1006- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 0710-1005 ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 1006- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 0710-1005 ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 1006- ● ●
58 BED; MAT 1-75127-018-2 01 1 0710-1005 ●
58 BED; MAT 1-75127-018-3 01 1 1006- ● ●
59 COVER ASM; TRIM,BED MAT 1-75127-132-1 01 1 0710-1005 ●
59 COVER ASM; TRIM,BED MAT 1-75127-132-2 01 1 1006- ● ●
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73907-661-0 01 1 1006- ●
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (B) 		1-73998-987-4 06 1 1006- ●
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 0710-1005 ●
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 1006- ● ●
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 0710-1005 ●
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 1006-1202 ●
84 BRACKET; CURTAIN RAIL
LOW ROOF<6XQ> (B) 		1-73998-987-4 07 1 1006-1202 ●
84 BRACKET; CURTAIN RAIL
LOW ROOF<6XQ> (B) 		1-73998-987-4 07 1 1203- ● ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 0710-1005 ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 1006- ● ●
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 0710-1005 ●
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 1006- ● ●

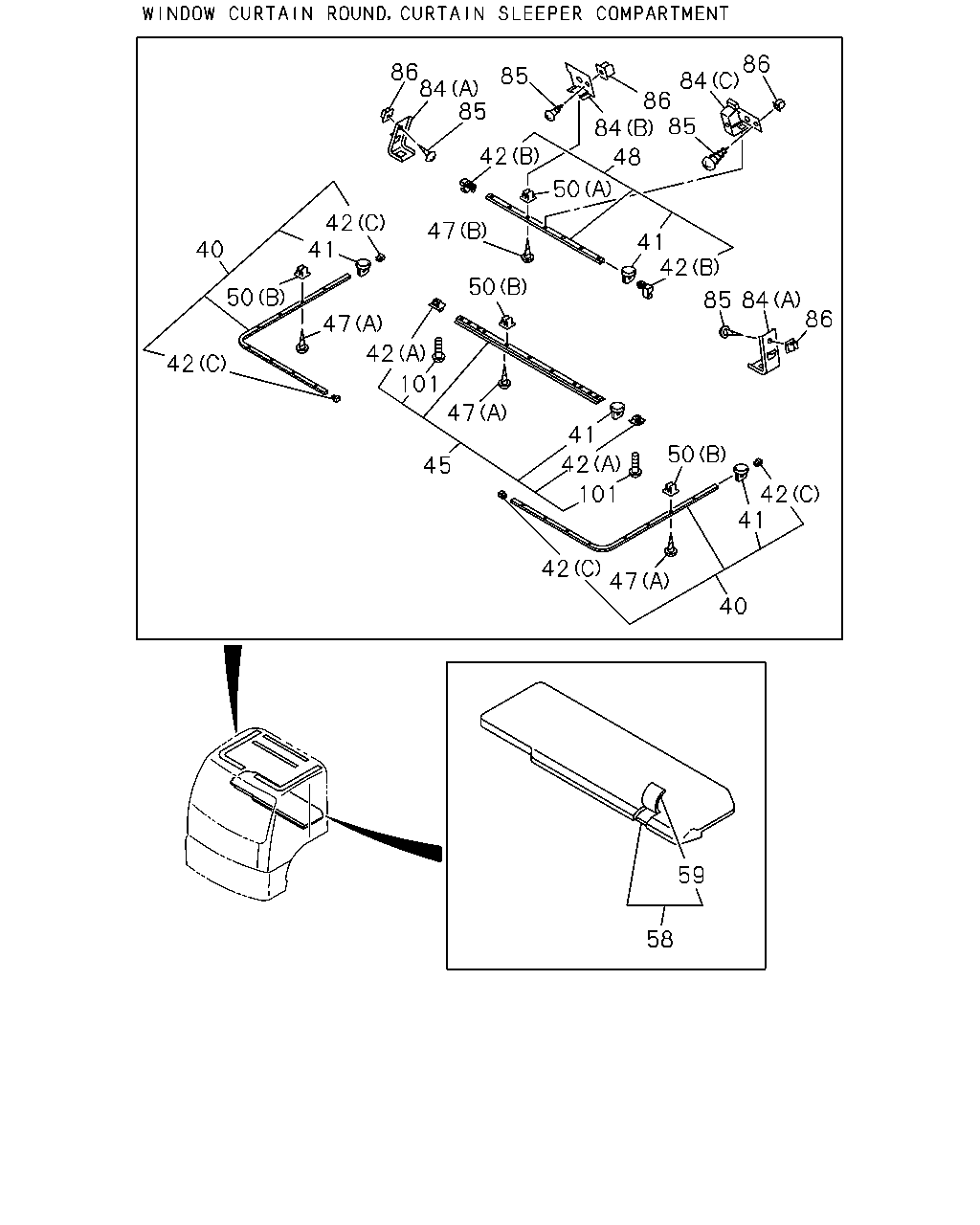

çizim 141824
86 84 86 86 84 85 85 42 48 50 42 41 47 41 42 40 50 50 47 85 84 86 42 42 101 47 41 50 42 45 42 41 101 42 47 40 59 58 84 85
BalonParca AdiParca NoAdetTipApplied Date A B
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-538-1 01 1 0710-1005 ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-538-1 01 1 1006- ● ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-537-1 01 1 0710-1005 ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-537-1 01 1 1006- ● ●
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-536-1 01 1 0710-1005 ●
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-536-1 01 1 1006- ● ●
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-535-1 01 1 0710-1005 ●
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-535-1 01 1 1006- ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE 		1-73996-398-0 42 1 0710-1005 ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE 		1-73996-398-0 42 1 1006- ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE 		1-73996-398-0 14 1 0710-1005 ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE 		1-73996-398-0 14 1 1006- ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (A) 		1-73907-657-0 02 1 1006- ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 04 1 0710-1005 ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 04 1 1006- ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 0710-1005 ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 1006- ● ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 02 1 0710-1005 ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 02 1 1006- ● ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 01 1 0710-1005 ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 01 1 1006- ● ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> 		1-73907-592-2 01 1 1006- ●
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-591-2 01 1 1006- ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-546-3 01 1 0710-1005 ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-546-3 01 1 1006-1202 ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> 		1-73907-546-3 01 1 1006-1202 ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> 		1-73907-546-3 01 1 1203- ● ●
45 RAIL; CURTAIN,FRT
EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-545-2 01 1 0710-1005 ●
45 RAIL; CURTAIN,FRT
EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-545-2 01 1 1006-1202 ●
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-545-2 01 1 1006-1202 ●
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-545-2 01 1 1203- ● ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 0710-1005 ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 1006- ● ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 0710-1005 ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 1006- ● ●
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> 		1-73996-386-1 01 1 0710-1005 ●
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> 		1-73996-386-1 01 1 1006- ● ●
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73996-385-1 01 1 0710-1005 ●
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73996-385-1 01 1 1006- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 0710-1005 ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 1006- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 0710-1005 ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 1006- ● ●
58 BED; MAT 1-75127-018-2 01 1 0710-1005 ●
58 BED; MAT 1-75127-018-3 01 1 1006- ● ●
59 COVER ASM; TRIM,BED MAT 1-75127-132-1 01 1 0710-1005 ●
59 COVER ASM; TRIM,BED MAT 1-75127-132-2 01 1 1006- ● ●
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73907-661-0 01 1 1006- ●
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (B) 		1-73998-987-4 06 1 1006- ●
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 0710-1005 ●
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 1006- ● ●
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 0710-1005 ●
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 1006-1202 ●
84 BRACKET; CURTAIN RAIL
LOW ROOF<6XQ> (B) 		1-73998-987-4 07 1 1006-1202 ●
84 BRACKET; CURTAIN RAIL
LOW ROOF<6XQ> (B) 		1-73998-987-4 07 1 1203- ● ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 0710-1005 ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 1006- ● ●
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 0710-1005 ●
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 1006- ● ●
101 SCREW; STOPPER
HIGH ROOF<S2F> 		1-73907-400-0 02 1 1006- ●

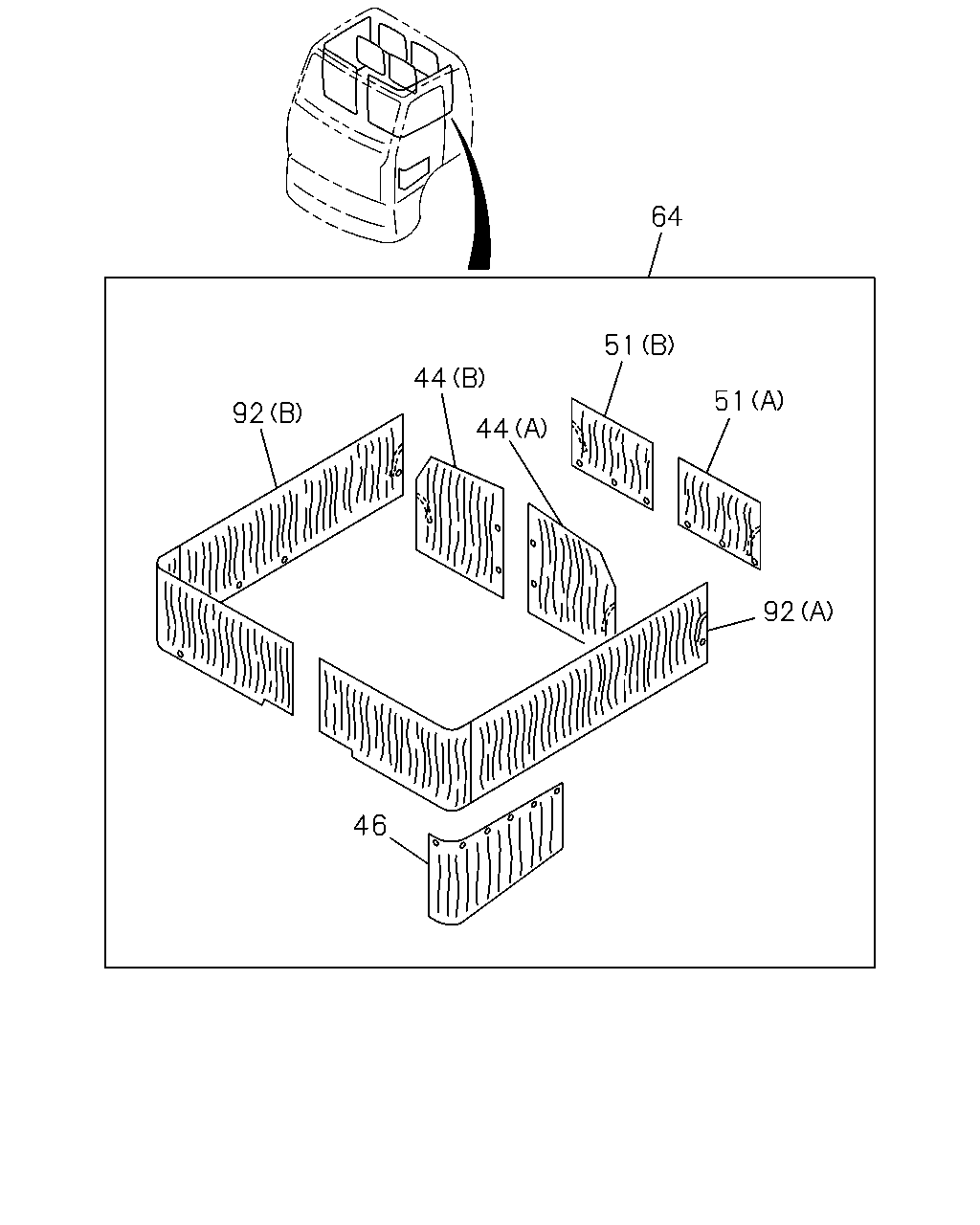

çizim 141829
64 51 44 51 92 44 92 46
BalonParca AdiParca NoAdetTipApplied Date A B
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (B) 		1-73907-504-1 01 1 1006- ●
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (A) 		1-73907-505-1 01 1 1006- ●
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73907-480-1 01 1 0710-1005 ●
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73907-480-1 01 1 1006-1202 ●
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (B) 		1-73907-480-1 01 1 1006-1202 ●
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (B) 		1-73907-480-1 01 1 1203- ● ●
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (A) 		1-73907-481-1 01 1 0710-1005 ●
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (A) 		1-73907-481-1 01 1 1006-1202 ●
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A) 		1-73907-481-1 01 1 1006-1202 ●
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A) 		1-73907-481-1 01 1 1203- ● ●
46 CURTAIN ASM; DOOR
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> 		1-73907-494-0 01 1 1006- ●
46 CURTAIN ASM; DOOR
WINDOW CURTAIN ROUND<BW4> 		1-73907-426-0 01 1 0710-1005 ●
46 CURTAIN ASM; DOOR
WINDOW CURTAIN ROUND<BW4> 		1-73907-426-0 01 1 1006-1202 ●
46 CURTAIN ASM; DOOR
WINDOW CURTAIN ROUND<BW4> LOW ROOF<6XQ> 		1-73907-426-0 01 1 1006-1202 ●
46 CURTAIN ASM; DOOR
WINDOW CURTAIN ROUND<BW4> LOW ROOF<6XQ> 		1-73907-426-0 01 1 1203- ● ●
51 CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4> (B) 		1-73907-482-1 01 1 0710-1005 ●
51 CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4> (B) 		1-73907-482-1 01 1 1006- ● ●
51 CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4> (A) 		1-73907-483-1 01 1 0710-1005 ●
51 CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4> (A) 		1-73907-483-1 01 1 1006- ● ●
64 CURTAIN KIT
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> 		1-73907-502-1 01 1 1006- ●
64 CURTAIN KIT
WINDOW CURTAIN ROUND<BW4> 		1-73907-479-1 01 1 0710-1005 ●
64 CURTAIN KIT
WINDOW CURTAIN ROUND<BW4> 		1-73907-479-1 01 1 1006-1202 ●
64 CURTAIN KIT
WINDOW CURTAIN ROUND<BW4> LOW ROOF<6XQ> 		1-73907-479-1 01 1 1006-1202 ●
64 CURTAIN KIT
WINDOW CURTAIN ROUND<BW4> LOW ROOF<6XQ> 		1-73907-479-1 01 1 1203- ● ●
92 CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4> (B) 		1-73907-484-1 01 1 0710-1005 ●
92 CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4> (B) 		1-73907-484-1 01 1 1006- ● ●
92 CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4> (A) 		1-73907-485-1 01 1 0710-1005 ●
92 CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4> (A) 		1-73907-485-1 01 1 1006- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
