◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#14679) — 26 parça

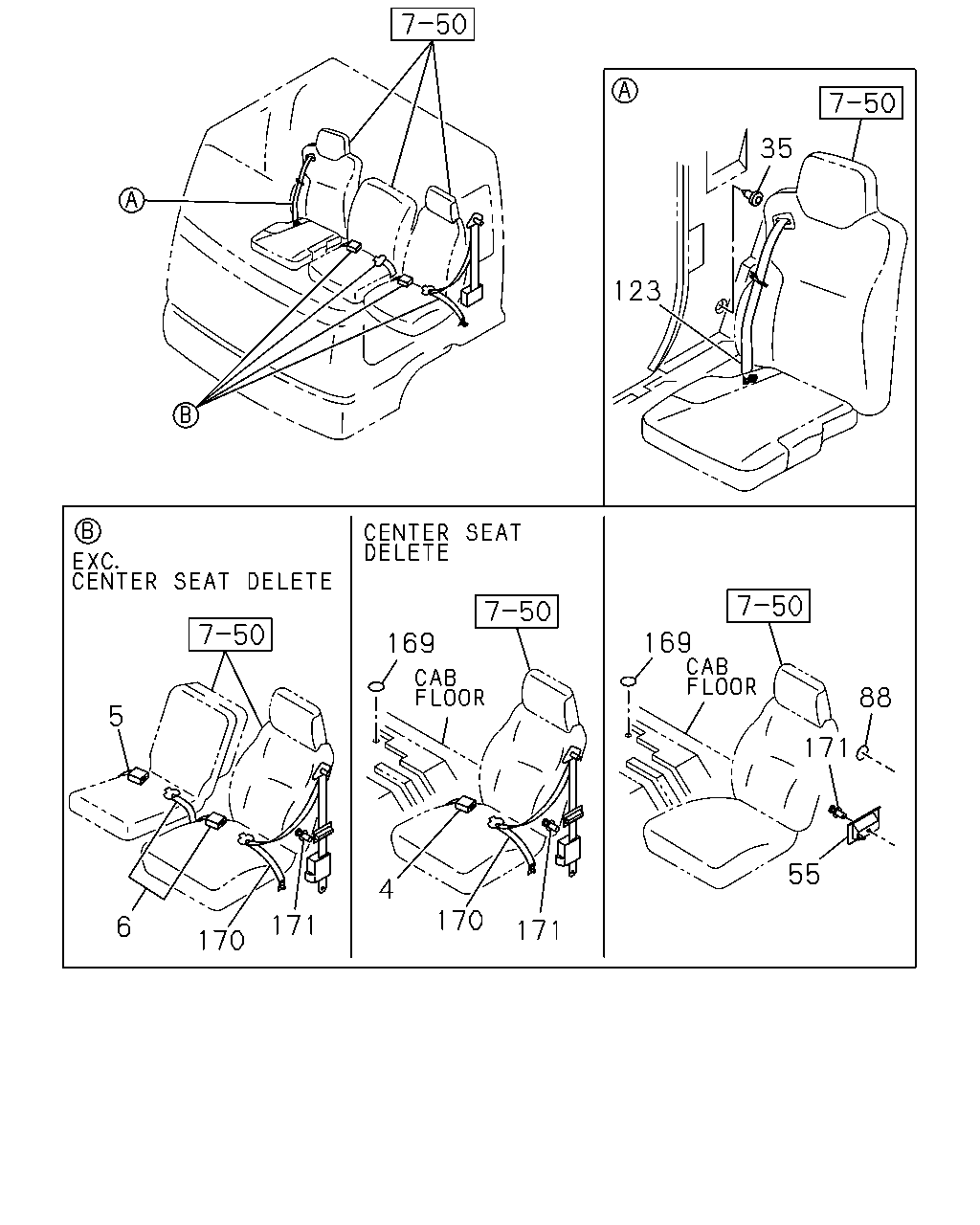

çizim 141786
35 123 169 169 88 5 171 55 4 170 171 6 171 170
BalonParca AdiParca NoAdetTipApplied Date A B
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE(SP9) 		1-75617-546-1 01 1 0710-1005 ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE(SP9) 		1-75617-546-1 01 1 1006- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
EXC. CENTER SEAT DELETE(SP9) 		1-75617-553-1 01 1 0710-1005 ●
5 BELT; CENTER SEAT,BUCKLE SIDE
EXC. CENTER SEAT DELETE(SP9) 		1-75617-553-1 01 1 1006-1310 ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
EXC. CENTER SEAT DELETE(SP9) 		8-98184-487-2 01 1 1311- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
EXC. CENTER SEAT DELETE(SP9) 		1-75618-926-3 01 1 0710-1005 ●
6 BELT; CENTER SEAT,TONGUE SIDE
EXC. CENTER SEAT DELETE(SP9) 		1-75618-926-3 01 1 1006-1310 ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
EXC. CENTER SEAT DELETE(SP9) 		8-98184-488-1 01 1 1311- ● ●
35 GROMMET; SEAT BELT ANCHOR
OD=22 		9-61168-535-0 01 1 1006- ● ●
55 GUIDE; SEAT BELT 1-75617-556-0 01 1 0710-1005 ●
55 GUIDE; SEAT BELT 1-75617-556-0 01 1 1006- ● ●
88 PLUG; HOLE
OD=31.6 		8-94198-177-0 01 1 0710-1005 ●
88 PLUG; HOLE
OD=31.6 		8-94198-177-0 01 1 1006- ● ●
123 BELT ASM; SEAT 8-98097-971-0 01 1 0710-1005 ●
123 BELT ASM; SEAT 8-98097-971-0 01 1 1006- ● ●
169 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 0710-1005 ●
169 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 1006-1006 ● ●
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 0710-1005 ●
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 1006-1006 ● ●
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 1006- ● ●
169 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1006- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75617-605-1 01 1 0710-1005 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75617-605-1 01 1 1006-1310 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 8-98184-486-1 01 1 1311- ● ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0710-1005 ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 1006- ● ●
