◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#14678) — 202 parça

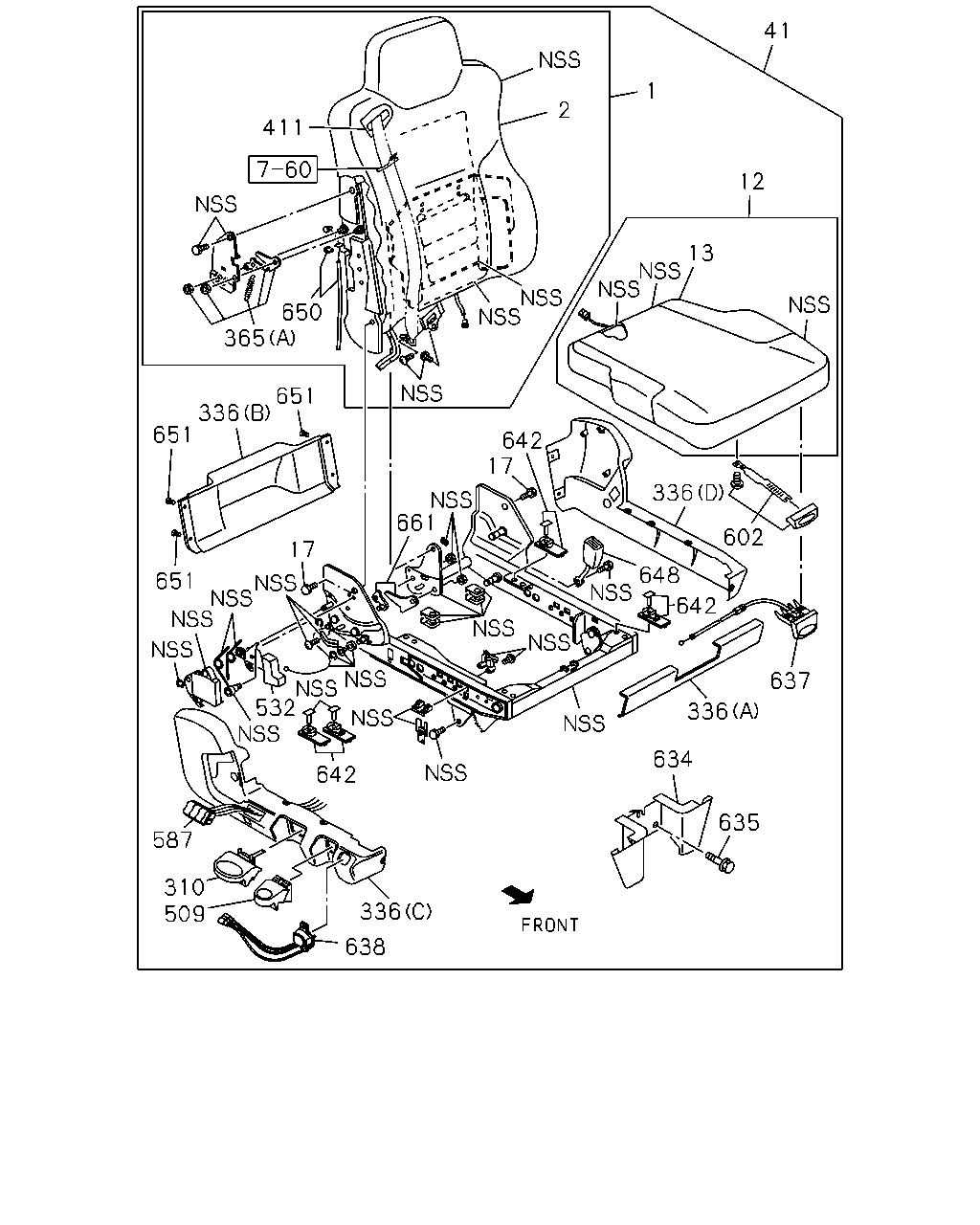

çizim 141591
41 12 1 2 13 602 336 648 642 637 336 634 635 642 17 661 411 650 365 336 651 651 17 651 587 310 509 336 638 642 532
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT 8-98097-964-0 01 1 0710-1005 ●
1 BACK ASM; SEAT 8-98097-964-0 01 1 1006- ● ●
2 COVER; TRIM,FRT SEAT,BACK 8-98097-966-0 01 1 0710-1005 ●
2 COVER; TRIM,FRT SEAT,BACK 8-98097-966-0 01 1 1006-1212 ● ●
2 COVER; TRIM,FRT SEAT,BACK 8-98232-353-0 01 1 1301- ● ●
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 0710-1005 ●
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 1006- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 0710-1005 ●
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 1006- ● ●
17 BOLT; RECLINING 8-98097-974-0 02 1 1006- ● ●
41 SEAT ASM; DRIVER 8-98036-942-2 01 1 1006-1212 ● ●
41 SEAT ASM; DRIVER 8-98195-067-1 01 1 1301- ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT 8-98097-992-0 01 1 0710-1005 ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT 8-98097-992-0 01 1 1006- ● ●
336 COVER; DRIVER SEAT
(D) 		8-98097-978-0 01 1 0710-1005 ●
336 COVER; DRIVER SEAT
(D) 		8-98097-978-0 01 1 1006-1508 ● ●
336 COVER; DRIVER SEAT
(D) 		8-98331-313-0 01 1 1509- ● ●
336 COVER; DRIVER SEAT
(C) 		8-98097-984-0 01 1 0710-1005 ●
336 COVER; DRIVER SEAT
(C) 		8-98097-984-0 01 1 1006- ● ●
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 0710-1005 ●
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 1006- ● ●
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 0710-1005 ●
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 1006- ● ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 1006- ● ●
365 LOCK ASM; SEAT
EXC. CENTER SEAT DELETE(SP9) (B) 		1-72538-180-0 01 1 0710-1005 ●
365 LOCK ASM; SEAT
EXC. CENTER SEAT DELETE(SP9) (B) 		1-72538-180-0 01 1 1006- ● ●
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 0710-1005 ●
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 1006- ● ●
509 LEVER; DAMPER 8-98097-988-0 01 1 0710-1005 ●
509 LEVER; DAMPER 8-98097-988-0 01 1 1006- ● ●
532 LEVER ASM; TILT 8-98097-982-0 01 1 0710-1005 ●
532 LEVER ASM; TILT 8-98097-982-0 01 1 1006- ● ●
587 VALVE; LUMBAR SUPPORT 8-98097-986-0 01 1 0710-1005 ●
587 VALVE; LUMBAR SUPPORT 8-98097-986-0 01 1 1006- ● ●
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 0710-1005 ●
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 1006- ● ●
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 0710-1005 ●
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 1006- ● ●
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 0710-1005 ●
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 1006- ● ●
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 0710-1005 ●
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 1006- ● ●
638 VALVE; LOWERING 8-98097-994-0 01 1 0710-1005 ●
638 VALVE; LOWERING 8-98097-994-0 01 1 1006- ● ●
642 SLIDER; CUSHION 8-98192-932-0 04 1 1006- ● ●
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 1006- ● ●
650 CABLE 8-98097-973-0 01 1 1006-1212 ● ●
650 CABLE 8-98232-354-0 01 1 1301- ● ●
651 RIVET 8-98194-075-0 04 1 1006- ● ●
661 LOCK ASM; RECLINING 8-98097-980-0 01 1 1006- ● ●

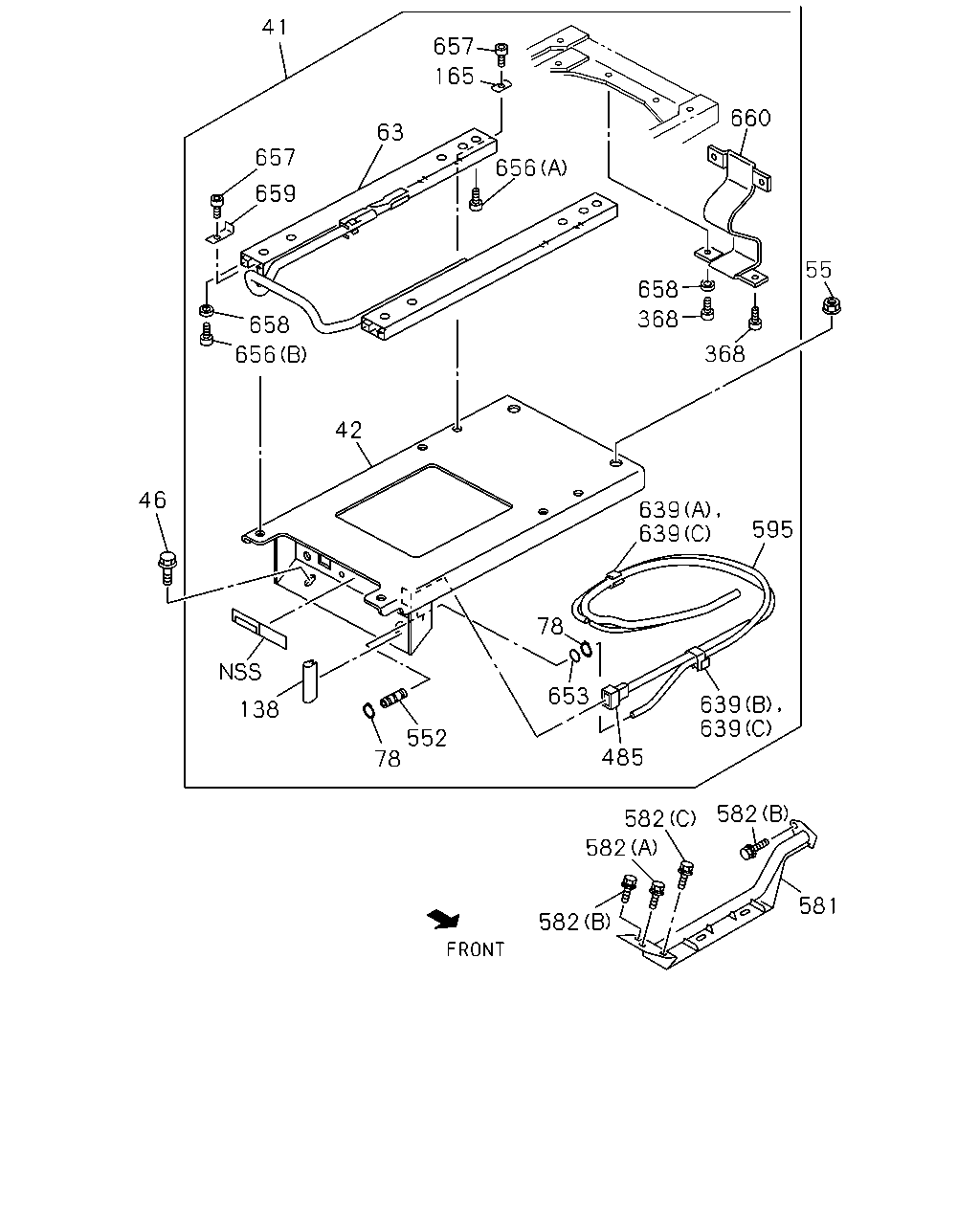

çizim 141787
41 657 63 657 659 165 656 658 660 368 55 368 639 595 639 78 653 42 656 658 46 138 78 485 639 639 582 582 582 581 582 552
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER 8-98036-942-2 01 1 1006-1212 ● ●
41 SEAT ASM; DRIVER 8-98195-067-1 01 1 1301- ● ●
42 STAND; DRIVER SEAT 8-98106-347-0 01 1 1006- ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0710-1005 ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1006- ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0710-1005 ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 1006- ● ●
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 0710-1005 ●
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 1006- ● ●
78 RING; SNAP 8-98101-900-0 02 1 1006- ● ●
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 1006- ● ●
165 WASHER; PL 1-75590-086-0 04 1 1006- ● ●
368 BOLT; SEAT 8-98106-353-0 04 1 1006- ● ●
485 HARNESS; FRT SEAT 8-98106-360-0 01 1 1006- ● ●
552 CONNECTOR 8-98101-902-0 01 1 1006-1508 ● ●
552 CONNECTOR 8-98308-101-0 01 1 1509- ● ●
581 PIPE; SEAT 1-73907-605-2 01 1 0710-1005 ●
581 PIPE; SEAT 1-73907-605-2 01 1 1006- ● ●
582 BOLT; PIPE,SEAT
(B) 		1-09980-619-1 02 1 0710-1005 ●
582 BOLT; PIPE,SEAT
(B) 		1-09980-619-1 02 1 1006- ● ●
582 BOLT; PIPE,SEAT
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0710-0904 ●
582 BOLT; PIPE,SEAT
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-1005 ●
582 BOLT; PIPE,SEAT
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1006- ● ●
582 BOLT; PIPE,SEAT
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0710-1005 ●
582 BOLT; PIPE,SEAT
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 1006- ● ●
595 TUBE; NYLON 8-98106-348-0 01 1 1006- ● ●
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 1006-1508 ● ●
639 CLIP; SEAT
(C) 		8-98308-100-0 02 1 1509- ● ●
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 1006-1508 ● ●
653 GASKET 8-98101-901-0 01 1 1006- ● ●
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 1006- ● ●
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 1006- ● ●
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 1006- ● ●
658 SPACER; BOLT 8-98106-355-0 02 1 1006- ● ●
659 STOPPER 8-98106-356-0 02 1 1006- ● ●
660 BELT; TETHER 8-98106-357-0 01 1 1006- ● ●

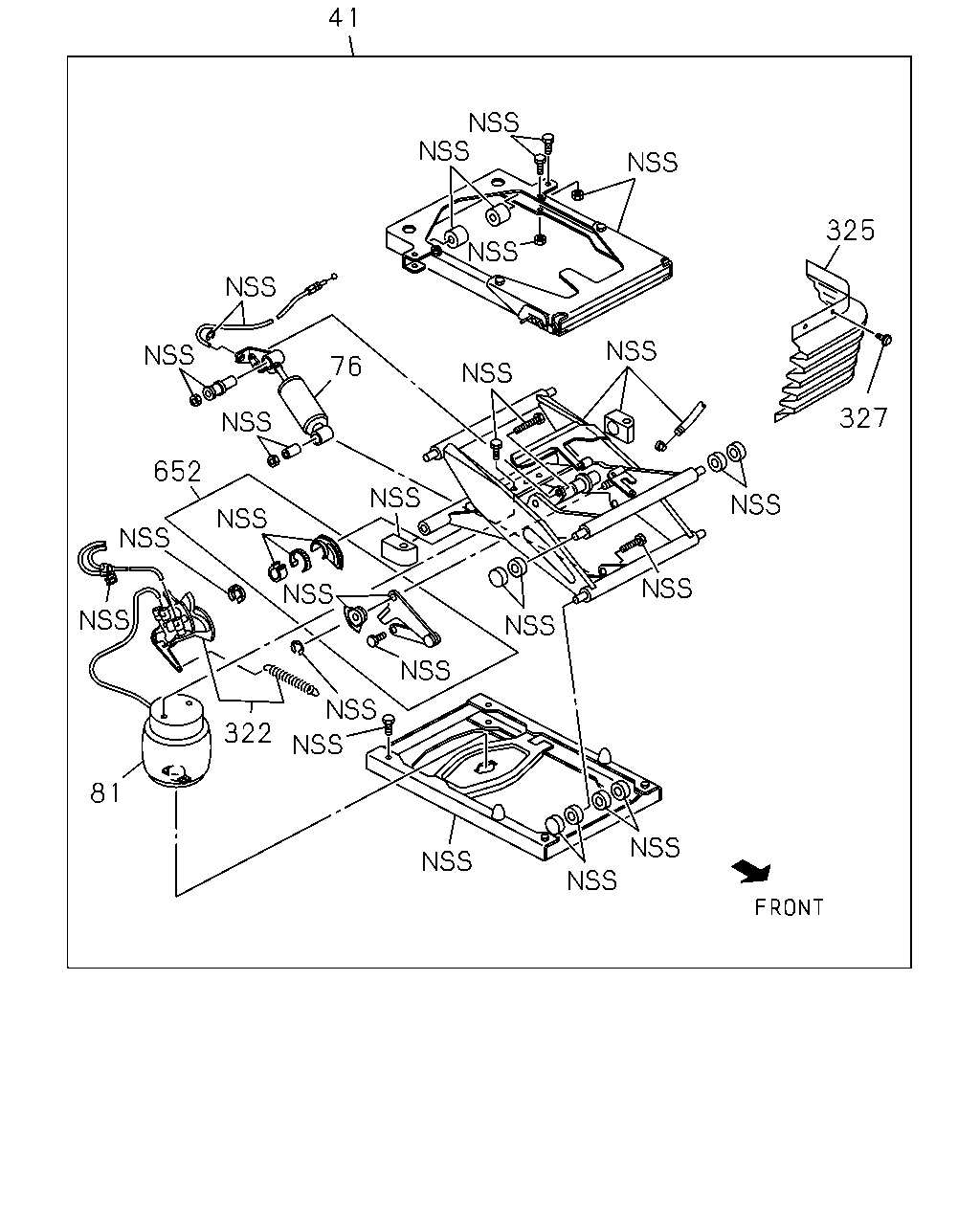

çizim 141789
327 325 76 652 322 81 41
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER 8-98036-942-2 01 1 1006-1212 ● ●
41 SEAT ASM; DRIVER 8-98195-067-1 01 1 1301- ● ●
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 0710-1005 ●
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 1006- ● ●
81 SPRING; AIR 8-98098-000-0 01 1 0710-1005 ●
81 SPRING; AIR 8-98098-000-0 01 1 1006- ● ●
322 VALVE; AIR SPRING 8-98098-001-0 01 1 0710-1005 ●
322 VALVE; AIR SPRING 8-98098-001-0 01 1 1006-1508 ● ●
322 VALVE; AIR SPRING 8-98331-314-0 01 1 1509- ● ●
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 0710-1005 ●
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 1006- ● ●
327 CLIP; COVER 8-98098-004-0 01 1 0710-1005 ●
327 CLIP; COVER 8-98098-004-0 01 1 1006- ● ●
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 1006- ● ●

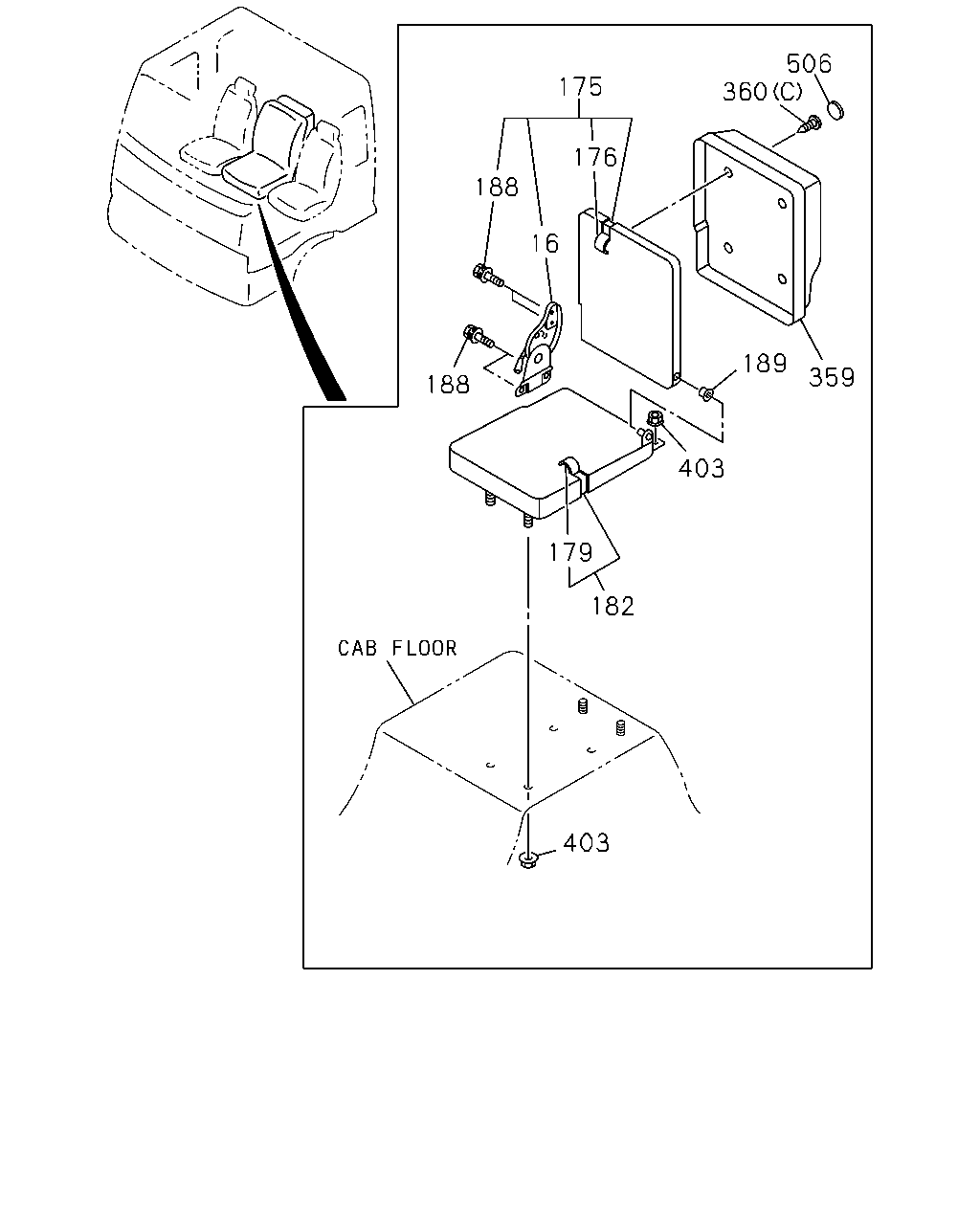

çizim 141793
175 176 188 16 188 360 506 189 359 403 179 182 403
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE(SP9) 		1-75418-062-1 01 1 0710-1005 ●
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE(SP9) 		1-75418-062-1 01 1 1006- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) 		8-98054-774-0 01 1 0710-1005 ●
175 BACK ASM; PASSENGER CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) 		8-98054-774-1 01 1 1006- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. CENTER SEAT DELETE(SP9) 		8-98054-779-0 01 1 0710-1005 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. CENTER SEAT DELETE(SP9) 		8-98054-779-0 01 1 1006- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. CENTER SEAT DELETE(SP9) 		8-98054-778-0 01 1 0710-1005 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. CENTER SEAT DELETE(SP9) 		8-98054-778-0 01 1 1006- ● ●
182 CUSHION ASM; CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) 		8-98054-772-0 01 1 0710-1005 ●
182 CUSHION ASM; CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) 		8-98054-772-2 01 1 1006- ● ●
188 BOLT; BACK TO CUSHION
EXC. CENTER SEAT DELETE(SP9) M10X16 FLANGE 		1-75198-053-0 04 1 0710-1005 ●
188 BOLT; BACK TO CUSHION
EXC. CENTER SEAT DELETE(SP9) M10X16 FLANGE 		1-75198-053-0 04 1 1006- ● ●
189 BUSHING; HINGE,CENTER SEAT BACK
EXC. CENTER SEAT DELETE(SP9) 		8-97854-900-0 01 1 0710-1005 ●
189 BUSHING; HINGE,CENTER SEAT BACK
EXC. CENTER SEAT DELETE(SP9) 		8-97854-900-0 01 1 1006- ● ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		8-98145-114-0 01 1 0910-0911 ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		1-72538-275-4 01 1 0710-1005 ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		1-72538-275-4 01 1 1006-1006 ● ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		8-98145-114-0 01 1 1007- ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0710-1005 ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 1006-1006 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007- ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 0910-0911 ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70040-416-0 06 1 0710-1005 ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70040-416-0 06 1 1006-1104 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 1105- ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0710-0909 ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 10 1 0910-0911 ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0912-1005 ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 1006-1006 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007- ● ●
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) M8 FLANGE 		0-91180-108-0 04 1 0710-1005 ●
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) M8 FLANGE 		0-91180-108-0 04 1 1006- ● ●
506 CAP; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-09983-180-3 04 1 0710-1005 ●
506 CAP; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-09983-180-3 04 1 1006-1006 ● ●
506 CAP; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-09983-180-3 02 1 1007- ● ●

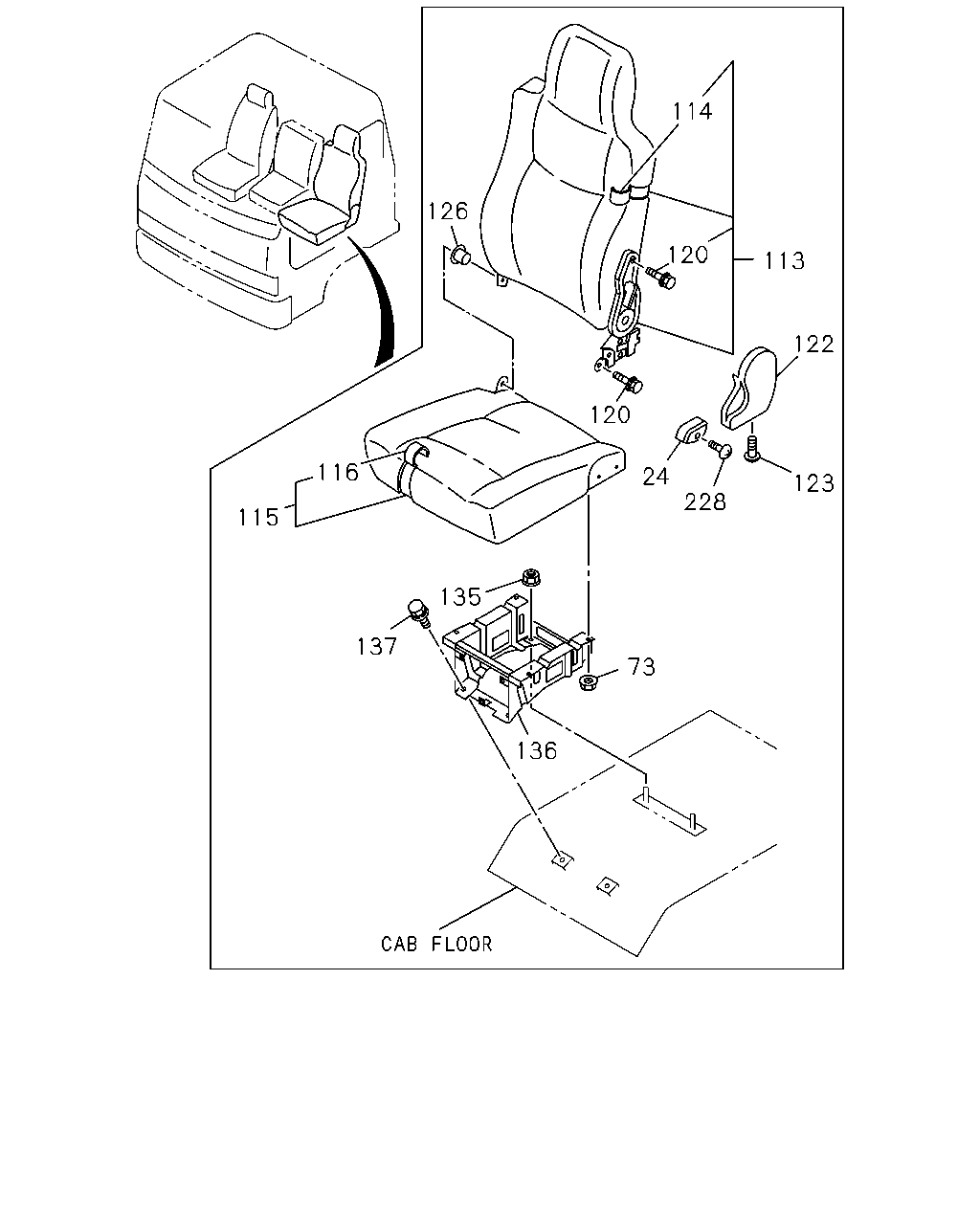

çizim 141797
114 126 113 120 122 120 24 228 123 116 115 137 135 73 136
BalonParca AdiParca NoAdetTipApplied Date A B
24 KNOB; RECLINING,FRT,SEAT 1-75418-067-0 01 1 0710-1005 ●
24 KNOB; RECLINING,FRT,SEAT 1-75418-067-0 01 1 1006- ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0710-1005 ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 1006- ● ●
113 BACK ASM; SEAT 8-98054-773-0 01 1 0710-1005 ●
113 BACK ASM; SEAT 8-98054-773-0 01 1 1006- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK 8-98054-777-0 01 1 0710-1005 ●
114 COVER; TRIM,PASSENGER SEAT,BACK 8-98054-777-0 01 1 1006- ● ●
115 CUSHION ASM; PASSENGER SEAT 8-98054-770-0 01 1 0710-1005 ●
115 CUSHION ASM; PASSENGER SEAT 8-98054-770-0 01 1 1006- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION 8-98054-775-0 01 1 0710-1005 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION 8-98054-775-0 01 1 1006- ● ●
120 BOLT; RECLINING ADJ
M8X20 		8-97255-906-0 02 1 0710-1005 ●
120 BOLT; RECLINING ADJ
M8X20 		8-97255-906-0 02 1 1006- ● ●
122 COVER; ADJ,RECLINING
DARK GRAY 		8-97859-018-0 01 1 0710-1005 ●
122 COVER; ADJ,RECLINING
DARK GRAY 		8-97859-018-0 01 1 1006- ● ●
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0710-1005 ●
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 1006- ● ●
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 0710-1005 ●
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 1006- ● ●
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 0710-1005 ●
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 1006- ● ●
136 STAND; PASSENGER SEAT 1-75558-601-3 01 1 0710-1005 ●
136 STAND; PASSENGER SEAT 1-75558-601-3 01 1 1006-1305 ● ●
136 STAND; PASSENGER SEAT 8-98242-298-0 01 1 1306- ● ●
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0710-1005 ●
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 1006- ● ●
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 0710-1005 ●
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1006- ● ●

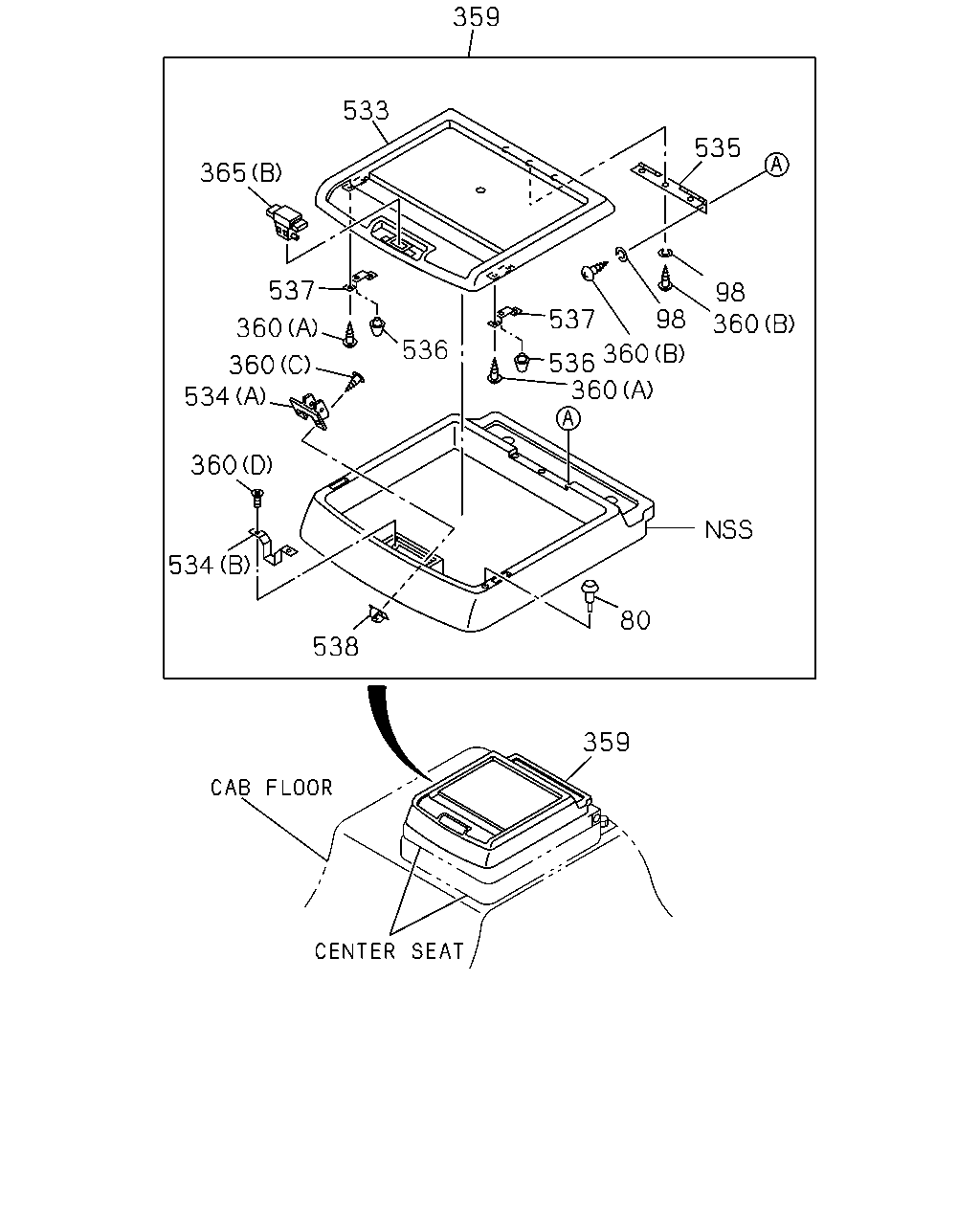

çizim 336636
535 359 533 365 537 360 360 534 360 534 538 80 360 536 537 98 98 360 360 359 536
BalonParca AdiParca NoAdetTipApplied Date A B
80 RUBBER; STOPPER
EXC. CENTER SEAT DELETE(SP9) 		1-72538-187-0 02 1 1007- ● ●
98 WASHER; HINGE
EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 0710-1005 ●
98 WASHER; HINGE
EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 1006- ● ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		8-98145-114-0 01 1 0910-0911 ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		1-72538-275-4 01 1 0710-1005 ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		1-72538-275-4 01 1 1006-1006 ● ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		8-98145-114-0 01 1 1007- ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0710-1005 ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 1006-1006 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007- ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 0910-0911 ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70040-416-0 06 1 0710-1005 ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70040-416-0 06 1 1006-1104 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 1105- ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0710-0909 ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 10 1 0910-0911 ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0912-1005 ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 1006-1006 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007- ● ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 1006- ● ●
365 LOCK ASM; SEAT
EXC. CENTER SEAT DELETE(SP9) (B) 		1-72538-180-0 01 1 0710-1005 ●
365 LOCK ASM; SEAT
EXC. CENTER SEAT DELETE(SP9) (B) 		1-72538-180-0 01 1 1006- ● ●
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		8-98145-118-0 01 1 0910-0911 ●
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-72538-277-1 01 1 0710-1005 ●
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-72538-277-1 01 1 1006-1006 ● ●
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		8-98145-118-0 01 1 1007- ● ●
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) (B) 		1-72538-190-0 01 1 0910-0911 ●
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) (A) 		1-72538-181-0 01 1 0710-1005 ●
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) (A) 		1-72538-181-0 01 1 1006-1006 ● ●
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) (B) 		1-72538-190-0 01 1 1007- ● ●
535 HINGE; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-72447-391-1 01 1 0710-1005 ●
535 HINGE; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-72447-391-1 01 1 1006- ● ●
536 RUBBER; CUSHION
EXC. CENTER SEAT DELETE(SP9) 		5-09983-002-1 02 1 0710-1005 ●
536 RUBBER; CUSHION
EXC. CENTER SEAT DELETE(SP9) 		5-09983-002-1 02 1 1006-1006 ● ●
537 BRACKET; RUBBER
EXC. CENTER SEAT DELETE(SP9) 		1-72548-057-1 02 1 0710-1005 ●
537 BRACKET; RUBBER
EXC. CENTER SEAT DELETE(SP9) 		1-72548-057-1 02 1 1006-1006 ● ●
538 GROMMET; SCREW
EXC. CENTER SEAT DELETE(SP9) 		1-09983-165-0 02 1 0710-1005 ●
538 GROMMET; SCREW
EXC. CENTER SEAT DELETE(SP9) 		1-09983-165-0 02 1 1006-1006 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
