Sayfa 7-43 - Isuzu EPC

7-43 — SUN VISOR AND ASSIST GRIP (#14676) — 207 parça

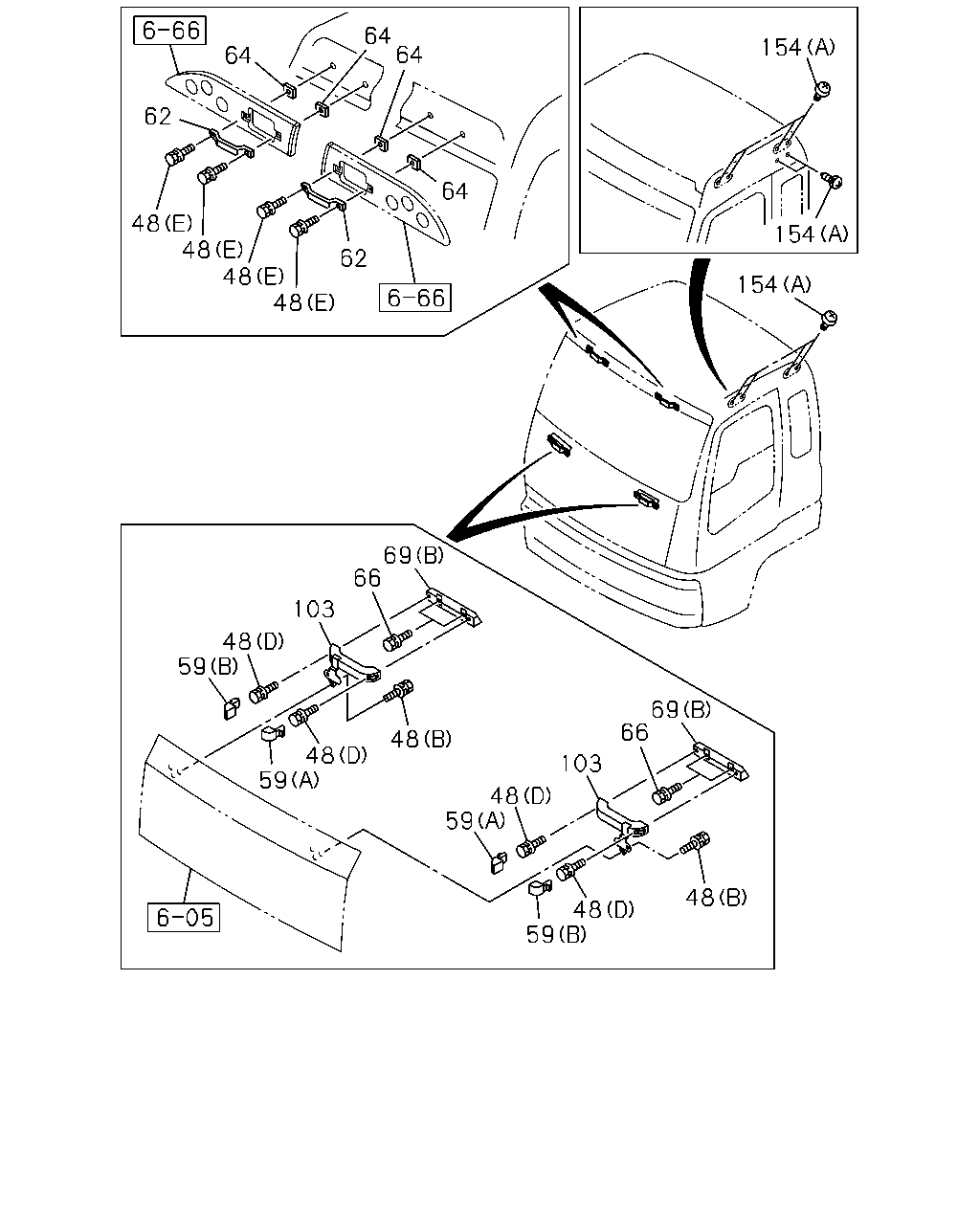

64 64 154 64 62 64 154 48 48 48 48 62 154 69 66 103 48 59 69 66 48 48 59 103 48 59 48 48 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0710-1005	●
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	1006-	●	●
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0710-1005	●
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	1006-	●	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0710-1005	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1006-	●	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0710-1005	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1006-	●	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0710-0904	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-1005	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1006-	●	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0710-1005	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	1006-	●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0710-1005	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	1006-	●	●
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0710-1005	●
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	1006-	●	●
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	0710-0908	●
62	GRIP; ASSIST,ROOF PANEL	8-97630-819-0	02	1	0909-1005	●
62	GRIP; ASSIST,ROOF PANEL	8-97630-819-0	02	1	1006-	●	●
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	0710-1005	●
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	1006-	●	●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0710-1005	●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	1006-	●	●
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0710-1005	●
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	1006-	●	●
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0710-1005	●
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	1006-	●	●
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0710-1005	●
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	1006-	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	0710-1005	●
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	1006-	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	0710-1005	●
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	1006-	●	●
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	1006-		●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0710-1005	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	1006-	●	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0710-1005	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1006-1202	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> LOW ROOF<6XQ> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1006-1202		●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> LOW ROOF<6XQ> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1203-	●	●
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0710-1005	●
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1006-1202	●
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1006-1202		●
154	BOLT; SUPPORT LOW ROOF<6XQ> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1006-1202		●
154	BOLT; SUPPORT LOW ROOF<6XQ> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1203-	●	●
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1203-		●

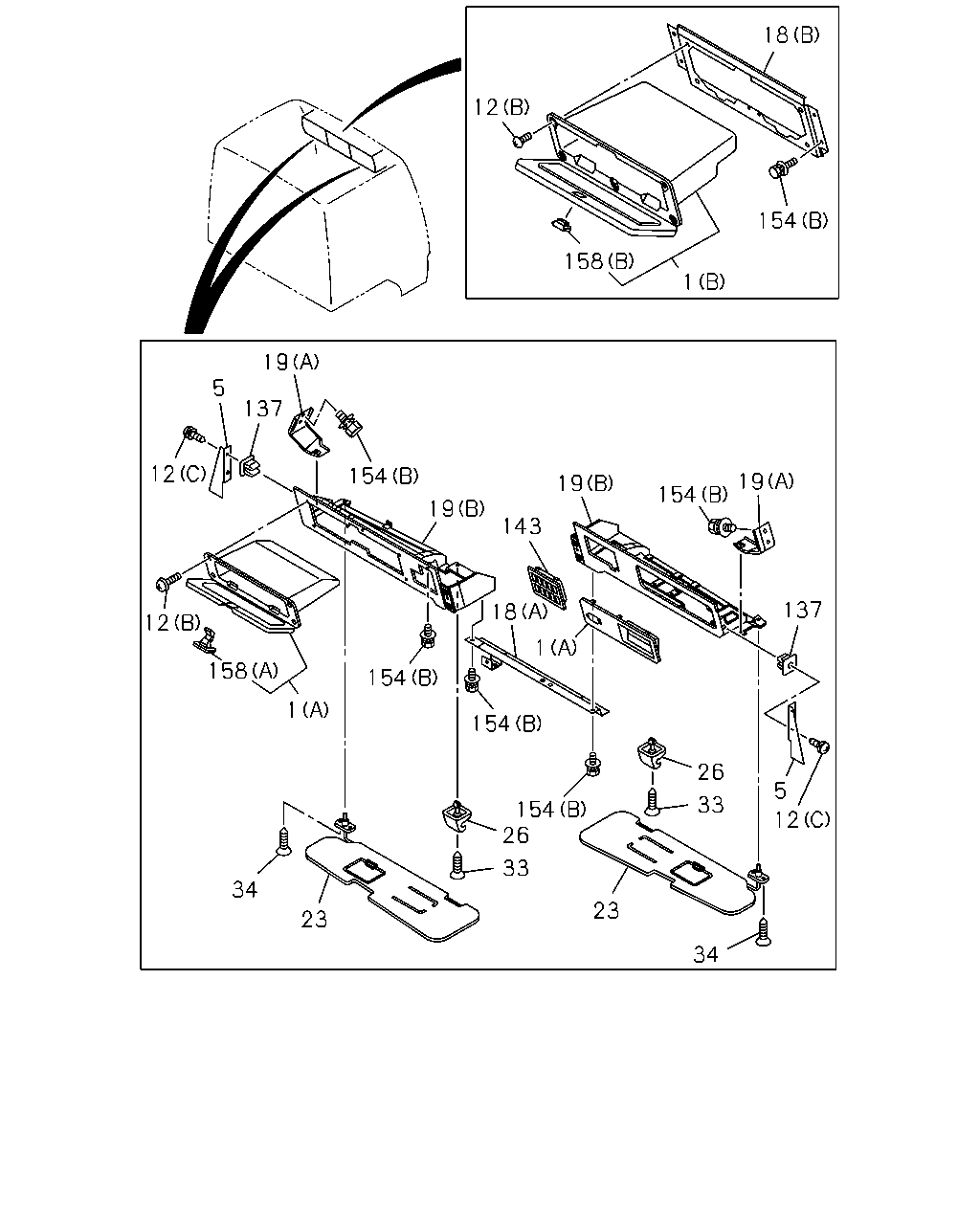

18 12 154 158 1 19 5 137 12 154 19 19 154 19 143 18 137 12 1 18 154 1 154 26 5 33 154 26 12 33 34 23 23 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-886-7	01	1	1006-		●
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	1006-		●
1	BOARD; HEADER SHELF (B)	1-72447-968-0	01	1	0710-1005	●
1	BOARD; HEADER SHELF (B)	1-72447-968-0	01	1	1006-	●	●
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0710-1005	●
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	1006-	●	●
1	BOARD; HEADER SHELF TACHOGRAPH 120KM/H<SM8> (A)	1-72447-760-4	01	1	0710-0803	●
1	BOARD; HEADER SHELF (A)	1-72447-760-4	01	1	0804-	●
1	BOARD; HEADER SHELF EXC. TACHOGRAPH 120KM/H<SM8> (A)	1-72447-876-4	01	1	0710-0803	●
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-932-0	01	1	1006-		●
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-933-0	01	1	1006-		●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	1006-		●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	1006-		●
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	08	1	0710-1005	●
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	08	1	1006-	●	●
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0710-1005	●
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	1006-	●	●
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-877-2	01	1	0710-0909	●
18	SUPPORT; HEADER SHELF CENTER (A)	8-98118-217-1	01	1	0910-1005	●
18	SUPPORT; HEADER SHELF CENTER (A)	8-98118-217-1	01	1	1006-	●	●
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-879-7	01	1	0710-1005	●
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-879-7	01	1	1006-	●	●
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	0710-1005	●
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	1006-	●	●
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	0710-1005	●
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	1006-	●	●
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	0710-1005	●
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	1006-	●	●
23	SUN VISOR	1-73138-157-1	01	1	0710-1005	●
23	SUN VISOR	1-73138-157-1	01	1	1006-	●	●
23	SUN VISOR	1-73138-162-0	01	1	0710-1005	●
23	SUN VISOR	1-73138-162-0	01	1	1006-	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	0710-1005	●
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	0710-1005	●
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	1006-	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	1006-	●	●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0710-1005	●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0710-1005	●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1006-	●	●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1006-	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0710-1005	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	1006-	●	●
137	GROMMET; SCREW,HEADER SHELF HIGH ROOF<S2F> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	1006-		●
143	BEZEL	1-72447-768-2	01	1	0710-1005	●
143	BEZEL	1-72447-768-2	01	1	1006-	●	●
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	1006-		●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0710-1005	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	1006-	●	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0710-1005	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1006-1202	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> LOW ROOF<6XQ> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1006-1202		●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> LOW ROOF<6XQ> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1203-	●	●
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0710-1005	●
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1006-1202	●
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1006-1202		●
154	BOLT; SUPPORT LOW ROOF<6XQ> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1006-1202		●
154	BOLT; SUPPORT LOW ROOF<6XQ> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1203-	●	●
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1203-		●
158	LOCK; HEADER SHELF (B)	1-72538-312-0	01	1	0710-1005	●
158	LOCK; HEADER SHELF (B)	1-72538-312-0	01	1	1006-	●	●
158	LOCK; HEADER SHELF (A)	1-72448-376-0	01	1	0710-1005	●
158	LOCK; HEADER SHELF (A)	1-72448-376-0	01	1	1006-	●	●

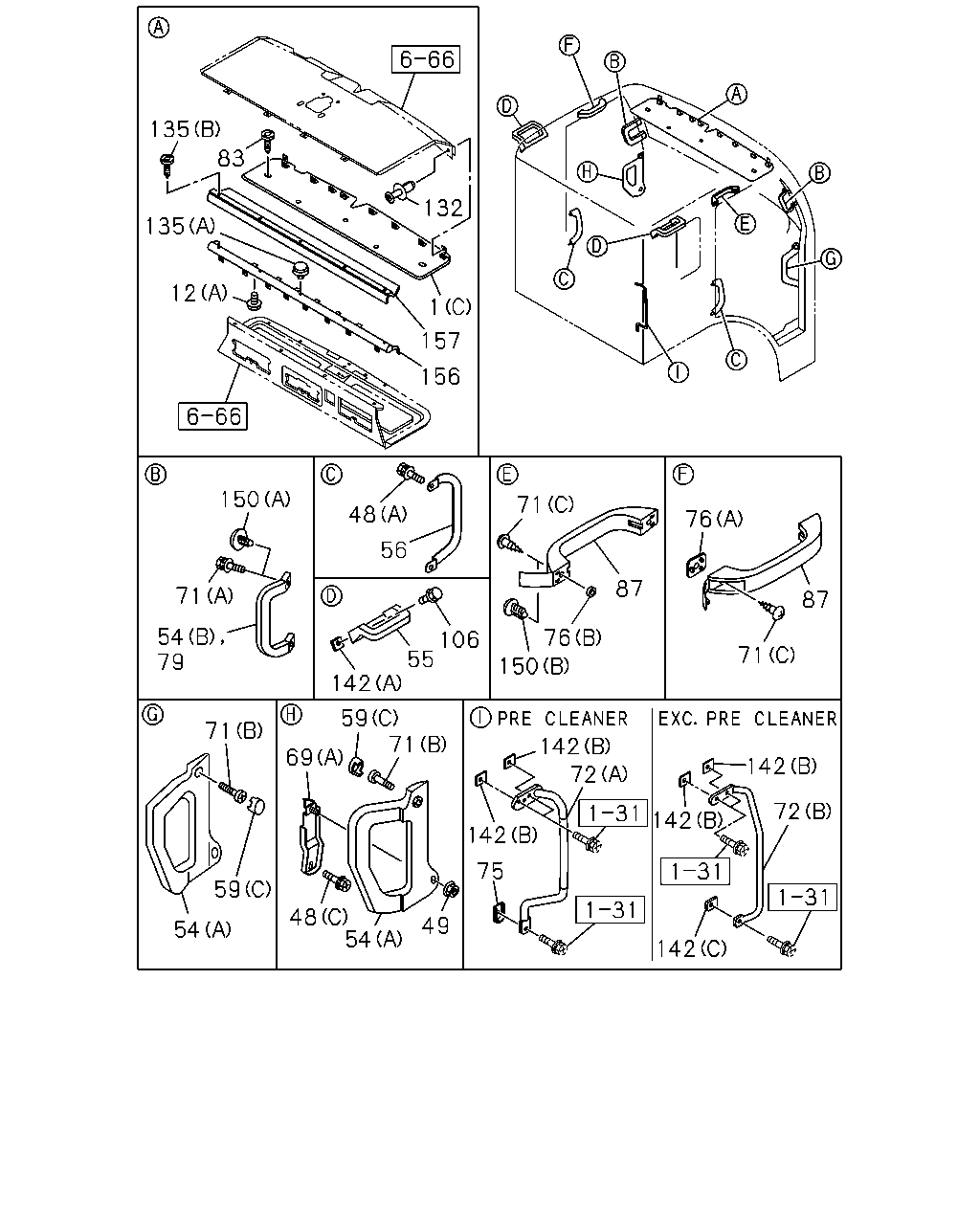

135 83 132 135 12 1 157 156 150 71 48 76 56 87 71 87 54 79 76 106 55 71 150 142 59 71 71 142 72 69 142 142 72 142 75 59 48 54 49 54 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-886-7	01	1	1006-		●
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	1006-		●
1	BOARD; HEADER SHELF (B)	1-72447-968-0	01	1	0710-1005	●
1	BOARD; HEADER SHELF (B)	1-72447-968-0	01	1	1006-	●	●
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0710-1005	●
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	1006-	●	●
1	BOARD; HEADER SHELF TACHOGRAPH 120KM/H<SM8> (A)	1-72447-760-4	01	1	0710-0803	●
1	BOARD; HEADER SHELF (A)	1-72447-760-4	01	1	0804-	●
1	BOARD; HEADER SHELF EXC. TACHOGRAPH 120KM/H<SM8> (A)	1-72447-876-4	01	1	0710-0803	●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	1006-		●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	1006-		●
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	08	1	0710-1005	●
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	08	1	1006-	●	●
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0710-1005	●
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	1006-	●	●
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0710-1005	●
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	1006-	●	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0710-1005	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1006-	●	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0710-1005	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1006-	●	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0710-0904	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-1005	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1006-	●	●
49	NUT; ASSIST GRIP M6 FLANGE	0-91180-106-0	01	1	0710-1005	●
49	NUT; ASSIST GRIP M6 FLANGE	0-91180-106-0	01	1	1006-	●	●
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	02	1	1006-		●
54	GRIP; ASSIST,QUARTER SIDE EXC. ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	01	1	0710-0904	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	0710-1005	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	1006-	●	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-563-1	01	1	0710-1005	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-563-1	01	1	1006-	●	●
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	02	1	0710-0904	●
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	01	1	0905-	●
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	02	1	0710-1005	●
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	02	1	1006-	●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0710-0804	●
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	0805-1005	●
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	1006-	●	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0710-1005	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	1006-	●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0710-1005	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	1006-	●	●
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0710-1005	●
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	1006-	●	●
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0710-1005	●
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	1006-	●	●
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0710-1005	●
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	1006-	●	●
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0710-1005	●
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	1006-	●	●
71	SCREW ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	1006-		●
71	SCREW EXC. ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	02	1	0710-1005	●
71	SCREW EXC. ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	02	1	1006-	●	●
71	SCREW EXC. ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0710-0904	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0710-1005	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	1006-	●	●
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	0710-1005	●
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	1006-	●	●
71	SCREW ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0710-0904	●
71	SCREW (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0905-	●
71	SCREW ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0905-	●
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52> (A)	1-71907-544-0	01	1	1006-1006		●
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52> (A)	1-71907-540-0	01	1	1007-		●
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (B)	1-71907-608-1	01	1	1006-		●
75	SHEET; ASSIST GRIP,CAB ENTRY PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71997-548-0	01	1	1006-		●
76	SPACER; ASSIST GRIP (A)	1-73618-180-0	02	1	0710-1005	●
76	SPACER; ASSIST GRIP (A)	1-73618-180-0	02	1	1006-1202	●
76	SPACER; ASSIST GRIP LOW ROOF<6XQ> (A)	1-73618-180-0	02	1	1006-1202		●
76	SPACER; ASSIST GRIP LOW ROOF<6XQ> (A)	1-73618-180-0	02	1	1203-	●	●
76	SPACER; ASSIST GRIP ASSIST GRIP A POST<NBK> (B) OD=13 T=4.5	8-94230-464-1	02	1	0710-1005	●
76	SPACER; ASSIST GRIP ASSIST GRIP A POST<NBK> (B) OD=13 T=4.5	8-94230-464-1	02	1	1006-1202	●
76	SPACER; ASSIST GRIP ASSIST GRIP A POST<NBK> LOW ROOF<6XQ> (B) OD=13 T=4.5	8-94230-464-1	02	1	1006-1202		●
76	SPACER; ASSIST GRIP ASSIST GRIP A POST<NBK> LOW ROOF<6XQ> (B) OD=13 T=4.5	8-94230-464-1	02	1	1203-	●	●
79	GRIP; ASSIST	1-73618-185-1	01	1	0905-	●
83	PLUG HIGH ROOF<S2F> D6X23 LIGHT GRAY	1-73318-629-0	03	1	1006-		●
87	GRIP; ASSIST,CANT RAIL SIDE EXC. ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	01	1	0710-1005	●
87	GRIP; ASSIST,CANT RAIL SIDE EXC. ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	01	1	1006-	●	●
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	02	1	0710-1005	●
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	02	1	1006-	●	●
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0710-1005	●
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1006-	●	●
132	FASTENER; BOARD,HEADER SHELF HIGH ROOF<S2F> D8X13.5	1-09987-276-0	08	1	1006-		●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) D8X13.5	1-09987-248-1	01	1	1006-		●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY	1-73318-629-0	05	1	1006-		●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-1	02	1	1006-		●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (C)	1-71907-604-0	01	1	1006-		●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	0710-1005	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	1006-	●	●
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP A POST<NBK> (A) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0905-1005	●
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP A POST<NBK> (A) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	1006-	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (A) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	1006-		●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (B) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0710-1005	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (B) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	1006-	●	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (A) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0710-0904	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (A) OD=6 L=17 DARK GRAY	1-73996-364-0	04	1	0905-	●
156	PIPE; HEADER SHELF HIGH ROOF<S2F>	1-72447-864-2	01	1	1006-		●
157	FINISHER; PIPE HIGH ROOF<S2F>	1-72447-885-5	01	1	1006-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
