Isuzu WW
▶
TRUCKS
▶
CXZ
▶
11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-30 - LOCK CYLINDER SET
▶

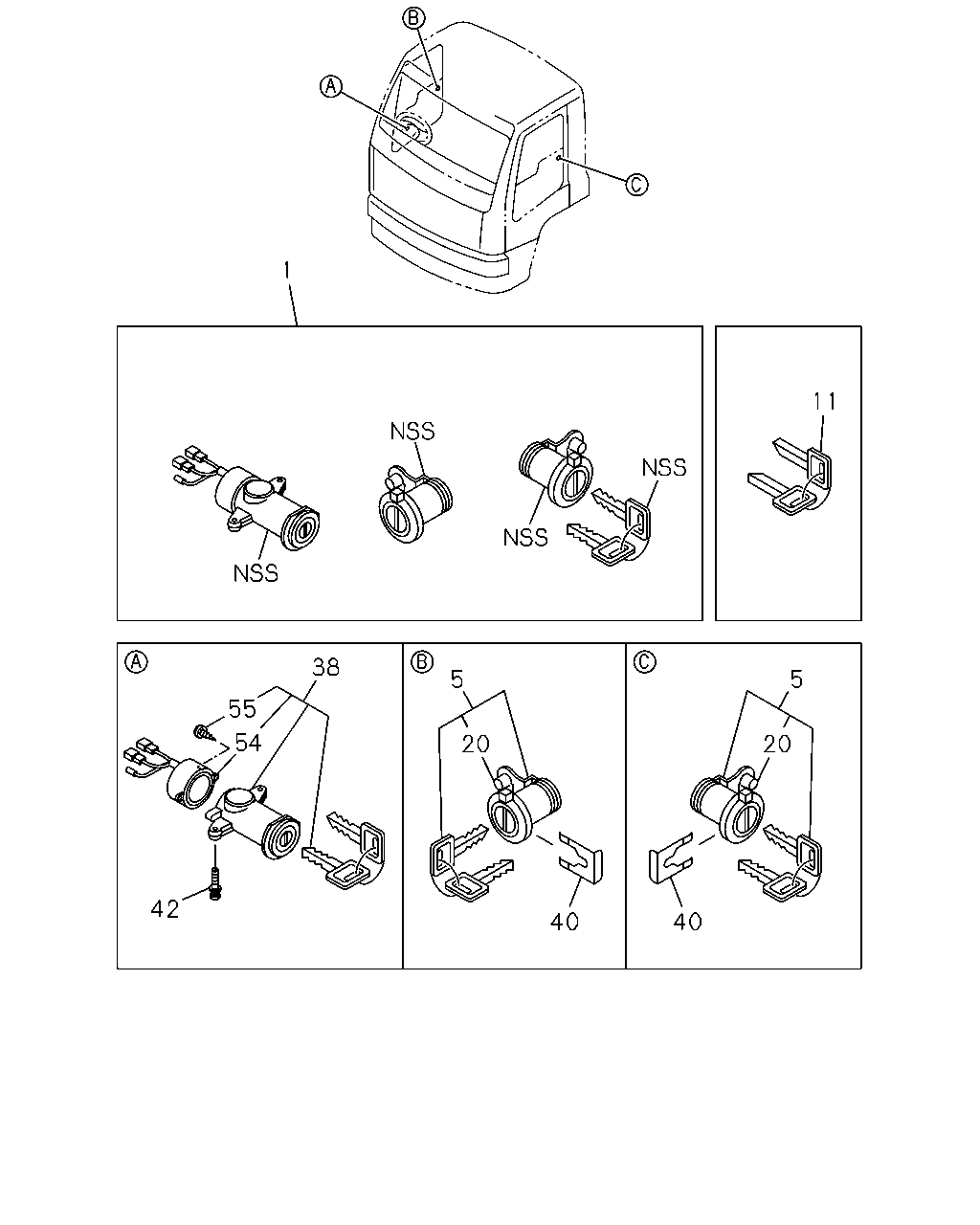

7-30 — LOCK CYLINDER SET
(#14674) — 24 parça
Tümü
A - CXZ5MC
B - CYZ5MC
1
11
38
5
5
55
54
20
20
42
40
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CYLINDER SET; CAR LOCK
1-79138-199-4
01
1
0710-1005
●
1
CYLINDER SET; CAR LOCK
1-79138-199-5
01
1
1006-
●
●
5
CYLINDER ASM; DOOR LOCK
1-79138-202-2
01
1
0710-1005
●
5
CYLINDER ASM; DOOR LOCK
1-79138-202-2
01
1
1006-
●
●
5
CYLINDER ASM; DOOR LOCK
1-79138-203-2
01
1
0710-1005
●
5
CYLINDER ASM; DOOR LOCK
1-79138-203-2
01
1
1006-
●
●
11
KEY; BLANK
W0/RESIN
1-79137-129-1
AR
1
0710-1005
●
11
KEY; BLANK
W0/RESIN
1-79137-129-1
AR
1
1006-
●
●
11
KEY; BLANK
W/RESIN
1-79137-130-1
AR
1
0710-1005
●
11
KEY; BLANK
W/RESIN
1-79137-130-1
AR
1
1006-
●
●
20
SNAP; DOOR LOCK CYL
PINK
1-79138-192-0
01
1
0710-1005
●
20
SNAP; DOOR LOCK CYL
PINK
1-79138-192-0
01
1
1006-
●
●
20
SNAP; DOOR LOCK CYL
GREEN
1-79138-193-0
01
1
0710-1005
●
20
SNAP; DOOR LOCK CYL
GREEN
1-79138-193-0
01
1
1006-
●
●
38
LOCK ASM; STRG
1-79138-201-2
01
1
0710-1005
●
38
LOCK ASM; STRG
1-79138-201-2
01
1
1006-
●
●
40
CLIP; CYL LK
1-79137-033-1
02
1
0710-1005
●
40
CLIP; CYL LK
1-79137-033-1
02
1
1006-
●
●
42
BOLT; STRG LOCK
M8X30 TORQUE SHEAR BOLT
1-09980-621-1
02
1
0710-1005
●
42
BOLT; STRG LOCK
M8X30 TORQUE SHEAR BOLT
1-09980-621-1
02
1
1006-
●
●
54
SWITCH ASM; STRG LOCK CYL
1-79137-050-1
01
1
0710-1005
●
54
SWITCH ASM; STRG LOCK CYL
1-79137-050-2
01
1
1006-
●
●
55
SCREW; SWITCH
M3X10 W/LK WASHER
9-03910-310-0
02
1
0710-1005
●
55
SCREW; SWITCH
M3X10 W/LK WASHER
9-03910-310-0
02
1
1006-
●
●
