◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#14673) — 160 parça

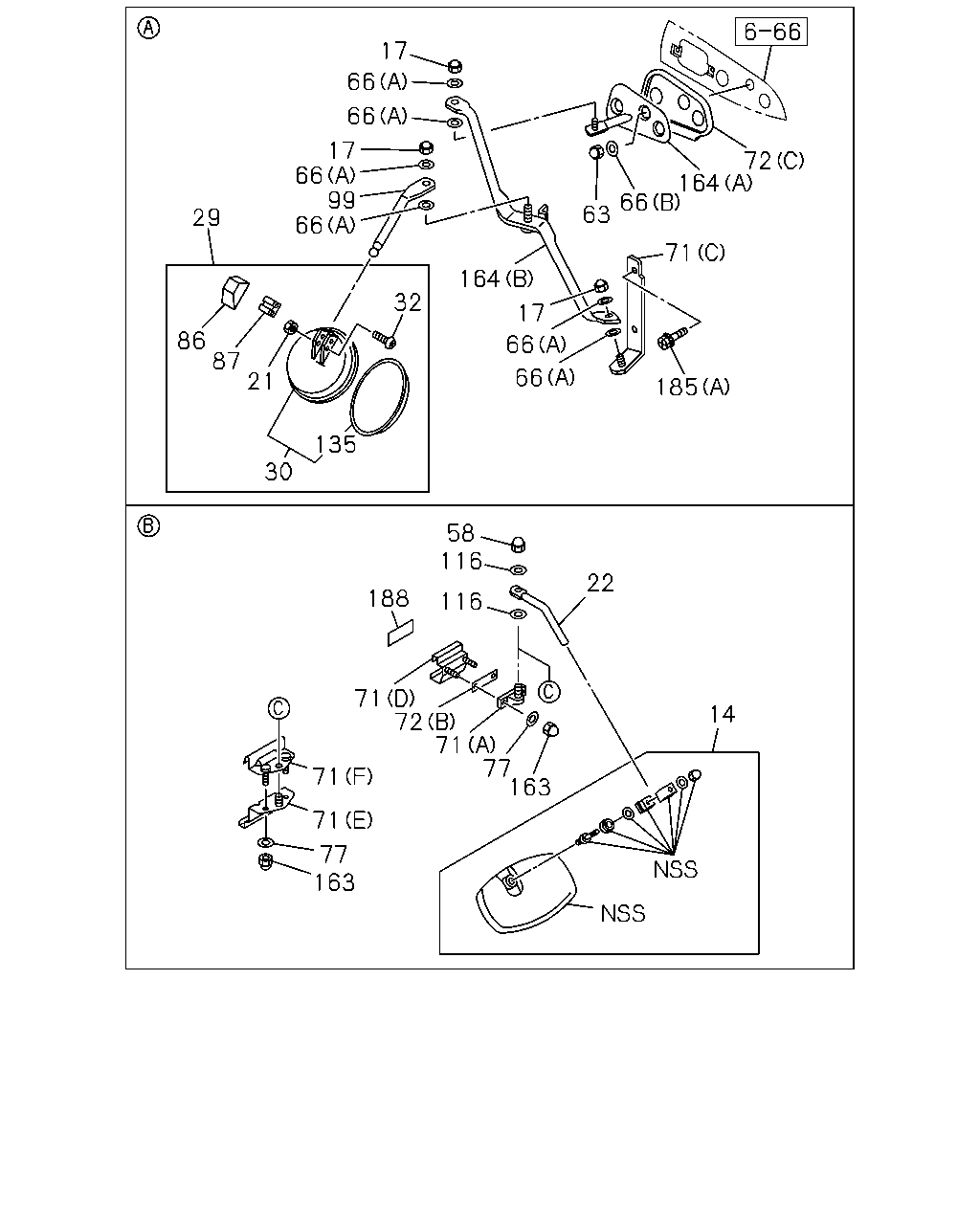

çizim 141758
17 66 66 17 66 99 66 72 164 66 63 29 71 164 32 17 86 87 21 66 66 185 135 30 58 116 22 188 116 71 72 71 77 163 14 71 71 77 163
BalonParca AdiParca NoAdetTipApplied Date A B
14 MIRROR ASM; OUTSIDE 1-71798-861-1 01 1 0710-1005 ●
14 MIRROR ASM; OUTSIDE 1-71798-861-1 01 1 1006-1103 ● ●
14 MIRROR ASM; OUTSIDE 1-71798-895-0 01 1 1104- ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 07 1 0710-1005 ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 07 1 1006- ● ●
21 NUT; MIRROR
M5 		1-09984-124-0 02 1 0710-1005 ●
21 NUT; MIRROR
M5 		1-09984-124-0 02 1 1006- ● ●
22 STAY; OUTSIDE MIRROR 1-71798-663-1 01 1 0710-1005 ●
22 STAY; OUTSIDE MIRROR 1-71798-663-1 01 1 1006- ● ●
29 MIRROR ASM; UNDER 1-71798-422-0 01 1 0710-1005 ●
29 MIRROR ASM; UNDER 1-71798-422-0 01 1 1006- ● ●
30 MIRROR; UNDER 1-71798-591-1 01 1 0710-1005 ●
30 MIRROR; UNDER 1-71798-591-1 01 1 1006- ● ●
32 SCREW; UNDER MIRROR
M5X40 W/PL WASHER 		1-71737-797-0 02 1 0710-1005 ●
32 SCREW; UNDER MIRROR
M5X40 W/PL WASHER 		1-71737-797-0 02 1 1006- ● ●
58 NUT; MIRROR STAY
M10 		1-09984-183-0 01 1 0710-1005 ●
58 NUT; MIRROR STAY
M10 		1-09984-183-0 01 1 1006- ● ●
63 NUT; STAY
M8 		1-09984-187-0 03 1 0710-1005 ●
63 NUT; STAY
M8 		1-09984-187-0 03 1 1006- ● ●
66 WASHER; PL
(A) ID=10.5 OD=26 T=2.6 		1-09985-184-0 14 1 0710-1005 ●
66 WASHER; PL
(A) ID=10.5 OD=26 T=2.6 		1-09985-184-0 14 1 1006- ● ●
66 WASHER; PL
(B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 03 1 0710-1005 ●
66 WASHER; PL
(B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 03 1 1006- ● ●
71 BRACKET; OUTSIDE MIRROR
(F) 		8-98099-810-0 01 1 0804-1005 ●
71 BRACKET; OUTSIDE MIRROR
(F) 		8-98099-810-0 01 1 1006- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-484-1 03 1 0710-0803 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-484-1 02 1 0804-1005 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-484-1 02 1 1006- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-486-2 02 1 0710-1005 ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-486-2 02 1 1006- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71707-255-2 01 1 0710-1005 ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71707-255-2 01 1 1006- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		1-71798-664-2 01 1 0710-0803 ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98099-811-0 01 1 0804-1005 ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98099-811-0 01 1 1006-1007 ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98167-111-0 01 1 1008- ● ●
72 SHEET
HIGH ROOF<S2F> (C) 		1-71797-799-1 01 1 1006- ●
72 SHEET
(B) 		1-71798-487-3 03 1 0710-0803 ●
72 SHEET
(B) 		1-71798-487-3 02 1 0804-1005 ●
72 SHEET
(B) 		1-71798-487-3 02 1 1006- ● ●
72 SHEET
(A) 		1-71798-488-1 02 1 0710-1005 ●
72 SHEET
(A) 		1-71798-488-1 02 1 1006- ● ●
77 WASHER; PL,BRKT,STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 0710-1005 ●
77 WASHER; PL,BRKT,STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 1006- ● ●
86 COVER; STAY,OUTSIDE MIRROR
BLACK 		1-71737-649-1 01 1 0710-1005 ●
86 COVER; STAY,OUTSIDE MIRROR
BLACK 		1-71737-649-1 01 1 1006- ● ●
87 SPACER 1-71737-646-2 01 1 0710-1005 ●
87 SPACER 1-71737-646-2 01 1 1006- ● ●
99 STAY; MAIN UNDER MIRROR 1-71707-265-1 01 1 0710-1005 ●
99 STAY; MAIN UNDER MIRROR 1-71707-265-1 01 1 1006- ● ●
116 WASHER; PL,STAY,MIRROR
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 0710-1005 ●
116 WASHER; PL,STAY,MIRROR
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1006- ● ●
135 LENS; MIRROR,SIDE UNDER 1-71798-838-0 01 1 0710-1005 ●
135 LENS; MIRROR,SIDE UNDER 1-71798-838-0 01 1 1006- ● ●
163 NUT; MIRROR BRKT
M8 		1-09984-187-0 02 1 0710-0910 ●
163 NUT; MIRROR BRKT
M8 CAP NUT 		8-98059-914-0 02 1 0911-1005 ●
163 NUT; MIRROR BRKT
M8 CAP NUT 		8-98059-914-0 02 1 1006- ● ●
164 STAY; ROOF
(A) 		1-71707-248-2 01 1 0710-1005 ●
164 STAY; ROOF
(A) 		1-71707-248-2 01 1 1006- ● ●
164 STAY; ROOF
(B) 		1-71707-266-1 01 1 0710-1005 ●
164 STAY; ROOF
(B) 		1-71707-266-1 01 1 1006- ● ●
185 BOLT; BRKT
(A) M5X16 		1-71707-259-0 02 1 0710-1005 ●
185 BOLT; BRKT
(A) M5X16 		1-71707-259-0 02 1 1006- ● ●
185 BOLT; BRKT
(B) M8X35 FLANGE 		8-98046-876-0 04 1 0710-1005 ●
185 BOLT; BRKT
(B) M8X35 FLANGE 		8-98046-876-0 04 1 1006- ● ●
185 BOLT; BRKT
(C) M6X16 FLANGE 		0-28660-616-0 01 1 0710-1005 ●
185 BOLT; BRKT
(C) M6X16 FLANGE 		0-28660-616-0 01 1 1006- ● ●
188 SEAL; PROTECTOR 1-72497-049-0 01 1 0710-0803 ●
çizim 141761
17 66 66 181 72 71 151 69 49 17 90 66 66 72 71 185
BalonParca AdiParca NoAdetTipApplied Date A B
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 07 1 0710-1005 ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 07 1 1006- ● ●
49 STAY; MIRROR SIDE 1-71798-491-3 01 1 0710-1005 ●
49 STAY; MIRROR SIDE 1-71798-491-3 01 1 1006-1309 ● ●
49 STAY; MIRROR SIDE 1-71798-490-3 01 1 0710-1005 ●
49 STAY; MIRROR SIDE 1-71798-490-3 01 1 1006-1309 ● ●
66 WASHER; PL
(A) ID=10.5 OD=26 T=2.6 		1-09985-184-0 14 1 0710-1005 ●
66 WASHER; PL
(A) ID=10.5 OD=26 T=2.6 		1-09985-184-0 14 1 1006- ● ●
66 WASHER; PL
(B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 03 1 0710-1005 ●
66 WASHER; PL
(B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 03 1 1006- ● ●
69 NUT; CAP
M8 		1-09984-187-0 04 1 0710-0809 ●
69 NUT; CAP
M8 CAP NUT 		8-98059-914-0 04 1 0810-1005 ●
69 NUT; CAP
M8 CAP NUT 		8-98059-914-0 04 1 1006- ● ●
71 BRACKET; OUTSIDE MIRROR
(F) 		8-98099-810-0 01 1 0804-1005 ●
71 BRACKET; OUTSIDE MIRROR
(F) 		8-98099-810-0 01 1 1006- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-484-1 03 1 0710-0803 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-484-1 02 1 0804-1005 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-484-1 02 1 1006- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-486-2 02 1 0710-1005 ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-486-2 02 1 1006- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71707-255-2 01 1 0710-1005 ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71707-255-2 01 1 1006- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		1-71798-664-2 01 1 0710-0803 ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98099-811-0 01 1 0804-1005 ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98099-811-0 01 1 1006-1007 ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98167-111-0 01 1 1008- ● ●
72 SHEET
HIGH ROOF<S2F> (C) 		1-71797-799-1 01 1 1006- ●
72 SHEET
(B) 		1-71798-487-3 03 1 0710-0803 ●
72 SHEET
(B) 		1-71798-487-3 02 1 0804-1005 ●
72 SHEET
(B) 		1-71798-487-3 02 1 1006- ● ●
72 SHEET
(A) 		1-71798-488-1 02 1 0710-1005 ●
72 SHEET
(A) 		1-71798-488-1 02 1 1006- ● ●
90 BRACKET; MIRROR STAY 1-71798-829-1 01 1 0710-1005 ●
90 BRACKET; MIRROR STAY 1-71798-829-1 01 1 1006- ● ●
90 BRACKET; MIRROR STAY 1-71707-237-0 01 1 0710-1005 ●
90 BRACKET; MIRROR STAY 1-71707-237-0 01 1 1006- ● ●
151 WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 04 1 0710-1005 ●
151 WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 04 1 1006- ● ●
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 0710-1005 ●
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 1006- ● ●
185 BOLT; BRKT
(A) M5X16 		1-71707-259-0 02 1 0710-1005 ●
185 BOLT; BRKT
(A) M5X16 		1-71707-259-0 02 1 1006- ● ●
185 BOLT; BRKT
(B) M8X35 FLANGE 		8-98046-876-0 04 1 0710-1005 ●
185 BOLT; BRKT
(B) M8X35 FLANGE 		8-98046-876-0 04 1 1006- ● ●
185 BOLT; BRKT
(C) M6X16 FLANGE 		0-28660-616-0 01 1 0710-1005 ●
185 BOLT; BRKT
(C) M6X16 FLANGE 		0-28660-616-0 01 1 1006- ● ●

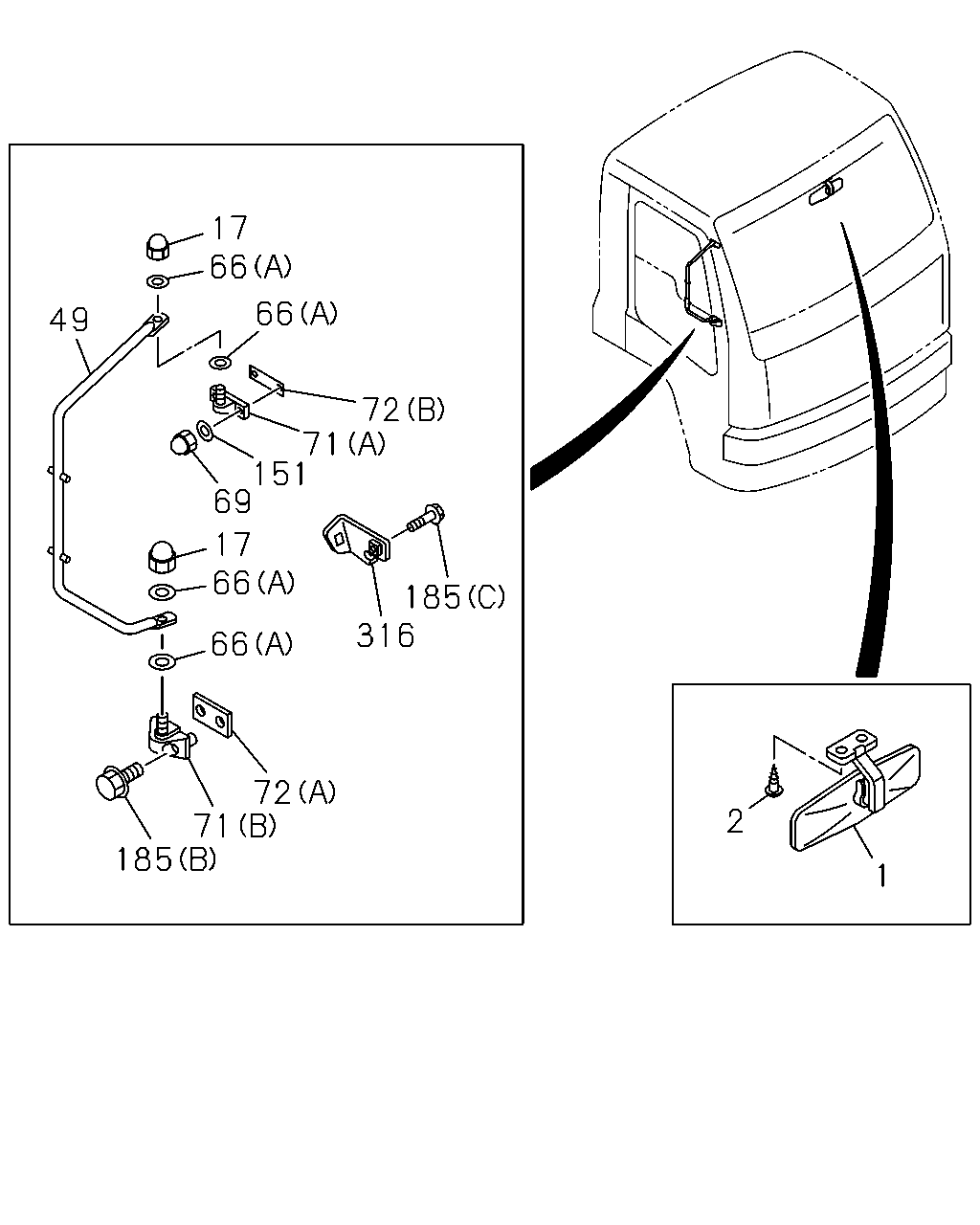

çizim 141771
17 66 66 49 72 71 151 69 17 66 185 316 66 72 71 185 2 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM 1-73117-033-1 01 1 0710-1005 ●
1 MIRROR; ROOM 1-73117-033-1 01 1 1006- ● ●
2 SCREW; MIRROR TO BODY
M6X20 		1-09981-310-0 02 1 0710-1005 ●
2 SCREW; MIRROR TO BODY
M6X20 		1-09981-310-0 02 1 1006- ● ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 07 1 0710-1005 ●
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 07 1 1006- ● ●
49 STAY; MIRROR SIDE 1-71798-491-3 01 1 0710-1005 ●
49 STAY; MIRROR SIDE 1-71798-491-3 01 1 1006-1309 ● ●
49 STAY; MIRROR SIDE 1-71798-490-3 01 1 0710-1005 ●
49 STAY; MIRROR SIDE 1-71798-490-3 01 1 1006-1309 ● ●
66 WASHER; PL
(A) ID=10.5 OD=26 T=2.6 		1-09985-184-0 14 1 0710-1005 ●
66 WASHER; PL
(A) ID=10.5 OD=26 T=2.6 		1-09985-184-0 14 1 1006- ● ●
66 WASHER; PL
(B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 03 1 0710-1005 ●
66 WASHER; PL
(B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 03 1 1006- ● ●
69 NUT; CAP
M8 		1-09984-187-0 04 1 0710-0809 ●
69 NUT; CAP
M8 CAP NUT 		8-98059-914-0 04 1 0810-1005 ●
69 NUT; CAP
M8 CAP NUT 		8-98059-914-0 04 1 1006- ● ●
71 BRACKET; OUTSIDE MIRROR
(F) 		8-98099-810-0 01 1 0804-1005 ●
71 BRACKET; OUTSIDE MIRROR
(F) 		8-98099-810-0 01 1 1006- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-484-1 03 1 0710-0803 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-484-1 02 1 0804-1005 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-484-1 02 1 1006- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-486-2 02 1 0710-1005 ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-486-2 02 1 1006- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71707-255-2 01 1 0710-1005 ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71707-255-2 01 1 1006- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		1-71798-664-2 01 1 0710-0803 ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98099-811-0 01 1 0804-1005 ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98099-811-0 01 1 1006-1007 ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98167-111-0 01 1 1008- ● ●
72 SHEET
HIGH ROOF<S2F> (C) 		1-71797-799-1 01 1 1006- ●
72 SHEET
(B) 		1-71798-487-3 03 1 0710-0803 ●
72 SHEET
(B) 		1-71798-487-3 02 1 0804-1005 ●
72 SHEET
(B) 		1-71798-487-3 02 1 1006- ● ●
72 SHEET
(A) 		1-71798-488-1 02 1 0710-1005 ●
72 SHEET
(A) 		1-71798-488-1 02 1 1006- ● ●
151 WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 04 1 0710-1005 ●
151 WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 04 1 1006- ● ●
185 BOLT; BRKT
(A) M5X16 		1-71707-259-0 02 1 0710-1005 ●
185 BOLT; BRKT
(A) M5X16 		1-71707-259-0 02 1 1006- ● ●
185 BOLT; BRKT
(B) M8X35 FLANGE 		8-98046-876-0 04 1 0710-1005 ●
185 BOLT; BRKT
(B) M8X35 FLANGE 		8-98046-876-0 04 1 1006- ● ●
185 BOLT; BRKT
(C) M6X16 FLANGE 		0-28660-616-0 01 1 0710-1005 ●
185 BOLT; BRKT
(C) M6X16 FLANGE 		0-28660-616-0 01 1 1006- ● ●
316 BRACKET; CONNECTOR 1-71798-896-1 01 1 0710-1005 ●
316 BRACKET; CONNECTOR 1-71798-896-1 01 1 1006- ● ●
