◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#14672) — 66 parça

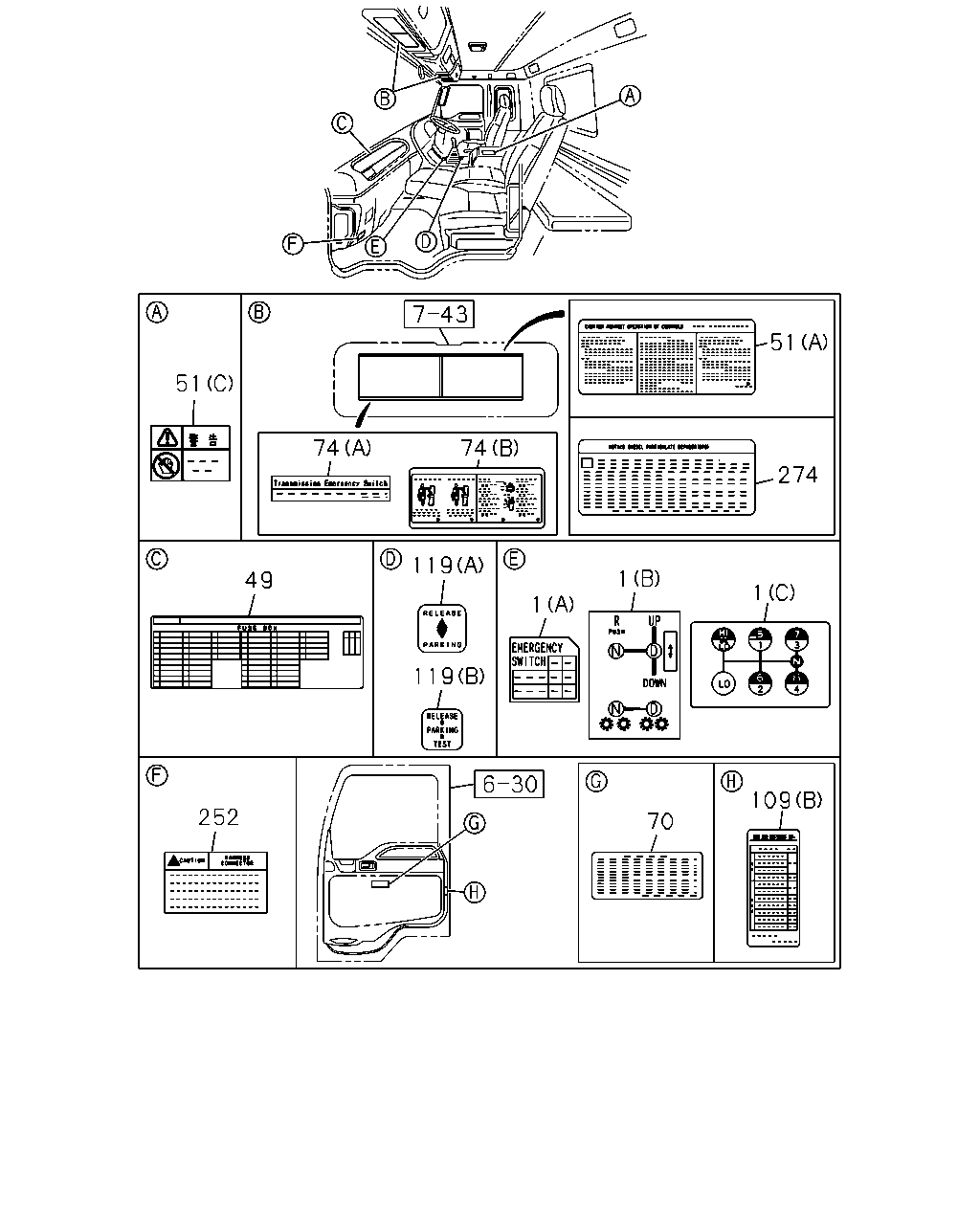

çizim 141768
51 51 74 74 274 119 1 49 1 1 119 109 252 70
BalonParca AdiParca NoAdetTipApplied Date A B
1 PLATE; CAUTION,SHIFT PATTERN
FULLER M/T<X9B> (C) 		1-85881-519-0 01 1 0710-1005 ●
1 PLATE; CAUTION,SHIFT PATTERN
FULLER M/T<X9B> (C) 		1-85881-519-0 01 1 1006- ●
1 PLATE; CAUTION,SHIFT PATTERN
(C) 		1-85881-519-0 01 1 1006- ●
1 PLATE; CAUTION,SHIFT PATTERN
SMOOTHER-G(C1W) (B) 		1-85881-842-0 01 1 0710- ●
1 PLATE; CAUTION,SHIFT PATTERN
SMOOTHER-G(C1W) (A) 		1-85881-879-1 01 1 0710- ●
49 PLATE; CAUTION,FUSE BOX 8-97619-856-0 01 1 0710-1106 ●
49 PLATE; CAUTION,FUSE BOX
6WG1 TC-C(72L) 		8-97619-856-0 01 1 1107- ●
49 PLATE; CAUTION,FUSE BOX
6WG1 TC-N(71L) 		8-97631-090-1 01 1 1108- ●
49 PLATE; CAUTION,FUSE BOX 8-97632-148-0 01 1 1006- ●
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 0710-1005 ●
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 1006- ● ●
51 PLATE; CAUTION,WARNING
(C) 		1-85878-571-0 01 1 0710-1006 ●
51 PLATE; CAUTION,WARNING
(C) 		1-85878-571-0 01 1 1007- ● ●
51 PLATE; CAUTION,WARNING
(A) 		1-85880-725-0 01 1 0710-1005 ●
51 PLATE; CAUTION,WARNING
(A) 		1-85880-725-0 01 1 1006- ● ●
70 PLATE; CAUTION,ACT
SMOOTHER-G(C1W) 		1-85878-484-0 01 1 0710- ●
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) 		1-85881-786-0 01 1 1006- ●
74 PLATE; CAUTION,CHANGE LEV
SMOOTHER-G(C1W) (A) 		1-85881-869-0 01 1 0710- ●
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) 		1-85881-846-0 01 1 0710- ●
109 PLATE; CAUTION,TIRE PLACARD
(B) 		1-85880-778-0 01 1 1006- ●
109 PLATE; CAUTION,TIRE PLACARD
(A) 		1-85881-932-0 01 1 0710- ●
119 PLATE; CAUTION,HAND BRK LEVER
(B) 		1-85881-791-0 01 1 1006- ●
119 PLATE; CAUTION,HAND BRK LEVER
(A) 		1-85881-759-0 01 1 0710- ●
252 PLATE; CAUTION,HARNESS 1-85878-488-1 01 1 0710-1005 ●
252 PLATE; CAUTION,HARNESS 1-85878-488-1 01 1 1006- ● ●
274 PLATE; CAUTION,DPD 8-97616-473-0 01 1 0710-1005 ●
274 PLATE; CAUTION,DPD 8-97616-473-0 01 1 1006-1107 ● ●
274 PLATE; CAUTION,DPD
CATALYSIS CONTROL WITH DPD<8JM> 		8-97616-473-0 01 1 1108- ●
274 PLATE; CAUTION,DPD 8-97616-473-0 01 1 1108- ●

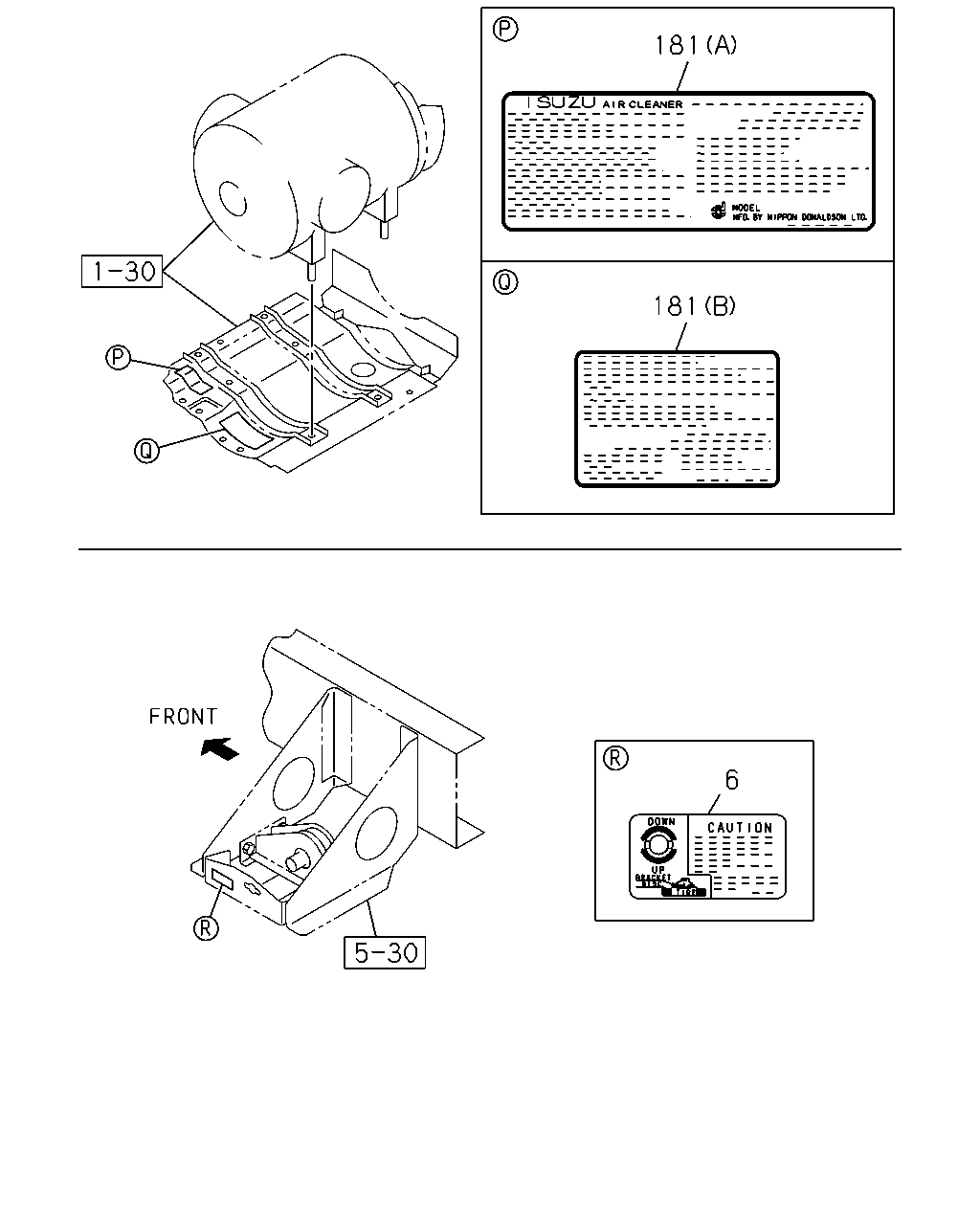

çizim 141774
181 181 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> 		8-98082-437-0 01 1 0710-1005 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> 		8-98082-437-0 01 1 1006- ● ●
181 PLATE; CAUTION,AIR CLEANER
(A) 		1-85886-796-1 01 1 0710-1005 ●
181 PLATE; CAUTION,AIR CLEANER
(A) 		1-85886-796-1 01 1 1006- ● ●
181 PLATE; CAUTION,AIR CLEANER
(B) 		1-85886-813-1 01 1 0710-1005 ●
181 PLATE; CAUTION,AIR CLEANER
(B) 		1-85886-813-1 01 1 1006- ●
181 PLATE; CAUTION,AIR CLEANER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B) 		1-85886-813-1 01 1 1006- ●

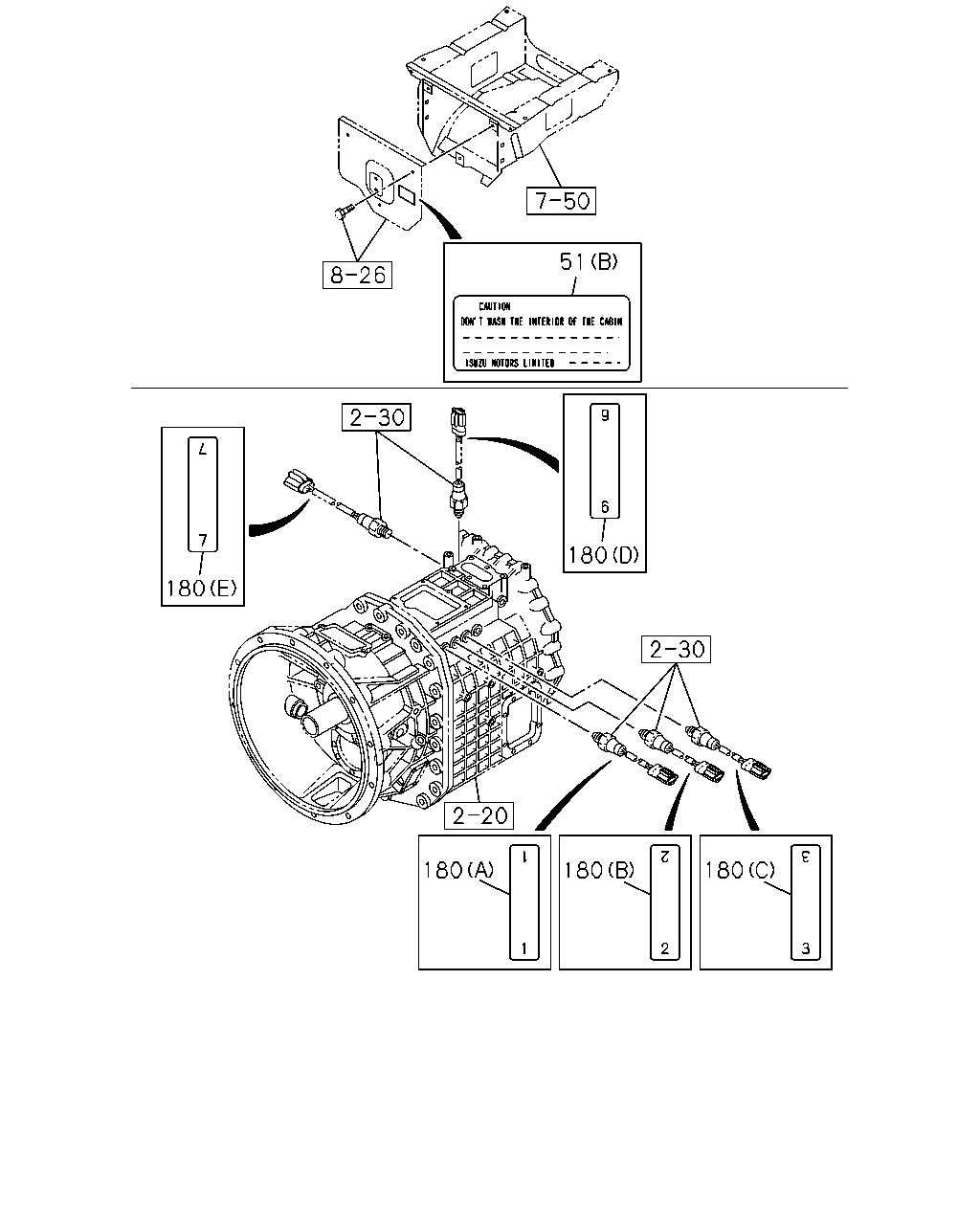

çizim 141776
51 180 180 180 180 180
BalonParca AdiParca NoAdetTipApplied Date A B
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 0710-1005 ●
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 1006- ● ●
51 PLATE; CAUTION,WARNING
(C) 		1-85878-571-0 01 1 0710-1006 ●
51 PLATE; CAUTION,WARNING
(C) 		1-85878-571-0 01 1 1007- ● ●
51 PLATE; CAUTION,WARNING
(A) 		1-85880-725-0 01 1 0710-1005 ●
51 PLATE; CAUTION,WARNING
(A) 		1-85880-725-0 01 1 1006- ● ●
180 PLATE; CAUTION,SWITCH
SMOOTHER-G(C1W) (A) 		1-85881-871-0 01 1 0710- ●
180 PLATE; CAUTION,SWITCH
SMOOTHER-G(C1W) (B) 		1-85881-872-0 01 1 0710- ●
180 PLATE; CAUTION,SWITCH
SMOOTHER-G(C1W) (C) 		1-85881-873-0 01 1 0710- ●
180 PLATE; CAUTION,SWITCH
SMOOTHER-G(C1W) (D) 		1-85881-880-0 01 1 0710- ●
180 PLATE; CAUTION,SWITCH
SMOOTHER-G(C1W) (E) 		1-85881-881-0 01 1 0710- ●

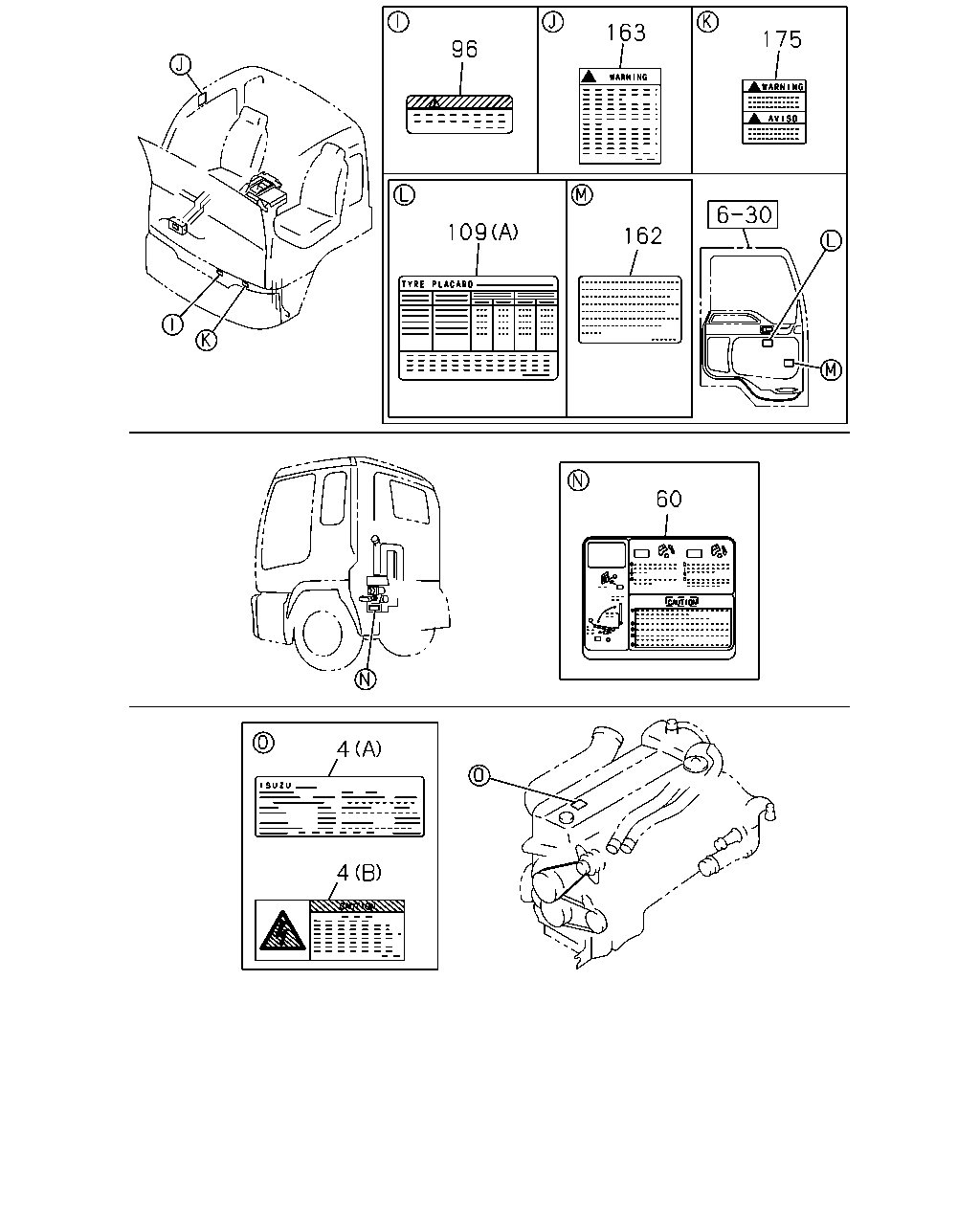

çizim 141779
163 175 96 109 162 60 4 4
BalonParca AdiParca NoAdetTipApplied Date A B
4 LABEL; ENG MAINTENANCE
(A) 		1-85875-350-1 01 1 0710-1005 ●
4 LABEL; ENG MAINTENANCE
(A) 		1-85875-350-2 01 1 1006- ● ●
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 01 1 0710-1005 ●
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 01 1 1006- ● ●
60 PLATE; CAUTION,CAB TILT 1-85883-234-0 01 1 0710-1005 ●
60 PLATE; CAUTION,CAB TILT 1-85883-234-0 01 1 1006- ● ●
96 PLATE; CAUTION,ENGINE OIL 8-98036-732-0 01 1 0710-1005 ●
96 PLATE; CAUTION,ENGINE OIL 8-98036-732-0 01 1 1006-1107 ● ●
96 PLATE; CAUTION,ENGINE OIL
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		8-98036-732-0 01 1 1108- ●
96 PLATE; CAUTION,ENGINE OIL 8-98036-732-0 01 1 1108- ●
109 PLATE; CAUTION,TIRE PLACARD
(B) 		1-85880-778-0 01 1 1006- ●
109 PLATE; CAUTION,TIRE PLACARD
(A) 		1-85881-932-0 01 1 0710- ●
162 PLATE; CAUTION,FUEL 8-97623-712-0 01 1 1006-1107 ●
162 PLATE; CAUTION,FUEL
6WG1 TC-N(71L) 		8-97623-712-0 01 1 1108- ●
162 PLATE; CAUTION,FUEL 8-97623-712-0 01 1 1108- ●
163 PLATE; NAME,AIR BAG 1-85878-485-0 01 1 0710-1005 ●
163 PLATE; NAME,AIR BAG 1-85878-485-0 01 1 1006- ● ●
175 LABEL; STRG,AIR BAG 1-85878-116-0 02 1 0710-1005 ●
175 LABEL; STRG,AIR BAG 1-85878-116-0 02 1 1006- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
