◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#14666) — 11 parça

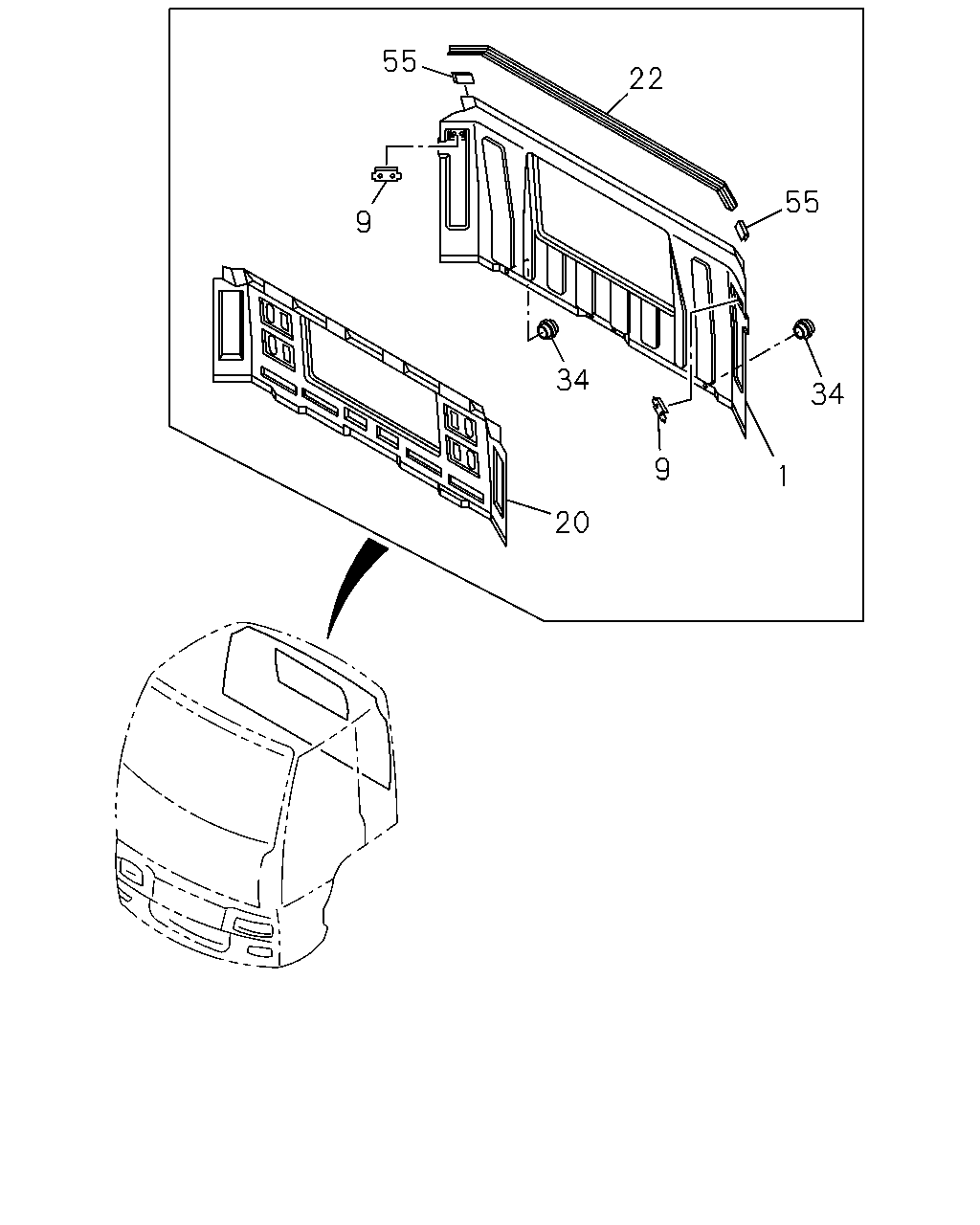

çizim 141748
55 22 55 9 34 34 9 1 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; BACK OUTER 1-61572-062-5 01 1 0710-1005 ●
1 PANEL; BACK OUTER 1-61572-062-5 01 1 1006- ● ●
9 PATCH; BACK PANEL 1-61572-065-0 02 1 0710-1005 ●
9 PATCH; BACK PANEL 1-61572-065-0 02 1 1006- ● ●
20 PANEL; BACK INNER,CENTER 1-61572-064-6 01 1 0710-1005 ●
20 PANEL; BACK INNER,CENTER 1-61572-064-6 01 1 1006- ● ●
22 MOLDING; DRIP,BACK PANEL 1-61572-063-1 01 1 0710-1005 ●
22 MOLDING; DRIP,BACK PANEL 1-61572-063-1 01 1 1006- ● ●
34 PLUG; HOLE,BACK PANEL
OD=28.5 		8-94279-711-0 02 1 0710-1005 ●
34 PLUG; HOLE,BACK PANEL
OD=28.5 		8-94279-711-0 02 1 1006- ● ●
55 FINISHER; BACK CORNER
HIGH ROOF<S2F> 		1-71517-002-0 02 1 1006-1203 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
