◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#14663) — 32 parça

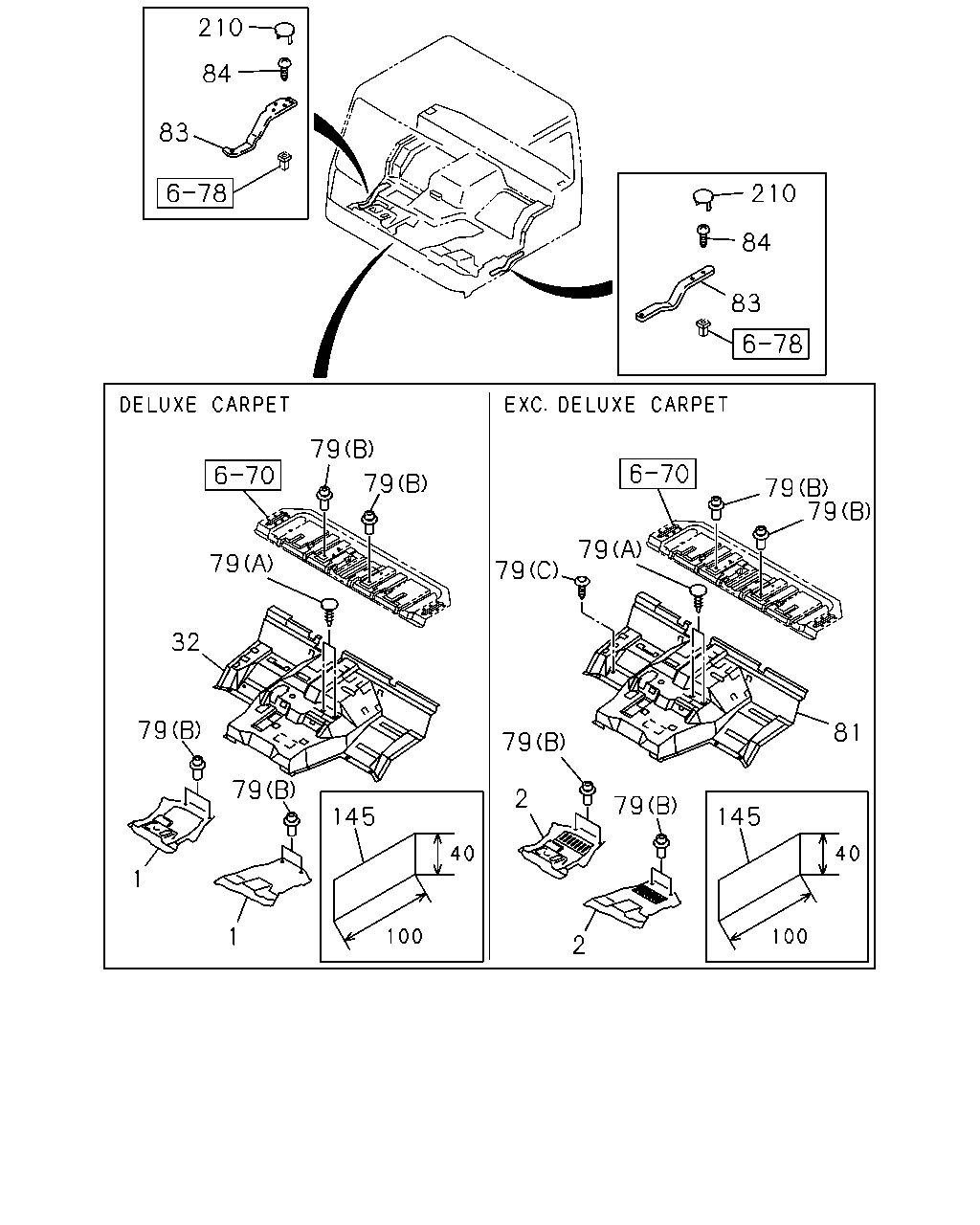

çizim 141778
210 84 83 210 84 83 79 79 79 79 79 79 79 32 79 81 79 79 2 79 145 145 1 1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-863-1 01 1 0710-1005 ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-863-2 01 1 1006- ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-864-1 01 1 0710-1005 ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-864-2 01 1 1006- ● ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-784-1 01 1 0710-1005 ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-784-1 01 1 1006- ● ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-786-1 01 1 0710-1005 ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-786-1 01 1 1006- ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> SMOOTHER-G(C1W) 		1-73237-925-2 01 1 0710- ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. SMOOTHER-G(C1W) 		1-73237-945-1 01 1 0710-1005 ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. SMOOTHER-G(C1W) 		1-73237-945-2 01 1 1006- ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> 		1-73237-945-2 01 1 1006- ●
79 HOOK; MALE
EXC. DELUXE CARPET<BF2> (C) OD=16 L=11 		1-76378-155-0 01 1 0710-1005 ●
79 HOOK; MALE
EXC. DELUXE CARPET<BF2> (C) OD=16 L=11 		1-76378-155-0 01 1 1006- ● ●
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 0710-1005 ●
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 1006- ● ●
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 0710-1005 ●
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 1006- ● ●
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2>,SMOOTHER-G(C1W) 		1-73237-930-1 01 1 0710-1005 ●
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2>,SMOOTHER-G(C1W) 		1-73237-930-1 01 1 1006- ●
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2> 		1-73237-930-1 01 1 1006- ●
81 MAT; FLOOR,CENTER
SMOOTHER-G(C1W) EXC. DELUXE CARPET<BF2> 		1-73237-929-1 01 1 0710- ●
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0710-1005 ●
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 1006- ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0710-1005 ●
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 1006- ● ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 0710-1005 ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 1006- ● ●
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-1 01 1 0710-1005 ●
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-1 01 1 1006- ● ●
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0710-1005 ●
210 COVER; KICKING PLATE 1-76337-461-0 09 1 1006- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
