◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#14660) — 57 parça

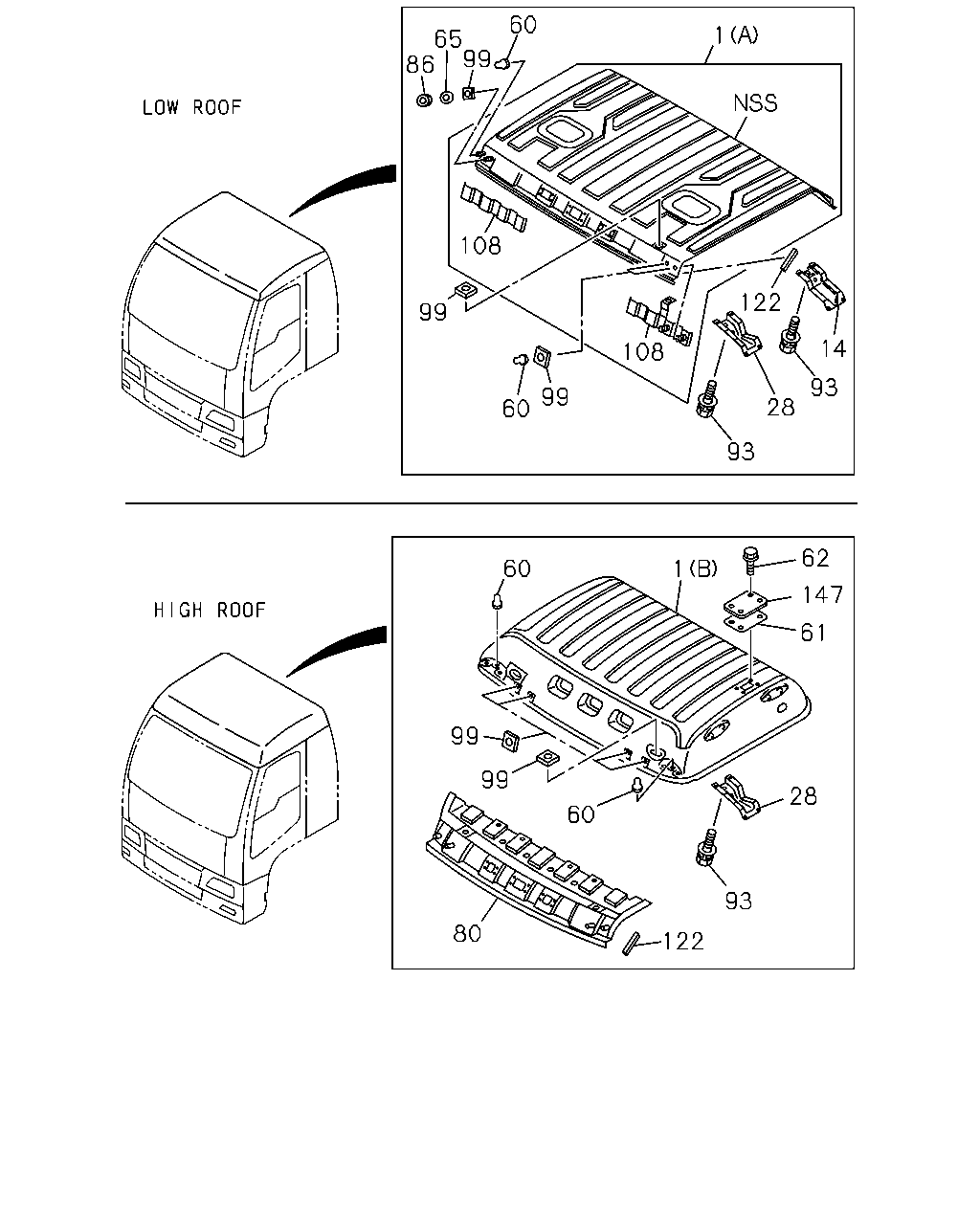

çizim 141763
60 1 65 99 86 108 122 99 14 108 93 99 28 60 93 62 60 1 147 61 99 99 28 60 93 80 122
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF
HIGH ROOF<S2F> (B) 		8-98080-057-1 01 1 1006- ●
1 PANEL; ROOF
(A) 		1-61170-861-0 01 1 0710-1005 ●
1 PANEL; ROOF
(A) 		1-61170-861-0 01 1 1006-1202 ●
1 PANEL; ROOF
LOW ROOF<6XQ> (A) 		1-61170-861-0 01 1 1006-1202 ●
1 PANEL; ROOF
LOW ROOF<6XQ> (A) 		1-61170-861-0 01 1 1203- ● ●
14 SUPPORT; ROOF 1-73318-595-3 02 1 0710-1005 ●
14 SUPPORT; ROOF 1-73318-595-3 02 1 1006-1202 ●
14 SUPPORT; ROOF
LOW ROOF<6XQ> 		1-73318-595-3 02 1 1006-1202 ●
14 SUPPORT; ROOF
LOW ROOF<6XQ> 		1-73318-595-3 02 1 1203- ● ●
28 SUPPORT; ROOF FRT 1-73317-302-1 01 1 0710-1005 ●
28 SUPPORT; ROOF FRT 1-73317-302-1 01 1 1006- ● ●
28 SUPPORT; ROOF FRT 1-73317-301-1 01 1 0710-1005 ●
28 SUPPORT; ROOF FRT 1-73317-301-1 01 1 1006- ● ●
60 COVER; ROOF 1-79998-922-3 02 1 0710-1005 ●
60 COVER; ROOF 1-79998-922-3 02 1 1006- ● ●
61 SEAL; ROOF COVER
HIGH ROOF<S2F> 		8-98071-976-0 02 1 1006- ●
62 BOLT; ROOF COVER
HIGH ROOF<S2F> M6X16 FLANGE 		0-28650-616-0 08 1 1006- ●
65 WASHER; PL
ID=8 T=2.3 		8-98073-399-0 01 1 0710-1005 ●
65 WASHER; PL
ID=8 T=2.3 		8-98073-399-0 01 1 1006-1202 ●
65 WASHER; PL
LOW ROOF<6XQ> ID=8 T=2.3 		8-98073-399-0 01 1 1006-1202 ●
65 WASHER; PL
LOW ROOF<6XQ> ID=8 T=2.3 		8-98073-399-0 01 1 1203- ● ●
80 PANEL; HEADER,ROOF
HIGH ROOF<S2F> 		1-61170-845-0 01 1 1006- ●
86 NUT; ROOF
M8 LOCK NUT 		0-91370-008-0 01 1 0710-1005 ●
86 NUT; ROOF
M8 LOCK NUT 		0-91370-008-0 01 1 1006-1202 ●
86 NUT; ROOF
LOW ROOF<6XQ> M8 LOCK NUT 		0-91370-008-0 01 1 1006-1202 ●
86 NUT; ROOF
LOW ROOF<6XQ> M8 LOCK NUT 		0-91370-008-0 01 1 1203- ● ●
93 BOLT; SUPPORT
HIGH ROOF<S2F> M6X12 W/LK&PL WASHER 		8-94279-200-0 10 1 1006- ●
93 BOLT; SUPPORT
M6X12 W/LK&PL WASHER 		8-94279-200-0 20 1 0710-1005 ●
93 BOLT; SUPPORT
M6X12 W/LK&PL WASHER 		8-94279-200-0 20 1 1006-1202 ●
93 BOLT; SUPPORT
LOW ROOF<6XQ> M6X12 W/LK&PL WASHER 		8-94279-200-0 20 1 1006-1202 ●
93 BOLT; SUPPORT
LOW ROOF<6XQ> M6X12 W/LK&PL WASHER 		8-94279-200-0 20 1 1203- ● ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-1 08 1 0710-1005 ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-2 08 1 1006- ● ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-2 10 1 0710-1005 ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-2 10 1 1006- ● ●
99 SEAL; BODY,METAL
14X14 ID=10 T=0.7 		1-61281-427-1 08 1 0710-1005 ●
99 SEAL; BODY,METAL
14X14 ID=10 T=0.7 		1-61281-427-1 08 1 1006- ● ●
99 SEAL; BODY,METAL
30X30 ID=9 T=0.7 		1-61281-444-0 02 1 0710-1005 ●
99 SEAL; BODY,METAL
30X30 ID=9 T=0.7 		1-61281-444-1 02 1 1006- ● ●
99 SEAL; BODY,METAL
55X55 ID=42 T=0.7 		1-61281-445-1 02 1 0710-1005 ●
99 SEAL; BODY,METAL
55X55 ID=42 T=0.7 		1-61281-445-1 02 1 1006- ● ●
99 SEAL; BODY,METAL
75X50 ID=36 		1-61281-458-1 02 1 0710-1005 ●
99 SEAL; BODY,METAL
75X50 ID=36 		1-61281-458-1 02 1 1006-1202 ●
99 SEAL; BODY,METAL
LOW ROOF<6XQ> 75X50 ID=36 		1-61281-458-1 02 1 1006-1202 ●
99 SEAL; BODY,METAL
LOW ROOF<6XQ> 75X50 ID=36 		1-61281-458-1 02 1 1203- ● ●
108 PATCH; MIRROR 1-61170-772-3 01 1 0710-1005 ●
108 PATCH; MIRROR 1-61170-772-3 01 1 1006-1202 ●
108 PATCH; MIRROR
LOW ROOF<6XQ> 		1-61170-772-3 01 1 1006-1202 ●
108 PATCH; MIRROR
LOW ROOF<6XQ> 		1-61170-772-3 01 1 1203- ● ●
108 PATCH; MIRROR 1-61170-862-1 01 1 0710-1005 ●
108 PATCH; MIRROR 1-61170-862-1 01 1 1006-1202 ●
108 PATCH; MIRROR
LOW ROOF<6XQ> 		1-61170-862-1 01 1 1006-1202 ●
108 PATCH; MIRROR
LOW ROOF<6XQ> 		1-61170-862-1 01 1 1203- ● ●
122 SEAL; FRT UPR 1-61270-919-0 02 1 0710-0809 ●
122 SEAL; FRT UPR 1-61270-973-0 02 1 0810-1005 ●
122 SEAL; FRT UPR 1-61270-973-0 02 1 1006- ● ●
147 COVER; HOLE,ROOF
HIGH ROOF<S2F> 		1-61170-890-1 02 1 1006- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
