Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#14659) — 347 parça

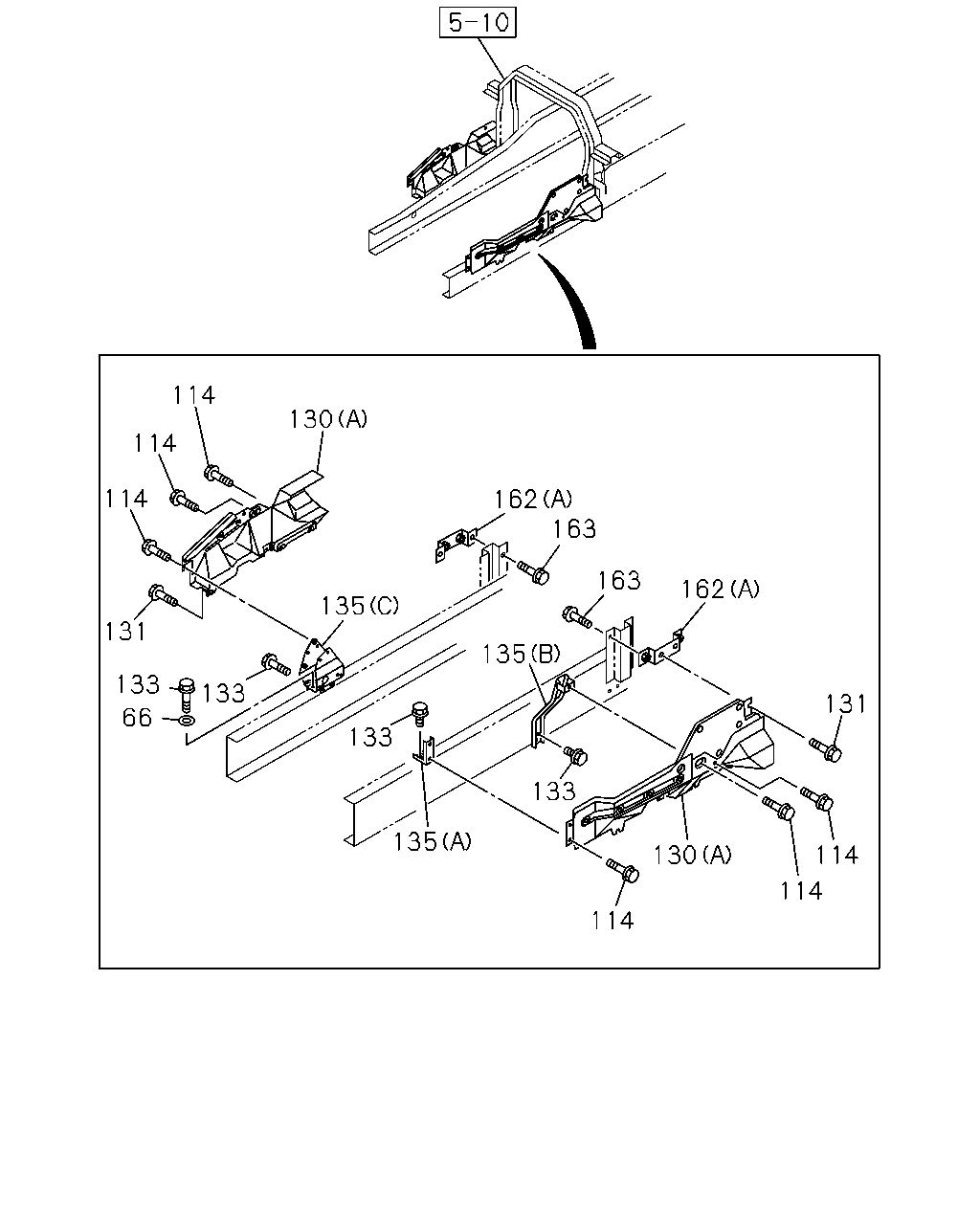

114 130 114 114 162 163 163 162 135 131 135 133 133 131 66 133 133 135 130 114 114 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
66	WASHER; LK SMOOTHER-G(C1W) ID=14.2	0-91510-614-0	02	1	0710-	●
114	BOLT M8X20 FLANGE	0-28650-820-0	02	1	0710-1005	●
114	BOLT M8X20 FLANGE	0-28650-820-0	02	1	1006-	●	●
114	BOLT M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	0710-1005	●
114	BOLT M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	1006-	●	●
130	PANEL; SHUTTER NOISE JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A)	8-98049-055-1	01	1	1108-	●
130	PANEL; SHUTTER NOISE (A)	8-98049-055-1	01	1	1108-		●
130	PANEL; SHUTTER NOISE 6WG1 TC-S(97L) (D)	1-79937-919-3	01	1	1010-1107		●
130	PANEL; SHUTTER NOISE EXC. JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (D)	1-79937-919-3	01	1	1108-	●
130	PANEL; SHUTTER NOISE 6WG1 TC-S(97L) (D)	1-79937-919-3	01	1	1108-		●
130	PANEL; SHUTTER NOISE (A)	8-98096-299-0	01	1	0710-1005	●
130	PANEL; SHUTTER NOISE (A)	8-98096-299-0	01	1	1006-	●	●
130	PANEL; SHUTTER NOISE (A)	8-98049-055-1	01	1	0710-1005	●
130	PANEL; SHUTTER NOISE (A)	8-98049-055-1	01	1	1006-1107	●	●
130	PANEL; SHUTTER NOISE EURO5 SPECIFICATION<NT5> (A)	1-53192-818-6	01	1	1108-	●
130	PANEL; SHUTTER NOISE (C)	1-79937-960-5	01	1	0710-1005	●
130	PANEL; SHUTTER NOISE (C)	1-79937-960-5	01	1	1006-	●	●
130	PANEL; SHUTTER NOISE (B)	8-98079-171-0	01	1	0710-1005	●
130	PANEL; SHUTTER NOISE (B)	8-98079-171-0	01	1	1006-	●	●
130	PANEL; SHUTTER NOISE (D)	1-79937-919-3	01	1	0710-0909	●
130	PANEL; SHUTTER NOISE (D)	8-98125-819-0	01	1	0910-1005	●
130	PANEL; SHUTTER NOISE (D)	8-98125-819-0	01	1	1006-1009	●	●
130	PANEL; SHUTTER NOISE 6WG1 TC-C(72L) (D)	8-98125-819-0	01	1	1010-1107	●	●
130	PANEL; SHUTTER NOISE 6WG1 TC-C(72L) JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (D)	8-98125-819-0	01	1	1108-	●
130	PANEL; SHUTTER NOISE 6WG1 TC-C(72L) (D)	8-98125-819-0	01	1	1108-		●
130	PANEL; SHUTTER NOISE (C)	8-98079-170-1	01	1	0710-1005	●
130	PANEL; SHUTTER NOISE (C)	8-98079-170-1	01	1	1006-	●	●
131	BOLT; PANEL M8X16 FLANGE	0-28050-816-0	01	1	0809-1005	●
131	BOLT; PANEL M8X16 FLANGE	0-28050-816-0	01	1	1006-	●	●
131	BOLT; PANEL M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0710-0805	●
131	BOLT; PANEL M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0806-1005	●
131	BOLT; PANEL M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1006-	●	●
133	BOLT; FRAME M8X25 FLANGE	0-28650-825-0	04	1	0710-1005	●
133	BOLT; FRAME M8X25 FLANGE	0-28650-825-0	04	1	1006-	●	●
133	BOLT; FRAME SMOOTHER-G(C1W) M14X45	0-20801-445-0	02	1	0710-	●
133	BOLT; FRAME SMOOTHER-G(C1W) M10X35 FLANGE	0-28651-035-0	02	1	0710-	●
135	BRACKET; SIDE PANEL JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B)	1-53441-508-1	01	1	1108-	●
135	BRACKET; SIDE PANEL (B)	1-53441-508-1	01	1	1108-		●
135	BRACKET; SIDE PANEL (A)	1-53441-507-0	01	1	0710-1005	●
135	BRACKET; SIDE PANEL (A)	1-53441-507-0	01	1	1006-	●	●
135	BRACKET; SIDE PANEL (B)	1-53441-508-1	01	1	0710-1005	●
135	BRACKET; SIDE PANEL (B)	1-53441-508-1	01	1	1006-1107	●	●
135	BRACKET; SIDE PANEL EURO5 SPECIFICATION<NT5> (B)	8-98127-905-0	01	1	1108-	●
135	BRACKET; SIDE PANEL SMOOTHER-G(C1W) (C)	1-33657-840-1	01	1	0710-	●
162	BRACKET 6WG1 TC-S(97L) (C)	8-98113-210-2	01	1	1008-1107		●
162	BRACKET 6WG1 TC-N(71L) (C)	8-98113-210-2	01	1	1108-	●
162	BRACKET 6WG1 TC-S(97L) (C)	8-98113-210-2	01	1	1108-		●
162	BRACKET (A)	1-53441-520-0	02	1	0710-1005	●
162	BRACKET (A)	1-53441-520-0	02	1	1006-	●	●
162	BRACKET (B)	1-71907-815-0	01	1	0710-1005	●
162	BRACKET (B)	1-71907-815-0	01	1	1006-	●	●
163	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0710-1005	●
163	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	1006-	●	●

130 130 74 251 73 251 251

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
73	BOLT; MUD COVER BRKT JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) M8X16 FLANGE	0-28250-816-0	03	1	1108-	●
73	BOLT; MUD COVER BRKT (B) M8X16 FLANGE	0-28250-816-0	03	1	1108-		●
73	BOLT; MUD COVER BRKT (A) M8X25 W/LK&PL WASHER	1-09030-093-0	03	1	1105-1107	●	●
73	BOLT; MUD COVER BRKT (A) M8X25 W/LK&PL WASHER	1-09030-093-0	03	1	1105-1107	●	●
73	BOLT; MUD COVER BRKT (A) M8X25 W/LK&PL WASHER	1-09030-093-0	03	1	1108-	●	●
73	BOLT; MUD COVER BRKT JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M8X25 W/LK&PL WASHER	1-09030-093-0	03	1	1108-	●
73	BOLT; MUD COVER BRKT (A) M8X25 W/LK&PL WASHER	1-09030-093-0	03	1	1108-		●
73	BOLT; MUD COVER BRKT (B) M8X16 FLANGE	0-28250-816-0	08	1	0710-1005	●
73	BOLT; MUD COVER BRKT (B) M8X16 FLANGE	0-28250-816-0	08	1	1006-1104	●	●
73	BOLT; MUD COVER BRKT (B) M8X16 FLANGE	0-28250-816-0	03	1	1105-1107	●	●
73	BOLT; MUD COVER BRKT (B) M8X16 FLANGE	0-28250-816-0	05	1	1108-	●	●
73	BOLT; MUD COVER BRKT (A) M8X25 W/LK&PL WASHER	1-09030-074-0	06	1	0710-0805	●
73	BOLT; MUD COVER BRKT (A) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	0806-1005	●
73	BOLT; MUD COVER BRKT (A) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1006-1104	●	●
73	BOLT; MUD COVER BRKT (B) M8X16 FLANGE	0-28250-816-0	05	1	1105-1107	●	●
73	BOLT; MUD COVER BRKT EURO5 SPECIFICATION<NT5> (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	1108-	●
74	NUT M8 FLANGE	0-91180-108-0	08	1	0710-1005	●
74	NUT M8 FLANGE	0-91180-108-0	08	1	1006-1104	●	●
74	NUT M8 FLANGE	0-91180-108-0	04	1	1105-	●	●
74	NUT M8 FLANGE	0-91180-108-0	04	1	1105-	●	●
130	PANEL; SHUTTER NOISE JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A)	8-98049-055-1	01	1	1108-	●
130	PANEL; SHUTTER NOISE (A)	8-98049-055-1	01	1	1108-		●
130	PANEL; SHUTTER NOISE 6WG1 TC-S(97L) (D)	1-79937-919-3	01	1	1010-1107		●
130	PANEL; SHUTTER NOISE EXC. JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (D)	1-79937-919-3	01	1	1108-	●
130	PANEL; SHUTTER NOISE 6WG1 TC-S(97L) (D)	1-79937-919-3	01	1	1108-		●
130	PANEL; SHUTTER NOISE (A)	8-98096-299-0	01	1	0710-1005	●
130	PANEL; SHUTTER NOISE (A)	8-98096-299-0	01	1	1006-	●	●
130	PANEL; SHUTTER NOISE (A)	8-98049-055-1	01	1	0710-1005	●
130	PANEL; SHUTTER NOISE (A)	8-98049-055-1	01	1	1006-1107	●	●
130	PANEL; SHUTTER NOISE EURO5 SPECIFICATION<NT5> (A)	1-53192-818-6	01	1	1108-	●
130	PANEL; SHUTTER NOISE (C)	1-79937-960-5	01	1	0710-1005	●
130	PANEL; SHUTTER NOISE (C)	1-79937-960-5	01	1	1006-	●	●
130	PANEL; SHUTTER NOISE (B)	8-98079-171-0	01	1	0710-1005	●
130	PANEL; SHUTTER NOISE (B)	8-98079-171-0	01	1	1006-	●	●
130	PANEL; SHUTTER NOISE (D)	1-79937-919-3	01	1	0710-0909	●
130	PANEL; SHUTTER NOISE (D)	8-98125-819-0	01	1	0910-1005	●
130	PANEL; SHUTTER NOISE (D)	8-98125-819-0	01	1	1006-1009	●	●
130	PANEL; SHUTTER NOISE 6WG1 TC-C(72L) (D)	8-98125-819-0	01	1	1010-1107	●	●
130	PANEL; SHUTTER NOISE 6WG1 TC-C(72L) JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (D)	8-98125-819-0	01	1	1108-	●
130	PANEL; SHUTTER NOISE 6WG1 TC-C(72L) (D)	8-98125-819-0	01	1	1108-		●
130	PANEL; SHUTTER NOISE (C)	8-98079-170-1	01	1	0710-1005	●
130	PANEL; SHUTTER NOISE (C)	8-98079-170-1	01	1	1006-	●	●
251	CLIP; NOISE INSULATOR (A)	8-94165-394-0	04	1	1105-	●	●
251	CLIP; NOISE INSULATOR (A)	8-94165-394-0	09	1	0710-1005	●
251	CLIP; NOISE INSULATOR (A)	8-94165-394-0	09	1	1006-1104	●	●
251	CLIP; NOISE INSULATOR (A)	8-94165-394-0	05	1	1105-	●	●
251	CLIP; NOISE INSULATOR (C) ID=6.2 L=11.4	8-97808-623-0	04	1	0710-1005	●
251	CLIP; NOISE INSULATOR (C) ID=6.2 L=11.4	8-97808-623-0	04	1	1006-	●	●
251	CLIP; NOISE INSULATOR (B)	8-94279-048-0	05	1	0710-1005	●
251	CLIP; NOISE INSULATOR (B)	8-94279-048-0	05	1	1006-	●	●

130 130 281 185 281 185 249 249 130 130 185 185 249

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	PANEL; SHUTTER NOISE JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A)	8-98049-055-1	01	1	1108-	●
130	PANEL; SHUTTER NOISE (A)	8-98049-055-1	01	1	1108-		●
130	PANEL; SHUTTER NOISE 6WG1 TC-S(97L) (D)	1-79937-919-3	01	1	1010-1107		●
130	PANEL; SHUTTER NOISE EXC. JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (D)	1-79937-919-3	01	1	1108-	●
130	PANEL; SHUTTER NOISE 6WG1 TC-S(97L) (D)	1-79937-919-3	01	1	1108-		●
130	PANEL; SHUTTER NOISE (A)	8-98096-299-0	01	1	0710-1005	●
130	PANEL; SHUTTER NOISE (A)	8-98096-299-0	01	1	1006-	●	●
130	PANEL; SHUTTER NOISE (A)	8-98049-055-1	01	1	0710-1005	●
130	PANEL; SHUTTER NOISE (A)	8-98049-055-1	01	1	1006-1107	●	●
130	PANEL; SHUTTER NOISE EURO5 SPECIFICATION<NT5> (A)	1-53192-818-6	01	1	1108-	●
130	PANEL; SHUTTER NOISE (C)	1-79937-960-5	01	1	0710-1005	●
130	PANEL; SHUTTER NOISE (C)	1-79937-960-5	01	1	1006-	●	●
130	PANEL; SHUTTER NOISE (B)	8-98079-171-0	01	1	0710-1005	●
130	PANEL; SHUTTER NOISE (B)	8-98079-171-0	01	1	1006-	●	●
130	PANEL; SHUTTER NOISE (D)	1-79937-919-3	01	1	0710-0909	●
130	PANEL; SHUTTER NOISE (D)	8-98125-819-0	01	1	0910-1005	●
130	PANEL; SHUTTER NOISE (D)	8-98125-819-0	01	1	1006-1009	●	●
130	PANEL; SHUTTER NOISE 6WG1 TC-C(72L) (D)	8-98125-819-0	01	1	1010-1107	●	●
130	PANEL; SHUTTER NOISE 6WG1 TC-C(72L) JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (D)	8-98125-819-0	01	1	1108-	●
130	PANEL; SHUTTER NOISE 6WG1 TC-C(72L) (D)	8-98125-819-0	01	1	1108-		●
130	PANEL; SHUTTER NOISE (C)	8-98079-170-1	01	1	0710-1005	●
130	PANEL; SHUTTER NOISE (C)	8-98079-170-1	01	1	1006-	●	●
185	CLIP; HEAT INSULATOR 6WG1 TC-S(97L) ID=6.2 L=11.4	8-97808-623-0	06	1	1010-1107		●
185	CLIP; HEAT INSULATOR EXC. JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> ID=6.2 L=11.4	8-97808-623-0	06	1	1108-	●
185	CLIP; HEAT INSULATOR 6WG1 TC-S(97L) ID=6.2 L=11.4	8-97808-623-0	06	1	1108-		●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	35	1	0710-0909	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	29	1	0910-1005	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	29	1	1006-	●	●
249	RUBBER; SHUTTER (A)	1-79937-924-2	01	1	0710-1005	●
249	RUBBER; SHUTTER (A)	1-79937-924-2	01	1	1006-	●	●
249	RUBBER; SHUTTER (D)	1-79937-966-2	01	1	0710-1005	●
249	RUBBER; SHUTTER (D)	1-79937-966-2	01	1	1006-	●	●
249	RUBBER; SHUTTER (C)	1-79937-981-1	01	1	0710-1005	●
249	RUBBER; SHUTTER (C)	1-79937-981-1	01	1	1006-	●	●
249	RUBBER; SHUTTER (E)	8-98079-173-0	01	1	0710-1005	●
249	RUBBER; SHUTTER (E)	8-98079-173-0	01	1	1006-	●	●
249	RUBBER; SHUTTER (B)	1-79937-979-1	01	1	0710-1005	●
249	RUBBER; SHUTTER (B)	1-79937-979-1	01	1	1006-	●	●
249	RUBBER; SHUTTER (D)	8-98079-172-0	01	1	0710-1005	●
249	RUBBER; SHUTTER (D)	8-98079-172-0	01	1	1006-	●	●
281	INSULATOR; NOISE (C)	1-71907-671-1	01	1	0710-0808	●
281	INSULATOR; NOISE (C)	8-98097-796-1	01	1	0809-0912	●
281	INSULATOR; NOISE (C)	8-98121-192-0	01	1	1001-1005	●
281	INSULATOR; NOISE (C)	8-98121-192-0	01	1	1006-1010	●	●
281	INSULATOR; NOISE (C)	8-98178-867-0	01	1	1011-	●	●
281	INSULATOR; NOISE (B)	1-73237-445-4	01	1	0710-1005	●
281	INSULATOR; NOISE (B)	1-73237-445-4	01	1	1006-	●	●
281	INSULATOR; NOISE (A)	1-71907-171-2	01	1	0710-1005	●
281	INSULATOR; NOISE (A)	1-71907-171-2	01	1	1006-	●	●
281	INSULATOR; NOISE (A)	1-71907-170-1	01	1	0710-1005	●
281	INSULATOR; NOISE (A)	1-71907-170-1	01	1	1006-	●	●

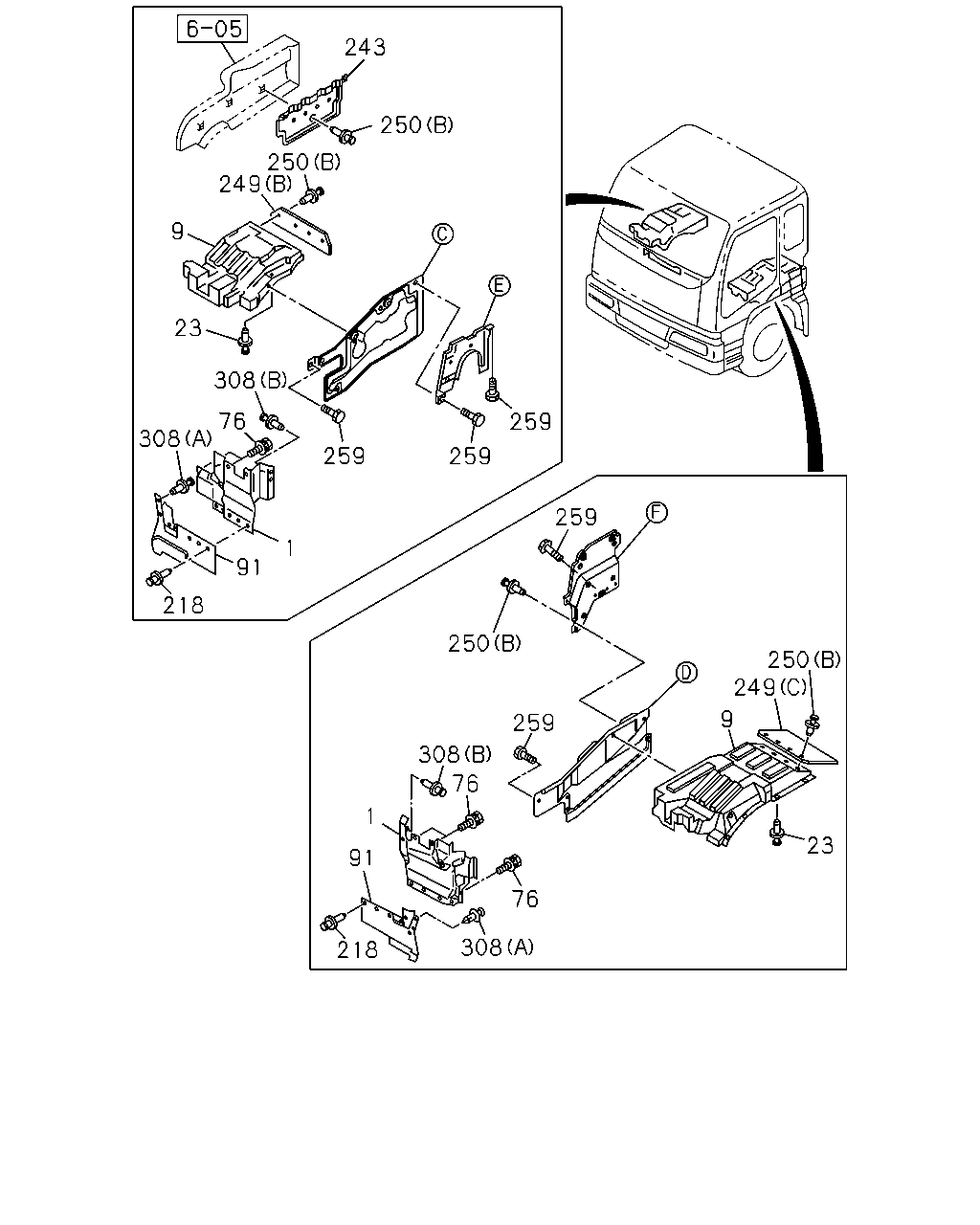

243 250 250 249 9 23 308 76 259 308 259 259 259 1 91 218 250 250 249 9 259 308 76 1 23 91 76 308 218

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79937-894-6	01	1	0710-1005	●
1	GUARD; MUD,FRT	1-79937-894-6	01	1	1006-	●	●
1	GUARD; MUD,FRT	1-79937-895-5	01	1	0710-1005	●
1	GUARD; MUD,FRT	1-79937-895-5	01	1	1006-	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79937-908-4	01	1	0710-1005	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79937-908-4	01	1	1006-	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79937-907-4	01	1	0710-1005	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79937-907-4	01	1	1006-	●	●
23	FASTENER; MUD COVER D8X13.5	1-09987-248-1	21	1	0710-1005	●
23	FASTENER; MUD COVER D8X13.5	1-09987-248-1	21	1	1006-	●	●
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0710-0805	●
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0806-1005	●
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1006-	●	●
76	BOLT; MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0710-1005	●
76	BOLT; MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1006-	●	●
76	BOLT; MUD GUARD M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	0710-1005	●
76	BOLT; MUD GUARD M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	1006-	●	●
91	COVER; MUD,FRT	1-79931-204-1	01	1	0710-1005	●
91	COVER; MUD,FRT	1-79931-204-1	01	1	1006-	●	●
91	COVER; MUD,FRT	1-79931-203-1	01	1	0710-1005	●
91	COVER; MUD,FRT	1-79931-203-1	01	1	1006-	●	●
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	08	1	0710-1005	●
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	08	1	1006-	●	●
243	PROTECTOR; NOISE SHUT PANEL	1-79937-906-2	01	1	0710-1005	●
243	PROTECTOR; NOISE SHUT PANEL	1-79937-906-2	01	1	1006-	●	●
249	RUBBER; SHUTTER (A)	1-79937-924-2	01	1	0710-1005	●
249	RUBBER; SHUTTER (A)	1-79937-924-2	01	1	1006-	●	●
249	RUBBER; SHUTTER (D)	1-79937-966-2	01	1	0710-1005	●
249	RUBBER; SHUTTER (D)	1-79937-966-2	01	1	1006-	●	●
249	RUBBER; SHUTTER (C)	1-79937-981-1	01	1	0710-1005	●
249	RUBBER; SHUTTER (C)	1-79937-981-1	01	1	1006-	●	●
249	RUBBER; SHUTTER (E)	8-98079-173-0	01	1	0710-1005	●
249	RUBBER; SHUTTER (E)	8-98079-173-0	01	1	1006-	●	●
249	RUBBER; SHUTTER (B)	1-79937-979-1	01	1	0710-1005	●
249	RUBBER; SHUTTER (B)	1-79937-979-1	01	1	1006-	●	●
249	RUBBER; SHUTTER (D)	8-98079-172-0	01	1	0710-1005	●
249	RUBBER; SHUTTER (D)	8-98079-172-0	01	1	1006-	●	●
250	FASTENER; SHUTTER 6WG1 TC-S(97L) (A) D6X16 PUSH RIVET	1-09983-105-0	05	1	1008-1107		●
250	FASTENER; SHUTTER 6WG1 TC-N(71L) (A) D6X16 PUSH RIVET	1-09983-105-0	05	1	1108-	●
250	FASTENER; SHUTTER 6WG1 TC-S(97L) (A) D6X16 PUSH RIVET	1-09983-105-0	05	1	1108-		●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	0710-1005	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	1006-	●	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	10	1	0710-1005	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	10	1	1006-	●	●
259	BOLT; NOISE PANEL M8X24.5 W/LK&PL WASHER	8-94279-208-0	12	1	0710-0904	●
259	BOLT; NOISE PANEL M8X24.5 W/LK&PL WASHER	8-98059-720-0	12	1	0905-1005	●
259	BOLT; NOISE PANEL M8X24.5 W/LK&PL WASHER	8-98059-720-0	12	1	1006-	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	08	1	0710-1005	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	08	1	1006-	●	●
308	FASTENER; MUD GUARD (B) ID=6X6 OD=8	1-09987-194-0	02	1	0710-1005	●
308	FASTENER; MUD GUARD (B) ID=6X6 OD=8	1-09987-194-0	02	1	1006-	●	●

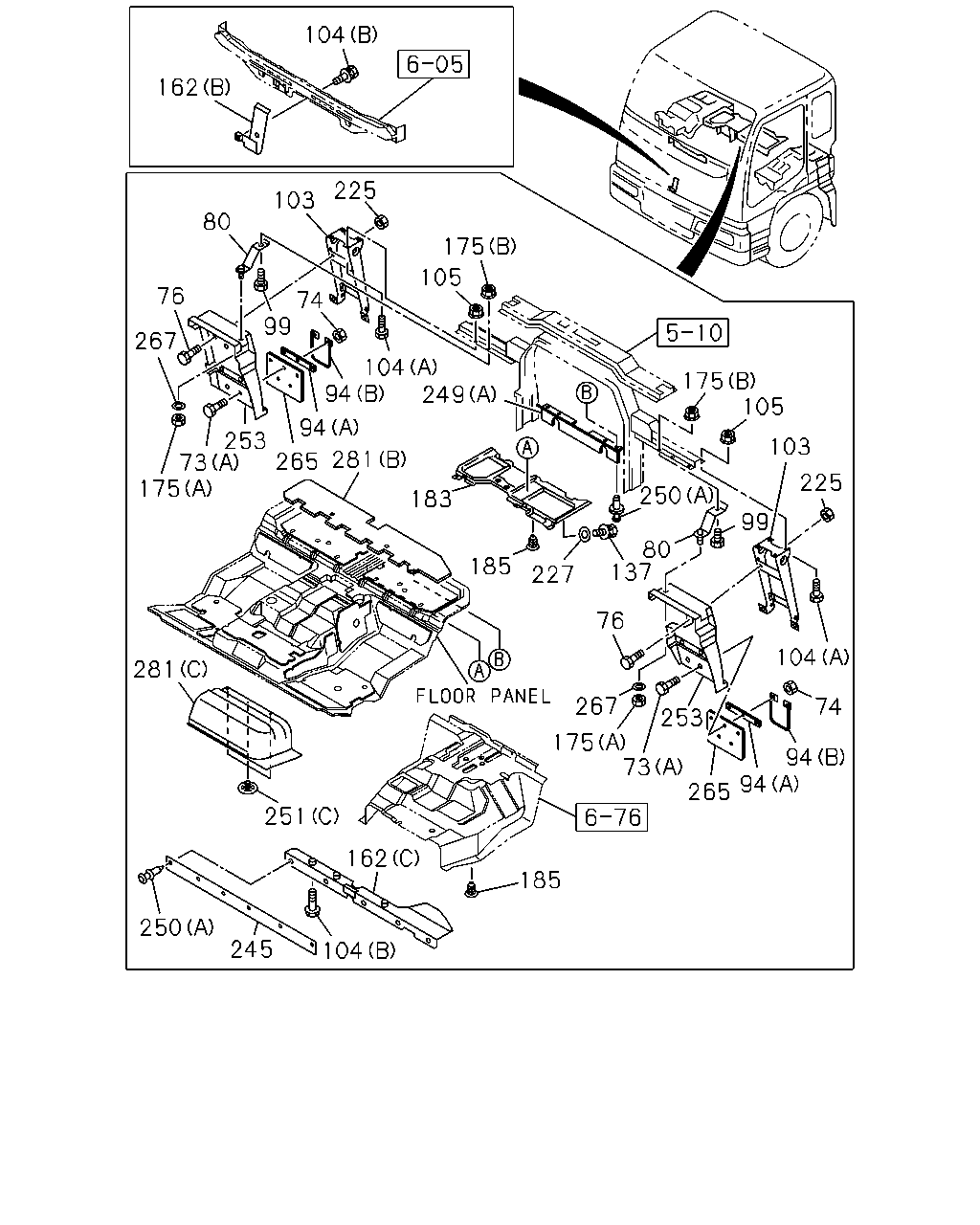

104 162 225 103 80 175 105 99 76 267 104 94 249 175 105 94 253 73 265 175 103 281 225 250 183 99 80 137 185 227 76 104 281 267 74 253 175 73 94 94 265 251 162 185 250 245 104 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
73	BOLT; MUD COVER BRKT JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) M8X16 FLANGE	0-28250-816-0	03	1	1108-	●
73	BOLT; MUD COVER BRKT (B) M8X16 FLANGE	0-28250-816-0	03	1	1108-		●
73	BOLT; MUD COVER BRKT (A) M8X25 W/LK&PL WASHER	1-09030-093-0	03	1	1105-1107	●	●
73	BOLT; MUD COVER BRKT (A) M8X25 W/LK&PL WASHER	1-09030-093-0	03	1	1105-1107	●	●
73	BOLT; MUD COVER BRKT (A) M8X25 W/LK&PL WASHER	1-09030-093-0	03	1	1108-	●	●
73	BOLT; MUD COVER BRKT JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M8X25 W/LK&PL WASHER	1-09030-093-0	03	1	1108-	●
73	BOLT; MUD COVER BRKT (A) M8X25 W/LK&PL WASHER	1-09030-093-0	03	1	1108-		●
73	BOLT; MUD COVER BRKT (B) M8X16 FLANGE	0-28250-816-0	08	1	0710-1005	●
73	BOLT; MUD COVER BRKT (B) M8X16 FLANGE	0-28250-816-0	08	1	1006-1104	●	●
73	BOLT; MUD COVER BRKT (B) M8X16 FLANGE	0-28250-816-0	03	1	1105-1107	●	●
73	BOLT; MUD COVER BRKT (B) M8X16 FLANGE	0-28250-816-0	05	1	1108-	●	●
73	BOLT; MUD COVER BRKT (A) M8X25 W/LK&PL WASHER	1-09030-074-0	06	1	0710-0805	●
73	BOLT; MUD COVER BRKT (A) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	0806-1005	●
73	BOLT; MUD COVER BRKT (A) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1006-1104	●	●
73	BOLT; MUD COVER BRKT (B) M8X16 FLANGE	0-28250-816-0	05	1	1105-1107	●	●
73	BOLT; MUD COVER BRKT EURO5 SPECIFICATION<NT5> (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	1108-	●
74	NUT M8 FLANGE	0-91180-108-0	08	1	0710-1005	●
74	NUT M8 FLANGE	0-91180-108-0	08	1	1006-1104	●	●
74	NUT M8 FLANGE	0-91180-108-0	04	1	1105-	●	●
74	NUT M8 FLANGE	0-91180-108-0	04	1	1105-	●	●
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0710-0805	●
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0806-1005	●
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1006-	●	●
76	BOLT; MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0710-1005	●
76	BOLT; MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1006-	●	●
76	BOLT; MUD GUARD M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	0710-1005	●
76	BOLT; MUD GUARD M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	1006-	●	●
80	BRACKET; MUD GUARD STAY	1-79931-159-1	02	1	0710-1005	●
80	BRACKET; MUD GUARD STAY	1-79931-159-1	02	1	1006-	●	●
94	RETAINER; FLAP RUBBER EURO5 SPECIFICATION<NT5> (A)	8-98035-095-0	01	1	1108-	●
94	RETAINER; FLAP RUBBER (A)	1-79931-091-2	02	1	0710-1005	●
94	RETAINER; FLAP RUBBER (A)	1-79931-091-2	02	1	1006-1104	●	●
94	RETAINER; FLAP RUBBER (A)	1-79931-091-2	01	1	1105-1107	●	●
94	RETAINER; FLAP RUBBER (A)	1-79931-091-2	01	1	1105-1107	●	●
94	RETAINER; FLAP RUBBER (B)	1-79931-194-0	02	1	0710-1005	●
94	RETAINER; FLAP RUBBER (B)	1-79931-194-0	02	1	1006-1104	●	●
94	RETAINER; FLAP RUBBER (B)	1-79931-194-0	01	1	1105-	●	●
94	RETAINER; FLAP RUBBER (B)	1-79931-194-0	01	1	1105-	●	●
94	RETAINER; FLAP RUBBER (A)	1-79931-091-2	01	1	1108-	●	●
94	RETAINER; FLAP RUBBER JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A)	1-79931-091-2	01	1	1108-	●
94	RETAINER; FLAP RUBBER (A)	1-79931-091-2	01	1	1108-		●
99	BOLT; STAY TO MUD GUARD M10X25 FLANGE	0-28651-025-0	02	1	0710-1005	●
99	BOLT; STAY TO MUD GUARD M10X25 FLANGE	0-28651-025-0	02	1	1006-	●	●
103	BRACKET ASM; RR MUD FLAP	1-79931-444-0	02	1	0710-1005	●
103	BRACKET ASM; RR MUD FLAP	1-79931-444-0	02	1	1006-1502	●	●
103	BRACKET ASM; RR MUD FLAP	8-98306-892-0	02	1	1503-	●	●
104	BOLT; BRKT 6WG1 TC-S(97L) (B) M6X16 W/LK&PL WASHER	0-50640-616-0	03	1	1008-1107		●
104	BOLT; BRKT 6WG1 TC-N(71L) (B) M6X16 W/LK&PL WASHER	0-50640-616-0	03	1	1108-	●
104	BOLT; BRKT 6WG1 TC-S(97L) (B) M6X16 W/LK&PL WASHER	0-50640-616-0	03	1	1108-		●
104	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	08	1	0710-1005	●
104	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	08	1	1006-	●	●
104	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0710-0808	●
104	BOLT; BRKT (B) M6X16 W/LK&PL WASHER	0-50640-616-0	01	1	0809-1005	●
104	BOLT; BRKT (B) M6X16 W/LK&PL WASHER	0-50640-616-0	01	1	1006-	●	●
105	NUT; BRKT M10 FLANGE	0-91180-210-0	08	1	0710-1005	●
105	NUT; BRKT M10 FLANGE	0-91180-210-0	08	1	1006-	●	●
137	BOLT M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0710-0904	●
137	BOLT M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-1005	●
137	BOLT M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1006-	●	●
162	BRACKET 6WG1 TC-S(97L) (C)	8-98113-210-2	01	1	1008-1107		●
162	BRACKET 6WG1 TC-N(71L) (C)	8-98113-210-2	01	1	1108-	●
162	BRACKET 6WG1 TC-S(97L) (C)	8-98113-210-2	01	1	1108-		●
162	BRACKET (A)	1-53441-520-0	02	1	0710-1005	●
162	BRACKET (A)	1-53441-520-0	02	1	1006-	●	●
162	BRACKET (B)	1-71907-815-0	01	1	0710-1005	●
162	BRACKET (B)	1-71907-815-0	01	1	1006-	●	●
175	NUT; STAY FIX (A) M8 FLANGE	0-91180-108-0	02	1	0710-1005	●
175	NUT; STAY FIX (A) M8 FLANGE	0-91180-108-0	02	1	1006-	●	●
175	NUT; STAY FIX (B) M10 FLANGE	0-91180-210-0	02	1	0710-1005	●
175	NUT; STAY FIX (B) M10 FLANGE	0-91180-210-0	02	1	1006-	●	●
183	INSULATOR; HEAT,BED PAN	1-71907-526-4	01	1	0710-1005	●
183	INSULATOR; HEAT,BED PAN	1-71907-526-4	01	1	1006-	●	●
185	CLIP; HEAT INSULATOR 6WG1 TC-S(97L) ID=6.2 L=11.4	8-97808-623-0	06	1	1010-1107		●
185	CLIP; HEAT INSULATOR EXC. JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> ID=6.2 L=11.4	8-97808-623-0	06	1	1108-	●
185	CLIP; HEAT INSULATOR 6WG1 TC-S(97L) ID=6.2 L=11.4	8-97808-623-0	06	1	1108-		●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	35	1	0710-0909	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	29	1	0910-1005	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	29	1	1006-	●	●
225	NUT; MUD GUARD M8 FLANGE	0-91180-108-0	07	1	0710-1005	●
225	NUT; MUD GUARD M8 FLANGE	0-91180-108-0	07	1	1006-	●	●
227	SEAL; MUD GUARD T=2.0	8-94279-641-0	01	1	0710-1005	●
227	SEAL; MUD GUARD T=2.0	8-94279-641-0	01	1	1006-	●	●
245	RUBBER; SHUTTER,RAD 6WG1 TC-S(97L)	8-98113-211-0	01	1	1008-1107		●
245	RUBBER; SHUTTER,RAD 6WG1 TC-N(71L)	8-98113-211-0	01	1	1108-	●
245	RUBBER; SHUTTER,RAD 6WG1 TC-S(97L)	8-98113-211-0	01	1	1108-		●
249	RUBBER; SHUTTER (A)	1-79937-924-2	01	1	0710-1005	●
249	RUBBER; SHUTTER (A)	1-79937-924-2	01	1	1006-	●	●
249	RUBBER; SHUTTER (D)	1-79937-966-2	01	1	0710-1005	●
249	RUBBER; SHUTTER (D)	1-79937-966-2	01	1	1006-	●	●
249	RUBBER; SHUTTER (C)	1-79937-981-1	01	1	0710-1005	●
249	RUBBER; SHUTTER (C)	1-79937-981-1	01	1	1006-	●	●
249	RUBBER; SHUTTER (E)	8-98079-173-0	01	1	0710-1005	●
249	RUBBER; SHUTTER (E)	8-98079-173-0	01	1	1006-	●	●
249	RUBBER; SHUTTER (B)	1-79937-979-1	01	1	0710-1005	●
249	RUBBER; SHUTTER (B)	1-79937-979-1	01	1	1006-	●	●
249	RUBBER; SHUTTER (D)	8-98079-172-0	01	1	0710-1005	●
249	RUBBER; SHUTTER (D)	8-98079-172-0	01	1	1006-	●	●
250	FASTENER; SHUTTER 6WG1 TC-S(97L) (A) D6X16 PUSH RIVET	1-09983-105-0	05	1	1008-1107		●
250	FASTENER; SHUTTER 6WG1 TC-N(71L) (A) D6X16 PUSH RIVET	1-09983-105-0	05	1	1108-	●
250	FASTENER; SHUTTER 6WG1 TC-S(97L) (A) D6X16 PUSH RIVET	1-09983-105-0	05	1	1108-		●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	0710-1005	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	1006-	●	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	10	1	0710-1005	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	10	1	1006-	●	●
251	CLIP; NOISE INSULATOR (A)	8-94165-394-0	04	1	1105-	●	●
251	CLIP; NOISE INSULATOR (A)	8-94165-394-0	09	1	0710-1005	●
251	CLIP; NOISE INSULATOR (A)	8-94165-394-0	09	1	1006-1104	●	●
251	CLIP; NOISE INSULATOR (A)	8-94165-394-0	05	1	1105-	●	●
251	CLIP; NOISE INSULATOR (C) ID=6.2 L=11.4	8-97808-623-0	04	1	0710-1005	●
251	CLIP; NOISE INSULATOR (C) ID=6.2 L=11.4	8-97808-623-0	04	1	1006-	●	●
251	CLIP; NOISE INSULATOR (B)	8-94279-048-0	05	1	0710-1005	●
251	CLIP; NOISE INSULATOR (B)	8-94279-048-0	05	1	1006-	●	●
253	GUARD; MUD JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>	8-98134-765-0	01	1	1108-	●
253	GUARD; MUD	8-98134-765-0	01	1	1108-		●
253	GUARD; MUD	8-98035-096-0	01	1	0710-0901	●
253	GUARD; MUD	8-98134-765-0	01	1	0902-1005	●
253	GUARD; MUD	8-98134-765-0	01	1	1006-1107	●	●
253	GUARD; MUD EURO5 SPECIFICATION<NT5>	8-98123-038-1	01	1	1108-	●
253	GUARD; MUD	1-79931-065-7	01	1	0710-0901	●
253	GUARD; MUD	8-98134-760-0	01	1	0902-1005	●
253	GUARD; MUD	8-98134-760-0	01	1	1006-	●	●
265	RUBBER; FLAP,REAR EURO5 SPECIFICATION<NT5>	8-98159-862-0	01	1	1108-	●
265	RUBBER; FLAP,REAR	1-79930-978-0	02	1	0710-1005	●
265	RUBBER; FLAP,REAR	1-79930-978-0	02	1	1006-1104	●	●
265	RUBBER; FLAP,REAR	1-79930-978-0	01	1	1105-1107	●	●
265	RUBBER; FLAP,REAR	1-79930-978-0	01	1	1105-1107	●	●
265	RUBBER; FLAP,REAR	1-79930-978-0	01	1	1108-	●	●
265	RUBBER; FLAP,REAR JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>	1-79930-978-0	01	1	1108-	●
265	RUBBER; FLAP,REAR	1-79930-978-0	01	1	1108-		●
267	WASHER; PL,STAY ID=8.4 OD=26	0-91614-808-0	02	1	0710-1005	●
267	WASHER; PL,STAY ID=8.4 OD=26	0-91614-808-0	02	1	1006-	●	●
281	INSULATOR; NOISE (C)	1-71907-671-1	01	1	0710-0808	●
281	INSULATOR; NOISE (C)	8-98097-796-1	01	1	0809-0912	●
281	INSULATOR; NOISE (C)	8-98121-192-0	01	1	1001-1005	●
281	INSULATOR; NOISE (C)	8-98121-192-0	01	1	1006-1010	●	●
281	INSULATOR; NOISE (C)	8-98178-867-0	01	1	1011-	●	●
281	INSULATOR; NOISE (B)	1-73237-445-4	01	1	0710-1005	●
281	INSULATOR; NOISE (B)	1-73237-445-4	01	1	1006-	●	●
281	INSULATOR; NOISE (A)	1-71907-171-2	01	1	0710-1005	●
281	INSULATOR; NOISE (A)	1-71907-171-2	01	1	1006-	●	●
281	INSULATOR; NOISE (A)	1-71907-170-1	01	1	0710-1005	●
281	INSULATOR; NOISE (A)	1-71907-170-1	01	1	1006-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
