◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#14656) — 134 parça

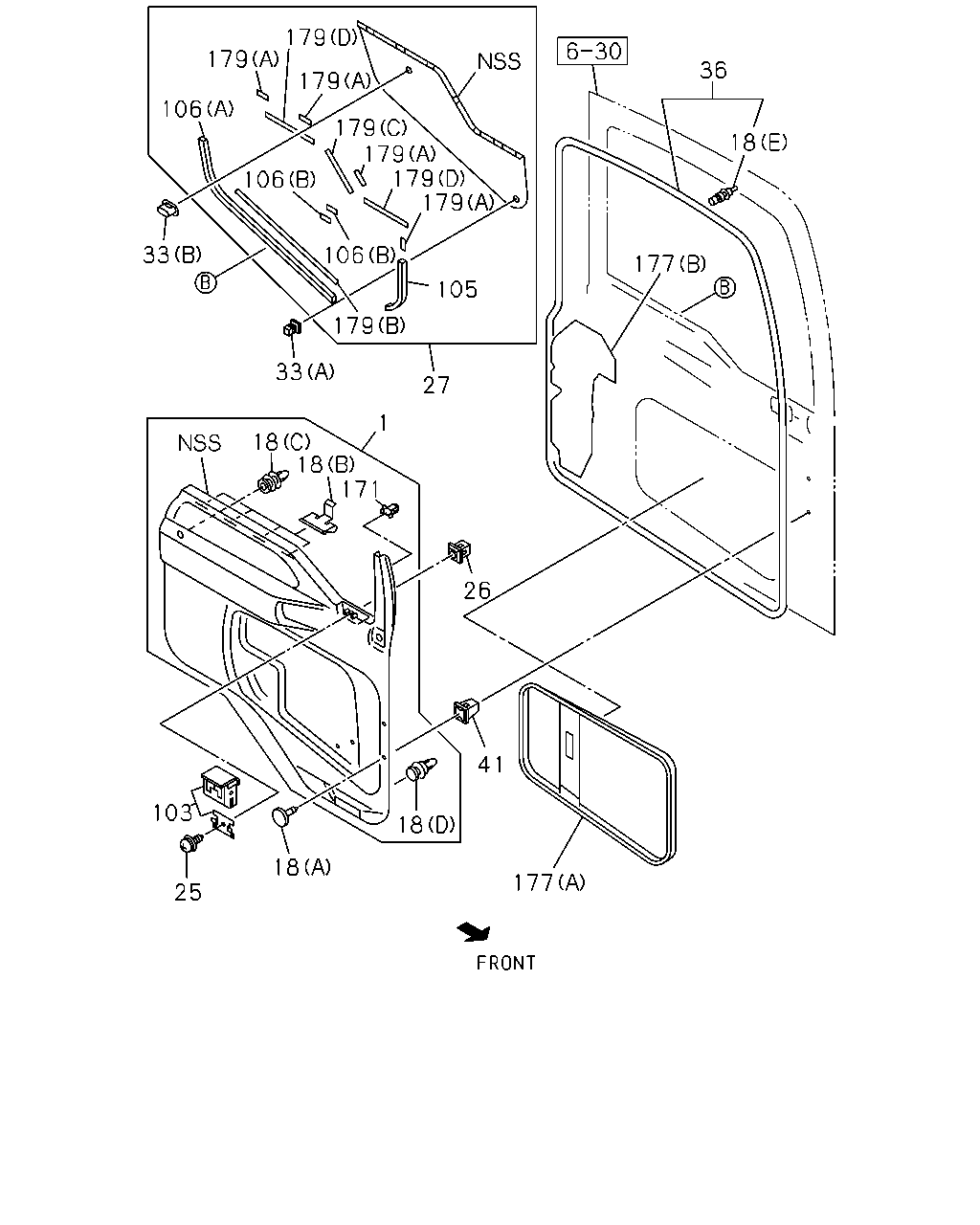

çizim 141745
179 179 36 179 106 179 179 179 179 18 106 33 106 177 105 179 33 27 1 18 18 171 26 41 103 18 18 177 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,FRT DOOR 1-73337-516-0 01 1 0710-1005 ●
1 PAD; TRIM,FRT DOOR 1-73337-516-1 01 1 1006- ● ●
1 PAD; TRIM,FRT DOOR 1-73337-506-1 01 1 0710-1005 ●
1 PAD; TRIM,FRT DOOR 1-73337-506-1 01 1 1006- ● ●
18 CLIP; DOOR PAD
(B) 		1-09987-262-0 09 1 0710-1005 ●
18 CLIP; DOOR PAD
(B) 		1-09987-262-0 09 1 1006- ● ●
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 0710-1005 ●
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 1006- ● ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 0710-1005 ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 1006- ● ●
18 CLIP; DOOR PAD
(D) OD=8.5 GRAY 		8-97893-482-0 10 1 0710-1005 ●
18 CLIP; DOOR PAD
(D) OD=8.5 GRAY 		8-97893-482-0 10 1 1006- ● ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 0710-1005 ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 1006- ● ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 0710-1005 ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 1006- ● ●
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0710-1005 ●
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 1006- ● ●
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0710-1005 ●
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1006- ● ●
27 PANEL; ORNAMENT,DOOR 1-76217-157-3 01 1 0710-1005 ●
27 PANEL; ORNAMENT,DOOR 1-76217-157-3 01 1 1006- ● ●
27 PANEL; ORNAMENT,DOOR 1-76217-149-3 01 1 0710-1005 ●
27 PANEL; ORNAMENT,DOOR 1-76217-149-3 01 1 1006-1210 ● ●
27 PANEL; ORNAMENT,DOOR 8-98229-330-0 01 1 1211- ● ●
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 0710-0802 ●
33 GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 0803-1005 ●
33 GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 1006- ● ●
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 0710-1005 ●
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 1006- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 0710-1005 ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 1006-1010 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-764-0 01 1 1011- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 0710-1005 ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 1006-1010 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-763-0 01 1 1011- ● ●
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 0710-1005 ●
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 1006- ● ●
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 0710-1005 ●
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 1006- ● ●
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 0710-1005 ●
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 1006- ● ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 02 1 0710-1005 ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 02 1 1006- ● ●
106 SEAL; DOOR ORNAMENT
(C) 		8-98226-642-0 01 1 1211- ● ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 02 1 0710-1005 ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 02 1 1006- ● ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 04 1 0710-1005 ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 04 1 1006- ● ●
171 RETAINER; DOOR PAD 1-09987-264-0 01 1 0710-1005 ●
171 RETAINER; DOOR PAD 1-09987-264-0 01 1 1006- ● ●
177 SEAL; WATER,DOOR
(A) 		1-76778-035-6 01 1 0710-1005 ●
177 SEAL; WATER,DOOR
(A) 		1-76778-035-6 01 1 1006- ● ●
177 SEAL; WATER,DOOR
(A) 		1-76778-052-2 01 1 0710-1005 ●
177 SEAL; WATER,DOOR
(A) 		1-76778-052-2 01 1 1006- ● ●
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 0710-1005 ●
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 1006- ● ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 08 1 0710-1005 ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 08 1 1006- ● ●
179 TAPE; ORNAMENT
(B) L=770 		1-76218-091-2 02 1 0710-1005 ●
179 TAPE; ORNAMENT
(B) L=770 		1-76218-091-2 02 1 1006- ● ●
179 TAPE; ORNAMENT
(C) L=160 		1-76218-094-1 02 1 0710-1005 ●
179 TAPE; ORNAMENT
(C) L=160 		1-76218-094-1 02 1 1006- ● ●
179 TAPE; ORNAMENT
(D) L=235 		1-76218-127-1 04 1 0710-1005 ●
179 TAPE; ORNAMENT
(D) L=235 		1-76218-127-1 04 1 1006- ● ●

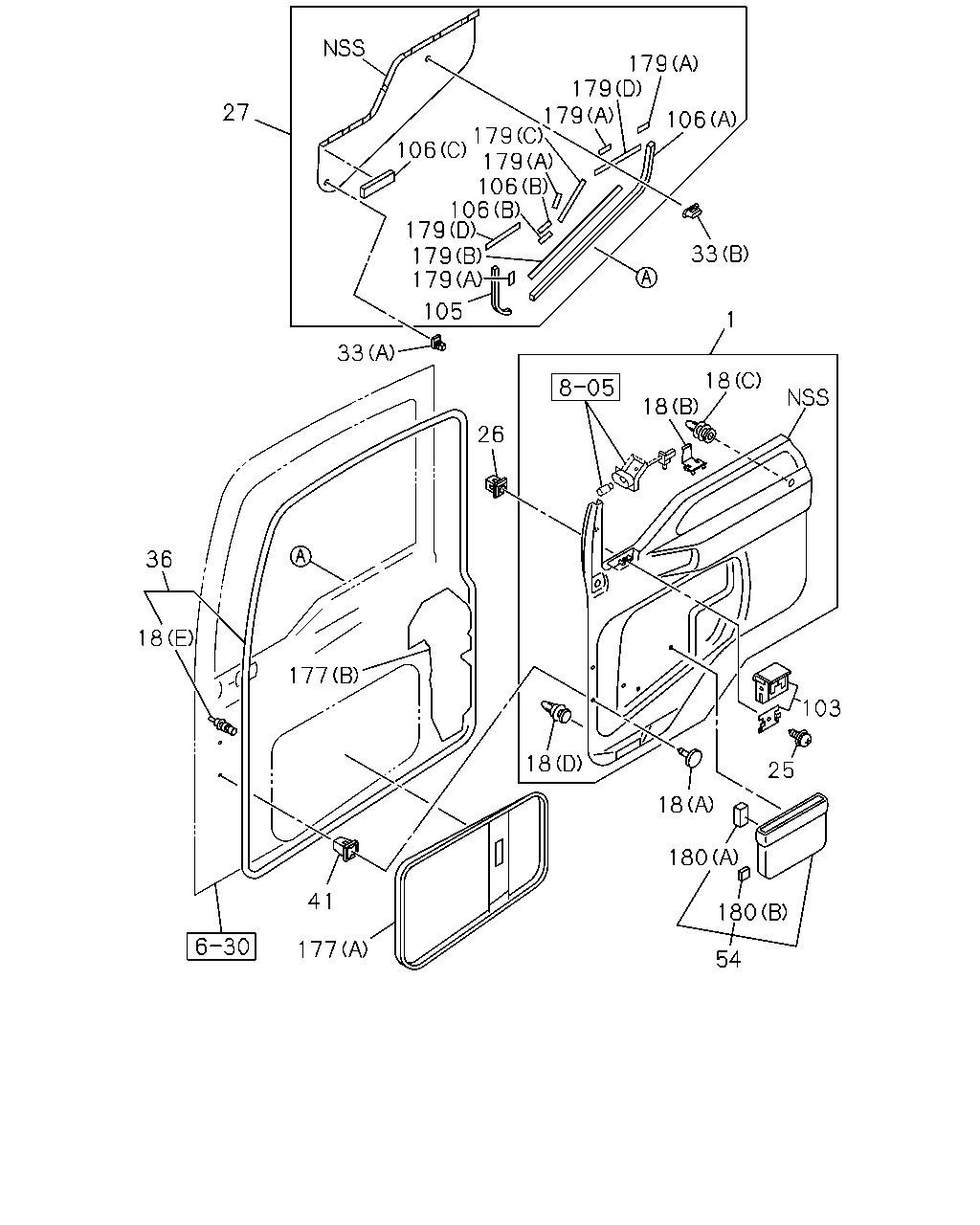

çizim 141755
54 180 180 18 25 103 18 18 26 18 177 41 18 36 177 33 105 33 179 179 179 106 106 179 179 106 27 179 179 179 106 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,FRT DOOR 1-73337-516-0 01 1 0710-1005 ●
1 PAD; TRIM,FRT DOOR 1-73337-516-1 01 1 1006- ● ●
1 PAD; TRIM,FRT DOOR 1-73337-506-1 01 1 0710-1005 ●
1 PAD; TRIM,FRT DOOR 1-73337-506-1 01 1 1006- ● ●
18 CLIP; DOOR PAD
(B) 		1-09987-262-0 09 1 0710-1005 ●
18 CLIP; DOOR PAD
(B) 		1-09987-262-0 09 1 1006- ● ●
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 0710-1005 ●
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 1006- ● ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 0710-1005 ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 1006- ● ●
18 CLIP; DOOR PAD
(D) OD=8.5 GRAY 		8-97893-482-0 10 1 0710-1005 ●
18 CLIP; DOOR PAD
(D) OD=8.5 GRAY 		8-97893-482-0 10 1 1006- ● ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 0710-1005 ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 1006- ● ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 0710-1005 ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 1006- ● ●
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0710-1005 ●
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 1006- ● ●
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0710-1005 ●
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1006- ● ●
27 PANEL; ORNAMENT,DOOR 1-76217-157-3 01 1 0710-1005 ●
27 PANEL; ORNAMENT,DOOR 1-76217-157-3 01 1 1006- ● ●
27 PANEL; ORNAMENT,DOOR 1-76217-149-3 01 1 0710-1005 ●
27 PANEL; ORNAMENT,DOOR 1-76217-149-3 01 1 1006-1210 ● ●
27 PANEL; ORNAMENT,DOOR 8-98229-330-0 01 1 1211- ● ●
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 0710-0802 ●
33 GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 0803-1005 ●
33 GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 1006- ● ●
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 0710-1005 ●
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 1006- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 0710-1005 ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 1006-1010 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-764-0 01 1 1011- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 0710-1005 ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 1006-1010 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-763-0 01 1 1011- ● ●
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 0710-1005 ●
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 1006- ● ●
54 BOX; FRT DOOR 1-72537-177-0 01 1 0710-1005 ●
54 BOX; FRT DOOR 1-72537-177-0 01 1 1006- ● ●
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 0710-1005 ●
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 1006- ● ●
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 0710-1005 ●
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 1006- ● ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 02 1 0710-1005 ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 02 1 1006- ● ●
106 SEAL; DOOR ORNAMENT
(C) 		8-98226-642-0 01 1 1211- ● ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 02 1 0710-1005 ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 02 1 1006- ● ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 04 1 0710-1005 ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 04 1 1006- ● ●
177 SEAL; WATER,DOOR
(A) 		1-76778-035-6 01 1 0710-1005 ●
177 SEAL; WATER,DOOR
(A) 		1-76778-035-6 01 1 1006- ● ●
177 SEAL; WATER,DOOR
(A) 		1-76778-052-2 01 1 0710-1005 ●
177 SEAL; WATER,DOOR
(A) 		1-76778-052-2 01 1 1006- ● ●
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 0710-1005 ●
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 1006- ● ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 08 1 0710-1005 ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 08 1 1006- ● ●
179 TAPE; ORNAMENT
(B) L=770 		1-76218-091-2 02 1 0710-1005 ●
179 TAPE; ORNAMENT
(B) L=770 		1-76218-091-2 02 1 1006- ● ●
179 TAPE; ORNAMENT
(C) L=160 		1-76218-094-1 02 1 0710-1005 ●
179 TAPE; ORNAMENT
(C) L=160 		1-76218-094-1 02 1 1006- ● ●
179 TAPE; ORNAMENT
(D) L=235 		1-76218-127-1 04 1 0710-1005 ●
179 TAPE; ORNAMENT
(D) L=235 		1-76218-127-1 04 1 1006- ● ●
180 SEAL; BOX
(A) 5X10X30 		1-72538-153-1 02 1 0710-1005 ●
180 SEAL; BOX
(A) 5X10X30 		1-72538-153-1 02 1 1006- ● ●
180 SEAL; BOX
(B) 15X30 		1-74998-069-0 02 1 0710-1005 ●
180 SEAL; BOX
(B) 15X30 		1-74998-069-0 02 1 1006- ● ●
