6-32 — FRONT DOOR LOCK AND HANDLE (#14655) — 49 parça
çizim 141739
12 8 6 12 1 12 8 6 12 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; OUTSIDE,FRT DOOR 1-74618-024-4 02 1 0710-1005 ●
1 HANDLE; OUTSIDE,FRT DOOR 1-74618-024-4 02 1 1006- ● ●
6 NUT; OUTSIDE HANDLE
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0710-1005 ●
6 NUT; OUTSIDE HANDLE
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 1006- ● ●
8 LOCK; DOOR,FRT DOOR 1-74518-115-3 01 1 0710-1005 ●
8 LOCK; DOOR,FRT DOOR 1-74518-115-3 01 1 1006- ● ●
8 LOCK; DOOR,FRT DOOR 1-74518-107-6 01 1 0710-1005 ●
8 LOCK; DOOR,FRT DOOR 1-74518-107-6 01 1 1006- ● ●
12 SCREW; DOOR LK
M6X16 		1-09981-447-1 06 1 0710-0805 ●
12 SCREW; DOOR LK
M6X16 		8-97581-217-0 06 1 0806-1005 ●
12 SCREW; DOOR LK
M6X16 		8-97581-217-0 06 1 1006- ● ●
12 SCREW; DOOR LK
M6X14 		1-09981-512-1 04 1 0710-1005 ●
12 SCREW; DOOR LK
M6X14 		1-09981-512-1 04 1 1006- ● ●

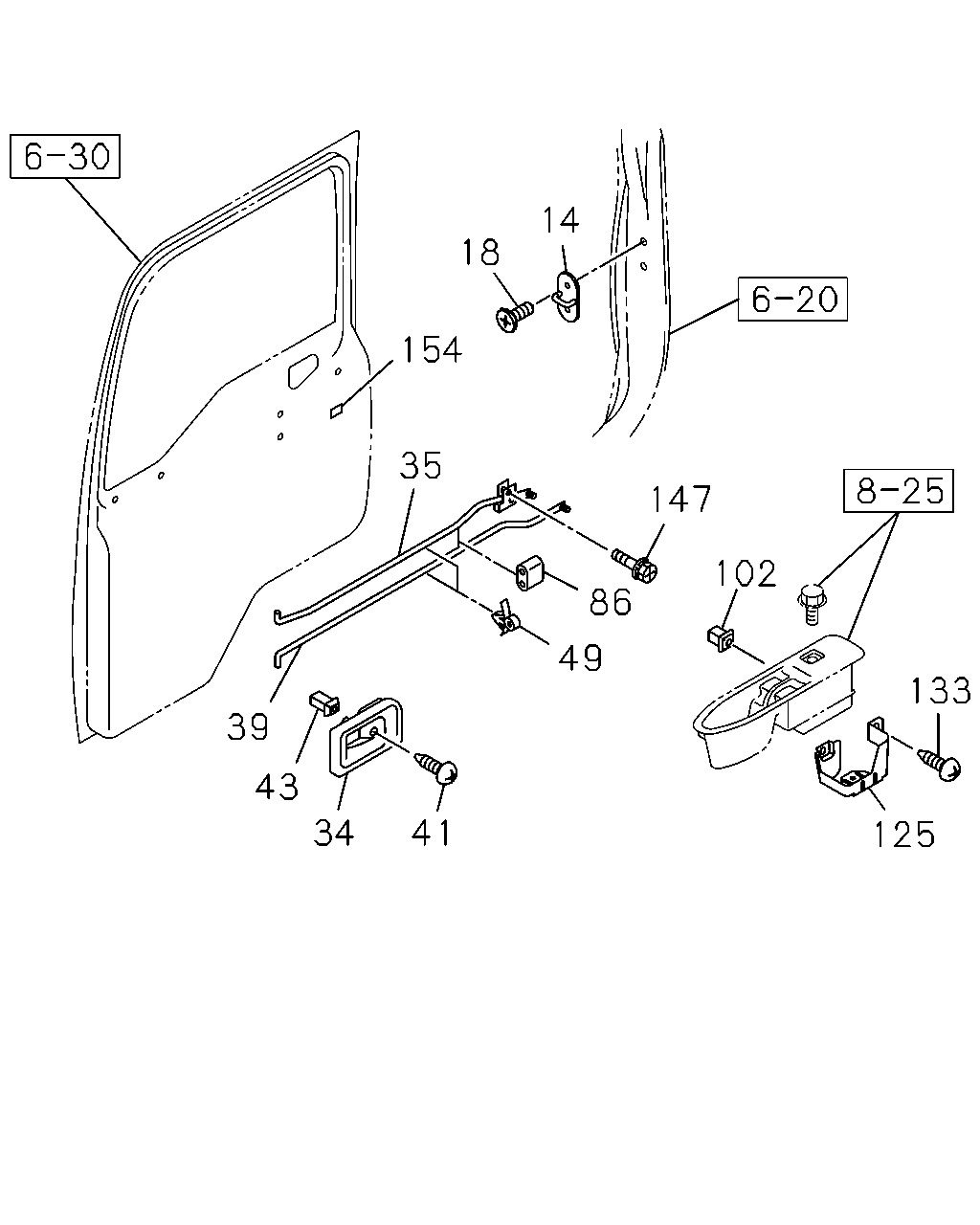

çizim 141838
14 18 154 35 147 102 86 49 133 39 43 34 41 125
BalonParca AdiParca NoAdetTipApplied Date A B
14 STRIKER; FRT DOOR 8-97221-702-1 02 1 0710-1005 ●
14 STRIKER; FRT DOOR 8-97221-702-1 02 1 1006- ● ●
18 SCREW; DOOR STRIKER
M8X23 W/LK WASHER 		8-97221-701-0 04 1 0710-1005 ●
18 SCREW; DOOR STRIKER
M8X23 W/LK WASHER 		8-97221-701-0 04 1 1006- ● ●
34 HANDLE; INSIDE,FRT DOOR 1-74718-023-4 01 1 0710-1005 ●
34 HANDLE; INSIDE,FRT DOOR 1-74718-023-4 01 1 1006- ● ●
34 HANDLE; INSIDE,FRT DOOR 1-74718-022-4 01 1 0710-1005 ●
34 HANDLE; INSIDE,FRT DOOR 1-74718-022-4 01 1 1006- ● ●
35 LINK; DOOR LOCK,INSIDE 1-74518-094-3 01 1 0710-1005 ●
35 LINK; DOOR LOCK,INSIDE 1-74518-094-3 01 1 1006- ● ●
35 LINK; DOOR LOCK,INSIDE 1-74518-093-3 01 1 0710-1005 ●
35 LINK; DOOR LOCK,INSIDE 1-74518-093-3 01 1 1006- ● ●
39 LINK; INSIDE HANDLE,FRT DOOR 1-74758-022-2 01 1 0710-1005 ●
39 LINK; INSIDE HANDLE,FRT DOOR 1-74758-022-2 01 1 1006- ● ●
39 LINK; INSIDE HANDLE,FRT DOOR 1-74758-021-2 01 1 0710-1005 ●
39 LINK; INSIDE HANDLE,FRT DOOR 1-74758-021-2 01 1 1006- ● ●
41 SCREW; INSIDE HANDLE
M5X14 		8-94152-495-0 02 1 0710-1005 ●
41 SCREW; INSIDE HANDLE
M5X14 		8-94152-495-0 02 1 1006- ● ●
43 GROMMET; SCREW,INSIDE LEVER,DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0710-1005 ●
43 GROMMET; SCREW,INSIDE LEVER,DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1006- ● ●
49 CLAMP; DOOR LOCK LINK ROD
ID=3.8 WHITE 		8-94217-699-0 04 1 0710-1005 ●
49 CLAMP; DOOR LOCK LINK ROD
ID=3.8 WHITE 		8-94217-699-0 04 1 1006- ● ●
86 SEAL; DOOR LOCK LINK 1-76778-044-1 02 1 0710-1005 ●
86 SEAL; DOOR LOCK LINK 1-76778-044-1 02 1 1006- ● ●
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 04 1 0710-1005 ●
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 04 1 1006- ● ●
125 BRACKET; DOOR PULL 1-74718-011-4 01 1 0710-1005 ●
125 BRACKET; DOOR PULL 1-74718-011-4 01 1 1006- ● ●
125 BRACKET; DOOR PULL 1-74718-010-4 01 1 0710-1005 ●
125 BRACKET; DOOR PULL 1-74718-010-4 01 1 1006- ● ●
133 SCREW; DOOR PULL STAY
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 04 1 0710-1005 ●
133 SCREW; DOOR PULL STAY
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 04 1 1006- ● ●
147 BOLT; ROD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-1005 ●
147 BOLT; ROD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1006- ● ●
154 SEAL; DOOR
30X30 		1-74998-128-1 02 1 0710-1005 ●
154 SEAL; DOOR
30X30 		1-74998-128-1 02 1 1006- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
