◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#14652) — 377 parça

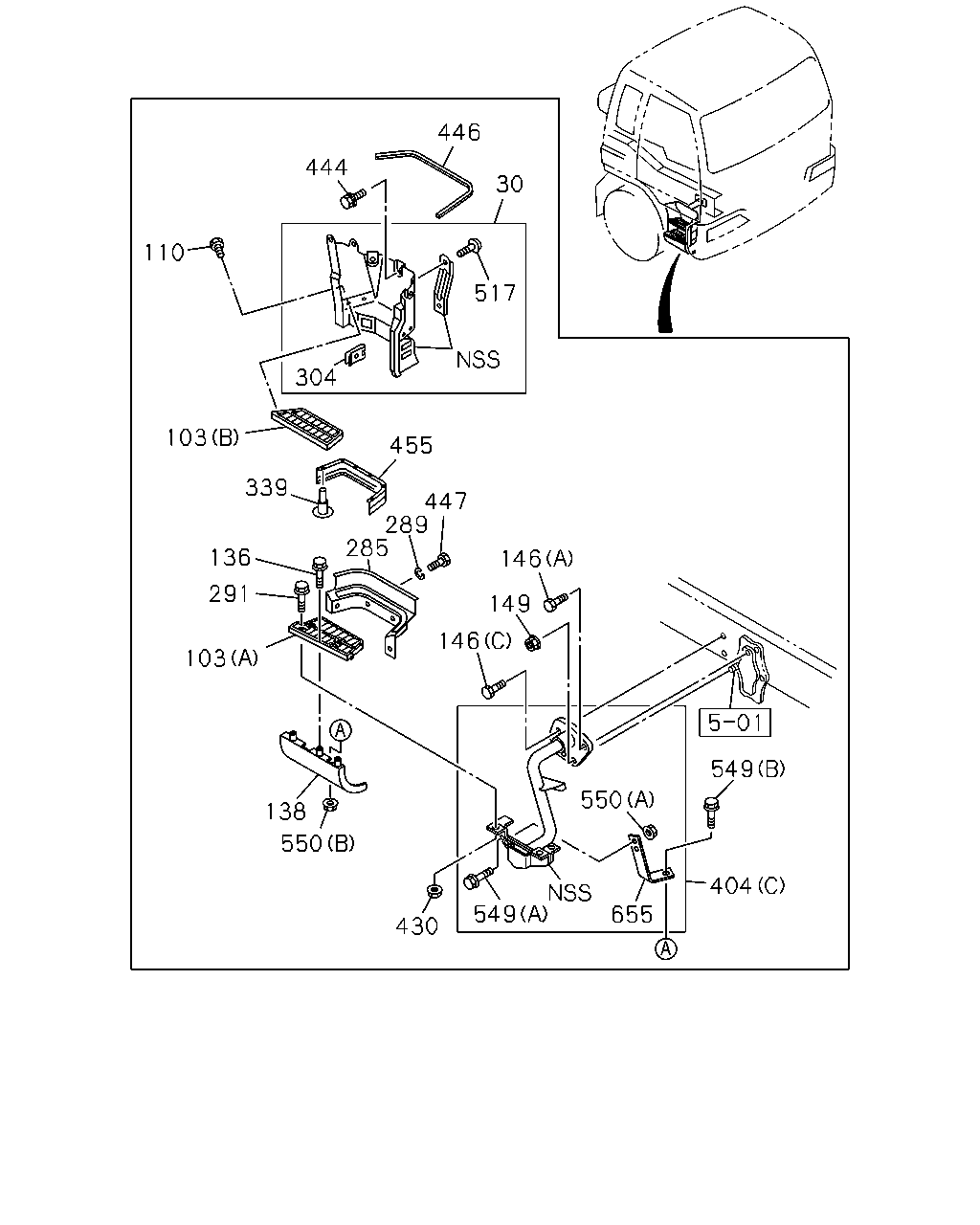

çizim 141649
446 444 30 110 517 304 103 455 339 447 289 285 136 146 291 149 146 103 549 550 138 550 404 549 655 430
BalonParca AdiParca NoAdetTipApplied Date A B
30 CLOSING; SIDE STEP 1-71907-817-1 01 1 0710-0910 ●
30 CLOSING; SIDE STEP 8-98156-848-0 01 1 0911-1005 ●
30 CLOSING; SIDE STEP 8-98156-848-0 01 1 1006- ● ●
30 CLOSING; SIDE STEP 1-71907-816-1 01 1 0710-0910 ●
30 CLOSING; SIDE STEP 8-98156-847-0 01 1 0911-1005 ●
30 CLOSING; SIDE STEP 8-98156-847-0 01 1 1006- ● ●
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 0710-1005 ●
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 1006- ● ●
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 0710-1005 ●
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 1006- ● ●
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 0710-1005 ●
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 1006- ● ●
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 0710-1005 ●
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 1006- ● ●
110 BOLT; 1ST STEP PLATE
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0710-1005 ●
110 BOLT; 1ST STEP PLATE
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 1006- ● ●
136 BOLT; OVER FENDER
FRONT SPOILER<VP1> M5X22 		8-97029-303-1 06 1 1009- ●
138 FENDER; OVER
FRONT SPOILER<VP1> WHITE 		1-79931-447-1 01 1 1009- ●
138 FENDER; OVER
FRONT SPOILER<VP1> WHITE 		1-79931-448-1 01 1 1009- ●
146 BOLT; STEP BRKT
(A) M12X30 FLANGE 		0-28051-230-0 03 1 0710-1005 ●
146 BOLT; STEP BRKT
(A) M12X30 FLANGE 		0-28051-230-0 03 1 1006- ● ●
146 BOLT; STEP BRKT
(B) M12X70 FLANGE 		0-28051-270-0 02 1 0710-1005 ●
146 BOLT; STEP BRKT
(B) M12X70 FLANGE 		0-28051-270-0 02 1 1006- ● ●
146 BOLT; STEP BRKT
(C) M12X80 FLANGE 		0-28051-280-0 02 1 0710-1005 ●
146 BOLT; STEP BRKT
(C) M12X80 FLANGE 		0-28051-280-0 02 1 1006- ● ●
146 BOLT; STEP BRKT
(D) M12X35 FLANGE 		0-28651-235-0 03 1 0710-1005 ●
146 BOLT; STEP BRKT
(D) M12X35 FLANGE 		0-28651-235-0 03 1 1006- ● ●
149 NUT; STEP BRKT
M12 FLANGE 		0-91180-212-0 01 1 0710-1005 ●
149 NUT; STEP BRKT
M12 FLANGE 		0-91180-212-0 01 1 1006-1107 ● ●
149 NUT; STEP BRKT
M12 FLANGE 		0-91180-212-0 01 1 1108- ● ●
285 PLATE; STEP,1ST STEP 8-97619-528-0 01 1 0710-1005 ●
285 PLATE; STEP,1ST STEP 8-97619-528-0 01 1 1006-1107 ● ●
285 PLATE; STEP,1ST STEP 8-97619-528-0 01 1 1108- ● ●
285 PLATE; STEP,1ST STEP 8-97619-529-0 01 1 0710-1005 ●
285 PLATE; STEP,1ST STEP 8-97619-529-0 01 1 1006-1107 ● ●
285 PLATE; STEP,1ST STEP 8-97619-529-0 01 1 1108- ● ●
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 0710-1005 ●
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 1006-1107 ● ●
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 1108- ● ●
291 BOLT; STEP PLATE
M8X40 FLANGE 		0-28050-840-0 08 1 0710-1005 ●
291 BOLT; STEP PLATE
M8X40 FLANGE 		0-28050-840-0 08 1 1006-1107 ● ●
291 BOLT; STEP PLATE
M8X40 FLANGE 		0-28050-840-0 08 1 1108- ● ●
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 0710-1005 ●
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 1006- ● ●
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 0710-1005 ●
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 1006- ● ●
404 BRACKET
FRONT SPOILER<VP1> (C) 		1-53414-287-2 01 1 1009- ●
404 BRACKET
FRONT SPOILER<VP1> (D) 		1-53414-288-2 01 1 1009- ●
404 BRACKET
(A) 		1-53414-159-3 01 1 0710-1005 ●
404 BRACKET
(A) 		1-53414-159-3 01 1 1006-1008 ● ●
404 BRACKET
EXC. FRONT SPOILER<VP1> (A) 		1-53414-159-4 01 1 1009- ●
404 BRACKET
(A) 		1-53414-159-4 01 1 1009- ●
404 BRACKET
(B) 		1-53414-256-2 01 1 0710-1005 ●
404 BRACKET
(B) 		1-53414-256-2 01 1 1006-1008 ● ●
404 BRACKET
EXC. FRONT SPOILER<VP1> (B) 		1-53414-256-3 01 1 1009- ●
404 BRACKET
(B) 		1-53414-256-3 01 1 1009- ●
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 0710-1005 ●
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 1006-1107 ● ●
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 1108- ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0710-0904 ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905-1005 ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1006- ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0710-1005 ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 1006- ● ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 0710-1005 ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 1006-1107 ● ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 1108- ● ●
455 PROTECTOR; STEP 1-71907-837-1 01 1 0710-1005 ●
455 PROTECTOR; STEP 1-71907-837-1 01 1 1006- ● ●
455 PROTECTOR; STEP 1-71907-838-1 01 1 0710-1005 ●
455 PROTECTOR; STEP 1-71907-838-1 01 1 1006- ● ●
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 04 1 0710-1005 ●
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 04 1 1006- ● ●
549 BOLT; STAY
FRONT SPOILER<VP1> (A) M6X20 FLANGE 		0-28650-620-0 04 1 1009- ●
549 BOLT; STAY
FRONT SPOILER<VP1> (B) M5X16 W/LK&PL WASHER 		8-94198-538-0 02 1 1009- ●
550 NUT; STAY
FRONT SPOILER<VP1> (A) M6 FLANGE 		0-91180-206-0 04 1 1009- ●
550 NUT; STAY
FRONT SPOILER<VP1> (B) M5 FLANGE 		1-09984-170-0 02 1 1009- ●
655 STAY; MUD GUARD
FRONT SPOILER<VP1> 		8-97608-965-1 01 1 1009- ●
655 STAY; MUD GUARD
FRONT SPOILER<VP1> 		8-97608-966-1 01 1 1009- ●

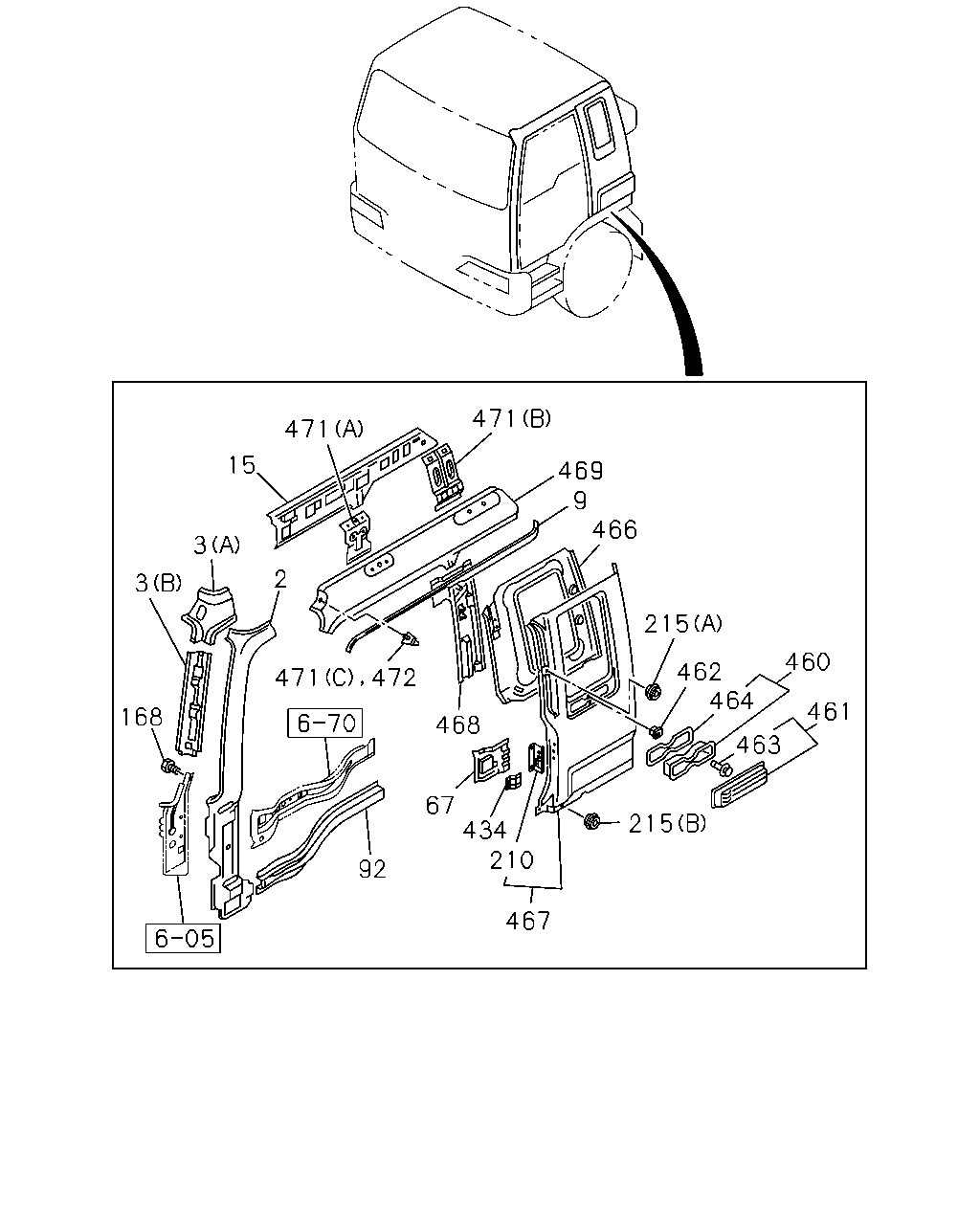

çizim 141737
471 471 15 469 9 466 3 2 3 215 460 462 464 461 168 468 463 67 434 210 215 92 467 471 472
BalonParca AdiParca NoAdetTipApplied Date A B
2 PILLAR; FRT 1-61281-410-2 01 1 0710-1005 ●
2 PILLAR; FRT 1-61281-410-2 01 1 1006- ● ●
2 PILLAR; FRT 1-61281-155-4 01 1 0710-1005 ●
2 PILLAR; FRT 1-61281-155-4 01 1 1006- ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-170-5 01 1 0710-1005 ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-170-5 01 1 1006- ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-344-5 01 1 0710-1005 ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-344-5 01 1 1006- ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-169-5 01 1 0710-1005 ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-169-5 01 1 1006- ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-343-5 01 1 0710-1005 ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-343-5 01 1 1006- ● ●
9 MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F> 		1-61270-791-4 01 1 1006- ●
9 MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F> 		1-61270-792-4 01 1 1006- ●
9 MOLDING; DRIP,CAB SIDE 1-61281-281-5 01 1 0710-1005 ●
9 MOLDING; DRIP,CAB SIDE 1-61281-281-5 01 1 1006-1202 ●
9 MOLDING; DRIP,CAB SIDE
LOW ROOF<6XQ> 		1-61281-281-5 01 1 1006-1202 ●
9 MOLDING; DRIP,CAB SIDE
LOW ROOF<6XQ> 		1-61281-281-5 01 1 1203- ● ●
9 MOLDING; DRIP,CAB SIDE 1-61281-280-5 01 1 0710-1005 ●
9 MOLDING; DRIP,CAB SIDE 1-61281-280-5 01 1 1006-1202 ●
9 MOLDING; DRIP,CAB SIDE
LOW ROOF<6XQ> 		1-61281-280-5 01 1 1006-1202 ●
9 MOLDING; DRIP,CAB SIDE
LOW ROOF<6XQ> 		1-61281-280-5 01 1 1203- ● ●
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 0710-1005 ●
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 1006- ● ●
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 0710-1005 ●
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 1006- ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 0710-1005 ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 1006- ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 0710-1005 ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 1006- ● ●
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 0710-1005 ●
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 1006- ● ●
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 0710-1005 ●
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 1006- ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 0710-1005 ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 1006- ● ●
210 PANEL; DOOR STRIKER REINF 8-97851-446-1 01 1 0710-1005 ●
210 PANEL; DOOR STRIKER REINF 8-97851-446-1 01 1 1006- ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 0710-1005 ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 1006- ● ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 0710-1005 ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 1006- ● ●
434 PATCH; ASSIST GRIP 1-61270-763-1 02 1 0710-1005 ●
434 PATCH; ASSIST GRIP 1-61270-763-1 02 1 1006- ● ●
460 VENTILATOR; BODY SIDE 1-76378-292-4 02 1 0710-1005 ●
460 VENTILATOR; BODY SIDE 1-76378-292-4 02 1 1006- ● ●
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 0710-1005 ●
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 1006- ● ●
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 0710-1005 ●
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 1006- ● ●
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 0710-1005 ●
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 1006- ● ●
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0710-1005 ●
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 1006- ● ●
464 SEAL; VENTILATOR 1-76378-299-0 02 1 0710-1005 ●
464 SEAL; VENTILATOR 1-76378-299-0 02 1 1006- ● ●
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 0710-1005 ●
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 1006- ● ●
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 0710-1005 ●
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 1006- ● ●
467 PANEL; OUTER,BACK CORNER 1-61270-939-2 01 1 0710-0901 ●
467 PANEL; OUTER,BACK CORNER 1-61270-773-3 01 1 0902-1005 ●
467 PANEL; OUTER,BACK CORNER 1-61270-773-3 01 1 1006- ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-477-3 01 1 0710-0901 ●
467 PANEL; OUTER,BACK CORNER 1-61281-203-4 01 1 0902-1005 ●
467 PANEL; OUTER,BACK CORNER 1-61281-203-4 01 1 1006- ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 0710-1005 ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 1006- ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 0710-1005 ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 1006- ● ●
469 ROOF; SIDE 1-61281-199-8 01 1 0710-1005 ●
469 ROOF; SIDE 1-61281-199-8 01 1 1006- ● ●
469 ROOF; SIDE 1-61281-198-8 01 1 0710-1005 ●
469 ROOF; SIDE 1-61281-198-8 01 1 1006- ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-202-3 02 1 0710-1005 ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-202-3 02 1 1006- ● ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-201-3 01 1 0710-1005 ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-201-3 01 1 1006- ● ●
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-233-4 01 1 0710-0812 ●
471 PATCH; AIR DEFLECTOR
(C) 		8-98132-463-0 01 1 0901-1005 ●
471 PATCH; AIR DEFLECTOR
(C) 		8-98132-463-0 01 1 1006- ● ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-200-3 01 1 0710-1005 ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-200-3 01 1 1006- ● ●
472 PATCH; STAY,ROOF 1-61270-943-1 01 1 0710-1005 ●
472 PATCH; STAY,ROOF 1-61270-943-1 01 1 1006- ● ●

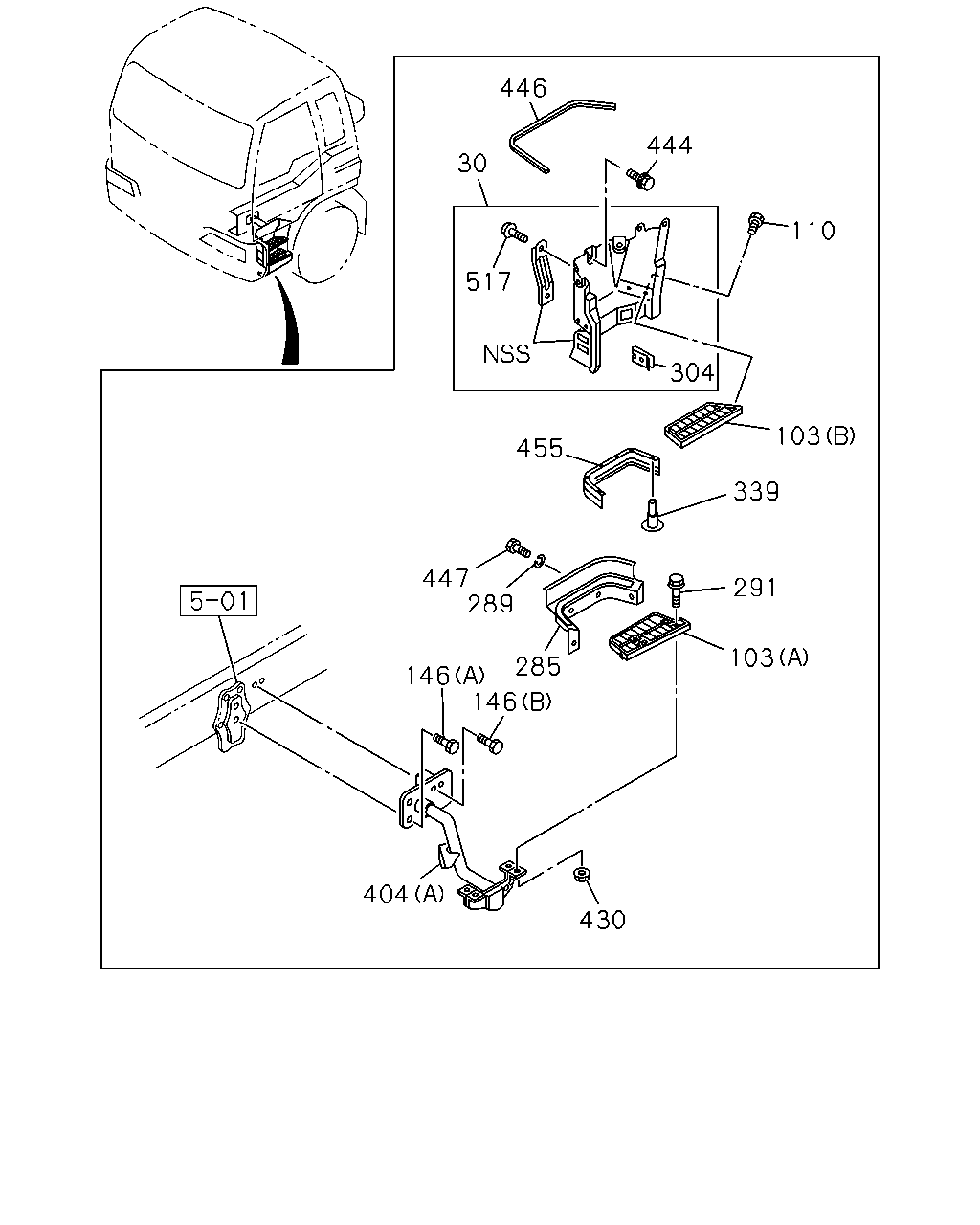

çizim 141738
446 444 30 110 517 304 103 455 339 447 289 291 285 103 146 146 404 430
BalonParca AdiParca NoAdetTipApplied Date A B
30 CLOSING; SIDE STEP 1-71907-817-1 01 1 0710-0910 ●
30 CLOSING; SIDE STEP 8-98156-848-0 01 1 0911-1005 ●
30 CLOSING; SIDE STEP 8-98156-848-0 01 1 1006- ● ●
30 CLOSING; SIDE STEP 1-71907-816-1 01 1 0710-0910 ●
30 CLOSING; SIDE STEP 8-98156-847-0 01 1 0911-1005 ●
30 CLOSING; SIDE STEP 8-98156-847-0 01 1 1006- ● ●
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 0710-1005 ●
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 1006- ● ●
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 0710-1005 ●
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 1006- ● ●
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 0710-1005 ●
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 1006- ● ●
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 0710-1005 ●
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 1006- ● ●
110 BOLT; 1ST STEP PLATE
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0710-1005 ●
110 BOLT; 1ST STEP PLATE
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 1006- ● ●
146 BOLT; STEP BRKT
(A) M12X30 FLANGE 		0-28051-230-0 03 1 0710-1005 ●
146 BOLT; STEP BRKT
(A) M12X30 FLANGE 		0-28051-230-0 03 1 1006- ● ●
146 BOLT; STEP BRKT
(B) M12X70 FLANGE 		0-28051-270-0 02 1 0710-1005 ●
146 BOLT; STEP BRKT
(B) M12X70 FLANGE 		0-28051-270-0 02 1 1006- ● ●
146 BOLT; STEP BRKT
(C) M12X80 FLANGE 		0-28051-280-0 02 1 0710-1005 ●
146 BOLT; STEP BRKT
(C) M12X80 FLANGE 		0-28051-280-0 02 1 1006- ● ●
146 BOLT; STEP BRKT
(D) M12X35 FLANGE 		0-28651-235-0 03 1 0710-1005 ●
146 BOLT; STEP BRKT
(D) M12X35 FLANGE 		0-28651-235-0 03 1 1006- ● ●
285 PLATE; STEP,1ST STEP 8-97619-528-0 01 1 0710-1005 ●
285 PLATE; STEP,1ST STEP 8-97619-528-0 01 1 1006-1107 ● ●
285 PLATE; STEP,1ST STEP 8-97619-528-0 01 1 1108- ● ●
285 PLATE; STEP,1ST STEP 8-97619-529-0 01 1 0710-1005 ●
285 PLATE; STEP,1ST STEP 8-97619-529-0 01 1 1006-1107 ● ●
285 PLATE; STEP,1ST STEP 8-97619-529-0 01 1 1108- ● ●
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 0710-1005 ●
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 1006-1107 ● ●
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 1108- ● ●
291 BOLT; STEP PLATE
M8X40 FLANGE 		0-28050-840-0 08 1 0710-1005 ●
291 BOLT; STEP PLATE
M8X40 FLANGE 		0-28050-840-0 08 1 1006-1107 ● ●
291 BOLT; STEP PLATE
M8X40 FLANGE 		0-28050-840-0 08 1 1108- ● ●
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 0710-1005 ●
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 1006- ● ●
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 0710-1005 ●
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 1006- ● ●
404 BRACKET
FRONT SPOILER<VP1> (C) 		1-53414-287-2 01 1 1009- ●
404 BRACKET
FRONT SPOILER<VP1> (D) 		1-53414-288-2 01 1 1009- ●
404 BRACKET
(A) 		1-53414-159-3 01 1 0710-1005 ●
404 BRACKET
(A) 		1-53414-159-3 01 1 1006-1008 ● ●
404 BRACKET
EXC. FRONT SPOILER<VP1> (A) 		1-53414-159-4 01 1 1009- ●
404 BRACKET
(A) 		1-53414-159-4 01 1 1009- ●
404 BRACKET
(B) 		1-53414-256-2 01 1 0710-1005 ●
404 BRACKET
(B) 		1-53414-256-2 01 1 1006-1008 ● ●
404 BRACKET
EXC. FRONT SPOILER<VP1> (B) 		1-53414-256-3 01 1 1009- ●
404 BRACKET
(B) 		1-53414-256-3 01 1 1009- ●
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 0710-1005 ●
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 1006-1107 ● ●
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 1108- ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0710-0904 ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905-1005 ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1006- ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0710-1005 ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 1006- ● ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 0710-1005 ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 1006-1107 ● ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 1108- ● ●
455 PROTECTOR; STEP 1-71907-837-1 01 1 0710-1005 ●
455 PROTECTOR; STEP 1-71907-837-1 01 1 1006- ● ●
455 PROTECTOR; STEP 1-71907-838-1 01 1 0710-1005 ●
455 PROTECTOR; STEP 1-71907-838-1 01 1 1006- ● ●
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 04 1 0710-1005 ●
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 04 1 1006- ● ●

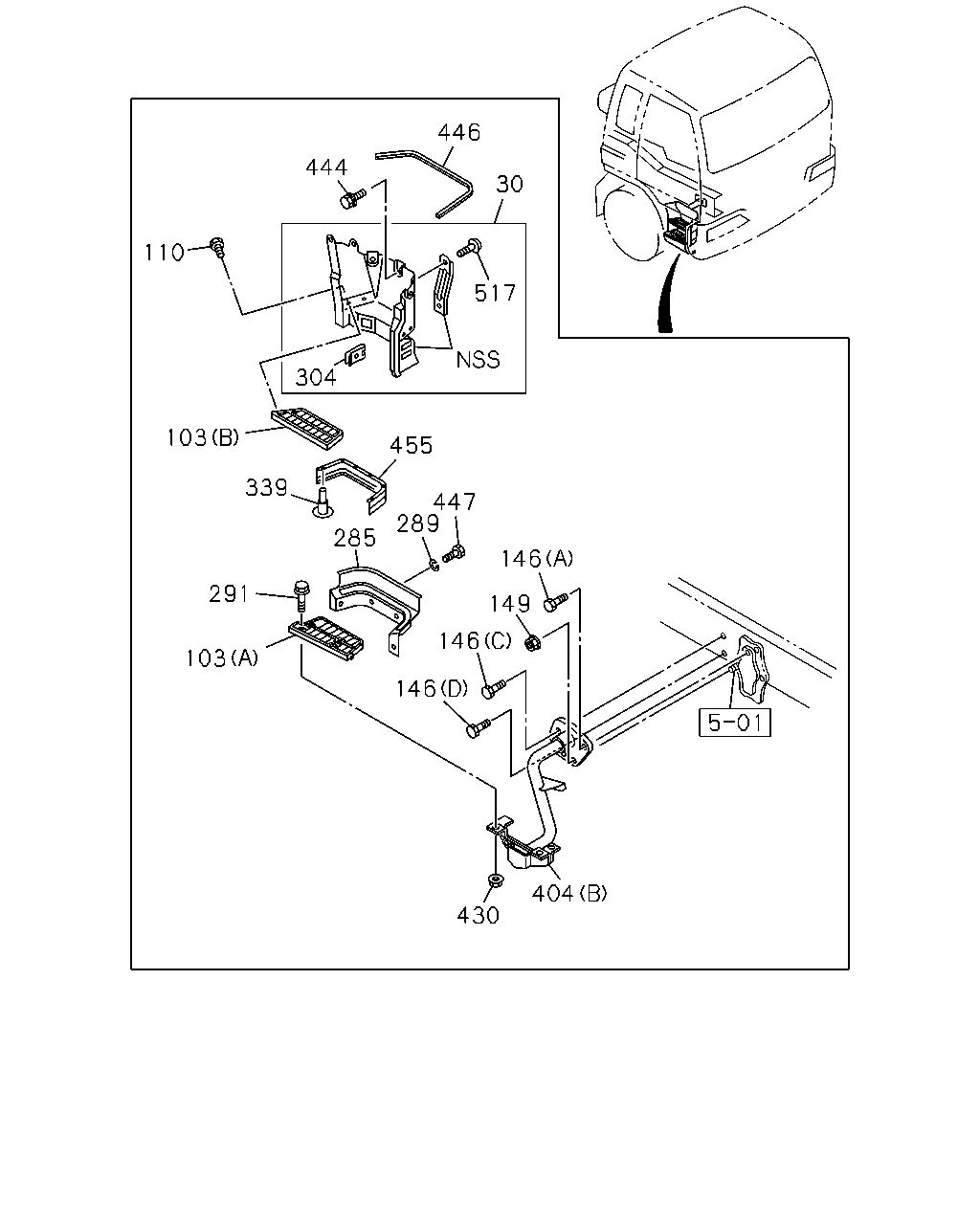

çizim 141740
446 444 30 110 517 304 103 455 339 447 289 285 146 291 149 146 103 146 404 430
BalonParca AdiParca NoAdetTipApplied Date A B
30 CLOSING; SIDE STEP 1-71907-817-1 01 1 0710-0910 ●
30 CLOSING; SIDE STEP 8-98156-848-0 01 1 0911-1005 ●
30 CLOSING; SIDE STEP 8-98156-848-0 01 1 1006- ● ●
30 CLOSING; SIDE STEP 1-71907-816-1 01 1 0710-0910 ●
30 CLOSING; SIDE STEP 8-98156-847-0 01 1 0911-1005 ●
30 CLOSING; SIDE STEP 8-98156-847-0 01 1 1006- ● ●
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 0710-1005 ●
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 1006- ● ●
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 0710-1005 ●
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 1006- ● ●
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 0710-1005 ●
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 1006- ● ●
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 0710-1005 ●
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 1006- ● ●
110 BOLT; 1ST STEP PLATE
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0710-1005 ●
110 BOLT; 1ST STEP PLATE
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 1006- ● ●
146 BOLT; STEP BRKT
(A) M12X30 FLANGE 		0-28051-230-0 03 1 0710-1005 ●
146 BOLT; STEP BRKT
(A) M12X30 FLANGE 		0-28051-230-0 03 1 1006- ● ●
146 BOLT; STEP BRKT
(B) M12X70 FLANGE 		0-28051-270-0 02 1 0710-1005 ●
146 BOLT; STEP BRKT
(B) M12X70 FLANGE 		0-28051-270-0 02 1 1006- ● ●
146 BOLT; STEP BRKT
(C) M12X80 FLANGE 		0-28051-280-0 02 1 0710-1005 ●
146 BOLT; STEP BRKT
(C) M12X80 FLANGE 		0-28051-280-0 02 1 1006- ● ●
146 BOLT; STEP BRKT
(D) M12X35 FLANGE 		0-28651-235-0 03 1 0710-1005 ●
146 BOLT; STEP BRKT
(D) M12X35 FLANGE 		0-28651-235-0 03 1 1006- ● ●
149 NUT; STEP BRKT
M12 FLANGE 		0-91180-212-0 01 1 0710-1005 ●
149 NUT; STEP BRKT
M12 FLANGE 		0-91180-212-0 01 1 1006-1107 ● ●
149 NUT; STEP BRKT
M12 FLANGE 		0-91180-212-0 01 1 1108- ● ●
285 PLATE; STEP,1ST STEP 8-97619-528-0 01 1 0710-1005 ●
285 PLATE; STEP,1ST STEP 8-97619-528-0 01 1 1006-1107 ● ●
285 PLATE; STEP,1ST STEP 8-97619-528-0 01 1 1108- ● ●
285 PLATE; STEP,1ST STEP 8-97619-529-0 01 1 0710-1005 ●
285 PLATE; STEP,1ST STEP 8-97619-529-0 01 1 1006-1107 ● ●
285 PLATE; STEP,1ST STEP 8-97619-529-0 01 1 1108- ● ●
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 0710-1005 ●
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 1006-1107 ● ●
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 1108- ● ●
291 BOLT; STEP PLATE
M8X40 FLANGE 		0-28050-840-0 08 1 0710-1005 ●
291 BOLT; STEP PLATE
M8X40 FLANGE 		0-28050-840-0 08 1 1006-1107 ● ●
291 BOLT; STEP PLATE
M8X40 FLANGE 		0-28050-840-0 08 1 1108- ● ●
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 0710-1005 ●
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 1006- ● ●
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 0710-1005 ●
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 1006- ● ●
404 BRACKET
FRONT SPOILER<VP1> (C) 		1-53414-287-2 01 1 1009- ●
404 BRACKET
FRONT SPOILER<VP1> (D) 		1-53414-288-2 01 1 1009- ●
404 BRACKET
(A) 		1-53414-159-3 01 1 0710-1005 ●
404 BRACKET
(A) 		1-53414-159-3 01 1 1006-1008 ● ●
404 BRACKET
EXC. FRONT SPOILER<VP1> (A) 		1-53414-159-4 01 1 1009- ●
404 BRACKET
(A) 		1-53414-159-4 01 1 1009- ●
404 BRACKET
(B) 		1-53414-256-2 01 1 0710-1005 ●
404 BRACKET
(B) 		1-53414-256-2 01 1 1006-1008 ● ●
404 BRACKET
EXC. FRONT SPOILER<VP1> (B) 		1-53414-256-3 01 1 1009- ●
404 BRACKET
(B) 		1-53414-256-3 01 1 1009- ●
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 0710-1005 ●
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 1006-1107 ● ●
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 1108- ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0710-0904 ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905-1005 ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1006- ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0710-1005 ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 1006- ● ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 0710-1005 ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 1006-1107 ● ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 1108- ● ●
455 PROTECTOR; STEP 1-71907-837-1 01 1 0710-1005 ●
455 PROTECTOR; STEP 1-71907-837-1 01 1 1006- ● ●
455 PROTECTOR; STEP 1-71907-838-1 01 1 0710-1005 ●
455 PROTECTOR; STEP 1-71907-838-1 01 1 1006- ● ●
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 04 1 0710-1005 ●
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 04 1 1006- ● ●

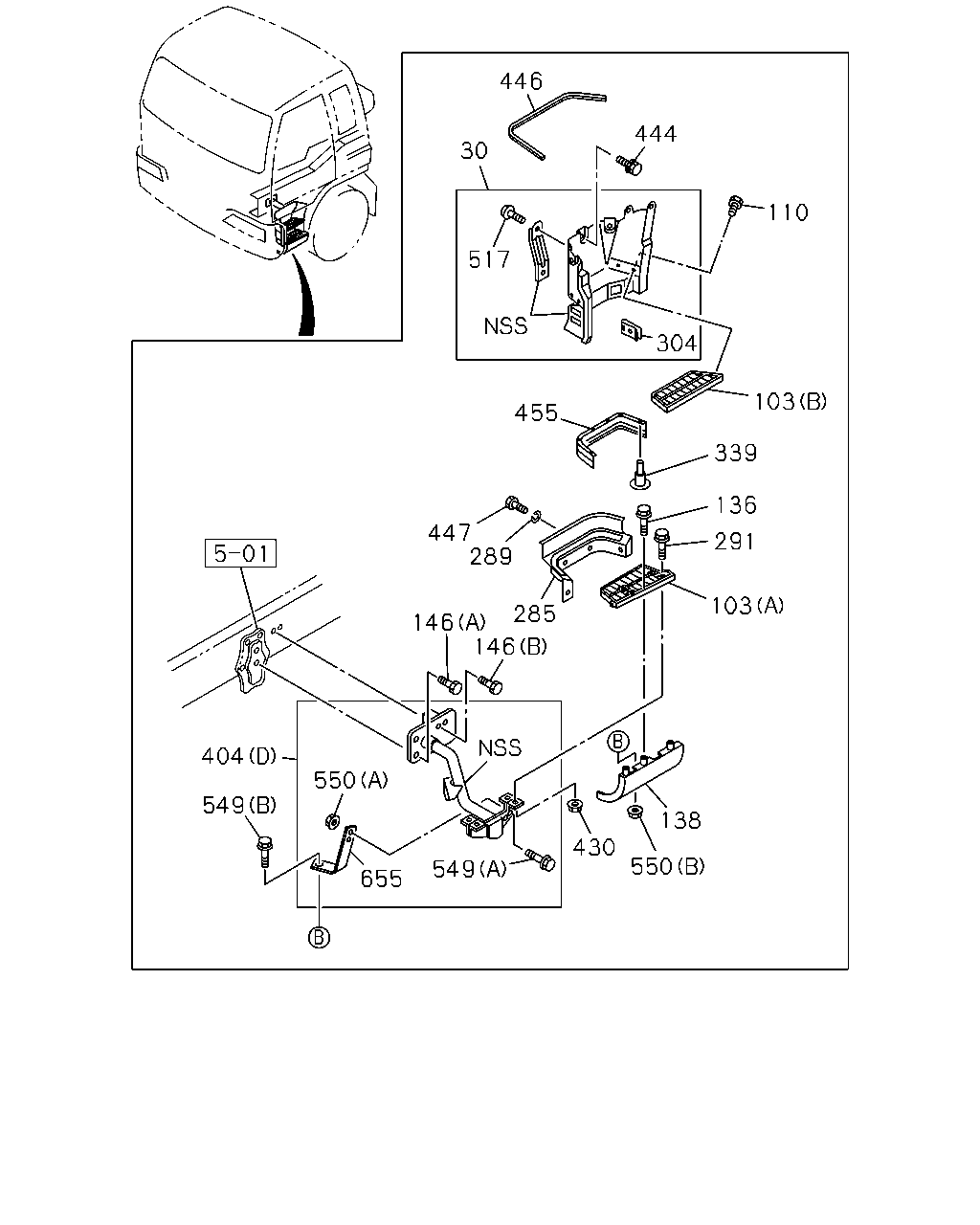

çizim 141863
446 444 30 110 517 304 103 455 339 136 447 289 291 285 103 146 146 404 550 549 138 430 550 549 655
BalonParca AdiParca NoAdetTipApplied Date A B
30 CLOSING; SIDE STEP 1-71907-817-1 01 1 0710-0910 ●
30 CLOSING; SIDE STEP 8-98156-848-0 01 1 0911-1005 ●
30 CLOSING; SIDE STEP 8-98156-848-0 01 1 1006- ● ●
30 CLOSING; SIDE STEP 1-71907-816-1 01 1 0710-0910 ●
30 CLOSING; SIDE STEP 8-98156-847-0 01 1 0911-1005 ●
30 CLOSING; SIDE STEP 8-98156-847-0 01 1 1006- ● ●
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 0710-1005 ●
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 1006- ● ●
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 0710-1005 ●
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 1006- ● ●
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 0710-1005 ●
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 1006- ● ●
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 0710-1005 ●
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 1006- ● ●
110 BOLT; 1ST STEP PLATE
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0710-1005 ●
110 BOLT; 1ST STEP PLATE
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 1006- ● ●
136 BOLT; OVER FENDER
FRONT SPOILER<VP1> M5X22 		8-97029-303-1 06 1 1009- ●
138 FENDER; OVER
FRONT SPOILER<VP1> WHITE 		1-79931-447-1 01 1 1009- ●
138 FENDER; OVER
FRONT SPOILER<VP1> WHITE 		1-79931-448-1 01 1 1009- ●
146 BOLT; STEP BRKT
(A) M12X30 FLANGE 		0-28051-230-0 03 1 0710-1005 ●
146 BOLT; STEP BRKT
(A) M12X30 FLANGE 		0-28051-230-0 03 1 1006- ● ●
146 BOLT; STEP BRKT
(B) M12X70 FLANGE 		0-28051-270-0 02 1 0710-1005 ●
146 BOLT; STEP BRKT
(B) M12X70 FLANGE 		0-28051-270-0 02 1 1006- ● ●
146 BOLT; STEP BRKT
(C) M12X80 FLANGE 		0-28051-280-0 02 1 0710-1005 ●
146 BOLT; STEP BRKT
(C) M12X80 FLANGE 		0-28051-280-0 02 1 1006- ● ●
146 BOLT; STEP BRKT
(D) M12X35 FLANGE 		0-28651-235-0 03 1 0710-1005 ●
146 BOLT; STEP BRKT
(D) M12X35 FLANGE 		0-28651-235-0 03 1 1006- ● ●
285 PLATE; STEP,1ST STEP 8-97619-528-0 01 1 0710-1005 ●
285 PLATE; STEP,1ST STEP 8-97619-528-0 01 1 1006-1107 ● ●
285 PLATE; STEP,1ST STEP 8-97619-528-0 01 1 1108- ● ●
285 PLATE; STEP,1ST STEP 8-97619-529-0 01 1 0710-1005 ●
285 PLATE; STEP,1ST STEP 8-97619-529-0 01 1 1006-1107 ● ●
285 PLATE; STEP,1ST STEP 8-97619-529-0 01 1 1108- ● ●
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 0710-1005 ●
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 1006-1107 ● ●
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 1108- ● ●
291 BOLT; STEP PLATE
M8X40 FLANGE 		0-28050-840-0 08 1 0710-1005 ●
291 BOLT; STEP PLATE
M8X40 FLANGE 		0-28050-840-0 08 1 1006-1107 ● ●
291 BOLT; STEP PLATE
M8X40 FLANGE 		0-28050-840-0 08 1 1108- ● ●
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 0710-1005 ●
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 1006- ● ●
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 0710-1005 ●
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 1006- ● ●
404 BRACKET
FRONT SPOILER<VP1> (C) 		1-53414-287-2 01 1 1009- ●
404 BRACKET
FRONT SPOILER<VP1> (D) 		1-53414-288-2 01 1 1009- ●
404 BRACKET
(A) 		1-53414-159-3 01 1 0710-1005 ●
404 BRACKET
(A) 		1-53414-159-3 01 1 1006-1008 ● ●
404 BRACKET
EXC. FRONT SPOILER<VP1> (A) 		1-53414-159-4 01 1 1009- ●
404 BRACKET
(A) 		1-53414-159-4 01 1 1009- ●
404 BRACKET
(B) 		1-53414-256-2 01 1 0710-1005 ●
404 BRACKET
(B) 		1-53414-256-2 01 1 1006-1008 ● ●
404 BRACKET
EXC. FRONT SPOILER<VP1> (B) 		1-53414-256-3 01 1 1009- ●
404 BRACKET
(B) 		1-53414-256-3 01 1 1009- ●
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 0710-1005 ●
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 1006-1107 ● ●
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 1108- ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0710-0904 ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905-1005 ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1006- ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0710-1005 ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 1006- ● ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 0710-1005 ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 1006-1107 ● ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 1108- ● ●
455 PROTECTOR; STEP 1-71907-837-1 01 1 0710-1005 ●
455 PROTECTOR; STEP 1-71907-837-1 01 1 1006- ● ●
455 PROTECTOR; STEP 1-71907-838-1 01 1 0710-1005 ●
455 PROTECTOR; STEP 1-71907-838-1 01 1 1006- ● ●
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 04 1 0710-1005 ●
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 04 1 1006- ● ●
549 BOLT; STAY
FRONT SPOILER<VP1> (A) M6X20 FLANGE 		0-28650-620-0 04 1 1009- ●
549 BOLT; STAY
FRONT SPOILER<VP1> (B) M5X16 W/LK&PL WASHER 		8-94198-538-0 02 1 1009- ●
550 NUT; STAY
FRONT SPOILER<VP1> (A) M6 FLANGE 		0-91180-206-0 04 1 1009- ●
550 NUT; STAY
FRONT SPOILER<VP1> (B) M5 FLANGE 		1-09984-170-0 02 1 1009- ●
655 STAY; MUD GUARD
FRONT SPOILER<VP1> 		8-97608-965-1 01 1 1009- ●
655 STAY; MUD GUARD
FRONT SPOILER<VP1> 		8-97608-966-1 01 1 1009- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
