◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10633 - FVZ-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#1465) — 37 parça

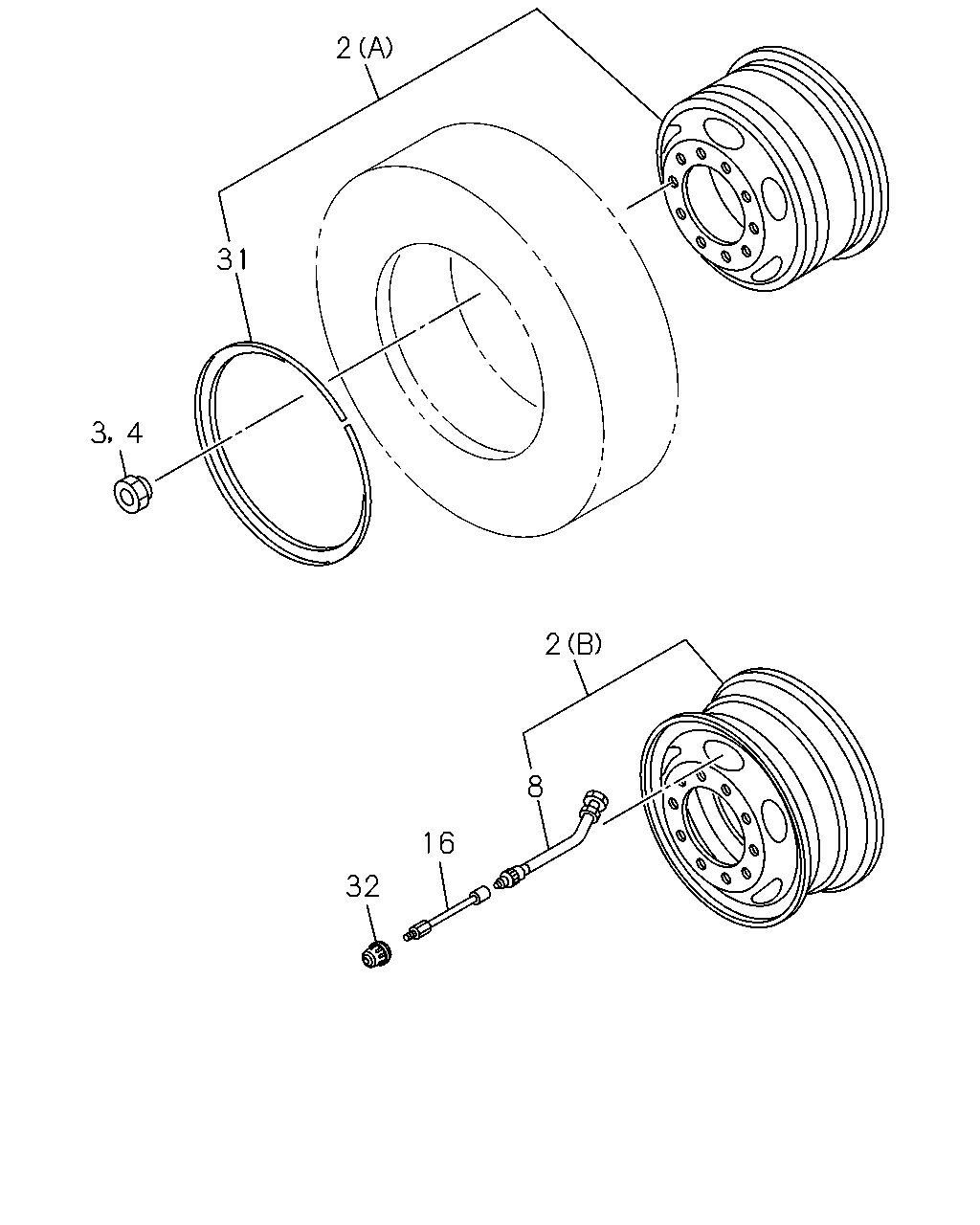

çizim 94180
2 31 3 4 2 8 16 32
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) (A) 		1-42350-167-1 10 1 9203-9301
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) (A) 		1-42350-447-0 10 1 9302-
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) (A) SPARE 		1-42350-167-1 01 1 9203-9301
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) (A) SPARE 		1-42350-447-0 01 1 9302-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A) 		1-42350-161-2 10 1 9203-9301
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A) 		1-42350-448-0 10 1 9302-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A) SPARE 		1-42350-161-2 01 1 9203-9301
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A) SPARE 		1-42350-448-0 01 1 9302-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (B) SPARE 		1-42350-338-2 01 1 9203-9312
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (B) SPARE 		1-42350-464-0 01 1 9401-9406
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (B) SPARE 		1-42350-278-2 01 1 9407-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (B) 		1-42350-338-2 10 1 9203-9312
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (B) 		1-42350-464-0 10 1 9401-9406
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) 		1-42350-278-2 10 1 9407-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B) SPARE 		1-42350-331-0 01 1 9203-9312
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B) SPARE 		1-42350-467-1 01 1 9401-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B) 		1-42350-331-0 10 1 9203-9312
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B) 		1-42350-467-1 10 1 9401-
3 NUT; WHEEL,FRT AXLE
M22 		1-42333-029-0 20 1 9203-9203
3 NUT; WHEEL,FRT AXLE
M22 RH THREAD 		1-42333-042-0 20 1 9204-
4 NUT; WHEEL,RR AXLE
M22 		1-42333-029-0 40 1 9203-9203
4 NUT; WHEEL,RR AXLE
M22 RH THREAD 		1-42333-042-0 40 1 9204-
8 VALVE; TIRE
DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) SPARE 		1-42370-022-3 01 1 9203-9306
8 VALVE; TIRE
DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) 		1-42370-022-3 10 1 9203-9306
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE 		1-42370-020-3 01 1 9203-9306
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) SPARE 		1-42370-020-3 01 1 9307-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42370-020-3 10 1 9203-9306
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) 		1-42370-020-3 10 1 9307-
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) L=170 		1-42370-024-0 04 1 9203-9504
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		1-42370-024-0 04 1 9505-
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) 		1-42355-012-1 10 1 9203-
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) SPARE 		1-42355-012-1 01 1 9203-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) 		1-42355-014-0 10 1 9203-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE 		1-42355-014-0 01 1 9203-
32 CAP; VALVE
DISC WHEEL SPARE<N79> 		1-42374-001-0 11 1 9304-
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 11 1 9304-
32 CAP; VALVE
EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 10 1 9304-
