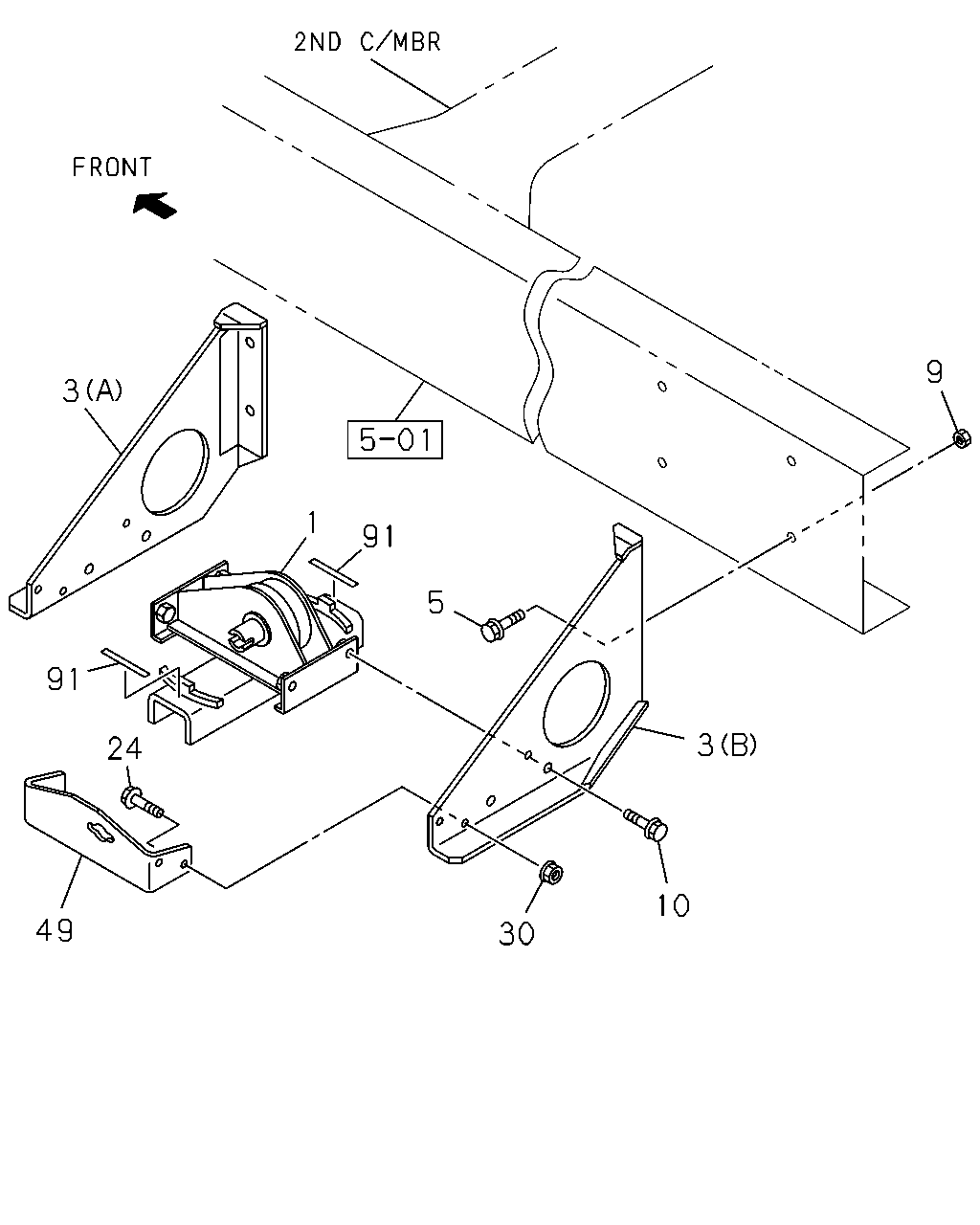

5-30 — SPARE TIRE CARRIER AND COVER (#14647) — 24 parça

9 3 1 91 5 91 3 24 10 49 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13>	1-53630-210-2	01	1	0710-1005	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13>	1-53630-210-4	01	1	1006-	●	●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (B)	8-97383-720-0	01	1	0710-1005	●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (B)	8-97383-720-0	01	1	1006-	●	●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (A)	8-97383-721-0	01	1	0710-1005	●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (A)	8-97383-721-0	01	1	1006-	●	●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (B)	8-97383-718-1	01	1	0710-1005	●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (B)	8-97383-718-1	01	1	1006-	●	●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (A)	8-97383-719-1	01	1	0710-1005	●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (A)	8-97383-719-1	01	1	1006-	●	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE	0-28651-235-0	04	1	0710-1005	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE	0-28651-235-0	04	1	1006-	●	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	0-91110-512-0	02	1	0710-1005	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	0-91110-512-0	02	1	1006-	●	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE	0-28651-230-0	04	1	0710-1005	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE	0-28651-230-0	04	1	1006-	●	●
24	BOLT; SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> M8X25 FLANGE	0-28650-825-0	04	1	0710-1005	●
24	BOLT; SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> M8X25 FLANGE	0-28650-825-0	04	1	1006-	●	●
30	NUT; SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE	0-91180-108-0	04	1	0710-1005	●
30	NUT; SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE	0-91180-108-0	04	1	1006-	●	●
49	STAY; TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13>	8-97383-722-0	01	1	0710-1005	●
49	STAY; TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13>	8-97383-722-0	01	1	1006-	●	●
91	PAD; TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM>	1-53639-042-0	02	1	0710-1005	●
91	PAD; TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM>	1-53639-042-0	02	1	1006-	●	●
