Isuzu WW
▶
TRUCKS
▶
CXZ
▶
11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005
▶
5 - Frame, Cab Mounting
▶
5-16 - OIL PUMP; CAB TILT
▶
5-16 — OIL PUMP; CAB TILT
(#14644) — 427 parça
Tümü
A - CXZ5MC
B - CYZ5MC
◀

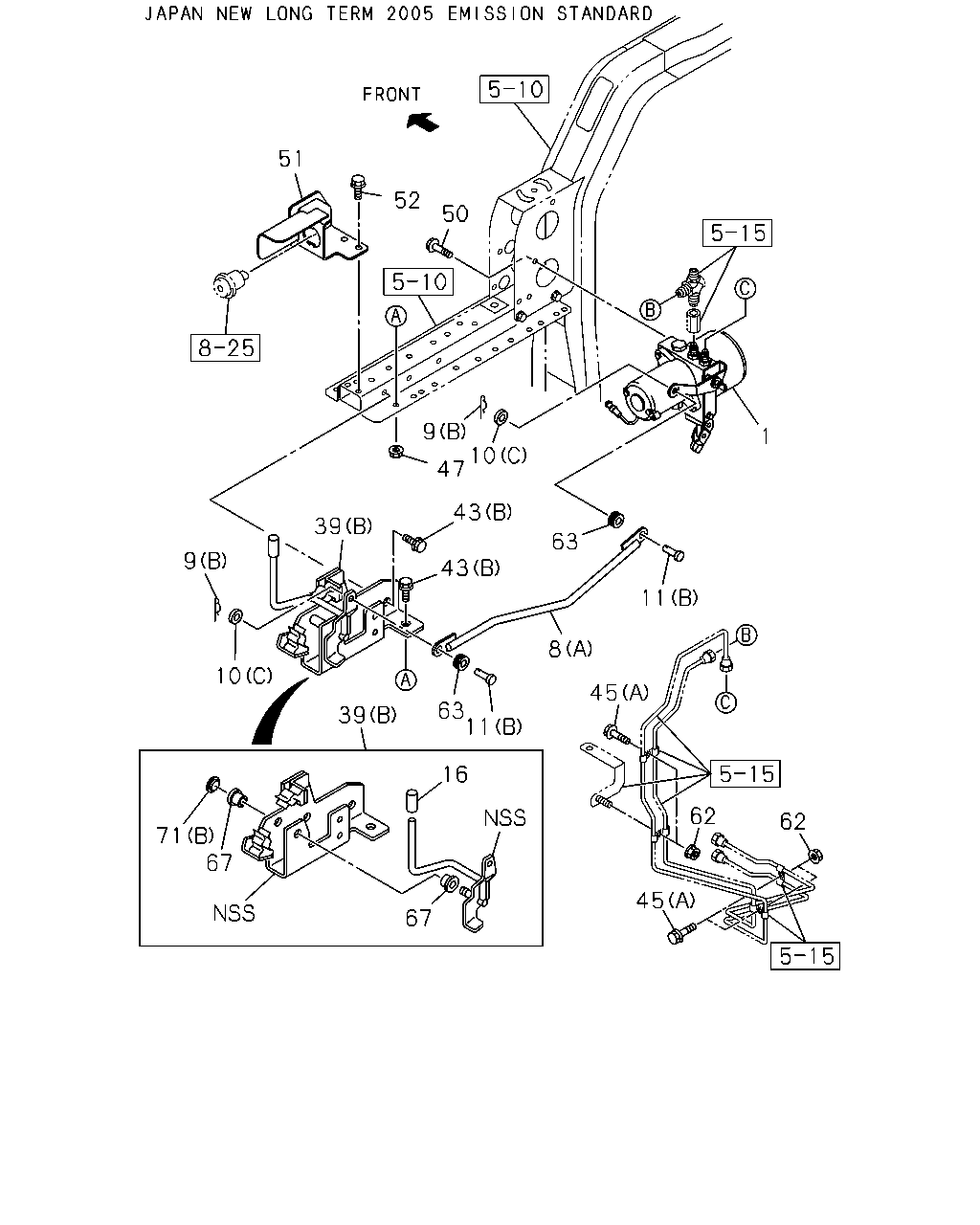

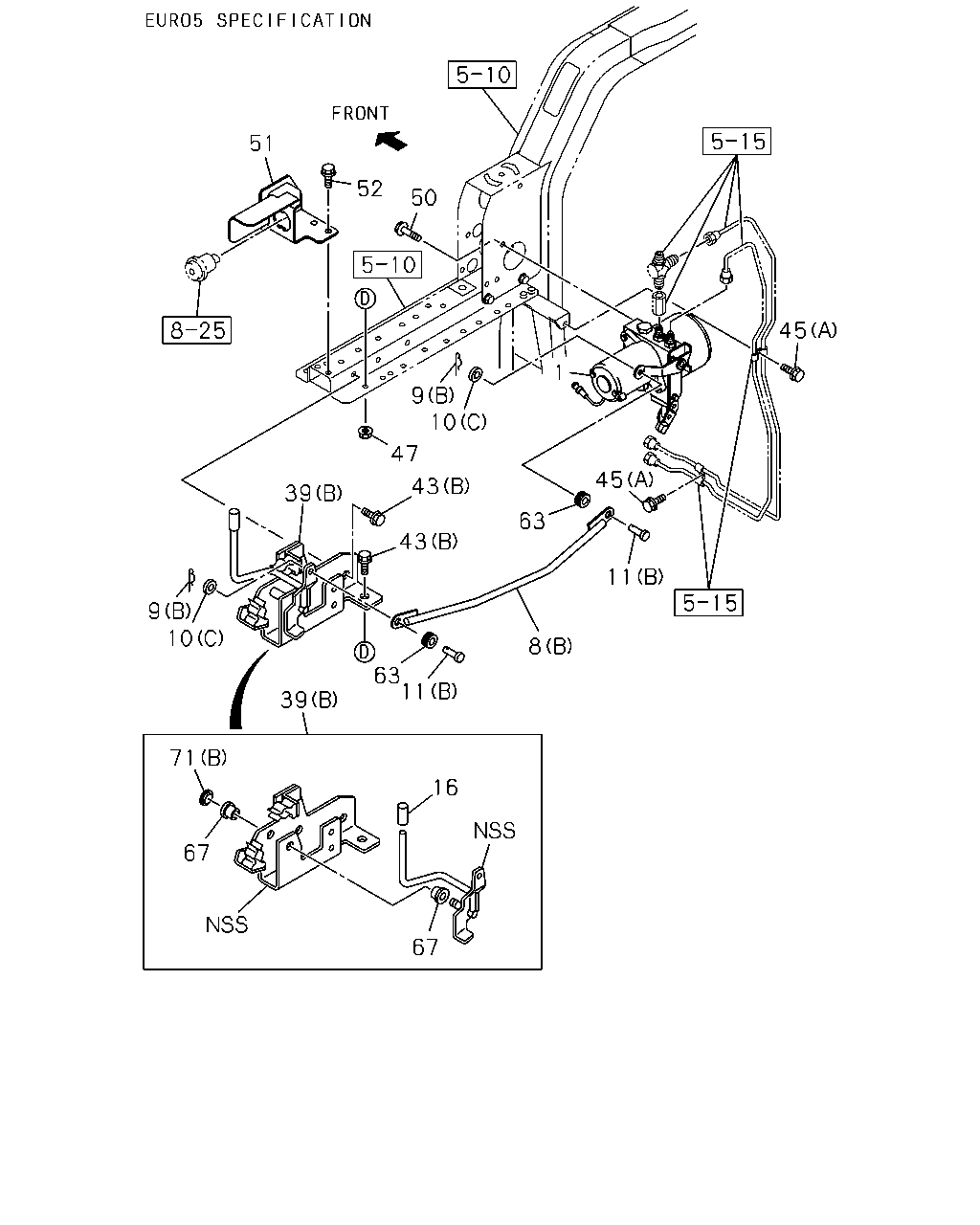

[516A] OIL PUMP AND LEVER FIXING NO.1 (67 parça)
[516A] OIL PUMP AND LEVER FIXING NO.2 (63 parça)

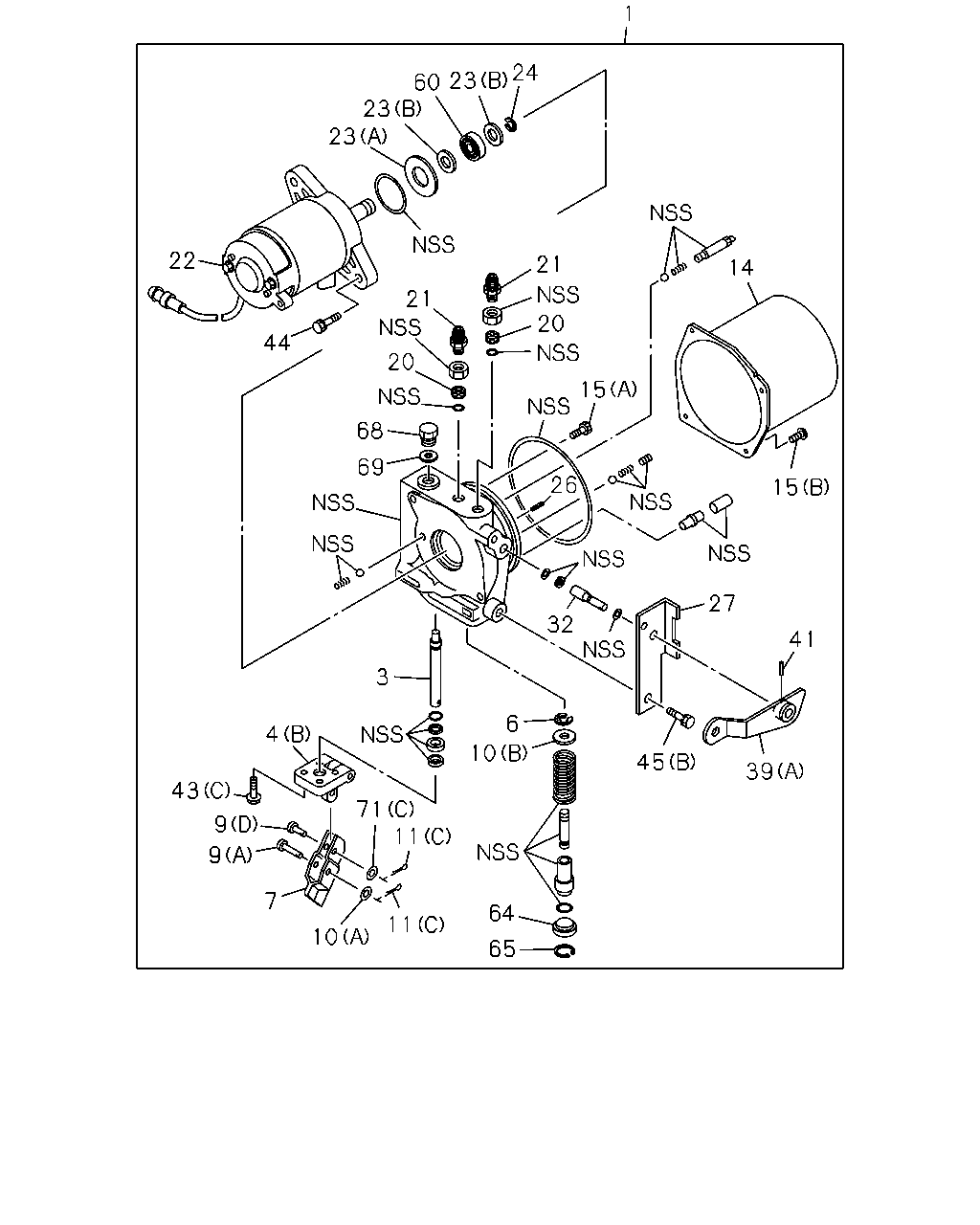

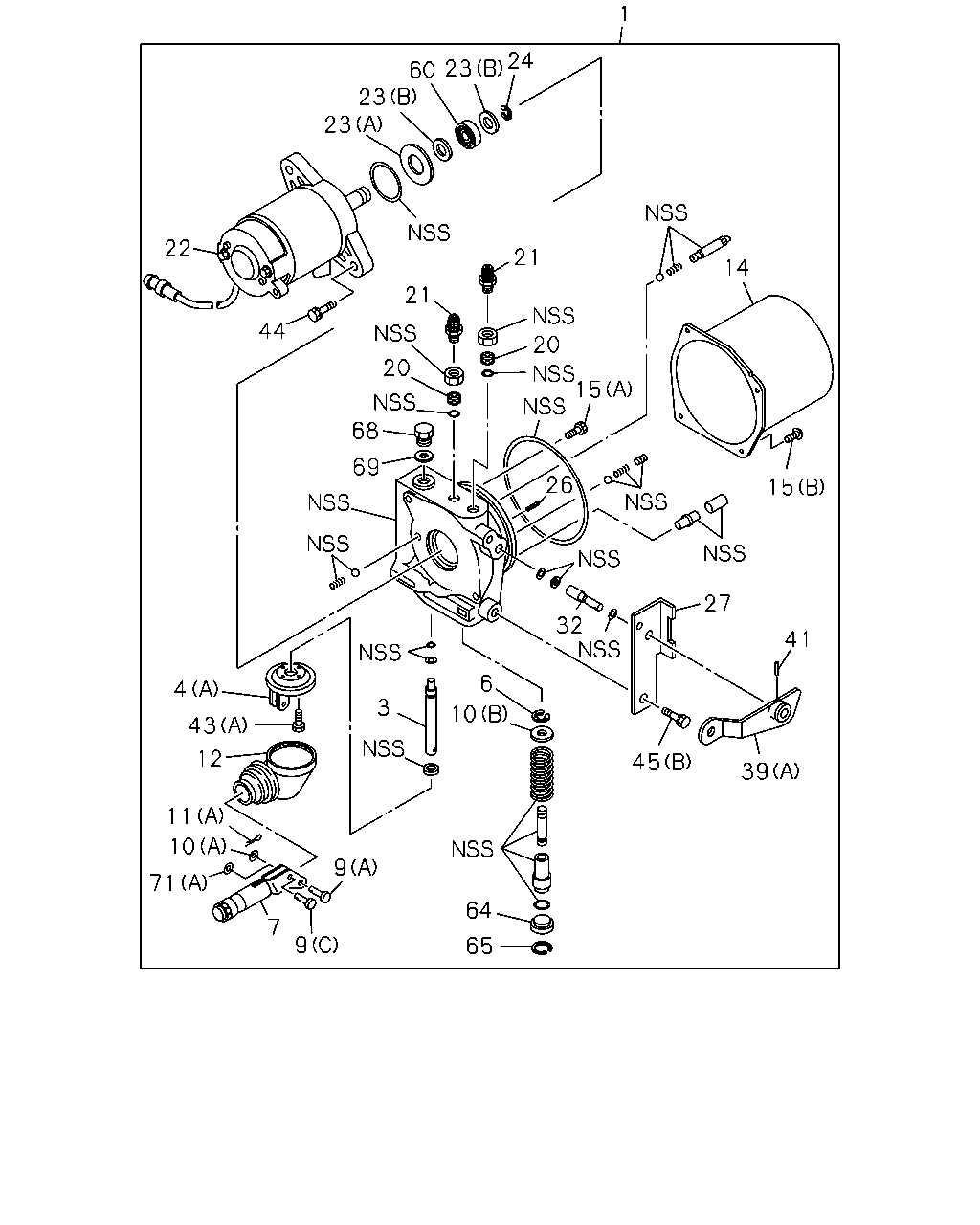

[516A] -'09/11 COMPONENT;OIL PUMP (96 parça)

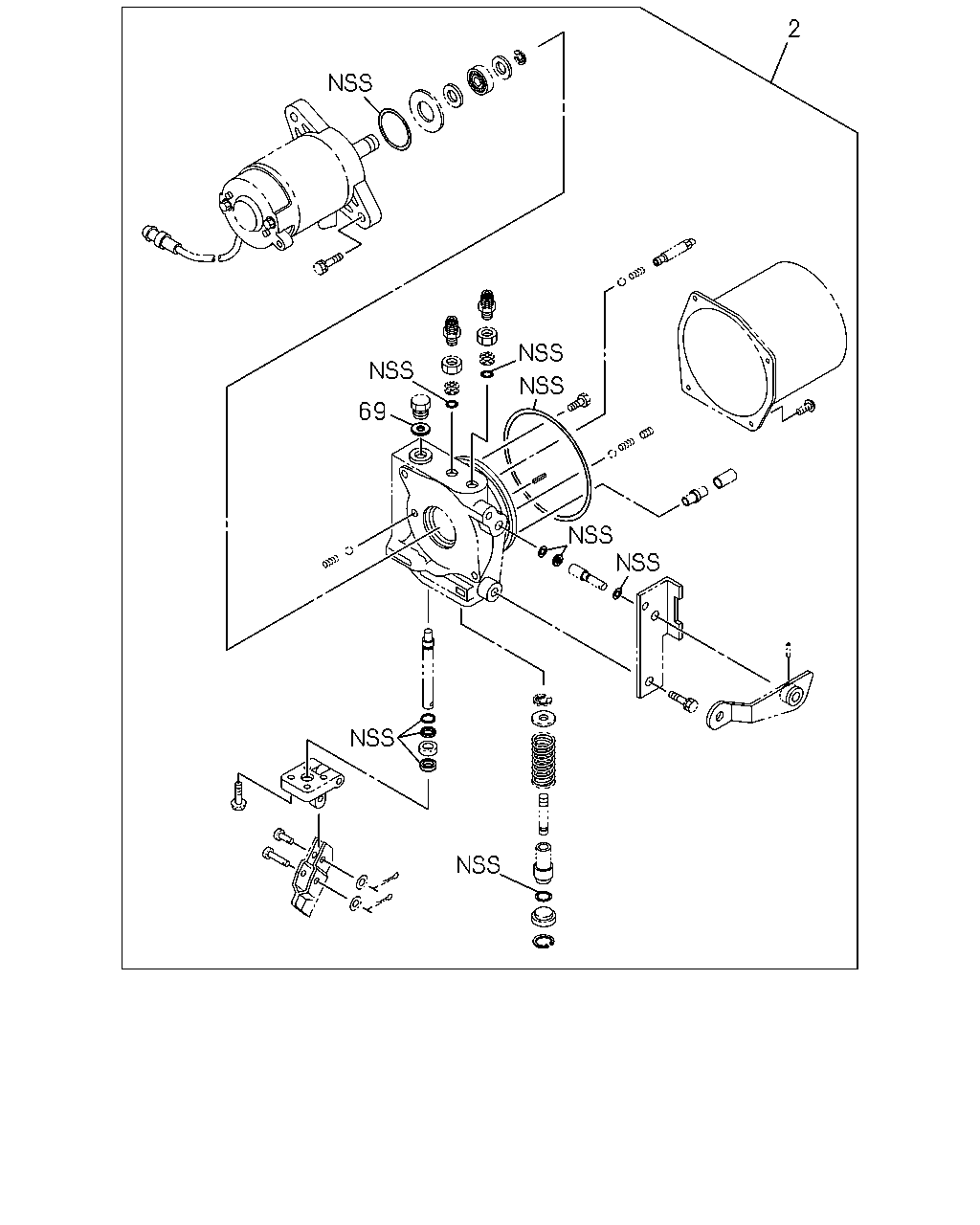

[516A] -'09/11 REPAIR KIT;OIL PUMP (6 parça)

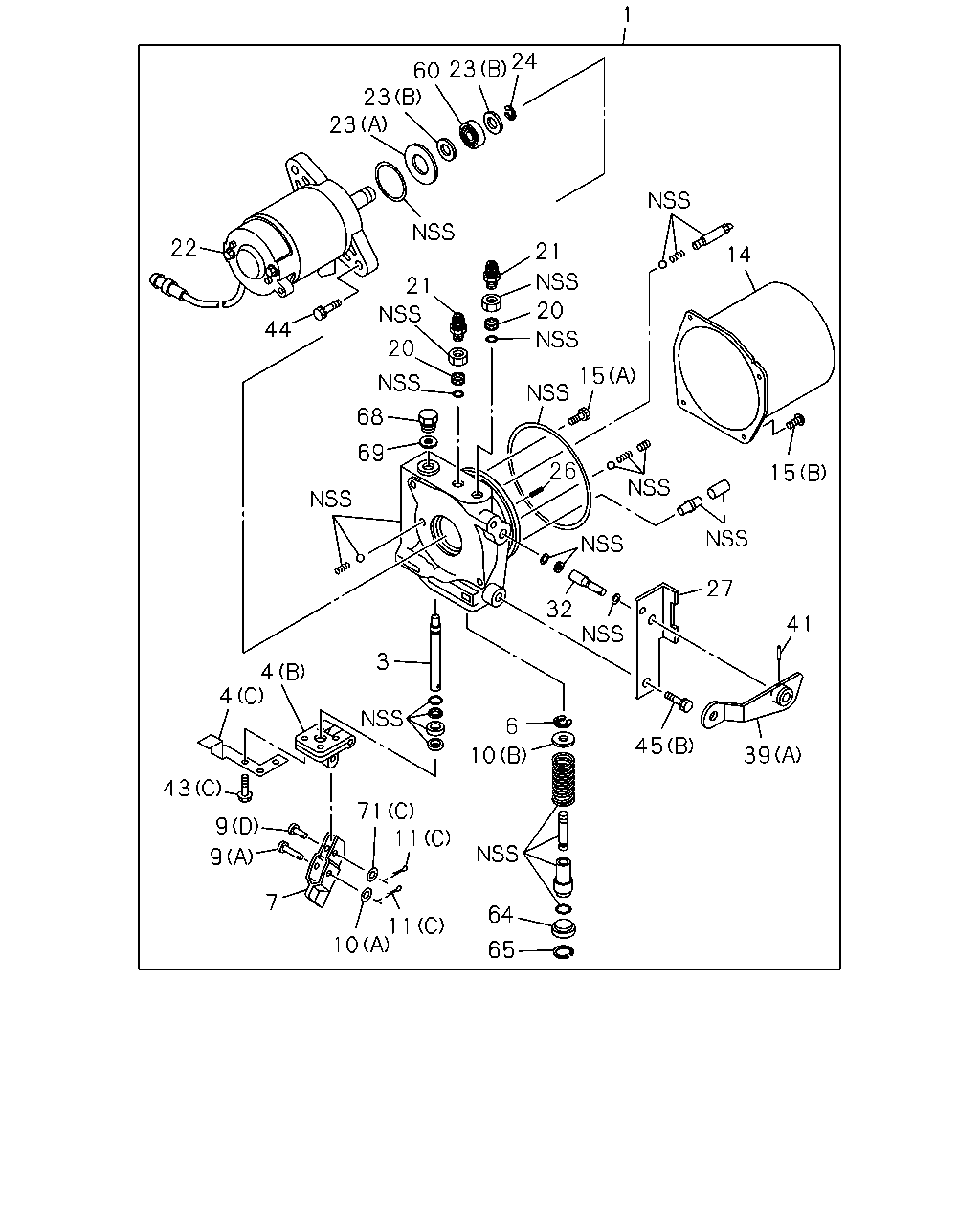

[516A] '09/12-'14/8 COMPONENT;OIL PUMP (95 parça)
[516A] '14/9- COMPONENT;OIL PUMPP (95 parça)

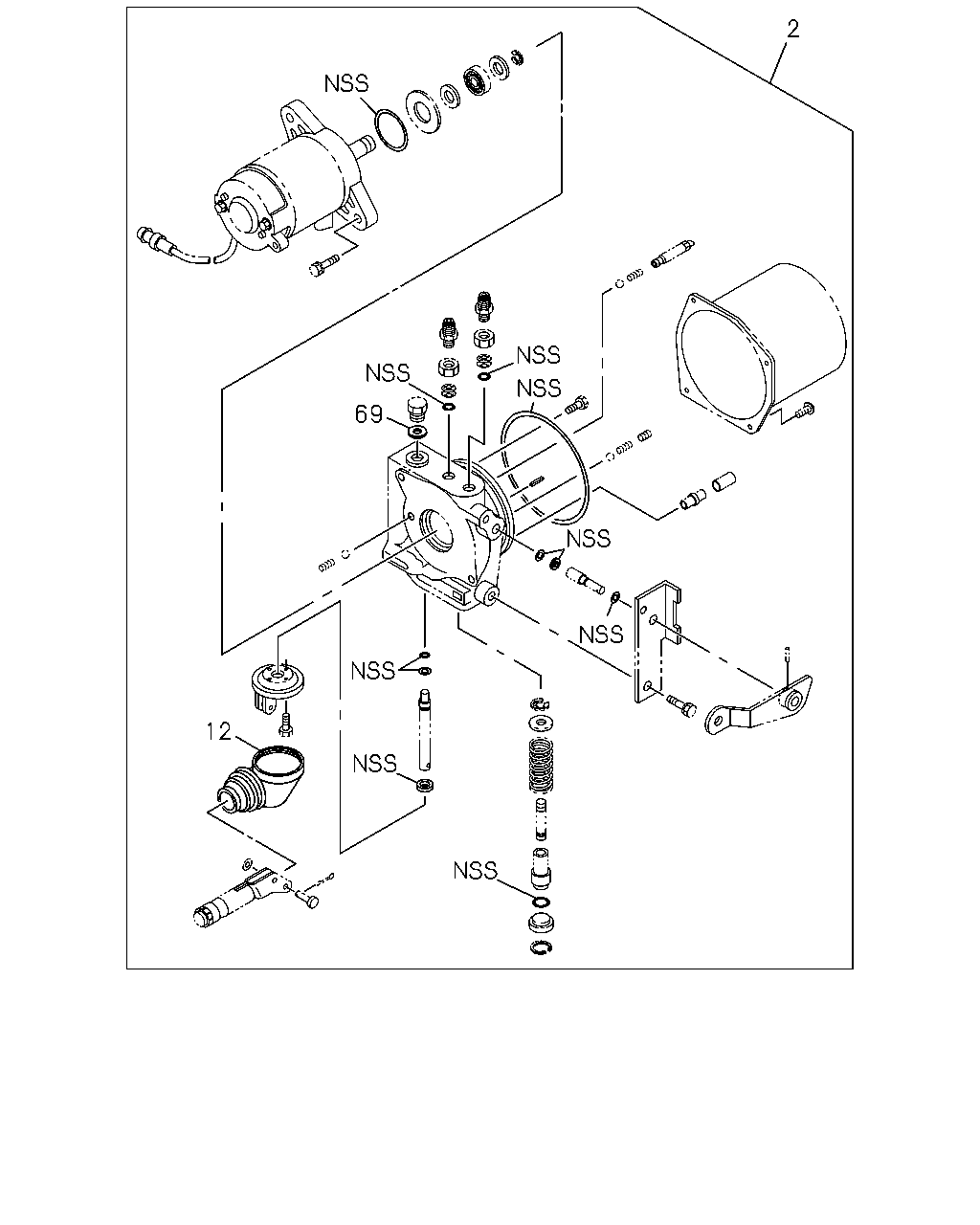

[516A] '09/12- REPAIR KIT;OIL PUMP (5 parça)
▶
51
52
50
9
10
47
1
43
39
63
9
43
11
8
10
45
63
11
39
16
62
62
71
67
45
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PUMP; OIL,CAB TILT
1-53457-064-1
01
1
0710-1005
●
1
PUMP; OIL,CAB TILT
1-53457-064-1
01
1
1006-1408
●
●
1
PUMP; OIL,CAB TILT
8-98279-120-0
01
1
1409-
●
●
8
LINK; OIL PUMP
EURO5 SPECIFICATION<NT5> (B)
1-53457-155-0
01
1
1108-
●
8
LINK; OIL PUMP
(A)
8-98085-185-0
01
1
0710-1005
●
8
LINK; OIL PUMP
(A)
8-98085-185-0
01
1
1006-1107
●
●
8
LINK; OIL PUMP
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A)
8-98085-185-0
01
1
1108-
●
8
LINK; OIL PUMP
(A)
8-98085-185-0
01
1
1108-
●
9
PIN; OIL PUMP
(B) L=27.7
1-09987-141-0
02
1
0710-1005
●
9
PIN; OIL PUMP
(B) L=27.7
1-09987-141-0
02
1
1006-
●
●
9
PIN; OIL PUMP
(A)
1-53458-060-0
01
1
0710-1005
●
9
PIN; OIL PUMP
(A)
1-53458-060-0
01
1
1006-
●
●
9
PIN; OIL PUMP
(C)
1-53458-844-0
01
1
0710-0911
●
9
PIN; OIL PUMP
(D)
1-53458-057-0
01
1
0912-1005
●
9
PIN; OIL PUMP
(D)
1-53458-057-0
01
1
1006-
●
●
10
WASHER; OIL PUMP
(C) ID=8.4 OD=22
0-91610-708-0
02
1
0710-1005
●
10
WASHER; OIL PUMP
(C) ID=8.4 OD=22
0-91610-708-0
02
1
1006-
●
●
10
WASHER; OIL PUMP
(A)
1-53458-013-0
01
1
0710-1005
●
10
WASHER; OIL PUMP
(A)
1-53458-013-0
01
1
1006-
●
●
10
WASHER; OIL PUMP
(B)
1-53458-561-0
01
1
0710-1005
●
10
WASHER; OIL PUMP
(B)
1-53458-561-0
01
1
1006-
●
●
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17
0-82253-817-0
02
1
0710-1005
●
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17
0-82253-817-0
02
1
1006-
●
●
11
PIN; SPLIT,OIL PUMP
(A)
1-53458-058-0
01
1
0710-0911
●
11
PIN; SPLIT,OIL PUMP
(C)
1-53457-209-0
02
1
0912-1005
●
11
PIN; SPLIT,OIL PUMP
(C)
1-53457-209-0
02
1
1006-
●
●
16
CAP
ID=9.0
8-94207-303-0
01
1
0710-1005
●
16
CAP
ID=9.0
8-94207-303-0
01
1
1006-
●
●
39
LEVER; OIL PUMP
(A)
1-53458-567-0
01
1
0710-1005
●
39
LEVER; OIL PUMP
(A)
1-53458-567-0
01
1
1006-
●
●
39
LEVER; OIL PUMP
(B)
8-97608-198-0
01
1
0710-1005
●
39
LEVER; OIL PUMP
(B)
8-97608-198-0
01
1
1006-
●
●
43
BOLT; LEVER
(B) M8X20 FLANGE
0-28650-820-0
02
1
0710-0804
●
43
BOLT; LEVER
(B) M8X20 FLANGE
0-28050-820-0
02
1
0805-1005
●
43
BOLT; LEVER
(B) M8X20 FLANGE
0-28050-820-0
02
1
1006-
●
●
43
BOLT; LEVER
(A) M5X12
1-53458-420-0
02
1
0710-0911
●
43
BOLT; LEVER
(C) M5X16
1-53457-206-0
03
1
0912-1005
●
43
BOLT; LEVER
(C) M5X16
1-53457-206-0
03
1
1006-
●
●
45
BOLT; COVER
EURO5 SPECIFICATION<NT5> (A) M8X20 FLANGE
0-28650-820-0
02
1
1108-
●
45
BOLT; COVER
(A) M8X20 FLANGE
0-28650-820-0
03
1
0710-1005
●
45
BOLT; COVER
(A) M8X20 FLANGE
0-28650-820-0
03
1
1006-1107
●
●
45
BOLT; COVER
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M8X20 FLANGE
0-28650-820-0
03
1
1108-
●
45
BOLT; COVER
(A) M8X20 FLANGE
0-28650-820-0
03
1
1108-
●
45
BOLT; COVER
(B) M6X8
1-53458-004-0
02
1
0710-1005
●
45
BOLT; COVER
(B) M6X8
1-53458-004-0
02
1
1006-
●
●
47
NUT; LEVER
M8 FLANGE
0-91180-108-0
01
1
0710-1005
●
47
NUT; LEVER
M8 FLANGE
0-91180-108-0
01
1
1006-
●
●
50
BOLT; OIL PUMP
M10X16 FLANGE
0-28051-016-0
02
1
0710-1005
●
50
BOLT; OIL PUMP
M10X16 FLANGE
0-28051-016-0
02
1
1006-
●
●
51
BRACKET; OIL PUMP
8-97606-599-1
01
1
0710-1005
●
51
BRACKET; OIL PUMP
8-97606-599-1
01
1
1006-
●
●
52
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
0710-0804
●
52
BOLT; BRKT
M8X20 FLANGE
0-28050-820-0
02
1
0805-1005
●
52
BOLT; BRKT
M8X20 FLANGE
0-28050-820-0
02
1
1006-
●
●
62
NUT; COVER
M8 FLANGE
0-91180-108-0
03
1
0710-1005
●
62
NUT; COVER
M8 FLANGE
0-91180-108-0
03
1
1006-1107
●
●
62
NUT; COVER
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8 FLANGE
0-91180-108-0
03
1
1108-
●
62
NUT; COVER
M8 FLANGE
0-91180-108-0
03
1
1108-
●
63
GROMMET
ID=10 OD=23 T=8
1-09983-010-0
02
1
0710-1005
●
63
GROMMET
ID=10 OD=23 T=8
1-09983-010-0
02
1
1006-
●
●
67
BUSHING
T=6 OD=17.5
9-33659-249-0
02
1
0710-1005
●
67
BUSHING
T=6 OD=17.5
9-33659-249-0
02
1
1006-
●
●
71
NUT; PUSH
(A)
1-53458-845-0
01
1
0710-0911
●
71
NUT; PUSH
(C)
1-53457-208-0
01
1
0912-1005
●
71
NUT; PUSH
(C)
1-53457-208-0
01
1
1006-
●
●
71
NUT; PUSH
(B) ID=9.9 PUSH NUT
8-97022-566-0
01
1
0710-1005
●
71
NUT; PUSH
(B) ID=9.9 PUSH NUT
8-97022-566-0
01
1
1006-
●
●
51
52
50
45
1
9
10
47
45
43
39
63
43
11
9
10
8
63
11
39
71
16
67
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PUMP; OIL,CAB TILT
1-53457-064-1
01
1
0710-1005
●
1
PUMP; OIL,CAB TILT
1-53457-064-1
01
1
1006-1408
●
●
1
PUMP; OIL,CAB TILT
8-98279-120-0
01
1
1409-
●
●
8
LINK; OIL PUMP
EURO5 SPECIFICATION<NT5> (B)
1-53457-155-0
01
1
1108-
●
8
LINK; OIL PUMP
(A)
8-98085-185-0
01
1
0710-1005
●
8
LINK; OIL PUMP
(A)
8-98085-185-0
01
1
1006-1107
●
●
8
LINK; OIL PUMP
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A)
8-98085-185-0
01
1
1108-
●
8
LINK; OIL PUMP
(A)
8-98085-185-0
01
1
1108-
●
9
PIN; OIL PUMP
(B) L=27.7
1-09987-141-0
02
1
0710-1005
●
9
PIN; OIL PUMP
(B) L=27.7
1-09987-141-0
02
1
1006-
●
●
9
PIN; OIL PUMP
(A)
1-53458-060-0
01
1
0710-1005
●
9
PIN; OIL PUMP
(A)
1-53458-060-0
01
1
1006-
●
●
9
PIN; OIL PUMP
(C)
1-53458-844-0
01
1
0710-0911
●
9
PIN; OIL PUMP
(D)
1-53458-057-0
01
1
0912-1005
●
9
PIN; OIL PUMP
(D)
1-53458-057-0
01
1
1006-
●
●
10
WASHER; OIL PUMP
(C) ID=8.4 OD=22
0-91610-708-0
02
1
0710-1005
●
10
WASHER; OIL PUMP
(C) ID=8.4 OD=22
0-91610-708-0
02
1
1006-
●
●
10
WASHER; OIL PUMP
(A)
1-53458-013-0
01
1
0710-1005
●
10
WASHER; OIL PUMP
(A)
1-53458-013-0
01
1
1006-
●
●
10
WASHER; OIL PUMP
(B)
1-53458-561-0
01
1
0710-1005
●
10
WASHER; OIL PUMP
(B)
1-53458-561-0
01
1
1006-
●
●
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17
0-82253-817-0
02
1
0710-1005
●
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17
0-82253-817-0
02
1
1006-
●
●
11
PIN; SPLIT,OIL PUMP
(A)
1-53458-058-0
01
1
0710-0911
●
11
PIN; SPLIT,OIL PUMP
(C)
1-53457-209-0
02
1
0912-1005
●
11
PIN; SPLIT,OIL PUMP
(C)
1-53457-209-0
02
1
1006-
●
●
16
CAP
ID=9.0
8-94207-303-0
01
1
0710-1005
●
16
CAP
ID=9.0
8-94207-303-0
01
1
1006-
●
●
39
LEVER; OIL PUMP
(A)
1-53458-567-0
01
1
0710-1005
●
39
LEVER; OIL PUMP
(A)
1-53458-567-0
01
1
1006-
●
●
39
LEVER; OIL PUMP
(B)
8-97608-198-0
01
1
0710-1005
●
39
LEVER; OIL PUMP
(B)
8-97608-198-0
01
1
1006-
●
●
43
BOLT; LEVER
(B) M8X20 FLANGE
0-28650-820-0
02
1
0710-0804
●
43
BOLT; LEVER
(B) M8X20 FLANGE
0-28050-820-0
02
1
0805-1005
●
43
BOLT; LEVER
(B) M8X20 FLANGE
0-28050-820-0
02
1
1006-
●
●
43
BOLT; LEVER
(A) M5X12
1-53458-420-0
02
1
0710-0911
●
43
BOLT; LEVER
(C) M5X16
1-53457-206-0
03
1
0912-1005
●
43
BOLT; LEVER
(C) M5X16
1-53457-206-0
03
1
1006-
●
●
45
BOLT; COVER
EURO5 SPECIFICATION<NT5> (A) M8X20 FLANGE
0-28650-820-0
02
1
1108-
●
45
BOLT; COVER
(A) M8X20 FLANGE
0-28650-820-0
03
1
0710-1005
●
45
BOLT; COVER
(A) M8X20 FLANGE
0-28650-820-0
03
1
1006-1107
●
●
45
BOLT; COVER
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M8X20 FLANGE
0-28650-820-0
03
1
1108-
●
45
BOLT; COVER
(A) M8X20 FLANGE
0-28650-820-0
03
1
1108-
●
45
BOLT; COVER
(B) M6X8
1-53458-004-0
02
1
0710-1005
●
45
BOLT; COVER
(B) M6X8
1-53458-004-0
02
1
1006-
●
●
47
NUT; LEVER
M8 FLANGE
0-91180-108-0
01
1
0710-1005
●
47
NUT; LEVER
M8 FLANGE
0-91180-108-0
01
1
1006-
●
●
50
BOLT; OIL PUMP
M10X16 FLANGE
0-28051-016-0
02
1
0710-1005
●
50
BOLT; OIL PUMP
M10X16 FLANGE
0-28051-016-0
02
1
1006-
●
●
51
BRACKET; OIL PUMP
8-97606-599-1
01
1
0710-1005
●
51
BRACKET; OIL PUMP
8-97606-599-1
01
1
1006-
●
●
52
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
0710-0804
●
52
BOLT; BRKT
M8X20 FLANGE
0-28050-820-0
02
1
0805-1005
●
52
BOLT; BRKT
M8X20 FLANGE
0-28050-820-0
02
1
1006-
●
●
63
GROMMET
ID=10 OD=23 T=8
1-09983-010-0
02
1
0710-1005
●
63
GROMMET
ID=10 OD=23 T=8
1-09983-010-0
02
1
1006-
●
●
67
BUSHING
T=6 OD=17.5
9-33659-249-0
02
1
0710-1005
●
67
BUSHING
T=6 OD=17.5
9-33659-249-0
02
1
1006-
●
●
71
NUT; PUSH
(A)
1-53458-845-0
01
1
0710-0911
●
71
NUT; PUSH
(C)
1-53457-208-0
01
1
0912-1005
●
71
NUT; PUSH
(C)
1-53457-208-0
01
1
1006-
●
●
71
NUT; PUSH
(B) ID=9.9 PUSH NUT
8-97022-566-0
01
1
0710-1005
●
71
NUT; PUSH
(B) ID=9.9 PUSH NUT
8-97022-566-0
01
1
1006-
●
●
65
64
9
9
7
71
10
11
12
43
4
3
10
6
69
68
20
21
44
22
23
23
60
23
24
1
21
20
15
26
32
45
39
41
27
15
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PUMP; OIL,CAB TILT
1-53457-064-1
01
1
0710-1005
●
1
PUMP; OIL,CAB TILT
1-53457-064-1
01
1
1006-1408
●
●
1
PUMP; OIL,CAB TILT
8-98279-120-0
01
1
1409-
●
●
3
PISTON; MANUAL
1-53458-842-0
01
1
0710-0911
●
3
PISTON; MANUAL
1-53457-204-0
01
1
0912-1005
●
3
PISTON; MANUAL
1-53457-204-0
01
1
1006-
●
●
4
BRACKET; OIL PUMP
(C)
8-98281-606-0
01
1
1409-
●
●
4
BRACKET; OIL PUMP
(A)
1-53458-566-0
01
1
0710-0911
●
4
BRACKET; OIL PUMP
(B)
1-53457-205-0
01
1
0912-1005
●
4
BRACKET; OIL PUMP
(B)
1-53457-205-0
01
1
1006-
●
●
6
RING; SNAP
1-53458-411-0
01
1
0710-1005
●
6
RING; SNAP
1-53458-411-0
01
1
1006-
●
●
7
SOCKET; OIL PUMP
1-53458-565-1
01
1
0710-0911
●
7
SOCKET; OIL PUMP
1-53457-207-0
01
1
0912-1005
●
7
SOCKET; OIL PUMP
1-53457-207-0
01
1
1006-
●
●
9
PIN; OIL PUMP
(B) L=27.7
1-09987-141-0
02
1
0710-1005
●
9
PIN; OIL PUMP
(B) L=27.7
1-09987-141-0
02
1
1006-
●
●
9
PIN; OIL PUMP
(A)
1-53458-060-0
01
1
0710-1005
●
9
PIN; OIL PUMP
(A)
1-53458-060-0
01
1
1006-
●
●
9
PIN; OIL PUMP
(C)
1-53458-844-0
01
1
0710-0911
●
9
PIN; OIL PUMP
(D)
1-53458-057-0
01
1
0912-1005
●
9
PIN; OIL PUMP
(D)
1-53458-057-0
01
1
1006-
●
●
10
WASHER; OIL PUMP
(C) ID=8.4 OD=22
0-91610-708-0
02
1
0710-1005
●
10
WASHER; OIL PUMP
(C) ID=8.4 OD=22
0-91610-708-0
02
1
1006-
●
●
10
WASHER; OIL PUMP
(A)
1-53458-013-0
01
1
0710-1005
●
10
WASHER; OIL PUMP
(A)
1-53458-013-0
01
1
1006-
●
●
10
WASHER; OIL PUMP
(B)
1-53458-561-0
01
1
0710-1005
●
10
WASHER; OIL PUMP
(B)
1-53458-561-0
01
1
1006-
●
●
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17
0-82253-817-0
02
1
0710-1005
●
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17
0-82253-817-0
02
1
1006-
●
●
11
PIN; SPLIT,OIL PUMP
(A)
1-53458-058-0
01
1
0710-0911
●
11
PIN; SPLIT,OIL PUMP
(C)
1-53457-209-0
02
1
0912-1005
●
11
PIN; SPLIT,OIL PUMP
(C)
1-53457-209-0
02
1
1006-
●
●
12
BOOT; OIL PUMP
1-53458-560-0
01
1
0710-0911
●
14
RESERVOIR; OIL PUMP
1-53458-432-0
01
1
0710-1005
●
14
RESERVOIR; OIL PUMP
1-53458-432-0
01
1
1006-
●
●
15
BOLT; RESERVOIR
(B) M5X8
1-53458-005-0
04
1
0710-1005
●
15
BOLT; RESERVOIR
(B) M5X8
1-53458-005-0
04
1
1006-
●
●
15
BOLT; RESERVOIR
(A) M5X8
1-53458-433-0
02
1
0710-1005
●
15
BOLT; RESERVOIR
(A) M5X8
1-53458-433-0
02
1
1006-
●
●
20
FILTER; OIL PUMP
1-53457-081-0
02
1
0710-1005
●
20
FILTER; OIL PUMP
1-53457-081-0
02
1
1006-
●
●
21
CONNECTOR; OIL PUMP
M12
1-53458-941-0
02
1
0710-1005
●
21
CONNECTOR; OIL PUMP
M12
1-53458-941-0
02
1
1006-
●
●
22
MOTOR; OIL PUMP
1-53457-080-0
01
1
0710-1005
●
22
MOTOR; OIL PUMP
1-53457-080-0
01
1
1006-
●
●
23
WASHER; MOTOR
(A)
1-53458-018-0
01
1
0710-1005
●
23
WASHER; MOTOR
(A)
1-53458-018-0
01
1
1006-
●
●
23
WASHER; MOTOR
(B)
1-53458-045-0
02
1
0710-1005
●
23
WASHER; MOTOR
(B)
1-53458-045-0
02
1
1006-1408
●
●
23
WASHER; MOTOR
(B)
8-97613-686-0
02
1
1409-
●
●
24
RING; SNAP,MOTOR
1-53458-044-0
01
1
0710-1005
●
24
RING; SNAP,MOTOR
1-53458-044-0
01
1
1006-
●
●
26
PIN; SPR,OIL PUMP
1-53458-038-0
01
1
0710-1005
●
26
PIN; SPR,OIL PUMP
1-53458-038-0
01
1
1006-
●
●
27
COVER; OIL PUMP
1-53458-568-0
01
1
0710-1005
●
27
COVER; OIL PUMP
1-53458-568-0
01
1
1006-
●
●
32
VALVE; OIL PUMP
1-53458-569-0
01
1
0710-1005
●
32
VALVE; OIL PUMP
1-53458-569-0
01
1
1006-
●
●
39
LEVER; OIL PUMP
(A)
1-53458-567-0
01
1
0710-1005
●
39
LEVER; OIL PUMP
(A)
1-53458-567-0
01
1
1006-
●
●
39
LEVER; OIL PUMP
(B)
8-97608-198-0
01
1
0710-1005
●
39
LEVER; OIL PUMP
(B)
8-97608-198-0
01
1
1006-
●
●
41
PIN; SPR,LEVER
1-53458-019-0
01
1
0710-1005
●
41
PIN; SPR,LEVER
1-53458-019-0
01
1
1006-
●
●
43
BOLT; LEVER
(B) M8X20 FLANGE
0-28650-820-0
02
1
0710-0804
●
43
BOLT; LEVER
(B) M8X20 FLANGE
0-28050-820-0
02
1
0805-1005
●
43
BOLT; LEVER
(B) M8X20 FLANGE
0-28050-820-0
02
1
1006-
●
●
43
BOLT; LEVER
(A) M5X12
1-53458-420-0
02
1
0710-0911
●
43
BOLT; LEVER
(C) M5X16
1-53457-206-0
03
1
0912-1005
●
43
BOLT; LEVER
(C) M5X16
1-53457-206-0
03
1
1006-
●
●
44
BOLT; MOTOR
M6X20
1-53458-007-0
02
1
0710-1005
●
44
BOLT; MOTOR
M6X20
1-53458-007-0
02
1
1006-
●
●
45
BOLT; COVER
EURO5 SPECIFICATION<NT5> (A) M8X20 FLANGE
0-28650-820-0
02
1
1108-
●
45
BOLT; COVER
(A) M8X20 FLANGE
0-28650-820-0
03
1
0710-1005
●
45
BOLT; COVER
(A) M8X20 FLANGE
0-28650-820-0
03
1
1006-1107
●
●
45
BOLT; COVER
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M8X20 FLANGE
0-28650-820-0
03
1
1108-
●
45
BOLT; COVER
(A) M8X20 FLANGE
0-28650-820-0
03
1
1108-
●
45
BOLT; COVER
(B) M6X8
1-53458-004-0
02
1
0710-1005
●
45
BOLT; COVER
(B) M6X8
1-53458-004-0
02
1
1006-
●
●
60
BEARING; OIL PUMP
1-53458-423-0
01
1
0710-1005
●
60
BEARING; OIL PUMP
1-53458-423-0
01
1
1006-
●
●
64
SLEEVE; OIL PUMP
1-53458-572-0
01
1
0710-1005
●
64
SLEEVE; OIL PUMP
1-53458-572-0
01
1
1006-1408
●
●
64
SLEEVE; OIL PUMP
8-98249-572-0
01
1
1409-
●
●
65
RING; SNAP,SLEEVE
1-53458-570-0
01
1
0710-1005
●
65
RING; SNAP,SLEEVE
1-53458-570-0
01
1
1006-
●
●
68
PLUG; FILLER
1-53458-428-0
01
1
0710-1005
●
68
PLUG; FILLER
1-53458-428-0
01
1
1006-
●
●
69
GASKET; FILLER PLUG
1-53458-427-0
01
1
0710-1005
●
69
GASKET; FILLER PLUG
1-53458-427-0
01
1
1006-
●
●
71
NUT; PUSH
(A)
1-53458-845-0
01
1
0710-0911
●
71
NUT; PUSH
(C)
1-53457-208-0
01
1
0912-1005
●
71
NUT; PUSH
(C)
1-53457-208-0
01
1
1006-
●
●
71
NUT; PUSH
(B) ID=9.9 PUSH NUT
8-97022-566-0
01
1
0710-1005
●
71
NUT; PUSH
(B) ID=9.9 PUSH NUT
8-97022-566-0
01
1
1006-
●
●
2
69
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
REPAIR KIT; OIL PUMP
1-85579-058-0
01
1
0710-0911
●
2
REPAIR KIT; OIL PUMP
1-85579-069-0
01
1
0912-1005
●
2
REPAIR KIT; OIL PUMP
1-85579-069-0
01
1
1006-
●
●
12
BOOT; OIL PUMP
1-53458-560-0
01
1
0710-0911
●
69
GASKET; FILLER PLUG
1-53458-427-0
01
1
0710-1005
●
69
GASKET; FILLER PLUG
1-53458-427-0
01
1
1006-
●
●
65
64
11
10
7
9
9
43
4
71
11
10
6
3
45
39
41
27
32
26
15
15
20
21
14
1
24
23
60
23
23
22
44
21
20
68
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PUMP; OIL,CAB TILT
1-53457-064-1
01
1
0710-1005
●
1
PUMP; OIL,CAB TILT
1-53457-064-1
01
1
1006-1408
●
●
1
PUMP; OIL,CAB TILT
8-98279-120-0
01
1
1409-
●
●
3
PISTON; MANUAL
1-53458-842-0
01
1
0710-0911
●
3
PISTON; MANUAL
1-53457-204-0
01
1
0912-1005
●
3
PISTON; MANUAL
1-53457-204-0
01
1
1006-
●
●
4
BRACKET; OIL PUMP
(C)
8-98281-606-0
01
1
1409-
●
●
4
BRACKET; OIL PUMP
(A)
1-53458-566-0
01
1
0710-0911
●
4
BRACKET; OIL PUMP
(B)
1-53457-205-0
01
1
0912-1005
●
4
BRACKET; OIL PUMP
(B)
1-53457-205-0
01
1
1006-
●
●
6
RING; SNAP
1-53458-411-0
01
1
0710-1005
●
6
RING; SNAP
1-53458-411-0
01
1
1006-
●
●
7
SOCKET; OIL PUMP
1-53458-565-1
01
1
0710-0911
●
7
SOCKET; OIL PUMP
1-53457-207-0
01
1
0912-1005
●
7
SOCKET; OIL PUMP
1-53457-207-0
01
1
1006-
●
●
9
PIN; OIL PUMP
(B) L=27.7
1-09987-141-0
02
1
0710-1005
●
9
PIN; OIL PUMP
(B) L=27.7
1-09987-141-0
02
1
1006-
●
●
9
PIN; OIL PUMP
(A)
1-53458-060-0
01
1
0710-1005
●
9
PIN; OIL PUMP
(A)
1-53458-060-0
01
1
1006-
●
●
9
PIN; OIL PUMP
(C)
1-53458-844-0
01
1
0710-0911
●
9
PIN; OIL PUMP
(D)
1-53458-057-0
01
1
0912-1005
●
9
PIN; OIL PUMP
(D)
1-53458-057-0
01
1
1006-
●
●
10
WASHER; OIL PUMP
(C) ID=8.4 OD=22
0-91610-708-0
02
1
0710-1005
●
10
WASHER; OIL PUMP
(C) ID=8.4 OD=22
0-91610-708-0
02
1
1006-
●
●
10
WASHER; OIL PUMP
(A)
1-53458-013-0
01
1
0710-1005
●
10
WASHER; OIL PUMP
(A)
1-53458-013-0
01
1
1006-
●
●
10
WASHER; OIL PUMP
(B)
1-53458-561-0
01
1
0710-1005
●
10
WASHER; OIL PUMP
(B)
1-53458-561-0
01
1
1006-
●
●
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17
0-82253-817-0
02
1
0710-1005
●
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17
0-82253-817-0
02
1
1006-
●
●
11
PIN; SPLIT,OIL PUMP
(A)
1-53458-058-0
01
1
0710-0911
●
11
PIN; SPLIT,OIL PUMP
(C)
1-53457-209-0
02
1
0912-1005
●
11
PIN; SPLIT,OIL PUMP
(C)
1-53457-209-0
02
1
1006-
●
●
14
RESERVOIR; OIL PUMP
1-53458-432-0
01
1
0710-1005
●
14
RESERVOIR; OIL PUMP
1-53458-432-0
01
1
1006-
●
●
15
BOLT; RESERVOIR
(B) M5X8
1-53458-005-0
04
1
0710-1005
●
15
BOLT; RESERVOIR
(B) M5X8
1-53458-005-0
04
1
1006-
●
●
15
BOLT; RESERVOIR
(A) M5X8
1-53458-433-0
02
1
0710-1005
●
15
BOLT; RESERVOIR
(A) M5X8
1-53458-433-0
02
1
1006-
●
●
20
FILTER; OIL PUMP
1-53457-081-0
02
1
0710-1005
●
20
FILTER; OIL PUMP
1-53457-081-0
02
1
1006-
●
●
21
CONNECTOR; OIL PUMP
M12
1-53458-941-0
02
1
0710-1005
●
21
CONNECTOR; OIL PUMP
M12
1-53458-941-0
02
1
1006-
●
●
22
MOTOR; OIL PUMP
1-53457-080-0
01
1
0710-1005
●
22
MOTOR; OIL PUMP
1-53457-080-0
01
1
1006-
●
●
23
WASHER; MOTOR
(A)
1-53458-018-0
01
1
0710-1005
●
23
WASHER; MOTOR
(A)
1-53458-018-0
01
1
1006-
●
●
23
WASHER; MOTOR
(B)
1-53458-045-0
02
1
0710-1005
●
23
WASHER; MOTOR
(B)
1-53458-045-0
02
1
1006-1408
●
●
23
WASHER; MOTOR
(B)
8-97613-686-0
02
1
1409-
●
●
24
RING; SNAP,MOTOR
1-53458-044-0
01
1
0710-1005
●
24
RING; SNAP,MOTOR
1-53458-044-0
01
1
1006-
●
●
26
PIN; SPR,OIL PUMP
1-53458-038-0
01
1
0710-1005
●
26
PIN; SPR,OIL PUMP
1-53458-038-0
01
1
1006-
●
●
27
COVER; OIL PUMP
1-53458-568-0
01
1
0710-1005
●
27
COVER; OIL PUMP
1-53458-568-0
01
1
1006-
●
●
32
VALVE; OIL PUMP
1-53458-569-0
01
1
0710-1005
●
32
VALVE; OIL PUMP
1-53458-569-0
01
1
1006-
●
●
39
LEVER; OIL PUMP
(A)
1-53458-567-0
01
1
0710-1005
●
39
LEVER; OIL PUMP
(A)
1-53458-567-0
01
1
1006-
●
●
39
LEVER; OIL PUMP
(B)
8-97608-198-0
01
1
0710-1005
●
39
LEVER; OIL PUMP
(B)
8-97608-198-0
01
1
1006-
●
●
41
PIN; SPR,LEVER
1-53458-019-0
01
1
0710-1005
●
41
PIN; SPR,LEVER
1-53458-019-0
01
1
1006-
●
●
43
BOLT; LEVER
(B) M8X20 FLANGE
0-28650-820-0
02
1
0710-0804
●
43
BOLT; LEVER
(B) M8X20 FLANGE
0-28050-820-0
02
1
0805-1005
●
43
BOLT; LEVER
(B) M8X20 FLANGE
0-28050-820-0
02
1
1006-
●
●
43
BOLT; LEVER
(A) M5X12
1-53458-420-0
02
1
0710-0911
●
43
BOLT; LEVER
(C) M5X16
1-53457-206-0
03
1
0912-1005
●
43
BOLT; LEVER
(C) M5X16
1-53457-206-0
03
1
1006-
●
●
44
BOLT; MOTOR
M6X20
1-53458-007-0
02
1
0710-1005
●
44
BOLT; MOTOR
M6X20
1-53458-007-0
02
1
1006-
●
●
45
BOLT; COVER
EURO5 SPECIFICATION<NT5> (A) M8X20 FLANGE
0-28650-820-0
02
1
1108-
●
45
BOLT; COVER
(A) M8X20 FLANGE
0-28650-820-0
03
1
0710-1005
●
45
BOLT; COVER
(A) M8X20 FLANGE
0-28650-820-0
03
1
1006-1107
●
●
45
BOLT; COVER
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M8X20 FLANGE
0-28650-820-0
03
1
1108-
●
45
BOLT; COVER
(A) M8X20 FLANGE
0-28650-820-0
03
1
1108-
●
45
BOLT; COVER
(B) M6X8
1-53458-004-0
02
1
0710-1005
●
45
BOLT; COVER
(B) M6X8
1-53458-004-0
02
1
1006-
●
●
60
BEARING; OIL PUMP
1-53458-423-0
01
1
0710-1005
●
60
BEARING; OIL PUMP
1-53458-423-0
01
1
1006-
●
●
64
SLEEVE; OIL PUMP
1-53458-572-0
01
1
0710-1005
●
64
SLEEVE; OIL PUMP
1-53458-572-0
01
1
1006-1408
●
●
64
SLEEVE; OIL PUMP
8-98249-572-0
01
1
1409-
●
●
65
RING; SNAP,SLEEVE
1-53458-570-0
01
1
0710-1005
●
65
RING; SNAP,SLEEVE
1-53458-570-0
01
1
1006-
●
●
68
PLUG; FILLER
1-53458-428-0
01
1
0710-1005
●
68
PLUG; FILLER
1-53458-428-0
01
1
1006-
●
●
69
GASKET; FILLER PLUG
1-53458-427-0
01
1
0710-1005
●
69
GASKET; FILLER PLUG
1-53458-427-0
01
1
1006-
●
●
71
NUT; PUSH
(A)
1-53458-845-0
01
1
0710-0911
●
71
NUT; PUSH
(C)
1-53457-208-0
01
1
0912-1005
●
71
NUT; PUSH
(C)
1-53457-208-0
01
1
1006-
●
●
71
NUT; PUSH
(B) ID=9.9 PUSH NUT
8-97022-566-0
01
1
0710-1005
●
71
NUT; PUSH
(B) ID=9.9 PUSH NUT
8-97022-566-0
01
1
1006-
●
●
64
65
10
11
11
71
7
9
9
43
4
4
3
6
10
45
39
41
27
32
15
26
69
68
20
21
44
22
23
23
60
23
24
1
21
20
15
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PUMP; OIL,CAB TILT
1-53457-064-1
01
1
0710-1005
●
1
PUMP; OIL,CAB TILT
1-53457-064-1
01
1
1006-1408
●
●
1
PUMP; OIL,CAB TILT
8-98279-120-0
01
1
1409-
●
●
3
PISTON; MANUAL
1-53458-842-0
01
1
0710-0911
●
3
PISTON; MANUAL
1-53457-204-0
01
1
0912-1005
●
3
PISTON; MANUAL
1-53457-204-0
01
1
1006-
●
●
4
BRACKET; OIL PUMP
(C)
8-98281-606-0
01
1
1409-
●
●
4
BRACKET; OIL PUMP
(A)
1-53458-566-0
01
1
0710-0911
●
4
BRACKET; OIL PUMP
(B)
1-53457-205-0
01
1
0912-1005
●
4
BRACKET; OIL PUMP
(B)
1-53457-205-0
01
1
1006-
●
●
6
RING; SNAP
1-53458-411-0
01
1
0710-1005
●
6
RING; SNAP
1-53458-411-0
01
1
1006-
●
●
7
SOCKET; OIL PUMP
1-53458-565-1
01
1
0710-0911
●
7
SOCKET; OIL PUMP
1-53457-207-0
01
1
0912-1005
●
7
SOCKET; OIL PUMP
1-53457-207-0
01
1
1006-
●
●
9
PIN; OIL PUMP
(B) L=27.7
1-09987-141-0
02
1
0710-1005
●
9
PIN; OIL PUMP
(B) L=27.7
1-09987-141-0
02
1
1006-
●
●
9
PIN; OIL PUMP
(A)
1-53458-060-0
01
1
0710-1005
●
9
PIN; OIL PUMP
(A)
1-53458-060-0
01
1
1006-
●
●
9
PIN; OIL PUMP
(C)
1-53458-844-0
01
1
0710-0911
●
9
PIN; OIL PUMP
(D)
1-53458-057-0
01
1
0912-1005
●
9
PIN; OIL PUMP
(D)
1-53458-057-0
01
1
1006-
●
●
10
WASHER; OIL PUMP
(C) ID=8.4 OD=22
0-91610-708-0
02
1
0710-1005
●
10
WASHER; OIL PUMP
(C) ID=8.4 OD=22
0-91610-708-0
02
1
1006-
●
●
10
WASHER; OIL PUMP
(A)
1-53458-013-0
01
1
0710-1005
●
10
WASHER; OIL PUMP
(A)
1-53458-013-0
01
1
1006-
●
●
10
WASHER; OIL PUMP
(B)
1-53458-561-0
01
1
0710-1005
●
10
WASHER; OIL PUMP
(B)
1-53458-561-0
01
1
1006-
●
●
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17
0-82253-817-0
02
1
0710-1005
●
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17
0-82253-817-0
02
1
1006-
●
●
11
PIN; SPLIT,OIL PUMP
(A)
1-53458-058-0
01
1
0710-0911
●
11
PIN; SPLIT,OIL PUMP
(C)
1-53457-209-0
02
1
0912-1005
●
11
PIN; SPLIT,OIL PUMP
(C)
1-53457-209-0
02
1
1006-
●
●
14
RESERVOIR; OIL PUMP
1-53458-432-0
01
1
0710-1005
●
14
RESERVOIR; OIL PUMP
1-53458-432-0
01
1
1006-
●
●
15
BOLT; RESERVOIR
(B) M5X8
1-53458-005-0
04
1
0710-1005
●
15
BOLT; RESERVOIR
(B) M5X8
1-53458-005-0
04
1
1006-
●
●
15
BOLT; RESERVOIR
(A) M5X8
1-53458-433-0
02
1
0710-1005
●
15
BOLT; RESERVOIR
(A) M5X8
1-53458-433-0
02
1
1006-
●
●
20
FILTER; OIL PUMP
1-53457-081-0
02
1
0710-1005
●
20
FILTER; OIL PUMP
1-53457-081-0
02
1
1006-
●
●
21
CONNECTOR; OIL PUMP
M12
1-53458-941-0
02
1
0710-1005
●
21
CONNECTOR; OIL PUMP
M12
1-53458-941-0
02
1
1006-
●
●
22
MOTOR; OIL PUMP
1-53457-080-0
01
1
0710-1005
●
22
MOTOR; OIL PUMP
1-53457-080-0
01
1
1006-
●
●
23
WASHER; MOTOR
(A)
1-53458-018-0
01
1
0710-1005
●
23
WASHER; MOTOR
(A)
1-53458-018-0
01
1
1006-
●
●
23
WASHER; MOTOR
(B)
1-53458-045-0
02
1
0710-1005
●
23
WASHER; MOTOR
(B)
1-53458-045-0
02
1
1006-1408
●
●
23
WASHER; MOTOR
(B)
8-97613-686-0
02
1
1409-
●
●
24
RING; SNAP,MOTOR
1-53458-044-0
01
1
0710-1005
●
24
RING; SNAP,MOTOR
1-53458-044-0
01
1
1006-
●
●
26
PIN; SPR,OIL PUMP
1-53458-038-0
01
1
0710-1005
●
26
PIN; SPR,OIL PUMP
1-53458-038-0
01
1
1006-
●
●
27
COVER; OIL PUMP
1-53458-568-0
01
1
0710-1005
●
27
COVER; OIL PUMP
1-53458-568-0
01
1
1006-
●
●
32
VALVE; OIL PUMP
1-53458-569-0
01
1
0710-1005
●
32
VALVE; OIL PUMP
1-53458-569-0
01
1
1006-
●
●
39
LEVER; OIL PUMP
(A)
1-53458-567-0
01
1
0710-1005
●
39
LEVER; OIL PUMP
(A)
1-53458-567-0
01
1
1006-
●
●
39
LEVER; OIL PUMP
(B)
8-97608-198-0
01
1
0710-1005
●
39
LEVER; OIL PUMP
(B)
8-97608-198-0
01
1
1006-
●
●
41
PIN; SPR,LEVER
1-53458-019-0
01
1
0710-1005
●
41
PIN; SPR,LEVER
1-53458-019-0
01
1
1006-
●
●
43
BOLT; LEVER
(B) M8X20 FLANGE
0-28650-820-0
02
1
0710-0804
●
43
BOLT; LEVER
(B) M8X20 FLANGE
0-28050-820-0
02
1
0805-1005
●
43
BOLT; LEVER
(B) M8X20 FLANGE
0-28050-820-0
02
1
1006-
●
●
43
BOLT; LEVER
(A) M5X12
1-53458-420-0
02
1
0710-0911
●
43
BOLT; LEVER
(C) M5X16
1-53457-206-0
03
1
0912-1005
●
43
BOLT; LEVER
(C) M5X16
1-53457-206-0
03
1
1006-
●
●
44
BOLT; MOTOR
M6X20
1-53458-007-0
02
1
0710-1005
●
44
BOLT; MOTOR
M6X20
1-53458-007-0
02
1
1006-
●
●
45
BOLT; COVER
EURO5 SPECIFICATION<NT5> (A) M8X20 FLANGE
0-28650-820-0
02
1
1108-
●
45
BOLT; COVER
(A) M8X20 FLANGE
0-28650-820-0
03
1
0710-1005
●
45
BOLT; COVER
(A) M8X20 FLANGE
0-28650-820-0
03
1
1006-1107
●
●
45
BOLT; COVER
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M8X20 FLANGE
0-28650-820-0
03
1
1108-
●
45
BOLT; COVER
(A) M8X20 FLANGE
0-28650-820-0
03
1
1108-
●
45
BOLT; COVER
(B) M6X8
1-53458-004-0
02
1
0710-1005
●
45
BOLT; COVER
(B) M6X8
1-53458-004-0
02
1
1006-
●
●
60
BEARING; OIL PUMP
1-53458-423-0
01
1
0710-1005
●
60
BEARING; OIL PUMP
1-53458-423-0
01
1
1006-
●
●
64
SLEEVE; OIL PUMP
1-53458-572-0
01
1
0710-1005
●
64
SLEEVE; OIL PUMP
1-53458-572-0
01
1
1006-1408
●
●
64
SLEEVE; OIL PUMP
8-98249-572-0
01
1
1409-
●
●
65
RING; SNAP,SLEEVE
1-53458-570-0
01
1
0710-1005
●
65
RING; SNAP,SLEEVE
1-53458-570-0
01
1
1006-
●
●
68
PLUG; FILLER
1-53458-428-0
01
1
0710-1005
●
68
PLUG; FILLER
1-53458-428-0
01
1
1006-
●
●
69
GASKET; FILLER PLUG
1-53458-427-0
01
1
0710-1005
●
69
GASKET; FILLER PLUG
1-53458-427-0
01
1
1006-
●
●
71
NUT; PUSH
(A)
1-53458-845-0
01
1
0710-0911
●
71
NUT; PUSH
(C)
1-53457-208-0
01
1
0912-1005
●
71
NUT; PUSH
(C)
1-53457-208-0
01
1
1006-
●
●
71
NUT; PUSH
(B) ID=9.9 PUSH NUT
8-97022-566-0
01
1
0710-1005
●
71
NUT; PUSH
(B) ID=9.9 PUSH NUT
8-97022-566-0
01
1
1006-
●
●
2
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
REPAIR KIT; OIL PUMP
1-85579-058-0
01
1
0710-0911
●
2
REPAIR KIT; OIL PUMP
1-85579-069-0
01
1
0912-1005
●
2
REPAIR KIT; OIL PUMP
1-85579-069-0
01
1
1006-
●
●
69
GASKET; FILLER PLUG
1-53458-427-0
01
1
0710-1005
●
69
GASKET; FILLER PLUG
1-53458-427-0
01
1
1006-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
