◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005 ▶ 5 - Frame, Cab Mounting ▶ 5-15 - CAB MOUNTING; CAB SIDE ▶
5-15 — CAB MOUNTING; CAB SIDE (#14643) — 234 parça

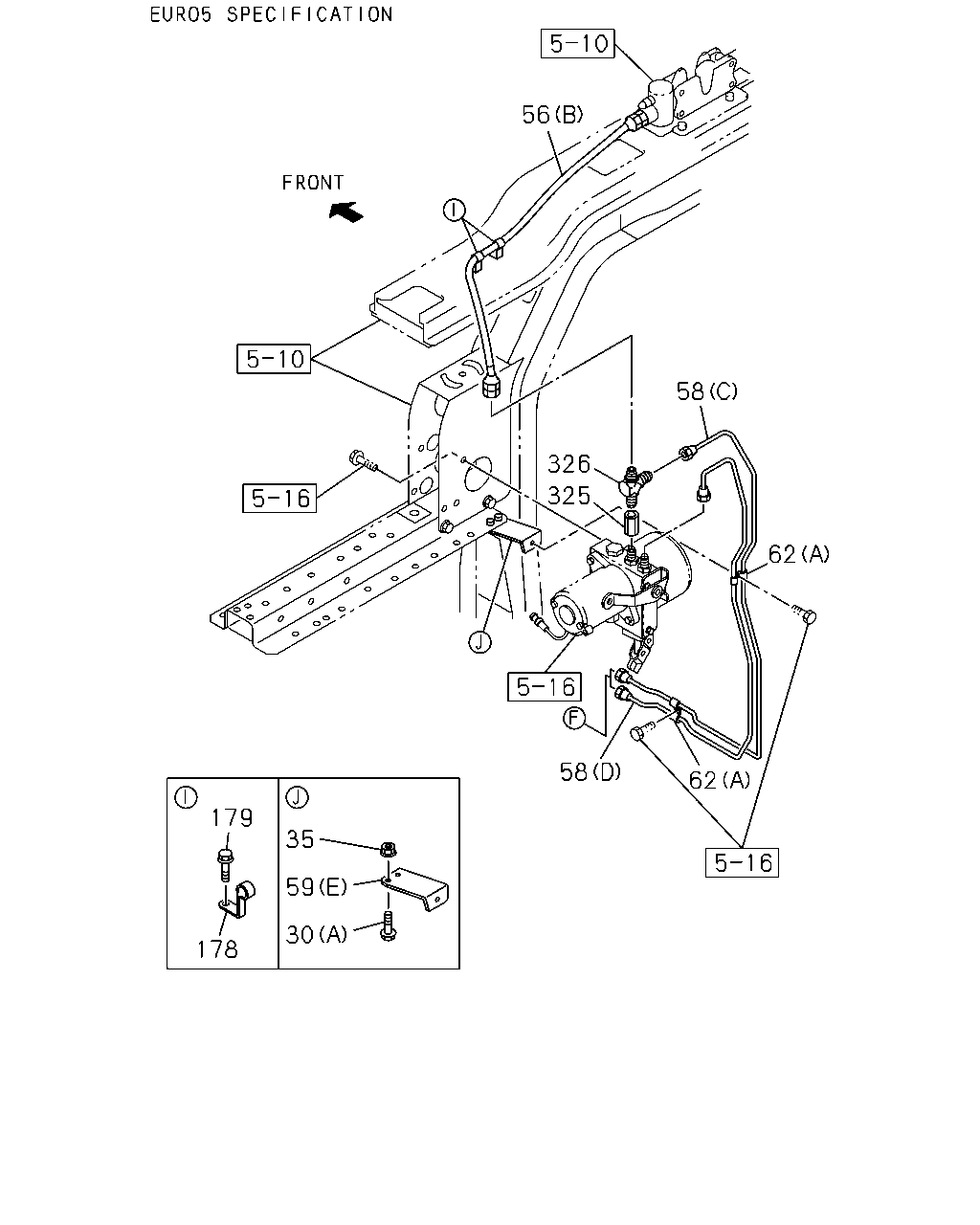

çizim 141702
56 58 326 325 62 58 62 179 35 59 30 178
BalonParca AdiParca NoAdetTipApplied Date A B
30 BOLT; BRKT FIX
EURO5 SPECIFICATION<NT5> (A) M8X20 FLANGE 		0-28650-820-0 02 1 1108- ●
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-1005 ●
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1006-1107 ● ●
30 BOLT; BRKT FIX
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M8X20 FLANGE 		0-28650-820-0 01 1 1108- ●
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1108- ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0710-1005 ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1006- ● ●
35 NUT; BRKT
EURO5 SPECIFICATION<NT5> M8 FLANGE 		0-91180-108-0 02 1 1108- ●
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-1005 ●
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1006-1107 ● ●
35 NUT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8 FLANGE 		0-91180-108-0 01 1 1108- ●
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1108- ●
56 HOSE; FLEX,OIL PIPE
EURO5 SPECIFICATION<NT5> (B) L=750 		1-09365-058-0 01 1 1108- ●
56 HOSE; FLEX,OIL PIPE
(A) L=650 		1-09365-053-0 01 1 0710-1005 ●
56 HOSE; FLEX,OIL PIPE
(A) L=650 		1-09365-053-0 01 1 1006-1107 ● ●
56 HOSE; FLEX,OIL PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) L=650 		1-09365-053-0 01 1 1108- ●
56 HOSE; FLEX,OIL PIPE
(A) L=650 		1-09365-053-0 01 1 1108- ●
58 PIPE; OIL,POWER UNIT
EURO5 SPECIFICATION<NT5> (C) L=989 		1-49166-916-0 01 1 1108- ●
58 PIPE; OIL,POWER UNIT
EURO5 SPECIFICATION<NT5> (D) L=1017 SERVICED BY L=1100 		1-47428-731-0 01 1 1108- ●
58 PIPE; OIL,POWER UNIT
(A) L=1267 SERVICED BY L=1370 		1-47428-734-0 01 1 0710-0710 ●
58 PIPE; OIL,POWER UNIT
(A) L=1248 SERVICED BY L=1250 		1-47428-733-0 01 1 0711-1005 ●
58 PIPE; OIL,POWER UNIT
(A) L=1248 SERVICED BY L=1250 		1-47428-733-0 01 1 1006-1107 ● ●
58 PIPE; OIL,POWER UNIT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) L=1248 SERVICED BY L=1250 		1-47428-733-0 01 1 1108- ●
58 PIPE; OIL,POWER UNIT
(A) L=1248 SERVICED BY L=1250 		1-47428-733-0 01 1 1108- ●
58 PIPE; OIL,POWER UNIT
(B) L=1478 SERVICED BY L=1500 		1-47428-735-0 01 1 0710-0710 ●
58 PIPE; OIL,POWER UNIT
(B) L=1457 SERVICED BY L=1500 		1-47428-735-0 01 1 0711-1005 ●
58 PIPE; OIL,POWER UNIT
(B) L=1457 SERVICED BY L=1500 		1-47428-735-0 01 1 1006-1107 ● ●
58 PIPE; OIL,POWER UNIT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) L=1457 SERVICED BY L=1500 		1-47428-735-0 01 1 1108- ●
58 PIPE; OIL,POWER UNIT
(B) L=1457 SERVICED BY L=1500 		1-47428-735-0 01 1 1108- ●
59 BRACKET; CLIP
EURO5 SPECIFICATION<NT5> (E) 		1-47477-317-0 01 1 1108- ●
59 BRACKET; CLIP
(A) L=50 		1-47475-299-2 02 1 0710-1005 ●
59 BRACKET; CLIP
(A) L=50 		1-47475-299-2 02 1 1006-1107 ● ●
59 BRACKET; CLIP
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) L=50 		1-47475-299-2 02 1 1108- ●
59 BRACKET; CLIP
(A) L=50 		1-47475-299-2 02 1 1108- ●
59 BRACKET; CLIP
(B) 		1-47475-881-0 01 1 0710-1005 ●
59 BRACKET; CLIP
(B) 		1-47475-881-0 01 1 1006- ● ●
59 BRACKET; CLIP
(C) L=115 B=25 		1-47476-758-0 01 1 0710-1005 ●
59 BRACKET; CLIP
(C) L=115 B=25 		1-47476-758-0 01 1 1006- ● ●
59 BRACKET; CLIP
(D) 		8-98082-826-0 01 1 0710-1005 ●
59 BRACKET; CLIP
(D) 		8-98082-826-0 01 1 1006-1107 ● ●
59 BRACKET; CLIP
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (D) 		8-98082-826-0 01 1 1108- ●
59 BRACKET; CLIP
(D) 		8-98082-826-0 01 1 1108- ●
62 CLIP; OIL PIPE
EURO5 SPECIFICATION<NT5> (A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 1108- ●
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		0-95324-825-0 01 1 0710-1005 ●
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		0-95324-825-0 01 1 1006- ● ●
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 04 1 0710-1005 ●
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 04 1 1006-1107 ● ●
62 CLIP; OIL PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 04 1 1108- ●
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 04 1 1108- ●
62 CLIP; OIL PIPE
(D) ID=24 L=27 		1-09700-809-0 02 1 0710-1005 ●
62 CLIP; OIL PIPE
(D) ID=24 L=27 		1-09700-809-0 02 1 1006- ● ●
62 CLIP; OIL PIPE
(B) ID=25 H=30 L=35 		1-09700-875-0 01 1 0710-1005 ●
62 CLIP; OIL PIPE
(B) ID=25 H=30 L=35 		1-09700-875-0 01 1 1006- ● ●
62 CLIP; OIL PIPE
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 0710-1005 ●
62 CLIP; OIL PIPE
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 1006- ● ●
62 CLIP; OIL PIPE
(E) L=350 		1-09707-183-0 01 1 0710-1005 ●
62 CLIP; OIL PIPE
(E) L=350 		1-09707-183-0 01 1 1006- ● ●
62 CLIP; OIL PIPE
(E) L=140 		5-09707-031-1 02 1 0710-1005 ●
62 CLIP; OIL PIPE
(E) L=140 		5-09707-031-1 02 1 1006- ● ●
178 CLIP; FLEX HOSE
ID=8 H=20 L=20 		1-09700-604-0 02 1 0710-1005 ●
178 CLIP; FLEX HOSE
ID=8 H=20 L=20 		1-09700-604-0 02 1 1006- ● ●
179 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 02 1 0710-1005 ●
179 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 02 1 1006- ● ●
325 ADAPTER; PUMP
M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0710-1005 ●
325 ADAPTER; PUMP
M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 1006- ● ●
326 UNION; PUMP
M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0710-1005 ●
326 UNION; PUMP
M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1006- ● ●

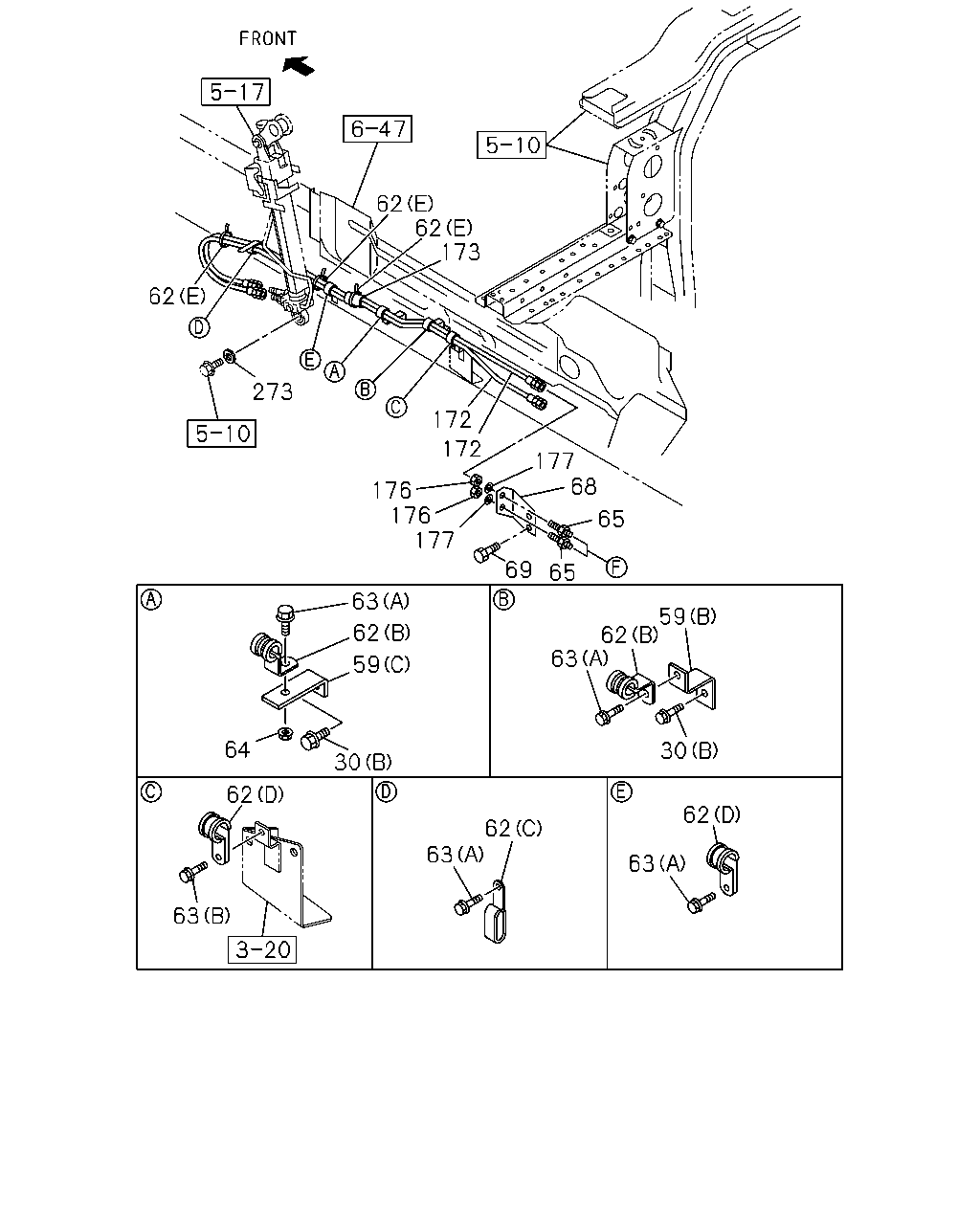

çizim 141705
62 62 173 62 273 172 172 177 68 176 176 177 65 69 65 63 59 62 62 63 59 64 30 30 62 62 62 63 63 63
BalonParca AdiParca NoAdetTipApplied Date A B
30 BOLT; BRKT FIX
EURO5 SPECIFICATION<NT5> (A) M8X20 FLANGE 		0-28650-820-0 02 1 1108- ●
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-1005 ●
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1006-1107 ● ●
30 BOLT; BRKT FIX
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M8X20 FLANGE 		0-28650-820-0 01 1 1108- ●
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1108- ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0710-1005 ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1006- ● ●
59 BRACKET; CLIP
EURO5 SPECIFICATION<NT5> (E) 		1-47477-317-0 01 1 1108- ●
59 BRACKET; CLIP
(A) L=50 		1-47475-299-2 02 1 0710-1005 ●
59 BRACKET; CLIP
(A) L=50 		1-47475-299-2 02 1 1006-1107 ● ●
59 BRACKET; CLIP
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) L=50 		1-47475-299-2 02 1 1108- ●
59 BRACKET; CLIP
(A) L=50 		1-47475-299-2 02 1 1108- ●
59 BRACKET; CLIP
(B) 		1-47475-881-0 01 1 0710-1005 ●
59 BRACKET; CLIP
(B) 		1-47475-881-0 01 1 1006- ● ●
59 BRACKET; CLIP
(C) L=115 B=25 		1-47476-758-0 01 1 0710-1005 ●
59 BRACKET; CLIP
(C) L=115 B=25 		1-47476-758-0 01 1 1006- ● ●
59 BRACKET; CLIP
(D) 		8-98082-826-0 01 1 0710-1005 ●
59 BRACKET; CLIP
(D) 		8-98082-826-0 01 1 1006-1107 ● ●
59 BRACKET; CLIP
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (D) 		8-98082-826-0 01 1 1108- ●
59 BRACKET; CLIP
(D) 		8-98082-826-0 01 1 1108- ●
62 CLIP; OIL PIPE
EURO5 SPECIFICATION<NT5> (A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 1108- ●
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		0-95324-825-0 01 1 0710-1005 ●
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		0-95324-825-0 01 1 1006- ● ●
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 04 1 0710-1005 ●
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 04 1 1006-1107 ● ●
62 CLIP; OIL PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 04 1 1108- ●
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 04 1 1108- ●
62 CLIP; OIL PIPE
(D) ID=24 L=27 		1-09700-809-0 02 1 0710-1005 ●
62 CLIP; OIL PIPE
(D) ID=24 L=27 		1-09700-809-0 02 1 1006- ● ●
62 CLIP; OIL PIPE
(B) ID=25 H=30 L=35 		1-09700-875-0 01 1 0710-1005 ●
62 CLIP; OIL PIPE
(B) ID=25 H=30 L=35 		1-09700-875-0 01 1 1006- ● ●
62 CLIP; OIL PIPE
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 0710-1005 ●
62 CLIP; OIL PIPE
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 1006- ● ●
62 CLIP; OIL PIPE
(E) L=350 		1-09707-183-0 01 1 0710-1005 ●
62 CLIP; OIL PIPE
(E) L=350 		1-09707-183-0 01 1 1006- ● ●
62 CLIP; OIL PIPE
(E) L=140 		5-09707-031-1 02 1 0710-1005 ●
62 CLIP; OIL PIPE
(E) L=140 		5-09707-031-1 02 1 1006- ● ●
63 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0710-1005 ●
63 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1006- ● ●
63 BOLT; CLIP
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0710-1005 ●
63 BOLT; CLIP
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1006- ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-1005 ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1006- ● ●
65 UNION; OIL PIPE
M12 L=66.5 		0-92113-306-0 02 1 0710-1005 ●
65 UNION; OIL PIPE
M12 L=66.5 		0-92113-306-0 02 1 1006- ● ●
68 BRACKET; UNION 1-47479-429-0 01 1 0710-1005 ●
68 BRACKET; UNION 1-47479-429-0 01 1 1006- ● ●
69 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0710-1005 ●
69 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1006- ● ●
172 HOSE; FLEX,OIL TILT
L=1600 		1-09365-052-1 02 1 0710-0909 ●
172 HOSE; FLEX,OIL TILT
L=1600 		8-97634-002-0 02 1 0910-1005 ●
172 HOSE; FLEX,OIL TILT
L=1600 		8-97634-002-0 02 1 1006- ● ●
173 SLEEVE; RUBBER,FLEX HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0710-1005 ●
173 SLEEVE; RUBBER,FLEX HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 1006- ● ●
176 NUT; UNION
M12 		9-09840-280-0 02 1 0710-1005 ●
176 NUT; UNION
M12 		9-09840-280-0 02 1 1006- ● ●
177 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0710-1005 ●
177 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 1006- ● ●
273 WASHER; PL,OIL CYL
ID=10.5 OD=32 		0-91614-810-0 01 1 0710-1005 ●
273 WASHER; PL,OIL CYL
ID=10.5 OD=32 		0-91614-810-0 01 1 1006- ● ●

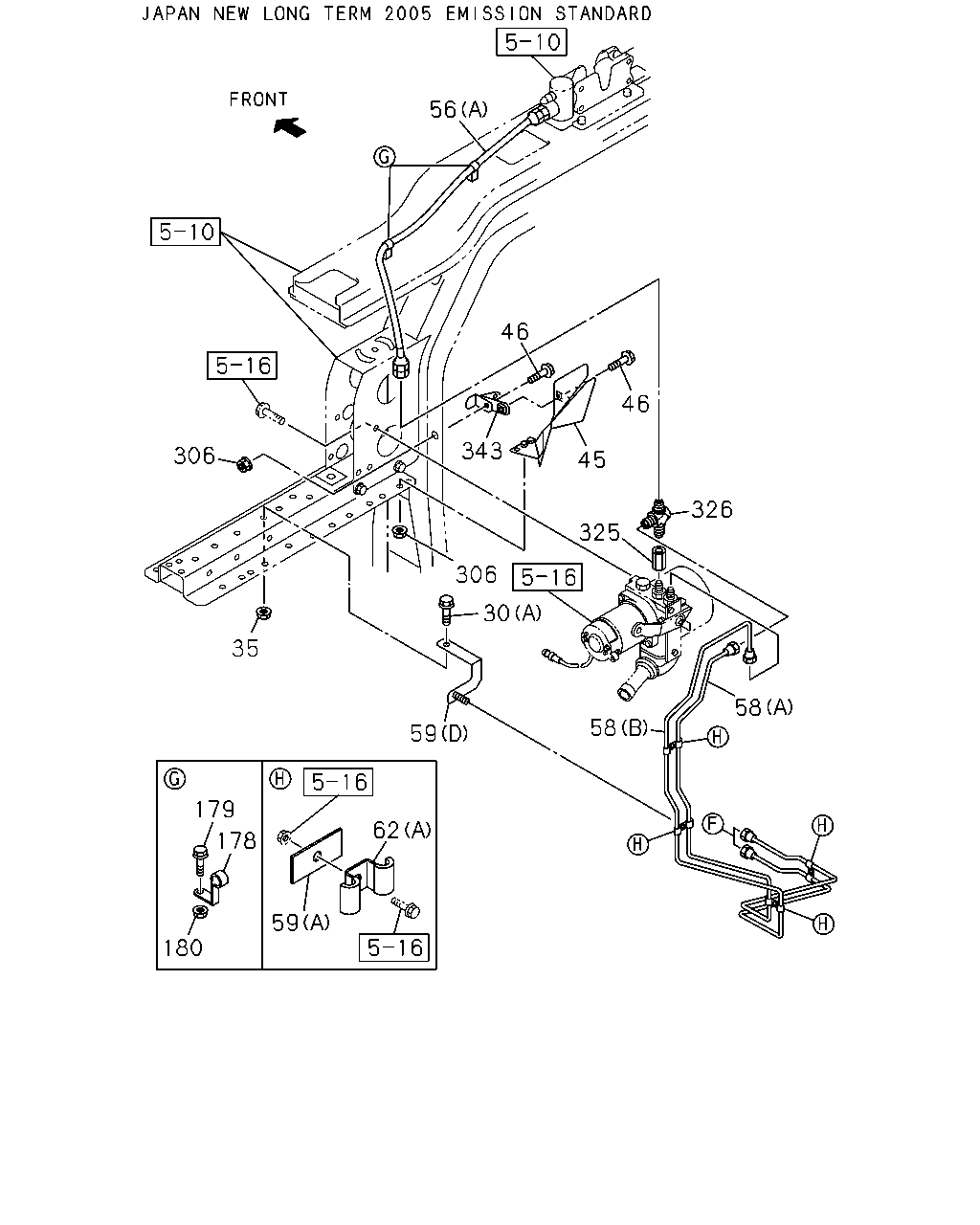

çizim 141742
56 46 46 343 306 45 326 325 306 30 35 58 58 59 179 62 178 59 180
BalonParca AdiParca NoAdetTipApplied Date A B
30 BOLT; BRKT FIX
EURO5 SPECIFICATION<NT5> (A) M8X20 FLANGE 		0-28650-820-0 02 1 1108- ●
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-1005 ●
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1006-1107 ● ●
30 BOLT; BRKT FIX
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M8X20 FLANGE 		0-28650-820-0 01 1 1108- ●
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1108- ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0710-1005 ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1006- ● ●
35 NUT; BRKT
EURO5 SPECIFICATION<NT5> M8 FLANGE 		0-91180-108-0 02 1 1108- ●
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-1005 ●
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1006-1107 ● ●
35 NUT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8 FLANGE 		0-91180-108-0 01 1 1108- ●
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1108- ●
45 PROTECTOR; HEAT 8-98090-525-0 01 1 0710-1005 ●
45 PROTECTOR; HEAT 8-98090-525-0 01 1 1006-1107 ● ●
45 PROTECTOR; HEAT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		8-98090-525-0 01 1 1108- ●
45 PROTECTOR; HEAT 8-98090-525-0 01 1 1108- ●
46 BOLT; HEAT PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 0710-1005 ●
46 BOLT; HEAT PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 1006-1107 ● ●
46 BOLT; HEAT PROTECTOR
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8X25 FLANGE 		0-28650-825-0 02 1 1108- ●
46 BOLT; HEAT PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 1108- ●
56 HOSE; FLEX,OIL PIPE
EURO5 SPECIFICATION<NT5> (B) L=750 		1-09365-058-0 01 1 1108- ●
56 HOSE; FLEX,OIL PIPE
(A) L=650 		1-09365-053-0 01 1 0710-1005 ●
56 HOSE; FLEX,OIL PIPE
(A) L=650 		1-09365-053-0 01 1 1006-1107 ● ●
56 HOSE; FLEX,OIL PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) L=650 		1-09365-053-0 01 1 1108- ●
56 HOSE; FLEX,OIL PIPE
(A) L=650 		1-09365-053-0 01 1 1108- ●
58 PIPE; OIL,POWER UNIT
EURO5 SPECIFICATION<NT5> (C) L=989 		1-49166-916-0 01 1 1108- ●
58 PIPE; OIL,POWER UNIT
EURO5 SPECIFICATION<NT5> (D) L=1017 SERVICED BY L=1100 		1-47428-731-0 01 1 1108- ●
58 PIPE; OIL,POWER UNIT
(A) L=1267 SERVICED BY L=1370 		1-47428-734-0 01 1 0710-0710 ●
58 PIPE; OIL,POWER UNIT
(A) L=1248 SERVICED BY L=1250 		1-47428-733-0 01 1 0711-1005 ●
58 PIPE; OIL,POWER UNIT
(A) L=1248 SERVICED BY L=1250 		1-47428-733-0 01 1 1006-1107 ● ●
58 PIPE; OIL,POWER UNIT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) L=1248 SERVICED BY L=1250 		1-47428-733-0 01 1 1108- ●
58 PIPE; OIL,POWER UNIT
(A) L=1248 SERVICED BY L=1250 		1-47428-733-0 01 1 1108- ●
58 PIPE; OIL,POWER UNIT
(B) L=1478 SERVICED BY L=1500 		1-47428-735-0 01 1 0710-0710 ●
58 PIPE; OIL,POWER UNIT
(B) L=1457 SERVICED BY L=1500 		1-47428-735-0 01 1 0711-1005 ●
58 PIPE; OIL,POWER UNIT
(B) L=1457 SERVICED BY L=1500 		1-47428-735-0 01 1 1006-1107 ● ●
58 PIPE; OIL,POWER UNIT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) L=1457 SERVICED BY L=1500 		1-47428-735-0 01 1 1108- ●
58 PIPE; OIL,POWER UNIT
(B) L=1457 SERVICED BY L=1500 		1-47428-735-0 01 1 1108- ●
59 BRACKET; CLIP
EURO5 SPECIFICATION<NT5> (E) 		1-47477-317-0 01 1 1108- ●
59 BRACKET; CLIP
(A) L=50 		1-47475-299-2 02 1 0710-1005 ●
59 BRACKET; CLIP
(A) L=50 		1-47475-299-2 02 1 1006-1107 ● ●
59 BRACKET; CLIP
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) L=50 		1-47475-299-2 02 1 1108- ●
59 BRACKET; CLIP
(A) L=50 		1-47475-299-2 02 1 1108- ●
59 BRACKET; CLIP
(B) 		1-47475-881-0 01 1 0710-1005 ●
59 BRACKET; CLIP
(B) 		1-47475-881-0 01 1 1006- ● ●
59 BRACKET; CLIP
(C) L=115 B=25 		1-47476-758-0 01 1 0710-1005 ●
59 BRACKET; CLIP
(C) L=115 B=25 		1-47476-758-0 01 1 1006- ● ●
59 BRACKET; CLIP
(D) 		8-98082-826-0 01 1 0710-1005 ●
59 BRACKET; CLIP
(D) 		8-98082-826-0 01 1 1006-1107 ● ●
59 BRACKET; CLIP
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (D) 		8-98082-826-0 01 1 1108- ●
59 BRACKET; CLIP
(D) 		8-98082-826-0 01 1 1108- ●
62 CLIP; OIL PIPE
EURO5 SPECIFICATION<NT5> (A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 1108- ●
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		0-95324-825-0 01 1 0710-1005 ●
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		0-95324-825-0 01 1 1006- ● ●
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 04 1 0710-1005 ●
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 04 1 1006-1107 ● ●
62 CLIP; OIL PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 04 1 1108- ●
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 04 1 1108- ●
62 CLIP; OIL PIPE
(D) ID=24 L=27 		1-09700-809-0 02 1 0710-1005 ●
62 CLIP; OIL PIPE
(D) ID=24 L=27 		1-09700-809-0 02 1 1006- ● ●
62 CLIP; OIL PIPE
(B) ID=25 H=30 L=35 		1-09700-875-0 01 1 0710-1005 ●
62 CLIP; OIL PIPE
(B) ID=25 H=30 L=35 		1-09700-875-0 01 1 1006- ● ●
62 CLIP; OIL PIPE
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 0710-1005 ●
62 CLIP; OIL PIPE
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 1006- ● ●
62 CLIP; OIL PIPE
(E) L=350 		1-09707-183-0 01 1 0710-1005 ●
62 CLIP; OIL PIPE
(E) L=350 		1-09707-183-0 01 1 1006- ● ●
62 CLIP; OIL PIPE
(E) L=140 		5-09707-031-1 02 1 0710-1005 ●
62 CLIP; OIL PIPE
(E) L=140 		5-09707-031-1 02 1 1006- ● ●
178 CLIP; FLEX HOSE
ID=8 H=20 L=20 		1-09700-604-0 02 1 0710-1005 ●
178 CLIP; FLEX HOSE
ID=8 H=20 L=20 		1-09700-604-0 02 1 1006- ● ●
179 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 02 1 0710-1005 ●
179 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 02 1 1006- ● ●
180 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-1003 ●
306 NUT; HEAT PROTECTOR
M8 FLANGE 		0-91180-108-0 03 1 0710-1005 ●
306 NUT; HEAT PROTECTOR
M8 FLANGE 		0-91180-108-0 03 1 1006-1107 ● ●
306 NUT; HEAT PROTECTOR
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8 FLANGE 		0-91180-108-0 03 1 1108- ●
306 NUT; HEAT PROTECTOR
M8 FLANGE 		0-91180-108-0 03 1 1108- ●
325 ADAPTER; PUMP
M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0710-1005 ●
325 ADAPTER; PUMP
M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 1006- ● ●
326 UNION; PUMP
M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0710-1005 ●
326 UNION; PUMP
M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1006- ● ●
343 BRACKET; PROTECTOR 8-98085-205-0 01 1 0710-1005 ●
343 BRACKET; PROTECTOR 8-98085-205-0 01 1 1006-1107 ● ●
343 BRACKET; PROTECTOR
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		8-98085-205-0 01 1 1108- ●
343 BRACKET; PROTECTOR 8-98085-205-0 01 1 1108- ●

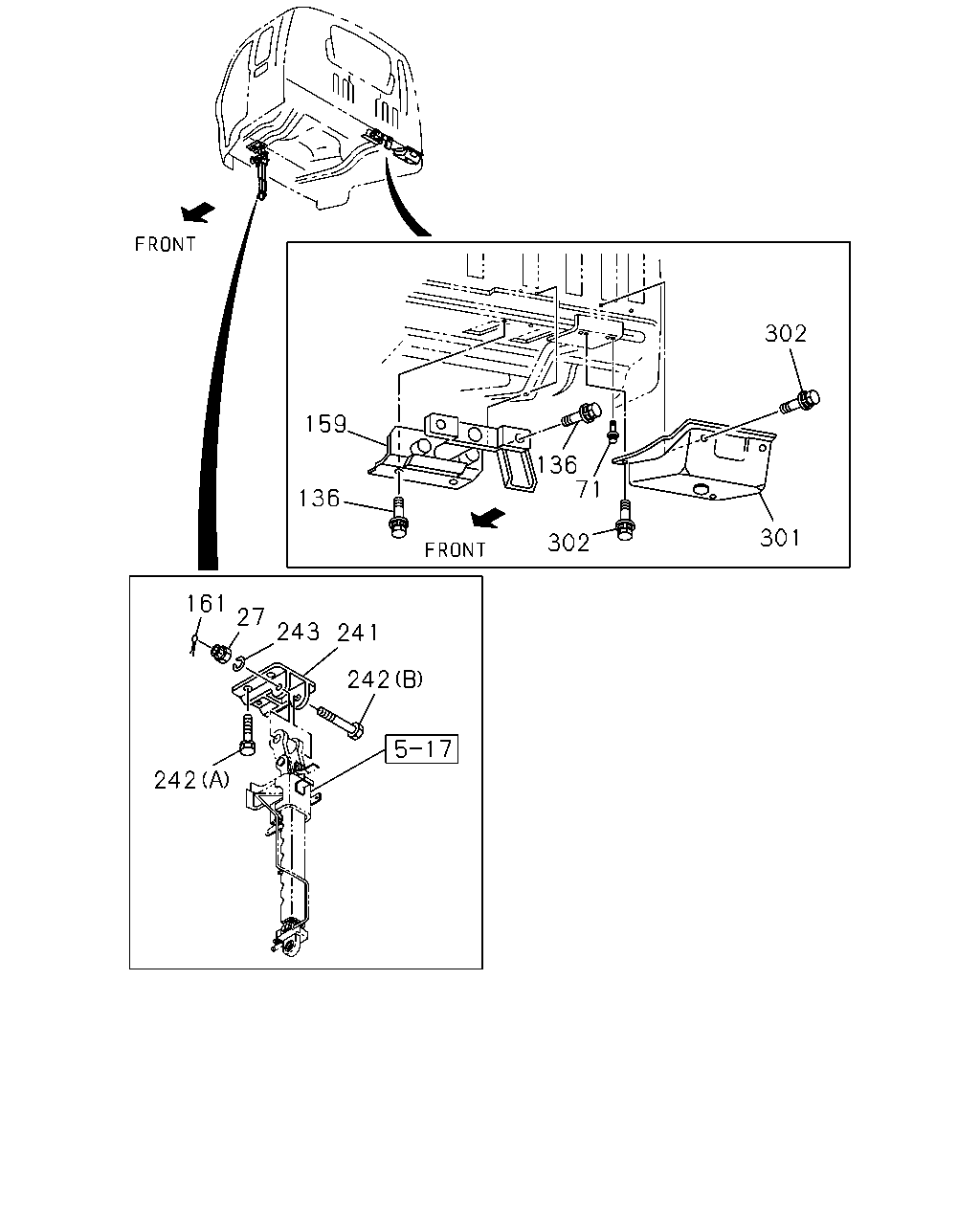

çizim 141859
302 159 136 71 136 301 302 161 27 243 241 242 242
BalonParca AdiParca NoAdetTipApplied Date A B
27 NUT; OIL CYL
M14 SLOTTED 		0-91116-514-0 01 1 0710-1005 ●
27 NUT; OIL CYL
M14 SLOTTED 		0-91116-514-0 01 1 1006- ● ●
71 BOLT
M10X25 W/LK&PL WASHER 		1-09980-488-0 02 1 0710-1005 ●
71 BOLT
M10X25 W/LK&PL WASHER 		1-09980-488-0 02 1 1006- ● ●
136 BOLT; CAB LK
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 0710-1005 ●
136 BOLT; CAB LK
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 1006- ● ●
159 PIN 1-79717-627-1 01 1 0710-1005 ●
159 PIN 1-79717-627-1 01 1 1006- ● ●
161 PIN; SPLIT
OD=2.8 L=25 		0-81123-025-0 01 1 0710-1005 ●
161 PIN; SPLIT
OD=2.8 L=25 		0-81123-025-0 01 1 1006- ● ●
241 BRACKET; POWER CYL UPR,CAB TILT 1-53458-338-1 01 1 0710-1005 ●
241 BRACKET; POWER CYL UPR,CAB TILT 1-53458-338-1 01 1 1006- ● ●
242 BOLT; POWER CYL BRKT,CAB TILT
(A) M10X30 W/SP WASHER 		1-09980-546-0 05 1 0710-1005 ●
242 BOLT; POWER CYL BRKT,CAB TILT
(A) M10X30 W/SP WASHER 		1-09980-546-0 05 1 1006- ● ●
242 BOLT; POWER CYL BRKT,CAB TILT
(B) M14X70 		1-53458-633-0 01 1 0710-1005 ●
242 BOLT; POWER CYL BRKT,CAB TILT
(B) M14X70 		1-53458-633-0 01 1 1006- ● ●
243 WASHER; LK,POWER CYL BRKT
ID=14.2 		0-91510-514-0 01 1 0710-0805 ●
243 WASHER; LK,POWER CYL BRKT
ID=14.2 		0-91510-814-0 01 1 0806-1005 ●
243 WASHER; LK,POWER CYL BRKT
ID=14.2 		0-91510-814-0 01 1 1006- ● ●
301 BRACKET; RR MTG,CAB 1-62570-866-1 02 1 0710-1005 ●
301 BRACKET; RR MTG,CAB 1-62570-866-1 02 1 1006- ● ●
302 BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER 		1-09980-488-0 08 1 0710-1005 ●
302 BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER 		1-09980-488-0 08 1 1006- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
