◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005 ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#14642) — 678 parça

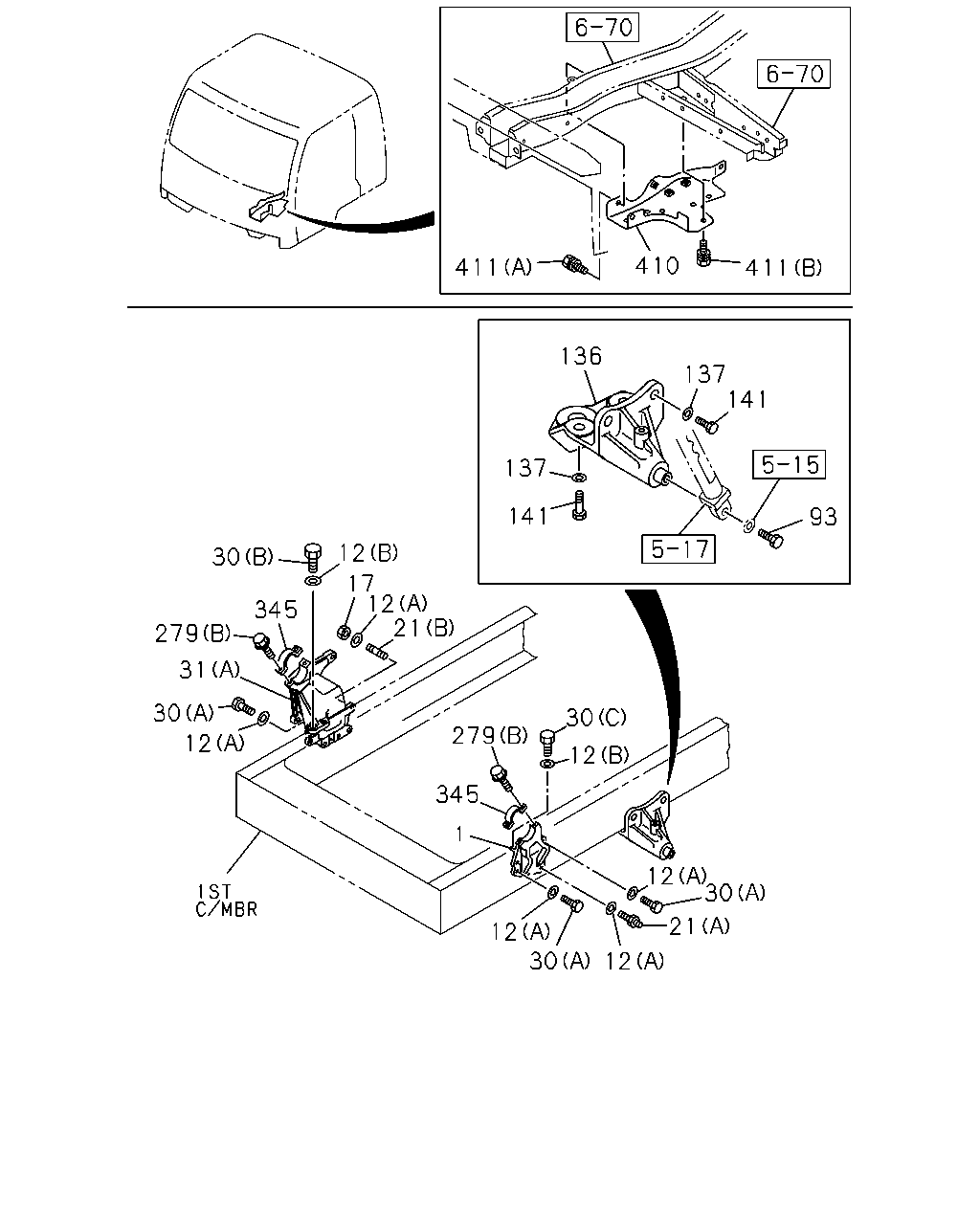

çizim 141693
410 411 411 136 137 141 137 141 93 12 30 17 12 21 345 279 31 30 30 279 12 12 345 1 12 30 21 12 30 12
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; CAB MTG 1-53453-312-0 01 1 0710-0802 ●
1 BRACKET; CAB MTG 8-98094-536-0 01 1 0803-1005 ●
1 BRACKET; CAB MTG 8-98094-536-0 01 1 1006- ● ●
12 WASHER; LK,BRKT
(A) ID=16.2 		1-09503-223-0 11 1 0710-0907 ●
12 WASHER; LK,BRKT
(A) ID=16.2 		1-09503-316-0 11 1 0908-1005 ●
12 WASHER; LK,BRKT
(A) ID=16.2 		1-09503-316-0 11 1 1006- ● ●
12 WASHER; LK,BRKT
(B) ID=15 		9-09651-069-0 04 1 0710-0907 ●
12 WASHER; LK,BRKT
(B) ID=15 		8-98010-627-1 04 1 0908-1005 ●
12 WASHER; LK,BRKT
(B) ID=15 		8-98010-627-1 04 1 1006- ● ●
17 NUT; BRKT,CAB TILT
M16 		0-91110-516-0 01 1 0710-1005 ●
17 NUT; BRKT,CAB TILT
M16 		0-91110-516-0 01 1 1006- ● ●
21 STUD; BRKT,CAB TILT
(A) M12X20,M16X45 L=76 		1-09029-090-0 02 1 0710-1005 ●
21 STUD; BRKT,CAB TILT
(A) M12X20,M16X45 L=76 		1-09029-090-0 02 1 1006- ● ●
21 STUD; BRKT,CAB TILT
(B) M16X50 L=74 		1-09300-117-0 01 1 0710-1005 ●
21 STUD; BRKT,CAB TILT
(B) M16X50 L=74 		1-09300-117-0 01 1 1006- ● ●
30 BOLT; CAB FRT FOOT
(B) M14X60 		0-20951-460-0 02 1 0710-1005 ●
30 BOLT; CAB FRT FOOT
(B) M14X60 		0-20951-460-0 02 1 1006- ● ●
30 BOLT; CAB FRT FOOT
(C) M14X45 		9-92061-445-0 02 1 0710-1003 ●
30 BOLT; CAB FRT FOOT
(C) M14X45 		0-20951-445-0 02 1 1004-1005 ●
30 BOLT; CAB FRT FOOT
(C) M14X45 		0-20951-445-0 02 1 1006- ● ●
30 BOLT; CAB FRT FOOT
(A) M16X45 		9-92061-645-0 08 1 0710-0907 ●
30 BOLT; CAB FRT FOOT
(A) M16X45 		0-20951-645-0 08 1 0908-1005 ●
30 BOLT; CAB FRT FOOT
(A) M16X45 		0-20951-645-0 08 1 1006- ● ●
31 BRACKET; CAB
(D) 		1-53453-224-5 01 1 0710-1005 ●
31 BRACKET; CAB
(D) 		1-53453-224-5 01 1 1006- ● ●
31 BRACKET; CAB
(D) 		1-53453-225-3 01 1 0710-1005 ●
31 BRACKET; CAB
(D) 		1-53453-225-3 01 1 1006- ● ●
31 BRACKET; CAB
(B) 		1-53458-374-1 01 1 0710-1005 ●
31 BRACKET; CAB
(B) 		1-53458-374-1 01 1 1006- ● ●
31 BRACKET; CAB
(A) 		1-44226-178-1 01 1 0710-1005 ●
31 BRACKET; CAB
(A) 		1-44226-178-1 01 1 1006- ● ●
31 BRACKET; CAB
SMOOTHER-G(C1W) (E) 		8-97619-220-1 01 1 0710- ●
31 BRACKET; CAB
EXC. SMOOTHER-G(C1W) (C) 		8-98079-059-0 01 1 0710-1005 ●
31 BRACKET; CAB
EXC. SMOOTHER-G(C1W) (C) 		8-98079-059-0 01 1 1006- ●
31 BRACKET; CAB
(C) 		8-98079-059-0 01 1 1006- ●
93 BOLT; PIN
M10X30 		1-09000-283-0 01 1 0710-1005 ●
93 BOLT; PIN
M10X30 		1-09000-283-0 01 1 1006- ● ●
136 BRACKET; OIL CYL 1-53458-829-0 01 1 0710-1005 ●
136 BRACKET; OIL CYL 1-53458-829-0 01 1 1006- ● ●
137 WASHER; PL,BRKT
ID=15 		8-98010-627-1 04 1 1006-1105 ●
137 WASHER; PL,BRKT
ID=15 		8-98010-627-1 04 1 1106- ● ●
137 WASHER; PL,BRKT
ID=15 		9-09651-069-0 04 1 0710-1105 ●
141 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 0710-1005 ●
141 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 1006- ● ●
279 BOLT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (F) M8X22 W/LK&PL WASHER 		1-09030-042-0 02 1 1108- ●
279 BOLT
(F) M8X22 W/LK&PL WASHER 		1-09030-042-0 02 1 1108- ●
279 BOLT
EURO5 SPECIFICATION<NT5> (G) M8X20 FLANGE 		0-28650-820-0 01 1 1108- ●
279 BOLT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 0710-1005 ●
279 BOLT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 1006- ● ●
279 BOLT
(E) M8X60 FLANGE 		0-28050-860-0 02 1 0710-1005 ●
279 BOLT
(E) M8X60 FLANGE 		0-28050-860-0 02 1 1006- ● ●
279 BOLT
(B) M12X40 FLANGE 		0-28061-240-0 04 1 0710-1005 ●
279 BOLT
(B) M12X40 FLANGE 		0-28061-240-0 04 1 1006-1510 ● ●
279 BOLT
(B) M12X40 FLANGE 		8-98270-173-0 04 1 1511- ● ●
279 BOLT
(D) M8X20 FLANGE 		0-28650-820-0 04 1 0710-1005 ●
279 BOLT
(D) M8X20 FLANGE 		0-28650-820-0 04 1 1006- ● ●
279 BOLT
(F) M8X22 W/LK&PL WASHER 		1-09030-042-0 02 1 0710-1005 ●
279 BOLT
(F) M8X22 W/LK&PL WASHER 		1-09030-042-0 02 1 1006-1107 ● ●
279 BOLT
EURO5 SPECIFICATION<NT5> (F) M8X25 FLANGE 		0-28650-825-0 02 1 1108- ●
279 BOLT
(A) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 0710-1005 ●
279 BOLT
(A) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 1006- ● ●
345 CAP; CAB 1-53458-336-3 02 1 0710-1005 ●
345 CAP; CAB 1-53458-336-3 02 1 1006- ● ●
410 REINFORCEMENT; CAB TILT 1-62570-864-0 01 1 0710-1005 ●
410 REINFORCEMENT; CAB TILT 1-62570-864-0 01 1 1006- ● ●
411 BOLT; REINFORCEMENT
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0710-0904 ●
411 BOLT; REINFORCEMENT
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-1005 ●
411 BOLT; REINFORCEMENT
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1006- ● ●
411 BOLT; REINFORCEMENT
(B) M10X20 W/LK&PL WASHER 		8-94279-211-0 01 1 0710-1005 ●
411 BOLT; REINFORCEMENT
(B) M10X20 W/LK&PL WASHER 		8-94279-211-0 01 1 1006- ● ●
çizim 141701
202 202 69 203 204 72 205 65 204 70 203
BalonParca AdiParca NoAdetTipApplied Date A B
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 0710-1005 ●
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1006- ● ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 0710-1005 ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 1006- ● ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 0710-1005 ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 1006- ● ●
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-492-1 01 1 0710-1005 ●
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-492-1 01 1 1006- ● ●
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-493-1 01 1 0710-1005 ●
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-493-1 01 1 1006- ● ●
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 23 1 0710-1005 ●
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 23 1 1006- ● ●
202 NUT; S/ABS
(C) M10 FLANGE 		0-91150-110-0 02 1 0710-1005 ●
202 NUT; S/ABS
(C) M10 FLANGE 		0-91150-110-0 02 1 1006-1007 ● ●
202 NUT; S/ABS
(C) M10 FLANGE 		0-91180-110-0 02 1 1008- ● ●
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 0710-1005 ●
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 1006- ● ●
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 0710-1005 ●
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 1006- ● ●
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 10 1 0710-1005 ●
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 10 1 1006- ● ●
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 0710-1005 ●
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 1006- ● ●
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 0710-1005 ●
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 1006- ● ●
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 0710-1005 ●
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 1006- ● ●
çizim 141711
202 294 202 203 204 205 204 203 201 173 203 204 205 66 174 205 204 203 202 202
BalonParca AdiParca NoAdetTipApplied Date A B
66 BRACKET; S/ABS 1-53458-755-1 01 1 0710-1005 ●
66 BRACKET; S/ABS 1-53458-755-1 01 1 1006-1204 ● ●
66 BRACKET; S/ABS 8-98214-572-0 01 1 1205- ● ●
66 BRACKET; S/ABS 1-53458-786-0 01 1 0710-1005 ●
66 BRACKET; S/ABS 1-53458-786-0 01 1 1006- ● ●
173 MEMBER; CAB MTG RR
EURO5 SPECIFICATION<NT5> 		8-98171-651-0 01 1 1108- ●
173 MEMBER; CAB MTG RR 8-98063-227-1 01 1 0710-1005 ●
173 MEMBER; CAB MTG RR 8-98063-227-1 01 1 1006-1107 ● ●
173 MEMBER; CAB MTG RR
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		8-98063-227-1 01 1 1108- ●
173 MEMBER; CAB MTG RR 8-98063-227-1 01 1 1108- ●
174 OUTRIGGER 1-53456-418-3 01 1 0710-1005 ●
174 OUTRIGGER 1-53456-418-3 01 1 1006- ● ●
174 OUTRIGGER 1-53456-278-3 01 1 0710-1003 ●
174 OUTRIGGER 8-98158-646-0 01 1 1004-1005 ●
174 OUTRIGGER 8-98158-646-0 01 1 1006- ● ●
201 ABSORBER ASM; SHOCK,RR MTG 1-51630-728-1 02 1 0710-1005 ●
201 ABSORBER ASM; SHOCK,RR MTG 1-51630-728-1 02 1 1006- ● ●
202 NUT; S/ABS
(C) M10 FLANGE 		0-91150-110-0 02 1 0710-1005 ●
202 NUT; S/ABS
(C) M10 FLANGE 		0-91150-110-0 02 1 1006-1007 ● ●
202 NUT; S/ABS
(C) M10 FLANGE 		0-91180-110-0 02 1 1008- ● ●
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 0710-1005 ●
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 1006- ● ●
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 0710-1005 ●
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 1006- ● ●
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 10 1 0710-1005 ●
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 10 1 1006- ● ●
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 0710-1005 ●
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 1006- ● ●
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 0710-1005 ●
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 1006- ● ●
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 0710-1005 ●
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 1006- ● ●
294 MEMBER; FLOATING 1-53454-949-2 01 1 0710-1005 ●
294 MEMBER; FLOATING 1-53454-949-2 01 1 1006- ● ●

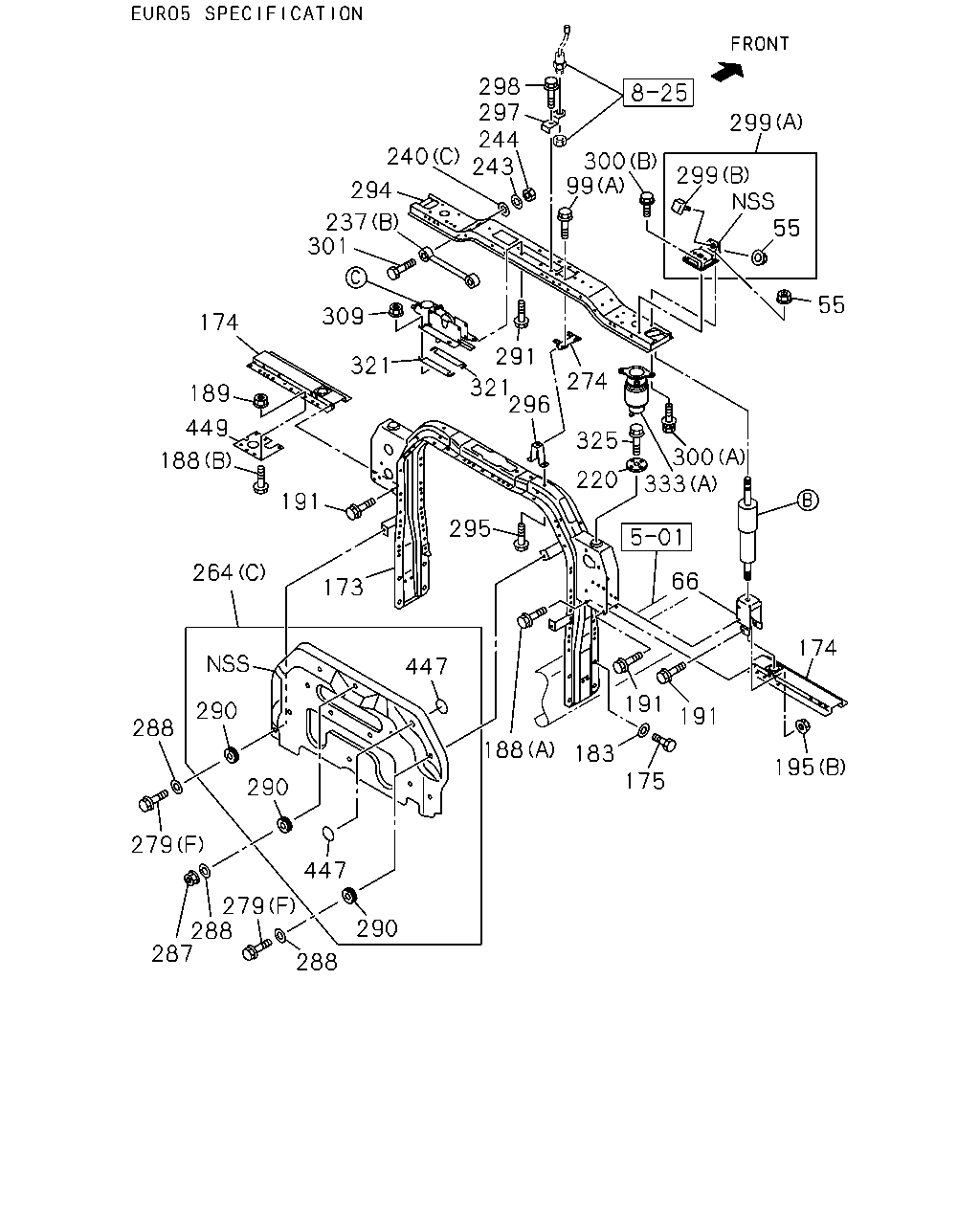

çizim 141719
298 297 244 243 299 240 300 99 299 55 294 237 301 55 309 174 291 321 274 321 296 189 449 325 188 300 333 220 191 295 264 66 173 174 447 191 290 191 288 188 183 195 175 290 279 447 279 288 287 290 288
BalonParca AdiParca NoAdetTipApplied Date A B
55 NUT; RUBBER
M8 FLANGE 		0-91180-108-0 06 1 0710-1005 ●
55 NUT; RUBBER
M8 FLANGE 		0-91180-108-0 06 1 1006- ● ●
66 BRACKET; S/ABS 1-53458-755-1 01 1 0710-1005 ●
66 BRACKET; S/ABS 1-53458-755-1 01 1 1006-1204 ● ●
66 BRACKET; S/ABS 8-98214-572-0 01 1 1205- ● ●
66 BRACKET; S/ABS 1-53458-786-0 01 1 0710-1005 ●
66 BRACKET; S/ABS 1-53458-786-0 01 1 1006- ● ●
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0710-1005 ●
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1006- ● ●
99 BOLT; BRKT
SMOOTHER-G(C1W) (B) M10X30 W/SP WASHER 		1-09980-546-0 01 1 0710- ●
173 MEMBER; CAB MTG RR
EURO5 SPECIFICATION<NT5> 		8-98171-651-0 01 1 1108- ●
173 MEMBER; CAB MTG RR 8-98063-227-1 01 1 0710-1005 ●
173 MEMBER; CAB MTG RR 8-98063-227-1 01 1 1006-1107 ● ●
173 MEMBER; CAB MTG RR
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		8-98063-227-1 01 1 1108- ●
173 MEMBER; CAB MTG RR 8-98063-227-1 01 1 1108- ●
174 OUTRIGGER 1-53456-418-3 01 1 0710-1005 ●
174 OUTRIGGER 1-53456-418-3 01 1 1006- ● ●
174 OUTRIGGER 1-53456-278-3 01 1 0710-1003 ●
174 OUTRIGGER 8-98158-646-0 01 1 1004-1005 ●
174 OUTRIGGER 8-98158-646-0 01 1 1006- ● ●
175 BOLT; MEMBER TO FRAME
M14X40 		0-20951-440-0 08 1 0710-1005 ●
175 BOLT; MEMBER TO FRAME
M14X40 		0-20951-440-0 08 1 1006- ● ●
183 WASHER; PL,MEMBER
ID=15 		9-09651-069-0 08 1 0710-0907 ●
183 WASHER; PL,MEMBER
ID=15 		8-98010-627-1 08 1 0908-1005 ●
183 WASHER; PL,MEMBER
ID=15 		8-98010-627-1 08 1 1006- ● ●
188 BOLT; OUTRIGGER
(B) M10X20 FLANGE 		0-28651-020-0 04 1 0710-1005 ●
188 BOLT; OUTRIGGER
(B) M10X20 FLANGE 		0-28651-020-0 04 1 1006- ● ●
188 BOLT; OUTRIGGER
(A) M10X25 FLANGE 		0-28651-025-0 08 1 0710-1005 ●
188 BOLT; OUTRIGGER
(A) M10X25 FLANGE 		0-28651-025-0 08 1 1006- ● ●
189 NUT; OUTRIGGER
M10 FLANGE 		0-91180-210-0 04 1 0710-1005 ●
189 NUT; OUTRIGGER
M10 FLANGE 		0-91180-210-0 04 1 1006- ● ●
191 BOLT; BRKT FIX
M10X25 FLANGE 		0-28651-025-0 07 1 0710-1005 ●
191 BOLT; BRKT FIX
M10X25 FLANGE 		0-28651-025-0 07 1 1006- ● ●
195 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 04 1 0710-1005 ●
195 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 04 1 1006-1107 ● ●
195 NUT; BRKT FIX
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M8 FLANGE 		0-91180-108-0 04 1 1108- ●
195 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 04 1 1108- ●
195 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-210-0 04 1 0710-1005 ●
195 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-210-0 04 1 1006- ● ●
220 GUIDE; SPR 1-53458-648-1 02 1 0710-1005 ●
220 GUIDE; SPR 1-53458-648-1 02 1 1006- ● ●
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 0710-1005 ●
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 1006- ● ●
237 ROD ASM; LATERAL
(C) 		1-33671-987-0 01 1 0710-1005 ●
237 ROD ASM; LATERAL
(C) 		1-33671-987-0 01 1 1006- ● ●
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 0710-1005 ●
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 1006- ● ●
240 WASHER; PL,BRKT
(C) ID=12.5 OD=22 		0-91610-512-0 02 1 0710-1005 ●
240 WASHER; PL,BRKT
(C) ID=12.5 OD=22 		0-91610-512-0 02 1 1006- ● ●
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 0710-1005 ●
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 1006- ● ●
240 WASHER; PL,BRKT
EXC. SMOOTHER-G(C1W) (A) ID=10.5 OD=18 		1-09985-173-0 01 1 0710- ●
243 WASHER; LK,LATERAL ROD
ID=12.2 		0-91510-512-0 02 1 0710-1005 ●
243 WASHER; LK,LATERAL ROD
ID=12.2 		0-91510-512-0 02 1 1006- ● ●
244 NUT; LATERAL ROD
M12 		0-91110-512-0 02 1 0710-1005 ●
244 NUT; LATERAL ROD
M12 		0-91110-512-0 02 1 1006- ● ●
264 PANEL; BACK
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) 		8-98087-927-0 01 1 1108- ●
264 PANEL; BACK
(A) 		8-98087-927-0 01 1 1108- ●
264 PANEL; BACK
(B) 		8-98087-929-0 01 1 0710-1005 ●
264 PANEL; BACK
(B) 		8-98087-929-0 01 1 1006-1107 ● ●
264 PANEL; BACK
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) 		8-98087-929-0 01 1 1108- ●
264 PANEL; BACK
(B) 		8-98087-929-0 01 1 1108- ●
264 PANEL; BACK
(A) 		8-98087-927-0 01 1 0710-1005 ●
264 PANEL; BACK
(A) 		8-98087-927-0 01 1 1006-1107 ● ●
264 PANEL; BACK
EURO5 SPECIFICATION<NT5> (C) 		8-98063-674-0 01 1 1108- ●
274 PIN 1-53458-996-0 01 1 0710-1005 ●
274 PIN 1-53458-996-0 01 1 1006- ● ●
279 BOLT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (F) M8X22 W/LK&PL WASHER 		1-09030-042-0 02 1 1108- ●
279 BOLT
(F) M8X22 W/LK&PL WASHER 		1-09030-042-0 02 1 1108- ●
279 BOLT
EURO5 SPECIFICATION<NT5> (G) M8X20 FLANGE 		0-28650-820-0 01 1 1108- ●
279 BOLT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 0710-1005 ●
279 BOLT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 1006- ● ●
279 BOLT
(E) M8X60 FLANGE 		0-28050-860-0 02 1 0710-1005 ●
279 BOLT
(E) M8X60 FLANGE 		0-28050-860-0 02 1 1006- ● ●
279 BOLT
(B) M12X40 FLANGE 		0-28061-240-0 04 1 0710-1005 ●
279 BOLT
(B) M12X40 FLANGE 		0-28061-240-0 04 1 1006-1510 ● ●
279 BOLT
(B) M12X40 FLANGE 		8-98270-173-0 04 1 1511- ● ●
279 BOLT
(D) M8X20 FLANGE 		0-28650-820-0 04 1 0710-1005 ●
279 BOLT
(D) M8X20 FLANGE 		0-28650-820-0 04 1 1006- ● ●
279 BOLT
(F) M8X22 W/LK&PL WASHER 		1-09030-042-0 02 1 0710-1005 ●
279 BOLT
(F) M8X22 W/LK&PL WASHER 		1-09030-042-0 02 1 1006-1107 ● ●
279 BOLT
EURO5 SPECIFICATION<NT5> (F) M8X25 FLANGE 		0-28650-825-0 02 1 1108- ●
279 BOLT
(A) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 0710-1005 ●
279 BOLT
(A) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 1006- ● ●
287 NUT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8 FLANGE 		0-91180-108-0 04 1 1108- ●
287 NUT
M8 FLANGE 		0-91180-108-0 04 1 1108- ●
287 NUT
M8 FLANGE 		0-91180-108-0 04 1 0710-1005 ●
287 NUT
M8 FLANGE 		0-91180-108-0 04 1 1006-1107 ● ●
287 NUT
EURO5 SPECIFICATION<NT5> M8 FLANGE 		0-91180-108-0 01 1 1108- ●
288 WASHER; PL
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> ID=8.4 OD=26 		0-91614-808-0 02 1 1108- ●
288 WASHER; PL
ID=8.4 OD=26 		0-91614-808-0 02 1 1108- ●
288 WASHER; PL
ID=8.4 OD=26 		0-91614-808-0 02 1 0710-1005 ●
288 WASHER; PL
ID=8.4 OD=26 		0-91614-808-0 02 1 1006-1107 ● ●
288 WASHER; PL
EURO5 SPECIFICATION<NT5> ID=8.4 OD=26 		0-91614-808-0 03 1 1108- ●
290 RUBBER; MTG
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		1-53459-702-1 06 1 1108- ●
290 RUBBER; MTG 1-53459-702-1 06 1 1108- ●
290 RUBBER; MTG 1-53459-702-1 06 1 0710-1005 ●
290 RUBBER; MTG 1-53459-702-1 06 1 1006-1107 ● ●
290 RUBBER; MTG
EURO5 SPECIFICATION<NT5> 		1-53459-702-1 03 1 1108- ●
291 BOLT; RATCH
M10X25 FLANGE 		0-28651-025-0 04 1 0710-1005 ●
291 BOLT; RATCH
M10X25 FLANGE 		0-28651-025-0 04 1 1006- ● ●
294 MEMBER; FLOATING 1-53454-949-2 01 1 0710-1005 ●
294 MEMBER; FLOATING 1-53454-949-2 01 1 1006- ● ●
295 BOLT; STOPPER,UPR
M10X20 FLANGE 		0-28651-020-0 02 1 0710-1005 ●
295 BOLT; STOPPER,UPR
M10X20 FLANGE 		0-28651-020-0 02 1 1006- ● ●
296 STOPPER; UPR 1-53458-973-1 01 1 0710-1005 ●
296 STOPPER; UPR 1-53458-973-1 01 1 1006- ● ●
297 BRACKET; LIMIT SW 1-53458-782-0 01 1 0710-1005 ●
297 BRACKET; LIMIT SW 1-53458-782-0 01 1 1006- ● ●
298 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0710-1005 ●
298 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1006- ● ●
299 RUBBER; MTG
(B) 		1-53366-155-0 02 1 0710-1005 ●
299 RUBBER; MTG
(B) 		1-53366-155-0 02 1 1006- ● ●
299 RUBBER; MTG
(A) 		1-53366-194-0 02 1 0710-1005 ●
299 RUBBER; MTG
(A) 		1-53366-194-0 02 1 1006- ● ●
300 BOLT; MTG RUBBER
(B) M8X16 FLANGE 		0-28050-816-0 04 1 0710-1005 ●
300 BOLT; MTG RUBBER
(B) M8X16 FLANGE 		0-28050-816-0 04 1 1006- ● ●
300 BOLT; MTG RUBBER
(A) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 0710-1005 ●
300 BOLT; MTG RUBBER
(A) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 1006- ● ●
301 PIN; LATERAL ROD
M12X57.5 		1-53459-498-1 02 1 0710-1005 ●
301 PIN; LATERAL ROD
M12X57.5 		1-53459-498-1 02 1 1006- ● ●
309 NUT
M10 FLANGE 		0-91180-210-0 04 1 0710-1005 ●
309 NUT
M10 FLANGE 		0-91180-210-0 04 1 1006- ● ●
321 SHIM; FRT CAB MTG 1-53458-629-1 04 1 0710-1005 ●
321 SHIM; FRT CAB MTG 1-53458-629-1 04 1 1006- ● ●
325 BOLT; GUIDE NUT
M8X20 FLANGE 		0-28650-820-0 02 1 0710-1005 ●
325 BOLT; GUIDE NUT
M8X20 FLANGE 		0-28650-820-0 02 1 1006- ● ●
333 SPRING
(B) 		1-52110-142-2 02 1 0710-1005 ●
333 SPRING
(B) 		1-52110-142-4 02 1 1006- ● ●
333 SPRING
(A) 		1-52110-143-2 02 1 0710-1005 ●
333 SPRING
(A) 		1-52110-143-4 02 1 1006- ● ●
447 SEAL
EURO5 SPECIFICATION<NT5> OD=45 BLACK 		1-76798-017-0 02 1 1108- ●
449 BRACKET; OUTRIGGER 1-53456-279-0 01 1 0710-1005 ●
449 BRACKET; OUTRIGGER 1-53456-279-0 01 1 1006- ● ●

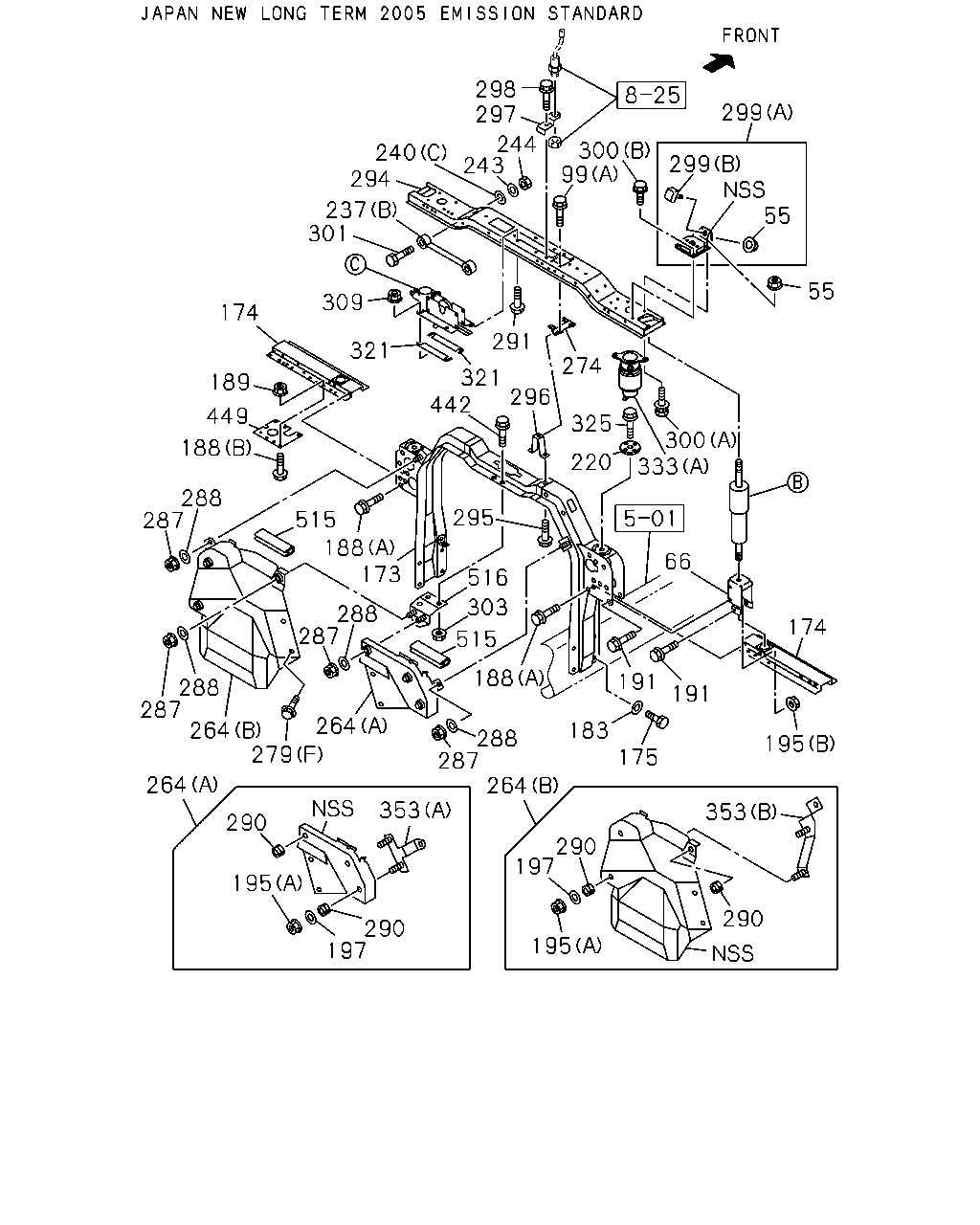

çizim 141721
298 297 299 244 243 300 99 240 294 299 55 237 301 55 309 174 291 321 274 321 442 189 296 449 325 188 300 333 220 288 287 515 295 188 173 66 516 303 288 287 174 515 188 191 288 287 264 279 191 264 183 288 287 264 195 175 264 353 353 290 290 197 195 290 290 197 195
BalonParca AdiParca NoAdetTipApplied Date A B
55 NUT; RUBBER
M8 FLANGE 		0-91180-108-0 06 1 0710-1005 ●
55 NUT; RUBBER
M8 FLANGE 		0-91180-108-0 06 1 1006- ● ●
66 BRACKET; S/ABS 1-53458-755-1 01 1 0710-1005 ●
66 BRACKET; S/ABS 1-53458-755-1 01 1 1006-1204 ● ●
66 BRACKET; S/ABS 8-98214-572-0 01 1 1205- ● ●
66 BRACKET; S/ABS 1-53458-786-0 01 1 0710-1005 ●
66 BRACKET; S/ABS 1-53458-786-0 01 1 1006- ● ●
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0710-1005 ●
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1006- ● ●
99 BOLT; BRKT
SMOOTHER-G(C1W) (B) M10X30 W/SP WASHER 		1-09980-546-0 01 1 0710- ●
173 MEMBER; CAB MTG RR
EURO5 SPECIFICATION<NT5> 		8-98171-651-0 01 1 1108- ●
173 MEMBER; CAB MTG RR 8-98063-227-1 01 1 0710-1005 ●
173 MEMBER; CAB MTG RR 8-98063-227-1 01 1 1006-1107 ● ●
173 MEMBER; CAB MTG RR
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		8-98063-227-1 01 1 1108- ●
173 MEMBER; CAB MTG RR 8-98063-227-1 01 1 1108- ●
174 OUTRIGGER 1-53456-418-3 01 1 0710-1005 ●
174 OUTRIGGER 1-53456-418-3 01 1 1006- ● ●
174 OUTRIGGER 1-53456-278-3 01 1 0710-1003 ●
174 OUTRIGGER 8-98158-646-0 01 1 1004-1005 ●
174 OUTRIGGER 8-98158-646-0 01 1 1006- ● ●
175 BOLT; MEMBER TO FRAME
M14X40 		0-20951-440-0 08 1 0710-1005 ●
175 BOLT; MEMBER TO FRAME
M14X40 		0-20951-440-0 08 1 1006- ● ●
183 WASHER; PL,MEMBER
ID=15 		9-09651-069-0 08 1 0710-0907 ●
183 WASHER; PL,MEMBER
ID=15 		8-98010-627-1 08 1 0908-1005 ●
183 WASHER; PL,MEMBER
ID=15 		8-98010-627-1 08 1 1006- ● ●
188 BOLT; OUTRIGGER
(B) M10X20 FLANGE 		0-28651-020-0 04 1 0710-1005 ●
188 BOLT; OUTRIGGER
(B) M10X20 FLANGE 		0-28651-020-0 04 1 1006- ● ●
188 BOLT; OUTRIGGER
(A) M10X25 FLANGE 		0-28651-025-0 08 1 0710-1005 ●
188 BOLT; OUTRIGGER
(A) M10X25 FLANGE 		0-28651-025-0 08 1 1006- ● ●
189 NUT; OUTRIGGER
M10 FLANGE 		0-91180-210-0 04 1 0710-1005 ●
189 NUT; OUTRIGGER
M10 FLANGE 		0-91180-210-0 04 1 1006- ● ●
191 BOLT; BRKT FIX
M10X25 FLANGE 		0-28651-025-0 07 1 0710-1005 ●
191 BOLT; BRKT FIX
M10X25 FLANGE 		0-28651-025-0 07 1 1006- ● ●
195 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 04 1 0710-1005 ●
195 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 04 1 1006-1107 ● ●
195 NUT; BRKT FIX
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M8 FLANGE 		0-91180-108-0 04 1 1108- ●
195 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 04 1 1108- ●
195 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-210-0 04 1 0710-1005 ●
195 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-210-0 04 1 1006- ● ●
197 WASHER; PL
ID=8.4 OD=26 		0-91614-808-0 04 1 0710-1005 ●
197 WASHER; PL
ID=8.4 OD=26 		0-91614-808-0 04 1 1006-1107 ● ●
197 WASHER; PL
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> ID=8.4 OD=26 		0-91614-808-0 04 1 1108- ●
197 WASHER; PL
ID=8.4 OD=26 		0-91614-808-0 04 1 1108- ●
220 GUIDE; SPR 1-53458-648-1 02 1 0710-1005 ●
220 GUIDE; SPR 1-53458-648-1 02 1 1006- ● ●
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 0710-1005 ●
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 1006- ● ●
237 ROD ASM; LATERAL
(C) 		1-33671-987-0 01 1 0710-1005 ●
237 ROD ASM; LATERAL
(C) 		1-33671-987-0 01 1 1006- ● ●
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 0710-1005 ●
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 1006- ● ●
240 WASHER; PL,BRKT
(C) ID=12.5 OD=22 		0-91610-512-0 02 1 0710-1005 ●
240 WASHER; PL,BRKT
(C) ID=12.5 OD=22 		0-91610-512-0 02 1 1006- ● ●
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 0710-1005 ●
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 1006- ● ●
240 WASHER; PL,BRKT
EXC. SMOOTHER-G(C1W) (A) ID=10.5 OD=18 		1-09985-173-0 01 1 0710- ●
243 WASHER; LK,LATERAL ROD
ID=12.2 		0-91510-512-0 02 1 0710-1005 ●
243 WASHER; LK,LATERAL ROD
ID=12.2 		0-91510-512-0 02 1 1006- ● ●
244 NUT; LATERAL ROD
M12 		0-91110-512-0 02 1 0710-1005 ●
244 NUT; LATERAL ROD
M12 		0-91110-512-0 02 1 1006- ● ●
264 PANEL; BACK
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) 		8-98087-927-0 01 1 1108- ●
264 PANEL; BACK
(A) 		8-98087-927-0 01 1 1108- ●
264 PANEL; BACK
(B) 		8-98087-929-0 01 1 0710-1005 ●
264 PANEL; BACK
(B) 		8-98087-929-0 01 1 1006-1107 ● ●
264 PANEL; BACK
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) 		8-98087-929-0 01 1 1108- ●
264 PANEL; BACK
(B) 		8-98087-929-0 01 1 1108- ●
264 PANEL; BACK
(A) 		8-98087-927-0 01 1 0710-1005 ●
264 PANEL; BACK
(A) 		8-98087-927-0 01 1 1006-1107 ● ●
264 PANEL; BACK
EURO5 SPECIFICATION<NT5> (C) 		8-98063-674-0 01 1 1108- ●
274 PIN 1-53458-996-0 01 1 0710-1005 ●
274 PIN 1-53458-996-0 01 1 1006- ● ●
279 BOLT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (F) M8X22 W/LK&PL WASHER 		1-09030-042-0 02 1 1108- ●
279 BOLT
(F) M8X22 W/LK&PL WASHER 		1-09030-042-0 02 1 1108- ●
279 BOLT
EURO5 SPECIFICATION<NT5> (G) M8X20 FLANGE 		0-28650-820-0 01 1 1108- ●
279 BOLT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 0710-1005 ●
279 BOLT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 1006- ● ●
279 BOLT
(E) M8X60 FLANGE 		0-28050-860-0 02 1 0710-1005 ●
279 BOLT
(E) M8X60 FLANGE 		0-28050-860-0 02 1 1006- ● ●
279 BOLT
(B) M12X40 FLANGE 		0-28061-240-0 04 1 0710-1005 ●
279 BOLT
(B) M12X40 FLANGE 		0-28061-240-0 04 1 1006-1510 ● ●
279 BOLT
(B) M12X40 FLANGE 		8-98270-173-0 04 1 1511- ● ●
279 BOLT
(D) M8X20 FLANGE 		0-28650-820-0 04 1 0710-1005 ●
279 BOLT
(D) M8X20 FLANGE 		0-28650-820-0 04 1 1006- ● ●
279 BOLT
(F) M8X22 W/LK&PL WASHER 		1-09030-042-0 02 1 0710-1005 ●
279 BOLT
(F) M8X22 W/LK&PL WASHER 		1-09030-042-0 02 1 1006-1107 ● ●
279 BOLT
EURO5 SPECIFICATION<NT5> (F) M8X25 FLANGE 		0-28650-825-0 02 1 1108- ●
279 BOLT
(A) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 0710-1005 ●
279 BOLT
(A) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 1006- ● ●
287 NUT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8 FLANGE 		0-91180-108-0 04 1 1108- ●
287 NUT
M8 FLANGE 		0-91180-108-0 04 1 1108- ●
287 NUT
M8 FLANGE 		0-91180-108-0 04 1 0710-1005 ●
287 NUT
M8 FLANGE 		0-91180-108-0 04 1 1006-1107 ● ●
287 NUT
EURO5 SPECIFICATION<NT5> M8 FLANGE 		0-91180-108-0 01 1 1108- ●
288 WASHER; PL
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> ID=8.4 OD=26 		0-91614-808-0 02 1 1108- ●
288 WASHER; PL
ID=8.4 OD=26 		0-91614-808-0 02 1 1108- ●
288 WASHER; PL
ID=8.4 OD=26 		0-91614-808-0 02 1 0710-1005 ●
288 WASHER; PL
ID=8.4 OD=26 		0-91614-808-0 02 1 1006-1107 ● ●
288 WASHER; PL
EURO5 SPECIFICATION<NT5> ID=8.4 OD=26 		0-91614-808-0 03 1 1108- ●
290 RUBBER; MTG
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		1-53459-702-1 06 1 1108- ●
290 RUBBER; MTG 1-53459-702-1 06 1 1108- ●
290 RUBBER; MTG 1-53459-702-1 06 1 0710-1005 ●
290 RUBBER; MTG 1-53459-702-1 06 1 1006-1107 ● ●
290 RUBBER; MTG
EURO5 SPECIFICATION<NT5> 		1-53459-702-1 03 1 1108- ●
291 BOLT; RATCH
M10X25 FLANGE 		0-28651-025-0 04 1 0710-1005 ●
291 BOLT; RATCH
M10X25 FLANGE 		0-28651-025-0 04 1 1006- ● ●
294 MEMBER; FLOATING 1-53454-949-2 01 1 0710-1005 ●
294 MEMBER; FLOATING 1-53454-949-2 01 1 1006- ● ●
295 BOLT; STOPPER,UPR
M10X20 FLANGE 		0-28651-020-0 02 1 0710-1005 ●
295 BOLT; STOPPER,UPR
M10X20 FLANGE 		0-28651-020-0 02 1 1006- ● ●
296 STOPPER; UPR 1-53458-973-1 01 1 0710-1005 ●
296 STOPPER; UPR 1-53458-973-1 01 1 1006- ● ●
297 BRACKET; LIMIT SW 1-53458-782-0 01 1 0710-1005 ●
297 BRACKET; LIMIT SW 1-53458-782-0 01 1 1006- ● ●
298 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0710-1005 ●
298 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1006- ● ●
299 RUBBER; MTG
(B) 		1-53366-155-0 02 1 0710-1005 ●
299 RUBBER; MTG
(B) 		1-53366-155-0 02 1 1006- ● ●
299 RUBBER; MTG
(A) 		1-53366-194-0 02 1 0710-1005 ●
299 RUBBER; MTG
(A) 		1-53366-194-0 02 1 1006- ● ●
300 BOLT; MTG RUBBER
(B) M8X16 FLANGE 		0-28050-816-0 04 1 0710-1005 ●
300 BOLT; MTG RUBBER
(B) M8X16 FLANGE 		0-28050-816-0 04 1 1006- ● ●
300 BOLT; MTG RUBBER
(A) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 0710-1005 ●
300 BOLT; MTG RUBBER
(A) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 1006- ● ●
301 PIN; LATERAL ROD
M12X57.5 		1-53459-498-1 02 1 0710-1005 ●
301 PIN; LATERAL ROD
M12X57.5 		1-53459-498-1 02 1 1006- ● ●
303 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-1005 ●
303 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1006-1107 ● ●
303 NUT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8 FLANGE 		0-91180-108-0 02 1 1108- ●
303 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1108- ●
309 NUT
M10 FLANGE 		0-91180-210-0 04 1 0710-1005 ●
309 NUT
M10 FLANGE 		0-91180-210-0 04 1 1006- ● ●
321 SHIM; FRT CAB MTG 1-53458-629-1 04 1 0710-1005 ●
321 SHIM; FRT CAB MTG 1-53458-629-1 04 1 1006- ● ●
325 BOLT; GUIDE NUT
M8X20 FLANGE 		0-28650-820-0 02 1 0710-1005 ●
325 BOLT; GUIDE NUT
M8X20 FLANGE 		0-28650-820-0 02 1 1006- ● ●
333 SPRING
(B) 		1-52110-142-2 02 1 0710-1005 ●
333 SPRING
(B) 		1-52110-142-4 02 1 1006- ● ●
333 SPRING
(A) 		1-52110-143-2 02 1 0710-1005 ●
333 SPRING
(A) 		1-52110-143-4 02 1 1006- ● ●
353 BRACKET
(B) 		8-98087-968-0 01 1 0710-1005 ●
353 BRACKET
(B) 		8-98087-968-0 01 1 1006-1107 ● ●
353 BRACKET
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) 		8-98087-968-0 01 1 1108- ●
353 BRACKET
(B) 		8-98087-968-0 01 1 1108- ●
353 BRACKET
(A) 		8-98087-967-0 01 1 0710-1005 ●
353 BRACKET
(A) 		8-98087-967-0 01 1 1006-1107 ● ●
353 BRACKET
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) 		8-98087-967-0 01 1 1108- ●
353 BRACKET
(A) 		8-98087-967-0 01 1 1108- ●
442 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0710-1005 ●
442 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1006-1107 ● ●
442 BOLT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8X20 FLANGE 		0-28650-820-0 02 1 1108- ●
442 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1108- ●
449 BRACKET; OUTRIGGER 1-53456-279-0 01 1 0710-1005 ●
449 BRACKET; OUTRIGGER 1-53456-279-0 01 1 1006- ● ●
515 FINISHER; BACK PANEL
L=150 		1-76710-004-0 02 1 0710-0803 ●
516 BRACKET; PANEL 8-98073-593-0 01 1 0710-1005 ●
516 BRACKET; PANEL 8-98073-593-0 01 1 1006-1107 ● ●
516 BRACKET; PANEL
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		8-98073-593-0 01 1 1108- ●
516 BRACKET; PANEL 8-98073-593-0 01 1 1108- ●

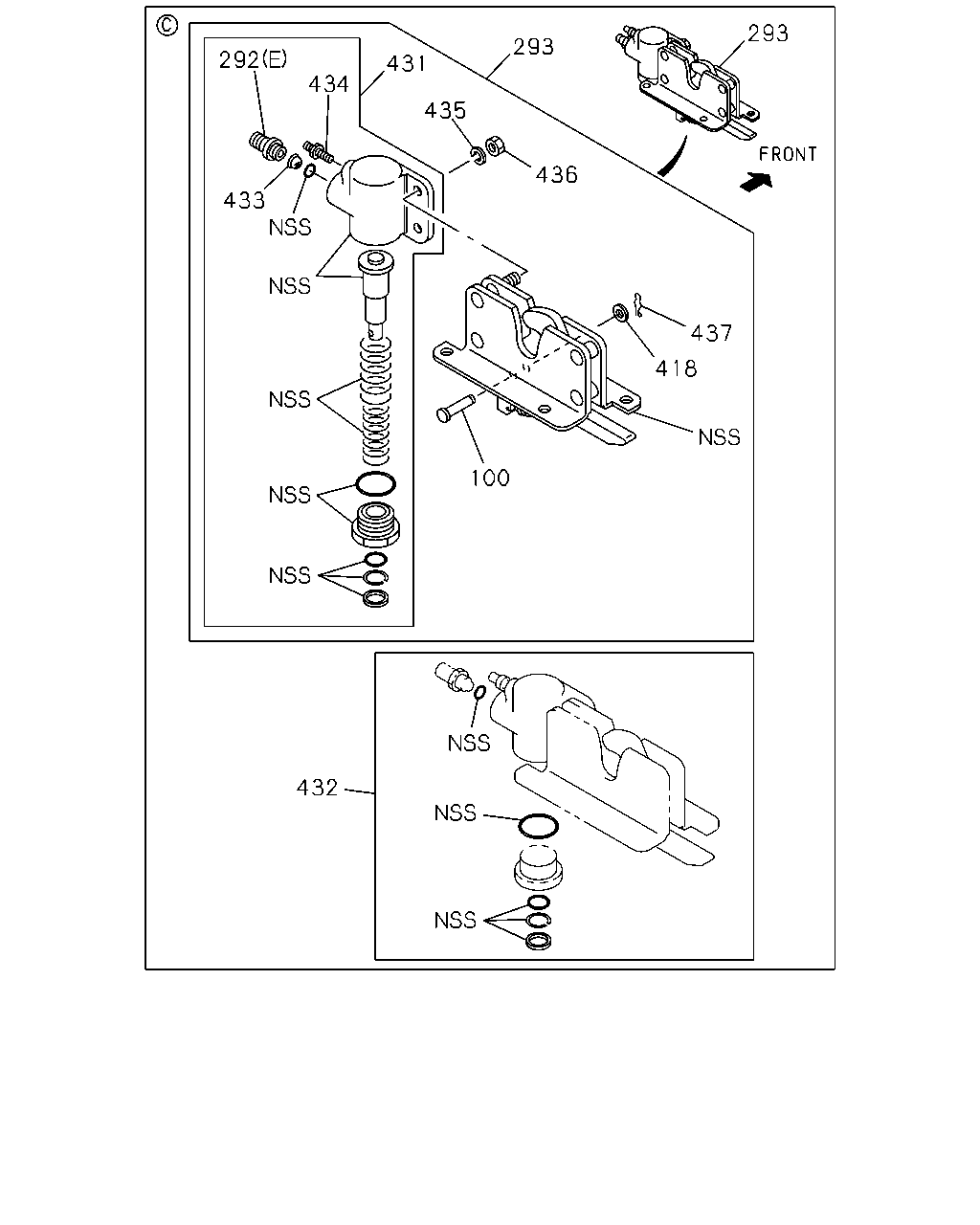

çizim 141736
293 293 292 431 434 435 436 433 437 418 100 432
BalonParca AdiParca NoAdetTipApplied Date A B
100 PIN; JOINT 1-53458-831-0 01 1 0710-1005 ●
100 PIN; JOINT 1-53458-831-0 01 1 1006- ● ●
292 CONNECTOR; CAB SUSPENSION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0710-1005 ●
292 CONNECTOR; CAB SUSPENSION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1006- ● ●
292 CONNECTOR; CAB SUSPENSION
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 02 1 0710-1005 ●
292 CONNECTOR; CAB SUSPENSION
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 02 1 1006- ● ●
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0710-1005 ●
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 1006- ● ●
292 CONNECTOR; CAB SUSPENSION
(D) 		1-09661-577-0 01 1 0710-1005 ●
292 CONNECTOR; CAB SUSPENSION
(D) 		1-09661-577-0 01 1 1006- ● ●
292 CONNECTOR; CAB SUSPENSION
(E) M12 		1-53458-941-0 01 1 0710-1005 ●
292 CONNECTOR; CAB SUSPENSION
(E) M12 		1-53458-941-0 01 1 1006- ● ●
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 0710-1005 ●
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 1006- ● ●
293 RATCH; CAB SUSP,RR 1-53458-918-0 01 1 0710-1005 ●
293 RATCH; CAB SUSP,RR 1-53458-918-0 01 1 1006- ● ●
418 WASHER; PL,PIN 1-53458-059-0 01 1 0710-1005 ●
418 WASHER; PL,PIN 1-53458-059-0 01 1 1006- ● ●
431 CYLINDER; AIR,RATCH 1-53457-013-0 01 1 0710-1005 ●
431 CYLINDER; AIR,RATCH 1-53457-013-0 01 1 1006- ● ●
432 REPAIR KIT; AIR CYL 1-85579-052-0 01 1 0710-1005 ●
432 REPAIR KIT; AIR CYL 1-85579-052-0 01 1 1006- ● ●
433 FILTER; AIR CYL 1-53458-048-0 01 1 0710-1005 ●
433 FILTER; AIR CYL 1-53458-048-0 01 1 1006- ● ●
434 SCREW; AIR BLEEDER 1-53458-529-0 01 1 0710-1005 ●
434 SCREW; AIR BLEEDER 1-53458-529-0 01 1 1006- ● ●
435 WASHER; LK,AIR CYL
ID=10.2 		9-09150-510-0 02 1 0710-1005 ●
435 WASHER; LK,AIR CYL
ID=10.2 		9-09150-510-0 02 1 1006- ● ●
436 NUT; AIR CYL 1-53458-528-0 02 1 0710-1005 ●
436 NUT; AIR CYL 1-53458-528-0 02 1 1006- ● ●
437 PIN; SNAP 1-53458-526-0 01 1 0710-1005 ●
437 PIN; SNAP 1-53458-526-0 01 1 1006- ● ●

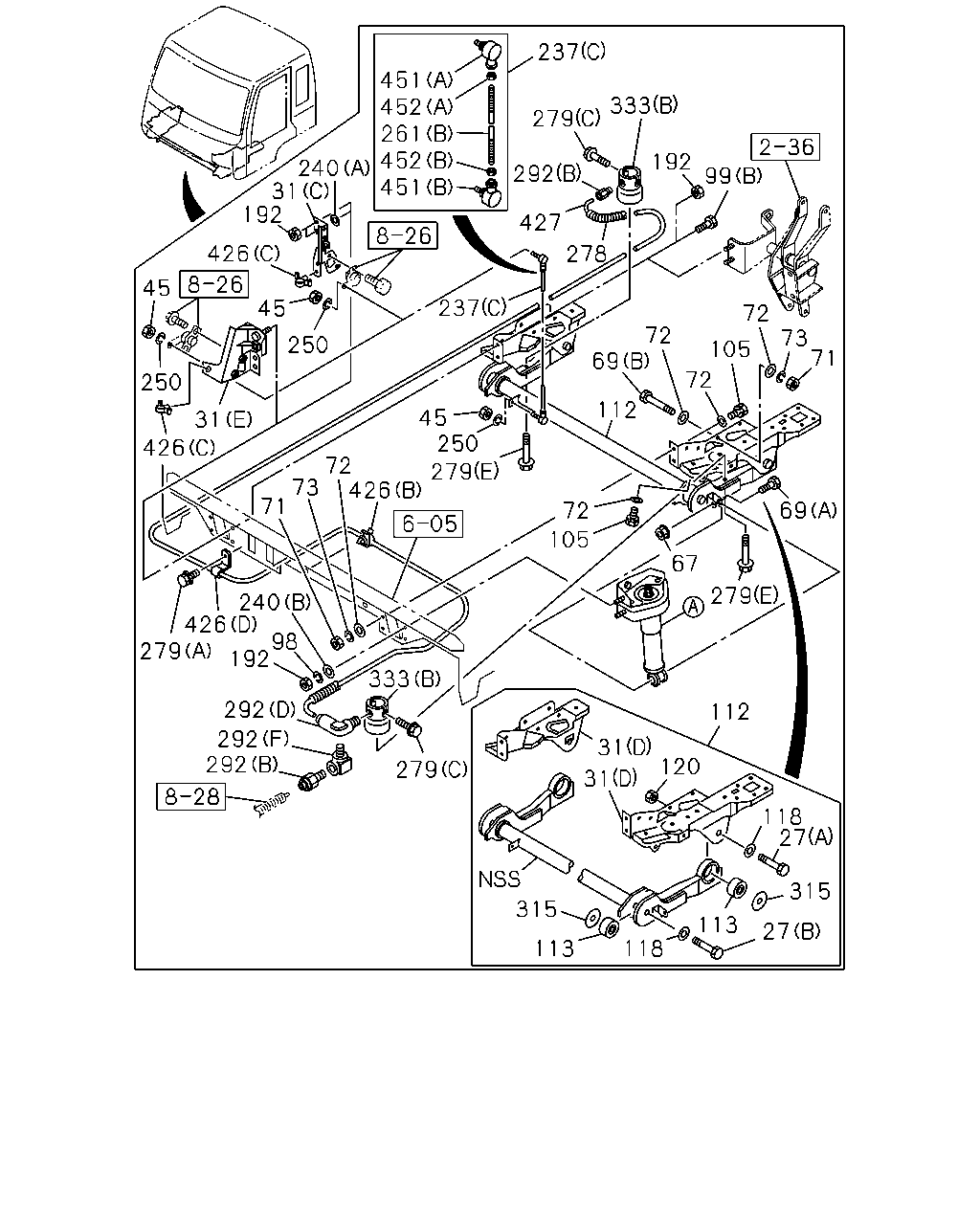

çizim 141750
237 451 452 261 452 451 333 279 192 240 31 192 426 292 99 427 278 45 237 45 72 72 69 73 71 250 105 72 250 112 45 250 72 279 73 426 71 31 426 69 72 105 67 279 240 426 279 98 192 333 292 112 292 292 31 120 279 31 118 27 315 315 118 113 27 113
BalonParca AdiParca NoAdetTipApplied Date A B
27 BOLT; BUSHING
(B) M18X120 		1-09000-442-1 02 1 0710-1005 ●
27 BOLT; BUSHING
(B) M18X120 		1-09000-442-1 02 1 1006- ● ●
27 BOLT; BUSHING
(A) M18X90 		9-91066-890-0 02 1 0710-1005 ●
27 BOLT; BUSHING
(A) M18X90 		9-91066-890-0 02 1 1006- ● ●
31 BRACKET; CAB
(D) 		1-53453-224-5 01 1 0710-1005 ●
31 BRACKET; CAB
(D) 		1-53453-224-5 01 1 1006- ● ●
31 BRACKET; CAB
(D) 		1-53453-225-3 01 1 0710-1005 ●
31 BRACKET; CAB
(D) 		1-53453-225-3 01 1 1006- ● ●
31 BRACKET; CAB
(B) 		1-53458-374-1 01 1 0710-1005 ●
31 BRACKET; CAB
(B) 		1-53458-374-1 01 1 1006- ● ●
31 BRACKET; CAB
(A) 		1-44226-178-1 01 1 0710-1005 ●
31 BRACKET; CAB
(A) 		1-44226-178-1 01 1 1006- ● ●
31 BRACKET; CAB
SMOOTHER-G(C1W) (E) 		8-97619-220-1 01 1 0710- ●
31 BRACKET; CAB
EXC. SMOOTHER-G(C1W) (C) 		8-98079-059-0 01 1 0710-1005 ●
31 BRACKET; CAB
EXC. SMOOTHER-G(C1W) (C) 		8-98079-059-0 01 1 1006- ●
31 BRACKET; CAB
(C) 		8-98079-059-0 01 1 1006- ●
45 NUT
M5 		0-91110-505-0 04 1 0710-1005 ●
45 NUT
M5 		0-91110-505-0 04 1 1006- ● ●
67 NUT; S/ABS,CAB FRT SUSPENSION
M12 FLANGE 		0-91180-212-0 02 1 0710-1005 ●
67 NUT; S/ABS,CAB FRT SUSPENSION
M12 FLANGE 		0-91180-212-0 02 1 1006- ● ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 0710-1005 ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 1006- ● ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 0710-1005 ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 1006- ● ●
71 NUT; BRKT TO CAB FRAME
M10 		1-09984-142-0 06 1 0710-1005 ●
71 NUT; BRKT TO CAB FRAME
M10 		1-09984-142-0 06 1 1006- ● ●
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 23 1 0710-1005 ●
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 23 1 1006- ● ●
73 WASHER; LK,BRKT TO CAB FRAME
ID=10 		1-09985-185-0 12 1 0710-1005 ●
73 WASHER; LK,BRKT TO CAB FRAME
ID=10 		1-09985-185-0 12 1 1006- ● ●
98 WASHER; LK,BRKT
ID=10 		1-09985-185-0 04 1 0710-1005 ●
98 WASHER; LK,BRKT
ID=10 		1-09985-185-0 04 1 1006- ● ●
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0710-1005 ●
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1006- ● ●
99 BOLT; BRKT
SMOOTHER-G(C1W) (B) M10X30 W/SP WASHER 		1-09980-546-0 01 1 0710- ●
105 BOLT; BRKT TO CAB FRAME
M10X30 W/SP WASHER 		1-09980-546-0 08 1 0710-1005 ●
105 BOLT; BRKT TO CAB FRAME
M10X30 W/SP WASHER 		1-09980-546-0 08 1 1006- ● ●
112 ARM ASM; LINK,CAB FRT SUSP 8-98077-409-1 01 1 0710-1005 ●
112 ARM ASM; LINK,CAB FRT SUSP 8-98077-409-1 01 1 1006- ● ●
113 BUSHING; RUBBER,FLOATING LINK ARM,W/PI 1-53458-714-0 04 1 0710-1005 ●
113 BUSHING; RUBBER,FLOATING LINK ARM,W/PI 1-53458-714-0 04 1 1006- ● ●
118 WASHER; PL,STOPPER RUBBER,LINK ARM
ID=19 OD=30 		1-09503-279-0 04 1 0710-1005 ●
118 WASHER; PL,STOPPER RUBBER,LINK ARM
ID=19 OD=30 		1-09503-279-0 04 1 1006- ● ●
120 NUT; STOPPER RUBBER,LINK ARM
M18 		0-91110-518-0 02 1 0710-1005 ●
120 NUT; STOPPER RUBBER,LINK ARM
M18 		0-91110-518-0 02 1 1006- ● ●
192 NUT; BRKT FIX
M10 		1-09984-142-0 04 1 0710-1005 ●
192 NUT; BRKT FIX
M10 		1-09984-142-0 04 1 1006- ● ●
192 NUT; BRKT FIX
SMOOTHER-G(C1W) M10 		1-09984-142-0 01 1 0710- ●
192 NUT; BRKT FIX
EXC. SMOOTHER-G(C1W) M10 		1-09984-142-0 02 1 0710-1005 ●
192 NUT; BRKT FIX
EXC. SMOOTHER-G(C1W) M10 		1-09984-142-0 02 1 1006- ●
192 NUT; BRKT FIX
M10 		1-09984-142-0 02 1 1006- ●
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 0710-1005 ●
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 1006- ● ●
237 ROD ASM; LATERAL
(C) 		1-33671-987-0 01 1 0710-1005 ●
237 ROD ASM; LATERAL
(C) 		1-33671-987-0 01 1 1006- ● ●
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 0710-1005 ●
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 1006- ● ●
240 WASHER; PL,BRKT
(C) ID=12.5 OD=22 		0-91610-512-0 02 1 0710-1005 ●
240 WASHER; PL,BRKT
(C) ID=12.5 OD=22 		0-91610-512-0 02 1 1006- ● ●
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 0710-1005 ●
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 1006- ● ●
240 WASHER; PL,BRKT
EXC. SMOOTHER-G(C1W) (A) ID=10.5 OD=18 		1-09985-173-0 01 1 0710- ●
250 WASHER; LK
ID=5.1 		0-91510-505-0 04 1 0710-1005 ●
250 WASHER; LK
ID=5.1 		0-91510-505-0 04 1 1006- ● ●
261 ROD; LINK
(B) 		0-84100-506-0 01 1 0710-1005 ●
261 ROD; LINK
(B) 		0-84100-506-0 01 1 1006- ● ●
261 ROD; LINK
(A) 		9-08410-514-0 01 1 0710-1005 ●
261 ROD; LINK
(A) 		9-08410-514-0 01 1 1006- ● ●
278 COVER
L=1200 SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0710-1005 ●
278 COVER
L=1200 SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1006- ● ●
279 BOLT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (F) M8X22 W/LK&PL WASHER 		1-09030-042-0 02 1 1108- ●
279 BOLT
(F) M8X22 W/LK&PL WASHER 		1-09030-042-0 02 1 1108- ●
279 BOLT
EURO5 SPECIFICATION<NT5> (G) M8X20 FLANGE 		0-28650-820-0 01 1 1108- ●
279 BOLT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 0710-1005 ●
279 BOLT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 1006- ● ●
279 BOLT
(E) M8X60 FLANGE 		0-28050-860-0 02 1 0710-1005 ●
279 BOLT
(E) M8X60 FLANGE 		0-28050-860-0 02 1 1006- ● ●
279 BOLT
(B) M12X40 FLANGE 		0-28061-240-0 04 1 0710-1005 ●
279 BOLT
(B) M12X40 FLANGE 		0-28061-240-0 04 1 1006-1510 ● ●
279 BOLT
(B) M12X40 FLANGE 		8-98270-173-0 04 1 1511- ● ●
279 BOLT
(D) M8X20 FLANGE 		0-28650-820-0 04 1 0710-1005 ●
279 BOLT
(D) M8X20 FLANGE 		0-28650-820-0 04 1 1006- ● ●
279 BOLT
(F) M8X22 W/LK&PL WASHER 		1-09030-042-0 02 1 0710-1005 ●
279 BOLT
(F) M8X22 W/LK&PL WASHER 		1-09030-042-0 02 1 1006-1107 ● ●
279 BOLT
EURO5 SPECIFICATION<NT5> (F) M8X25 FLANGE 		0-28650-825-0 02 1 1108- ●
279 BOLT
(A) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 0710-1005 ●
279 BOLT
(A) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 1006- ● ●
292 CONNECTOR; CAB SUSPENSION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0710-1005 ●
292 CONNECTOR; CAB SUSPENSION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1006- ● ●
292 CONNECTOR; CAB SUSPENSION
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 02 1 0710-1005 ●
292 CONNECTOR; CAB SUSPENSION
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 02 1 1006- ● ●
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0710-1005 ●
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 1006- ● ●
292 CONNECTOR; CAB SUSPENSION
(D) 		1-09661-577-0 01 1 0710-1005 ●
292 CONNECTOR; CAB SUSPENSION
(D) 		1-09661-577-0 01 1 1006- ● ●
292 CONNECTOR; CAB SUSPENSION
(E) M12 		1-53458-941-0 01 1 0710-1005 ●
292 CONNECTOR; CAB SUSPENSION
(E) M12 		1-53458-941-0 01 1 1006- ● ●
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 0710-1005 ●
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 1006- ● ●
315 WASHER; CAB MTG
ID=34.5 		1-53458-281-1 04 1 0710-1005 ●
315 WASHER; CAB MTG
ID=34.5 		1-53458-281-1 04 1 1006- ● ●
333 SPRING
(B) 		1-52110-142-2 02 1 0710-1005 ●
333 SPRING
(B) 		1-52110-142-4 02 1 1006- ● ●
333 SPRING
(A) 		1-52110-143-2 02 1 0710-1005 ●
333 SPRING
(A) 		1-52110-143-4 02 1 1006- ● ●
426 CLIP
EURO5 SPECIFICATION<NT5> (E) ID=7 L=32 		0-95234-665-0 01 1 1108- ●
426 CLIP
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 0710-1005 ●
426 CLIP
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 1006- ● ●
426 CLIP
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-1005 ●
426 CLIP
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 1006- ● ●
426 CLIP
(B) ID=9.5 		5-09709-020-0 01 1 0710-1005 ●
426 CLIP
(B) ID=9.5 		5-09709-020-0 01 1 1006- ● ●
426 CLIP
(D) ID=11 H=20 L=20 		8-98033-780-0 01 1 0710-1005 ●
426 CLIP
(D) ID=11 H=20 L=20 		8-98033-780-0 01 1 1006- ● ●
427 TUBE
SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0710-0907 ●
427 TUBE
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0908-1005 ●
427 TUBE
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0908-1005 ●
427 TUBE
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1006- ● ●
427 TUBE
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1006- ● ●
451 JOINT; BALL
(B) 		1-09760-103-2 02 1 0710-1005 ●
451 JOINT; BALL
(B) 		1-09760-103-2 02 1 1006- ● ●
451 JOINT; BALL
(A) 		1-09760-104-2 02 1 0710-1005 ●
451 JOINT; BALL
(A) 		1-09760-104-2 02 1 1006- ● ●
452 NUT; BALL JOINT
(A) M5 		0-91110-505-0 02 1 0710-1005 ●
452 NUT; BALL JOINT
(A) M5 		0-91110-505-0 02 1 1006- ● ●
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 02 1 0710-1005 ●
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 02 1 1006- ● ●

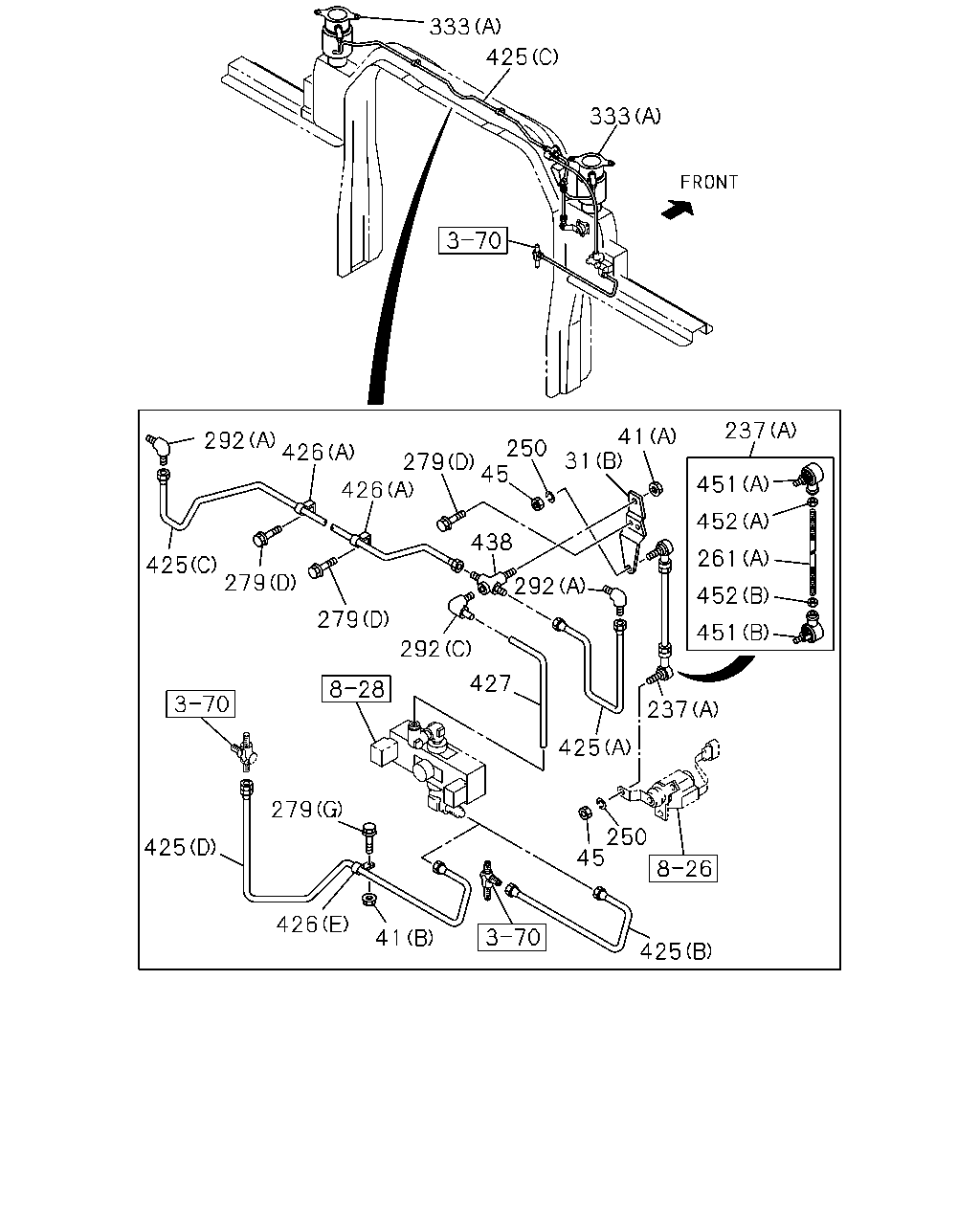

çizim 141858
333 425 333 237 41 31 292 426 250 279 45 451 426 452 438 261 425 279 292 452 279 451 292 427 237 425 279 250 45 425 426 41 425
BalonParca AdiParca NoAdetTipApplied Date A B
31 BRACKET; CAB
(D) 		1-53453-224-5 01 1 0710-1005 ●
31 BRACKET; CAB
(D) 		1-53453-224-5 01 1 1006- ● ●
31 BRACKET; CAB
(D) 		1-53453-225-3 01 1 0710-1005 ●
31 BRACKET; CAB
(D) 		1-53453-225-3 01 1 1006- ● ●
31 BRACKET; CAB
(B) 		1-53458-374-1 01 1 0710-1005 ●
31 BRACKET; CAB
(B) 		1-53458-374-1 01 1 1006- ● ●
31 BRACKET; CAB
(A) 		1-44226-178-1 01 1 0710-1005 ●
31 BRACKET; CAB
(A) 		1-44226-178-1 01 1 1006- ● ●
31 BRACKET; CAB
SMOOTHER-G(C1W) (E) 		8-97619-220-1 01 1 0710- ●
31 BRACKET; CAB
EXC. SMOOTHER-G(C1W) (C) 		8-98079-059-0 01 1 0710-1005 ●
31 BRACKET; CAB
EXC. SMOOTHER-G(C1W) (C) 		8-98079-059-0 01 1 1006- ●
31 BRACKET; CAB
(C) 		8-98079-059-0 01 1 1006- ●
41 NUT
EURO5 SPECIFICATION<NT5> (B) M8 FLANGE 		0-91180-108-0 01 1 1108- ●
41 NUT
(A) M12 FLANGE 		0-91180-212-0 01 1 0710-1005 ●
41 NUT
(A) M12 FLANGE 		0-91180-212-0 01 1 1006- ● ●
45 NUT
M5 		0-91110-505-0 04 1 0710-1005 ●
45 NUT
M5 		0-91110-505-0 04 1 1006- ● ●
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 0710-1005 ●
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 1006- ● ●
237 ROD ASM; LATERAL
(C) 		1-33671-987-0 01 1 0710-1005 ●
237 ROD ASM; LATERAL
(C) 		1-33671-987-0 01 1 1006- ● ●
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 0710-1005 ●
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 1006- ● ●
250 WASHER; LK
ID=5.1 		0-91510-505-0 04 1 0710-1005 ●
250 WASHER; LK
ID=5.1 		0-91510-505-0 04 1 1006- ● ●
261 ROD; LINK
(B) 		0-84100-506-0 01 1 0710-1005 ●
261 ROD; LINK
(B) 		0-84100-506-0 01 1 1006- ● ●
261 ROD; LINK
(A) 		9-08410-514-0 01 1 0710-1005 ●
261 ROD; LINK
(A) 		9-08410-514-0 01 1 1006- ● ●
279 BOLT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (F) M8X22 W/LK&PL WASHER 		1-09030-042-0 02 1 1108- ●
279 BOLT
(F) M8X22 W/LK&PL WASHER 		1-09030-042-0 02 1 1108- ●
279 BOLT
EURO5 SPECIFICATION<NT5> (G) M8X20 FLANGE 		0-28650-820-0 01 1 1108- ●
279 BOLT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 0710-1005 ●
279 BOLT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 1006- ● ●
279 BOLT
(E) M8X60 FLANGE 		0-28050-860-0 02 1 0710-1005 ●
279 BOLT
(E) M8X60 FLANGE 		0-28050-860-0 02 1 1006- ● ●
279 BOLT
(B) M12X40 FLANGE 		0-28061-240-0 04 1 0710-1005 ●
279 BOLT
(B) M12X40 FLANGE 		0-28061-240-0 04 1 1006-1510 ● ●
279 BOLT
(B) M12X40 FLANGE 		8-98270-173-0 04 1 1511- ● ●
279 BOLT
(D) M8X20 FLANGE 		0-28650-820-0 04 1 0710-1005 ●
279 BOLT
(D) M8X20 FLANGE 		0-28650-820-0 04 1 1006- ● ●
279 BOLT
(F) M8X22 W/LK&PL WASHER 		1-09030-042-0 02 1 0710-1005 ●
279 BOLT
(F) M8X22 W/LK&PL WASHER 		1-09030-042-0 02 1 1006-1107 ● ●
279 BOLT
EURO5 SPECIFICATION<NT5> (F) M8X25 FLANGE 		0-28650-825-0 02 1 1108- ●
279 BOLT
(A) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 0710-1005 ●
279 BOLT
(A) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 1006- ● ●
292 CONNECTOR; CAB SUSPENSION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0710-1005 ●
292 CONNECTOR; CAB SUSPENSION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1006- ● ●
292 CONNECTOR; CAB SUSPENSION
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 02 1 0710-1005 ●
292 CONNECTOR; CAB SUSPENSION
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 02 1 1006- ● ●
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0710-1005 ●
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 1006- ● ●
292 CONNECTOR; CAB SUSPENSION
(D) 		1-09661-577-0 01 1 0710-1005 ●
292 CONNECTOR; CAB SUSPENSION
(D) 		1-09661-577-0 01 1 1006- ● ●
292 CONNECTOR; CAB SUSPENSION
(E) M12 		1-53458-941-0 01 1 0710-1005 ●
292 CONNECTOR; CAB SUSPENSION
(E) M12 		1-53458-941-0 01 1 1006- ● ●
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 0710-1005 ●
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 1006- ● ●
333 SPRING
(B) 		1-52110-142-2 02 1 0710-1005 ●
333 SPRING
(B) 		1-52110-142-4 02 1 1006- ● ●
333 SPRING
(A) 		1-52110-143-2 02 1 0710-1005 ●
333 SPRING
(A) 		1-52110-143-4 02 1 1006- ● ●
425 PIPE ASM; AIR
EURO5 SPECIFICATION<NT5> (D) L=566 SERVICED BY L=600 		1-47428-809-0 01 1 1108- ●
425 PIPE ASM; AIR
(C) L=1149 SERVICED BY L=1200 		1-47428-816-0 01 1 0710-1005 ●
425 PIPE ASM; AIR
(C) L=1149 SERVICED BY L=1200 		1-47428-816-0 01 1 1006- ● ●
425 PIPE ASM; AIR
(A) L=298 		1-47494-961-1 01 1 0710-1003 ●
425 PIPE ASM; AIR
(A) L=291 		8-98095-656-0 01 1 1004-1005 ●
425 PIPE ASM; AIR
(A) L=291 		8-98095-656-0 01 1 1006- ● ●
425 PIPE ASM; AIR
(B) L=330 		8-98073-872-0 01 1 0710-1005 ●
425 PIPE ASM; AIR
(B) L=330 		8-98073-872-0 01 1 1006-1107 ● ●
425 PIPE ASM; AIR
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) L=330 		8-98073-872-0 01 1 1108- ●
425 PIPE ASM; AIR
(B) L=330 		8-98073-872-0 01 1 1108- ●
426 CLIP
EURO5 SPECIFICATION<NT5> (E) ID=7 L=32 		0-95234-665-0 01 1 1108- ●
426 CLIP
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 0710-1005 ●
426 CLIP
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 1006- ● ●
426 CLIP
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-1005 ●
426 CLIP
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 1006- ● ●
426 CLIP
(B) ID=9.5 		5-09709-020-0 01 1 0710-1005 ●
426 CLIP
(B) ID=9.5 		5-09709-020-0 01 1 1006- ● ●
426 CLIP
(D) ID=11 H=20 L=20 		8-98033-780-0 01 1 0710-1005 ●
426 CLIP
(D) ID=11 H=20 L=20 		8-98033-780-0 01 1 1006- ● ●
427 TUBE
SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0710-0907 ●
427 TUBE
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0908-1005 ●
427 TUBE
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0908-1005 ●
427 TUBE
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1006- ● ●
427 TUBE
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1006- ● ●
438 UNION
M12X2 & PT1/8 3WAY 		1-09656-655-0 01 1 0710-1005 ●
438 UNION
M12X2 & PT1/8 3WAY 		1-09656-655-0 01 1 1006- ● ●
451 JOINT; BALL
(B) 		1-09760-103-2 02 1 0710-1005 ●
451 JOINT; BALL
(B) 		1-09760-103-2 02 1 1006- ● ●
451 JOINT; BALL
(A) 		1-09760-104-2 02 1 0710-1005 ●
451 JOINT; BALL
(A) 		1-09760-104-2 02 1 1006- ● ●
452 NUT; BALL JOINT
(A) M5 		0-91110-505-0 02 1 0710-1005 ●
452 NUT; BALL JOINT
(A) M5 		0-91110-505-0 02 1 1006- ● ●
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 02 1 0710-1005 ●
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 02 1 1006- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
