5-01 — FRAME AND OTHER PARTS (#14641) — 172 parça

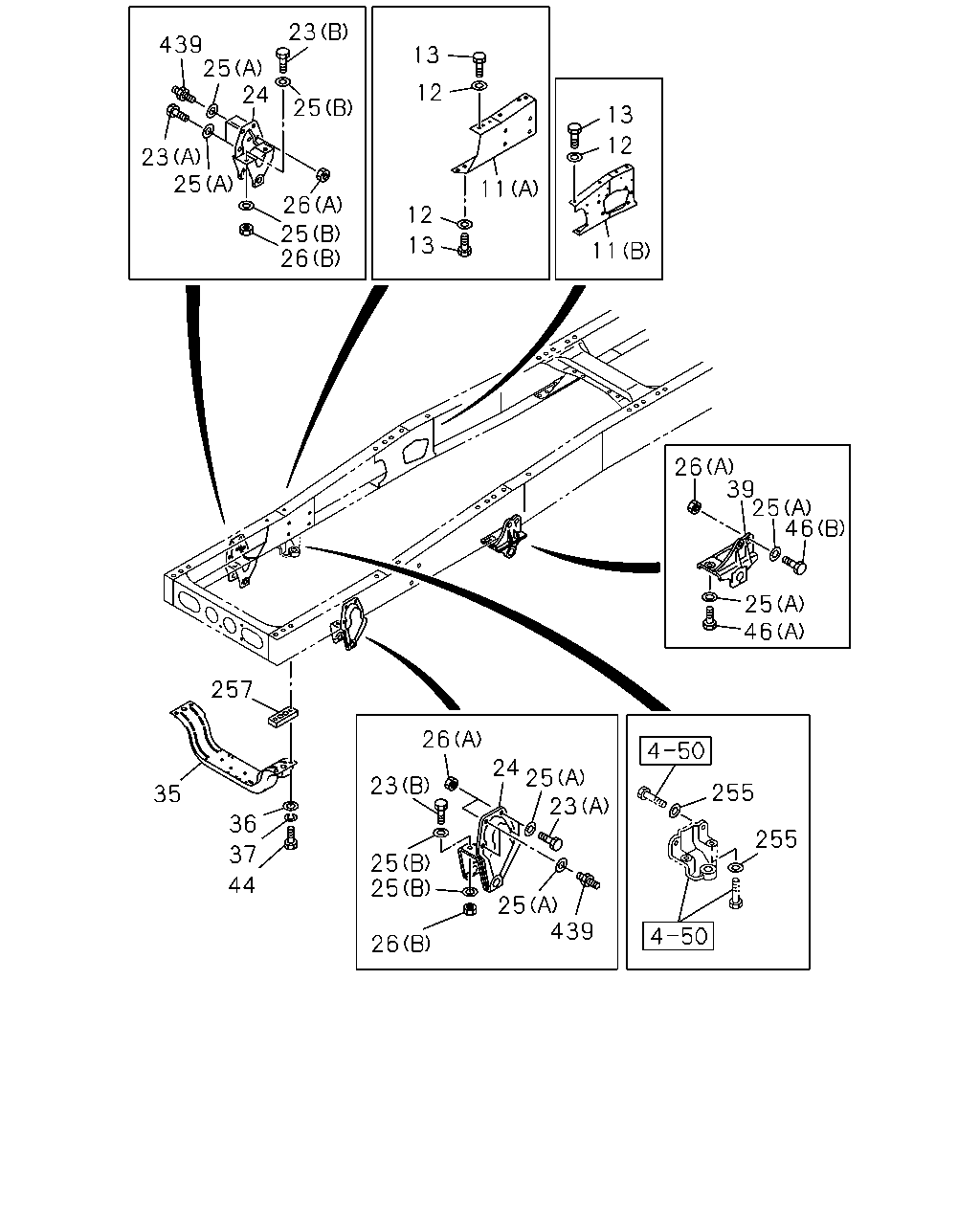

çizim 141651
23 439 25 24 13 12 25 13 12 23 25 11 26 25 26 12 13 11 26 39 25 46 25 46 257 26 24 25 23 23 255 35 36 25 25 255 37 44 25 439 26
BalonParca AdiParca NoAdetTipApplied Date
11 BRACKET; ENG MTG
(A) 		1-53211-367-1 01 1 0710-
11 BRACKET; ENG MTG
(A) 		1-53211-368-1 01 1 0710-
11 BRACKET; ENG MTG
(B) 		8-98056-611-1 01 1 0710-
11 BRACKET; ENG MTG
(B) 		8-98056-612-0 01 1 0710-
12 WASHER; PL,BRKT,ENG MTG
CYZ(CY****) ID=15 		8-98010-627-1 04 1 1006-1105
12 WASHER; PL,BRKT,ENG MTG
ID=15 		8-98010-627-1 04 1 1106-
12 WASHER; PL,BRKT,ENG MTG
ID=15 		9-09651-069-0 05 1 0710-0802
12 WASHER; PL,BRKT,ENG MTG
ID=15 		9-09651-069-0 04 1 0803-1005
12 WASHER; PL,BRKT,ENG MTG
CXZ(CX****) ID=15 		9-09651-069-0 04 1 1006-1105
13 BOLT; BRKT,ENG MTG
M14X40 		0-20951-440-0 05 1 0710-0802
13 BOLT; BRKT,ENG MTG
M14X40 		0-20951-440-0 04 1 0803-
23 BOLT; BRKT,SPR
CXZ(CX****) (C) M12X25,M14X45 L=81 		1-09029-103-0 02 1 1111-
23 BOLT; BRKT,SPR
(A) M14X40 		0-20951-440-0 05 1 0710-
23 BOLT; BRKT,SPR
(B) M16X50 		0-20951-650-0 04 1 0710-
23 BOLT; BRKT,SPR
(C) M12X35,M14X45 L=100 		1-09029-075-0 03 1 0710-1005
23 BOLT; BRKT,SPR
CXZ(CX****) (C) M12X35,M14X45 L=100 		1-09029-075-0 03 1 1006-1110
23 BOLT; BRKT,SPR
CXZ(CX****) (C) M12X35,M14X45 L=100 		1-09029-075-0 01 1 1111-
24 BRACKET; FRT SPR,FRT 1-53351-237-1 01 1 0710-
24 BRACKET; FRT SPR,FRT 1-53351-238-1 01 1 0710-
25 WASHER; PL,BRKT
CYZ(CY****) (B) ID=16.2 		1-09503-316-0 08 1 1006-1105
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1106-
25 WASHER; PL,BRKT
CYZ(CY****) (A) ID=15 		8-98010-627-1 16 1 1006-
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0710-1005
25 WASHER; PL,BRKT
CXZ(CX****) (B) ID=16.2 		1-09503-223-0 08 1 1006-1105
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 08 1 0710-1005
25 WASHER; PL,BRKT
CXZ(CX****) (A) ID=15 		9-09651-069-0 08 1 1006-1105
25 WASHER; PL,BRKT
CXZ(CX****) (A) ID=15 		8-98010-627-1 08 1 1106-
26 NUT; BRKT,SPR
CYZ(CY****) (A) M14 		0-91110-514-0 12 1 1006-
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 08 1 0710-1005
26 NUT; BRKT,SPR
CXZ(CX****) (A) M14 		0-91110-514-0 08 1 1006-
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0710-
35 MEMBER; UNDER 1-53174-263-2 01 1 0710-
36 WASHER; PL,UNDER MBR
ID=17 		9-09164-516-0 04 1 0710-
37 WASHER; LK,UNDER MBR
ID=16.2 		0-91510-816-0 04 1 0710-
39 BRACKET; FRT SPR,RR 1-53352-179-0 01 1 0710-
39 BRACKET; FRT SPR,RR 1-53352-180-0 01 1 0710-
44 BOLT; UNDER MBR
6WG1 TC-S(97L) M16X80 		0-10961-680-0 04 1 1008-1504
44 BOLT; UNDER MBR
6WG1 TC-S(97L) M16X80 		8-98135-460-0 04 1 1505-
44 BOLT; UNDER MBR
M16X60 		0-20951-660-0 04 1 0710-1007
44 BOLT; UNDER MBR
6WG1 TC-C(72L) M16X60 		0-20951-660-0 04 1 1008-1106
44 BOLT; UNDER MBR
M16X60 		0-20951-660-0 04 1 1107-1107
44 BOLT; UNDER MBR
6WG1 TC-C(72L) M16X60 		0-20951-660-0 04 1 1107-1107
44 BOLT; UNDER MBR
6WG1 TC-N(71L),6WG1 TC-C(72L) M16X60 		0-20951-660-0 04 1 1108-
46 BOLT; BRKT FIX
CYZ(CY****) (A) M14X40 		0-20951-440-0 04 1 1006-
46 BOLT; BRKT FIX
CYZ(CY****) (B) M14X50 		0-20951-450-0 04 1 1006-
255 WASHER; PL,BRKT
CYZ(CY****) ID=15 		8-98010-627-1 04 1 1006-
257 SPACER; UNDER MBR
6WG1 TC-S(97L) 		1-53168-447-1 02 1 1008-
439 STUD; BRKT,SPR
CYZ(CY****) M12X25,M14X45 L=81 		1-09029-103-0 02 1 1206-
439 STUD; BRKT,SPR
CYZ(CY****) M12X35,M14X45 L=100 		1-09029-075-0 03 1 1006-1205
439 STUD; BRKT,SPR
CYZ(CY****) M12X35,M14X45 L=100 		1-09029-075-0 01 1 1206-
çizim 141714
86 79 19 34 21 21 194 197 71 148 2 148 191 16
BalonParca AdiParca NoAdetTipApplied Date
2 MEMBER; CROSS,1ST 8-97604-959-3 01 1 0710-
16 BOLT; 1ST C/MBR TO S/MBR
CXZ(CX****) 6WG1 TC-N(71L),6WG1 TC-C(72L) EXC. RADIATOR GUARD<WV1> M16X40 		0-20951-640-0 02 1 1111-
19 MEMBER; CROSS,2ND 1-53174-231-2 01 1 0710-
21 GUSSET; 2ND CROSS 1-53164-226-1 01 1 0710-
21 GUSSET; 2ND CROSS 1-53164-227-1 01 1 0710-
34 MEMBER; CROSS,3RD 1-53181-319-8 01 1 0710-
71 NUT; 2ND C/MBR
M14 		0-91110-514-0 08 1 0710-
79 MEMBER; CROSS,TRUNNION ASM 1-53181-923-0 01 1 0710-
86 MEMBER; CROSS,RR SUSP RR 1-53181-646-8 01 1 0710-
148 SPACER; C/MBR
(A) 		1-53168-400-1 02 1 0710-
148 SPACER; C/MBR
(B) 		1-53168-403-1 02 1 0710-
191 WASHER; PL,1ST C/MBR TO S/MBR
CXZ(CX****) 6WG1 TC-N(71L),6WG1 TC-C(72L) EXC. RADIATOR GUARD<WV1> ID=16.2 		1-09503-316-0 02 1 1111-
194 BOLT; 2ND C/MBR
M14X60 		0-20951-460-0 08 1 0710-
197 WASHER; PL,2ND C/MBR
CYZ(CY****) ID=15 		8-98010-627-1 08 1 1006-1105
197 WASHER; PL,2ND C/MBR
ID=15 		8-98010-627-1 08 1 1106-
197 WASHER; PL,2ND C/MBR
ID=15 		9-09651-069-0 08 1 0710-1005
197 WASHER; PL,2ND C/MBR
CXZ(CX****) ID=15 		9-09651-069-0 08 1 1006-1105

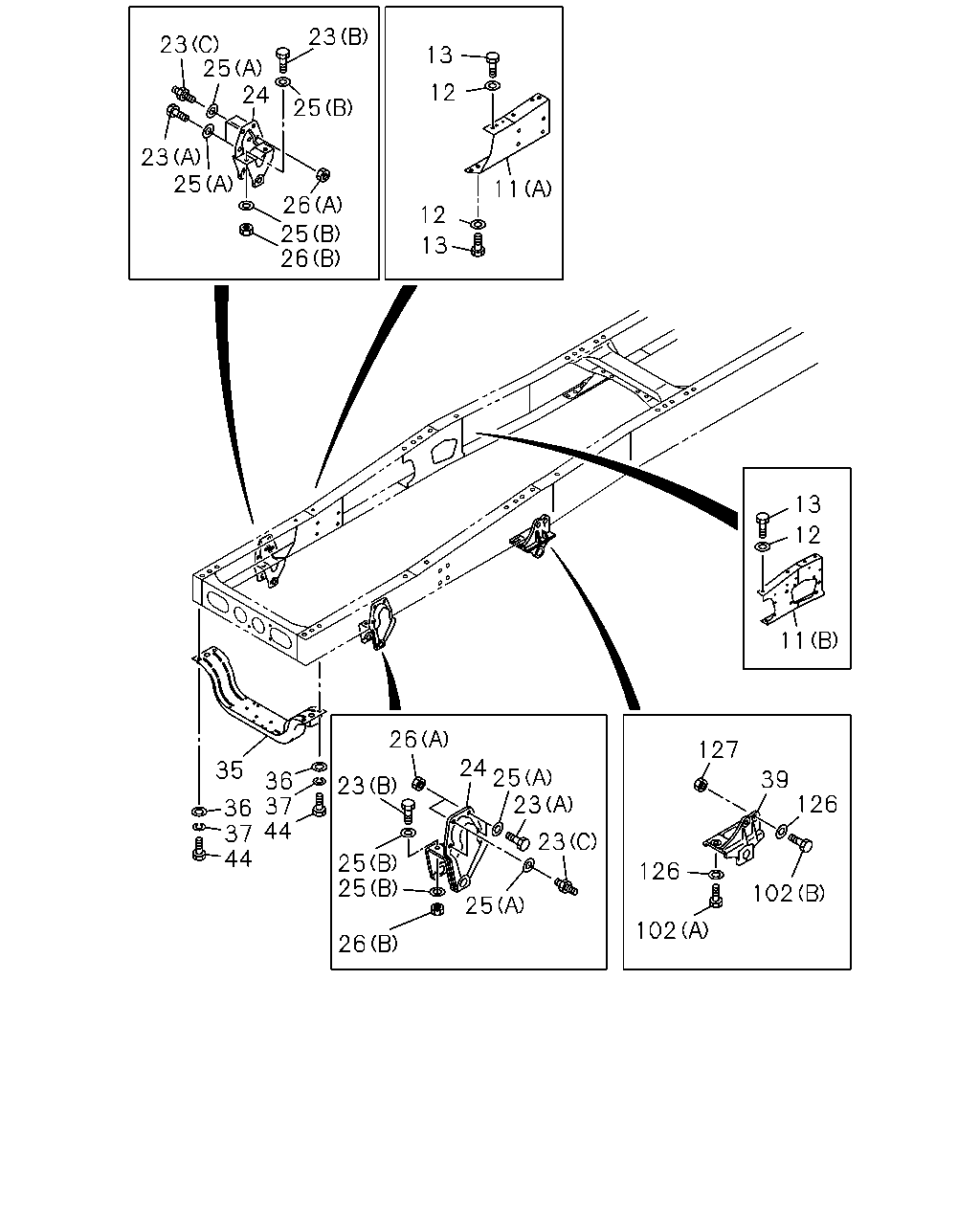

çizim 141741
23 23 25 24 13 12 25 23 25 11 26 25 26 12 13 13 12 11 26 127 24 25 23 35 39 36 37 44 23 126 36 37 44 23 25 25 126 25 102 102 26
BalonParca AdiParca NoAdetTipApplied Date
11 BRACKET; ENG MTG
(A) 		1-53211-367-1 01 1 0710-
11 BRACKET; ENG MTG
(A) 		1-53211-368-1 01 1 0710-
11 BRACKET; ENG MTG
(B) 		8-98056-611-1 01 1 0710-
11 BRACKET; ENG MTG
(B) 		8-98056-612-0 01 1 0710-
12 WASHER; PL,BRKT,ENG MTG
CYZ(CY****) ID=15 		8-98010-627-1 04 1 1006-1105
12 WASHER; PL,BRKT,ENG MTG
ID=15 		8-98010-627-1 04 1 1106-
12 WASHER; PL,BRKT,ENG MTG
ID=15 		9-09651-069-0 05 1 0710-0802
12 WASHER; PL,BRKT,ENG MTG
ID=15 		9-09651-069-0 04 1 0803-1005
12 WASHER; PL,BRKT,ENG MTG
CXZ(CX****) ID=15 		9-09651-069-0 04 1 1006-1105
13 BOLT; BRKT,ENG MTG
M14X40 		0-20951-440-0 05 1 0710-0802
13 BOLT; BRKT,ENG MTG
M14X40 		0-20951-440-0 04 1 0803-
23 BOLT; BRKT,SPR
CXZ(CX****) (C) M12X25,M14X45 L=81 		1-09029-103-0 02 1 1111-
23 BOLT; BRKT,SPR
(A) M14X40 		0-20951-440-0 05 1 0710-
23 BOLT; BRKT,SPR
(B) M16X50 		0-20951-650-0 04 1 0710-
23 BOLT; BRKT,SPR
(C) M12X35,M14X45 L=100 		1-09029-075-0 03 1 0710-1005
23 BOLT; BRKT,SPR
CXZ(CX****) (C) M12X35,M14X45 L=100 		1-09029-075-0 03 1 1006-1110
23 BOLT; BRKT,SPR
CXZ(CX****) (C) M12X35,M14X45 L=100 		1-09029-075-0 01 1 1111-
24 BRACKET; FRT SPR,FRT 1-53351-237-1 01 1 0710-
24 BRACKET; FRT SPR,FRT 1-53351-238-1 01 1 0710-
25 WASHER; PL,BRKT
CYZ(CY****) (B) ID=16.2 		1-09503-316-0 08 1 1006-1105
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1106-
25 WASHER; PL,BRKT
CYZ(CY****) (A) ID=15 		8-98010-627-1 16 1 1006-
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0710-1005
25 WASHER; PL,BRKT
CXZ(CX****) (B) ID=16.2 		1-09503-223-0 08 1 1006-1105
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 08 1 0710-1005
25 WASHER; PL,BRKT
CXZ(CX****) (A) ID=15 		9-09651-069-0 08 1 1006-1105
25 WASHER; PL,BRKT
CXZ(CX****) (A) ID=15 		8-98010-627-1 08 1 1106-
26 NUT; BRKT,SPR
CYZ(CY****) (A) M14 		0-91110-514-0 12 1 1006-
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 08 1 0710-1005
26 NUT; BRKT,SPR
CXZ(CX****) (A) M14 		0-91110-514-0 08 1 1006-
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0710-
35 MEMBER; UNDER 1-53174-263-2 01 1 0710-
36 WASHER; PL,UNDER MBR
ID=17 		9-09164-516-0 04 1 0710-
37 WASHER; LK,UNDER MBR
ID=16.2 		0-91510-816-0 04 1 0710-
39 BRACKET; FRT SPR,RR 1-53352-179-0 01 1 0710-
39 BRACKET; FRT SPR,RR 1-53352-180-0 01 1 0710-
44 BOLT; UNDER MBR
6WG1 TC-S(97L) M16X80 		0-10961-680-0 04 1 1008-1504
44 BOLT; UNDER MBR
6WG1 TC-S(97L) M16X80 		8-98135-460-0 04 1 1505-
44 BOLT; UNDER MBR
M16X60 		0-20951-660-0 04 1 0710-1007
44 BOLT; UNDER MBR
6WG1 TC-C(72L) M16X60 		0-20951-660-0 04 1 1008-1106
44 BOLT; UNDER MBR
M16X60 		0-20951-660-0 04 1 1107-1107
44 BOLT; UNDER MBR
6WG1 TC-C(72L) M16X60 		0-20951-660-0 04 1 1107-1107
44 BOLT; UNDER MBR
6WG1 TC-N(71L),6WG1 TC-C(72L) M16X60 		0-20951-660-0 04 1 1108-
102 BOLT; BRKT,RR SPR
(B) M14X40 		0-20951-440-0 04 1 0710-1005
102 BOLT; BRKT,RR SPR
CXZ(CX****) (B) M14X40 		0-20951-440-0 04 1 1006-
102 BOLT; BRKT,RR SPR
(A) M14X50 		0-20951-450-0 04 1 0710-1005
102 BOLT; BRKT,RR SPR
CXZ(CX****) (A) M14X50 		0-20951-450-0 04 1 1006-
126 WASHER; PL,BRKT
ID=15 		9-09651-069-0 08 1 0710-1005
126 WASHER; PL,BRKT
CXZ(CX****) ID=15 		9-09651-069-0 08 1 1006-1105
126 WASHER; PL,BRKT
CXZ(CX****) ID=15 		8-98010-627-1 08 1 1106-
127 NUT; BRKT
M14 		0-91110-514-0 04 1 0710-1005
127 NUT; BRKT
CXZ(CX****) M14 		0-91110-514-0 04 1 1006-

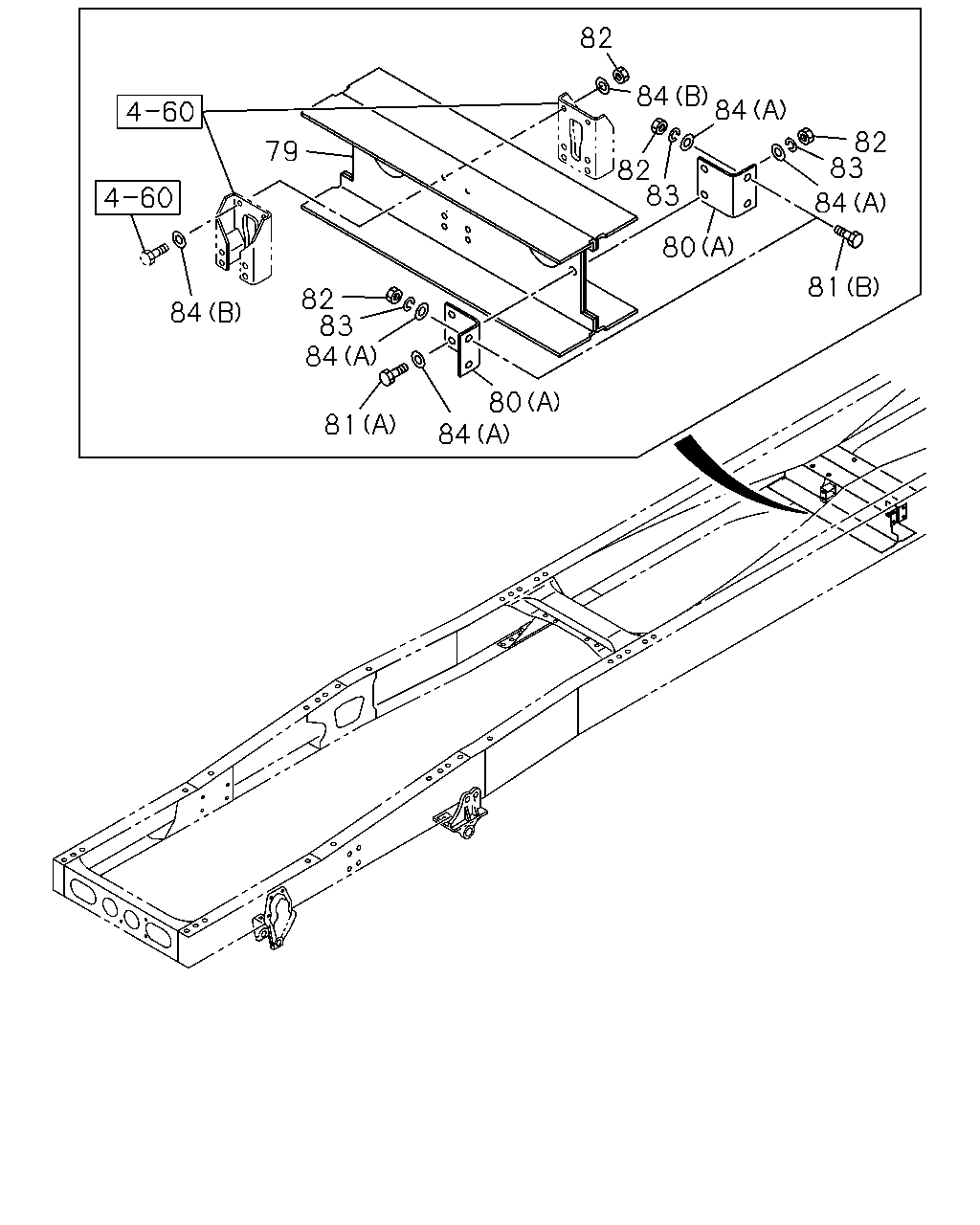

çizim 141756
82 84 84 82 83 79 82 83 84 80 81 82 83 84 84 80 84 81
BalonParca AdiParca NoAdetTipApplied Date
79 MEMBER; CROSS,TRUNNION ASM 1-53181-923-0 01 1 0710-
80 BRACKET; C/MBR
CYZ(CY****) (B) 		1-53363-031-2 02 1 1006-
80 BRACKET; C/MBR
(A) 		1-53167-610-0 04 1 0710-
81 BOLT; BRKT
CYZ(CY****) (C) M14X50 		0-20951-450-0 02 1 1006-
81 BOLT; BRKT
CYZ(CY****) (D) M14X205 		1-09000-147-0 02 1 1006-
81 BOLT; BRKT
(B) M14X40 		0-20951-440-0 08 1 0710-
81 BOLT; BRKT
(A) M14X55 		9-91066-455-0 04 1 0710-0907
81 BOLT; BRKT
(A) M14X55 		0-20951-455-0 04 1 0908-
82 NUT; BRKT
M14 		0-91110-514-0 04 1 0908-
82 NUT; BRKT
M14 		0-91110-514-0 16 1 0710-0907
82 NUT; BRKT
M14 		0-91110-514-0 12 1 0908-
83 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 12 1 0710-
84 WASHER; PL,BRKT
CYZ(CY****) (B) ID=15 		8-98010-627-1 08 1 1006-1105
84 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 08 1 1106-
84 WASHER; PL,BRKT
(A) ID=15 OD=26 		9-09164-514-0 16 1 0710-1104
84 WASHER; PL,BRKT
(A) ID=15 OD=26 		0-91614-514-0 16 1 1105-
84 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 08 1 0710-1005
84 WASHER; PL,BRKT
CXZ(CX****) (B) ID=15 		9-09651-069-0 08 1 1006-1105

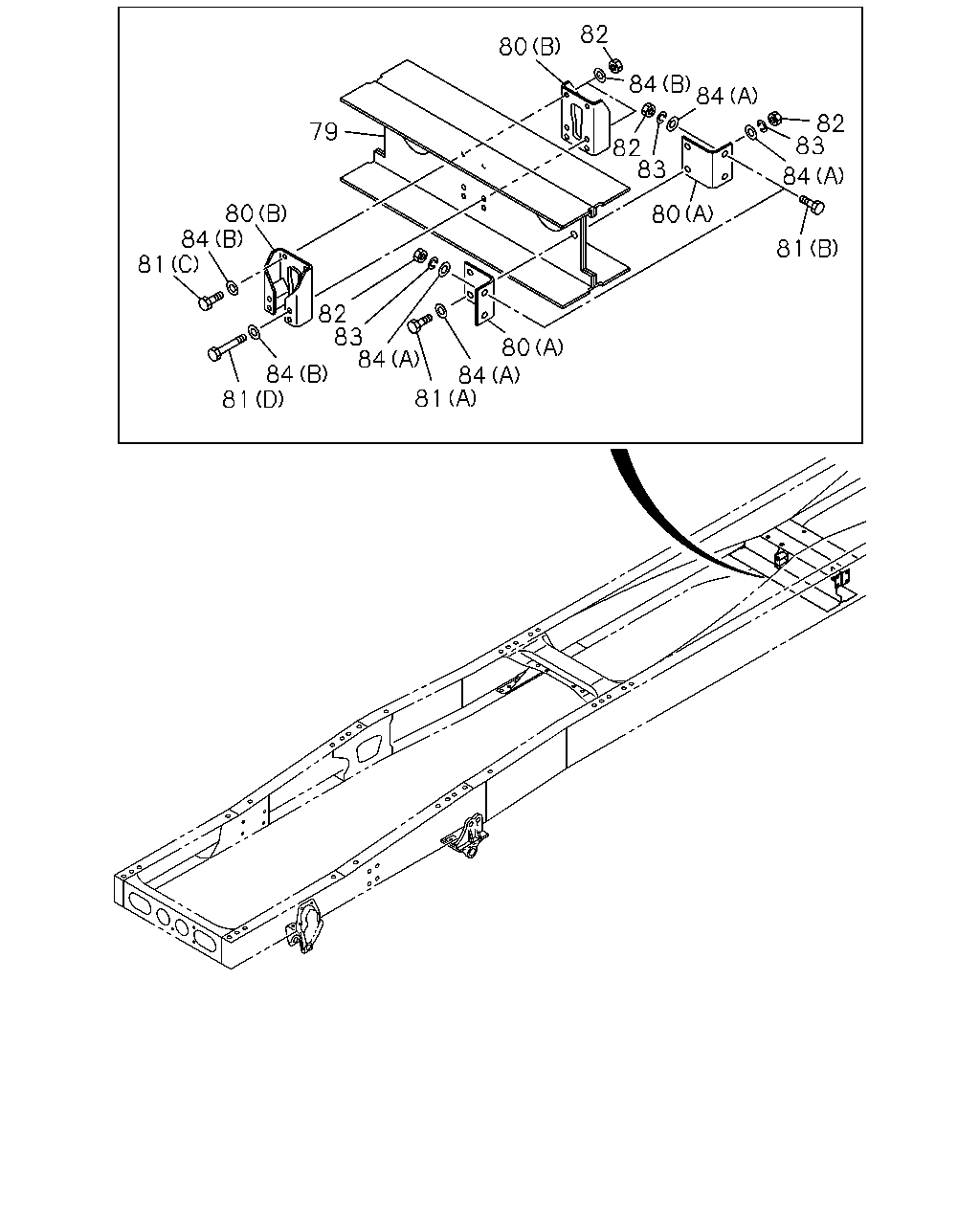

çizim 141813
82 80 84 84 82 83 79 82 83 84 80 84 81 80 81 82 83 84 80 84 81 84 81
BalonParca AdiParca NoAdetTipApplied Date
79 MEMBER; CROSS,TRUNNION ASM 1-53181-923-0 01 1 0710-
80 BRACKET; C/MBR
CYZ(CY****) (B) 		1-53363-031-2 02 1 1006-
80 BRACKET; C/MBR
(A) 		1-53167-610-0 04 1 0710-
81 BOLT; BRKT
CYZ(CY****) (C) M14X50 		0-20951-450-0 02 1 1006-
81 BOLT; BRKT
CYZ(CY****) (D) M14X205 		1-09000-147-0 02 1 1006-
81 BOLT; BRKT
(B) M14X40 		0-20951-440-0 08 1 0710-
81 BOLT; BRKT
(A) M14X55 		9-91066-455-0 04 1 0710-0907
81 BOLT; BRKT
(A) M14X55 		0-20951-455-0 04 1 0908-
82 NUT; BRKT
M14 		0-91110-514-0 04 1 0908-
82 NUT; BRKT
M14 		0-91110-514-0 16 1 0710-0907
82 NUT; BRKT
M14 		0-91110-514-0 12 1 0908-
83 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 12 1 0710-
84 WASHER; PL,BRKT
CYZ(CY****) (B) ID=15 		8-98010-627-1 08 1 1006-1105
84 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 08 1 1106-
84 WASHER; PL,BRKT
(A) ID=15 OD=26 		9-09164-514-0 16 1 0710-1104
84 WASHER; PL,BRKT
(A) ID=15 OD=26 		0-91614-514-0 16 1 1105-
84 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 08 1 0710-1005
84 WASHER; PL,BRKT
CXZ(CX****) (B) ID=15 		9-09651-069-0 08 1 1006-1105

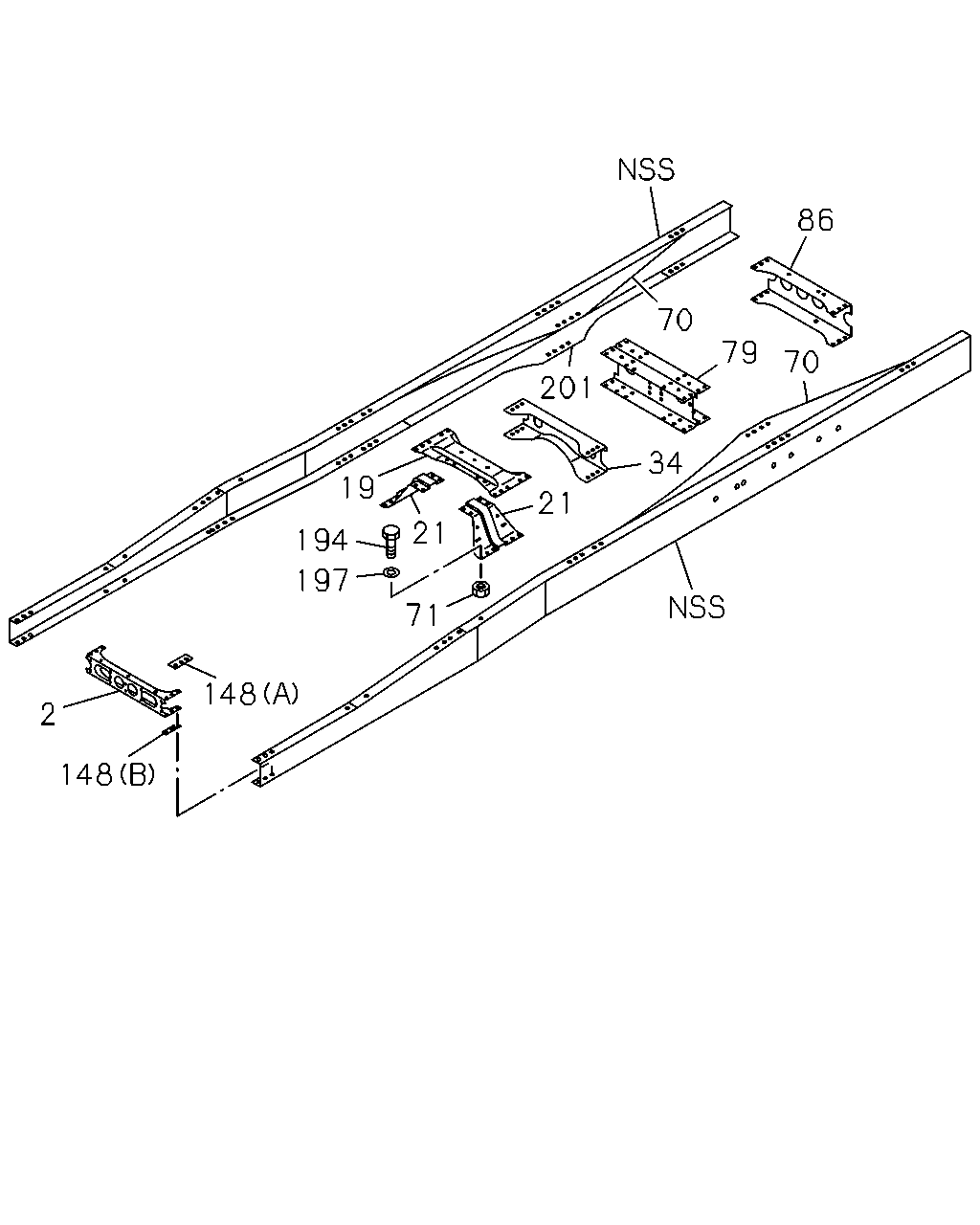

çizim 141825
86 70 79 70 201 19 34 21 21 194 197 71 148 2 148
BalonParca AdiParca NoAdetTipApplied Date
2 MEMBER; CROSS,1ST 8-97604-959-3 01 1 0710-
19 MEMBER; CROSS,2ND 1-53174-231-2 01 1 0710-
21 GUSSET; 2ND CROSS 1-53164-226-1 01 1 0710-
21 GUSSET; 2ND CROSS 1-53164-227-1 01 1 0710-
34 MEMBER; CROSS,3RD 1-53181-319-8 01 1 0710-
70 GUSSET; TRUNNION,UPR 1-53161-477-0 02 1 1006-
71 NUT; 2ND C/MBR
M14 		0-91110-514-0 08 1 0710-
79 MEMBER; CROSS,TRUNNION ASM 1-53181-923-0 01 1 0710-
86 MEMBER; CROSS,RR SUSP RR 1-53181-646-8 01 1 0710-
148 SPACER; C/MBR
(A) 		1-53168-400-1 02 1 0710-
148 SPACER; C/MBR
(B) 		1-53168-403-1 02 1 0710-
194 BOLT; 2ND C/MBR
M14X60 		0-20951-460-0 08 1 0710-
197 WASHER; PL,2ND C/MBR
CYZ(CY****) ID=15 		8-98010-627-1 08 1 1006-1105
197 WASHER; PL,2ND C/MBR
ID=15 		8-98010-627-1 08 1 1106-
197 WASHER; PL,2ND C/MBR
ID=15 		9-09651-069-0 08 1 0710-1005
197 WASHER; PL,2ND C/MBR
CXZ(CX****) ID=15 		9-09651-069-0 08 1 1006-1105
201 GUSSET; C/MBR
CYZ(CY****) 		8-97616-225-2 02 1 1006-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
