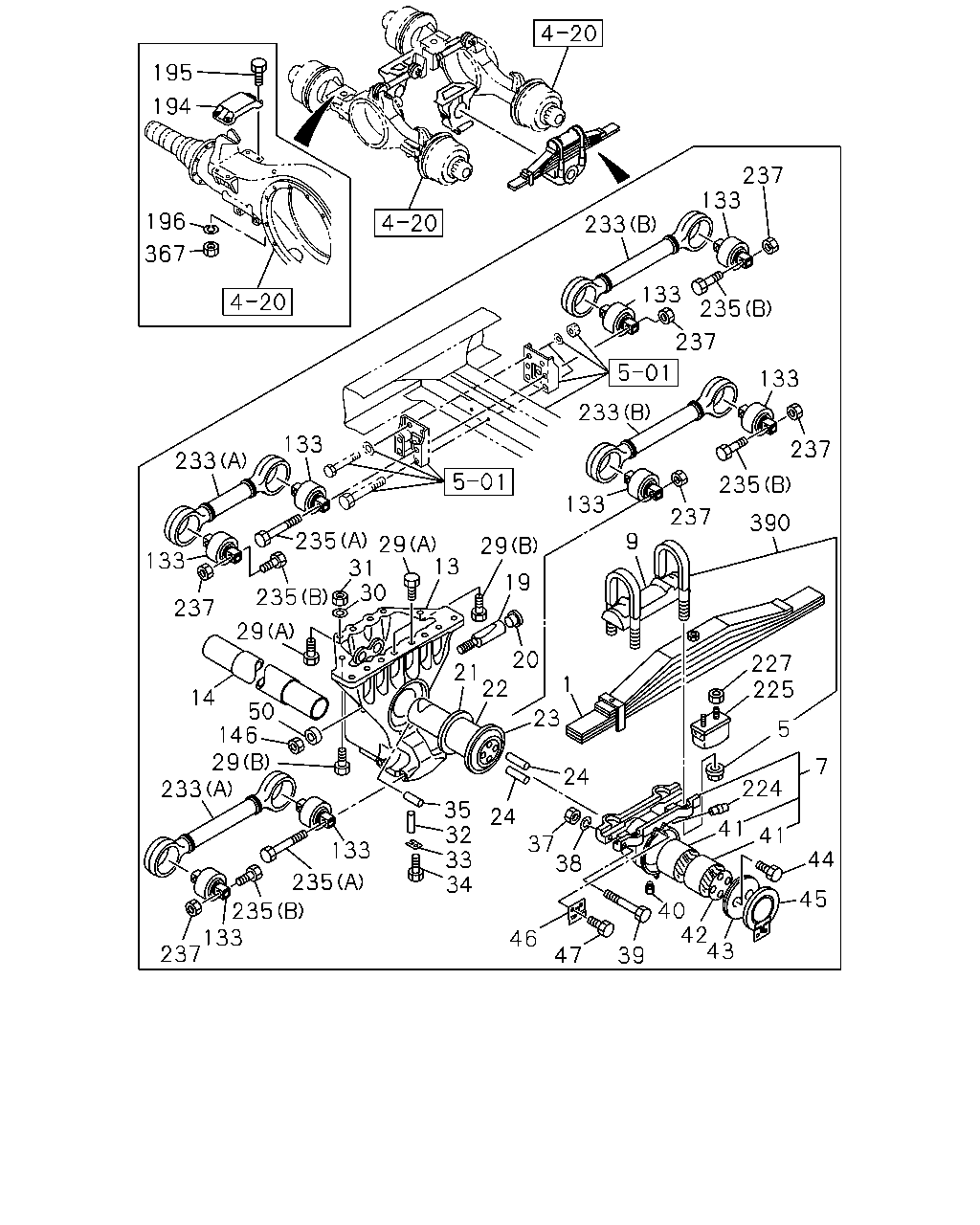

4-60 — REAR SUSPENSION (#14638) — 217 parça

195 194 237 133 196 233 367 133 235 241 237 133 233 237 133 233 241 235 243 237 243 235 29 31 235 30 133 390 9 13 29 133 19 237 29 20 227 225 21 22 1 14 50 146 29 233 23 5 7 24 224 41 35 32 33 34 24 41 37 38 133 44 235 235 133 237 45 40 42 43 46 47 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	8-97614-093-0	02	1	0710-0802	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	8-98102-211-0	02	1	0803-1005	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	8-98102-211-1	02	1	1006-	●	●
5	NUT; U-BOLT,RR SPR M27 FLANGE	1-09440-058-0	08	1	0710-1005	●
5	NUT; U-BOLT,RR SPR M27 FLANGE	1-09440-058-0	08	1	1006-	●	●
7	SEAT; SPR,LWR	8-97614-049-2	02	1	0710-1005	●
7	SEAT; SPR,LWR	8-97614-049-2	02	1	1006-	●	●
9	PAD; U BOLT,RR SPR	1-51372-019-1	02	1	0710-1005	●
9	PAD; U BOLT,RR SPR	1-51372-019-1	02	1	1006-1010	●	●
9	PAD; U BOLT,RR SPR	8-98177-265-0	02	1	1011-	●	●
13	BRACKET; TRUNNION SHAFT	1-53361-079-0	02	1	0710-1005	●
13	BRACKET; TRUNNION SHAFT	1-53361-079-0	02	1	1006-	●	●
14	PIPE; TRUNNION BRKT	1-51389-032-1	01	1	0710-1005	●
14	PIPE; TRUNNION BRKT	1-51389-032-1	01	1	1006-	●	●
19	BOLT; KEY,SHAFT	1-51389-066-0	02	1	0710-1005	●
19	BOLT; KEY,SHAFT	1-51389-066-0	02	1	1006-	●	●
20	GROMMET; KEY BOLT	1-09333-057-0	02	1	0710-1005	●
20	GROMMET; KEY BOLT	1-09333-057-0	02	1	1006-	●	●
21	WASHER; THRUST,TRUNNION SHAFT	1-51389-058-0	02	1	0710-1005	●
21	WASHER; THRUST,TRUNNION SHAFT	1-51389-058-0	02	1	1006-	●	●
22	SHAFT; TRUNNION,RR SUSP	1-51381-022-3	02	1	0710-1005	●
22	SHAFT; TRUNNION,RR SUSP	1-51381-022-3	02	1	1006-	●	●
23	SEAL; OIL,TRUNNION SHAFT	1-51389-005-0	02	1	0710-1005	●
23	SEAL; OIL,TRUNNION SHAFT	1-51389-005-0	02	1	1006-	●	●
24	PIN; SIDE PLATE TO SHAFT	1-09740-009-0	04	1	0710-1005	●
24	PIN; SIDE PLATE TO SHAFT	1-09740-009-0	04	1	1006-	●	●
29	BOLT; BRKT TO FRAME (A) M18X75	8-98012-872-0	24	1	0710-1005	●
29	BOLT; BRKT TO FRAME (A) M18X75	8-98012-872-0	24	1	1006-	●	●
29	BOLT; BRKT TO FRAME (B) M18X55	9-92061-855-0	04	1	0710-1005	●
29	BOLT; BRKT TO FRAME (B) M18X55	9-92061-855-0	04	1	1006-	●	●
30	WASHER; PL,TRUNNION BRKT ID=19	1-09503-162-0	28	1	0710-1005	●
30	WASHER; PL,TRUNNION BRKT ID=19	1-09503-162-0	28	1	1006-	●	●
31	NUT; TRUNNION BRKT M18	0-91110-518-0	28	1	0710-1005	●
31	NUT; TRUNNION BRKT M18	0-91110-518-0	28	1	1006-	●	●
32	PIN; STRAIGHT	1-09740-027-0	04	1	0710-1005	●
32	PIN; STRAIGHT	1-09740-027-0	04	1	1006-	●	●
33	PLATE; LK KNOCK PIN	1-53369-032-1	02	1	0710-1005	●
33	PLATE; LK KNOCK PIN	1-53369-032-1	02	1	1006-	●	●
34	BOLT; LOCK PLATE M10X16 FLANGE	0-28051-016-0	02	1	0710-1005	●
34	BOLT; LOCK PLATE M10X16 FLANGE	0-28051-016-0	02	1	1006-	●	●
35	PIN; TRUNNION SHAFT	1-09749-030-1	04	1	0710-1005	●
35	PIN; TRUNNION SHAFT	1-09749-030-1	04	1	1006-	●	●
37	NUT; SPR SETTING M22	0-91110-522-0	04	1	0710-1005	●
37	NUT; SPR SETTING M22	0-91110-522-0	04	1	1006-	●	●
38	WASHER; LK,SPR SETTING ID=22.5	0-91510-622-0	04	1	0710-1005	●
38	WASHER; LK,SPR SETTING ID=22.5	0-91510-622-0	04	1	1006-	●	●
39	BOLT; SPR SETTING M22X155	9-09801-290-1	04	1	0710-1005	●
39	BOLT; SPR SETTING M22X155	9-09801-290-1	04	1	1006-	●	●
40	VALVE; GREASE ESCAPE	9-51389-010-0	02	1	0710-1005	●
40	VALVE; GREASE ESCAPE	9-51389-010-0	02	1	1006-	●	●
41	BUSHING; TRUNNION SHAFT	1-51386-004-0	04	1	0710-0902	●
41	BUSHING; TRUNNION SHAFT	8-98081-832-0	04	1	0903-1005	●
41	BUSHING; TRUNNION SHAFT	8-98081-832-0	04	1	1006-	●	●
42	SHIM; SIDE PLATE TO SHAFT	1-51389-033-1	12	1	0710-1005	●
42	SHIM; SIDE PLATE TO SHAFT	1-51389-033-1	12	1	1006-	●	●
43	PLATE; SIDE,TRUNNION SHAFT	1-51382-010-4	02	1	0710-1005	●
43	PLATE; SIDE,TRUNNION SHAFT	1-51382-010-4	02	1	1006-	●	●
44	BOLT; SIDE PLATE TO SHAFT M18X48.5 FLANGE	1-09044-038-2	04	1	0710-1005	●
44	BOLT; SIDE PLATE TO SHAFT M18X48.5 FLANGE	1-09044-038-2	04	1	1006-	●	●
45	COVER; SPR SEAT	1-51387-013-2	02	1	0710-1005	●
45	COVER; SPR SEAT	1-51387-013-2	02	1	1006-	●	●
46	BRACKET; COVER	1-51387-015-2	02	1	0710-1005	●
46	BRACKET; COVER	1-51387-015-2	02	1	1006-	●	●
47	BOLT; COVER TO SEAT M8X12 FLANGE	0-28050-812-0	08	1	0710-1005	●
47	BOLT; COVER TO SEAT M8X12 FLANGE	0-28050-812-0	08	1	1006-	●	●
50	WASHER; PL,TRUNNION SHAFT ID=25	8-98012-871-0	02	1	0710-1005	●
50	WASHER; PL,TRUNNION SHAFT ID=25	8-98012-871-0	02	1	1006-	●	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	0710-1005	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	0710-1005	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	1006-	●	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	1006-	●	●
133	BUSHING; RUBBER,TORQUE ROD BEST VALUE PARTS	1-87411-074-2	06	1	1006-	●	●
133	BUSHING; RUBBER,TORQUE ROD BEST VALUE PARTS	1-87411-074-2	06	1	1006-	●	●
146	NUT; KEY BOLT M24	0-91110-524-0	02	1	0710-1005	●
146	NUT; KEY BOLT M24	0-91110-524-0	02	1	1006-	●	●
194	PAD; CONTACT	1-42124-101-0	04	1	0710-1005	●
194	PAD; CONTACT	1-42124-101-0	04	1	1006-	●	●
195	BOLT; PAD FIX M14X40	0-20951-440-0	16	1	0710-1005	●
195	BOLT; PAD FIX M14X40	0-20951-440-0	16	1	1006-	●	●
196	WASHER; LK ID=14.2	0-91510-814-0	16	1	0710-1005	●
196	WASHER; LK ID=14.2	0-91510-814-0	16	1	1006-	●	●
224	NIPPLE; GREASE,SPR SEAT PT1/8 STRAIGHT	0-90301-410-0	02	1	0710-1005	●
224	NIPPLE; GREASE,SPR SEAT PT1/8 STRAIGHT	0-90301-410-0	02	1	1006-	●	●
225	RUBBER; CUSHION,RR SPR FORWARD	8-98096-587-0	01	1	0710-0802	●
225	RUBBER; CUSHION,RR SPR FORWARD	8-98096-588-0	01	1	0710-0802	●
225	RUBBER; CUSHION,RR SPR REARWARD	8-98096-589-0	01	1	0710-0802	●
225	RUBBER; CUSHION,RR SPR FORWARD RH,REARWARD LH	1-53366-077-3	02	1	0803-1005	●
225	RUBBER; CUSHION,RR SPR FORWARD RH,REARWARD LH	1-53366-077-3	02	1	1006-	●	●
225	RUBBER; CUSHION,RR SPR REARWARD	8-98096-590-0	01	1	0710-0802	●
225	RUBBER; CUSHION,RR SPR FORWARD LH,REARWARD RH	1-53366-100-2	02	1	0803-1005	●
225	RUBBER; CUSHION,RR SPR FORWARD LH,REARWARD RH	1-53366-100-2	02	1	1006-	●	●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91180-212-0	08	1	0710-1005	●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91180-212-0	08	1	1006-	●	●
233	ROD ASM; TORQUE,RR SUSP (A) L=525	1-51511-656-0	03	1	0710-1005	●
233	ROD ASM; TORQUE,RR SUSP (A) L=525	1-51511-656-0	03	1	1006-	●	●
233	ROD ASM; TORQUE,RR SUSP (B) L=550	1-51511-659-0	03	1	0710-1005	●
233	ROD ASM; TORQUE,RR SUSP (B) L=550	1-51511-659-0	03	1	1006-	●	●
235	BOLT; TORQUE ROD (A) M18X265	8-98012-875-0	06	1	0710-1005	●
235	BOLT; TORQUE ROD (A) M18X265	8-98012-875-0	06	1	1006-	●	●
235	BOLT; TORQUE ROD (B) M18X102	8-98012-877-0	12	1	0710-1005	●
235	BOLT; TORQUE ROD (B) M18X102	8-98012-877-0	12	1	1006-	●	●
237	NUT; TORQUE ROD M18	1-09464-011-0	18	1	0710-1005	●
237	NUT; TORQUE ROD M18	1-09464-011-0	18	1	1006-	●	●
241	BRACKET; TORQUE ROD	1-53363-031-2	02	1	0710-	●
243	BOLT; BRKT,TORQUE ROD (A) M14X50	0-20951-450-0	02	1	0710-	●
243	BOLT; BRKT,TORQUE ROD (B) M14X205	1-09000-147-0	02	1	0710-	●
367	NUT M14	0-91110-514-0	16	1	0710-1005	●
367	NUT M14	0-91110-514-0	16	1	1006-	●	●
390	U-BOLT SET; RR SPRING L=350	1-87870-392-1	04	1	0710-1005	●
390	U-BOLT SET; RR SPRING L=350	1-87870-392-1	04	1	1006-	●	●

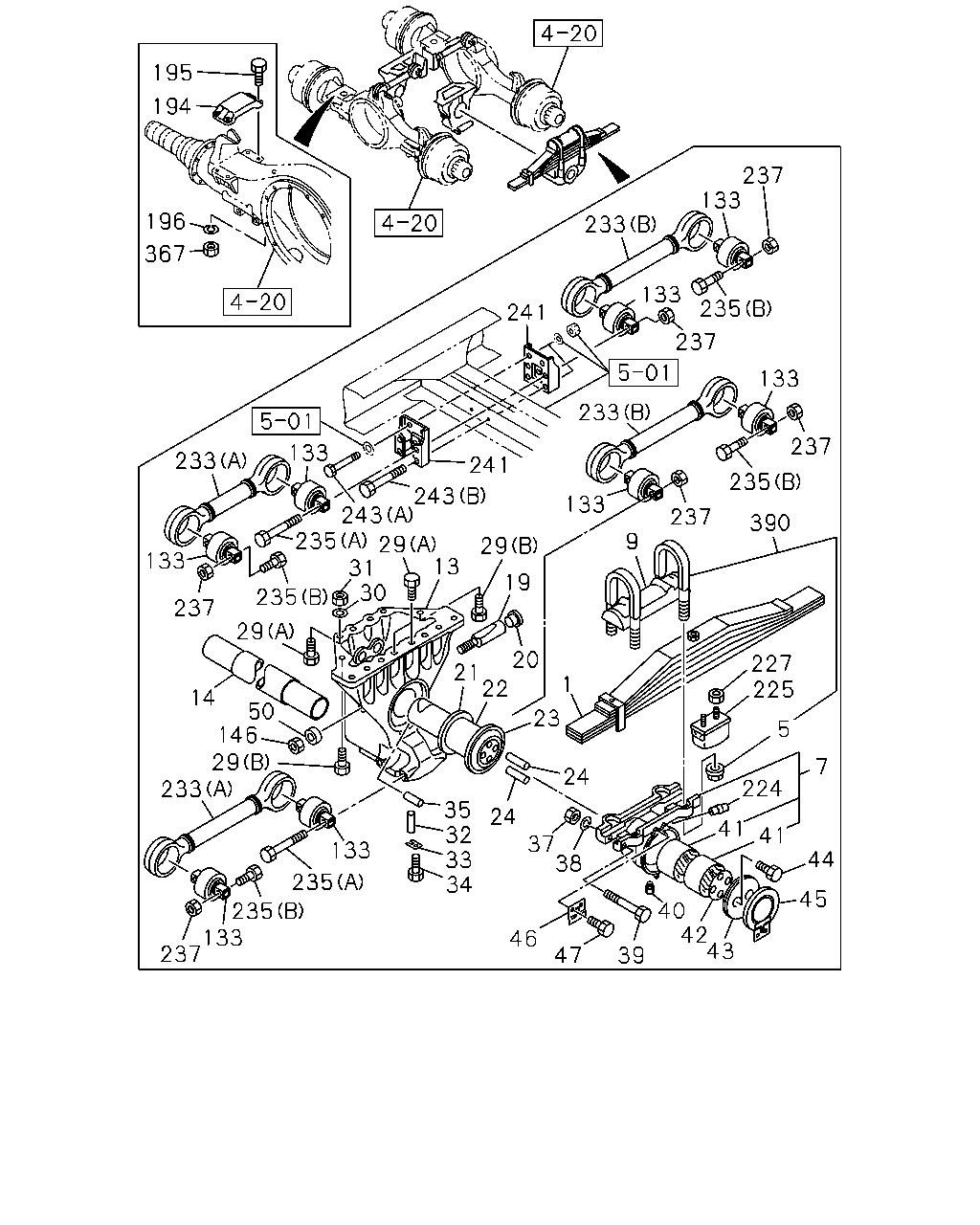

195 194 237 133 196 233 367 133 235 237 133 233 133 237 233 235 237 133 390 235 29 31 235 30 9 13 29 133 19 237 29 20 227 225 21 22 1 14 50 146 29 233 23 5 7 24 224 41 35 32 33 34 24 41 37 38 133 44 235 235 133 237 45 40 42 43 46 47 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	8-97614-093-0	02	1	0710-0802	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	8-98102-211-0	02	1	0803-1005	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	8-98102-211-1	02	1	1006-	●	●
5	NUT; U-BOLT,RR SPR M27 FLANGE	1-09440-058-0	08	1	0710-1005	●
5	NUT; U-BOLT,RR SPR M27 FLANGE	1-09440-058-0	08	1	1006-	●	●
7	SEAT; SPR,LWR	8-97614-049-2	02	1	0710-1005	●
7	SEAT; SPR,LWR	8-97614-049-2	02	1	1006-	●	●
9	PAD; U BOLT,RR SPR	1-51372-019-1	02	1	0710-1005	●
9	PAD; U BOLT,RR SPR	1-51372-019-1	02	1	1006-1010	●	●
9	PAD; U BOLT,RR SPR	8-98177-265-0	02	1	1011-	●	●
13	BRACKET; TRUNNION SHAFT	1-53361-079-0	02	1	0710-1005	●
13	BRACKET; TRUNNION SHAFT	1-53361-079-0	02	1	1006-	●	●
14	PIPE; TRUNNION BRKT	1-51389-032-1	01	1	0710-1005	●
14	PIPE; TRUNNION BRKT	1-51389-032-1	01	1	1006-	●	●
19	BOLT; KEY,SHAFT	1-51389-066-0	02	1	0710-1005	●
19	BOLT; KEY,SHAFT	1-51389-066-0	02	1	1006-	●	●
20	GROMMET; KEY BOLT	1-09333-057-0	02	1	0710-1005	●
20	GROMMET; KEY BOLT	1-09333-057-0	02	1	1006-	●	●
21	WASHER; THRUST,TRUNNION SHAFT	1-51389-058-0	02	1	0710-1005	●
21	WASHER; THRUST,TRUNNION SHAFT	1-51389-058-0	02	1	1006-	●	●
22	SHAFT; TRUNNION,RR SUSP	1-51381-022-3	02	1	0710-1005	●
22	SHAFT; TRUNNION,RR SUSP	1-51381-022-3	02	1	1006-	●	●
23	SEAL; OIL,TRUNNION SHAFT	1-51389-005-0	02	1	0710-1005	●
23	SEAL; OIL,TRUNNION SHAFT	1-51389-005-0	02	1	1006-	●	●
24	PIN; SIDE PLATE TO SHAFT	1-09740-009-0	04	1	0710-1005	●
24	PIN; SIDE PLATE TO SHAFT	1-09740-009-0	04	1	1006-	●	●
29	BOLT; BRKT TO FRAME (A) M18X75	8-98012-872-0	24	1	0710-1005	●
29	BOLT; BRKT TO FRAME (A) M18X75	8-98012-872-0	24	1	1006-	●	●
29	BOLT; BRKT TO FRAME (B) M18X55	9-92061-855-0	04	1	0710-1005	●
29	BOLT; BRKT TO FRAME (B) M18X55	9-92061-855-0	04	1	1006-	●	●
30	WASHER; PL,TRUNNION BRKT ID=19	1-09503-162-0	28	1	0710-1005	●
30	WASHER; PL,TRUNNION BRKT ID=19	1-09503-162-0	28	1	1006-	●	●
31	NUT; TRUNNION BRKT M18	0-91110-518-0	28	1	0710-1005	●
31	NUT; TRUNNION BRKT M18	0-91110-518-0	28	1	1006-	●	●
32	PIN; STRAIGHT	1-09740-027-0	04	1	0710-1005	●
32	PIN; STRAIGHT	1-09740-027-0	04	1	1006-	●	●
33	PLATE; LK KNOCK PIN	1-53369-032-1	02	1	0710-1005	●
33	PLATE; LK KNOCK PIN	1-53369-032-1	02	1	1006-	●	●
34	BOLT; LOCK PLATE M10X16 FLANGE	0-28051-016-0	02	1	0710-1005	●
34	BOLT; LOCK PLATE M10X16 FLANGE	0-28051-016-0	02	1	1006-	●	●
35	PIN; TRUNNION SHAFT	1-09749-030-1	04	1	0710-1005	●
35	PIN; TRUNNION SHAFT	1-09749-030-1	04	1	1006-	●	●
37	NUT; SPR SETTING M22	0-91110-522-0	04	1	0710-1005	●
37	NUT; SPR SETTING M22	0-91110-522-0	04	1	1006-	●	●
38	WASHER; LK,SPR SETTING ID=22.5	0-91510-622-0	04	1	0710-1005	●
38	WASHER; LK,SPR SETTING ID=22.5	0-91510-622-0	04	1	1006-	●	●
39	BOLT; SPR SETTING M22X155	9-09801-290-1	04	1	0710-1005	●
39	BOLT; SPR SETTING M22X155	9-09801-290-1	04	1	1006-	●	●
40	VALVE; GREASE ESCAPE	9-51389-010-0	02	1	0710-1005	●
40	VALVE; GREASE ESCAPE	9-51389-010-0	02	1	1006-	●	●
41	BUSHING; TRUNNION SHAFT	1-51386-004-0	04	1	0710-0902	●
41	BUSHING; TRUNNION SHAFT	8-98081-832-0	04	1	0903-1005	●
41	BUSHING; TRUNNION SHAFT	8-98081-832-0	04	1	1006-	●	●
42	SHIM; SIDE PLATE TO SHAFT	1-51389-033-1	12	1	0710-1005	●
42	SHIM; SIDE PLATE TO SHAFT	1-51389-033-1	12	1	1006-	●	●
43	PLATE; SIDE,TRUNNION SHAFT	1-51382-010-4	02	1	0710-1005	●
43	PLATE; SIDE,TRUNNION SHAFT	1-51382-010-4	02	1	1006-	●	●
44	BOLT; SIDE PLATE TO SHAFT M18X48.5 FLANGE	1-09044-038-2	04	1	0710-1005	●
44	BOLT; SIDE PLATE TO SHAFT M18X48.5 FLANGE	1-09044-038-2	04	1	1006-	●	●
45	COVER; SPR SEAT	1-51387-013-2	02	1	0710-1005	●
45	COVER; SPR SEAT	1-51387-013-2	02	1	1006-	●	●
46	BRACKET; COVER	1-51387-015-2	02	1	0710-1005	●
46	BRACKET; COVER	1-51387-015-2	02	1	1006-	●	●
47	BOLT; COVER TO SEAT M8X12 FLANGE	0-28050-812-0	08	1	0710-1005	●
47	BOLT; COVER TO SEAT M8X12 FLANGE	0-28050-812-0	08	1	1006-	●	●
50	WASHER; PL,TRUNNION SHAFT ID=25	8-98012-871-0	02	1	0710-1005	●
50	WASHER; PL,TRUNNION SHAFT ID=25	8-98012-871-0	02	1	1006-	●	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	0710-1005	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	0710-1005	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	1006-	●	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	1006-	●	●
133	BUSHING; RUBBER,TORQUE ROD BEST VALUE PARTS	1-87411-074-2	06	1	1006-	●	●
133	BUSHING; RUBBER,TORQUE ROD BEST VALUE PARTS	1-87411-074-2	06	1	1006-	●	●
146	NUT; KEY BOLT M24	0-91110-524-0	02	1	0710-1005	●
146	NUT; KEY BOLT M24	0-91110-524-0	02	1	1006-	●	●
194	PAD; CONTACT	1-42124-101-0	04	1	0710-1005	●
194	PAD; CONTACT	1-42124-101-0	04	1	1006-	●	●
195	BOLT; PAD FIX M14X40	0-20951-440-0	16	1	0710-1005	●
195	BOLT; PAD FIX M14X40	0-20951-440-0	16	1	1006-	●	●
196	WASHER; LK ID=14.2	0-91510-814-0	16	1	0710-1005	●
196	WASHER; LK ID=14.2	0-91510-814-0	16	1	1006-	●	●
224	NIPPLE; GREASE,SPR SEAT PT1/8 STRAIGHT	0-90301-410-0	02	1	0710-1005	●
224	NIPPLE; GREASE,SPR SEAT PT1/8 STRAIGHT	0-90301-410-0	02	1	1006-	●	●
225	RUBBER; CUSHION,RR SPR FORWARD	8-98096-587-0	01	1	0710-0802	●
225	RUBBER; CUSHION,RR SPR FORWARD	8-98096-588-0	01	1	0710-0802	●
225	RUBBER; CUSHION,RR SPR REARWARD	8-98096-589-0	01	1	0710-0802	●
225	RUBBER; CUSHION,RR SPR FORWARD RH,REARWARD LH	1-53366-077-3	02	1	0803-1005	●
225	RUBBER; CUSHION,RR SPR FORWARD RH,REARWARD LH	1-53366-077-3	02	1	1006-	●	●
225	RUBBER; CUSHION,RR SPR REARWARD	8-98096-590-0	01	1	0710-0802	●
225	RUBBER; CUSHION,RR SPR FORWARD LH,REARWARD RH	1-53366-100-2	02	1	0803-1005	●
225	RUBBER; CUSHION,RR SPR FORWARD LH,REARWARD RH	1-53366-100-2	02	1	1006-	●	●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91180-212-0	08	1	0710-1005	●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91180-212-0	08	1	1006-	●	●
233	ROD ASM; TORQUE,RR SUSP (A) L=525	1-51511-656-0	03	1	0710-1005	●
233	ROD ASM; TORQUE,RR SUSP (A) L=525	1-51511-656-0	03	1	1006-	●	●
233	ROD ASM; TORQUE,RR SUSP (B) L=550	1-51511-659-0	03	1	0710-1005	●
233	ROD ASM; TORQUE,RR SUSP (B) L=550	1-51511-659-0	03	1	1006-	●	●
235	BOLT; TORQUE ROD (A) M18X265	8-98012-875-0	06	1	0710-1005	●
235	BOLT; TORQUE ROD (A) M18X265	8-98012-875-0	06	1	1006-	●	●
235	BOLT; TORQUE ROD (B) M18X102	8-98012-877-0	12	1	0710-1005	●
235	BOLT; TORQUE ROD (B) M18X102	8-98012-877-0	12	1	1006-	●	●
237	NUT; TORQUE ROD M18	1-09464-011-0	18	1	0710-1005	●
237	NUT; TORQUE ROD M18	1-09464-011-0	18	1	1006-	●	●
367	NUT M14	0-91110-514-0	16	1	0710-1005	●
367	NUT M14	0-91110-514-0	16	1	1006-	●	●
390	U-BOLT SET; RR SPRING L=350	1-87870-392-1	04	1	0710-1005	●
390	U-BOLT SET; RR SPRING L=350	1-87870-392-1	04	1	1006-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
