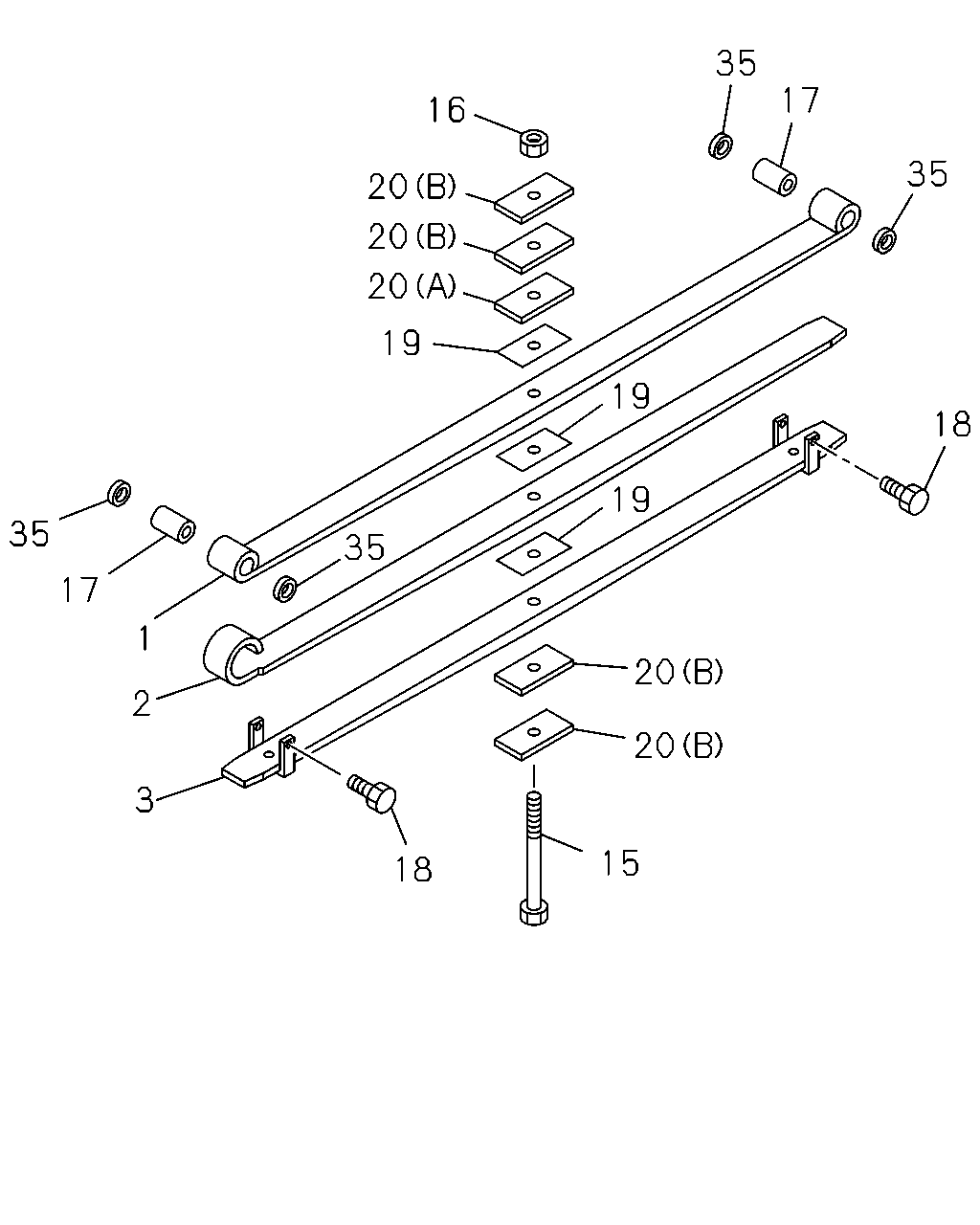

4-55 — FRONT LEAF SPRING
(#14637) — 11 parça
35
17
16
35
20
20
20
19
19
18
19
35
35
17
1
20
2
20
3
15
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98098-052-0
8-98101-821-0
01
1
-
2
SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98098-052-0
8-98101-822-0
01
1
-
3
SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-98098-052-0
8-98101-823-0
01
1
-
15
BOLT; CENTER,LEAF SPR,FRT
L=140 ASM PART: A = 8-98098-052-0
1-51156-330-0
01
1
-
16
NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98098-052-0
1-09400-061-0
01
1
-
17
BUSHING; LEAF SPR,FRT
OD=42 ASM PART: A = 8-98098-052-0
1-51351-046-0
02
1
-
18
BOLT; CLIP,LEAF SPR,FRT
M10X102 ASM PART: A = 8-98098-052-0
1-09000-759-0
02
1
-
19
SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98098-052-0
1-51177-339-0
03
1
-
20
SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: A = 8-98098-052-0
1-51377-400-0
01
1
-
20
SEAT; LEAF SPR,FRT
(B), T=9 ASM PART: A = 8-98098-052-0
1-51377-401-0
04
1
-
35
SEAL; DUST
ASM PART: A = 8-98098-052-0
1-51177-321-0
04
1
-
