4-50 — FRONT SUSPENSION (#14636) — 65 parça

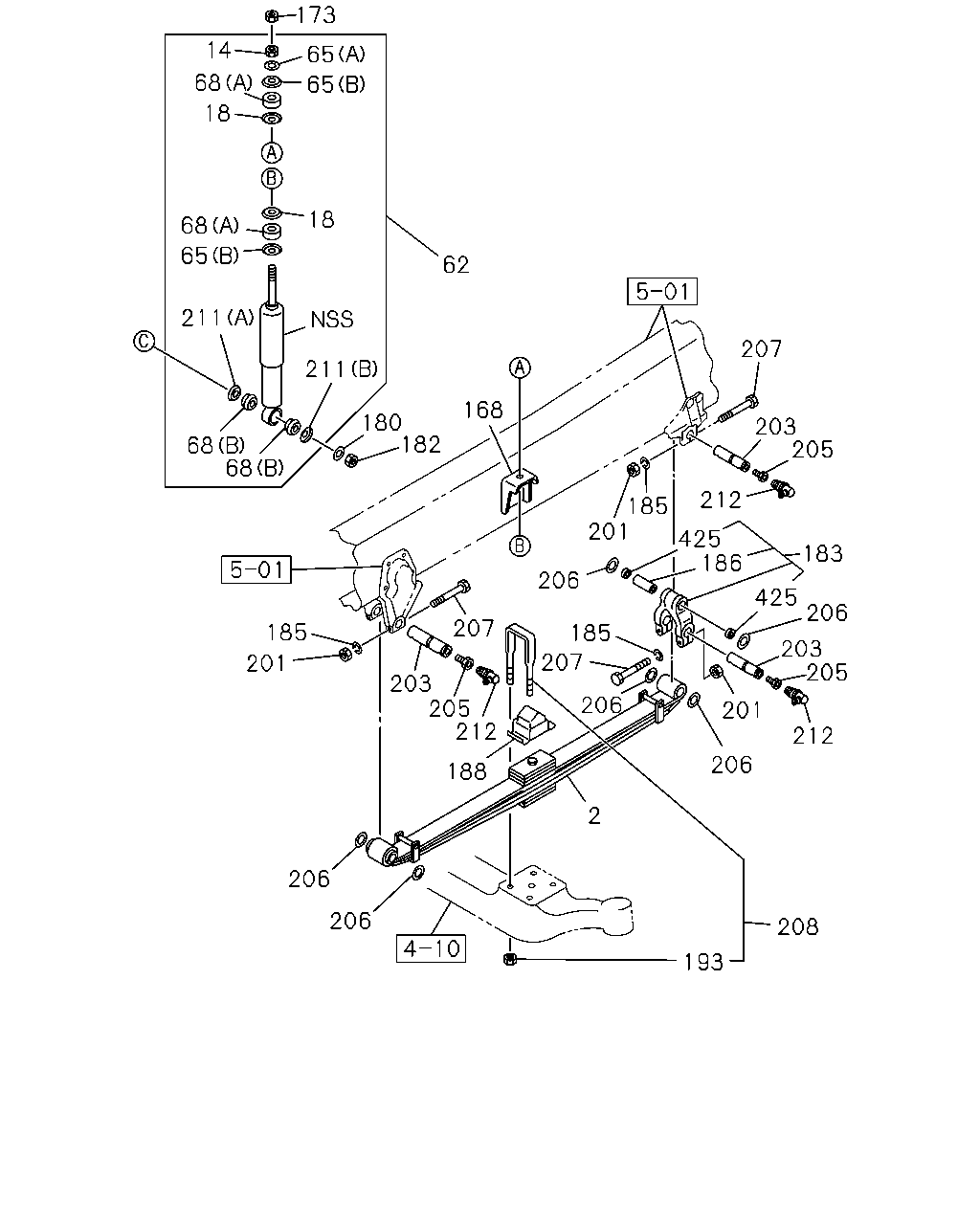

çizim 141690
173 14 65 68 65 18 18 68 65 62 211 207 211 168 180 182 203 205 68 68 212 185 201 425 186 183 206 425 206 207 185 185 203 205 207 201 203 205 212 188 206 201 212 206 2 206 206 208 193
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98098-052-0 02 1 0710-1005 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98098-052-0 02 1 1006- ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0710-1005 ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 1006- ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 0710-1005 ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 1006- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-836-0 02 1 0710-1005 ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-836-0 02 1 1006- ● ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 0710-1005 ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 1006- ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 0710-1005 ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 1006- ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 0710-1005 ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 1006- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0710-1005 ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 1006- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0710-1005 ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 1006- ● ●
173 NUT; S/ABS
M14 		0-91111-514-0 02 1 0710-1005 ●
173 NUT; S/ABS
M14 		0-91111-514-0 02 1 1006- ● ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 0710-1005 ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 1006- ● ●
182 NUT; S/ABS LWR
M20 		0-91110-520-0 02 1 0710-1005 ●
182 NUT; S/ABS LWR
M20 		0-91110-520-0 02 1 1006- ● ●
183 SHACKLE; FRT SUSP 1-51162-071-0 02 1 0710-1005 ●
183 SHACKLE; FRT SUSP 1-51162-071-0 02 1 1006-1006 ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1006- ● ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 0710-1005 ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 1006- ● ●
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 02 1 0710-1005 ●
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 02 1 1006-1006 ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1006- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-096-2 02 1 0710-1005 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-096-2 02 1 1006- ● ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0710-1005 ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 1006-1206 ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0710-1005 ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1006- ● ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 0710-1005 ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 1006- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0710-1005 ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1006- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0710-1005 ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 1006- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0710-1005 ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 1006- ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-1 04 1 0710-1005 ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-1 04 1 1006-1206 ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-498-0 04 1 1207- ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0710-1005 ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1006- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0710-1005 ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1006- ● ●
212 NIPPLE; GREASE,ELBOW
PT1/8 ELBOW 		0-90301-610-0 06 1 0710-1005 ●
212 NIPPLE; GREASE,ELBOW
PT1/8 ELBOW 		0-90301-610-0 06 1 1006- ● ●
425 SEAL; DUST 1-51177-321-0 04 1 0710-1005 ●
425 SEAL; DUST 1-51177-321-0 04 1 1006-1006 ● ●

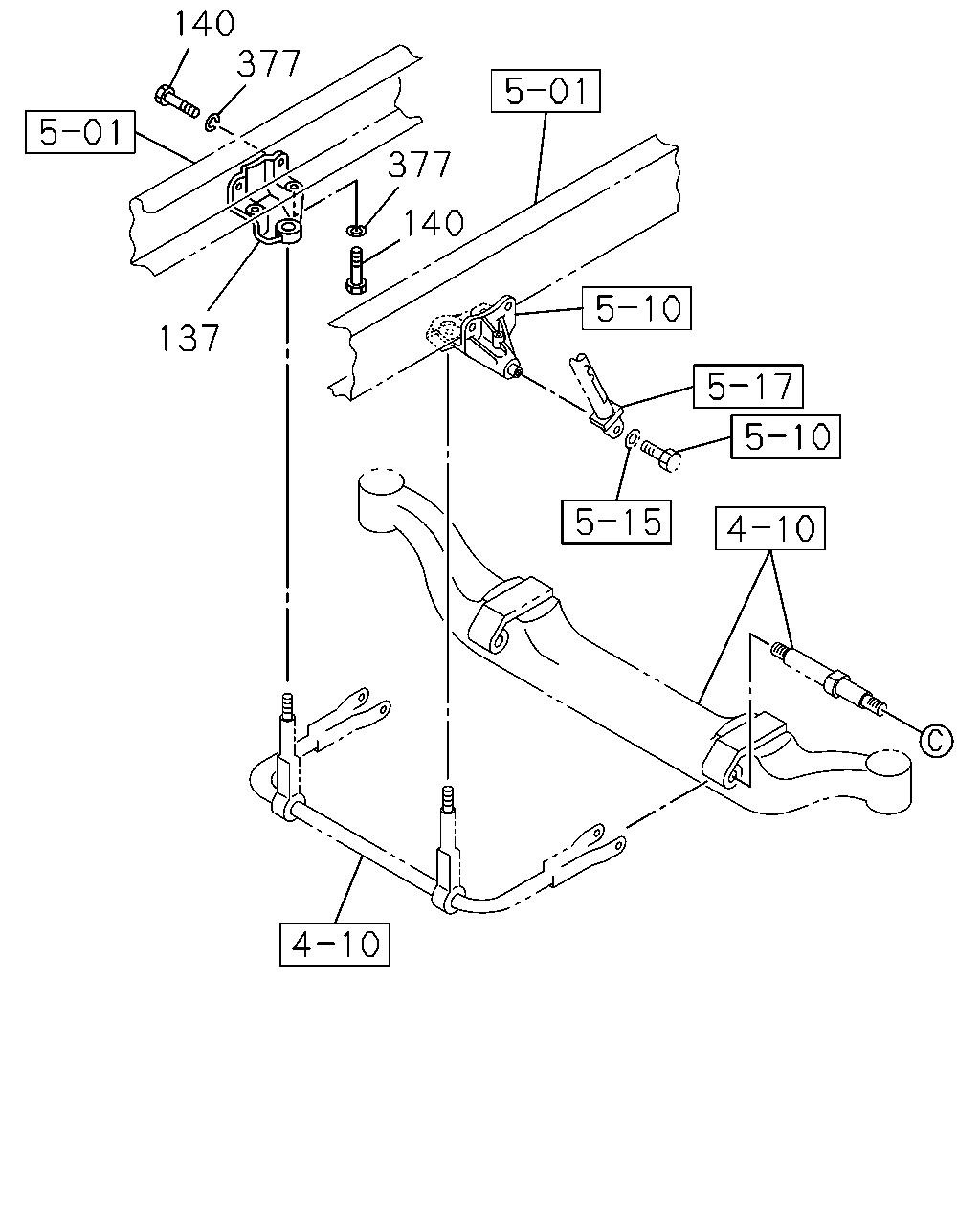

çizim 141722
140 377 377 140 137
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; STAB BAR TO FRAME 1-51781-111-0 01 1 0710-1005 ●
137 BRACKET; STAB BAR TO FRAME 1-51781-111-0 01 1 1006- ● ●
140 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 0710-1005 ●
140 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 1006- ● ●
377 WASHER; LK,BRKT
ID=15 		9-09651-069-0 04 1 0710-1105 ●
377 WASHER; LK,BRKT
ID=15 		8-98010-627-1 04 1 1106- ●
377 WASHER; LK,BRKT
ID=15 		8-98010-627-0 04 1 1006- ●
