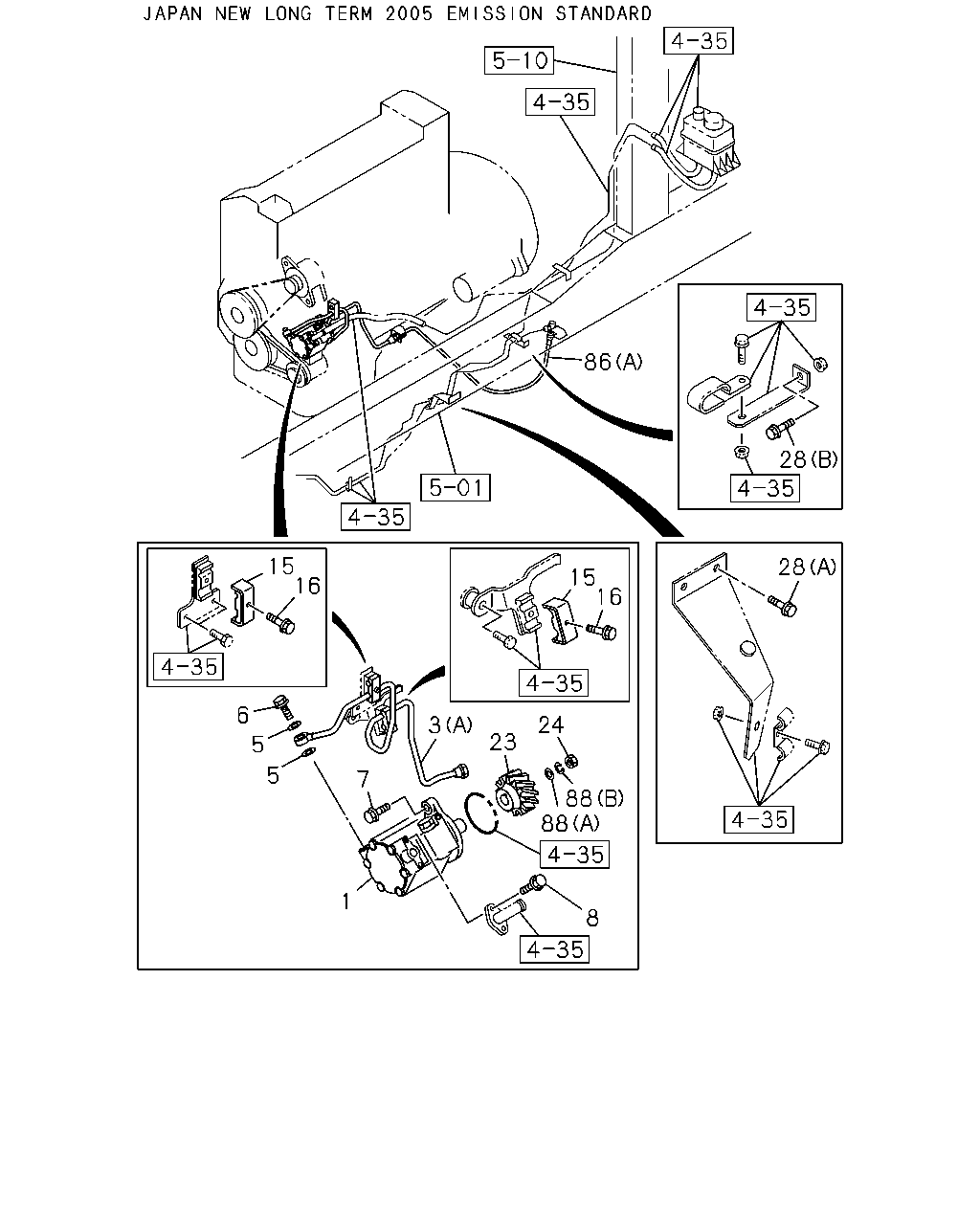

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#14633) — 76 parça

86 28 15 16 28 15 16 6 24 3 23 5 5 7 88 88 1 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-616-2	01	1	0710-1005	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-616-3	01	1	1006-	●	●
3	PIPE; OIL,CHARGE,P/S 6WG1 TC-N(71L) (B)	8-97618-554-0	01	1	1108-	●
3	PIPE; OIL,CHARGE,P/S (A)	1-13314-057-0	01	1	0710-1005	●
3	PIPE; OIL,CHARGE,P/S (A)	1-13314-057-0	01	1	1006-1107	●	●
3	PIPE; OIL,CHARGE,P/S 6WG1 TC-C(72L) (A)	1-13314-057-0	01	1	1108-	●
3	PIPE; OIL,CHARGE,P/S (A)	1-13314-057-0	01	1	1108-		●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	02	1	0710-1005	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	02	1	1006-	●	●
6	BOLT; EYE,P/S PIPE M18X33	1-09675-058-0	01	1	0710-1005	●
6	BOLT; EYE,P/S PIPE M18X33	1-09675-058-0	01	1	1006-	●	●
7	BOLT; OIL PUMP,P/S M10X130 FLANGE	0-28156-013-0	02	1	0710-1005	●
7	BOLT; OIL PUMP,P/S M10X130 FLANGE	0-28156-013-0	02	1	1006-	●	●
8	BOLT; OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	0710-1005	●
8	BOLT; OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1006-	●	●
15	CLIP; OIL PIPE SUCTION	1-09701-195-3	02	1	0710-1005	●
15	CLIP; OIL PIPE SUCTION	1-09701-195-3	02	1	1006-	●	●
16	BOLT; STAY,P/S OIL PUMP M6X35 FLANGE	0-28650-635-0	02	1	0710-1005	●
16	BOLT; STAY,P/S OIL PUMP M6X35 FLANGE	0-28650-635-0	02	1	1006-	●	●
23	GEAR; OIL PUMP Z=20	1-19581-041-0	01	1	0710-1005	●
23	GEAR; OIL PUMP Z=20	1-19581-041-0	01	1	1006-	●	●
24	NUT; GEAR,P/S PUMP M16	9-19519-112-0	01	1	0710-1005	●
24	NUT; GEAR,P/S PUMP M16	9-19519-112-0	01	1	1006-	●	●
28	BOLT; BRKT,FLEX HOSE,P/S (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-1005	●
28	BOLT; BRKT,FLEX HOSE,P/S (A) M8X25 FLANGE	0-28650-825-0	02	1	1006-1107	●	●
28	BOLT; BRKT,FLEX HOSE,P/S JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M8X25 FLANGE	0-28650-825-0	02	1	1108-	●
28	BOLT; BRKT,FLEX HOSE,P/S (A) M8X25 FLANGE	0-28650-825-0	02	1	1108-		●
28	BOLT; BRKT,FLEX HOSE,P/S (B) M8X30 FLANGE	0-28650-830-0	01	1	0710-1005	●
28	BOLT; BRKT,FLEX HOSE,P/S (B) M8X30 FLANGE	0-28650-830-0	01	1	1006-	●	●
86	HOSE; FLEX,P/S EURO5 SPECIFICATION<NT5> (B) L=380	1-09365-226-0	01	1	1108-	●
86	HOSE; FLEX,P/S (A) L=470	1-09365-177-0	01	1	0710-1005	●
86	HOSE; FLEX,P/S (A) L=470	1-09365-177-0	01	1	1006-1107	●	●
86	HOSE; FLEX,P/S JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) L=470	1-09365-177-0	01	1	1108-	●
86	HOSE; FLEX,P/S (A) L=470	1-09365-177-0	01	1	1108-		●
88	WASHER; GEAR,P/S PUMP (A)	1-19519-293-0	01	1	0710-1005	●
88	WASHER; GEAR,P/S PUMP (A)	1-19519-293-0	01	1	1006-	●	●
88	WASHER; GEAR,P/S PUMP (B)	9-09150-016-0	01	1	0710-1005	●
88	WASHER; GEAR,P/S PUMP (B)	9-09150-016-0	01	1	1006-	●	●

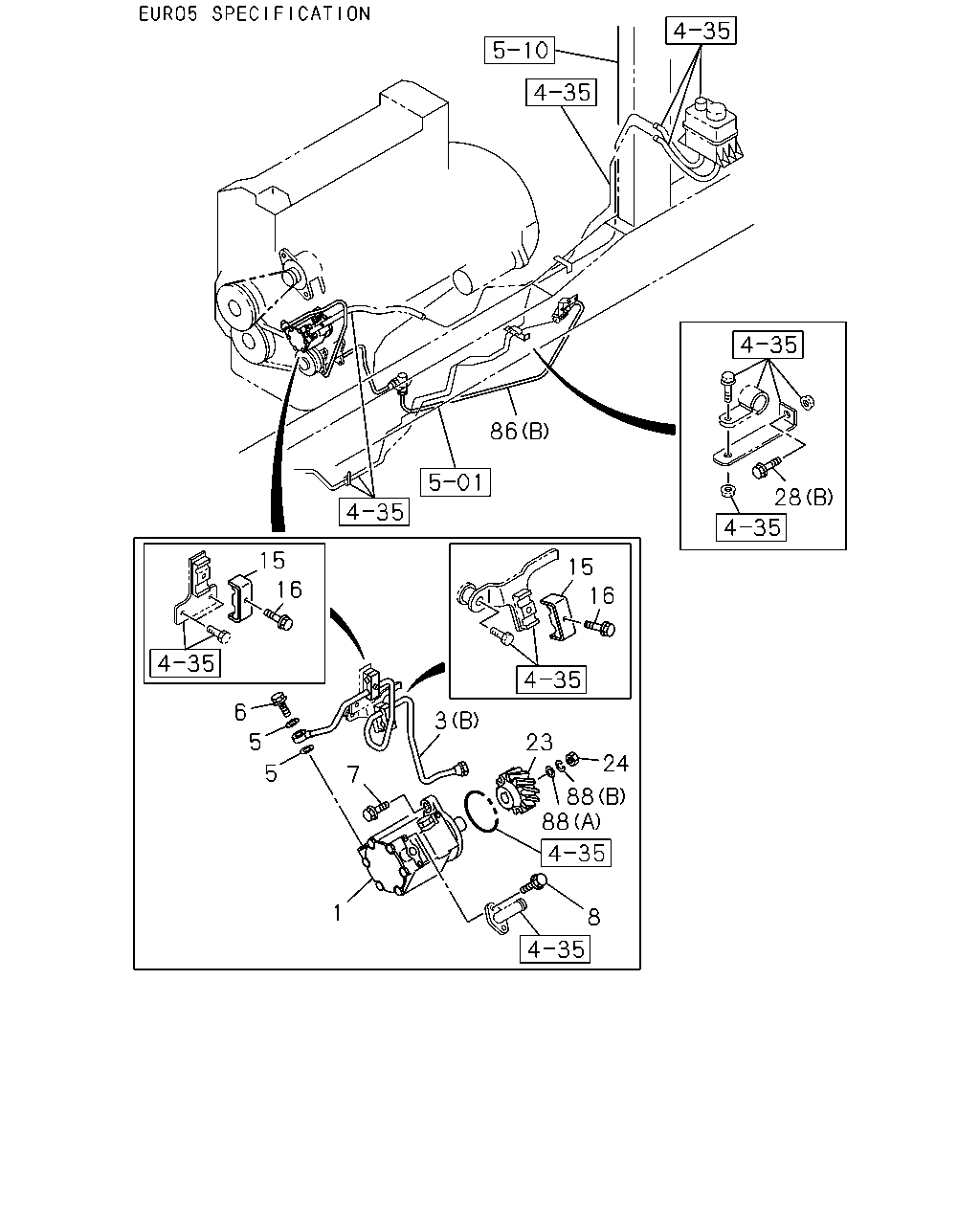

86 28 15 15 16 16 6 3 5 23 24 5 7 88 88 1 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-616-2	01	1	0710-1005	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-616-3	01	1	1006-	●	●
3	PIPE; OIL,CHARGE,P/S 6WG1 TC-N(71L) (B)	8-97618-554-0	01	1	1108-	●
3	PIPE; OIL,CHARGE,P/S (A)	1-13314-057-0	01	1	0710-1005	●
3	PIPE; OIL,CHARGE,P/S (A)	1-13314-057-0	01	1	1006-1107	●	●
3	PIPE; OIL,CHARGE,P/S 6WG1 TC-C(72L) (A)	1-13314-057-0	01	1	1108-	●
3	PIPE; OIL,CHARGE,P/S (A)	1-13314-057-0	01	1	1108-		●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	02	1	0710-1005	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	02	1	1006-	●	●
6	BOLT; EYE,P/S PIPE M18X33	1-09675-058-0	01	1	0710-1005	●
6	BOLT; EYE,P/S PIPE M18X33	1-09675-058-0	01	1	1006-	●	●
7	BOLT; OIL PUMP,P/S M10X130 FLANGE	0-28156-013-0	02	1	0710-1005	●
7	BOLT; OIL PUMP,P/S M10X130 FLANGE	0-28156-013-0	02	1	1006-	●	●
8	BOLT; OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	0710-1005	●
8	BOLT; OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1006-	●	●
15	CLIP; OIL PIPE SUCTION	1-09701-195-3	02	1	0710-1005	●
15	CLIP; OIL PIPE SUCTION	1-09701-195-3	02	1	1006-	●	●
16	BOLT; STAY,P/S OIL PUMP M6X35 FLANGE	0-28650-635-0	02	1	0710-1005	●
16	BOLT; STAY,P/S OIL PUMP M6X35 FLANGE	0-28650-635-0	02	1	1006-	●	●
23	GEAR; OIL PUMP Z=20	1-19581-041-0	01	1	0710-1005	●
23	GEAR; OIL PUMP Z=20	1-19581-041-0	01	1	1006-	●	●
24	NUT; GEAR,P/S PUMP M16	9-19519-112-0	01	1	0710-1005	●
24	NUT; GEAR,P/S PUMP M16	9-19519-112-0	01	1	1006-	●	●
28	BOLT; BRKT,FLEX HOSE,P/S (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-1005	●
28	BOLT; BRKT,FLEX HOSE,P/S (A) M8X25 FLANGE	0-28650-825-0	02	1	1006-1107	●	●
28	BOLT; BRKT,FLEX HOSE,P/S JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M8X25 FLANGE	0-28650-825-0	02	1	1108-	●
28	BOLT; BRKT,FLEX HOSE,P/S (A) M8X25 FLANGE	0-28650-825-0	02	1	1108-		●
28	BOLT; BRKT,FLEX HOSE,P/S (B) M8X30 FLANGE	0-28650-830-0	01	1	0710-1005	●
28	BOLT; BRKT,FLEX HOSE,P/S (B) M8X30 FLANGE	0-28650-830-0	01	1	1006-	●	●
86	HOSE; FLEX,P/S EURO5 SPECIFICATION<NT5> (B) L=380	1-09365-226-0	01	1	1108-	●
86	HOSE; FLEX,P/S (A) L=470	1-09365-177-0	01	1	0710-1005	●
86	HOSE; FLEX,P/S (A) L=470	1-09365-177-0	01	1	1006-1107	●	●
86	HOSE; FLEX,P/S JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) L=470	1-09365-177-0	01	1	1108-	●
86	HOSE; FLEX,P/S (A) L=470	1-09365-177-0	01	1	1108-		●
88	WASHER; GEAR,P/S PUMP (A)	1-19519-293-0	01	1	0710-1005	●
88	WASHER; GEAR,P/S PUMP (A)	1-19519-293-0	01	1	1006-	●	●
88	WASHER; GEAR,P/S PUMP (B)	9-09150-016-0	01	1	0710-1005	●
88	WASHER; GEAR,P/S PUMP (B)	9-09150-016-0	01	1	1006-	●	●
