Sayfa 4-20 - Isuzu EPC

4-20 — REAR AXLE CASE AND SHAFT (#14627) — 271 parça

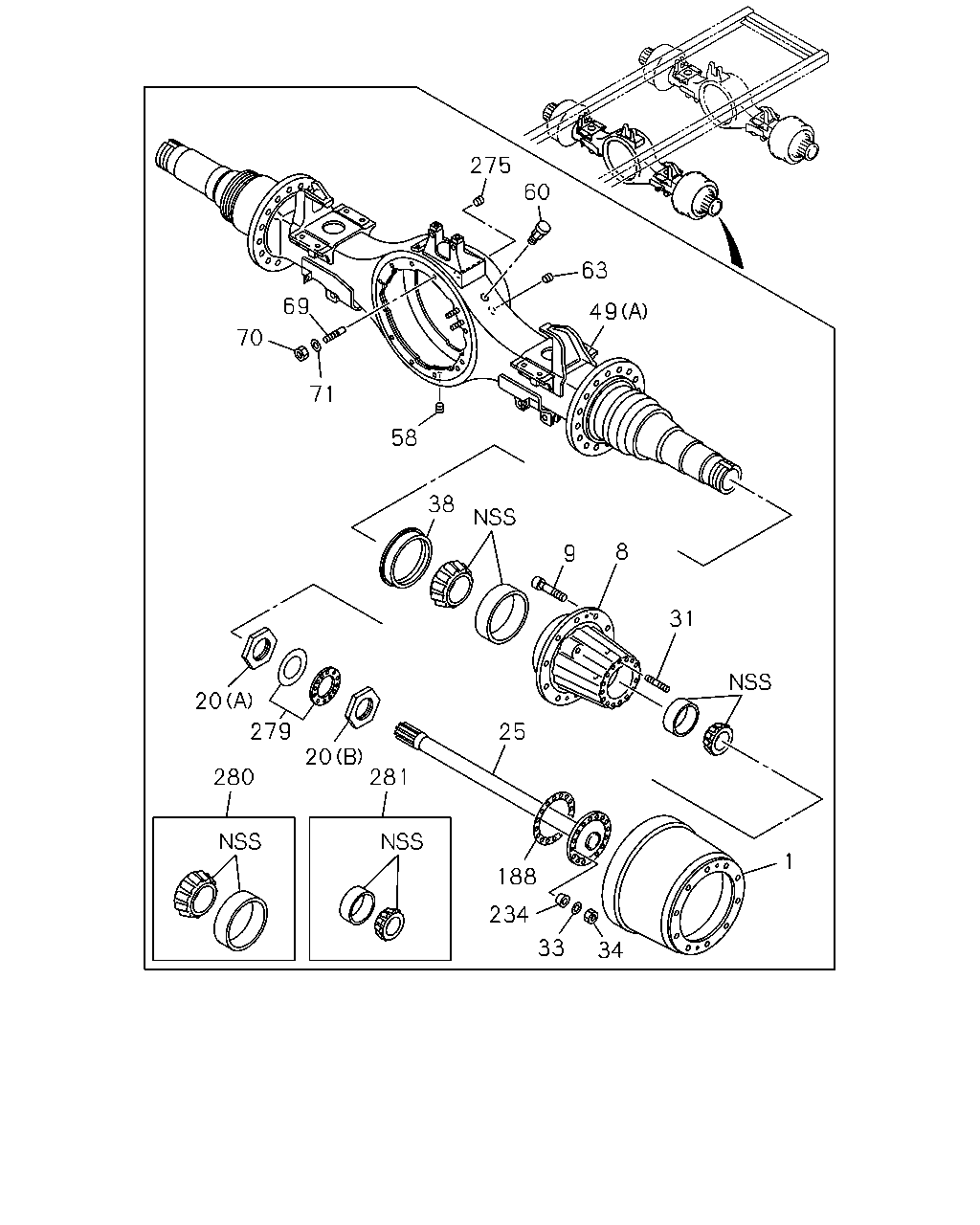

49 63 60 275 69 71 70 58 38 8 9 31 1 34 33 188 234 281 25 20 279 20 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR	1-42315-419-0	04	1	0710-1005	●
1	DRUM; BRK,RR	1-42315-419-0	04	1	1006-1207	●	●
1	DRUM; BRK,RR	1-42315-422-0	04	1	1208-	●	●
8	HUB; RR AXLE DISC WHEEL AL<SDM>	1-42311-159-0	02	1	0710-1005	●
8	HUB; RR AXLE DISC WHEEL AL<SDM>	1-42311-159-0	02	1	1006-1207	●	●
8	HUB; RR AXLE DISC WHEEL AL<SDM>	1-42311-166-0	04	1	1208-	●	●
8	HUB; RR AXLE DISC WHEEL STEEL<SDN>	1-42311-155-0	02	1	0710-1005	●
8	HUB; RR AXLE DISC WHEEL STEEL<SDN>	1-42311-155-0	02	1	1006-1207	●	●
8	HUB; RR AXLE DISC WHEEL STEEL<SDN>	1-42311-164-0	04	1	1208-	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL AL<SDM>	1-42339-032-0	40	1	0710-1005	●
9	PIN; WHEEL,RR AXLE DISC WHEEL AL<SDM>	1-42339-032-0	40	1	1006-	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL STEEL<SDN>	1-42339-033-0	40	1	0710-1005	●
9	PIN; WHEEL,RR AXLE DISC WHEEL STEEL<SDN>	1-42339-033-0	40	1	1006-	●	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	04	1	0710-1005	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	04	1	1006-	●	●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	04	1	0710-1005	●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	04	1	1006-	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH L=951	1-42171-557-0	02	1	0710-1005	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH L=951	1-42171-557-0	02	1	1006-	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH L=1120	1-42171-558-0	02	1	0710-1005	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH L=1120	1-42171-558-0	02	1	1006-	●	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	32	1	0710-1005	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	32	1	1006-	●	●
33	WASHER; AXLE SHAFT	1-42179-003-0	32	1	0710-1005	●
33	WASHER; AXLE SHAFT	1-42179-003-0	32	1	1006-	●	●
34	NUT; AXLE SHAFT	1-42179-005-0	32	1	0710-1005	●
34	NUT; AXLE SHAFT	1-42179-005-0	32	1	1006-	●	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	04	1	0710-1005	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	04	1	1006-	●	●
49	CASE; RR AXLE (B)	1-42119-228-0	01	1	0710-1005	●
49	CASE; RR AXLE (B)	1-42119-228-0	01	1	1006-1306	●	●
49	CASE; RR AXLE (B)	1-42190-757-0	01	1	1307-	●	●
49	CASE; RR AXLE (A)	1-42190-733-0	01	1	0710-1005	●
49	CASE; RR AXLE (A)	1-42190-733-0	01	1	1006-	●	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	02	1	0710-1005	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	02	1	1006-	●	●
60	BREATHER; RR AXLE CASE	1-09893-032-0	02	1	1401-	●	●
60	BREATHER; RR AXLE CASE	1-09893-028-0	02	1	0710-1001	●
60	BREATHER; RR AXLE CASE	1-09893-028-0	02	1	1002-1312	●	●
63	PLUG; OIL FILLER,AXLE CASE	1-42129-054-0	02	1	0710-1005	●
63	PLUG; OIL FILLER,AXLE CASE	1-42129-054-0	02	1	1006-	●	●
69	STUD; AXLE CASE FORWARD L=114.3	1-41329-031-0	02	1	0710-1005	●
69	STUD; AXLE CASE FORWARD L=114.3	1-41329-031-0	02	1	1006-	●	●
69	STUD; AXLE CASE FORWARD L=69.85	1-42119-134-0	07	1	0710-1005	●
69	STUD; AXLE CASE FORWARD L=69.85	1-42119-134-0	07	1	1006-	●	●
69	STUD; AXLE CASE REARWARD L=120.65	1-42119-184-0	04	1	0710-1005	●
69	STUD; AXLE CASE REARWARD L=120.65	1-42119-184-0	04	1	1006-	●	●
69	STUD; AXLE CASE FORWARD L=76.45	1-42119-210-0	01	1	0710-1005	●
69	STUD; AXLE CASE FORWARD L=76.45	1-42119-210-0	01	1	1006-	●	●
69	STUD; AXLE CASE FORWARD L=107.95	1-42119-211-0	01	1	0710-1005	●
69	STUD; AXLE CASE FORWARD L=107.95	1-42119-211-0	01	1	1006-	●	●
69	STUD; AXLE CASE FORWARD L=73.1	1-42119-224-0	04	1	0710-1005	●
69	STUD; AXLE CASE FORWARD L=73.1	1-42119-224-0	04	1	1006-	●	●
70	NUT; CARRIER	1-42179-005-0	19	1	0710-1005	●
70	NUT; CARRIER	1-42179-005-0	19	1	1006-	●	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	27	1	0710-1005	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	27	1	1006-	●	●
188	GASKET; AXLE SHAFT	1-42175-013-0	04	1	0710-1005	●
188	GASKET; AXLE SHAFT	1-42175-013-0	04	1	1006-	●	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	38	1	0710-1005	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	38	1	1006-	●	●
275	PLUG	1-42119-135-0	02	1	0710-1005	●
275	PLUG	1-42119-135-0	02	1	1006-	●	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	04	1	0710-1005	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	04	1	1006-	●	●
280	BEARING SET; HUB,INNER	1-85573-012-0	04	1	0710-	●	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	04	1	0710-	●	●

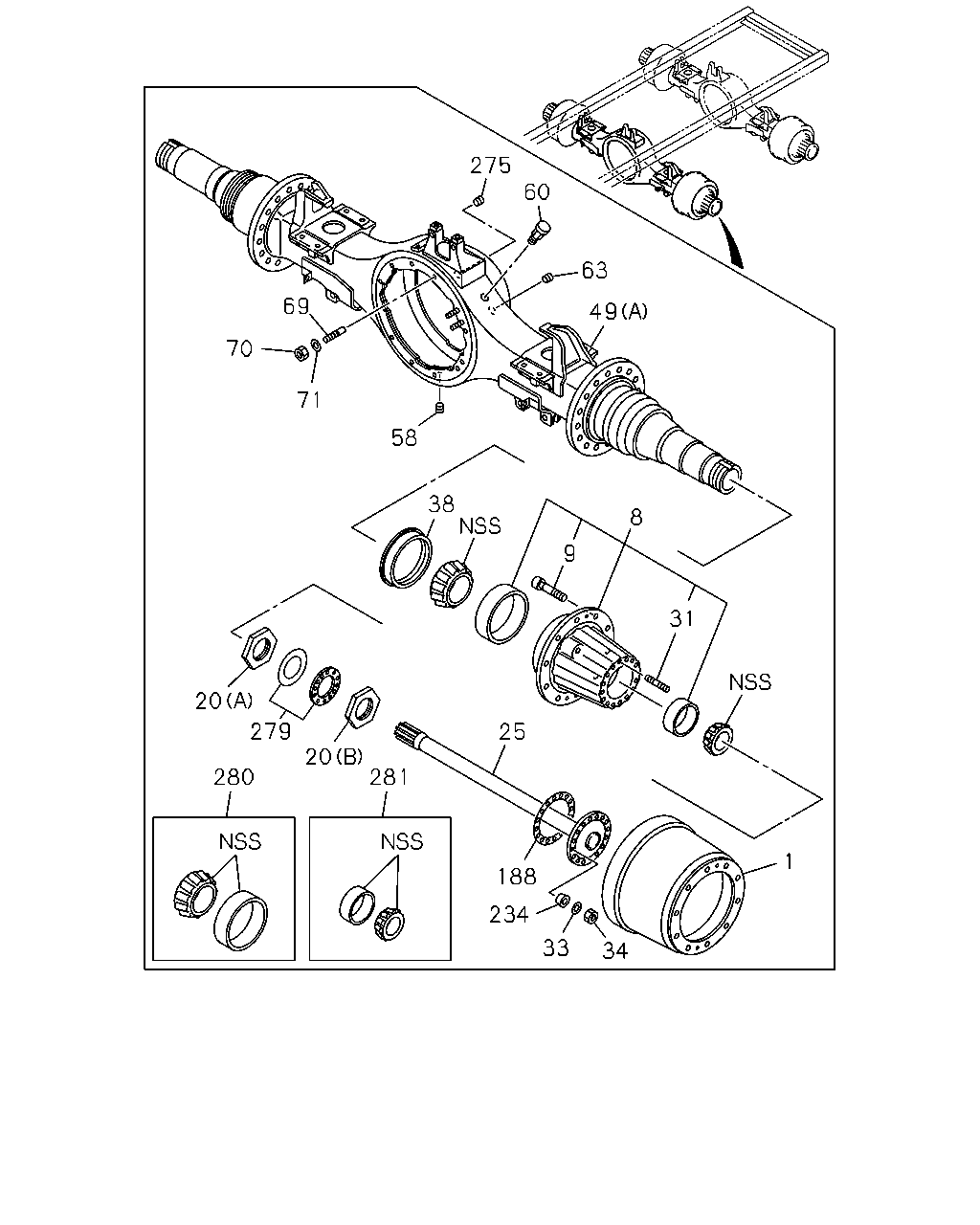

1 34 33 234 188 281 20 280 279 20 25 31 8 9 38 58 71 70 69 275 60 63 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR	1-42315-419-0	04	1	0710-1005	●
1	DRUM; BRK,RR	1-42315-419-0	04	1	1006-1207	●	●
1	DRUM; BRK,RR	1-42315-422-0	04	1	1208-	●	●
8	HUB; RR AXLE DISC WHEEL AL<SDM>	1-42311-159-0	02	1	0710-1005	●
8	HUB; RR AXLE DISC WHEEL AL<SDM>	1-42311-159-0	02	1	1006-1207	●	●
8	HUB; RR AXLE DISC WHEEL AL<SDM>	1-42311-166-0	04	1	1208-	●	●
8	HUB; RR AXLE DISC WHEEL STEEL<SDN>	1-42311-155-0	02	1	0710-1005	●
8	HUB; RR AXLE DISC WHEEL STEEL<SDN>	1-42311-155-0	02	1	1006-1207	●	●
8	HUB; RR AXLE DISC WHEEL STEEL<SDN>	1-42311-164-0	04	1	1208-	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL AL<SDM>	1-42339-032-0	40	1	0710-1005	●
9	PIN; WHEEL,RR AXLE DISC WHEEL AL<SDM>	1-42339-032-0	40	1	1006-	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL STEEL<SDN>	1-42339-033-0	40	1	0710-1005	●
9	PIN; WHEEL,RR AXLE DISC WHEEL STEEL<SDN>	1-42339-033-0	40	1	1006-	●	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	04	1	0710-1005	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	04	1	1006-	●	●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	04	1	0710-1005	●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	04	1	1006-	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH L=951	1-42171-557-0	02	1	0710-1005	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH L=951	1-42171-557-0	02	1	1006-	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH L=1120	1-42171-558-0	02	1	0710-1005	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH L=1120	1-42171-558-0	02	1	1006-	●	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	32	1	0710-1005	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	32	1	1006-	●	●
33	WASHER; AXLE SHAFT	1-42179-003-0	32	1	0710-1005	●
33	WASHER; AXLE SHAFT	1-42179-003-0	32	1	1006-	●	●
34	NUT; AXLE SHAFT	1-42179-005-0	32	1	0710-1005	●
34	NUT; AXLE SHAFT	1-42179-005-0	32	1	1006-	●	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	04	1	0710-1005	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	04	1	1006-	●	●
49	CASE; RR AXLE (B)	1-42119-228-0	01	1	0710-1005	●
49	CASE; RR AXLE (B)	1-42119-228-0	01	1	1006-1306	●	●
49	CASE; RR AXLE (B)	1-42190-757-0	01	1	1307-	●	●
49	CASE; RR AXLE (A)	1-42190-733-0	01	1	0710-1005	●
49	CASE; RR AXLE (A)	1-42190-733-0	01	1	1006-	●	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	02	1	0710-1005	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	02	1	1006-	●	●
60	BREATHER; RR AXLE CASE	1-09893-032-0	02	1	1401-	●	●
60	BREATHER; RR AXLE CASE	1-09893-028-0	02	1	0710-1001	●
60	BREATHER; RR AXLE CASE	1-09893-028-0	02	1	1002-1312	●	●
63	PLUG; OIL FILLER,AXLE CASE	1-42129-054-0	02	1	0710-1005	●
63	PLUG; OIL FILLER,AXLE CASE	1-42129-054-0	02	1	1006-	●	●
69	STUD; AXLE CASE FORWARD L=114.3	1-41329-031-0	02	1	0710-1005	●
69	STUD; AXLE CASE FORWARD L=114.3	1-41329-031-0	02	1	1006-	●	●
69	STUD; AXLE CASE FORWARD L=69.85	1-42119-134-0	07	1	0710-1005	●
69	STUD; AXLE CASE FORWARD L=69.85	1-42119-134-0	07	1	1006-	●	●
69	STUD; AXLE CASE REARWARD L=120.65	1-42119-184-0	04	1	0710-1005	●
69	STUD; AXLE CASE REARWARD L=120.65	1-42119-184-0	04	1	1006-	●	●
69	STUD; AXLE CASE FORWARD L=76.45	1-42119-210-0	01	1	0710-1005	●
69	STUD; AXLE CASE FORWARD L=76.45	1-42119-210-0	01	1	1006-	●	●
69	STUD; AXLE CASE FORWARD L=107.95	1-42119-211-0	01	1	0710-1005	●
69	STUD; AXLE CASE FORWARD L=107.95	1-42119-211-0	01	1	1006-	●	●
69	STUD; AXLE CASE FORWARD L=73.1	1-42119-224-0	04	1	0710-1005	●
69	STUD; AXLE CASE FORWARD L=73.1	1-42119-224-0	04	1	1006-	●	●
70	NUT; CARRIER	1-42179-005-0	19	1	0710-1005	●
70	NUT; CARRIER	1-42179-005-0	19	1	1006-	●	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	27	1	0710-1005	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	27	1	1006-	●	●
188	GASKET; AXLE SHAFT	1-42175-013-0	04	1	0710-1005	●
188	GASKET; AXLE SHAFT	1-42175-013-0	04	1	1006-	●	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	38	1	0710-1005	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	38	1	1006-	●	●
275	PLUG	1-42119-135-0	02	1	0710-1005	●
275	PLUG	1-42119-135-0	02	1	1006-	●	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	04	1	0710-1005	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	04	1	1006-	●	●
280	BEARING SET; HUB,INNER	1-85573-012-0	04	1	0710-	●	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	04	1	0710-	●	●

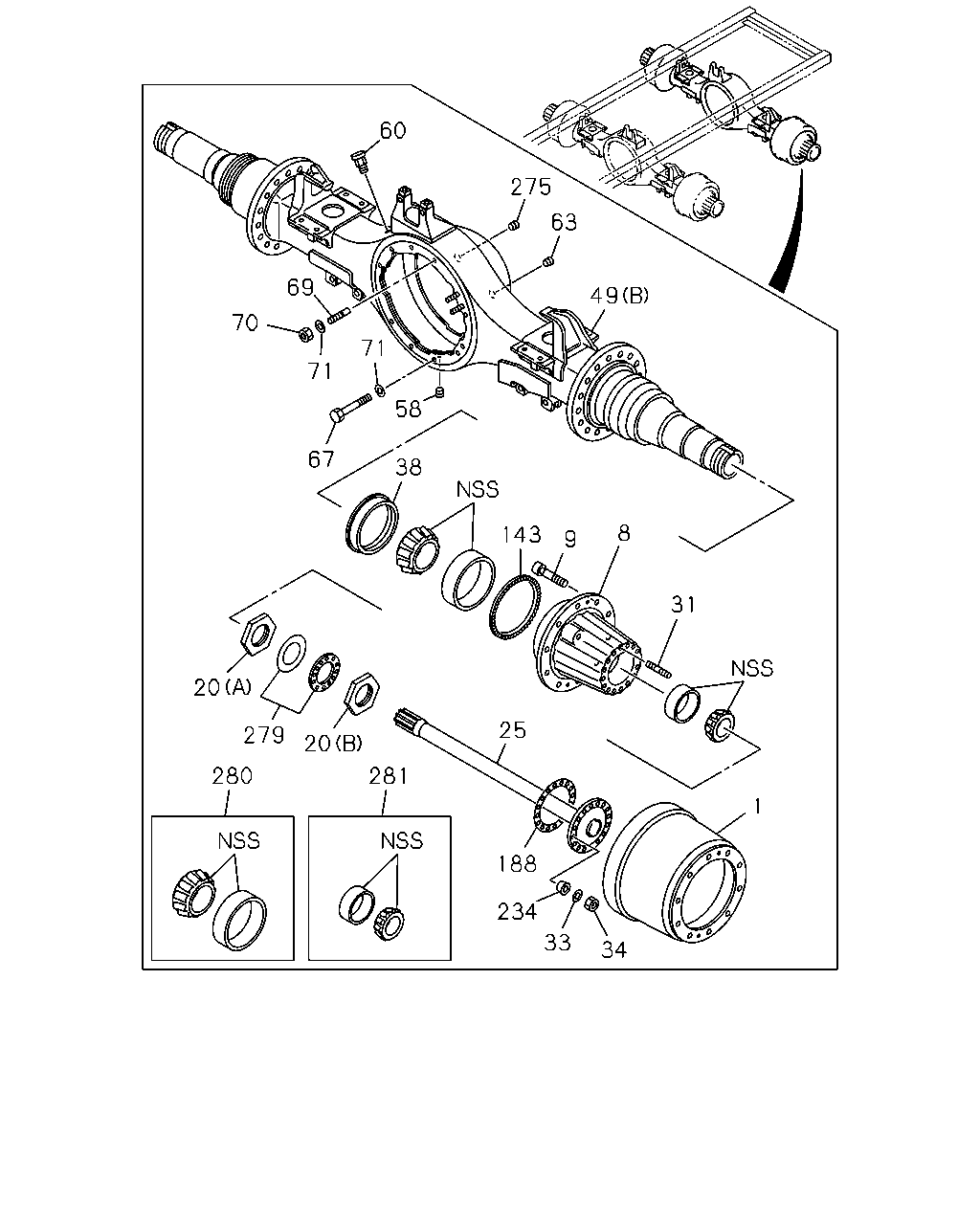

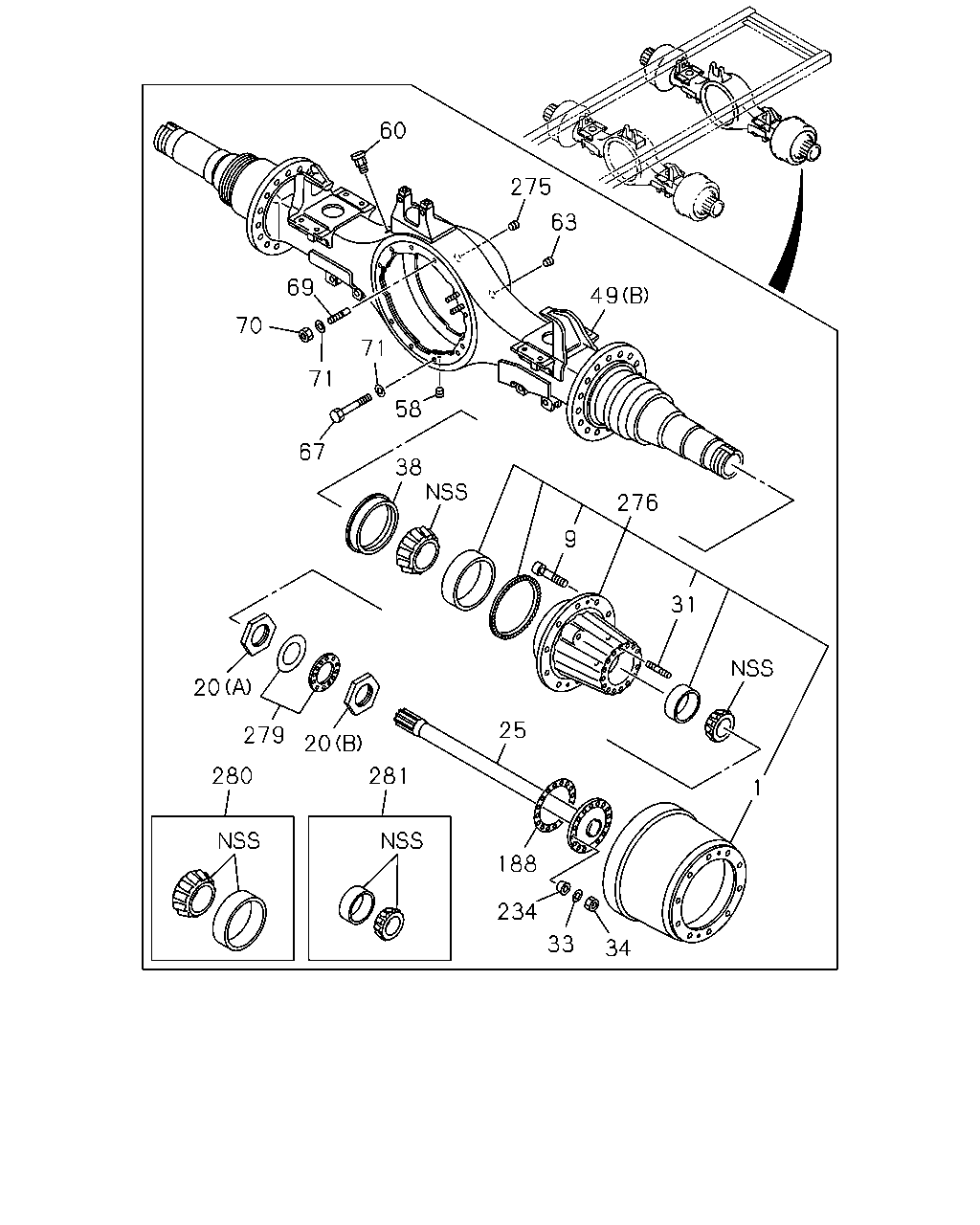

1 34 33 234 188 25 281 20 280 279 20 31 276 9 38 58 67 71 71 70 69 60 275 63 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR	1-42315-419-0	04	1	0710-1005	●
1	DRUM; BRK,RR	1-42315-419-0	04	1	1006-1207	●	●
1	DRUM; BRK,RR	1-42315-422-0	04	1	1208-	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL AL<SDM>	1-42339-032-0	40	1	0710-1005	●
9	PIN; WHEEL,RR AXLE DISC WHEEL AL<SDM>	1-42339-032-0	40	1	1006-	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL STEEL<SDN>	1-42339-033-0	40	1	0710-1005	●
9	PIN; WHEEL,RR AXLE DISC WHEEL STEEL<SDN>	1-42339-033-0	40	1	1006-	●	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	04	1	0710-1005	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	04	1	1006-	●	●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	04	1	0710-1005	●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	04	1	1006-	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH L=951	1-42171-557-0	02	1	0710-1005	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH L=951	1-42171-557-0	02	1	1006-	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH L=1120	1-42171-558-0	02	1	0710-1005	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH L=1120	1-42171-558-0	02	1	1006-	●	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	32	1	0710-1005	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	32	1	1006-	●	●
33	WASHER; AXLE SHAFT	1-42179-003-0	32	1	0710-1005	●
33	WASHER; AXLE SHAFT	1-42179-003-0	32	1	1006-	●	●
34	NUT; AXLE SHAFT	1-42179-005-0	32	1	0710-1005	●
34	NUT; AXLE SHAFT	1-42179-005-0	32	1	1006-	●	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	04	1	0710-1005	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	04	1	1006-	●	●
49	CASE; RR AXLE (B)	1-42119-228-0	01	1	0710-1005	●
49	CASE; RR AXLE (B)	1-42119-228-0	01	1	1006-1306	●	●
49	CASE; RR AXLE (B)	1-42190-757-0	01	1	1307-	●	●
49	CASE; RR AXLE (A)	1-42190-733-0	01	1	0710-1005	●
49	CASE; RR AXLE (A)	1-42190-733-0	01	1	1006-	●	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	02	1	0710-1005	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	02	1	1006-	●	●
60	BREATHER; RR AXLE CASE	1-09893-032-0	02	1	1401-	●	●
60	BREATHER; RR AXLE CASE	1-09893-028-0	02	1	0710-1001	●
60	BREATHER; RR AXLE CASE	1-09893-028-0	02	1	1002-1312	●	●
63	PLUG; OIL FILLER,AXLE CASE	1-42129-054-0	02	1	0710-1005	●
63	PLUG; OIL FILLER,AXLE CASE	1-42129-054-0	02	1	1006-	●	●
67	BOLT; FINAL DRIVE SETTING	1-42119-136-0	08	1	0710-1005	●
67	BOLT; FINAL DRIVE SETTING	1-42119-136-0	08	1	1006-	●	●
69	STUD; AXLE CASE FORWARD L=114.3	1-41329-031-0	02	1	0710-1005	●
69	STUD; AXLE CASE FORWARD L=114.3	1-41329-031-0	02	1	1006-	●	●
69	STUD; AXLE CASE FORWARD L=69.85	1-42119-134-0	07	1	0710-1005	●
69	STUD; AXLE CASE FORWARD L=69.85	1-42119-134-0	07	1	1006-	●	●
69	STUD; AXLE CASE REARWARD L=120.65	1-42119-184-0	04	1	0710-1005	●
69	STUD; AXLE CASE REARWARD L=120.65	1-42119-184-0	04	1	1006-	●	●
69	STUD; AXLE CASE FORWARD L=76.45	1-42119-210-0	01	1	0710-1005	●
69	STUD; AXLE CASE FORWARD L=76.45	1-42119-210-0	01	1	1006-	●	●
69	STUD; AXLE CASE FORWARD L=107.95	1-42119-211-0	01	1	0710-1005	●
69	STUD; AXLE CASE FORWARD L=107.95	1-42119-211-0	01	1	1006-	●	●
69	STUD; AXLE CASE FORWARD L=73.1	1-42119-224-0	04	1	0710-1005	●
69	STUD; AXLE CASE FORWARD L=73.1	1-42119-224-0	04	1	1006-	●	●
70	NUT; CARRIER	1-42179-005-0	19	1	0710-1005	●
70	NUT; CARRIER	1-42179-005-0	19	1	1006-	●	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	27	1	0710-1005	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	27	1	1006-	●	●
188	GASKET; AXLE SHAFT	1-42175-013-0	04	1	0710-1005	●
188	GASKET; AXLE SHAFT	1-42175-013-0	04	1	1006-	●	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	38	1	0710-1005	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	38	1	1006-	●	●
275	PLUG	1-42119-135-0	02	1	0710-1005	●
275	PLUG	1-42119-135-0	02	1	1006-	●	●
276	HUB & DRUM ASM DISC WHEEL AL<SDM>	1-42311-162-0	02	1	0710-1005	●
276	HUB & DRUM ASM DISC WHEEL AL<SDM>	1-42311-162-0	02	1	1006-1207	●	●
276	HUB & DRUM ASM DISC WHEEL STEEL<SDN>	1-42311-158-0	02	1	0710-1005	●
276	HUB & DRUM ASM DISC WHEEL STEEL<SDN>	1-42311-158-0	02	1	1006-1207	●	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	04	1	0710-1005	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	04	1	1006-	●	●
280	BEARING SET; HUB,INNER	1-85573-012-0	04	1	0710-	●	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	04	1	0710-	●	●

1 34 33 234 188 25 281 280 20 279 20 31 8 9 143 38 67 58 71 71 70 69 60 275 63 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR	1-42315-419-0	04	1	0710-1005	●
1	DRUM; BRK,RR	1-42315-419-0	04	1	1006-1207	●	●
1	DRUM; BRK,RR	1-42315-422-0	04	1	1208-	●	●
8	HUB; RR AXLE DISC WHEEL AL<SDM>	1-42311-159-0	02	1	0710-1005	●
8	HUB; RR AXLE DISC WHEEL AL<SDM>	1-42311-159-0	02	1	1006-1207	●	●
8	HUB; RR AXLE DISC WHEEL AL<SDM>	1-42311-166-0	04	1	1208-	●	●
8	HUB; RR AXLE DISC WHEEL STEEL<SDN>	1-42311-155-0	02	1	0710-1005	●
8	HUB; RR AXLE DISC WHEEL STEEL<SDN>	1-42311-155-0	02	1	1006-1207	●	●
8	HUB; RR AXLE DISC WHEEL STEEL<SDN>	1-42311-164-0	04	1	1208-	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL AL<SDM>	1-42339-032-0	40	1	0710-1005	●
9	PIN; WHEEL,RR AXLE DISC WHEEL AL<SDM>	1-42339-032-0	40	1	1006-	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL STEEL<SDN>	1-42339-033-0	40	1	0710-1005	●
9	PIN; WHEEL,RR AXLE DISC WHEEL STEEL<SDN>	1-42339-033-0	40	1	1006-	●	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	04	1	0710-1005	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	04	1	1006-	●	●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	04	1	0710-1005	●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	04	1	1006-	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH L=951	1-42171-557-0	02	1	0710-1005	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH L=951	1-42171-557-0	02	1	1006-	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH L=1120	1-42171-558-0	02	1	0710-1005	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH L=1120	1-42171-558-0	02	1	1006-	●	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	32	1	0710-1005	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	32	1	1006-	●	●
33	WASHER; AXLE SHAFT	1-42179-003-0	32	1	0710-1005	●
33	WASHER; AXLE SHAFT	1-42179-003-0	32	1	1006-	●	●
34	NUT; AXLE SHAFT	1-42179-005-0	32	1	0710-1005	●
34	NUT; AXLE SHAFT	1-42179-005-0	32	1	1006-	●	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	04	1	0710-1005	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	04	1	1006-	●	●
49	CASE; RR AXLE (B)	1-42119-228-0	01	1	0710-1005	●
49	CASE; RR AXLE (B)	1-42119-228-0	01	1	1006-1306	●	●
49	CASE; RR AXLE (B)	1-42190-757-0	01	1	1307-	●	●
49	CASE; RR AXLE (A)	1-42190-733-0	01	1	0710-1005	●
49	CASE; RR AXLE (A)	1-42190-733-0	01	1	1006-	●	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	02	1	0710-1005	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	02	1	1006-	●	●
60	BREATHER; RR AXLE CASE	1-09893-032-0	02	1	1401-	●	●
60	BREATHER; RR AXLE CASE	1-09893-028-0	02	1	0710-1001	●
60	BREATHER; RR AXLE CASE	1-09893-028-0	02	1	1002-1312	●	●
63	PLUG; OIL FILLER,AXLE CASE	1-42129-054-0	02	1	0710-1005	●
63	PLUG; OIL FILLER,AXLE CASE	1-42129-054-0	02	1	1006-	●	●
67	BOLT; FINAL DRIVE SETTING	1-42119-136-0	08	1	0710-1005	●
67	BOLT; FINAL DRIVE SETTING	1-42119-136-0	08	1	1006-	●	●
69	STUD; AXLE CASE FORWARD L=114.3	1-41329-031-0	02	1	0710-1005	●
69	STUD; AXLE CASE FORWARD L=114.3	1-41329-031-0	02	1	1006-	●	●
69	STUD; AXLE CASE FORWARD L=69.85	1-42119-134-0	07	1	0710-1005	●
69	STUD; AXLE CASE FORWARD L=69.85	1-42119-134-0	07	1	1006-	●	●
69	STUD; AXLE CASE REARWARD L=120.65	1-42119-184-0	04	1	0710-1005	●
69	STUD; AXLE CASE REARWARD L=120.65	1-42119-184-0	04	1	1006-	●	●
69	STUD; AXLE CASE FORWARD L=76.45	1-42119-210-0	01	1	0710-1005	●
69	STUD; AXLE CASE FORWARD L=76.45	1-42119-210-0	01	1	1006-	●	●
69	STUD; AXLE CASE FORWARD L=107.95	1-42119-211-0	01	1	0710-1005	●
69	STUD; AXLE CASE FORWARD L=107.95	1-42119-211-0	01	1	1006-	●	●
69	STUD; AXLE CASE FORWARD L=73.1	1-42119-224-0	04	1	0710-1005	●
69	STUD; AXLE CASE FORWARD L=73.1	1-42119-224-0	04	1	1006-	●	●
70	NUT; CARRIER	1-42179-005-0	19	1	0710-1005	●
70	NUT; CARRIER	1-42179-005-0	19	1	1006-	●	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	27	1	0710-1005	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	27	1	1006-	●	●
143	RING; EXCITER	1-42319-224-0	02	1	1208-	●	●
188	GASKET; AXLE SHAFT	1-42175-013-0	04	1	0710-1005	●
188	GASKET; AXLE SHAFT	1-42175-013-0	04	1	1006-	●	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	38	1	0710-1005	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	38	1	1006-	●	●
275	PLUG	1-42119-135-0	02	1	0710-1005	●
275	PLUG	1-42119-135-0	02	1	1006-	●	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	04	1	0710-1005	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	04	1	1006-	●	●
280	BEARING SET; HUB,INNER	1-85573-012-0	04	1	0710-	●	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	04	1	0710-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
