4-11 — FRONT HUB AND DRUM OR ROTOR (#14626) — 72 parça

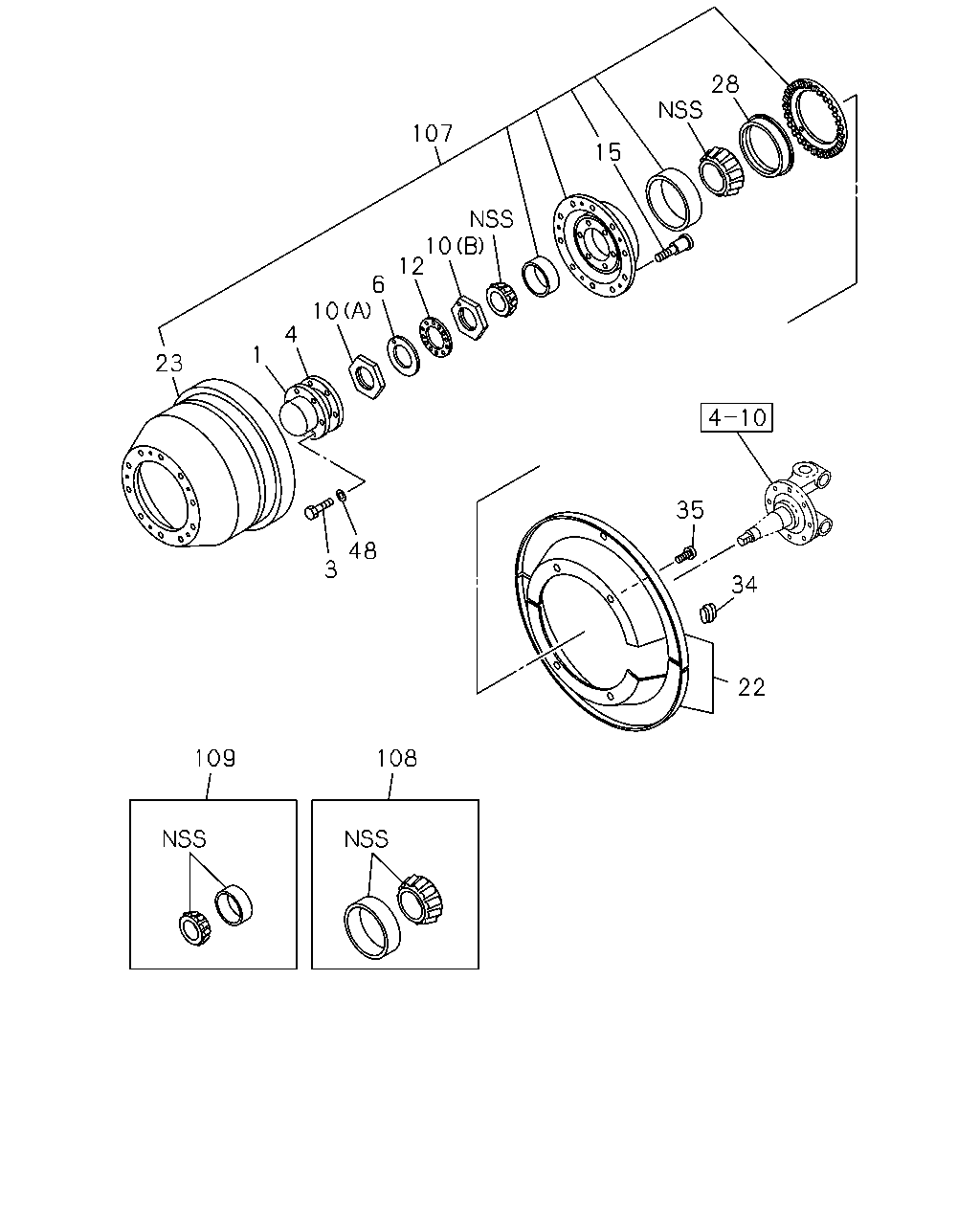

çizim 141603
22 34 35 108 109 48 3 28 15 10 12 6 10 4 1 23 107
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAP; HUB,FRT AXLE 1-42313-028-0 02 1 0710-1005 ●
1 CAP; HUB,FRT AXLE 1-42313-028-0 02 1 1006-1507 ● ●
1 CAP; HUB,FRT AXLE 8-98329-296-0 02 1 1508- ● ●
3 BOLT; HUB CAP,FRT WHEEL 1-42319-189-0 12 1 0710-1005 ●
3 BOLT; HUB CAP,FRT WHEEL 1-42319-189-0 12 1 1006- ● ●
4 GASKET; HUB CAP,FRT WHEEL 1-42319-186-0 02 1 0710-1005 ●
4 GASKET; HUB CAP,FRT WHEEL 1-42319-186-0 02 1 1006-1507 ● ●
4 GASKET; HUB CAP,FRT WHEEL 8-98329-302-0 02 1 1508- ● ●
6 WASHER; LK,FRT HUB 1-42329-018-0 02 1 0710-1005 ●
6 WASHER; LK,FRT HUB 1-42329-018-0 02 1 1006- ● ●
10 NUT; FRT HUB BRG
(A) 		1-42329-016-0 02 1 0710-1005 ●
10 NUT; FRT HUB BRG
(A) 		1-42329-016-0 02 1 1006- ● ●
10 NUT; FRT HUB BRG
(B) 		1-42329-017-0 02 1 0710-1005 ●
10 NUT; FRT HUB BRG
(B) 		1-42329-017-0 02 1 1006- ● ●
12 WASHER; LK,FRT HUB BRG 1-42329-015-0 02 1 0710-1005 ●
12 WASHER; LK,FRT HUB BRG 1-42329-015-0 02 1 1006- ● ●
15 PIN; WHEEL,FRT AXLE 1-42337-063-0 20 1 0710-1005 ●
15 PIN; WHEEL,FRT AXLE 1-42337-063-0 20 1 1006- ● ●
22 COVER SET; FRT BRK DRUM 1-47151-877-0 02 1 0710-1005 ●
22 COVER SET; FRT BRK DRUM 1-47151-877-0 02 1 1006- ● ●
23 DRUM; BRK,FRT 1-42315-412-0 02 1 0710-1005 ●
23 DRUM; BRK,FRT 1-42315-412-0 02 1 1006-1207 ● ●
23 DRUM; BRK,FRT 1-42315-421-0 02 1 1208- ● ●
28 SEAL; OIL,FRT HUB 1-09625-636-0 02 1 0710-1005 ●
28 SEAL; OIL,FRT HUB 1-09625-636-0 02 1 1006- ● ●
34 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 0710-1005 ●
34 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 1006- ● ●
35 BOLT; DRUM COVER 1-47159-176-0 12 1 0710-1005 ●
35 BOLT; DRUM COVER 1-47159-176-0 12 1 1006- ● ●
48 WASHER; LK,HUB CAP,FRT WHEEL 1-42319-190-0 12 1 0710-1005 ●
48 WASHER; LK,HUB CAP,FRT WHEEL 1-42319-190-0 12 1 1006-1507 ● ●
48 WASHER; LK,HUB CAP,FRT WHEEL 1-41519-055-0 12 1 1508- ● ●
107 HUB & DRUM ASM 1-42311-154-0 02 1 0710-1005 ●
107 HUB & DRUM ASM 1-42311-154-0 02 1 1006-1207 ● ●
108 BEARING SET; HUB,INNER 1-85573-010-0 02 1 0710- ● ●
109 BEARING SET; HUB,OUTER 1-85573-011-0 02 1 0710- ● ●

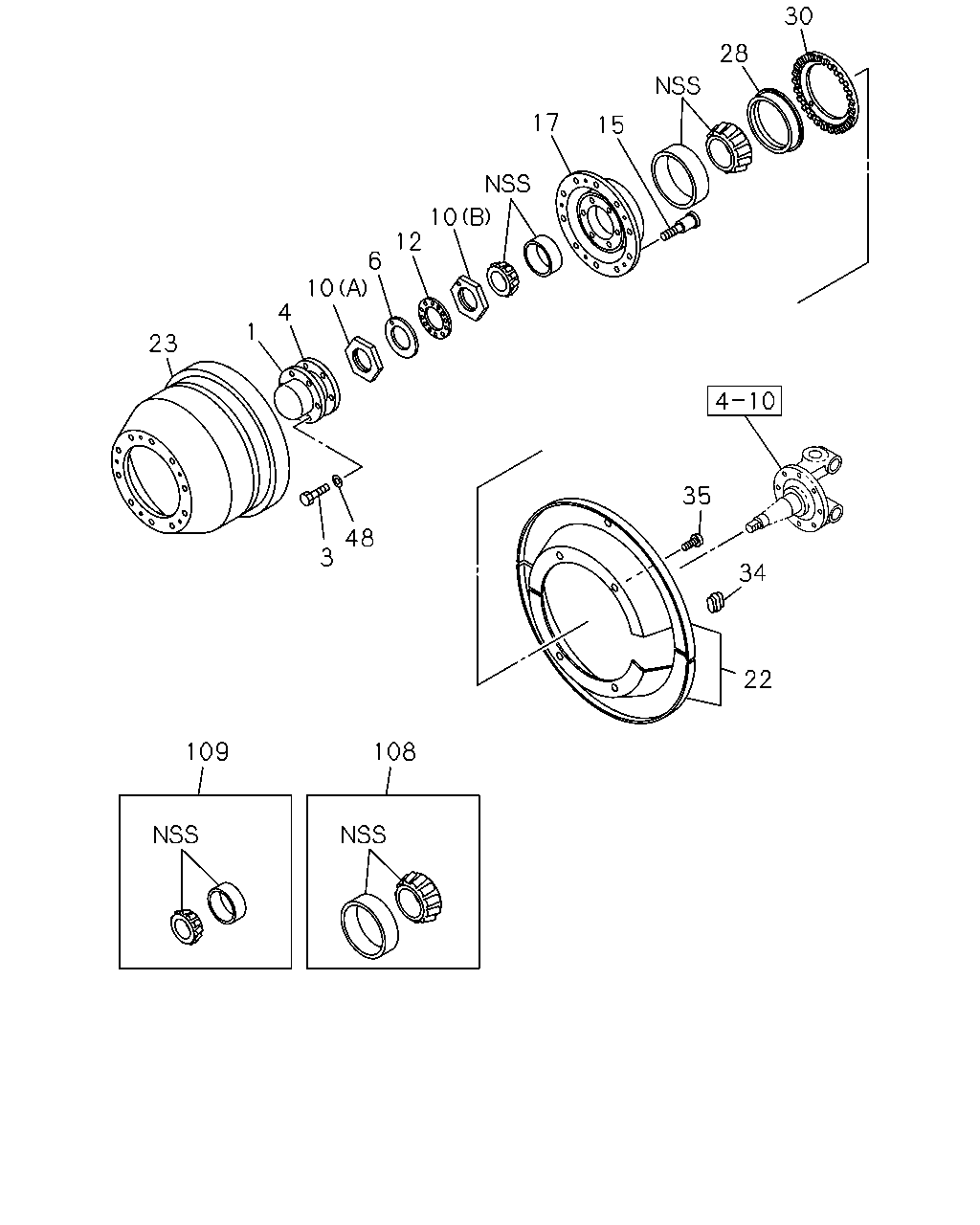

çizim 319158
30 28 15 17 10 12 6 10 4 1 23 48 3 35 34 22 108 109
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAP; HUB,FRT AXLE 1-42313-028-0 02 1 0710-1005 ●
1 CAP; HUB,FRT AXLE 1-42313-028-0 02 1 1006-1507 ● ●
1 CAP; HUB,FRT AXLE 8-98329-296-0 02 1 1508- ● ●
3 BOLT; HUB CAP,FRT WHEEL 1-42319-189-0 12 1 0710-1005 ●
3 BOLT; HUB CAP,FRT WHEEL 1-42319-189-0 12 1 1006- ● ●
4 GASKET; HUB CAP,FRT WHEEL 1-42319-186-0 02 1 0710-1005 ●
4 GASKET; HUB CAP,FRT WHEEL 1-42319-186-0 02 1 1006-1507 ● ●
4 GASKET; HUB CAP,FRT WHEEL 8-98329-302-0 02 1 1508- ● ●
6 WASHER; LK,FRT HUB 1-42329-018-0 02 1 0710-1005 ●
6 WASHER; LK,FRT HUB 1-42329-018-0 02 1 1006- ● ●
10 NUT; FRT HUB BRG
(A) 		1-42329-016-0 02 1 0710-1005 ●
10 NUT; FRT HUB BRG
(A) 		1-42329-016-0 02 1 1006- ● ●
10 NUT; FRT HUB BRG
(B) 		1-42329-017-0 02 1 0710-1005 ●
10 NUT; FRT HUB BRG
(B) 		1-42329-017-0 02 1 1006- ● ●
12 WASHER; LK,FRT HUB BRG 1-42329-015-0 02 1 0710-1005 ●
12 WASHER; LK,FRT HUB BRG 1-42329-015-0 02 1 1006- ● ●
15 PIN; WHEEL,FRT AXLE 1-42337-063-0 20 1 0710-1005 ●
15 PIN; WHEEL,FRT AXLE 1-42337-063-0 20 1 1006- ● ●
17 HUB; FRT AXLE 1-42311-163-0 02 1 1208- ● ●
22 COVER SET; FRT BRK DRUM 1-47151-877-0 02 1 0710-1005 ●
22 COVER SET; FRT BRK DRUM 1-47151-877-0 02 1 1006- ● ●
23 DRUM; BRK,FRT 1-42315-412-0 02 1 0710-1005 ●
23 DRUM; BRK,FRT 1-42315-412-0 02 1 1006-1207 ● ●
23 DRUM; BRK,FRT 1-42315-421-0 02 1 1208- ● ●
28 SEAL; OIL,FRT HUB 1-09625-636-0 02 1 0710-1005 ●
28 SEAL; OIL,FRT HUB 1-09625-636-0 02 1 1006- ● ●
30 RING; EXCITER,FRT HUB 1-42319-223-0 02 1 1208- ● ●
34 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 0710-1005 ●
34 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 1006- ● ●
35 BOLT; DRUM COVER 1-47159-176-0 12 1 0710-1005 ●
35 BOLT; DRUM COVER 1-47159-176-0 12 1 1006- ● ●
48 WASHER; LK,HUB CAP,FRT WHEEL 1-42319-190-0 12 1 0710-1005 ●
48 WASHER; LK,HUB CAP,FRT WHEEL 1-42319-190-0 12 1 1006-1507 ● ●
48 WASHER; LK,HUB CAP,FRT WHEEL 1-41519-055-0 12 1 1508- ● ●
108 BEARING SET; HUB,INNER 1-85573-010-0 02 1 0710- ● ●
109 BEARING SET; HUB,OUTER 1-85573-011-0 02 1 0710- ● ●
